Professional Manufacturer Supercritical CO2 Extraction Machine High Purity Herbal Essential Oil Extractor For Sale
- Category: >>>
- Supplier: Liaoyang Wanda Machinery Co. Ltd.
Share on (1600977291874):
Product Overview
Description
Product Overview
Best Price Supercritical Carbon Dioxide Essential Oil Extractor Equipment Super Critical CO2 Fluid Extraction Machine
The supercritical fluid CO2 extraction machine is a new-type separation technology in modern chemical separation.The supercritical extraction takes CO2 as the solvent. As CO2 fluid under super critical state has larger density and dielectric constant, larger dissolvability against substances, which can change abruptly when pressure and temperature change therefore it has not only the selection of dissolvability against some substances, the separation of the solvent with the extracted substances is also easily.
The super critical CO2 extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with the high boiling point, and is suitable for fine separation of different components, i.e. Super critical fine distillation.
Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological production, foodstuff, etc.The device mainly consists of extraction kettle, separation kettle, fine distillation column,CO2 high pressure pump, entrainer pump, refrigeration system, heat exchange system, purifying system, pressure stabilizing system of extraction kettle, CO2 tank, flow meter, temperature and pressure control (protection) system etc.
FEATURES AT A GLANCE
1) Easy to operate and adjust
2) Well selectivity.
3) Low operating temperature.
4) Finish within one step, CO2 won't be left on the products
5) CO2 is one kind gas of non-poisonous, tasteless, inflammable, cheap and can be cycle use.
6) Quick extraction speed.

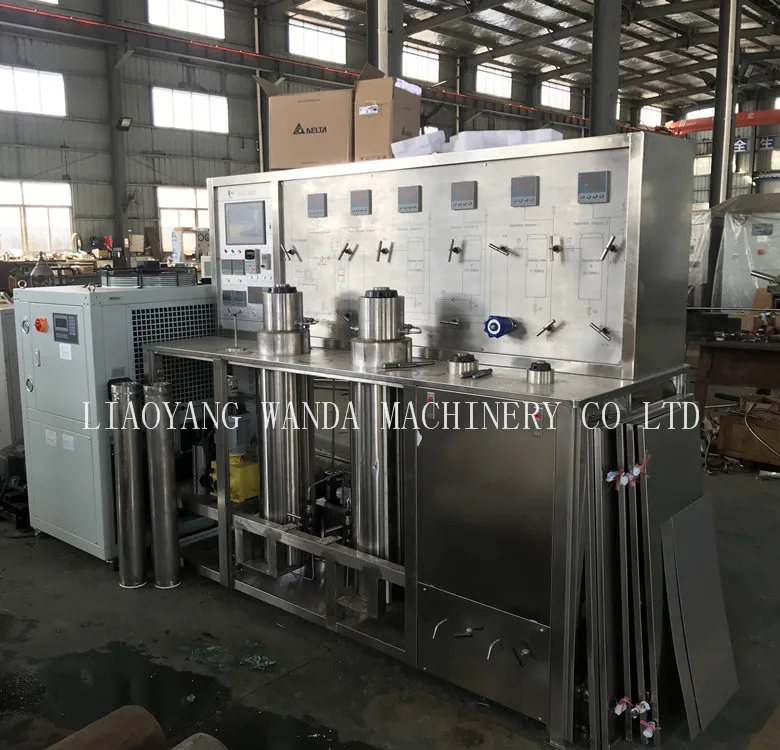

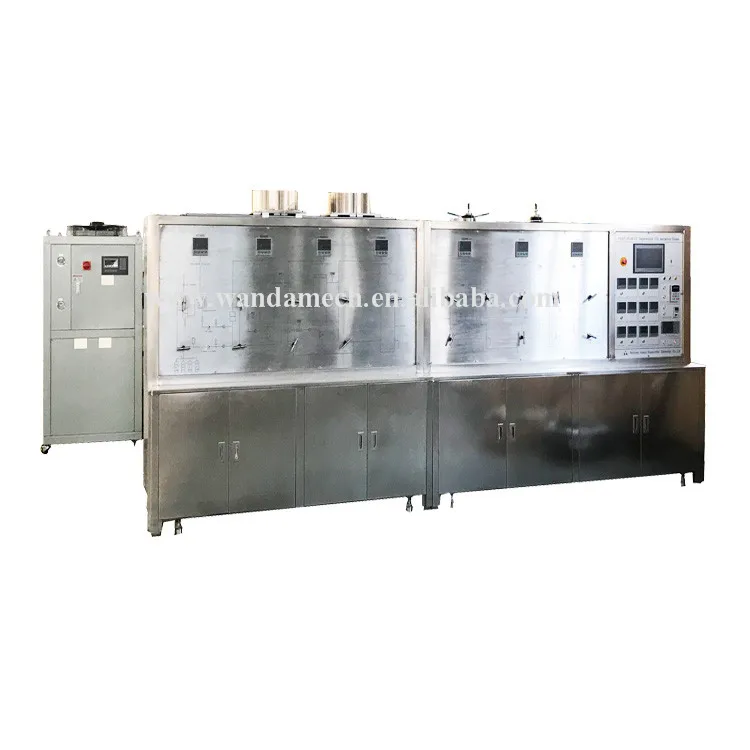

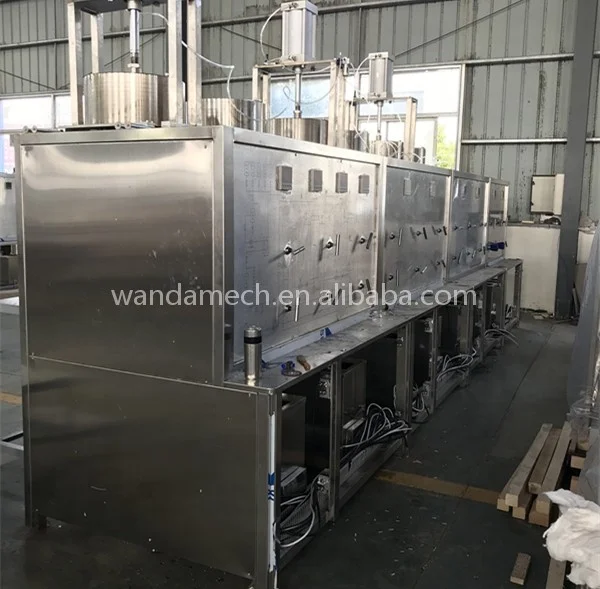

Side view

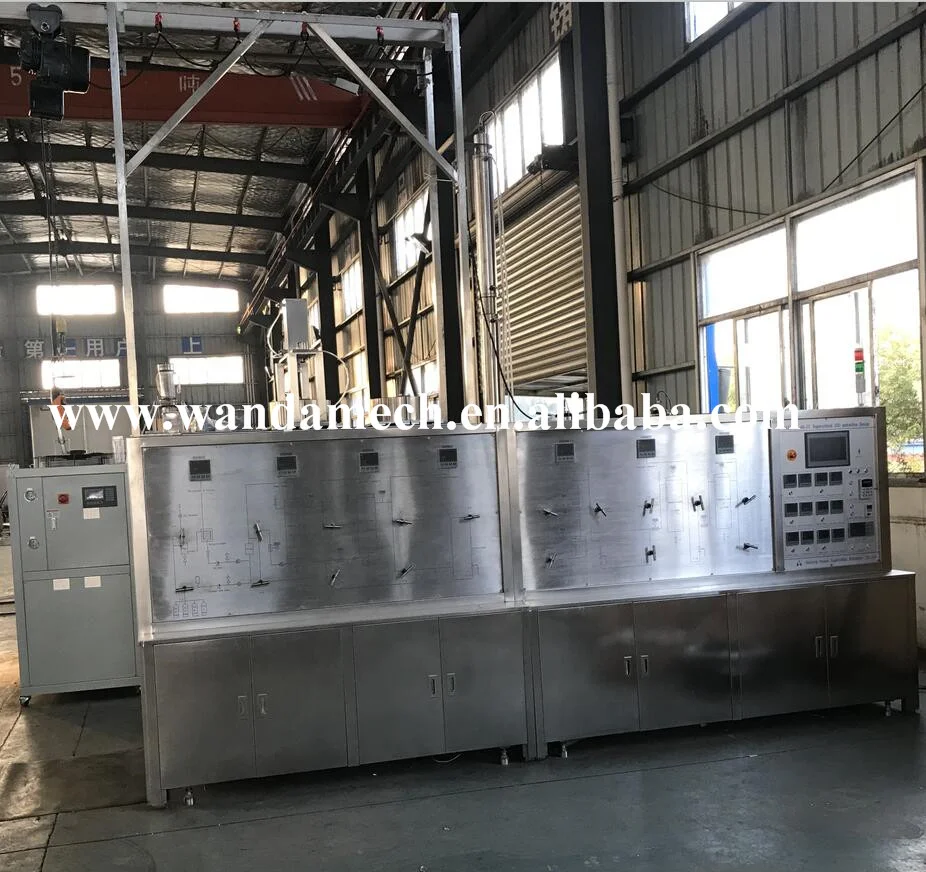

Front view

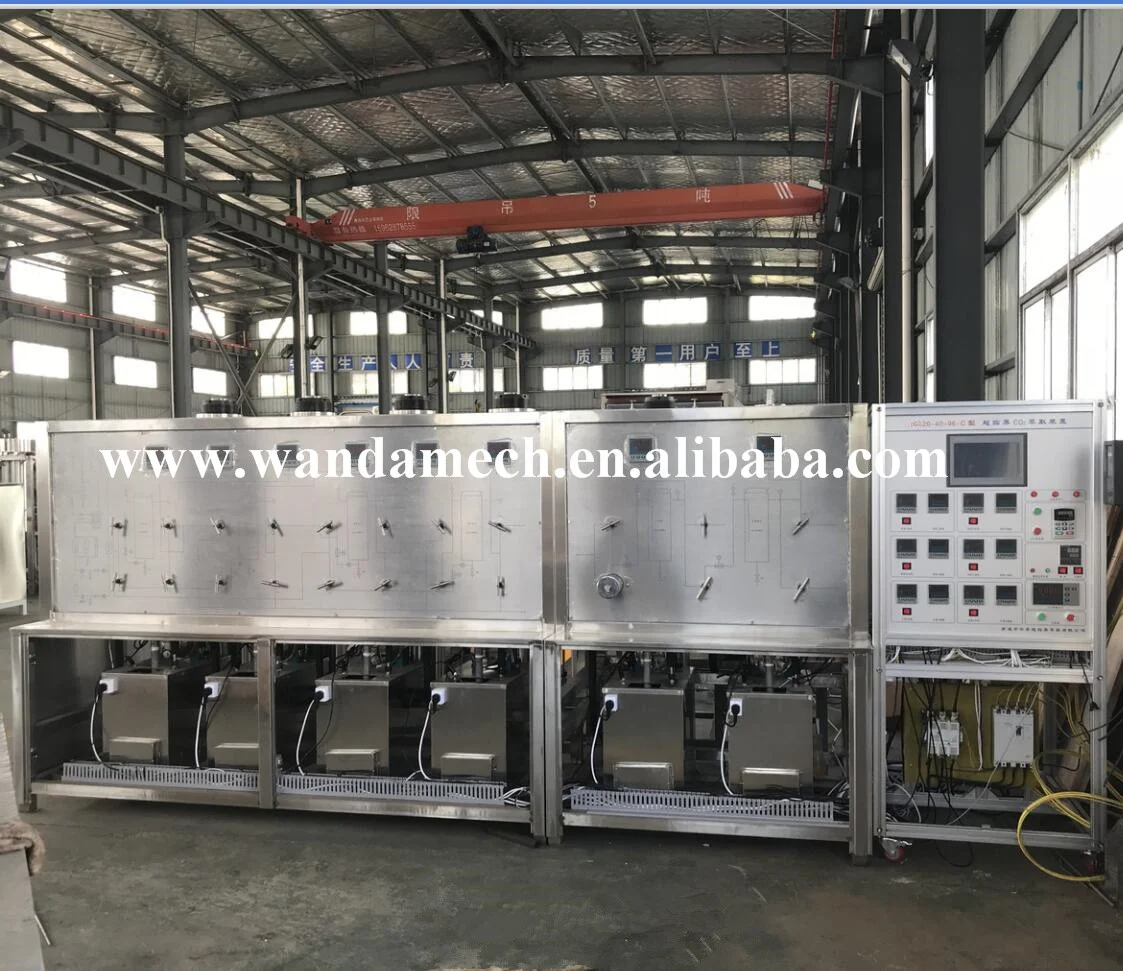

Back view

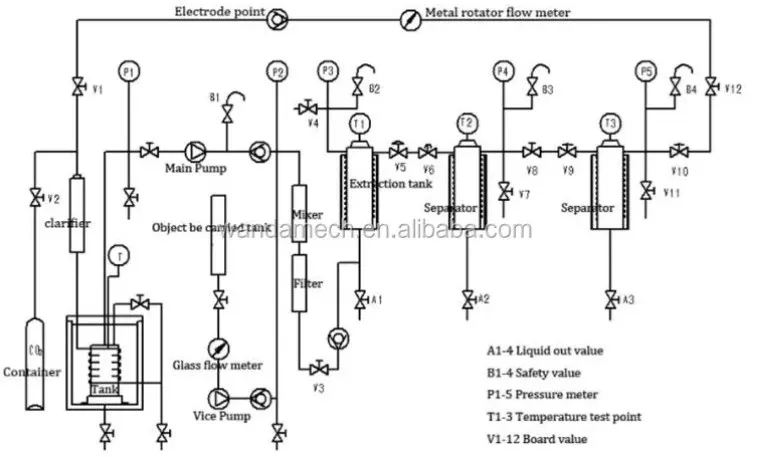

Working Principle
Supercritical fluid extraction and separation process is based on the relationship between the solubility of supercritical fluid and its density, that is, the influence of pressure and temperature on the solubility of supercritical fluid. When the gas is in the supercritical state, it becomes a single phase state with properties between liquid and gas, and has a density similar to that of liquid. Although the viscosity is higher than that of gas, it is obviously lower than that of liquid, and the diffusion coefficient is 10-100 times of that of liquid. Therefore, it has good permeability and strong solubility to the material, and can extract some components from the material. In the supercritical state, the supercritical fluid is contacted with the substance to be separated to selectively extract the components of polarity, boiling point and relative molecular weight in turn. The density and dielectric constant of supercritical fluid increase with the increase of pressure, and the polarity of supercritical fluid increases. Of course, the extract corresponding to each pressure range can not be single, but the best proportion of mixed components can be obtained by controlling the conditions. Then, the supercritical fluid is transformed into a common gas phase by means of decompression and heating, and the extracted substances are completely or basically separated automatically, so as to achieve the purpose of separation and purification.

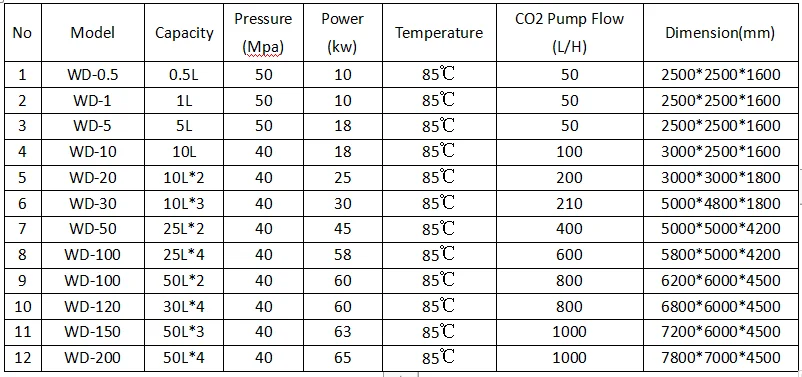

PRODUCT SPECIFICATIONS
* We also supply the corresponding accessory equipment |
APPLICATION SCOPE
High-tech industry
1. Extracting effective ingredient
2. Concentration and purification ingredients
3. Separating and purification of fatty mixtures
4. Removing of organic solvents
Food industry
1. Separating of bacteria
2. Extracting of essence and flavor
3. Extracting of animal fat, plant fat and fatty solubility ingredients
4. Extracting of plant alkali
5. Extracting of food colorant
6. Removing odor, color, acid and organic solvents
Chemical industry
1. Separating of hydrocarbon
2. Purification of chemical synthesis material
3. Separating of co-boiling mixture
4. Recovery of reacted material
5. Dehydration of water soluble power of organic solution
Cosmetics industry
1. Extracting of essence and flavor
2. Purification of essence and flavor
1. Extracting of essence and flavor
2. Purification of essence and flavor
Petroleum industry
1. Separating of oil and residual oil
1. Separating of oil and residual oil
2. Clean of oil core
3.The regeneration of the lubricating oilEnvironmental industry
1. Removing harmful metal ion from matenal soil and radiation waste water
2. Fine cleaning

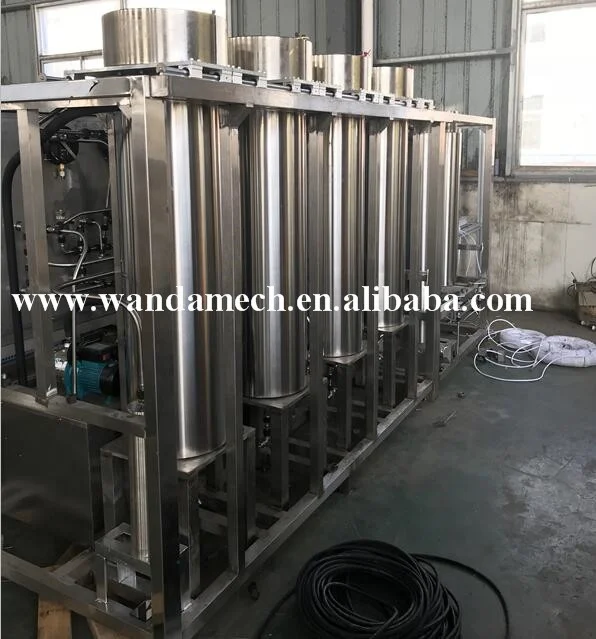

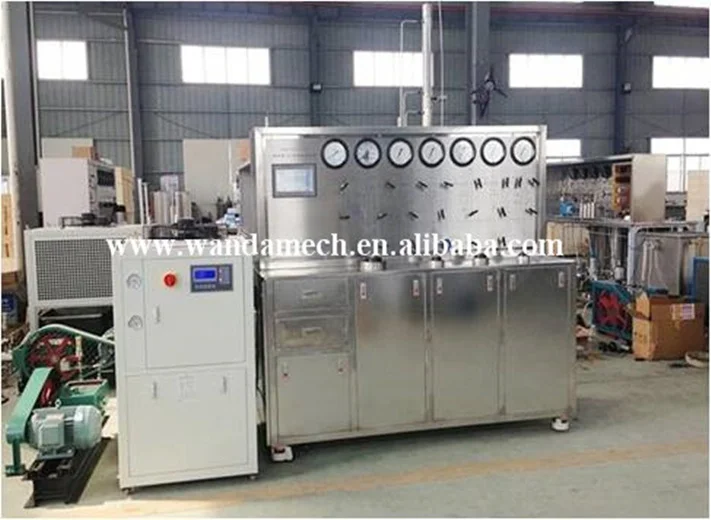

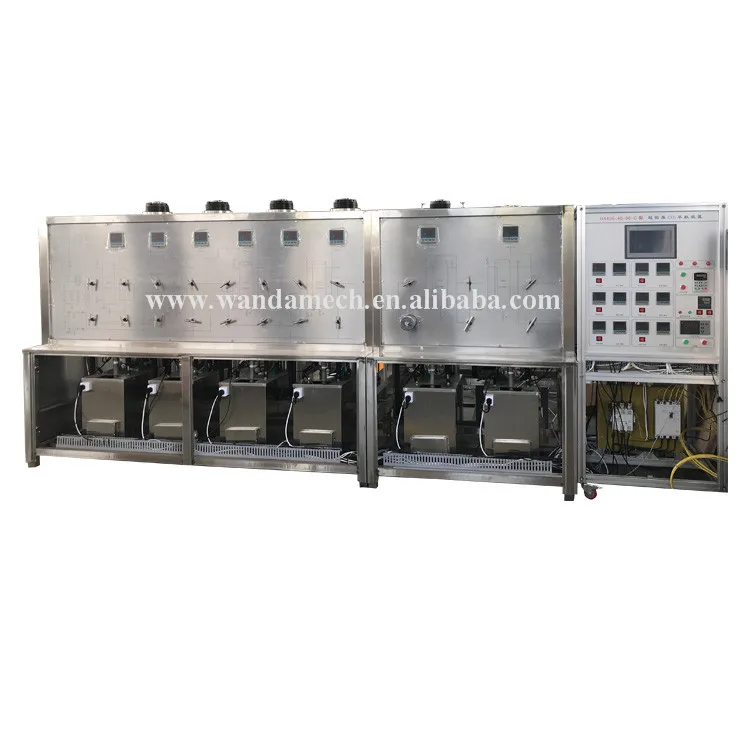

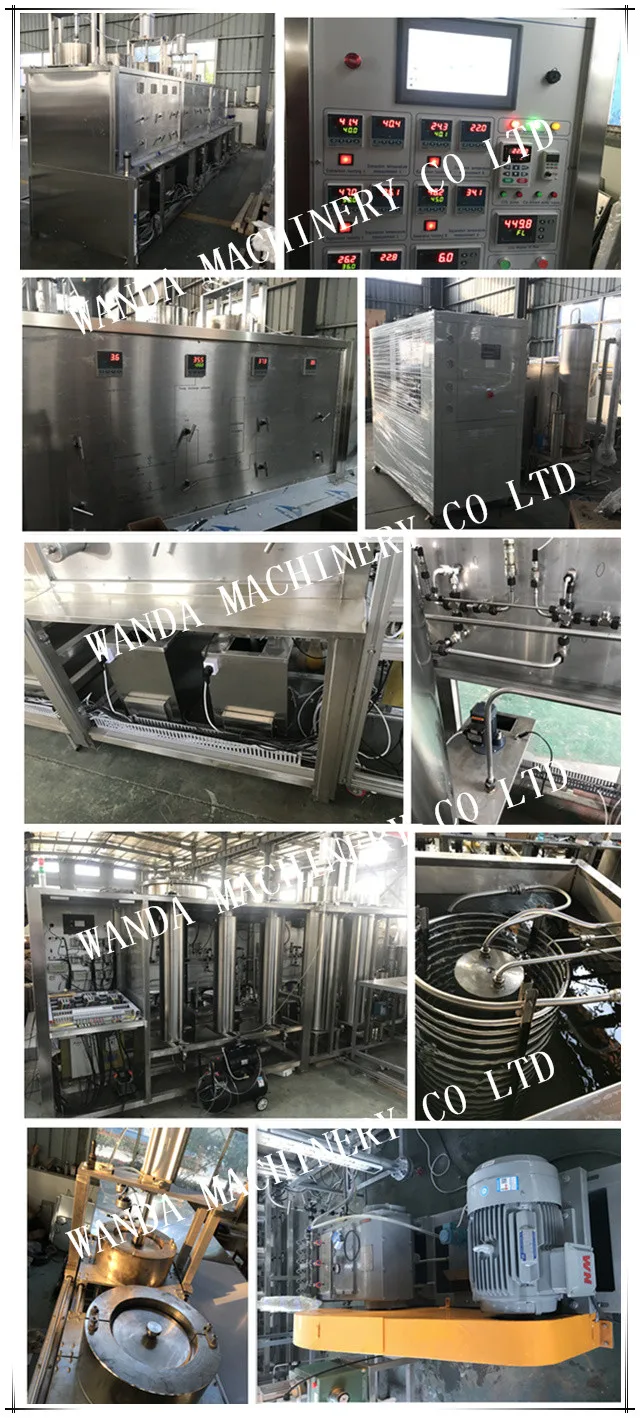

Product More Pictures

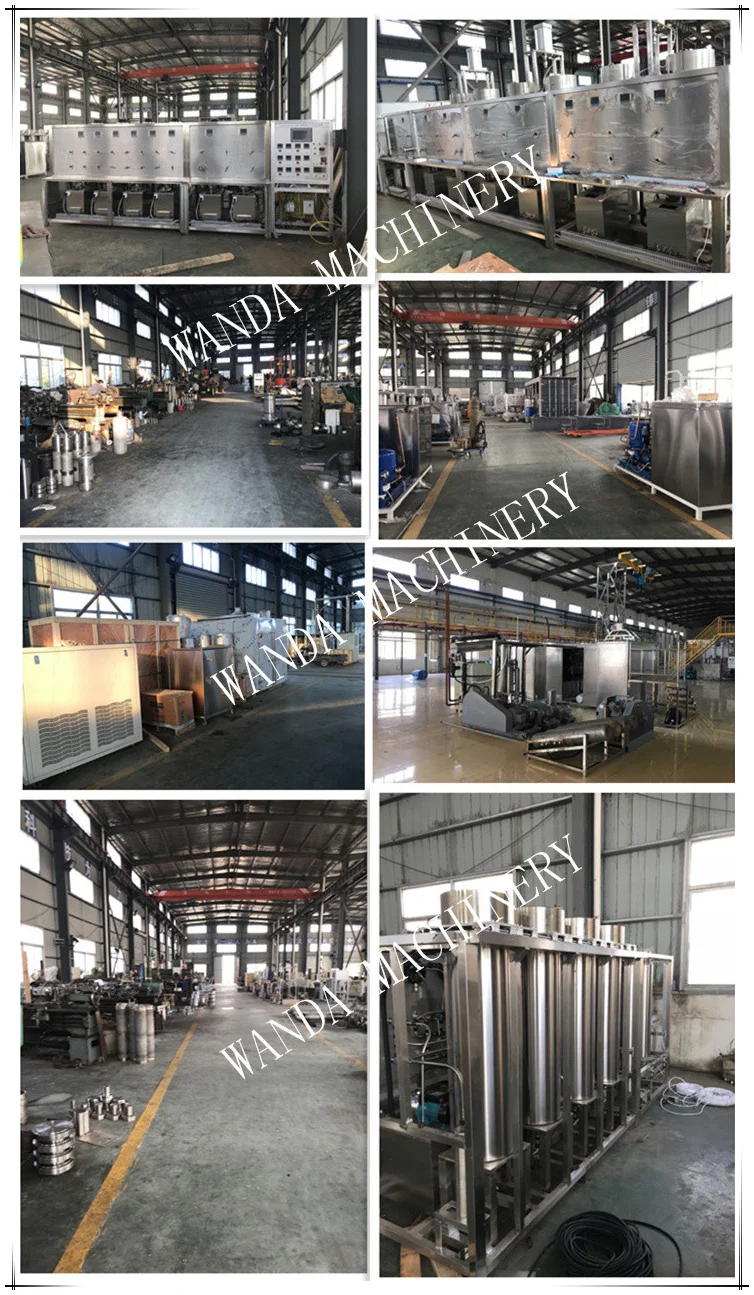

Company Profile
LIAOYANG WANDA MACHINERY CO.,LTD specializes in R&D, manufacturing, operation, export and related services of supercritical CO2 extraction machine and its its supporting equipment, various types of industrial centrifuge machines, drying equipment, mixer machines, crushers, granulation machines, packing machines etc. The production base is located in Liaoyang City, Liaoning Province, China. Our mechanical equipment products can be widely used in food, chemical, petrochemical, light industry, heavy industry, printing and dyeing industry, feed industry, fertilizer industry, high-tech industry, etc., has been widely welcomed and praised.
Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.
Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The excellent quality machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
SIMILAR PRODUCTS
FAQ
1. What data is required to confirm the model?
(1) Materials to be extracted (2) Treatment capacity per batch
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Sure, we sincerely invite you to visit
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
(1) Materials to be extracted (2) Treatment capacity per batch
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Sure, we sincerely invite you to visit
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
