Commercial ES200 open glass door automatic sliding door mechanism operator system
- Category: >>>
- Supplier: Guangzhou Caesar Door Control Co. Ltd.
Share on (1600977299628):
Product Overview
Description
Products Show

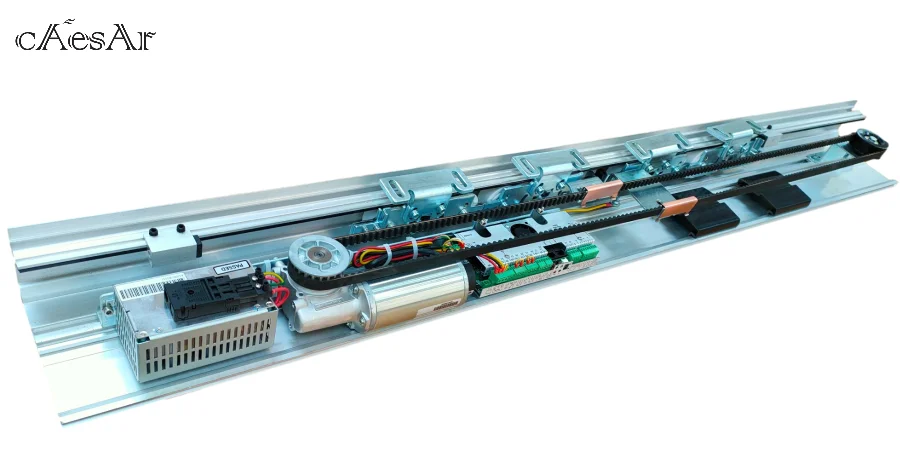

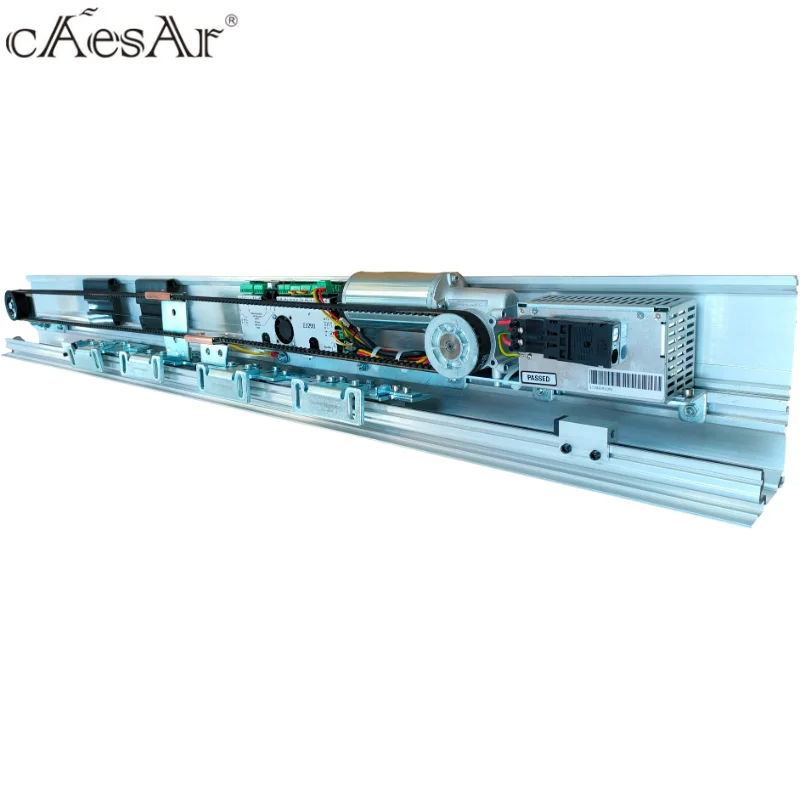

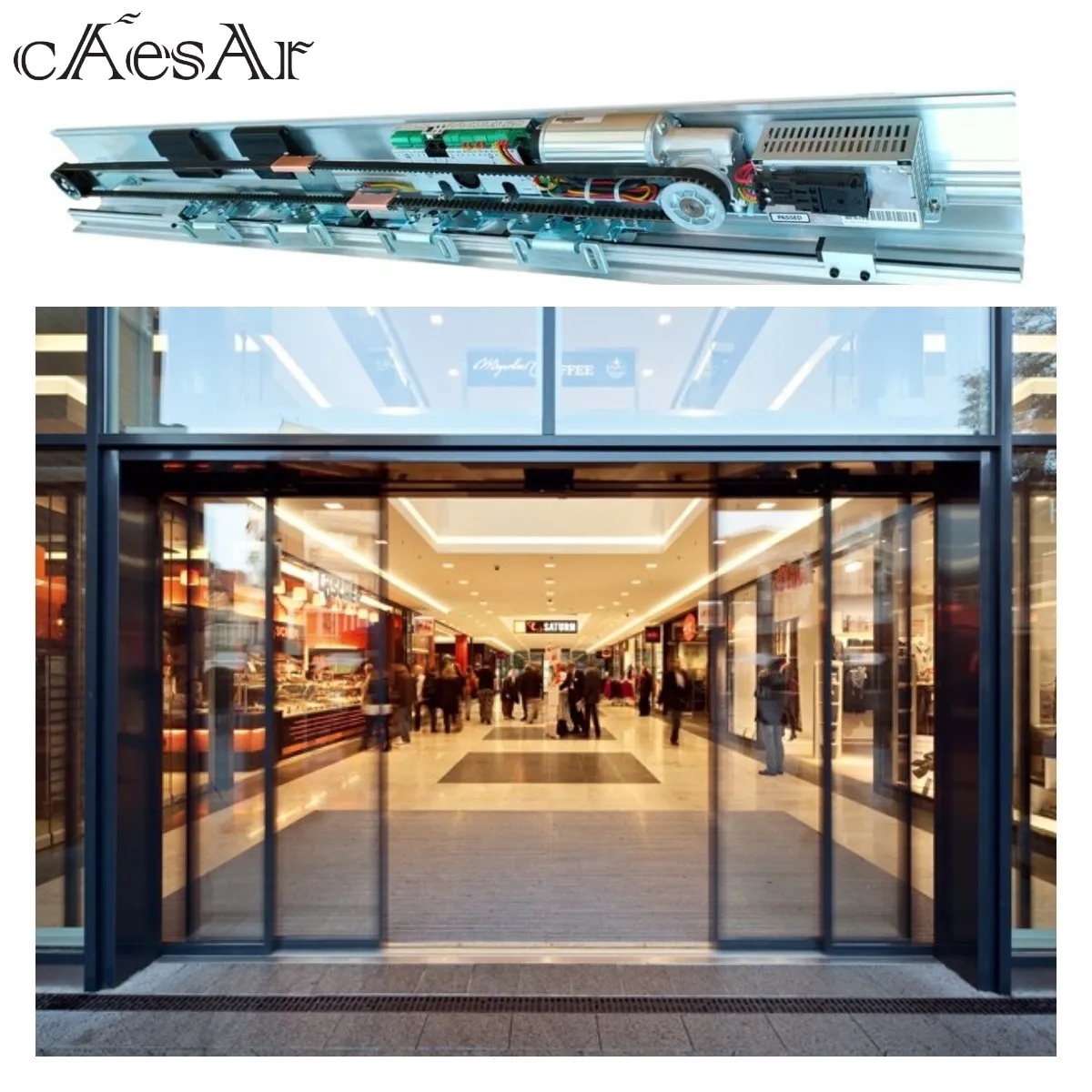

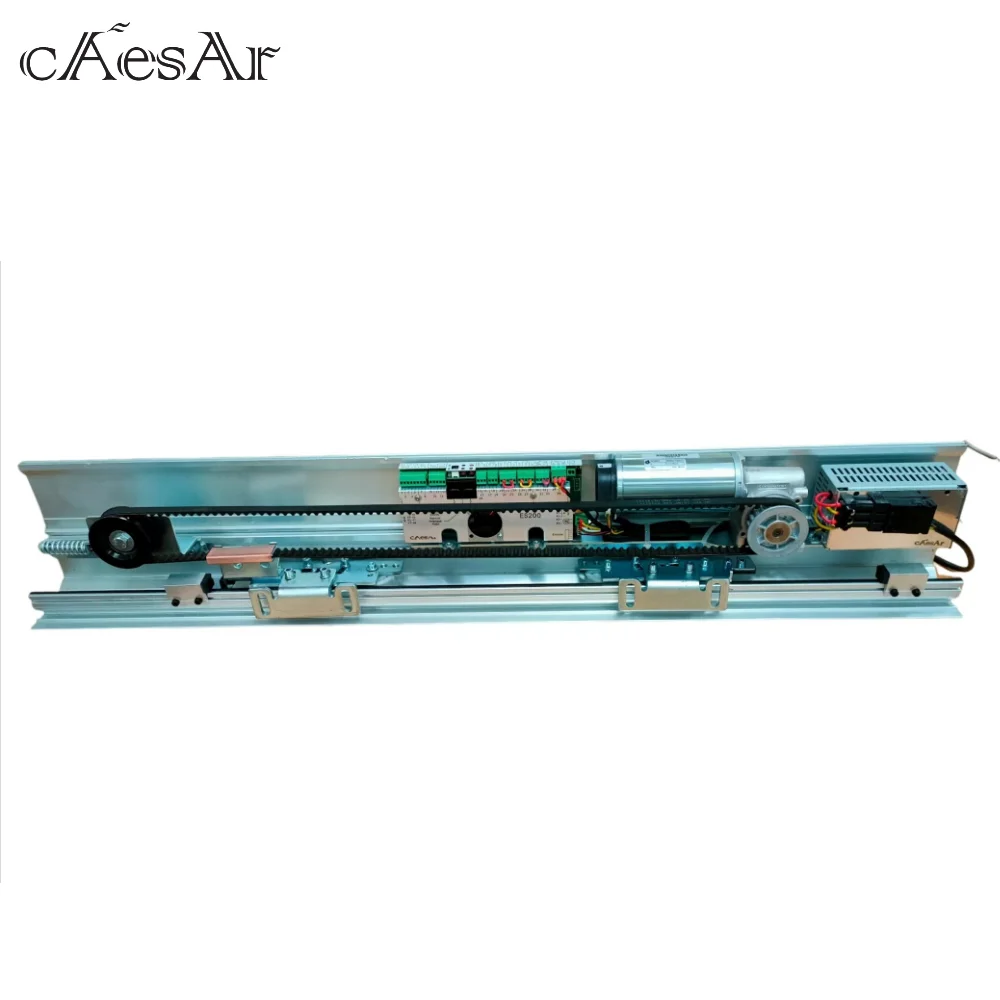

Commercial ES200 open glass door automatic sliding door mechanism operator system
Caesar ES200 automatic door operator, derived from German technology, in line with EN10065:2012 European safety standards, CE, RoHS and FCC international certification, using international famous brand Germany Dunker motor, powerful, safe and reliable, excellent quality, hot sale to More than 100 countries around the world.
The ES200 is an elegant and fuctional unit that has been designed to meet the requirements of every automatic door application.

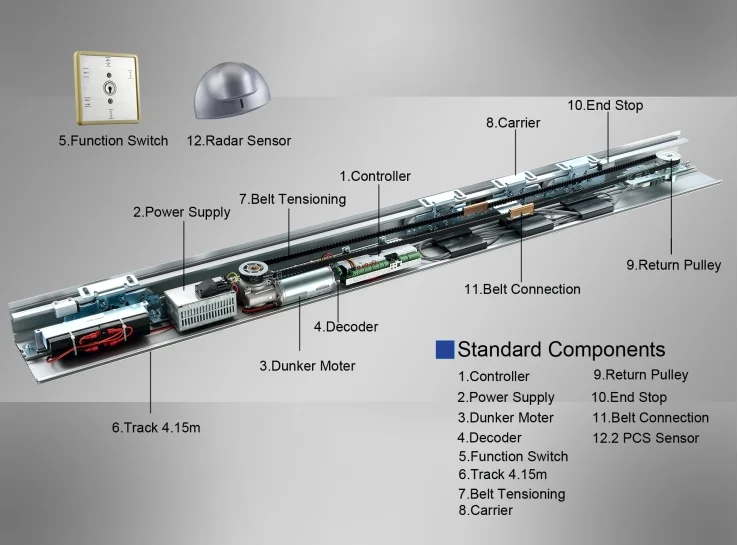

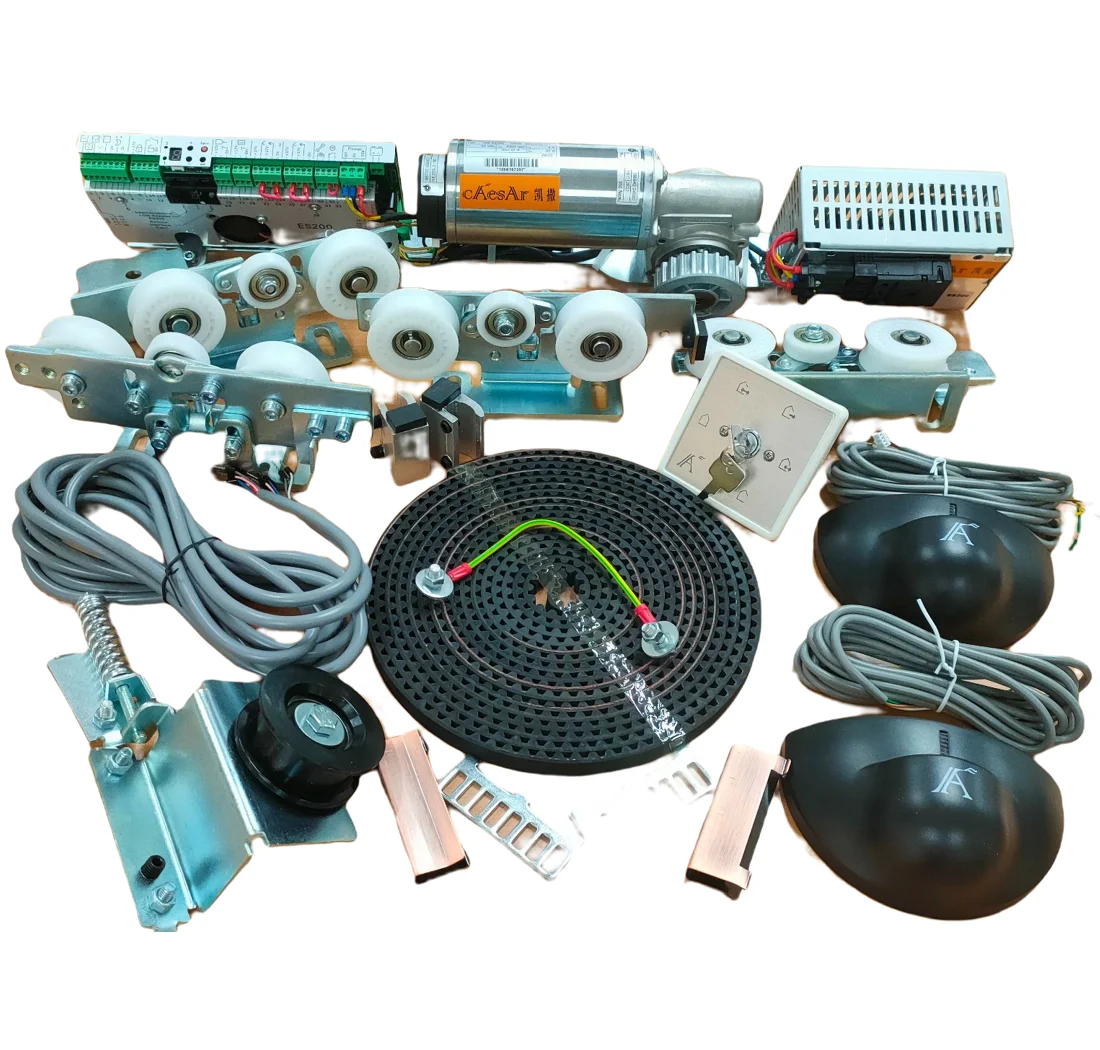

Standard ES200 automatic door operators includes: (parts and track are packaged separately)
1.Motor(Dunker GR 63x55) 2.Control board 3.Power supply 4.Key switch
1.Motor(Dunker GR 63x55) 2.Control board 3.Power supply 4.Key switch
5.Radar sensor ×2 6.Carrier ×4 7.Return pulley 8.End stop ×2
9.Belt connection 10.Driving belt 11.Track 4.15 meter(cut in half into 2 pcs)
Application:Framed/Frameless door
Technical Data
Opening width of a single moving door: 700-3000 mm
Maximum bearing of single moving door: 200 kg
Opening width of double moving door: 900 – 3000 mm
Maximum bearing capacity of double moving door: 160 kg x2
Door machine height: 150mm
Installation depth: 180mm
On / close speed: 10-80 cm/s (adjustable)
Open hold time: 0-60s (adjustable)
Closed strength: 150N
Power input: AC 220V, 50 / 60 Hz
Power consumption: <150W>
Maximum bearing of single moving door: 200 kg
Opening width of double moving door: 900 – 3000 mm
Maximum bearing capacity of double moving door: 160 kg x2
Door machine height: 150mm
Installation depth: 180mm
On / close speed: 10-80 cm/s (adjustable)
Open hold time: 0-60s (adjustable)
Closed strength: 150N
Power input: AC 220V, 50 / 60 Hz
Power consumption: <150W>
Products Advantages
1.Powerful motor.Original German brand Dunkermotoren motor,Same as Dorma ES200,and all parts 100% can be replaced dorma es200 directly.
2.Long service life.Tested for more than 5 years.

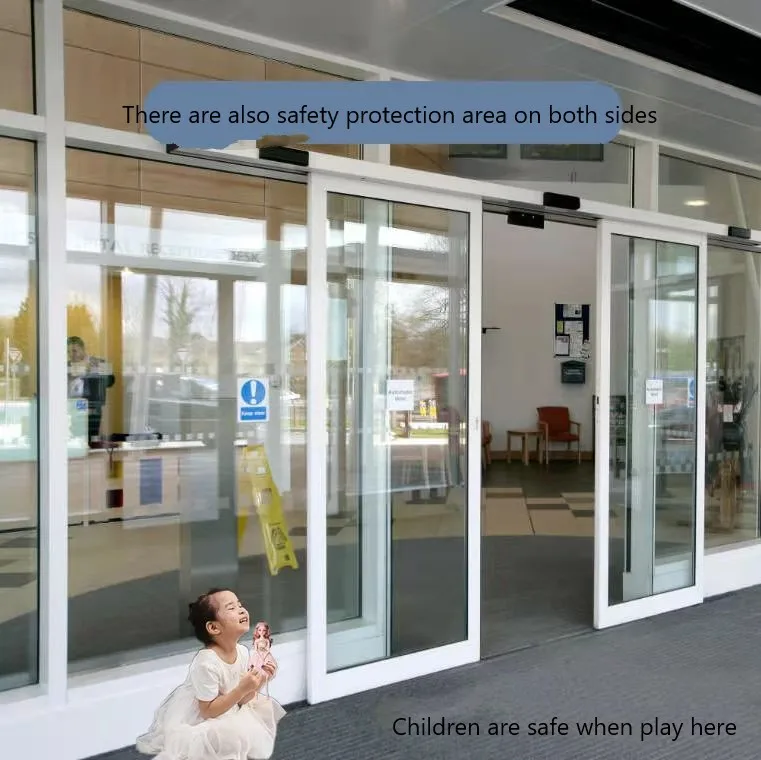

3.Safety.No any sensitive safety equipment although, When meet a balloon, door panels will reverse softly.

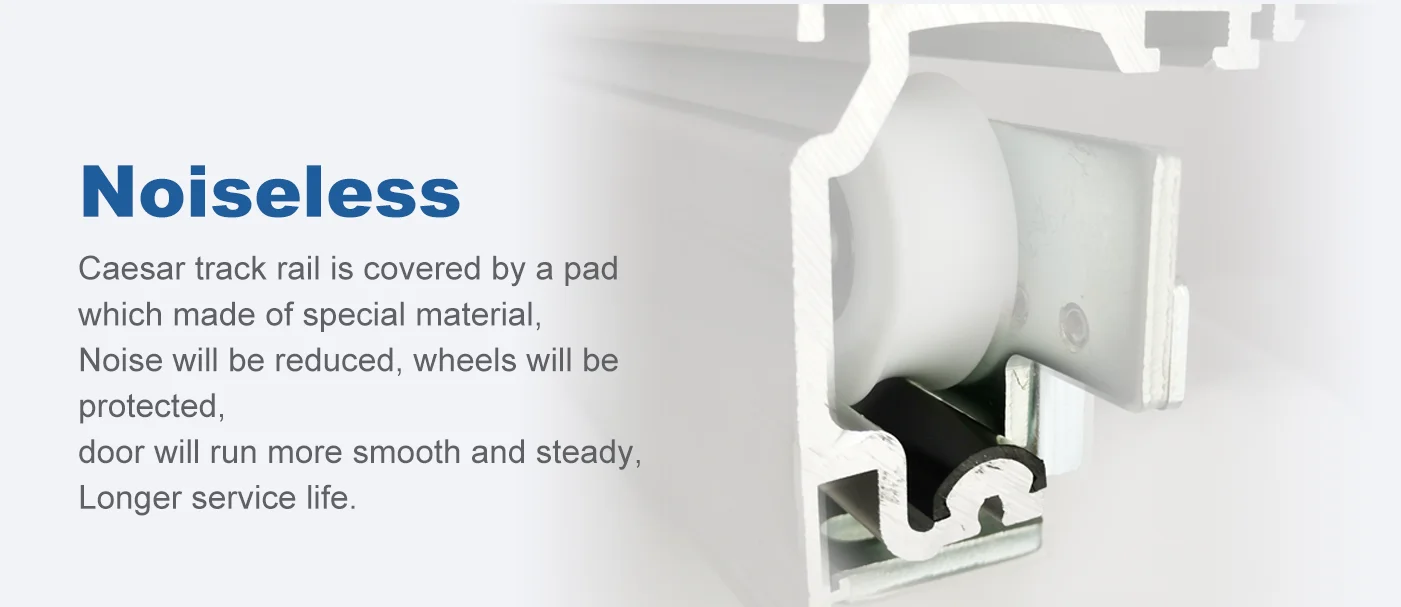

4.Silent.The track rail is coved by a pad which can reduce noise and protect wheels.
5.Mobile phone wifi app control.(Optional)

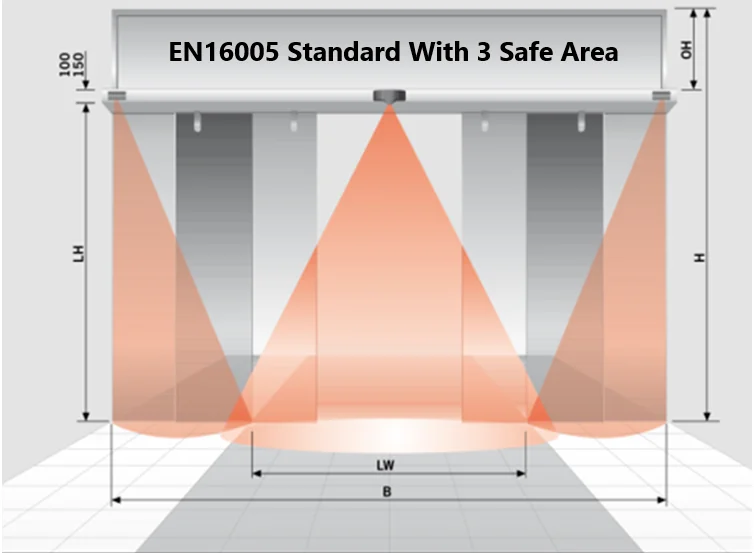

6.In line with European safety standard EN16005 and DIN18650.(Optional)
7.80-250v power supply.
2.Long service life.Tested for more than 5 years.
3.Safety.No any sensitive safety equipment although, When meet a balloon, door panels will reverse softly.
4.Silent.The track rail is coved by a pad which can reduce noise and protect wheels.
5.Mobile phone wifi app control.(Optional)
6.In line with European safety standard EN16005 and DIN18650.(Optional)
7.80-250v power supply.
Optional component

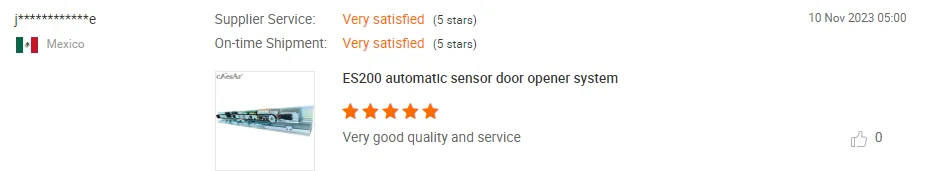

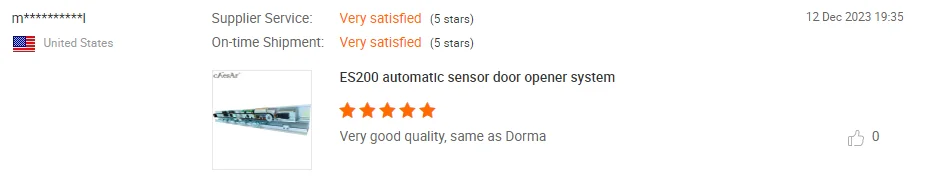

Customer reviews
