Deep Cycle Rechargeable Batteries 12v 200ah Lithium Iron Phosphate Battery
Deep Cycle Rechargeable Batteries 12v 200ah Lithium Iron Phosphate Battery
Deep Cycle Rechargeable Batteries 12v 200ah Lithium Iron Phosphate Battery
Deep Cycle Rechargeable Batteries 12v 200ah Lithium Iron Phosphate Battery
Deep Cycle Rechargeable Batteries 12v 200ah Lithium Iron Phosphate Battery
Deep Cycle Rechargeable Batteries 12v 200ah Lithium Iron Phosphate Battery
Deep Cycle Rechargeable Batteries 12v 200ah Lithium Iron Phosphate Battery

Deep Cycle Rechargeable Batteries 12v 200ah Lithium Iron Phosphate Battery

Share on (1600977315949):


Price:

Quantity:


Product Overview

Description



Products Description


Lithium iron phosphate batteries, as positive electrode materials, extend their cycling life and have good safety performance. The embedded BMS provides voltage, current, temperature protection, and alarm functions. The power system has a secondary cut-off protection, and when the voltage is too low, the system will cut off the power support to protect the battery's lifespan. Under normal operating conditions, the noise emitted by the entire system is very low due to the use of passive cooling design.










Product Parameters & Workflow

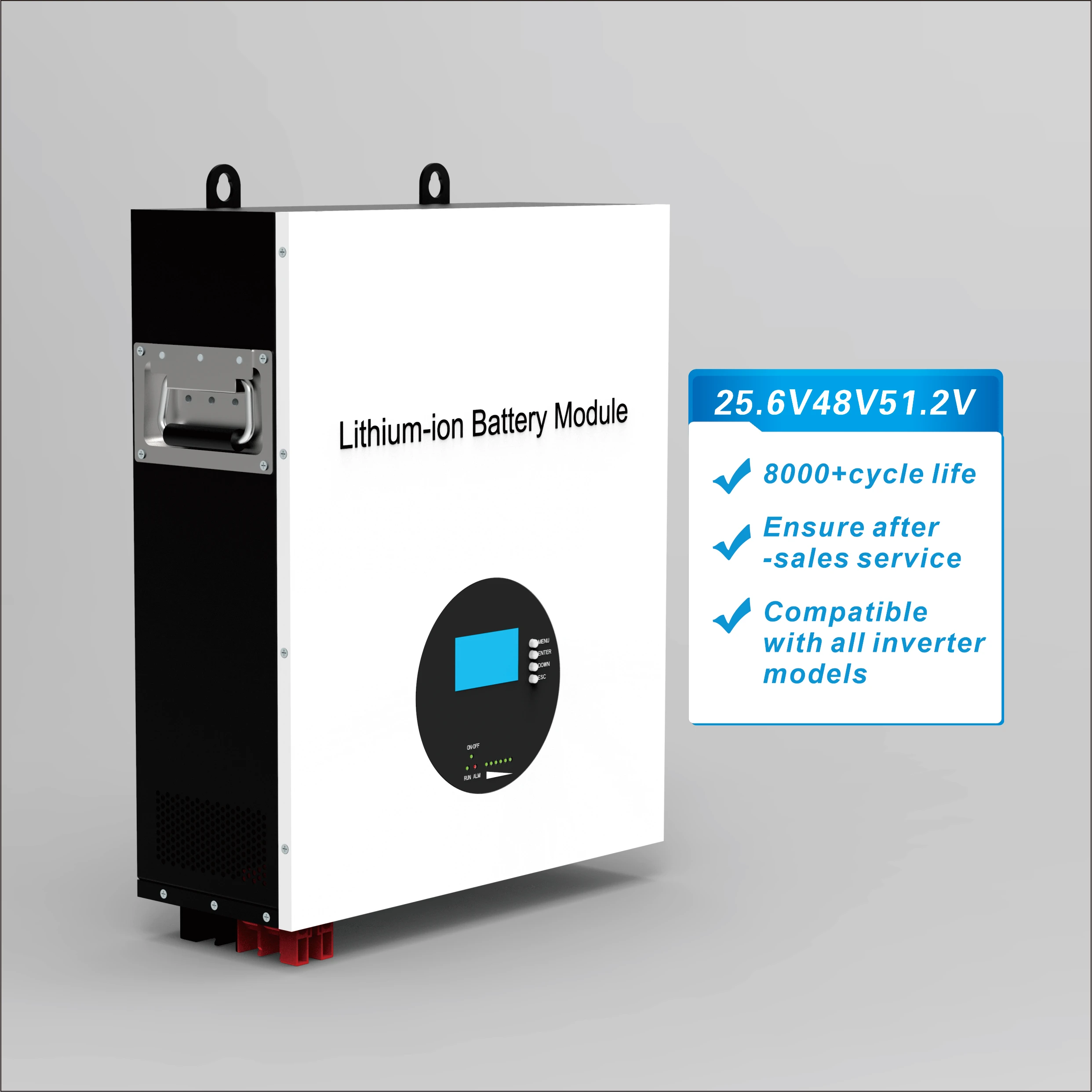

48V LiFePO4 Wall Mount Battery Parameters


MODEL
ZW4850
ZW48100
ZW48150
ZW48200



Electrical Characteristics
Rate voltage (Vdc)
48
Rate capacity (AH)
50
100
150
200
Energy storage (KWH)
2.4
4.8
7.2
9.6
Cycle life
≥6000 cycles to 85% DOD
Months self discharge
≤2%
Efficiency of charge
100% at 0.2C
Efficiency of discharge
96-99% at 1C



Standard Charge
Charge voltage
54.75
Charge mode
0.2C to 54.8V, then 54.8V, charge current to 0.02C (CC/CV)
Charge current(A)
10
20
30
40
Max. Charge current(A)
50
100
120
200
Charge cut-off voltage(VDC)
54.8

Standard Discharge
Contiunous current(A)
50
100
120
200
Discharge cut-off voltage(VDC)
42

Environmental
Charge temperature
0℃to 45℃(32F to 113F)@60±25% Relative Humidity
Discharge temperature
-20℃to 60℃(-4F to 140F)@60±25% Relative Humidity
Storage temperature
0℃to40℃(32F to 104F)@60±25% Relative Humidity









Mechanical
IP class
IP60
Material system
LiFePO4
Case material
Metal
Case Type
Rack/Wall Mount
Pack Dimensions L"W"H(mm)
525*390*150
471*375*147
680*545*155
590*375*245
Package Dimension L"W'H(mm)
610*485*250
575*490*255
760*625*240
685*470*350
Net Weight(kg)
37.7
39.2
66
78.8
Gross Weighi(kg)
39.7
42.6
62
81.5
Terminal
M8
Protocol (Optional)
CANBus/RS485/RS232
SOC(Optional)
LED/LCD
The quality assurance period
60 months




After being upgraded, this wall mounted battery can maintain a lifespan of more than 10 years in an environment of 25 ℃, and its overall weight is lighter. Tested and compatible with all brands of inverters. If you have any other concerns, please feel free to contact me at any time.






Company Introduction


Henan Zhuowei New Energy Technology Co., Ltd. is a manufacturing factory that integrates design, research and development, production, and sales, focusing on producing new energy products for over 20 years. Its wall mounted lithium batteries, solar panels, stacked lithium batteries, bracket lithium batteries, forklift lithium batteries and other products have been sold to 65 countries and regions including the United States, Germany, Czech Republic, Netherlands, Philippines, Malaysia, Japan, Brazil, Dominican Republic, Colombia, South Africa, Kenya, Tanzania, etc.

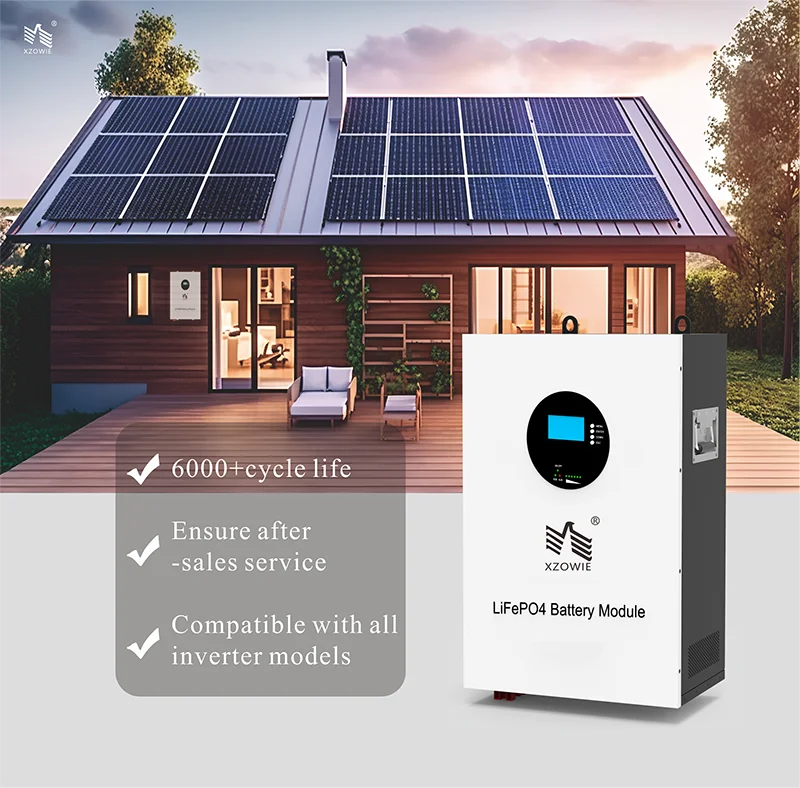

Application


Solar lithium batteries have high cost-effectiveness, energy conservation and environmental protection, and long cycle life. It can be used in multiple fields such as homes, companies, shops, industry, and new energy cycling.




Customer Feedback


Our sales personnel receive the most authentic feedback from our valued customers during their communication process.






Certificate




Packing &Transport




FAQ


Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Samples neeeds 7-15 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A.
1-Identify your needs requirements.
2-We will provide you with a quotation.
3-you confirms the samples and places a deposit for formal order.
4- We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. How about warranty?
A. 2 years warranty.
