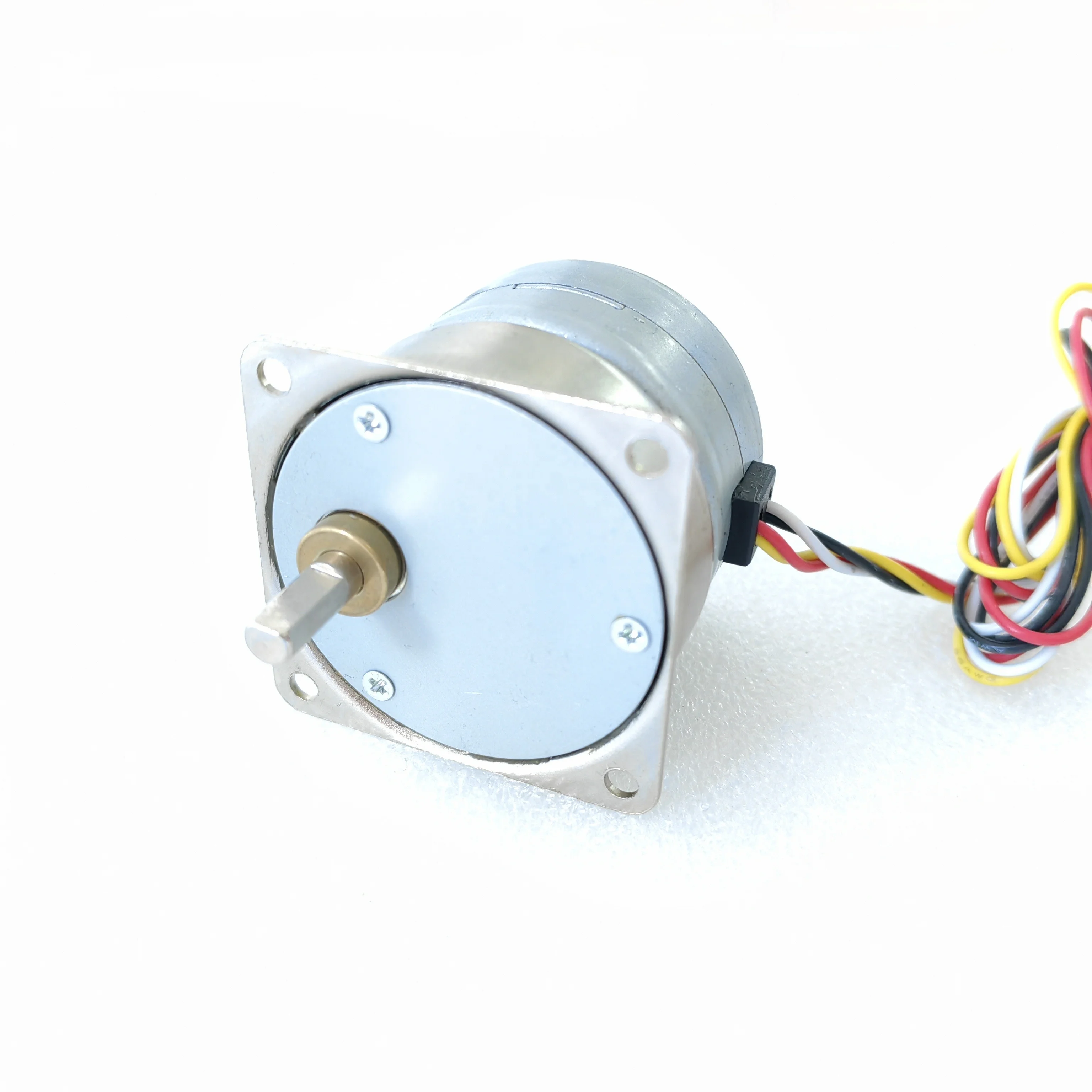

42BY PM gear reducing stepper motor 12VDC gear ratio 1/50 with 2 phase Unipolar for precise positioning
- Category: >>>
- Supplier: Changzhou Goot Motor-Tech Co. Ltd.
Share on (1600977323677):
Product Overview
Description
Products Description
Advantages of PM stepper motor :
Excellent open loop control - No encoders necessary
Digitally controlled - Easy to use with a micro processor
Cost effective - compact design, lower integration cost
Maintenance free - brushless structure, long service life
Winding possibilities - Bipolar, Unipolar
Digitally controlled - Easy to use with a micro processor
Cost effective - compact design, lower integration cost
Maintenance free - brushless structure, long service life
Winding possibilities - Bipolar, Unipolar

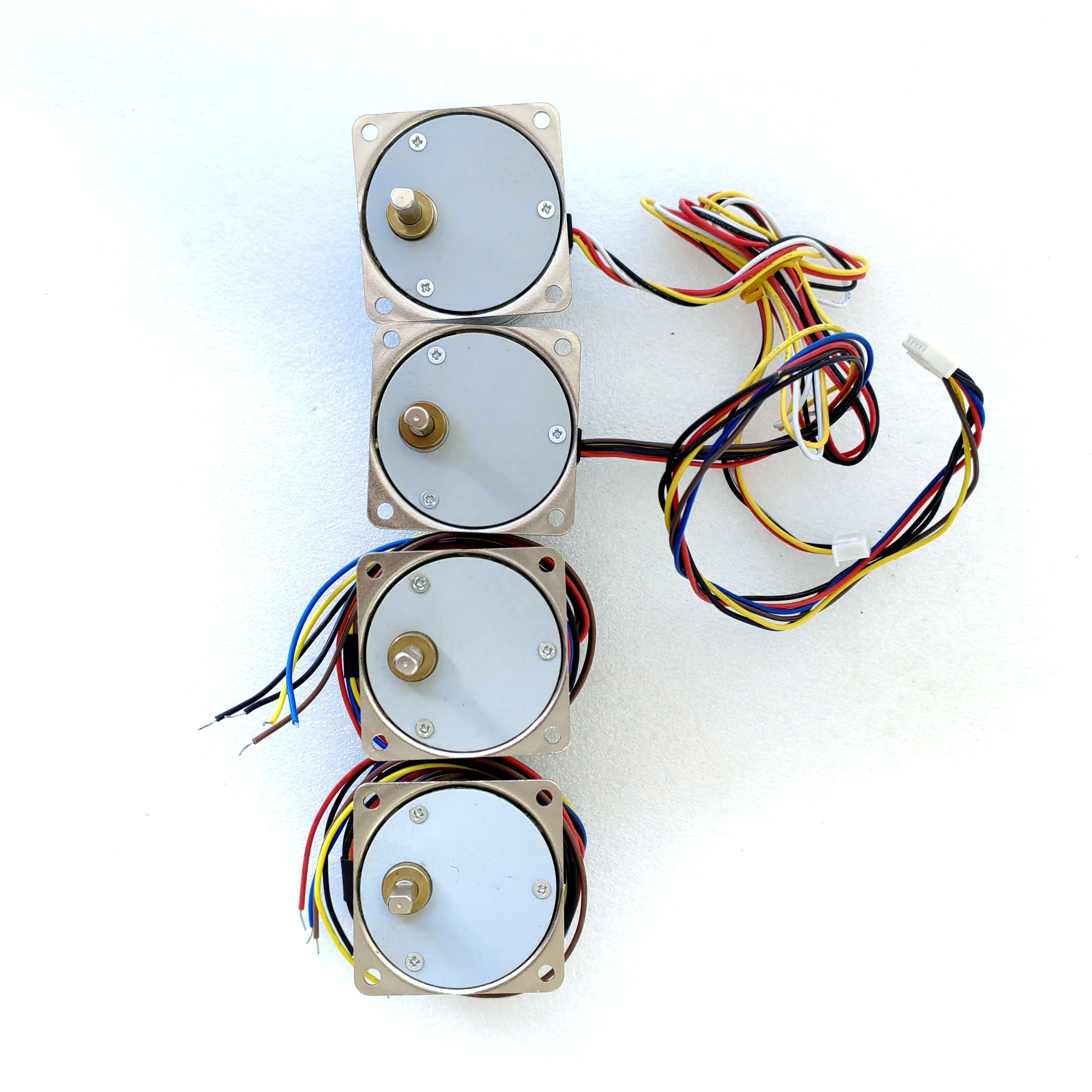

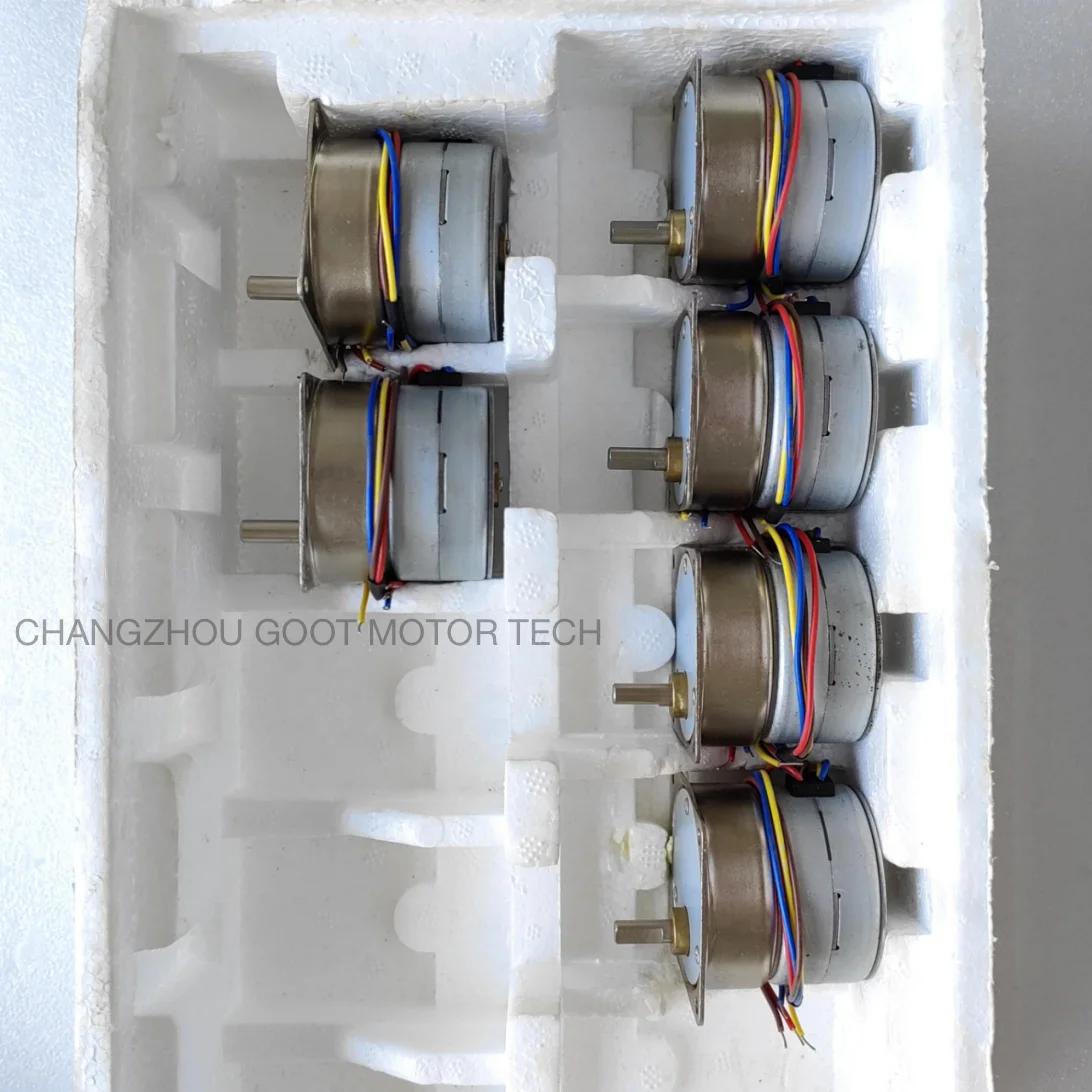

Product Exhibition:
General Specification: | ||||||
Item | Specification | |||||
Step Angle Accuracy | ±7%(full step, no load) | |||||
Resistance Tolerance | ±10% | |||||
Inductance Tolerance | ±20% | |||||
Temperature Rise | 60.C Max.(rated current,2 phase on) | |||||
Ambient Temperature | -20.C~+50.C | |||||
Insulation Resistance | 100MΩMin. ,500VDC | |||||
Dielectric Strength | 600VAC , 1s , 1mA | |||||
Technical Specification: | ||||||||||||
Model | Step Angle (Deg.) | No. of Phase | Rated Voltage (VDC) | Current/Phase (A) | Resistance /Phase(Ω） | Pull-in Torque (kg.cm) | ||||||
PG42L-048-01/10 | 7.5/10 | 2 or 4 | 5/12/24 VDC | 0.4 | 30 | 1.1 (at 300 pps) | ||||||
PG42L-048-01/25 | 7.5/25 | 2 or 4 | 5/12/24 VDC | 0.4 | 30 | 2.5 (at 300 pps) | ||||||
PG42L-048-01/30 | 7.5/30 | 2 or 4 | 5/12/24 VDC | 0.4 | 30 | 3.1 (at 300 pps) | ||||||
PG42L-048-01/50 | 7.5/50 | 2 or 4 | 5/12/24 VDC | 0.4 | 30 | 4.0 (at 300 pps) | ||||||
PG42L-048-01/75 | 7.5/75 | 2 or 4 | 5/12/24 VDC | 0.4 | 30 | 4.0 (at 300 pps) | ||||||
PG42L-048-01/100 | 7.5/100 | 2 or 4 | 5/12/24 VDC | 0.4 | 30 | 4.0 (at 300 pps) | ||||||
PG42L-048-01/120 | 7.5/120 | 2 or 4 | 5/12/24 VDC | 0.4 | 30 | 10 (at 100 pps) | ||||||
PG42L-048-01/150 | 7.5/150 | 2 or 4 | 5/12/24 VDC | 0.4 | 30 | 25 (at 96 pps) | ||||||

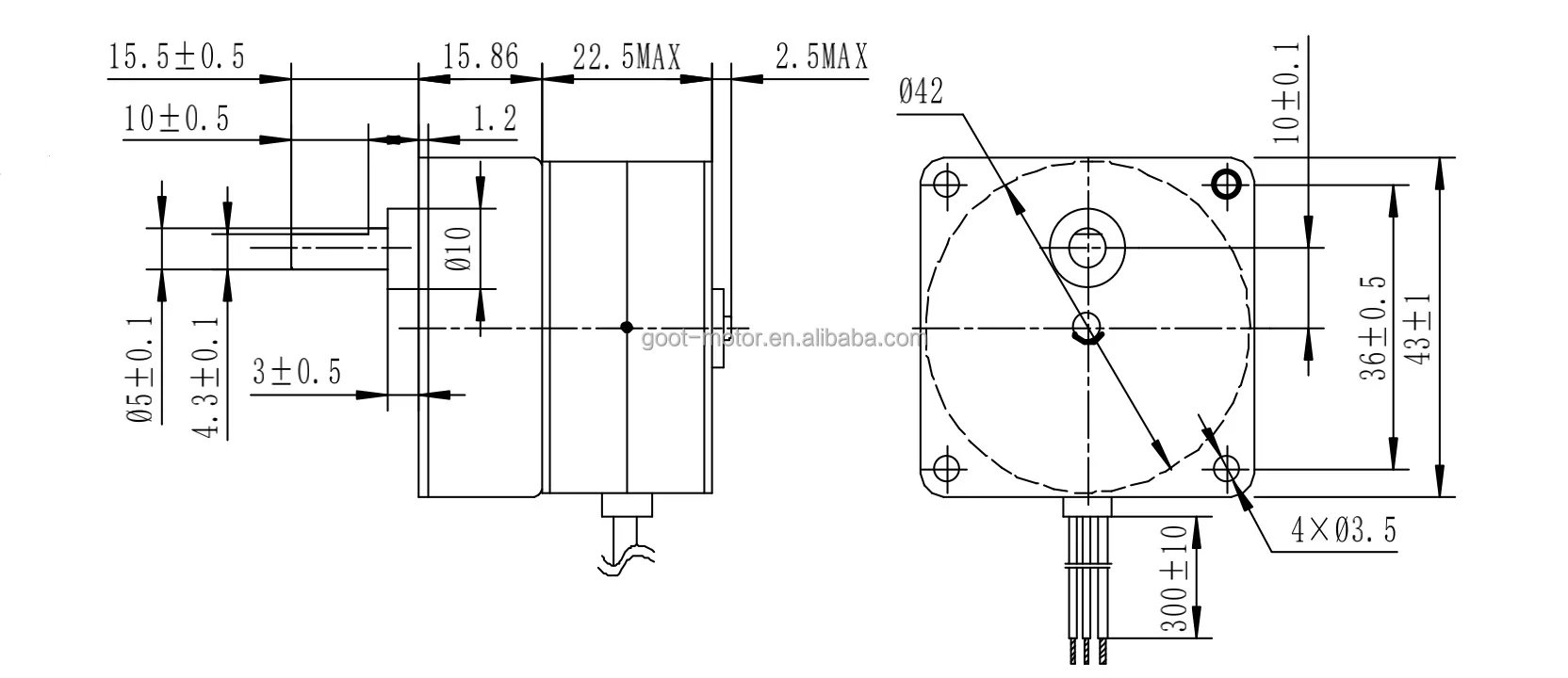

Machenical Dimensions:

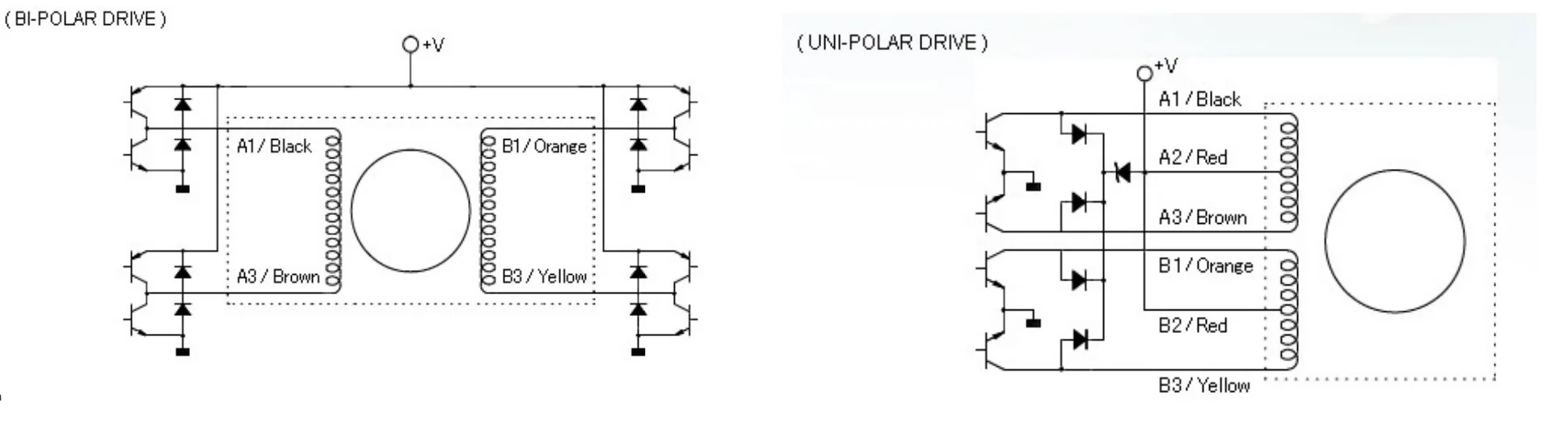

Cirtcuit:
Customization On Call:
Coil Modifications - Resistance and Inductance.
Magnets - to yield higher linear force or reduced detent levels.Higher Strength Plastics for higher impact forces.
Reduced or increased Detent Force to suit the application.
Screw - metric or imperial tips, length.
Special Flanges, Connectors, End of motion detection sensors.
Wire Harness - connectors, pins, lead length, shrink tubing.
Application
Application :

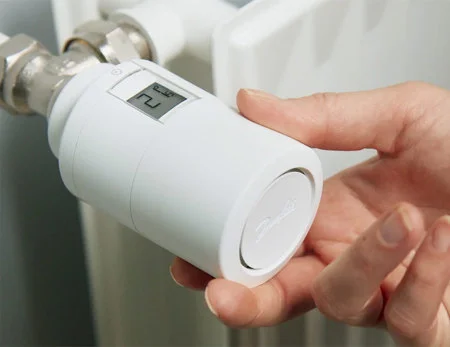

HVAC/R Valve Actuation
Office Automation Printers, Copiers, Data storage

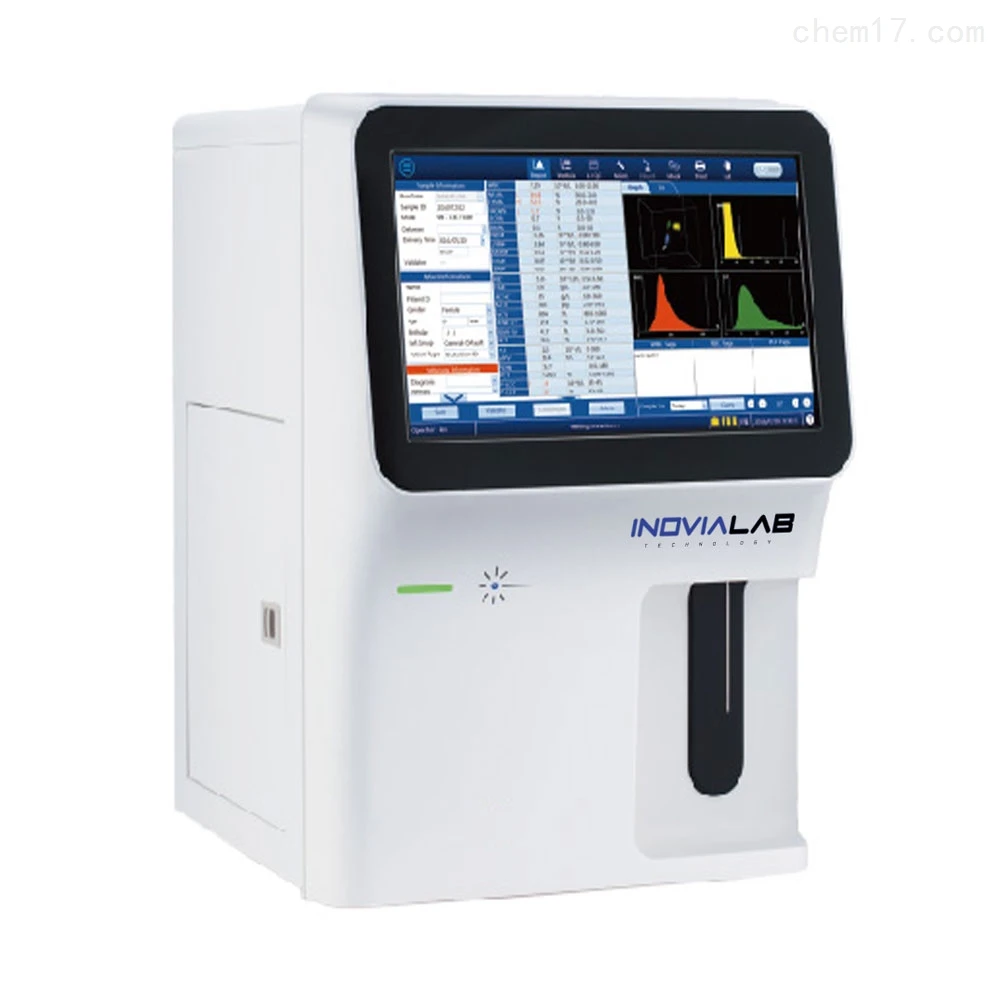

Medical Applications Pill dispensing Analysers

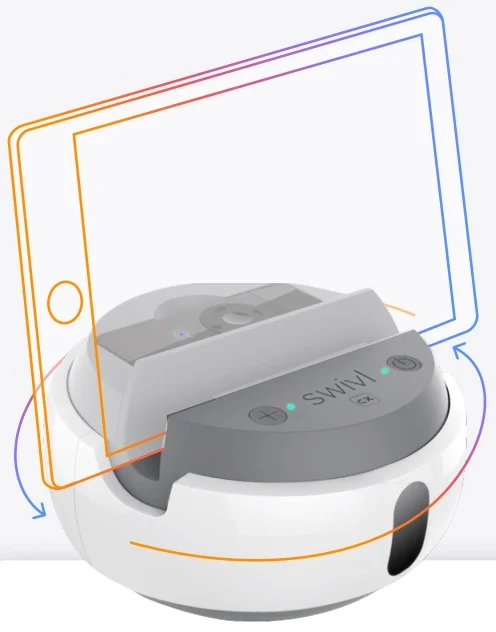

Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
HVAC/R Valve Actuation
Office Automation Printers, Copiers, Data storage
Medical Applications Pill dispensing Analysers
Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
