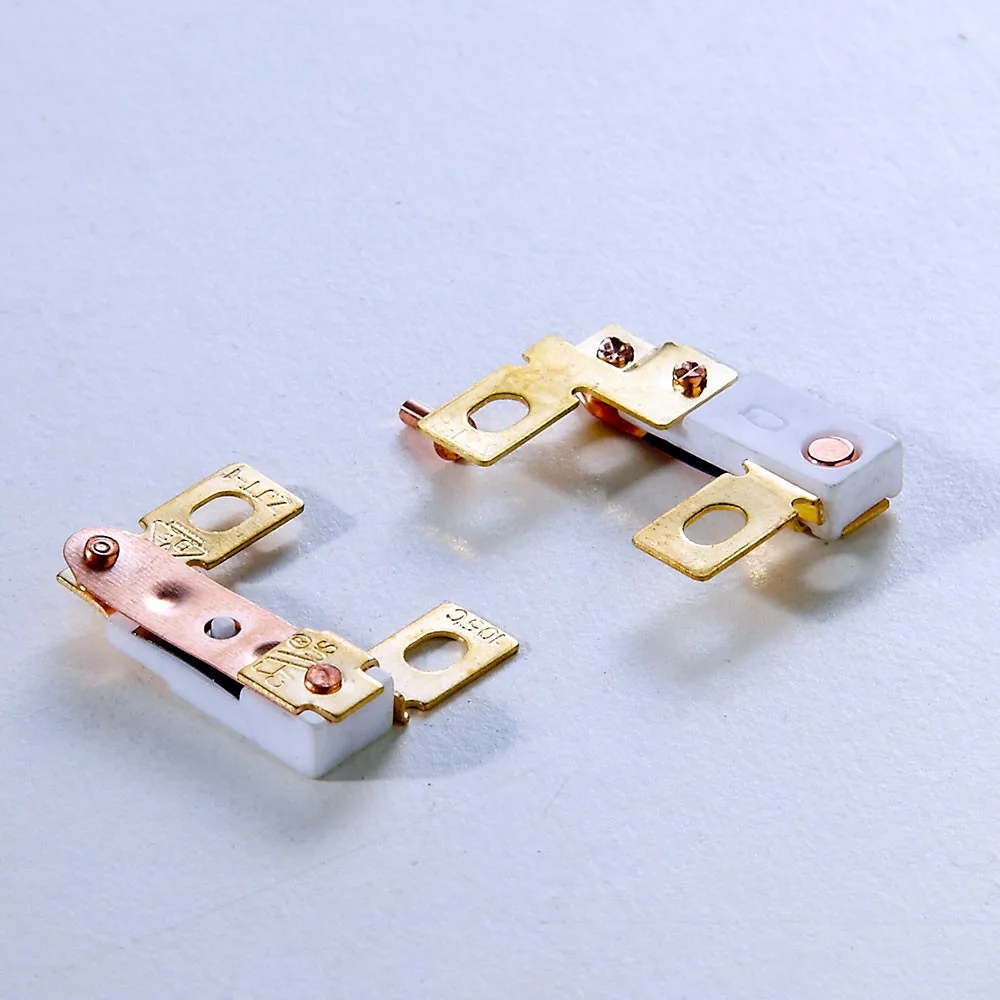

100v 240v Bimetal Temperature Ceramic Heat Limiter High Thermostat Switch
- Category: >>>
- Supplier: CIXI WODE TRADE CO. LTDCIXI LTD
Share on (1600977326555):
Product Overview
Description
Products Description
Thermostat (temperature limiter), uses a double metal sheet (memory metal) as the reaction components, when the external heat
transfer to the bimetallic disc, reaches the present temp. value bimetal instant action, promote the contact are disconnected, cut
off electrical power supply, on the contrary:
1.Automatic reset: when the temp. drops to resetting temp. value , the double metal piece reset, contact is closed, the power supply is switched on again.
2.The appliance must cut off the external power supply, when the temp. drops to the resetting temp. double reset again, the circuit is switched on again
transfer to the bimetallic disc, reaches the present temp. value bimetal instant action, promote the contact are disconnected, cut
off electrical power supply, on the contrary:
1.Automatic reset: when the temp. drops to resetting temp. value , the double metal piece reset, contact is closed, the power supply is switched on again.
2.The appliance must cut off the external power supply, when the temp. drops to the resetting temp. double reset again, the circuit is switched on again

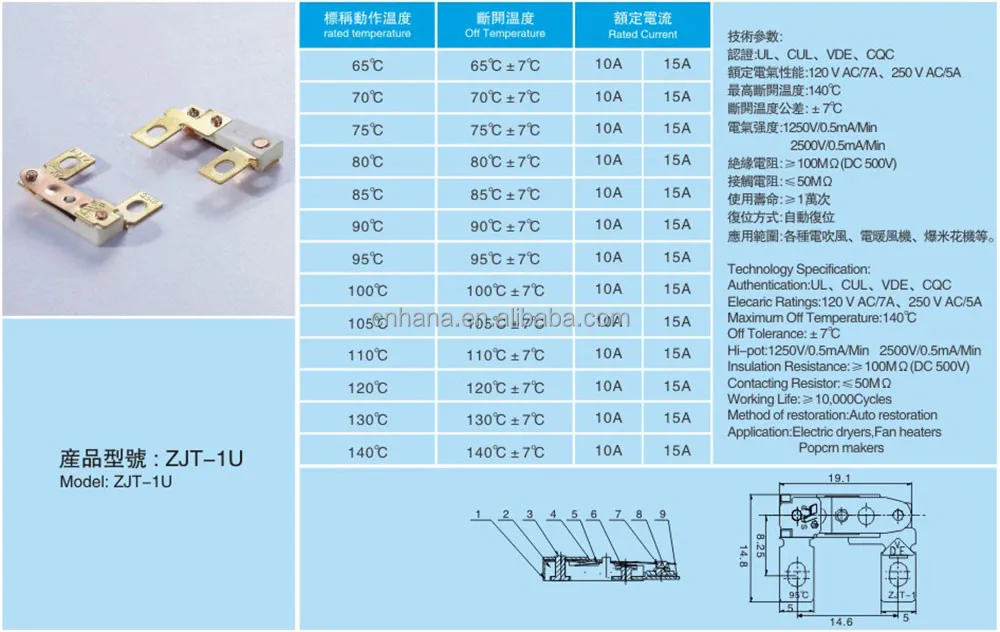

Product name | high temperature limit switch |
Electric rating | 125V AC/15A 230V AC/10A |
Certificate | UL, CUL,VDE,CQC |
Max shut tempearture | 140C |
Tolerrance | +/-5C or +/-7C based on client's requirements |
Hi-pot | 1250V/0.5MA/1min 2500V/0.5MA/1min |
Insulation Resistance | >=100MΩ(DC 500V) |
Contact Resistance | <50Ω |
lifespan | 10000cycles |
Reset | Automatic reset |
Usage | Electric dryers,Fan Heaters, Popcorn makes |
Material | Bimetal and ceramic |
Voltage | 100-240V |
ONE-STOP SERVICE
ABOUT US
OUR EXHIBITION
QUALITY GUARANTEE
ODM CASE
PICK UP FOR YOU

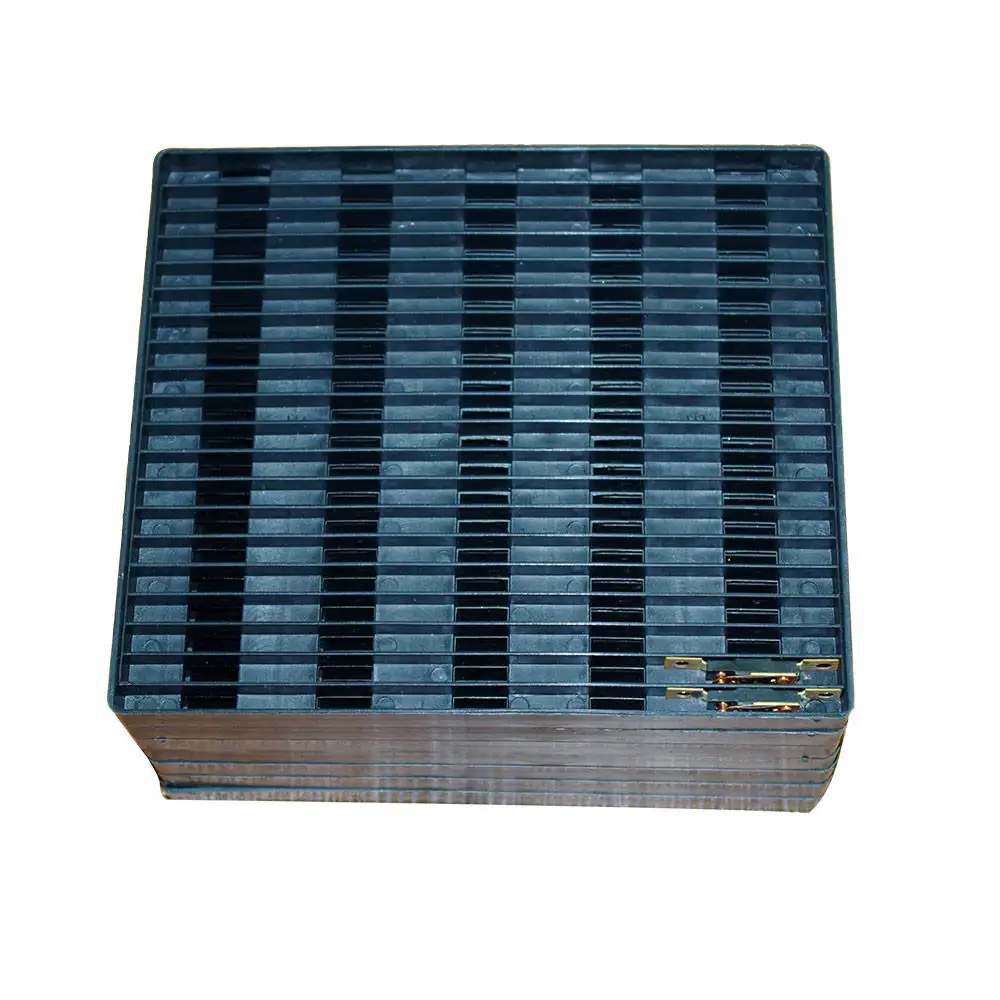

PACKING&DELIVERY
