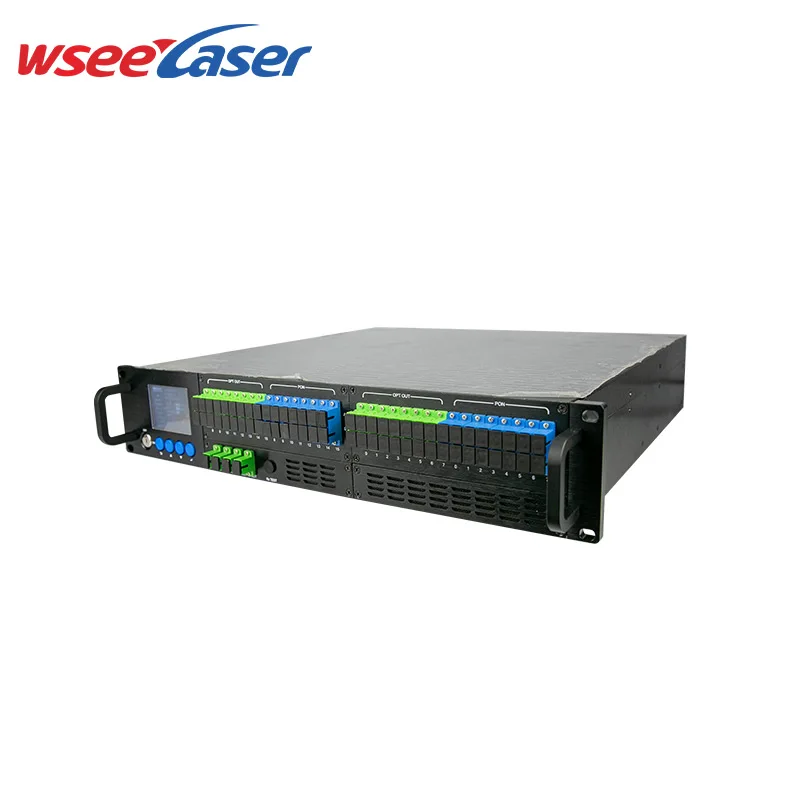

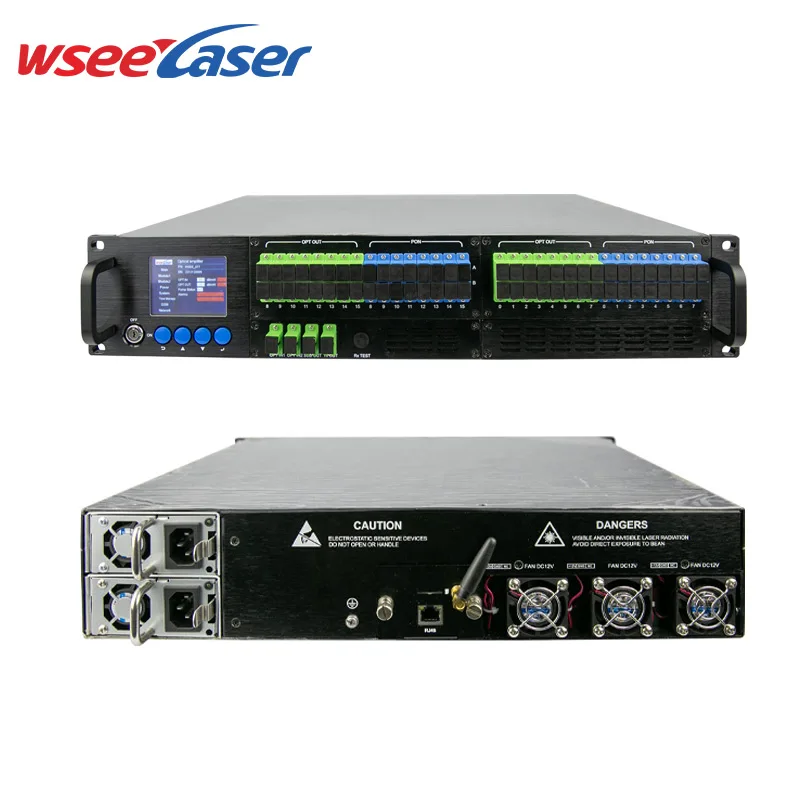

Factory price CATV GPON EDFA 1550nm optical amplifier 32 port WDM EDFA
- Category: >>>
- Supplier: Shandong Wanshuo Optoelectronic Equipment Co Ltd.
Share on (1600977330602):
Product Overview
Description
Product Description
Specification
Item | Unit | Specification | Note | |
CATV wavelength | nm | 1535~1565 | Central wavelength 1550nm | |
PON OLT wavelength | nm | 1310/1490 | Customized 1270/1577 | |
CATV Input Power Range | dBm | -5dBm~+10dBm | Limit Range -10dBm~+10dBm | |
Max Total Output Power | dBm | 41 | ||
Output Power Stability | dB | ±0.1 | ||
Noise | dB | ≤ 6 | ||
Return Loss | Input | dB | ≥ 45 | |
Output | dB | ≥ 45 | ||
OSW | Input port | 2 | Optional | |
Insertion loss | dB | ≤1.5 | ||
Switching time | s | ＜0.5 | ||
Direct Modulation Transmitter | Wavelength | nm | 1550 | Optional |
Input level | dBuV | 75~90 | ||
Output power | dBmW | 3/5/7/10 | ||
RF Test | Output level | dBuV | ≥56 | Optional |
Optical Connector | SC/APC；SC/PC；LC/APC；LC/PC | Customized | ||
C/N | dB | ≥ 50 | Testing conditions are carried out according to GT/T 184-2002 | |
C/CTB | dB | ≥ 63 | ||
C/CSO | dB | ≥ 63 | ||
Power Supply Voltage | V | AC90V~AC265V | ||
Consumption | W | ＜ 150 | ||
Operating Temperature | ℃ | -5 - +50 | ||
Max Operating Humidity | % | Maximum 95% non-condensing | ||
Storage Temperature Range | ℃ | -40 ~ +80 | ||
Max Storage Humidity | % | Maximum 95% non-condensing | ||
Size | mm | 602(L)*480(W)*89(H) | ||
Package Size(1pc) | mm | 635(L)*635(W)*155(H) |
