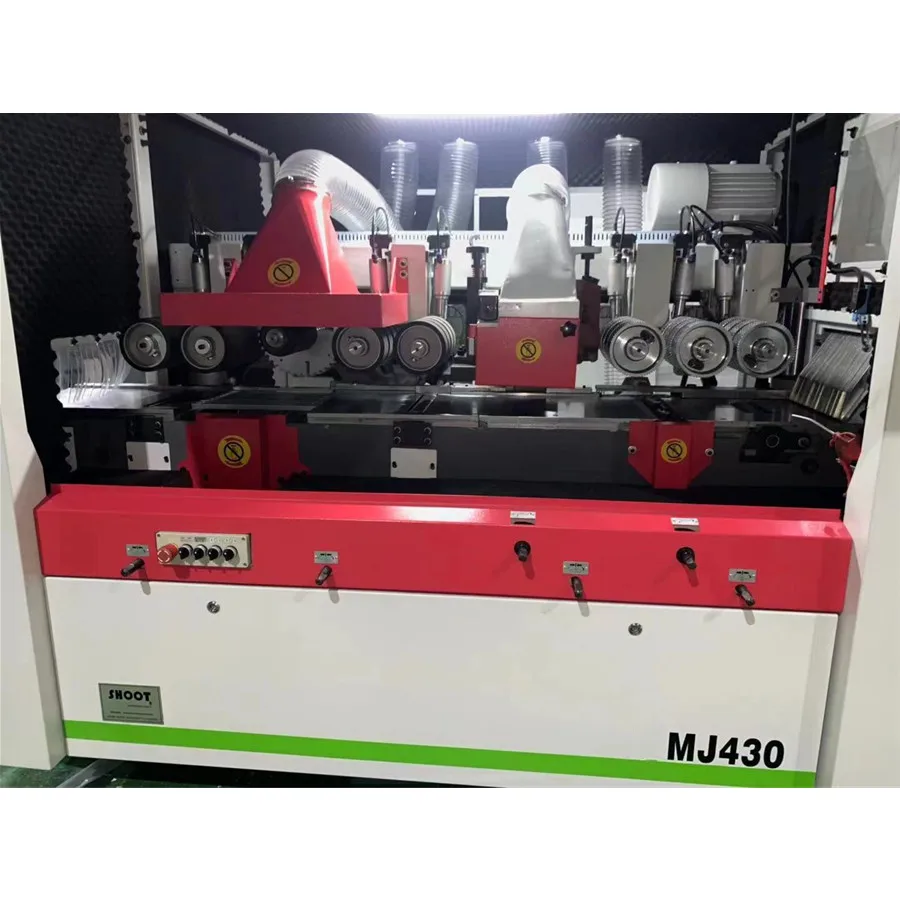

High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard
High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard
High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard
High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard
High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard
High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard
High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard

High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard

Share on (1600977335860):


Price:$20,930.00 - $23,256.00

Quantity:


Product Overview

Description

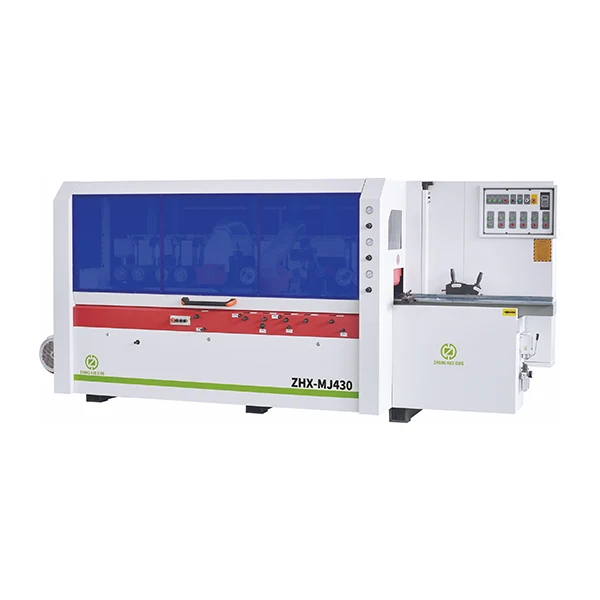

High Precision MJ430 Double Side Planer Band Saw for Wood Planing Hard

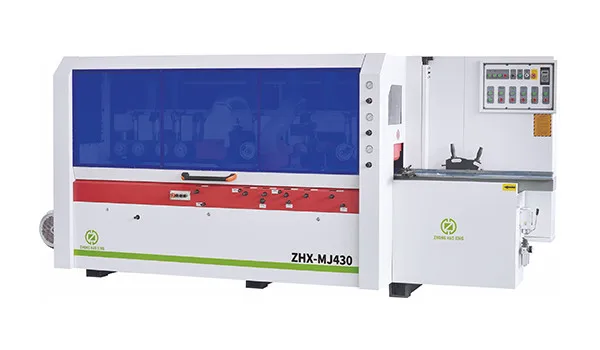

MJ430.1



Specifications















































































































































 ModelZHX-MJ425ZHX-MJ430

Technical


Data


Max Working Width250mm300mm
Max Working Thickness130mm130mm
Feeding Speed5~35m/min5~35m/min
Cutter Spindle Diameter50mm50mm
Saw Spindle Diameter50mm50mm
Cutter Spindle Speed7000rpm7000rpm
Saw Spindle Speed4000rpm4000rpm
Saw Spindle Keyway20*5mm16*5mm
Cutter Spindle Left Right Moverable10mm10mm
Air Pressure0.4mpa0.4~0.6mpa
Motor PowerThe First Bottom Spindle7.5kw7.5kw
The First Top Spindle11kw11kw
Feeding Motor4kw4kw
Feeding Rising Motor0.55kw0.37kw
Top Saw Spindle Motor18kw18kw
Bottom Saw Spindle Motor22kw22kw
Total Power58.75kw58.757kw
Cutter DiameterThe First Bottom Cutter125mm125mm
The Second Top Cutter125mm125~160mm
Top and Bottom Saw Spindle185~255mm185~255mm
Saw Blade Diameter255mm250mm
OthersFeeding Wheel Diameter140mm140mm
Dust Absorp Tube Diameter125mm150mm
Net Weight2800kg2800kg
Dimensions3500*1500*1600mm3500*1500*1600mm




Product Description


Main Features





> Professional solutions, large quantities of wood panels, sauna board, bed, sofa bottom seat board wood board material specifications.


> Four side planer saw machine structure is reasonable, the operation is simple and convenient.


> Hard chromium plating on the working table, smooth and wear resistance.

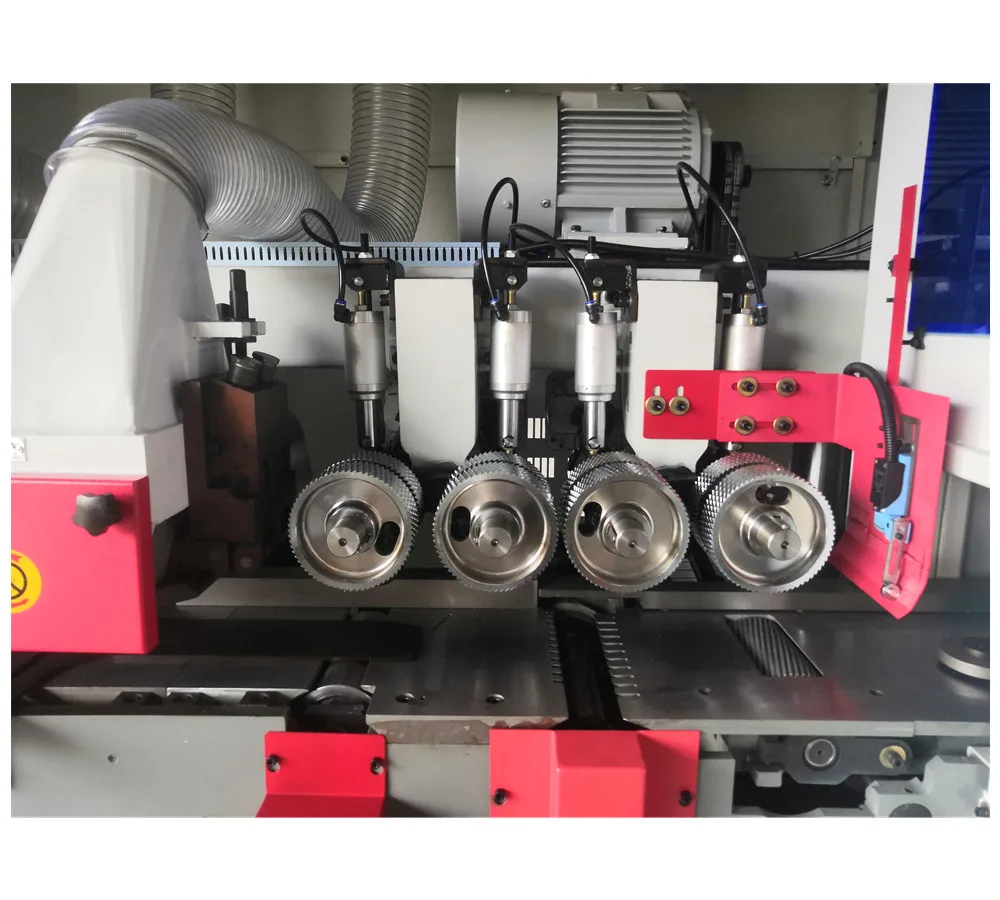

> Four groups of active vertical out of the roller wheel, to ensure that the feeding material is smooth.









> Saw blade adopts automatic jet cooling device with automatic jet, and the usage rate of saw balde if promotoed.


> High efficiency, energy saving, material saving, one machine with multiple purposes.


> Saw shaft frequency independent operation, transportation, according to wood hardness choose reasonable transmission speed.

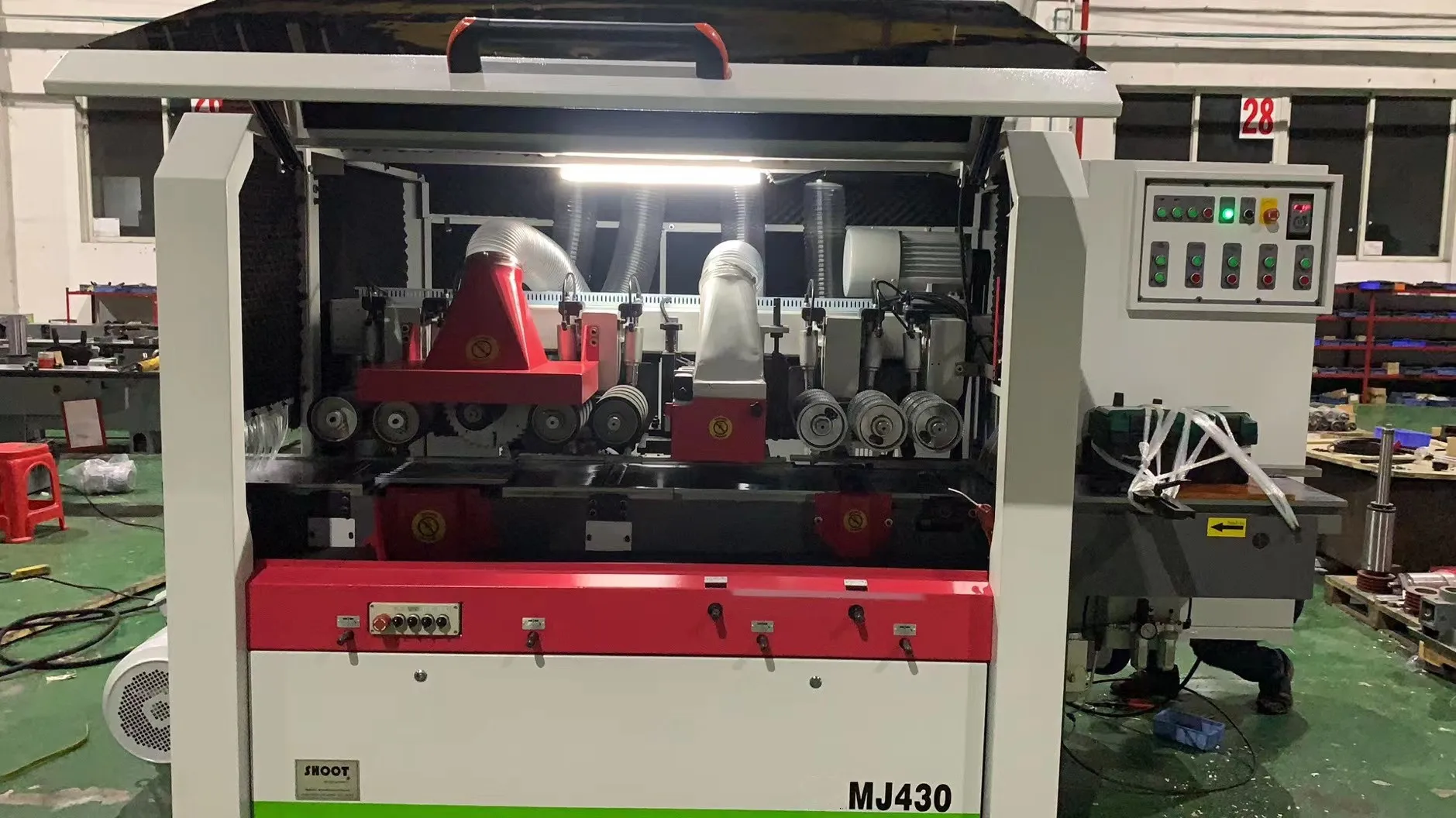

Detailed Images .4_.jpg















If you are interested in our products, please click here to contact us.








More Products


OPTIMIZING CROSS-CUT SAW SERIES          FOUR-SIDED PLANER SERIES

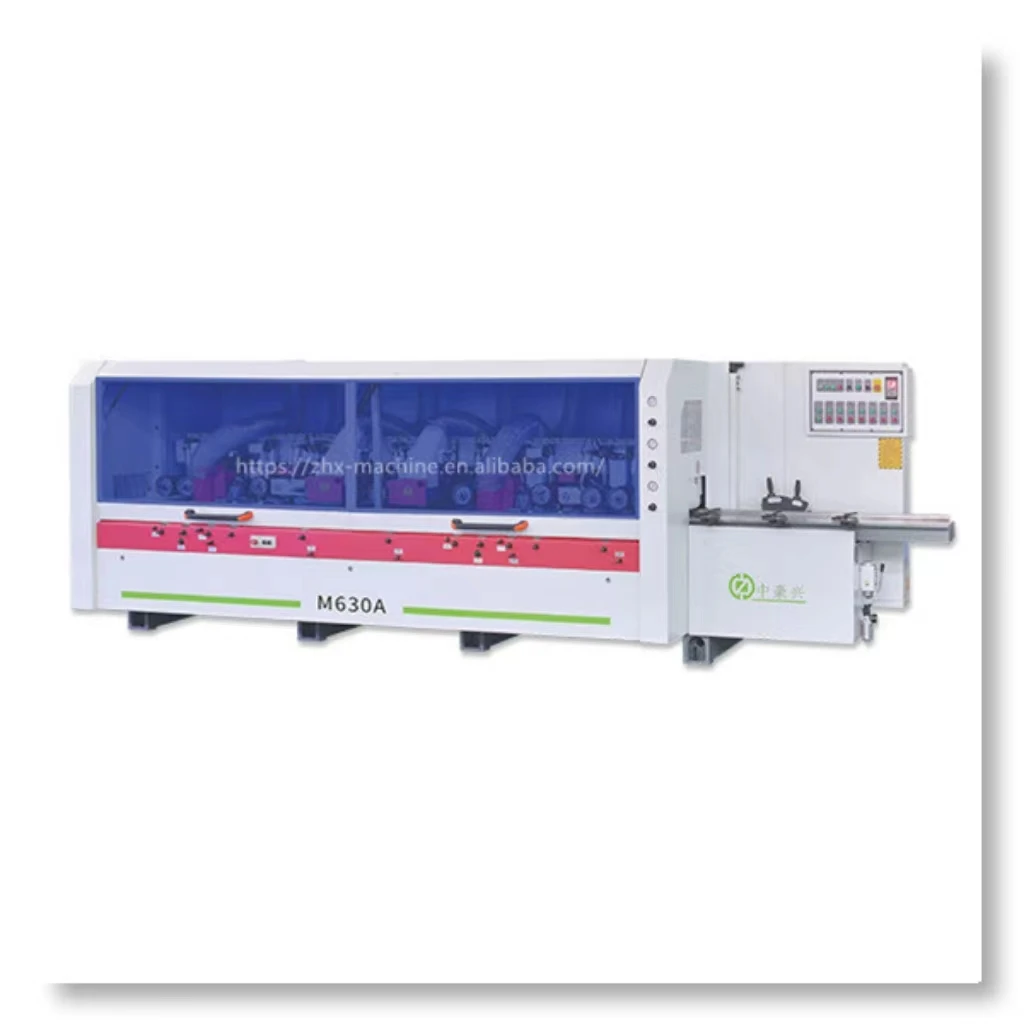

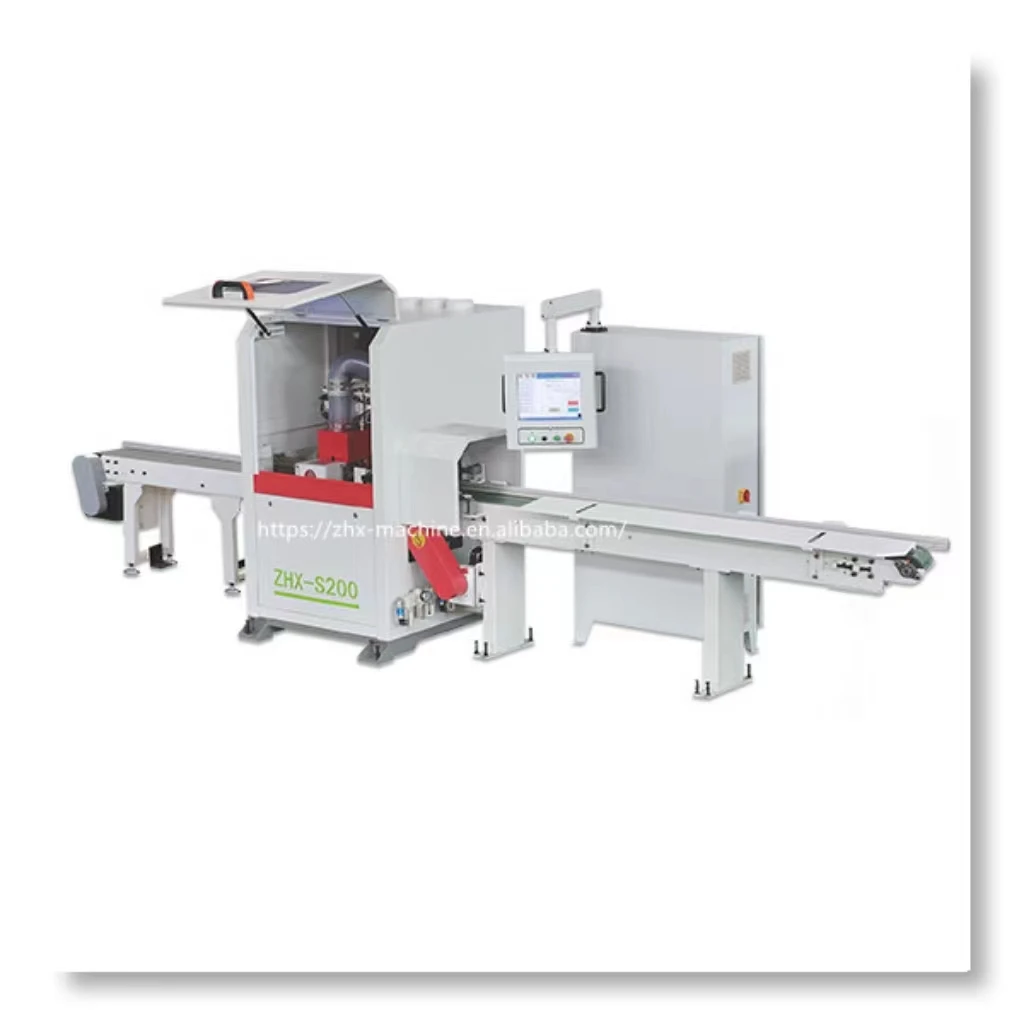

S200.jpg                      M630A.jpg








DOUBLE-SIDE PLANER SERIES                     STRAIGHT LINE RIP SAW SERIES

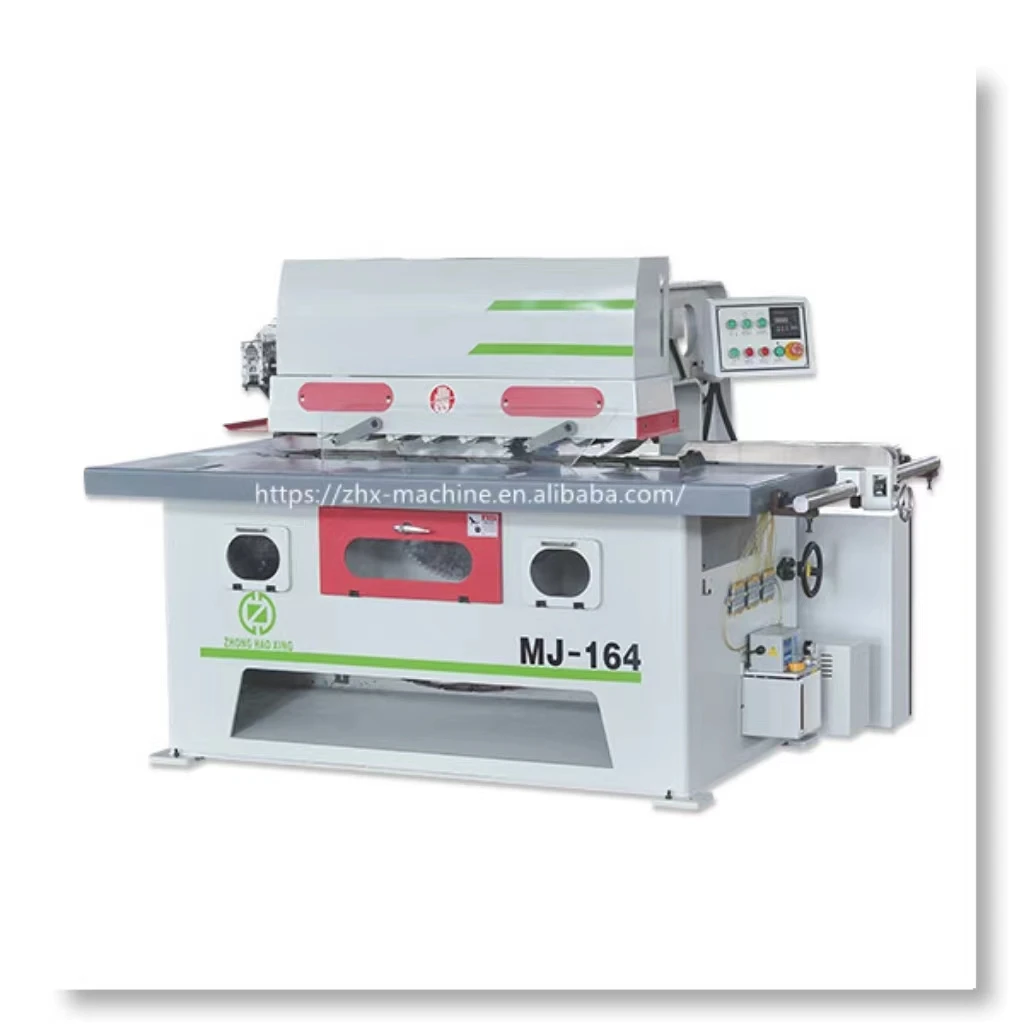

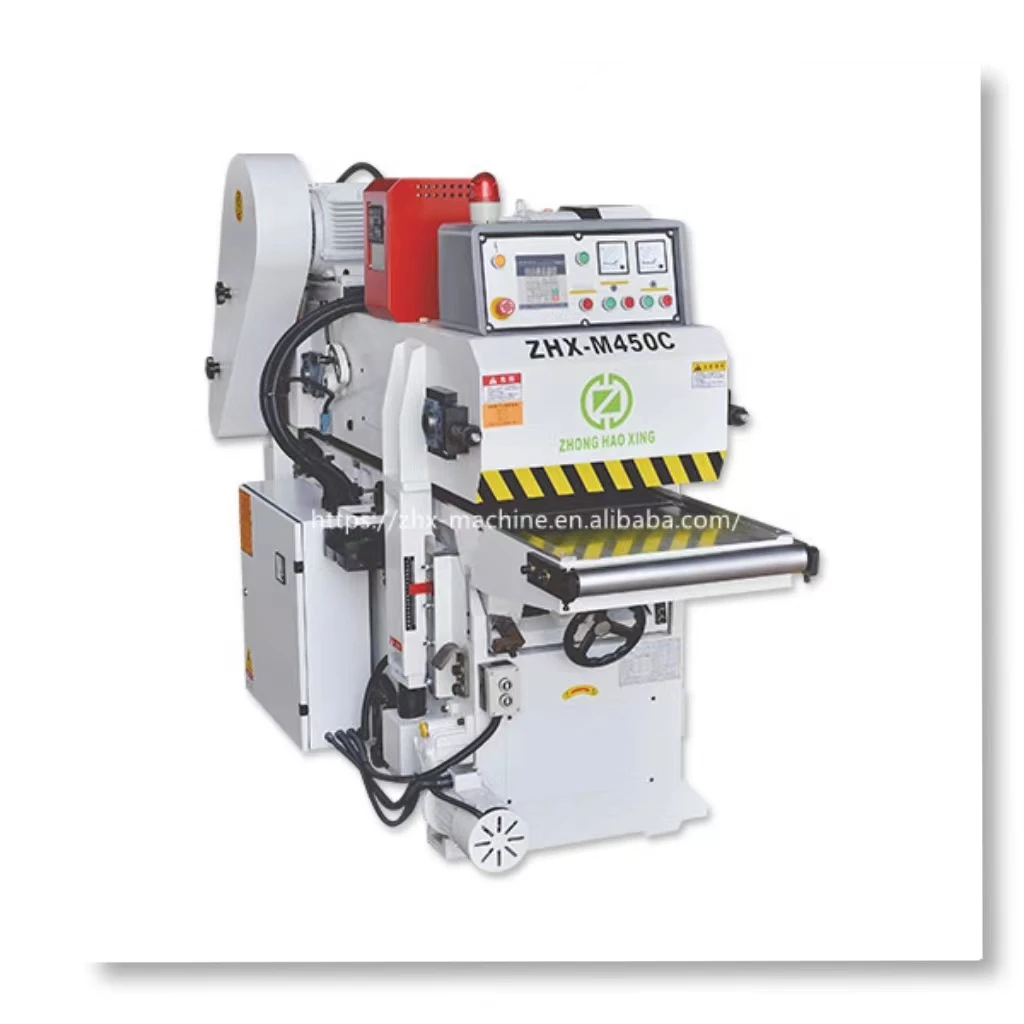

M450C.jpg                     MJ164.jpg





 PLANING AND SAWING MACHINE                 UP-DOWN MULTIPLE BLADE RIP                                                                                                SAW SERIES

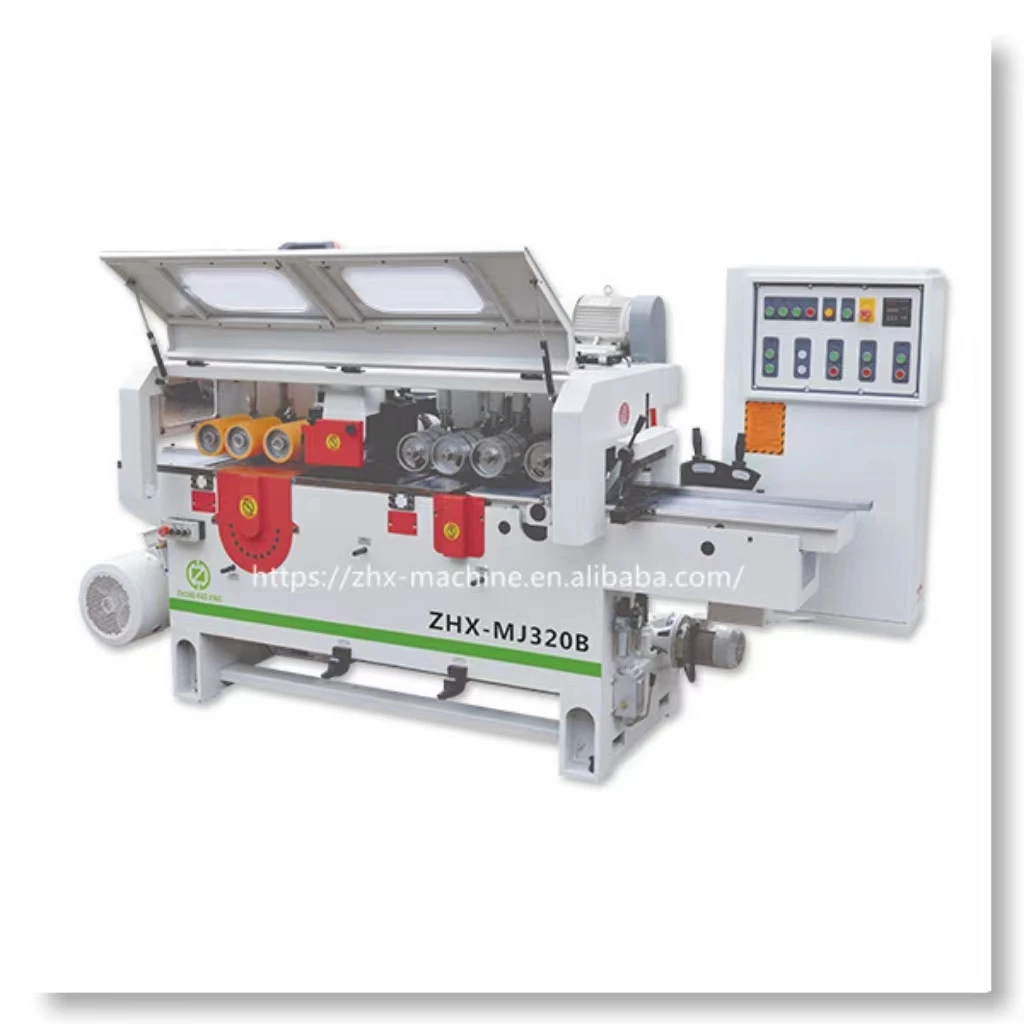

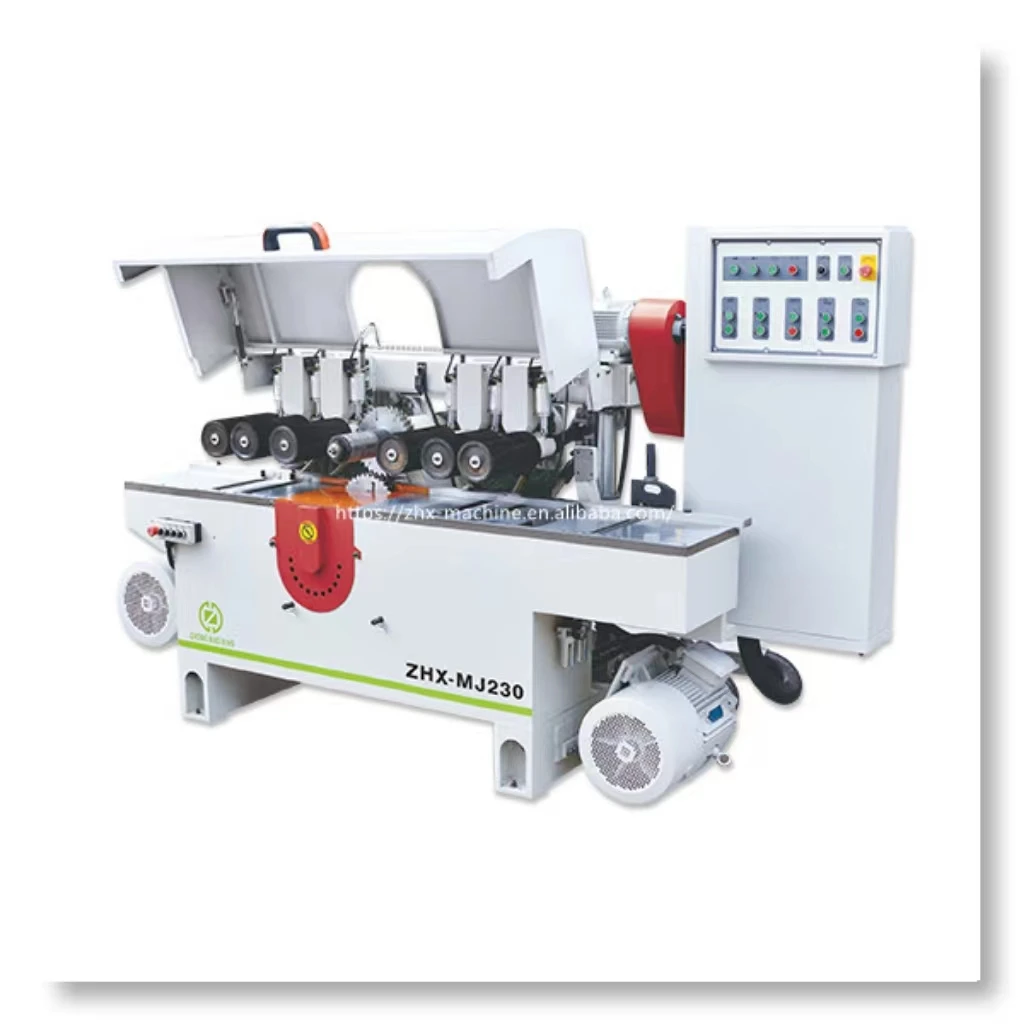

MJ320.jpg                      MJ230.jpg
