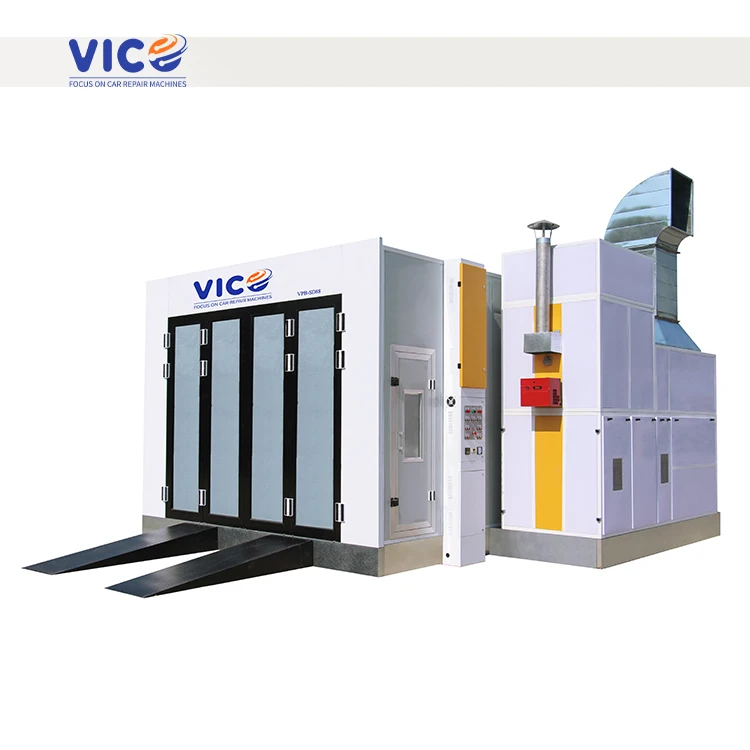

Outside Dimension (mm)

7000×5350×3400

Inside Dimension(mm)

6900×3900×2650

Front Door(mm)

3000×2600(W*H)

Service door(mm)

700×2000(W*H)

Total Power

16kw

Cabin system

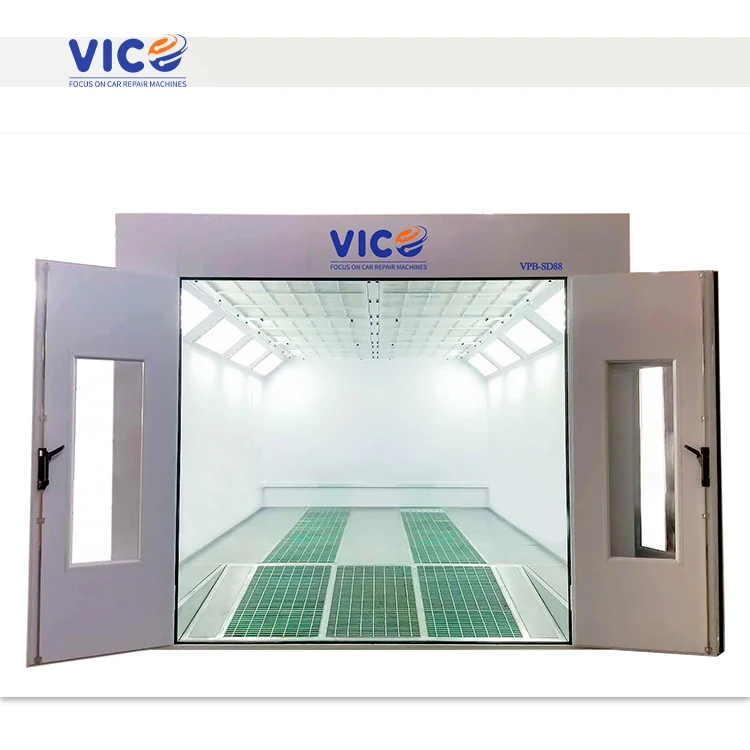

Front door

Sheet metal door, double side with PU insulated

Wall panel

50mm rockwool sandwich panel, steel sheet thickness: 0.426mm

Ceiling panel

0.8mm galvanized steel sheet

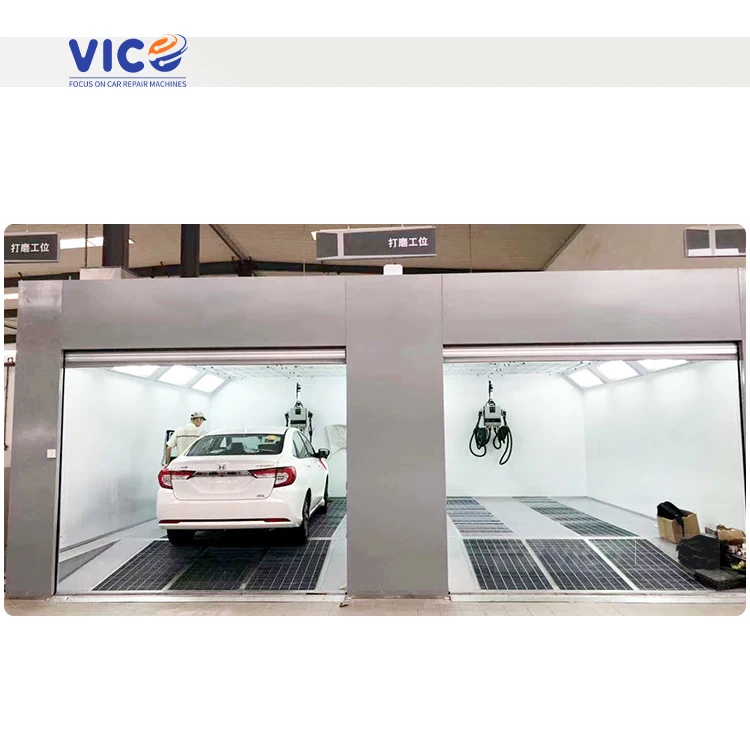

Basement

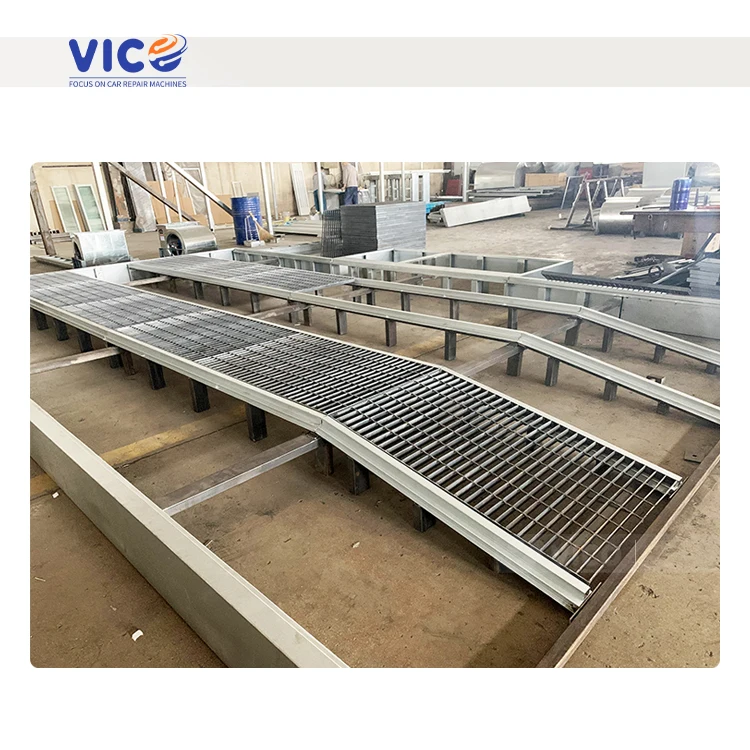

300mm depth construction galvanized basement, full galvanized grids

Ramps

Two pieces 2000*750mm ramps

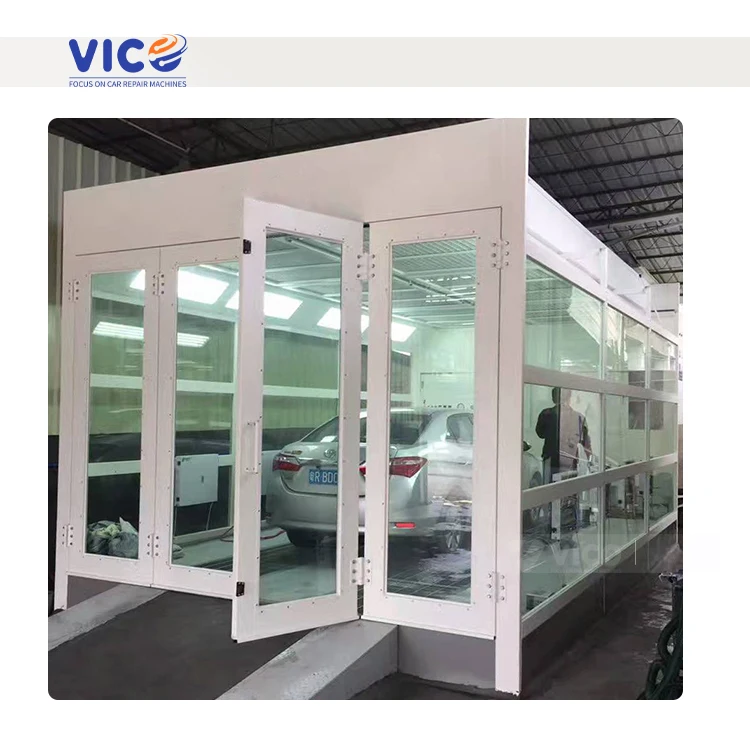

Door glass

5mm tempered glass

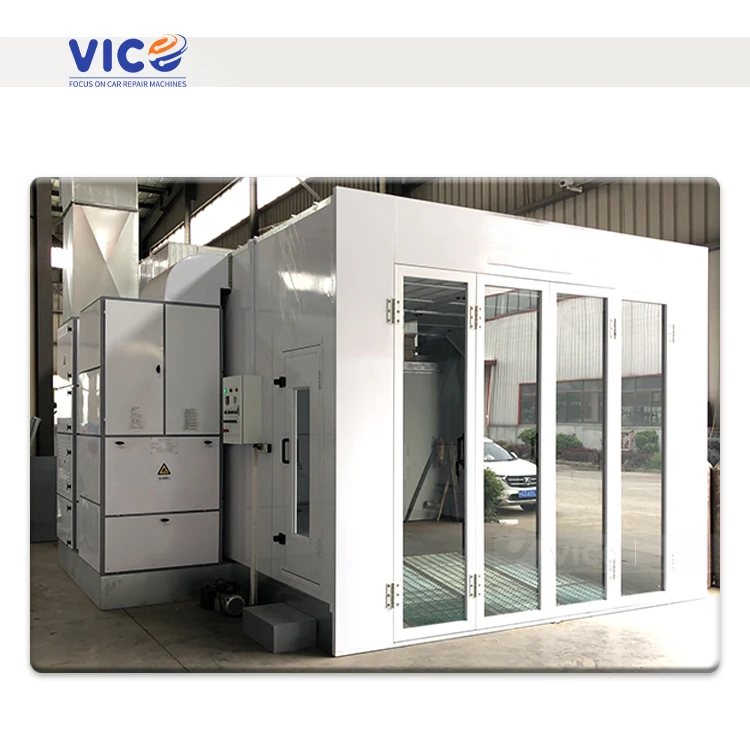

Air make-up system

Air inlet fan system

2*4kw double channels centrifugal outer-motor ventilating machines

Exhausted fan system

1*5.5 KW centrifugal fan, model YDW 5.5KW, blower capacity 15000
m3 /h.

Air inlet capacity

25000m³/h

Exhausted capacity

25000m³/h

Exhausted ducting

six meters straight galvanized ducting and two 135 degrees elbows

Purification system

Pre-filter

G3 grade

Ceiling filter

600G filter EU5 / F5

Floor filter

Fiber glass filter

Exhausted filter

Fiber glass and carbon filter

Heating system

Heat Exchanger

Exchanger Argon arc welded SUS304 stainless steel

Heating burner

RIELLO G20 burner

Heating productivity

180,000kcal/h

Spray to baking switch

Pneumatic damper

Chimney ducting

4 meters chimney ducting and one chimney elbow

heating temperature

Maximum 80℃

Diesel consumption

5-8L/h;

Lighting system

Ceiling lighting

8 Units, each 4 * 36W LED lamps.

Side lighting

8 Units, each 2 * 36W LED lamps.

Illumination

800LUX

Control system

Switch controlling system

Adopt superior electronic components, main circuit has multi-protection.Function:Spraying, heat spraying, baking, time setting, lighting switch,failure indicator, thermostat, power supply switch, emergency stop,pressure gauge, all motors reduced-voltage starting.
