Product Overview
Description
Products Description

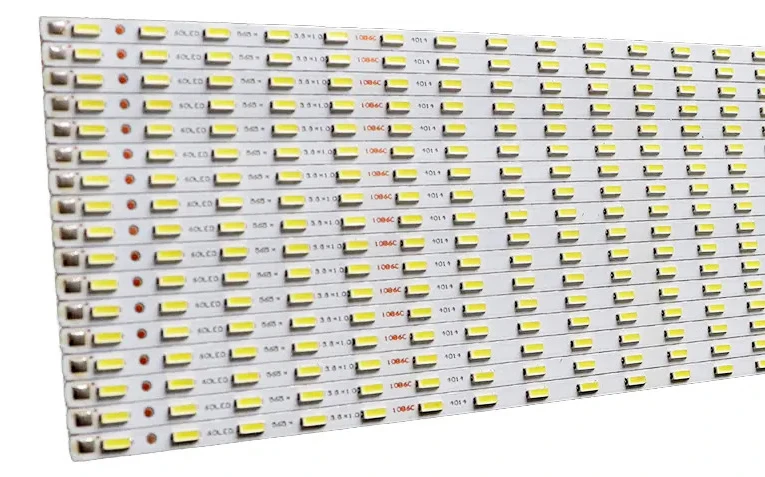

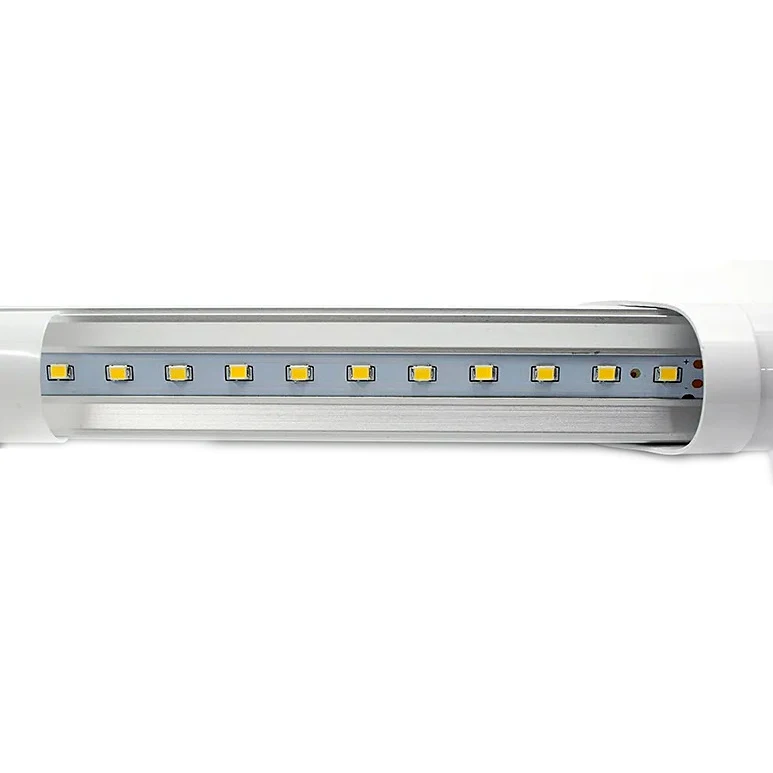

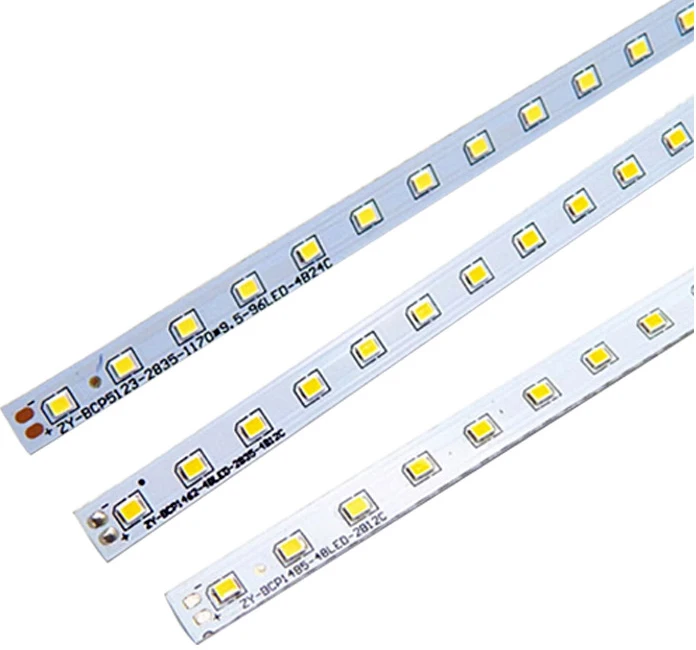

PCBA LED Board Assembly for T5 T8
Model:0.3Meter/0.6Meter/0.9Meter/1Meter/1.2Meter/1.5/Meter
Materials:Aluminum
ITEM No. | Size | Voltage | Rated Current | LED Qty. | CCT |
0.3M | 282*9.6mm | DC36-38V | 120mA | 24 LEDs | 3000K/4000K/6000K |
0.6M | 560*9.6mm | DC36-38V | 240mA | 48 LEDs | 3000K/4000K/6000K |
0.9M | 865*9.6mm | DC54-55V | 240mA | 72 LEDs | 3000K/4000K/6000K |
1.0M | 993*9.6mm | DC60-62V | 240mA | 80 LEDs | 3000K/4000K/6000K |
1.2M | 1170*9.6mm | DC72-74V | 240mA | 96 LEDs | 3000K/4000K/6000K |
1.2M | 1170*9.6mm | DC72-74V | 300mA | 120 LEDs | 3000K/4000K/6000K |
1.2M | 1170*9.6mm | DC72-74V | 360mA | 144 LEDs | 3000K/4000K/6000K |
1.5M | 1470*9.6mm | DC60-62V | 300mA | 100 LEDs | 3000K/4000K/6000K |

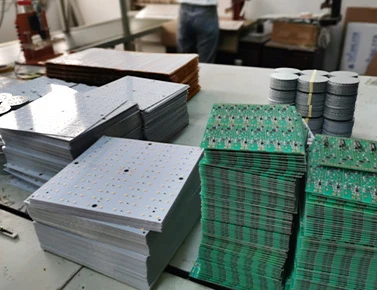

PCB Manufacturing

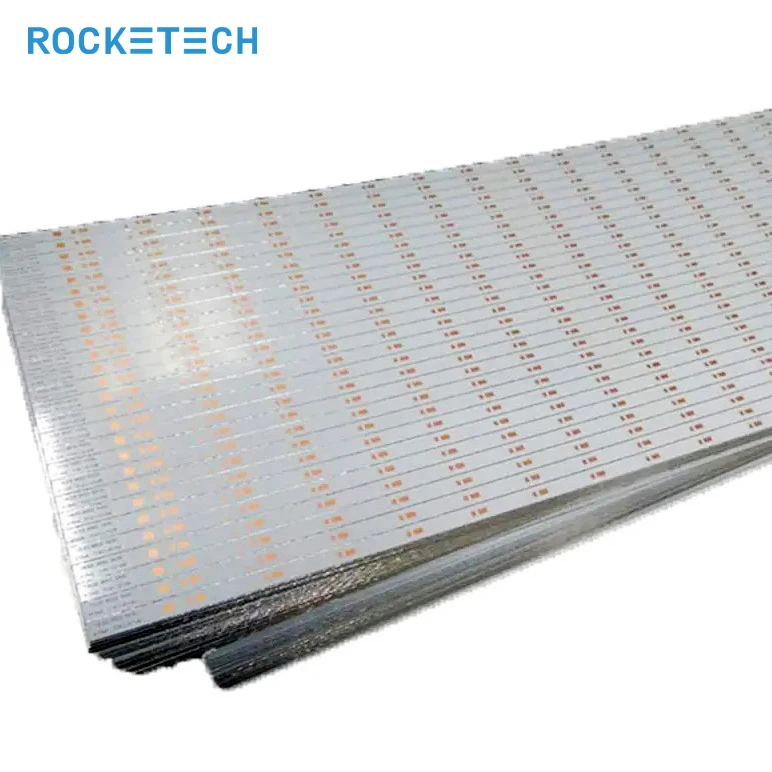

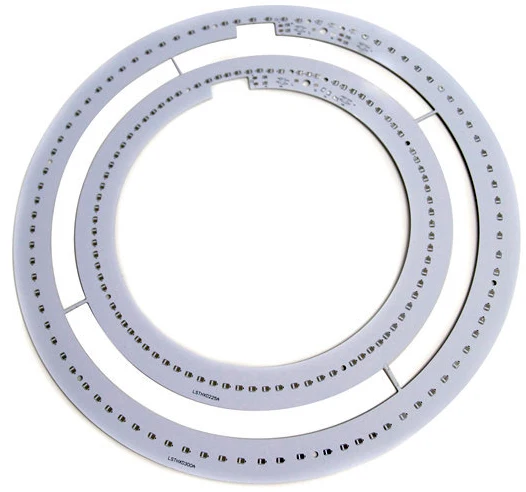

ALUMINUM PCB
ALUMINUM PCB
ALUMINUM PCB

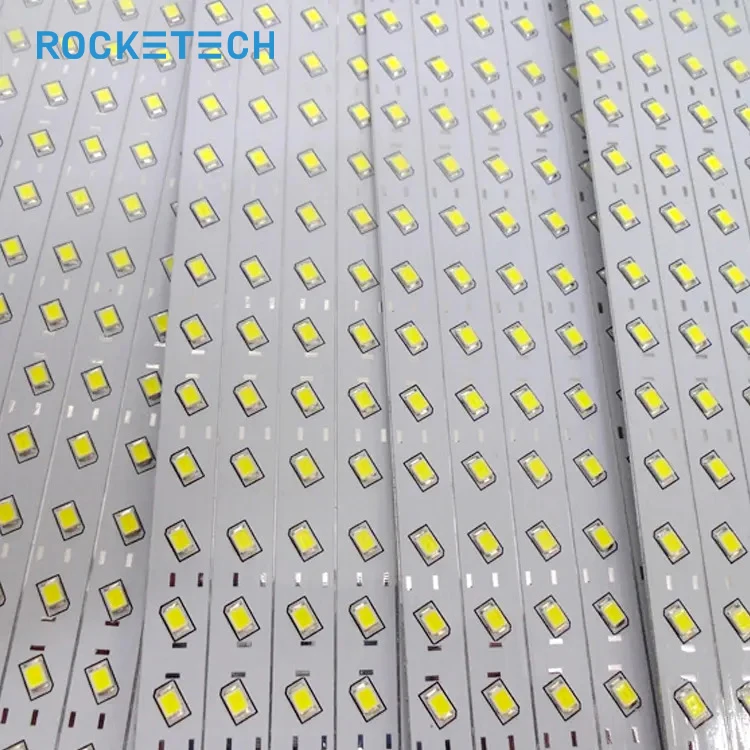

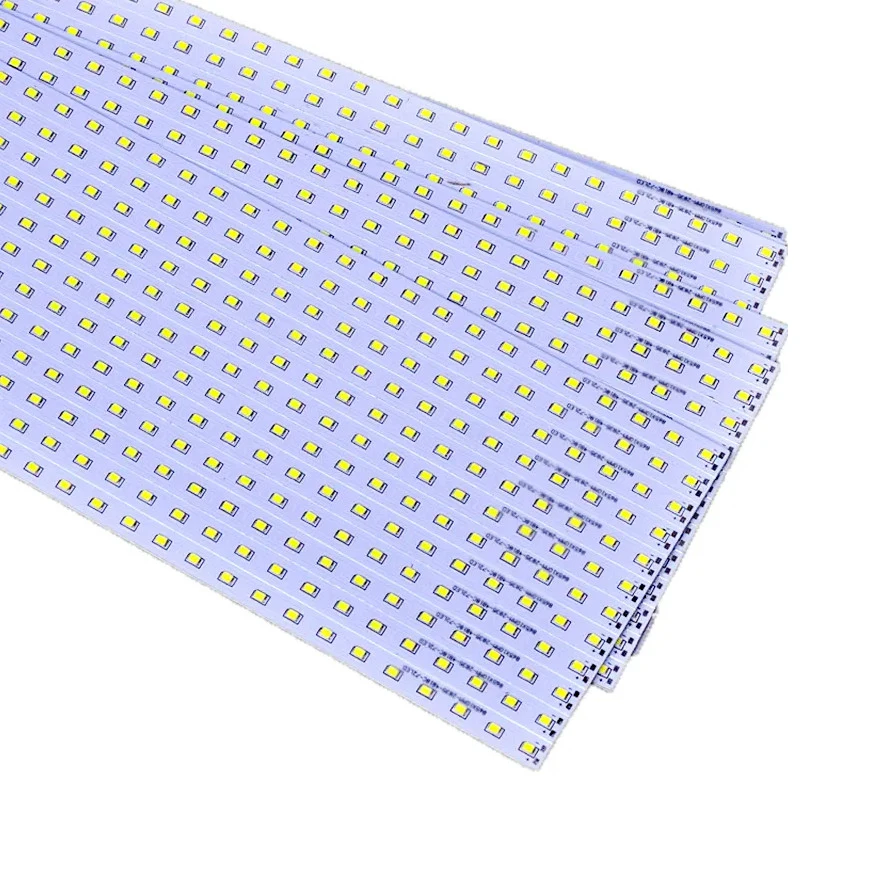

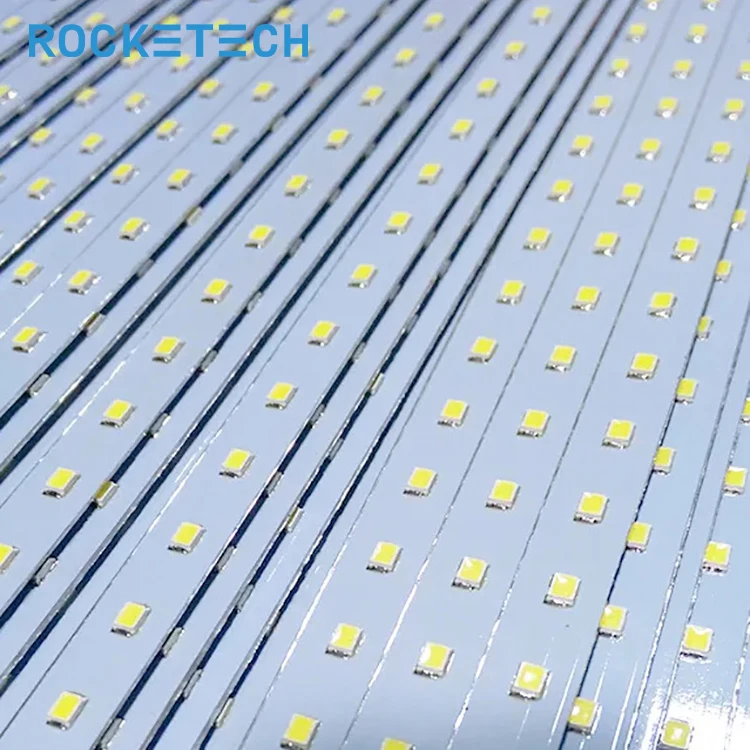

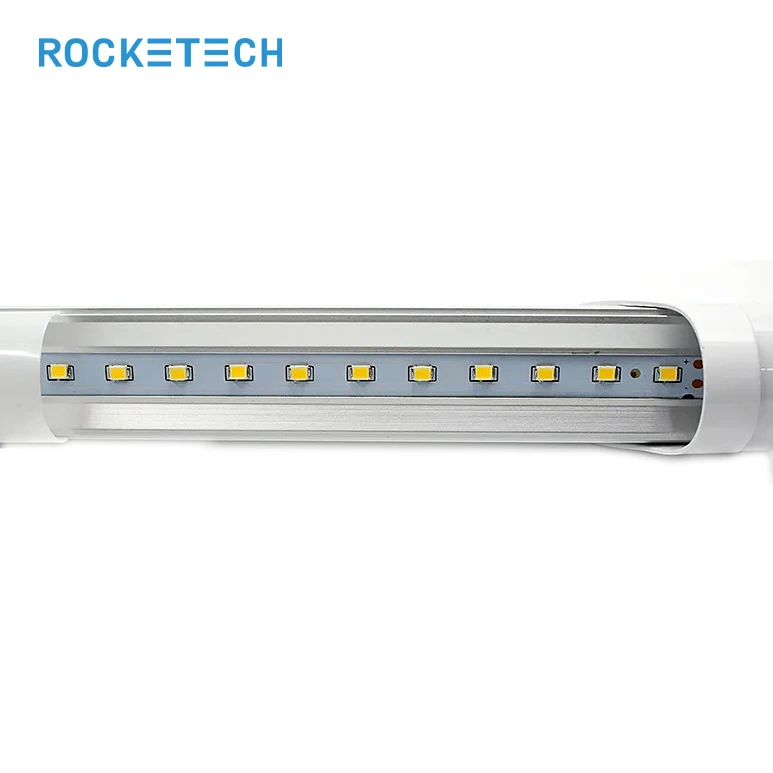

LED PCBA BOARD FOR TUBE
SAMSUNG PCBA FOR GROW LIGHT
SMD LED BOARD FOR GROW LIGHT

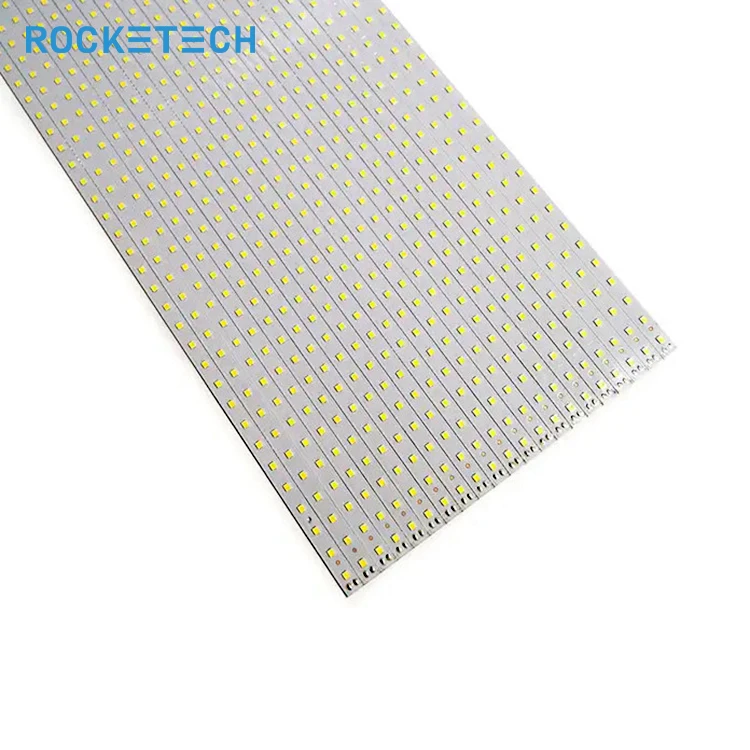

ALUMINUM LED PCBA BOARD

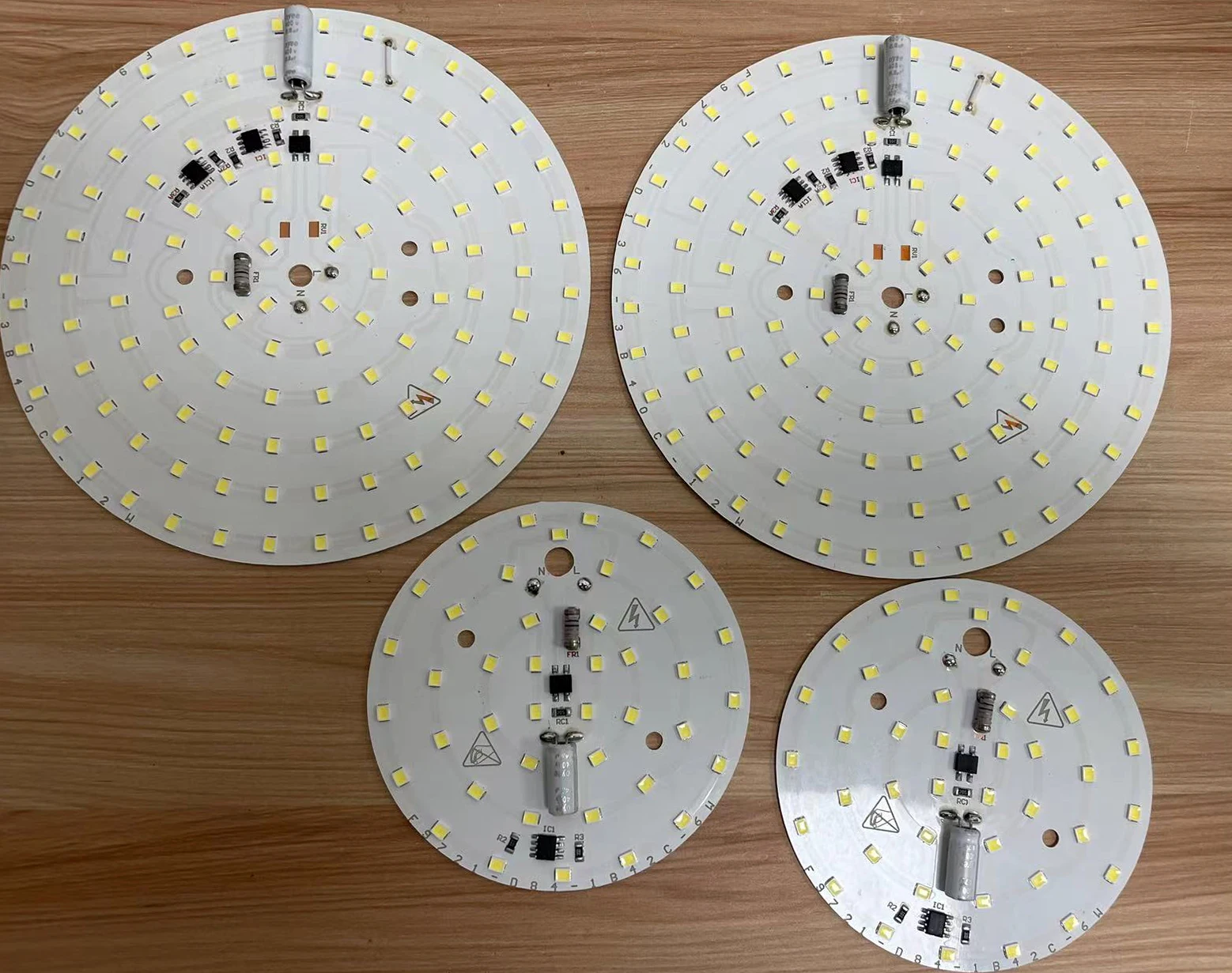

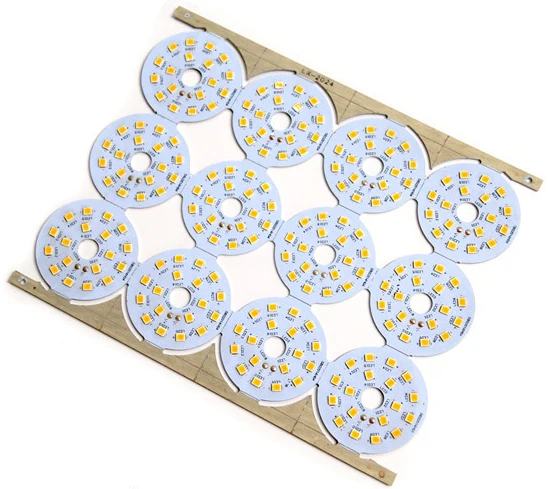

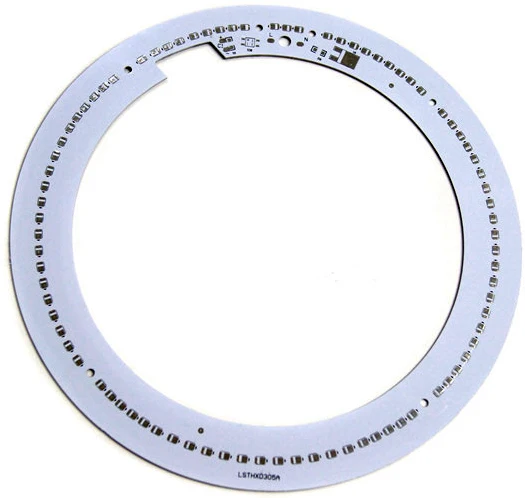

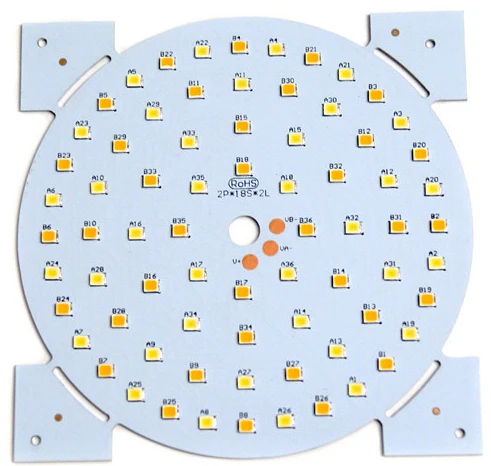

ROUND LED PCAB
HIGH POWER PCBA
Our Services
We are professional manufacture, so we can offer below service:* PCB design
* Reverse Engineering-PCB copy, PCB clone, IC decode
* Quick prototyping
* Components sourcing and purchasing
* FPC making Mold making
* and plastic injection
* PCB, PCBA SMD, SMT assembly
* Supply chain service
AOI Testing
* Check for line width and spacing* Check for solder paste
* Check for components down to 0201"
* Check for missing components, off set, incorrect parts, polarity
IN-Circuit Testing
* Power-up Test
* Function Test
* Flash device programming

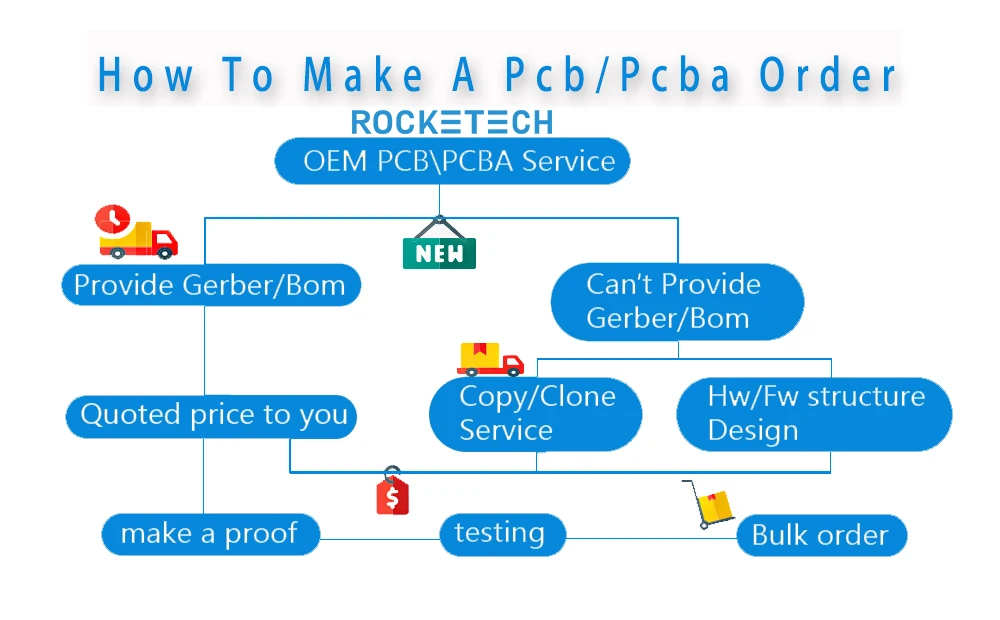

ABOUT OEM/ODM
Rocketech as a manufacturer, our company have automatic and high speed machine and enough skilled workers.We can change accessories \\ power\\ design \\ package for customer.
Production capacity is our Advantage.
Also, we can supply reasonable price products as customer's request.
Layer count | 1-28L,HDI |
Material | FR-4, High TG FR4, aluminium, FPC |
Max board dimensions | 800mm*620mm |
Board shape | Rectangular,round,slots,cutouts,complex,irregular |
Board type | Rigid,flexible,rigid-flexible |
Board cutting | Shear,V-score,tab-routed,counter sunk |
Board thickness | 0.2~8.0mm, Flex 0.1~0.25mm |
Thickness Tolerance | ±10% |
Min line width / space | 3mil/3mil |
Minimum Drilling Hole (Mechanical) | 0.1mm |
Minimum laser hole | 0.075mm |
Blind Hole/buried plate | YES |
Hole Position/hole Tolerance | |
InnerLayer Copper Thickness | 0.5-3 oz |
OutLayer Copper Thickness | 0.5-4 oz |
Impedance control tolerance | ±10% |
Surface finish | HASL,Lead free HASL,ENIG,Immersion Tin,Immersion Silver,OSP... |
Solder mask | Double-sided or single-sided in white,black,or negative |
Silkscreen | Double-sided or single-sided in white,black,or negative |
PCB Testing | E-test, Flying probe test |
Acceptable File Format | Gerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD |
Quality Standards | IPC-A-600F and MIL-STD-105D CHINA GB<4588> |
Company Profile
Rocketech Optoelectronic Co., ltd is located in Zhongshan City Henglan Town, is specialized in manufacturing LED grow lights which powered by Samsung & Osram from 20 watts to 1000 watts, and Series of LED PCBA prodcuts with attractive price. Rocketech is committed to bringing customer satisfaction by providing high quality Aluminum LED PCB board, LED lighing sources and SMT assembly services, we can customize your components with full PCBA design, whatever you need PCB assembly with SMD LED chip.
10 Years LED Manufacturing Experience
Authentic And Reliable factory
Provide OEM/ODM
Provide Low MOQ Customization
Die Bonding
Welding Wire
Inspection
CNC Center

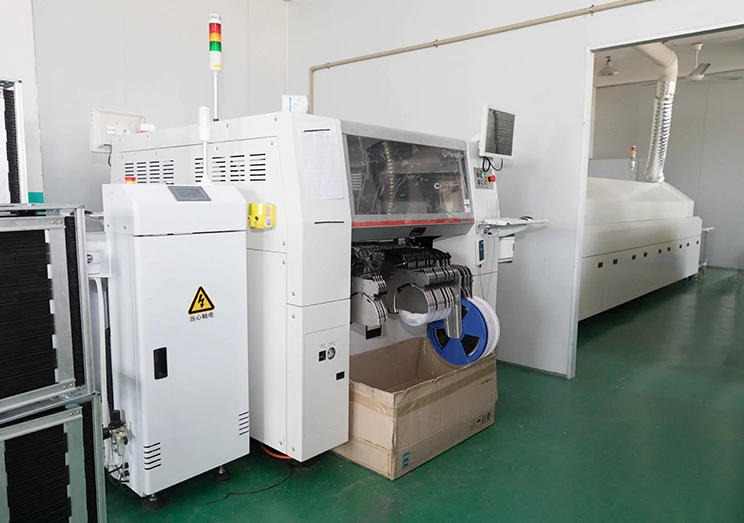

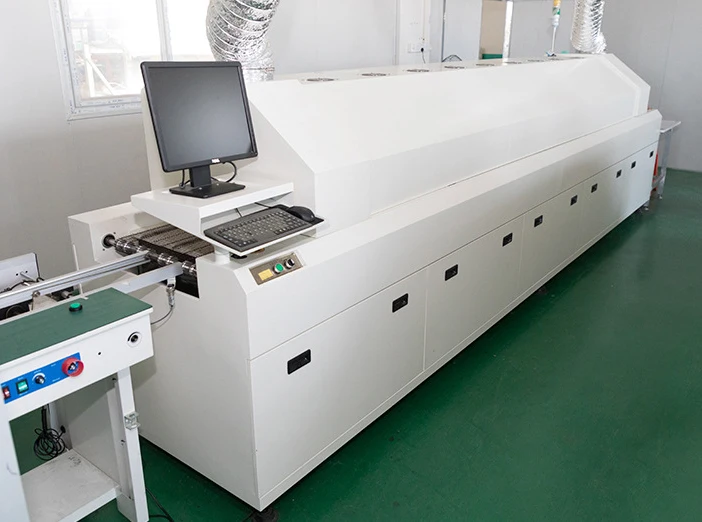

SMT Center
Over All Assembling
Semi-Finished Product Testing
Rocketech Integrating Sphere
Aging Workshop
FAQ
Q1: Do you have a price list?
A: We are OEM Manufacturer. We produce products per Customer’s designs and instructions. so we don’t have a price list.
Q2: What’s your MOQ for PCB, PCBA?
A: No MOQ for PCB and PCBA. We can do prototype and mass production as well.
Q3: Are my files safe?
A: We can sign an NDA(Non-disclosure agreement).Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties.
Q4: What is needed for PCB & PCBA quotation?
A: PCB: Quantity, Gerber file and technic requirements( board material, board size, surface finish treatment, copper thickness,board thickness).
A: We are OEM Manufacturer. We produce products per Customer’s designs and instructions. so we don’t have a price list.
Q2: What’s your MOQ for PCB, PCBA?
A: No MOQ for PCB and PCBA. We can do prototype and mass production as well.
Q3: Are my files safe?
A: We can sign an NDA(Non-disclosure agreement).Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties.
Q4: What is needed for PCB & PCBA quotation?
A: PCB: Quantity, Gerber file and technic requirements( board material, board size, surface finish treatment, copper thickness,board thickness).
PCBA: PCB information,BOM,Testing documents.
Q5: What file formats do you accept for PCB and assembly?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE,P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q6: Can you procure all parts in BOM for us?
A: YES, we can source all parts as per your bom list required.
Q7: Do you have after-sales product servicing available for your customers?
A: Yes, for any quality problems, we will take our responsibility to solve it for you at any time.
Q5: What file formats do you accept for PCB and assembly?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE,P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q6: Can you procure all parts in BOM for us?
A: YES, we can source all parts as per your bom list required.
Q7: Do you have after-sales product servicing available for your customers?
A: Yes, for any quality problems, we will take our responsibility to solve it for you at any time.
