Kaifeng Original LUGB Gas Water Digital Meter Sensor Steam Compressed Air Methanol Liquid Argon Vortex Flowmeter
- Category: >>>
- Supplier: KAIFENG LIZOBOR INSTRUMENT CO. LTD
Share on (1600977371349):
Product Overview
Description
Product Description
Kaifeng LUGB Gas Water Digital Meter Sensor Steam Compressed Air Methanol Liquid Argon Vortex Flowmeter

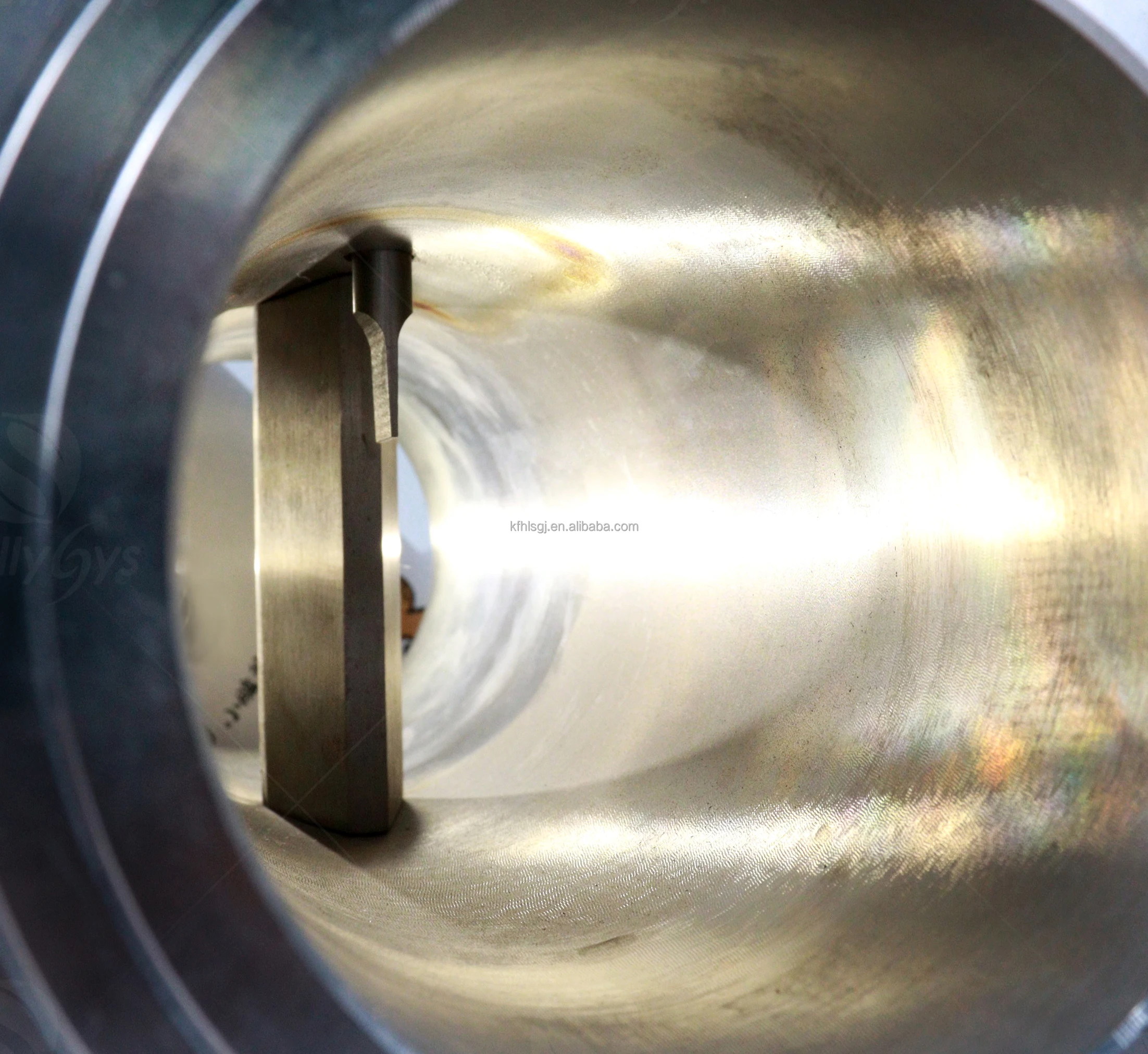

When the fluid flows through vorte generator in the pipeline, as partial flowrate go up, a vortex pattern appears, the vortex alternatively appears as two columns, it is called Karman Vortices.
The vortex alternatively segregates, a fluctuating force is produced in the wake flow behind the prism, the detecting probe installed behind(or in) the prism is affected by this tiny fluctuating force and piezoelectric crystal partsburied in the probe is affected by the alternative stress, then am alternating charge signal is generated.
It is widely used for flow measurement of industrial pipeline medium fluids, such as gas, liquid,
steam.
Features At A Glance
The structure is simple and strong, no moving parts, high reliability, and long-term operation is very reliable. |
The installation is simple and maintenance is very convenient. |
The detection sensor does not directly contact the measured medium, and has stable performance and long service life. |
The output is a pulse signal proportional to the flow rate, zero drift, and high accuracy. |
Wide measuring range, up to 1:10 ratio. |
Less pressure loss, lower operating costs, more energy-saving significance. |
Nominal diameter (mm) | Flange type: DN15-DN300 Insert type: above DN300 |
Temperature range: | Normal temperature type: -40-250℃ High temperature type: -40-350℃ |
Pressure range: | Dn25-DN200 4.0（＞4.0agreement supply）DN250-DN300 1.6（＞1.6agreement supply） |
Body material | 304SS ,316L（Optional） |
Accuracy | Flange connection type： Liquid: 1.0% FS ；Gas: 1.5%FSInsert type: liquid: 2.0% FS ；Gas: 2.5%FS |
Power supply： | 24V DC or battery power supply |
Output : | pulse; 4-20MA; RS485, MODBUS protocol, HART |
Protection level: | IP65 |
Details Images

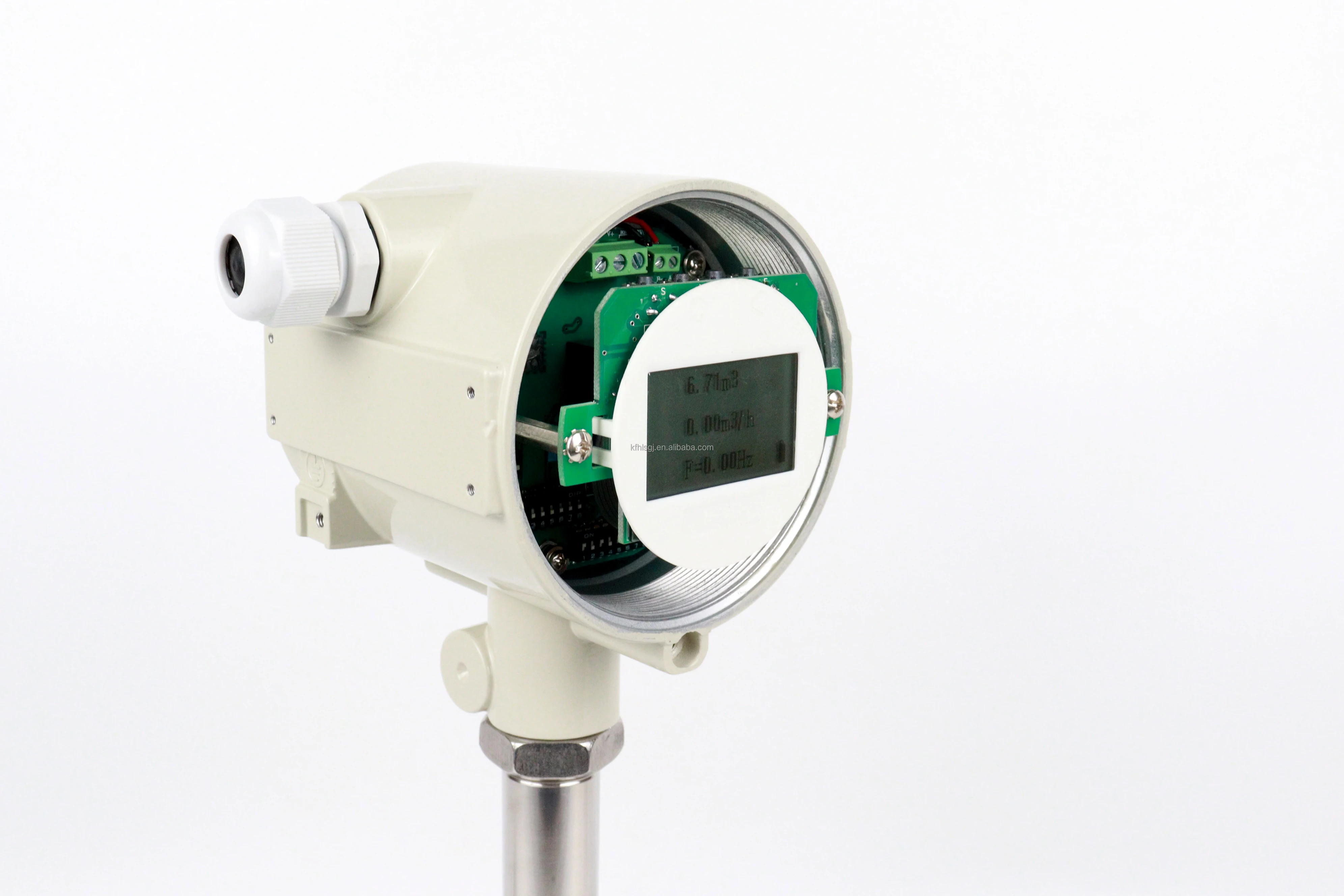

LCD backlight display; Pulse/4-20mA/RS485/Hart/Modbus etc optional.

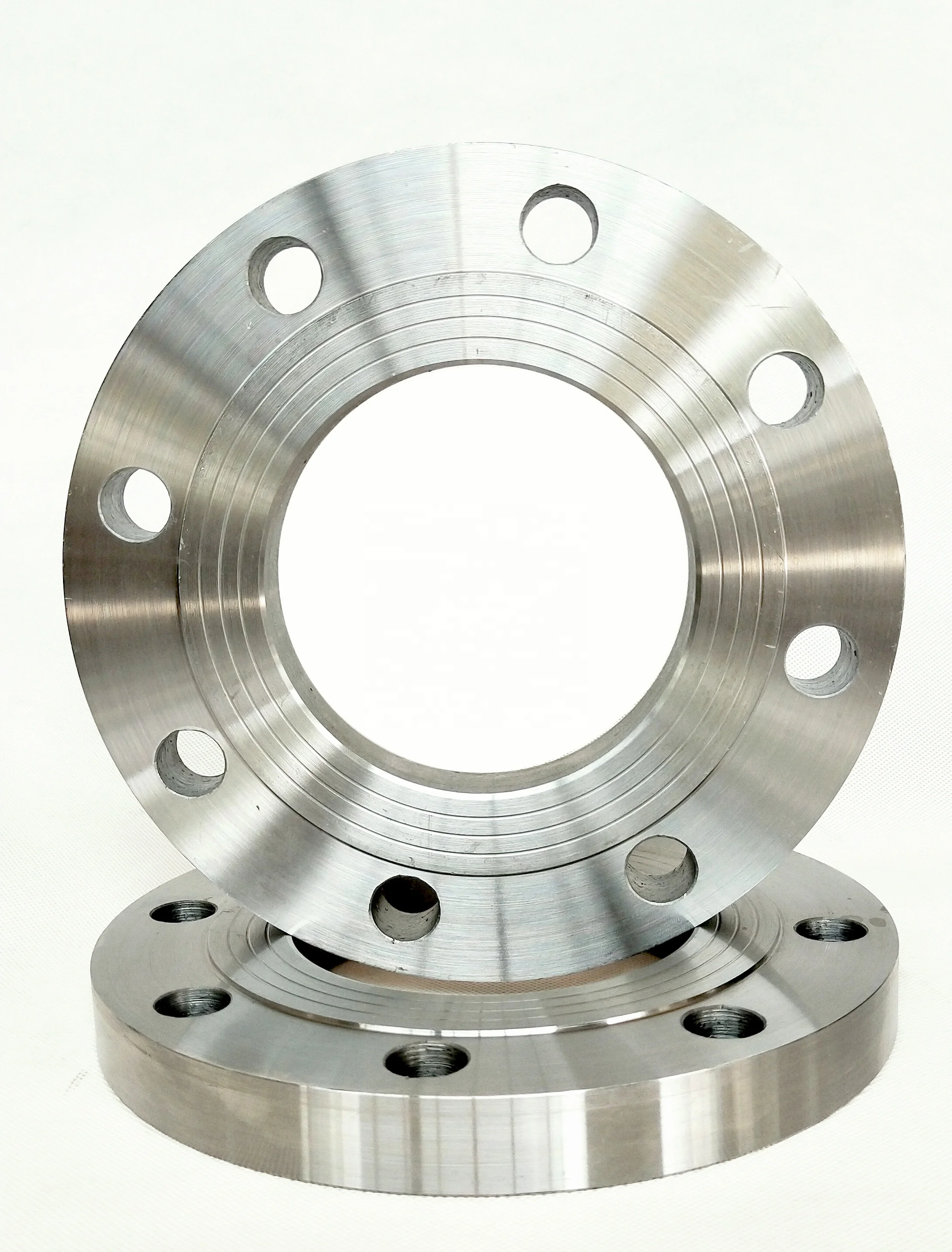

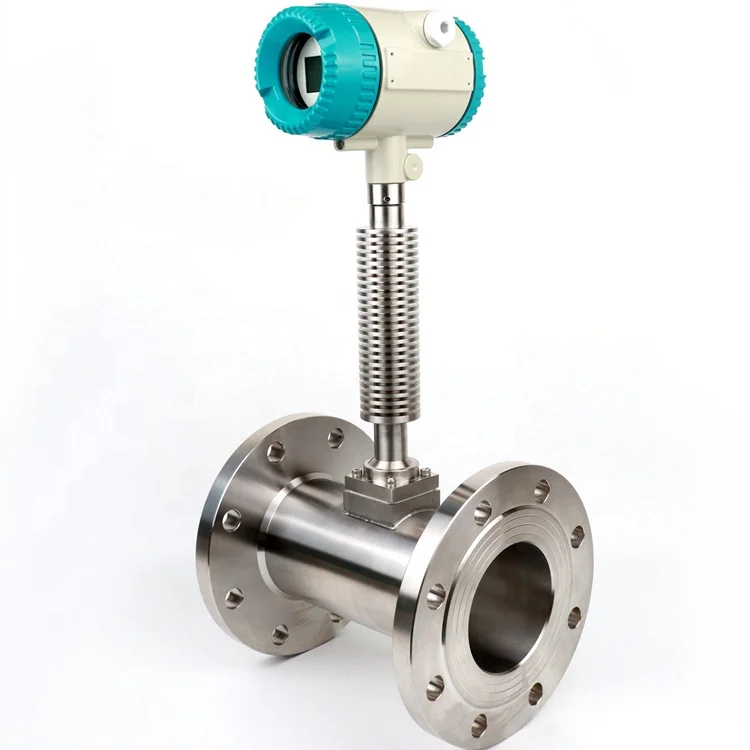

Flange material: 304SS/316SS/316L optional,Flange standards: DIN, ANSI, JIS, etc. can be customized,

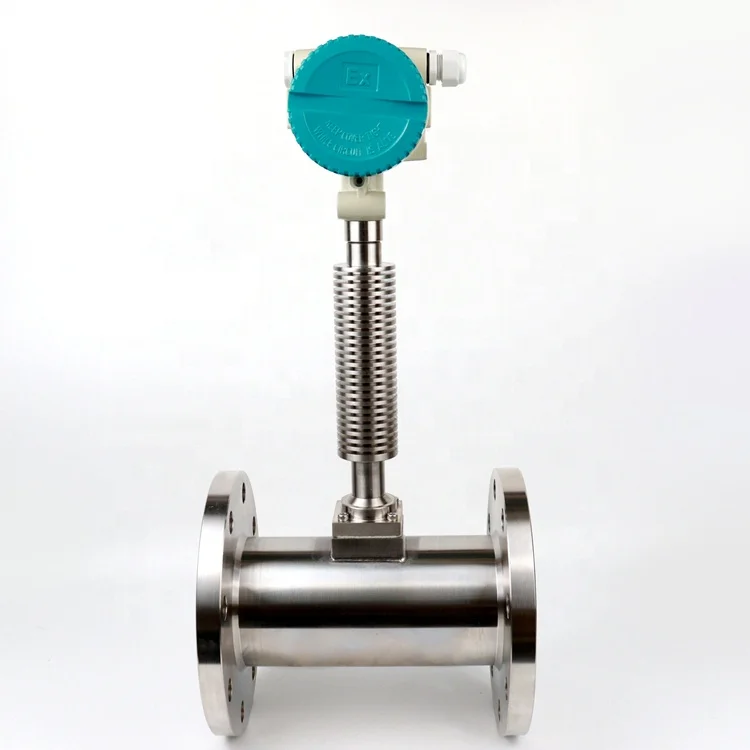

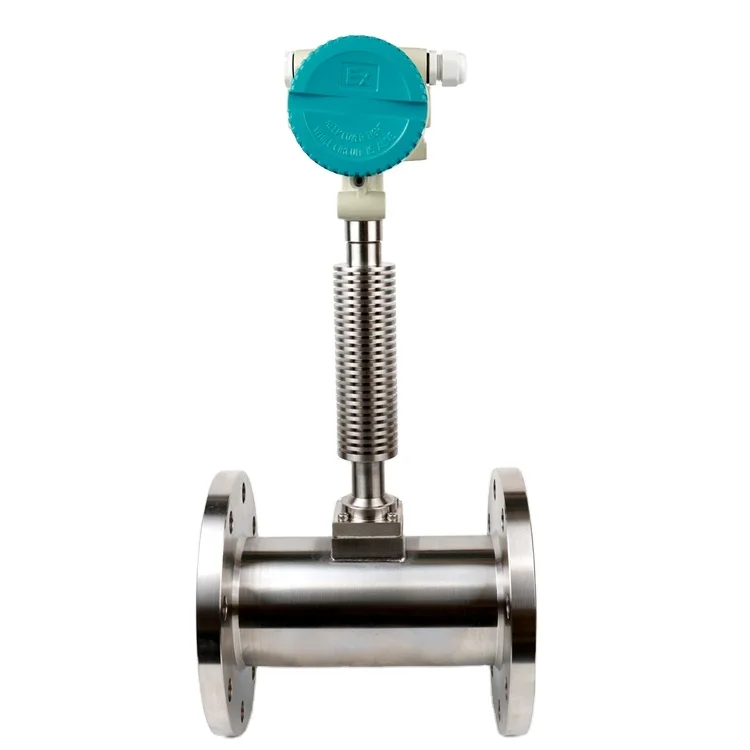

If the temperature of gas and liquid is above 250℃, it is necessary to add a threaded heat pipe as shown in the figure.

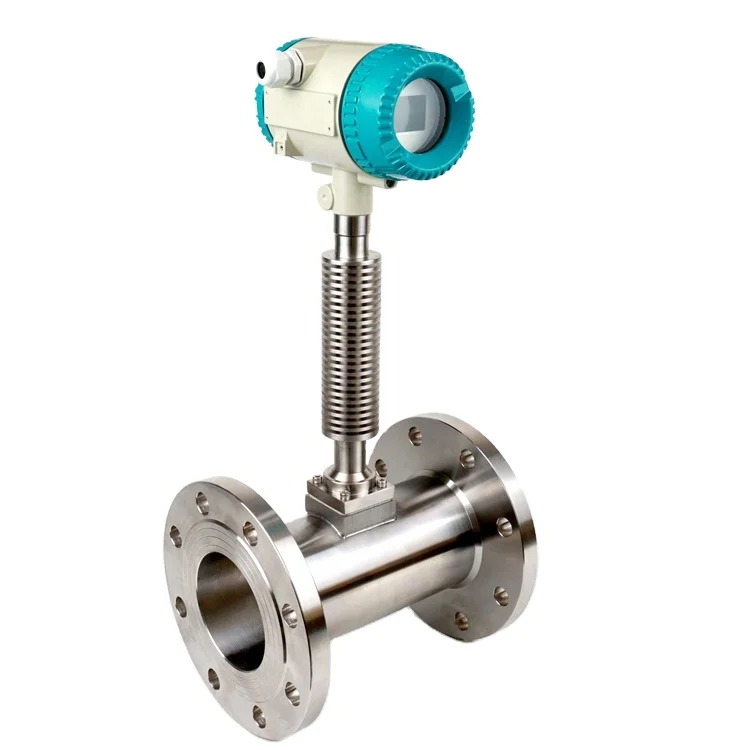

To measure general gas and liquid not exceeding 250℃, use a conventional vortex flowmeter as shown in the figure.
Technical parameter
Product Name | Vortex flow meter |
Nominal diameter | DN15-DN300,DN150~DN2000 can use the insertion vortex flowmeter, and the big caliber is more suitable for insertion type. |
Scope of application | Gases (air, oxygen, nitrogen, gas, natural gas, chemical gas, etc.), liquids (water, high temperature water, oil, food liquid, chemical liquid, etc.), steam (saturated steam, superheated steam) |
Medium temperature | -40°C~250°C,-40°C~350°C,-40°C~400°C |
Nominal pressure | ≤1.6MPa ≤2.5MPa ≤4MPa Special pressure can be customized |
Accuracy level | Liquid 0.5% Gas, steam 1.5% insertion type 2.5% |
Medium velocity range | Liquid:0.6~6m/s,Gas:5~60m/s,steam:5~70m/s. |
Output Signal | Voltage pulse,4-20mA Current output,HART Agreement,RS485. |

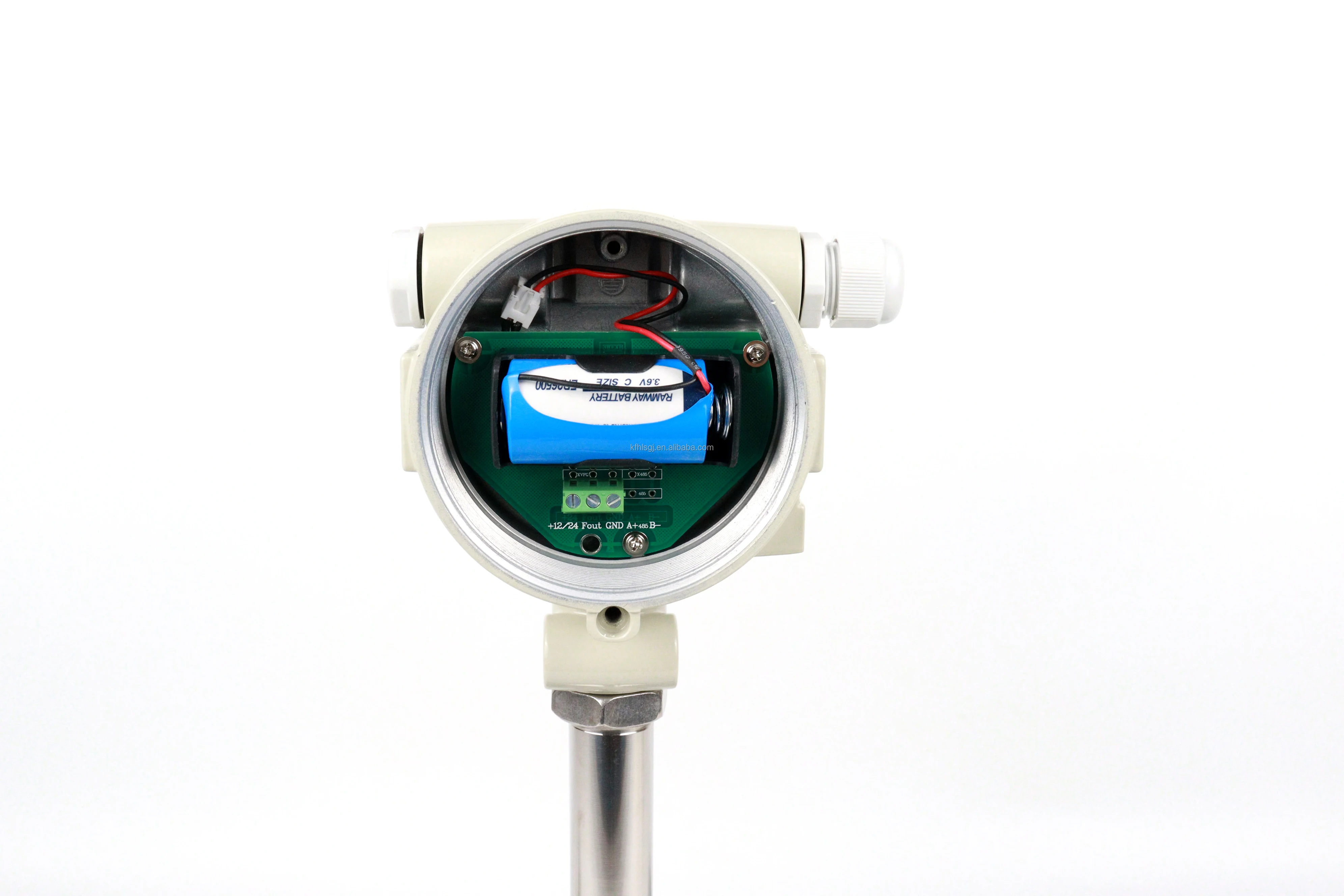

Converter power supply | Voltage pulse output:+12VDC, 4~20mA Current output:+24VDC; Live LCD display:3.6V1 No. 1 lithium battery power supply, the service life is more than 2 years |
Ambient temperature | Voltage pulse output:-30°C~+65°C, 4~20mA Current output:-10°C~+55°C; Live LCD display:-25°C~+55°C |
Body material | 1Cr 18Ni 9Ti (Other materials according agreement to supply) |
Flow range
Diameter (mm) | Liquid flow range （m3/h） | Gas flow range （m3/h） | Connection mode | Max pressure (MPa) |
DN15 | 1.2~6.2 | 5~25 | Flange clamping/Flange connection | 2.5/1.6 |
DN20 | 1.5~10 | 8~50 | Flange clamping/Flange connection | 2.5/1.6 |
DN25 | 1.6~16 | 10~70 | Flange clamping/Flange connection | 2.5/1.6 |
DN32 | 1.9~19 | 15~150 | Flange clamping/Flange connection | 2.5/1.6 |
DN40 | 2.5~26 | 22~220 | Flange clamping/Flange connection | 2.5/1.6 |
DN50 | 3.5~38 | 36~320 | Flange clamping/Flange connection | 2.5/1.6 |
DN65 | 6.2~65 | 50~480 | Flange clamping/Flange connection | 2.5/1.6 |
DN80 | 10~100 | 70~640 | Flange clamping/Flange connection | 2.5/1.6 |
DN100 | 15~150 | 130~1100 | Flange clamping/Flange connection | 2.5/1.6 |
DN125 | 25~250 | 200~1700 | Flange clamping/Flange connection | 2.5/1.6 |
DN150 | 36~380 | 280~2240 | Flange clamping/Flange connection | 2.5/1.6 |
DN200 | 62~650 | 580~4960 | Flange clamping/Flange connection | 2.5/1.6 |
DN250 | 140~1400 | 970~8000 | Flange clamping/Flange connection | 2.5/1.6 |
DN300 | 200~2000 | 1380~11000 | Flange clamping/Flange connection | 2.5/1.6 |
