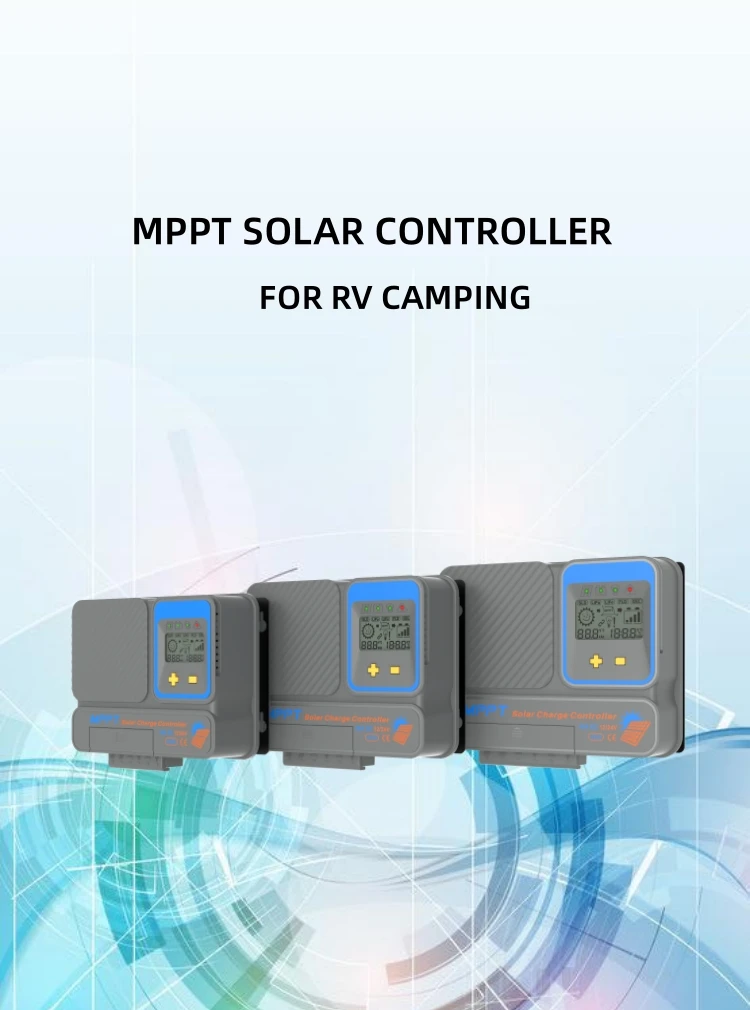

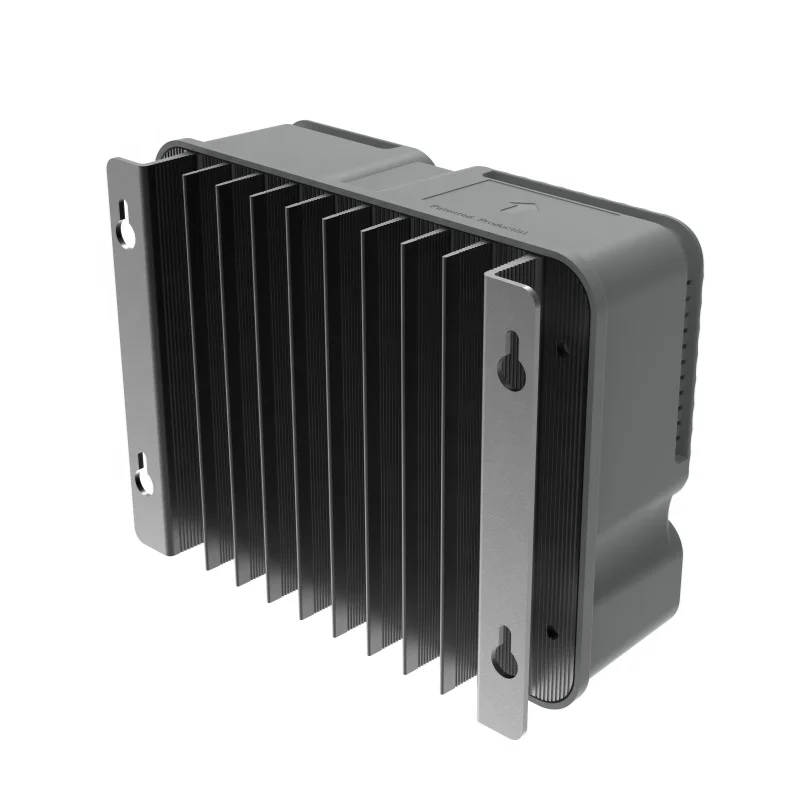

New Arrival 12V24V 20amp 30A 40 amp Lithium Gel Battery MPPT Solar Charge Controller for RV
- Category: >>>
- Supplier: Wuhan Hanfei Science And Technology Co. Ltd.
Share on (1600977384858):
Product Overview
Description
Related products
Products Description
MPPT 12/24V Automaticaly inspection 20A/30A/40A
1)self-made algorithm, fast and accurate lock MPPT point, within 10 seconds, accuracy is greater than 99%, MPPT peak conversion efficiency 98%,
2)four-stage charging : high current charging at MPPT point, float charging, absorption charging, equalized charging,
3)Can be used for lithium batterylifepo4 battery, ternary lithium battery),when the lithium battery is low voltage protected, the battery can be activated,
4)external temperature sensor, accurate temperature compersation,
5)PV input maximum voltage: 150V,
6)The system voltage is 12/24V actomativally identification,
7) Communication function(with built-in or external wifi, bluetooth, GPRS module), providing standard MODBUS communication protocol
2)four-stage charging : high current charging at MPPT point, float charging, absorption charging, equalized charging,
3)Can be used for lithium batterylifepo4 battery, ternary lithium battery),when the lithium battery is low voltage protected, the battery can be activated,
4)external temperature sensor, accurate temperature compersation,
5)PV input maximum voltage: 150V,
6)The system voltage is 12/24V actomativally identification,
7) Communication function(with built-in or external wifi, bluetooth, GPRS module), providing standard MODBUS communication protocol

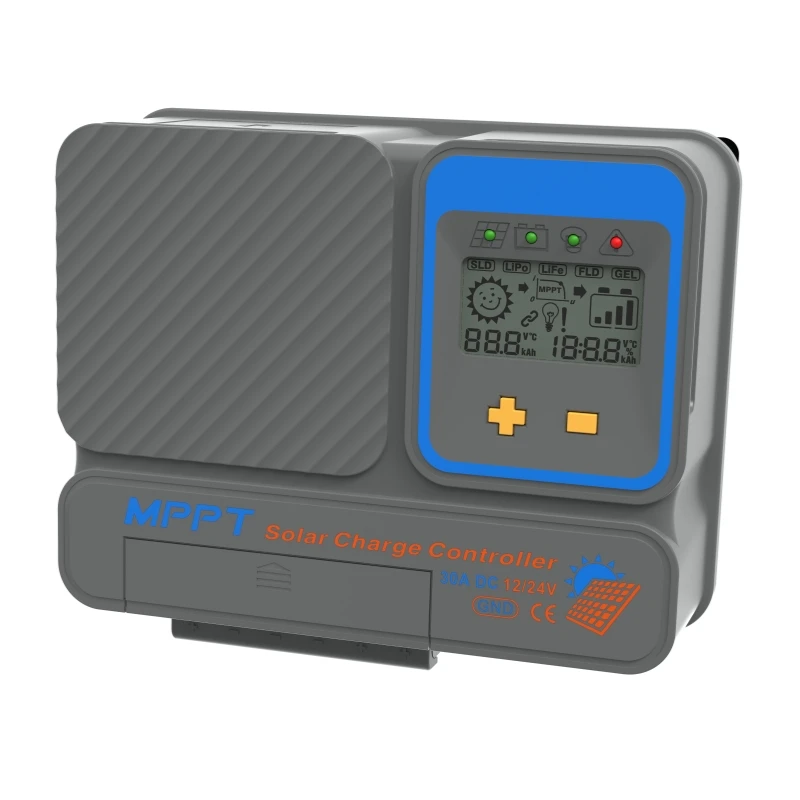

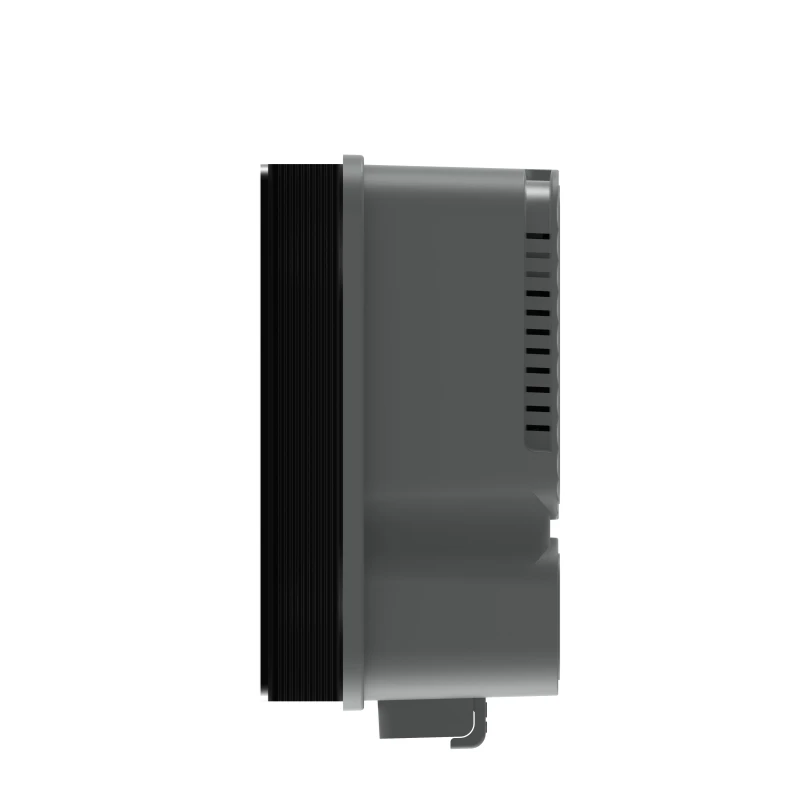

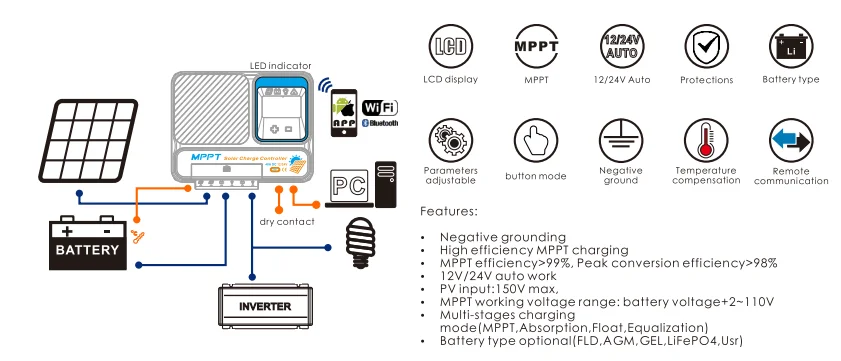

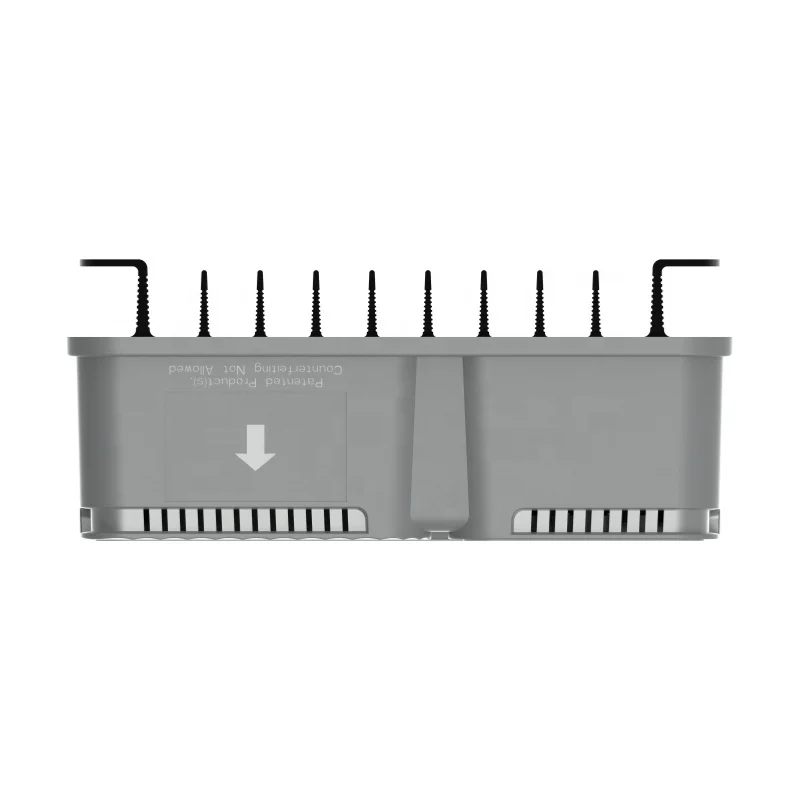

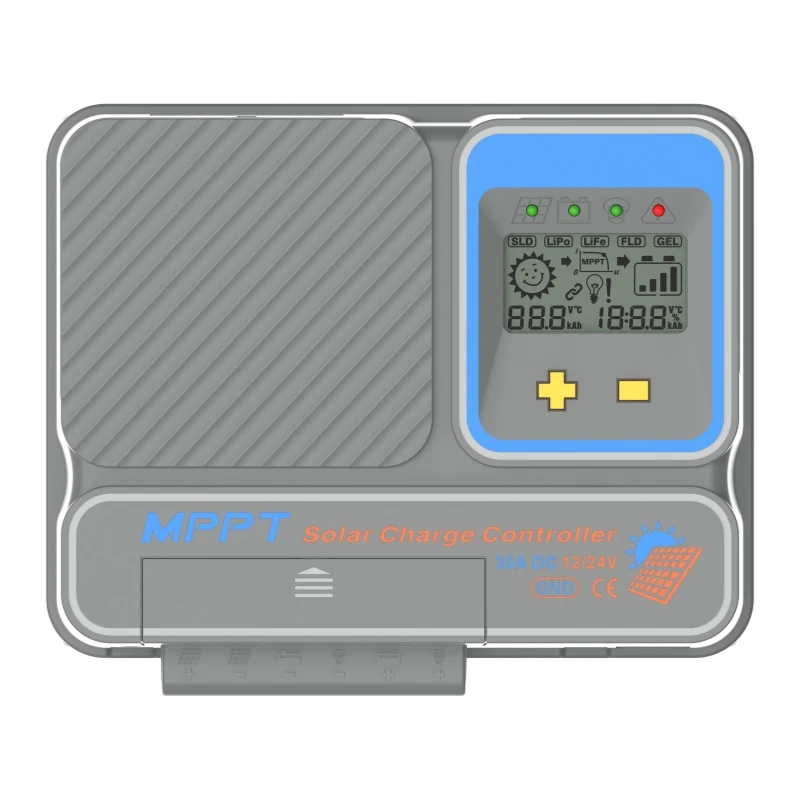

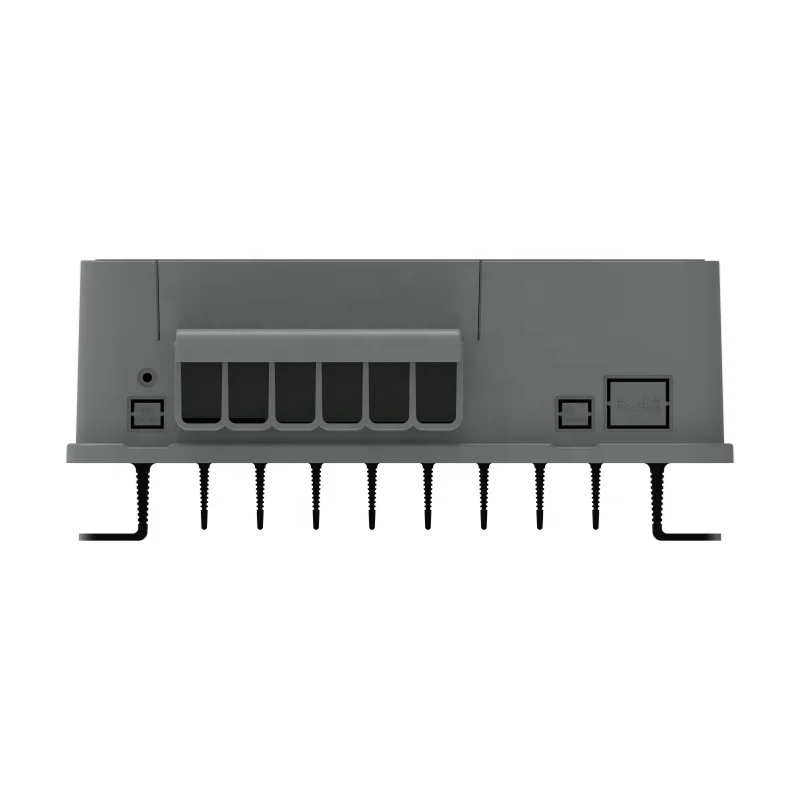

Details Images
MODEL:MPPT220D，MPPT230D,MPPT240D
Rated Charge Current:10A 20A 30A USB port:2A/5V*1
Product Paramenters
Model Name | MPPT220D | MPPT230D | MPPT240D | ||||
Battery voltage | 12/24V Auto | ||||||
Battery voltage range | 9-32V | ||||||
Max charging current | 20A | 30A | 40A | ||||
Max PV voltage | 150V | ||||||
Battery type | User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2. | ||||||
Equalized charging | Maintenance-free lead-acid battery:14.6V,GEL:No;Lead-acid Flooded battery: 14.8V | ||||||
Absorption | Maintenance-free lead-acid battery :14.4V,GEL:14.2V ;Lead-acid Flooded battery: 14.6V | ||||||
Float charging | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :13.8V | ||||||
Low voltage disconnection | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V | ||||||
Low voltage reconnection | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V | ||||||
Static loss | ≤40mA | ||||||
High voltage disconnection | 16V | ||||||
Equalize charging time | 2 hours | ||||||
Absorption charging time | 2 hours | ||||||
Light control voltage | 5V | ||||||
Temperature compensation | -4mV/°C/2V(25°C) | ||||||
Charge loop voltage drop | ≤0.2V | ||||||
Discharge loop voltage drop | |||||||
LCD screen temperature range | -20°C ~ +70 °C | ||||||
Working temperature | -20°C ~ +55 °C | ||||||
Humidity | -30 ~ +80 °C | ||||||
Grounding | Negative grounding | ||||||
Exhibition
Company Profile
Certifications

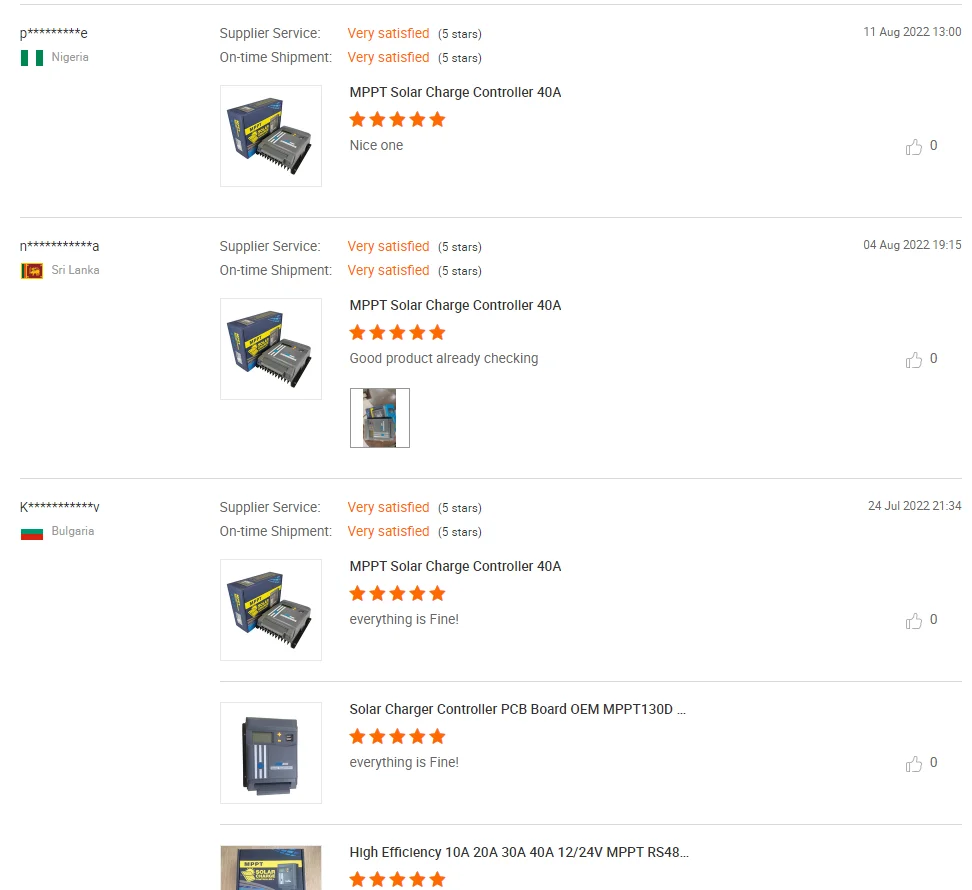

Customer reviews
