luzun professional factory 3.5cbm new design cheap price self feeding mobile multi function concrete mixer machine
luzun professional factory 3.5cbm new design cheap price self-feeding mobile multi-function concrete mixer machine
luzun professional factory 3.5cbm new design cheap price self-feeding mobile multi-function concrete mixer machine
luzun professional factory 3.5cbm new design cheap price self-feeding mobile multi-function concrete mixer machine
luzun professional factory 3.5cbm new design cheap price self-feeding mobile multi-function concrete mixer machine
luzun professional factory 3.5cbm new design cheap price self-feeding mobile multi-function concrete mixer machine
luzun professional factory 3.5cbm new design cheap price self-feeding mobile multi-function concrete mixer machine

luzun professional factory 3.5cbm new design cheap price self feeding mobile multi function concrete mixer machine

Share on (1600977407448):


Price:$20,600.00 - $21,600.00

Quantity:


Product Overview

Description





COMPACT DIMENSIONS
4x4 DRIVING
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
270 DEGREE ROTATION

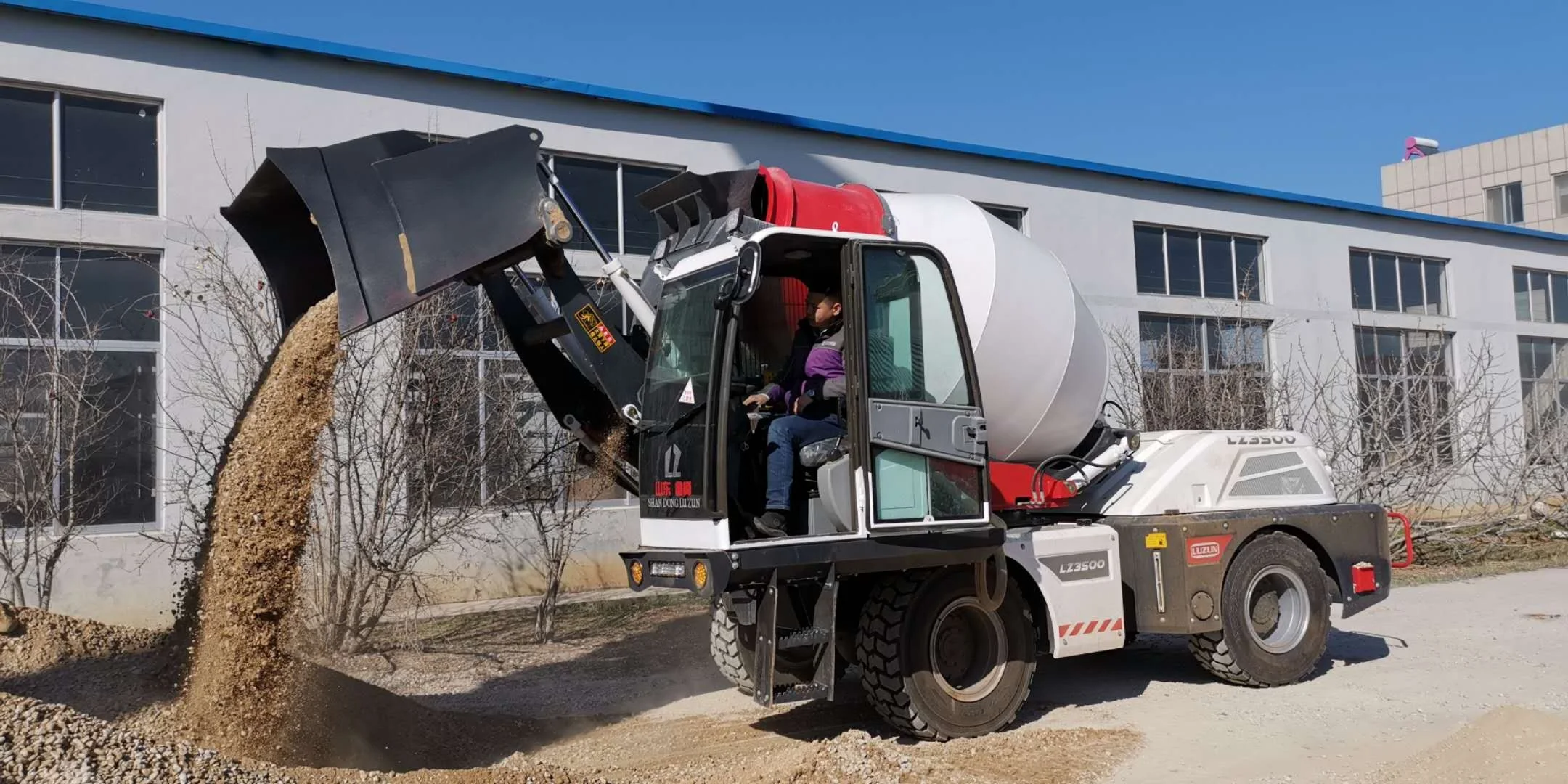

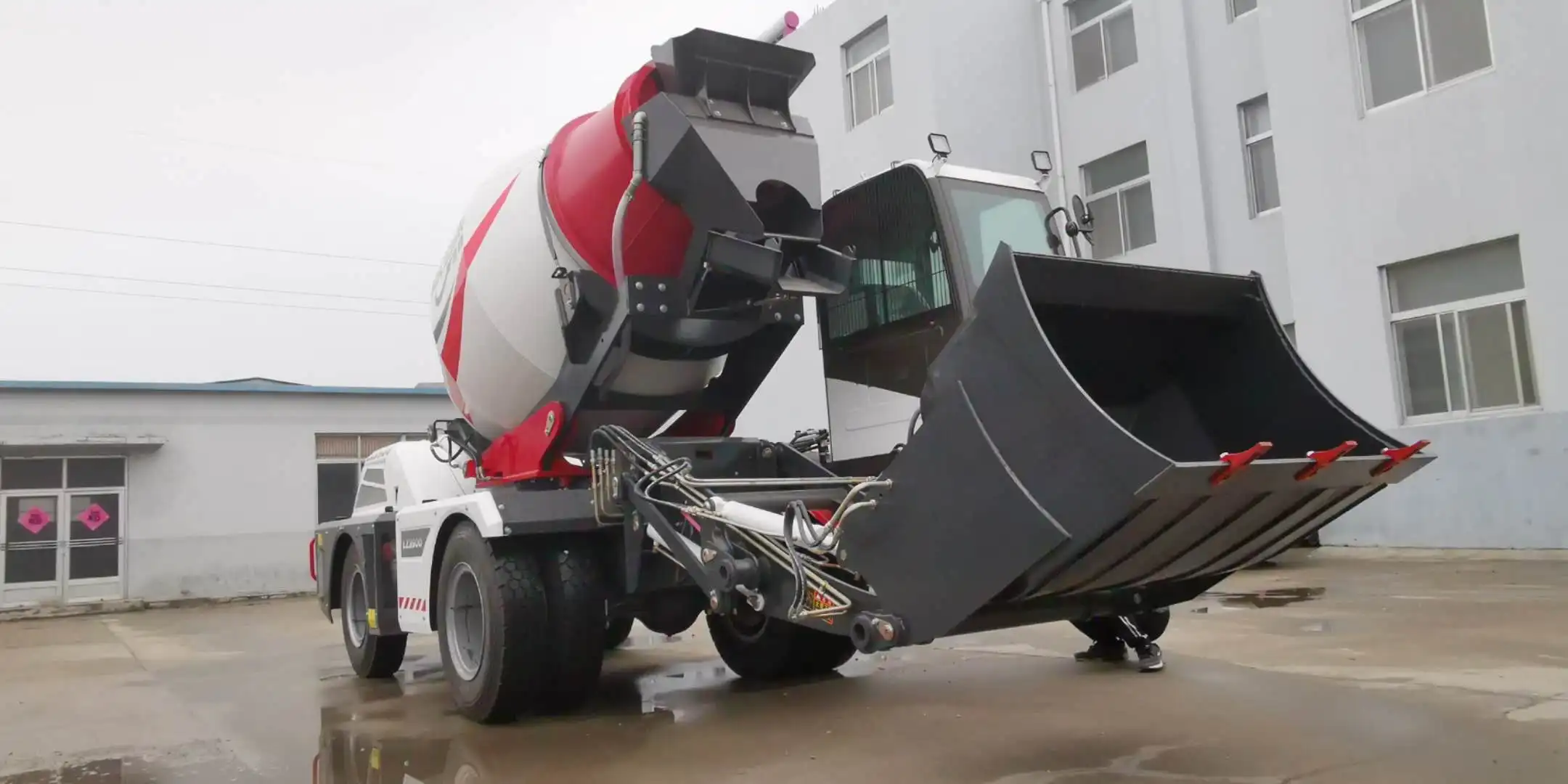

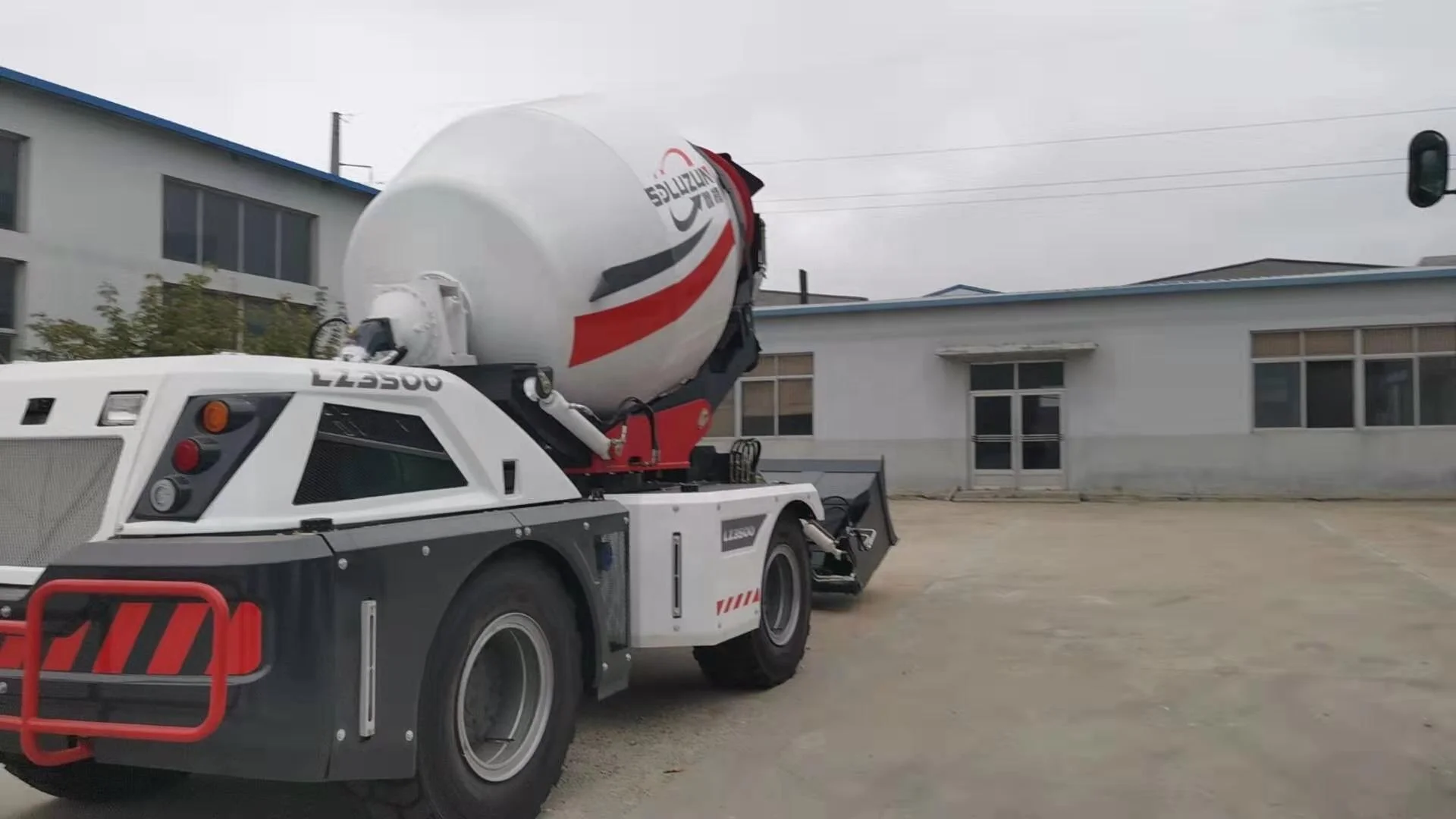

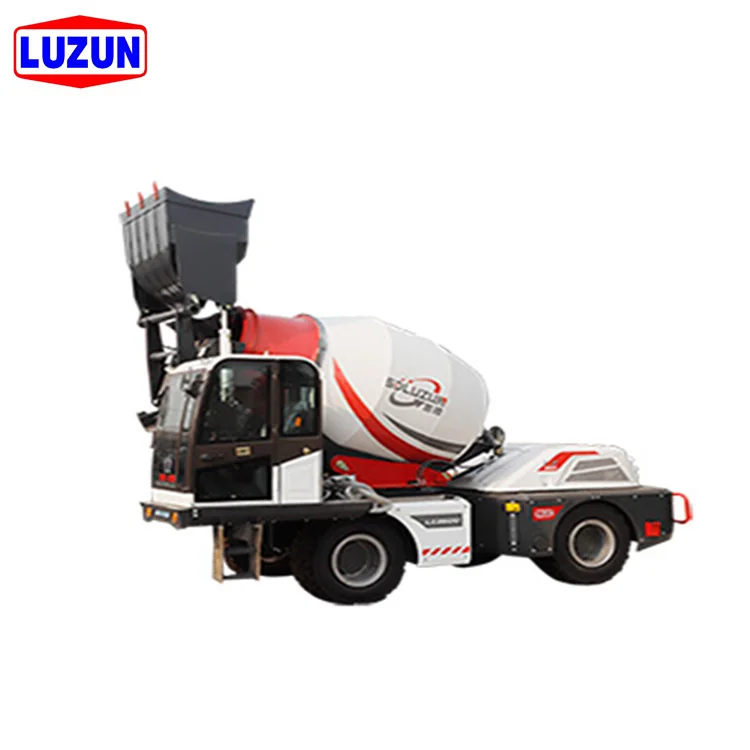

CE certified 3.5M3 self loading mobile concrete mixer truck
Luzun self loading concrete mixer truck is used to solve the problem that the prior mixer truck has a single function and can only carry out the concrete conveying task. The self loading mixer truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism. The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws. The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms. A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper. The fully automatic loading mixer has a simple structure and is easy to use. It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.




PRODUCT SPECIFICATIONS


Engine
Yuchai/ Cummins
Rated Power
85KW/92KW
Type
4-cylinders/6-cylinders
Max Torque
390nm/2800rpm
Chassis
Integrated rigid chassis
Driving type
4*4

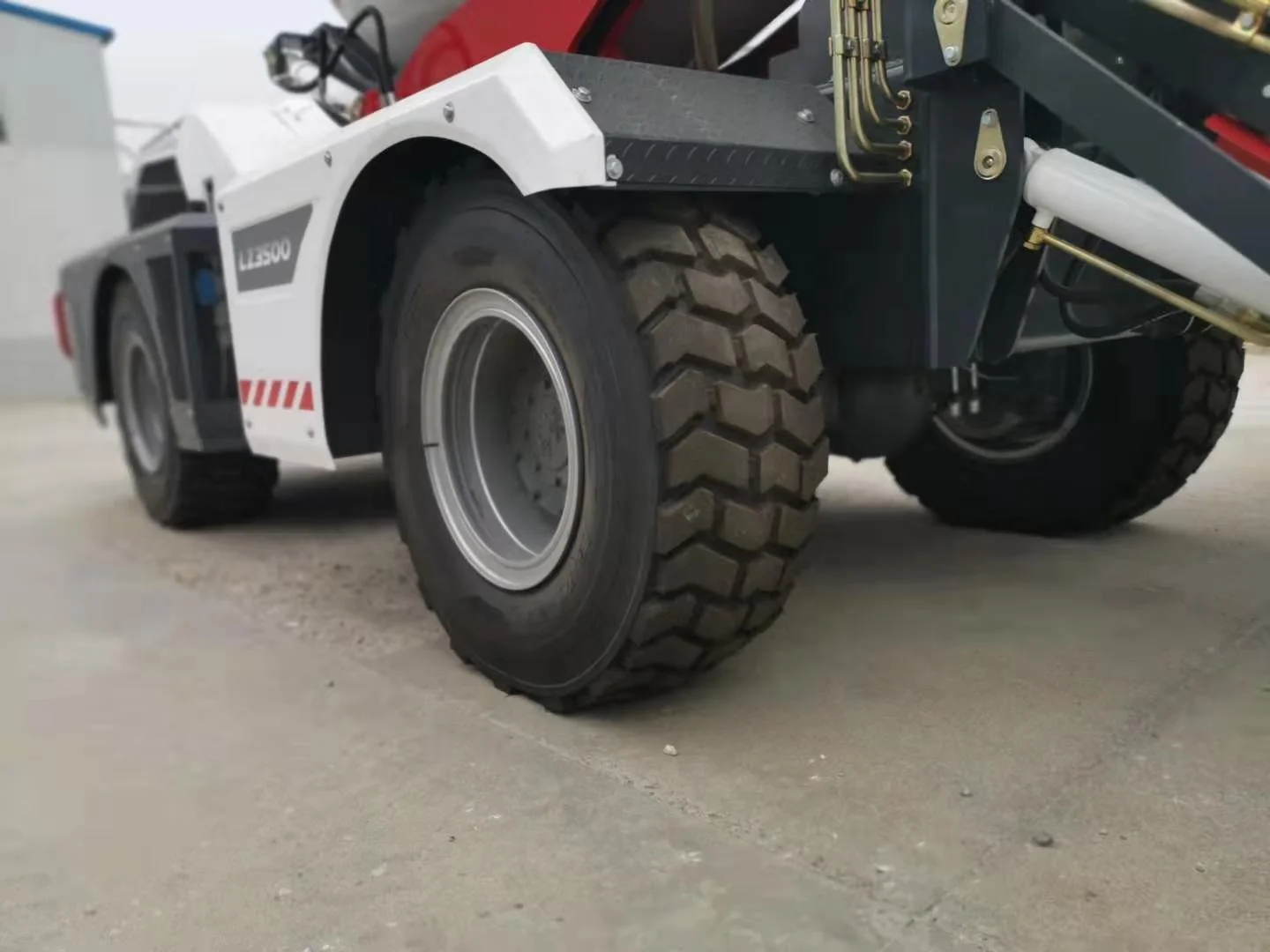

Tyre
16/70-20
Hopper volume
700L
Mixing volume
3.5cbm
Geometrical volume
5.5 cbm
Concrete output
3.5cbm/batch, 14-16cbm/hour
Drum rotating speed
16rpm
Drum slewing angle
0/180/270
Water tank
2*260L
Water pump
24v self priming pump
Hydraulic gear pump
Permco/Sunny
Gradient
40% fully loaded
Max speed
35km/h
Size
6160*2800*3400mm
Weight
8800kg
Loading capacity
9600kg
Cab
colsed, with warm/cool air conditioner
Fuel tank
120L
Total hydraulic capacity
100L
Engine oil
20L, auto lubrication

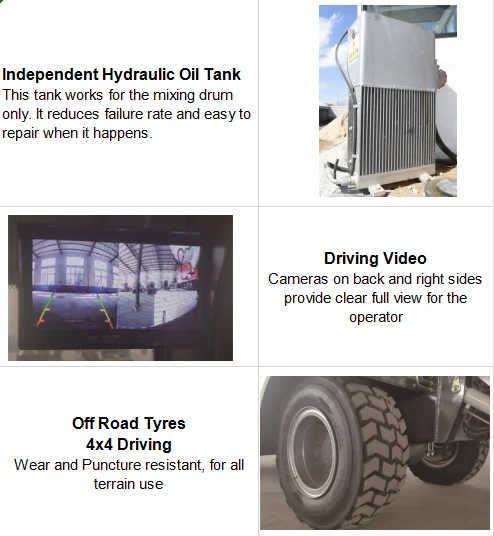

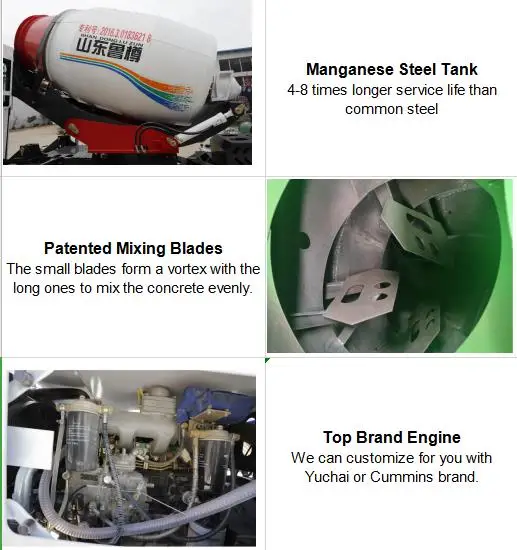

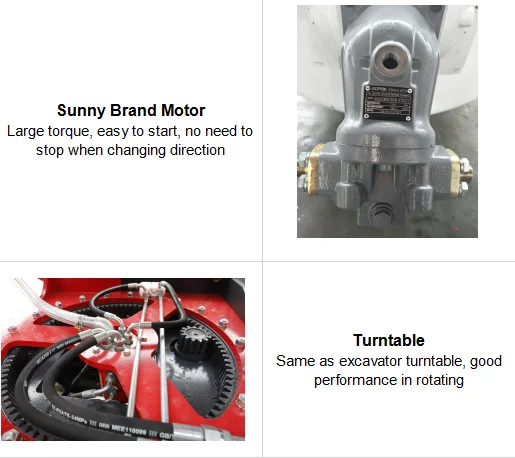

PRODUCT CONFIGURATION

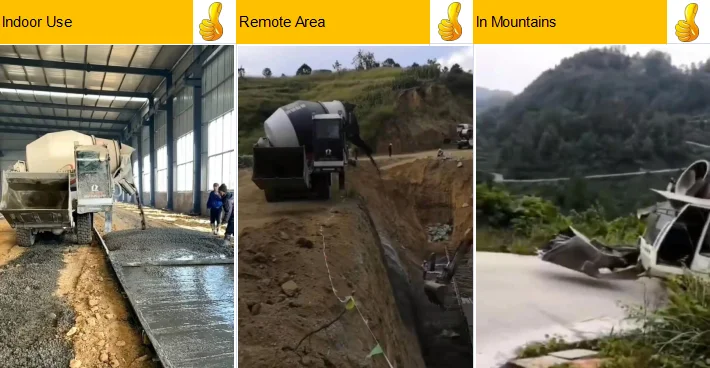

Client Projects

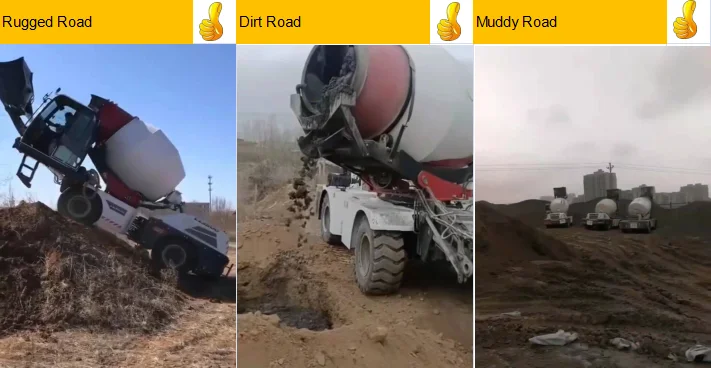

Luzun self loading mixer truck has the characteristics of narrow body, short wheelbase and small turning radius, thus it has strong advantages in the working environment of limited height, width and length. For projects with narrow construction roads, the machine can realize multi-angle unloading without moving on the ground, as its tank can be rotated by 270°. Therefore, it is very suitable for road construction.

It is used for the grouting pump equipment for the mixing of cement slurry, mortar and so on. It can be used in construction and maintenance of construction metallurgy, railway bridges, prestressing, etc. The mixer is small in size, light in weight, easy to install and move, simple to operate, easy to use, and trusted by users.







Customers & Expos




LUZUN self-loading concrete mixer has been continuously exported to dozens of countries like Hungary, Saudi Arabia, Algeria, Panama, Venezuela, Russia, Uzbekistan, Kazakhstan, India, Malaysia, the Philippines, Vietnam, Cambodia, Kenya, Somalia, etc. and has become the most popular mixer trucks in local markets.

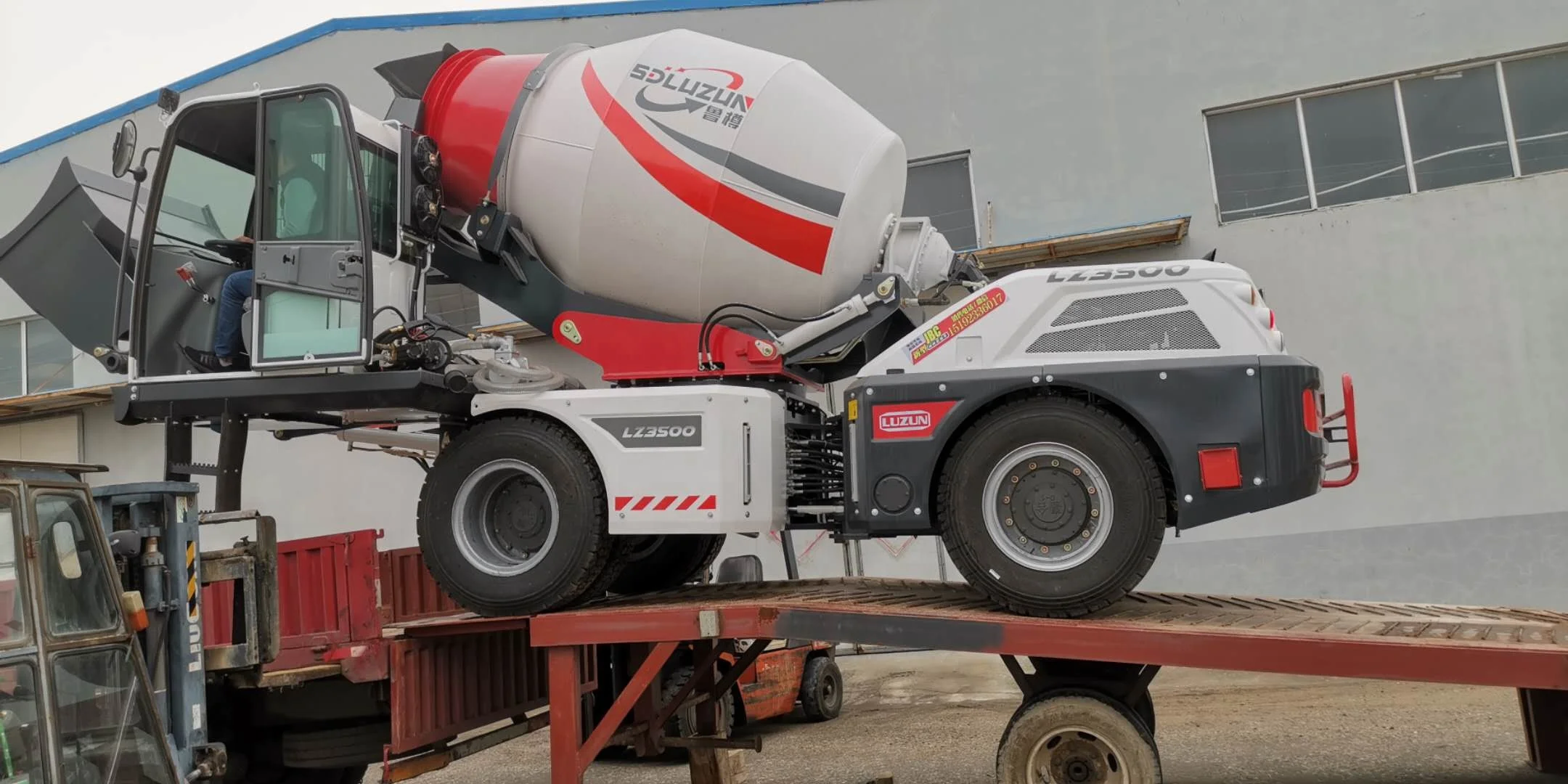

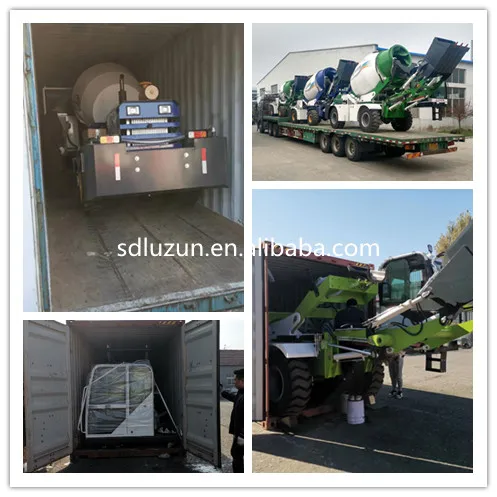

Packing & Delivery

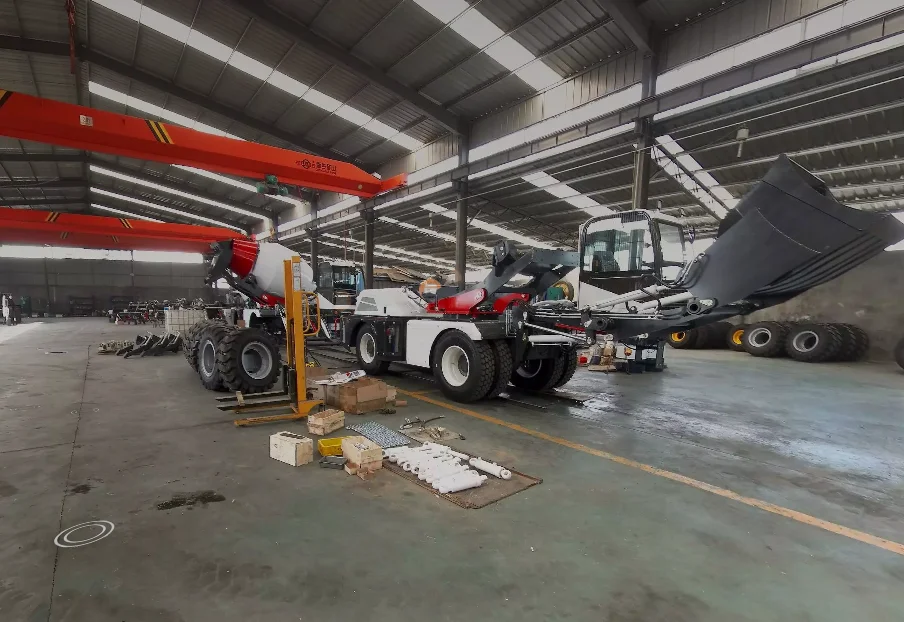

Company Profile














Recommend Products




FAQ


Q: What is your payment term?
A: Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at sight.

Q: How soon can you deliver the mixer afther I place the order?
A: We keep fresh inventory. Most orders are delivered in less than 7 days.
If it is OEM, the order will be delivered in 15-20 days.

Q: Is your quality good?
A: We use advanced Italian technology and make improvement based on customer feedback. Till now our professional R&D team has launched 13th generation mixers and registered 24 national patents.
Besides, we successfully passed the quality certification of CCC and CE.

Q: Do you have warranty?
A: Yes, we offer one year warranty based on the confidence on our quality.

Q: Can I be your agent?
A: Sure. You are welcome to be our agent. We will provide necessary support to you.

Q: Can I get a discount?
A: We sell diretly from factory. The price is better than trading companies.
But still discount is available based on the order quantity.


Please feel free to let us know if you have any further questions.
