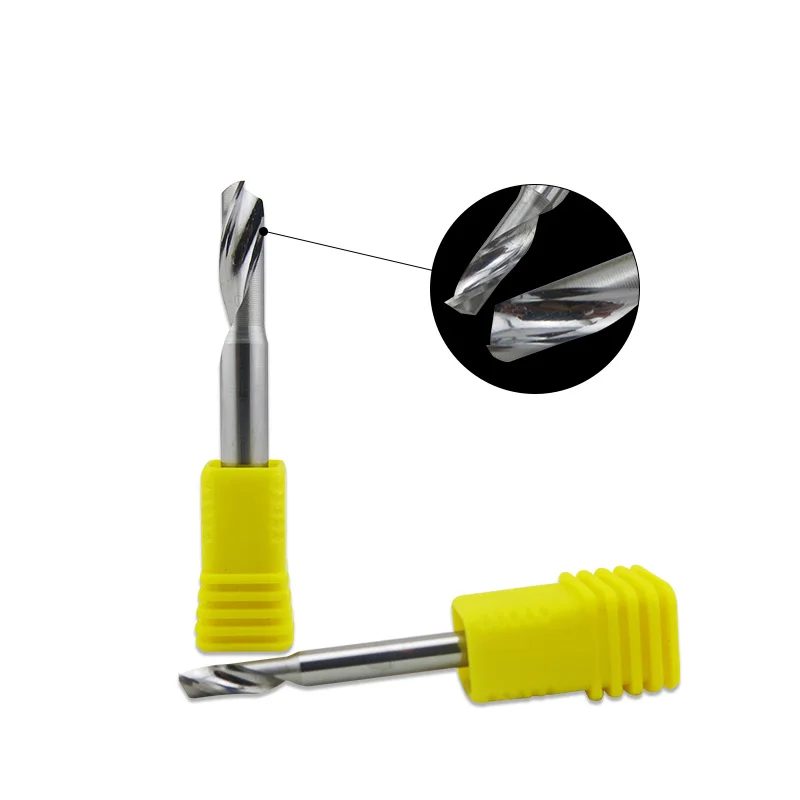

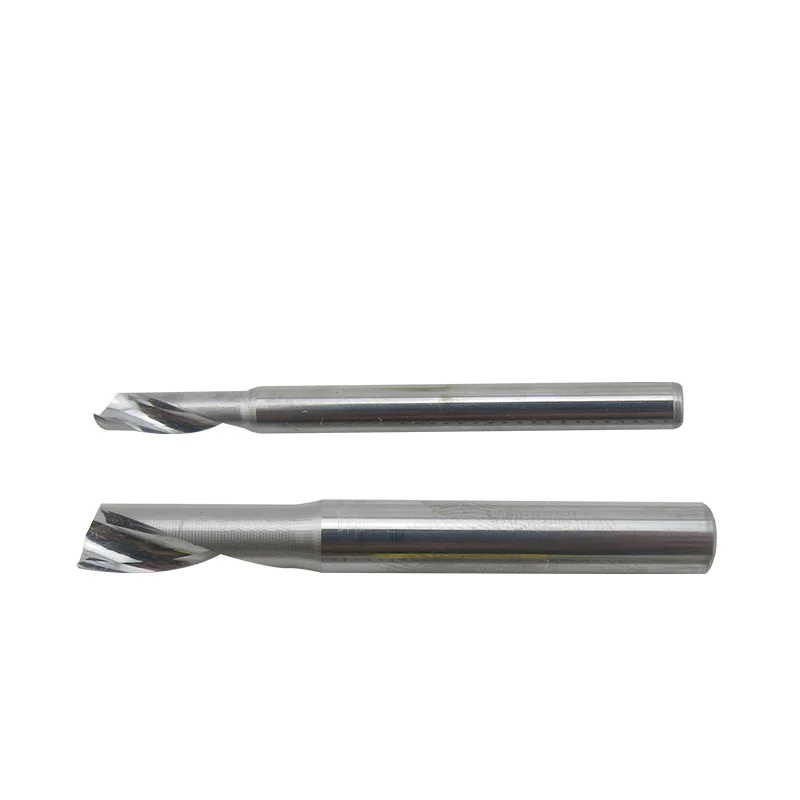

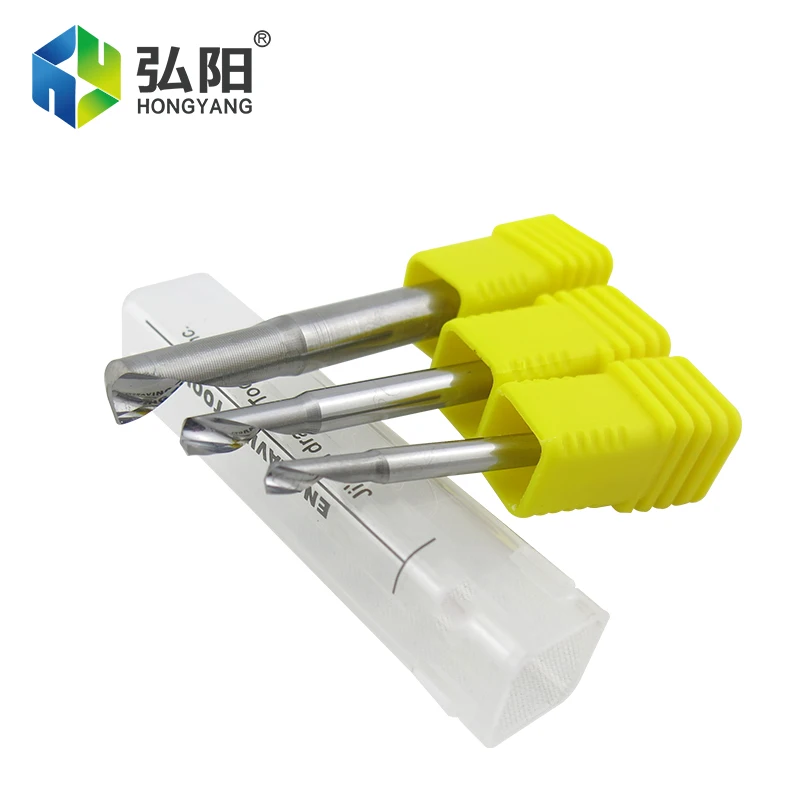

Carbide Cutting Mill Up And Down Cut Compression For Cutting Chipboard
- Category: >>>
- Supplier: Jinan Hongyang Cnc Machinery Co. Ltd.
Share on (1600977419376):
Product Overview
Description
Applicable processing materials
Mainly suitable for aluminum plate, copper plate, acrylic, hardwood, etc.
Material, cutting sharp and smooth, no burrs
Material, cutting sharp and smooth, no burrs
product manual

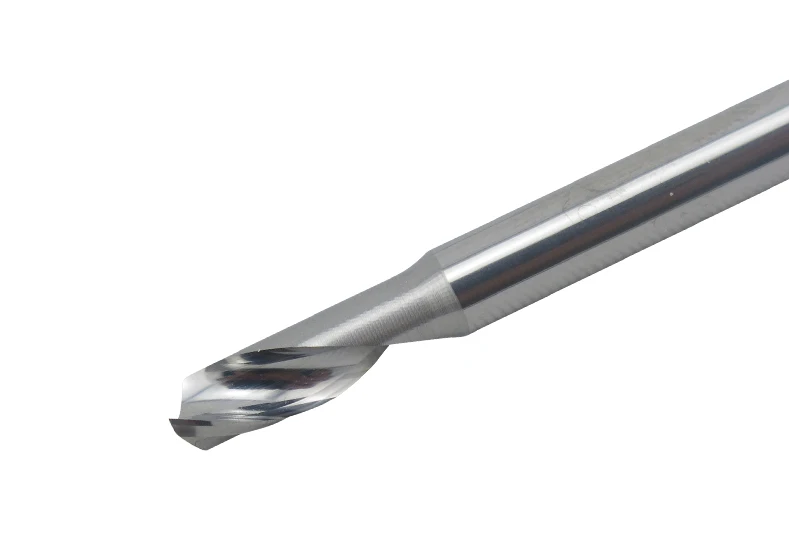

Brand: hycnc
Name: Single-edged spiral knife for aluminum
Product material: tungsten steel
Cutting speed: 6-8m/min recommended
Feed: 80%-100%
Parameter setting: 8000
Recommended speed: 20000-22000 revolutions per minute
Applicable materials: density board, multilayer board, aluminum board, plastic board, etc.
Applicable machines: machine tools, advertising engraving machines, cnc machining centers
Blade length selection: In addition to the specification limit, the blade length selection exceeds the plate 2-5mm, too much and the blade is easy to break
Speed description: Some customers think that the slower the knife, the less it will break, but in fact, the sharper the knife.
Slow movement of the knife is prone to burning and broken blades.

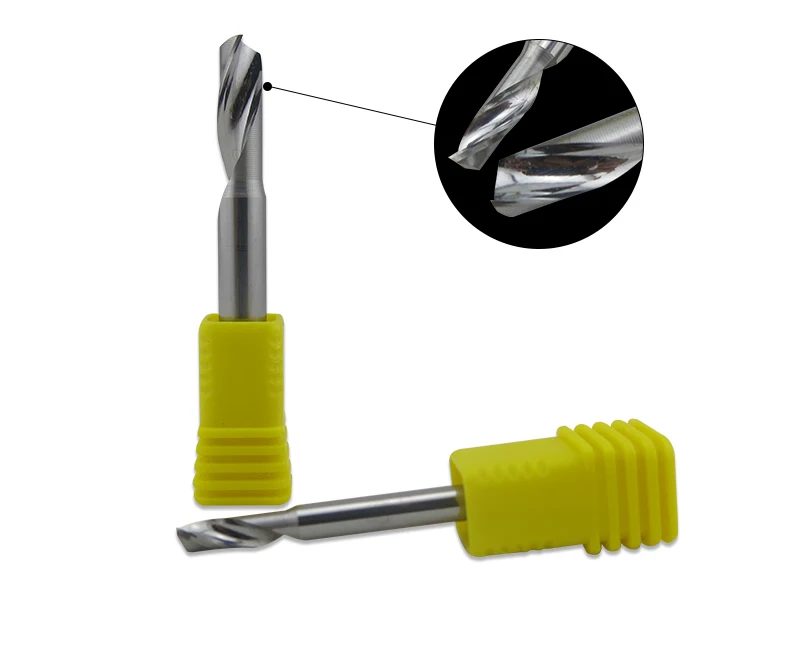

Main features: adopt mirror sharpening process, large-capacity chip flute, sharp cutting edge, wear resistance,
The cut surface is smooth and delicate, no polishing, no sticky knife, smokeless, tasteless, silent
Name: Single-edged spiral knife for aluminum
Product material: tungsten steel
Cutting speed: 6-8m/min recommended
Feed: 80%-100%
Parameter setting: 8000
Recommended speed: 20000-22000 revolutions per minute
Applicable materials: density board, multilayer board, aluminum board, plastic board, etc.
Applicable machines: machine tools, advertising engraving machines, cnc machining centers
Blade length selection: In addition to the specification limit, the blade length selection exceeds the plate 2-5mm, too much and the blade is easy to break
Speed description: Some customers think that the slower the knife, the less it will break, but in fact, the sharper the knife.
Slow movement of the knife is prone to burning and broken blades.
Main features: adopt mirror sharpening process, large-capacity chip flute, sharp cutting edge, wear resistance,
The cut surface is smooth and delicate, no polishing, no sticky knife, smokeless, tasteless, silent
Tungsten steel blade
High hardness, high wear resistance, sharp and
not easy to break the knife
not easy to break the knife
Large capacity chip flute
Larger chip flute design, faster chip removal and
higher working efficiency
higher working efficiency

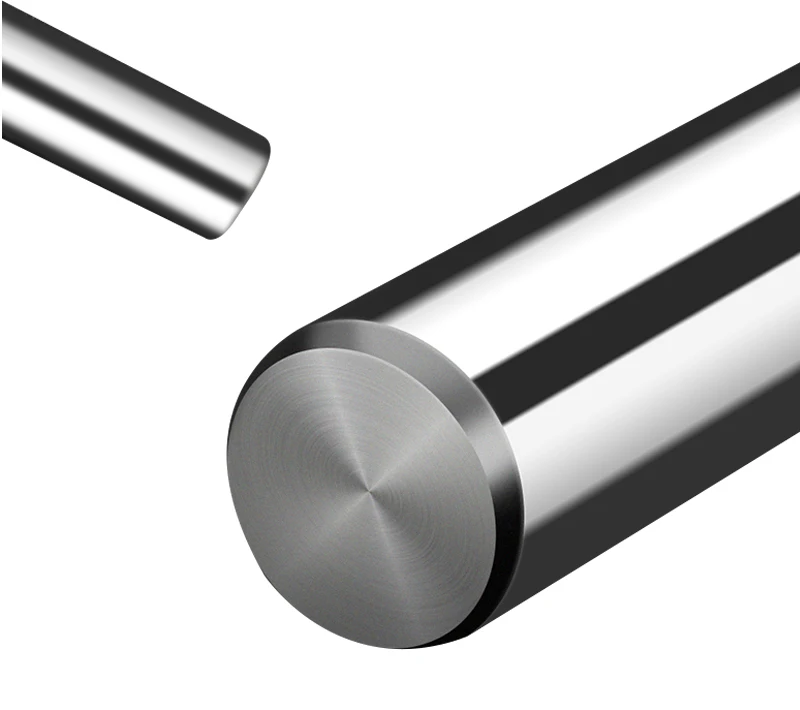

More convenient loading and unloading
Tool handle chamfering treatment design,
tool and machine fixed Better firm
tool and machine fixed Better firm

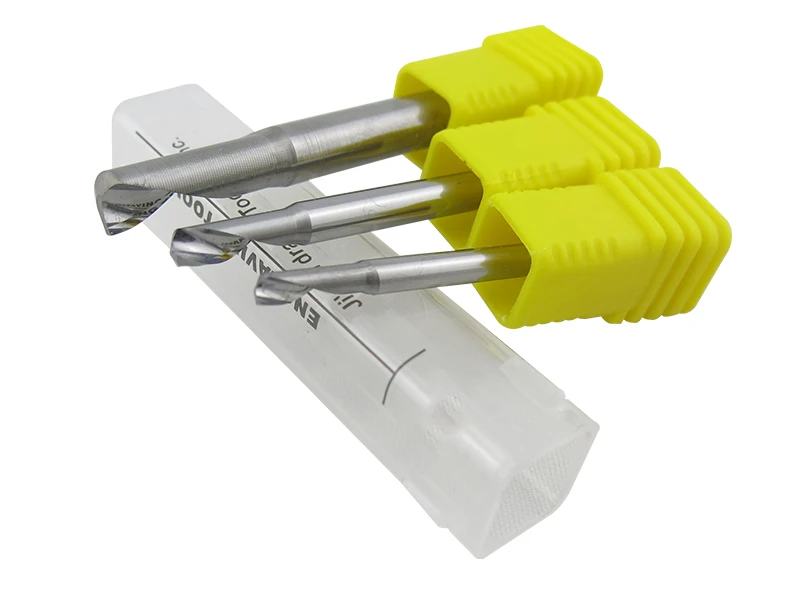

Individually packaged one by one
High-quality packaging configuration, better protection of tools
Tool selection
To achieve the purpose you require, be sure to use short-edged tools as much as possible. Too long cutting edge or too long tool body will cause vibration and deviation during machining, which will lead to tool damage and affect the quality of machining. We recommend using a tool with a larger shank diameter
Tool operation
⑴. The woodworking milling cutter is designed for portable and desktop engraving machines and cannot be used on machines such as electric drills.
⑵. The tool can process hardwood, softwood, synthetic board and other wood to produce a smooth surface, but avoid processing metal materials such as copper, iron, and non-wood materials such as sand and stone.
⑶. It is necessary to use a suitable size jacket, because the jacket with serious wear, insufficient roundness and taper in the inner hole can not provide enough clamping force, which will cause vibration or break the tool handle and fly off.
⑷ Do not think that the new jacket must be safe and reliable. When the tool handle is found to have uneven contact marks or grooves after the tool is clamped, it indicates that there is slippage and deformation of the inner hole of the jacket. This is to replace the jacket immediately to avoid accidents.
⑸ After the tool is clamped, if the tool is found to be bounced when it is working, stop it immediately, repeat the clamping several times so that the tool shank and the jacket get sufficient contact, and then work.
⑹. The contact between the tool shank and the jacket should be good. The tool shank must be completely inserted into the jacket and tightened firmly, so as to provide sufficient clamping force for the tool, and not only a small part of it can be inserted into the jacket, otherwise it will be easy The tool handle is broken and the tool is damaged.
⑺. Use proper eye and ear protection devices during operation.
⑻ Body, clothes and other sundries should not be close to the working tool.
⑵. The tool can process hardwood, softwood, synthetic board and other wood to produce a smooth surface, but avoid processing metal materials such as copper, iron, and non-wood materials such as sand and stone.
⑶. It is necessary to use a suitable size jacket, because the jacket with serious wear, insufficient roundness and taper in the inner hole can not provide enough clamping force, which will cause vibration or break the tool handle and fly off.
⑷ Do not think that the new jacket must be safe and reliable. When the tool handle is found to have uneven contact marks or grooves after the tool is clamped, it indicates that there is slippage and deformation of the inner hole of the jacket. This is to replace the jacket immediately to avoid accidents.
⑸ After the tool is clamped, if the tool is found to be bounced when it is working, stop it immediately, repeat the clamping several times so that the tool shank and the jacket get sufficient contact, and then work.
⑹. The contact between the tool shank and the jacket should be good. The tool shank must be completely inserted into the jacket and tightened firmly, so as to provide sufficient clamping force for the tool, and not only a small part of it can be inserted into the jacket, otherwise it will be easy The tool handle is broken and the tool is damaged.
⑺. Use proper eye and ear protection devices during operation.
⑻ Body, clothes and other sundries should not be close to the working tool.
