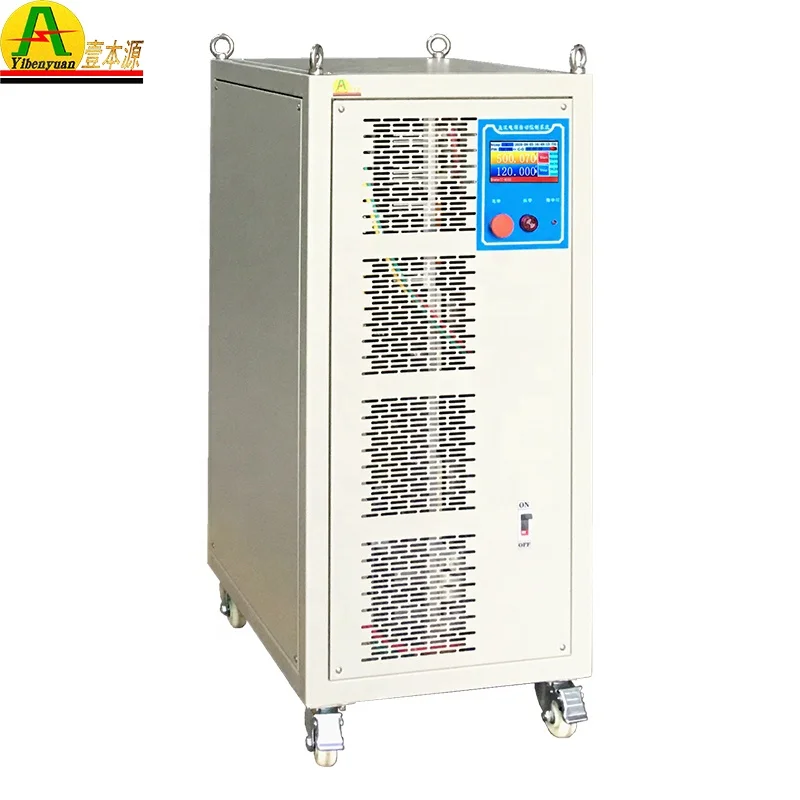

Factory customized high output power converter single phase military equipment AC220V DC600V power supply aging test
- Category: >>>
- Supplier: Guangdong Yibenyuan Power Supply Equipment Co. Ltd.
Share on (1600977419423):
Product Overview
Description
Factory customized high output power converter single-phase military equipment AC220V DC600V power supply aging test
Product Description
PRODUCTION DESCRIPTION
1. The product has a beautiful appearance and a solid structure, the surface of the shell is powder coated, firm and corrosion resistant. The bottom is equipped with rollers, which can be easily moved.
2. The power supply adopts the current world advanced control system PWM technology and stable and reliable circuit topology design control circuit, and equipped with German Infineon brand module (IGBT) control. The main transformer adopts nano-crystal magnetic core and pure copper wire winding, good heat dissipation, sufficient power, low power consumption, durable and stable performance. The main components such as rectifier bridge and rectifier tube are made of high quality materials from all over the world, and the power supply adds our advanced patented LC filtering technology. The output ripple coefficient is small, the current distribution is good, and the anti-interference ability is strong. The output voltage and current range is wide, the voltage and current is stable with high precision, the detection data is accurate and other characteristics.
3. Constant voltage or constant current working mode can be selected, and voltage and current can be set arbitrarily from 0 to maximum value. Automatic protection against faults such as phase failure, overheating, over-voltage, over-current and short-circuit.

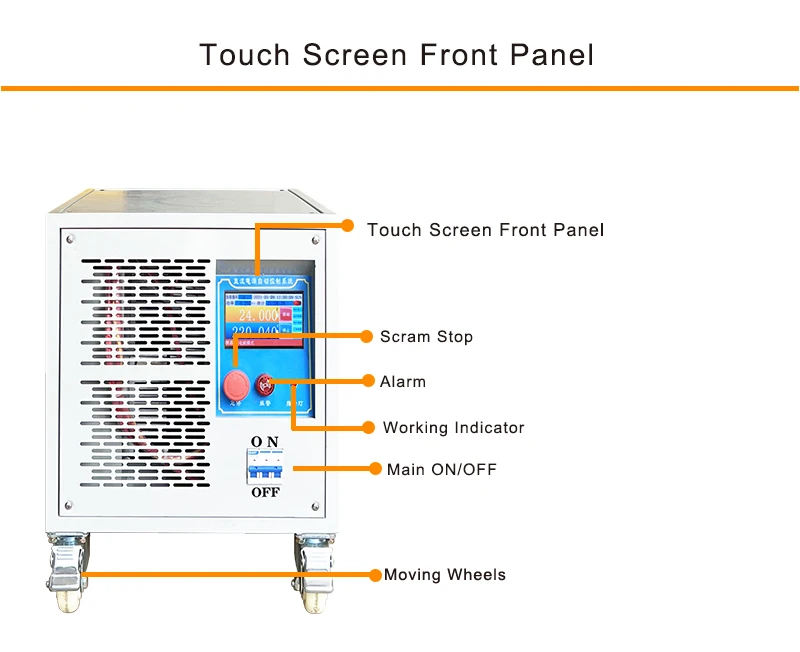

4. Intelligent touch screen display and operation interface, voltage and current 3-digit decimal point accurate digital display. Easy to operate, multiple functions and parameters can be set. With programming storage function, multiple sets of different voltage and current, delay time and running time settings can be executed at one time and can be cycled 99,999 times continuously.

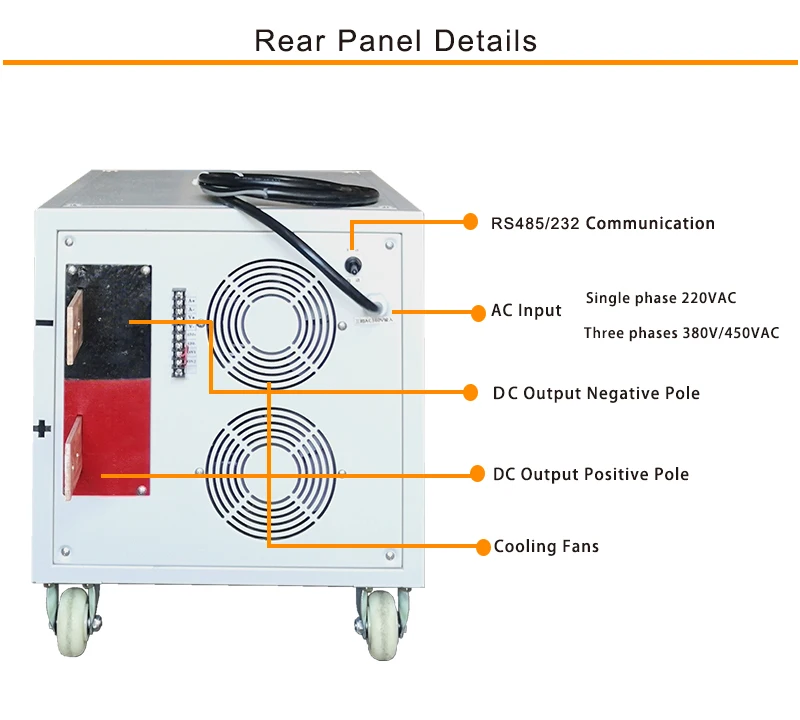

5. With RS-485 remote communication interface, supporting RTU and ASCII remote communication protocols. Can be configured with PC, upper computer and other software for remote control and monitoring.
6. The internal control circuit board is completely sealed and strictly isolated from the environment to prevent acid mist or dust pollution and short-circuit phenomenon caused by the entry of small insects, which greatly improves the safety and service life of the product.
7. The product is made of generous materials, sufficient power, electronic components and important parts are left with a large design margin, which can ensure that the product can maintain full load and long-term continuous work.
Datasheet:
Brand | YBY |
Model | YBY-ATDH600133 |
AC INPUT | Alternator DC 600V(±30%) |
DC OUTPUT VOLTAGE | 600VDC,500~600,single phase AC220V±10V 50HZ |
OUTPUT CURRENT | 133A |
output characteristic | Fixed constant pressure |
Output power | 79.8KW |
Voltage output accuracy | 0.5%FS |
Current output accuracy | 0.5%FS |
Source effect | ≤0.2%FS |
Load effect | ≤0.25%FS |
Voltage Display resolution | 0.01V |
Current Display resolution | 0.01A |
Work Efficiency | >88% |

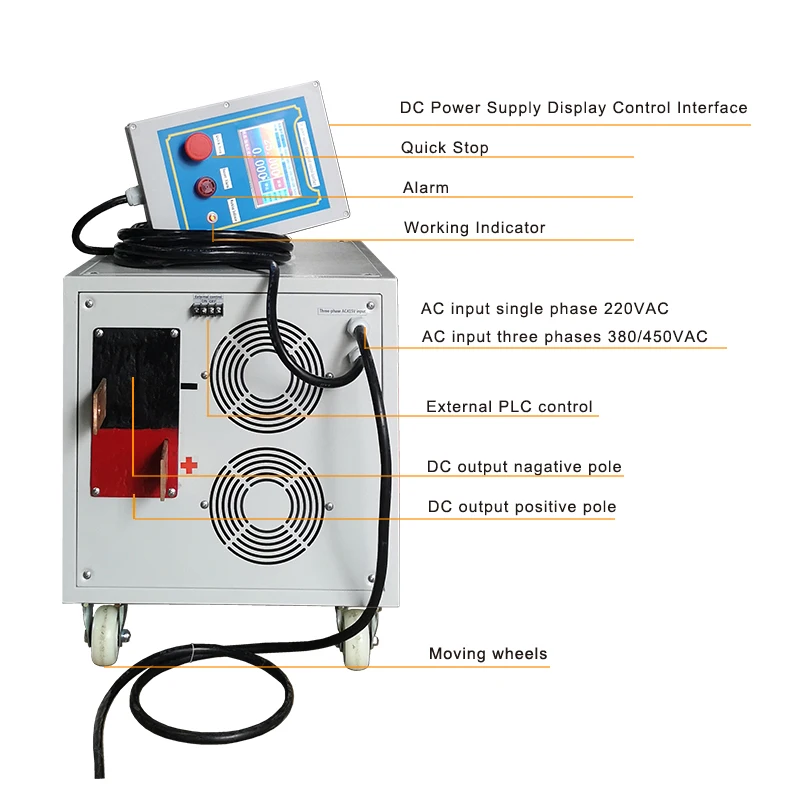

External analog interface | PLC,supports emergency stop,start/stop,fault detection,operation status detection interface,external control interface |
Interface | RS485 232 |
Protection mode | Undervoltage |
Over-heating | |
Over-voltage | |
Over-current | |
Short-circuit | |
Output display | Intelligent touch screen display and control interface |
Cooling fan | Forced air cooling |
Ambient temperature | -30~50degree |
Ripple factor(Vrms) | ≤3%FS |
Pressure Resistant Performance | 2000VDC test for 60s, no flashover, breakdown |
Ambient Humidity | <90%(No condensation) |
Waterproof Level | IP20 |
Protect Level | IP20(Instructions for ordering protective levels for equipment in special environments) |
Dimension | 580*340*1000mm |
Insulation Resistance | ≥20MΩ |
Grounding resistance | ≤100MΩ |
Application | Special regulated power supply for tanks, warships, and mobile military equipment; Outdoor research vehicle mobile regulated power supply |
Note: All specifications are subject to change without prior notice! | |
Product Overview-
Application:
Package:
Certificate:
Certification
FAQ:
FAQ
1Q: Are you a manufacturer or a trading company?
A: We are a manufacturer,and this is our factory's address:NO.3,Xinye Yixiang,Chenchung in dustrial zone,Qiaonan street,Panyu district,Guangzhou city,Guangdong Province,China.
2Q:Do you accept OEM?
A: Yes,all of our products can be customized.
3Q: What's your MOQ?
A: MOQ is 1 pc.
4Q:What's the lead time?
A: It deoends,generally it's with in 5 business days for 1-2 piece.
5Q: What's your warranty?
A: 12 months.
6Q:What's your payment?
A: PAYPAL /TT /Western union
