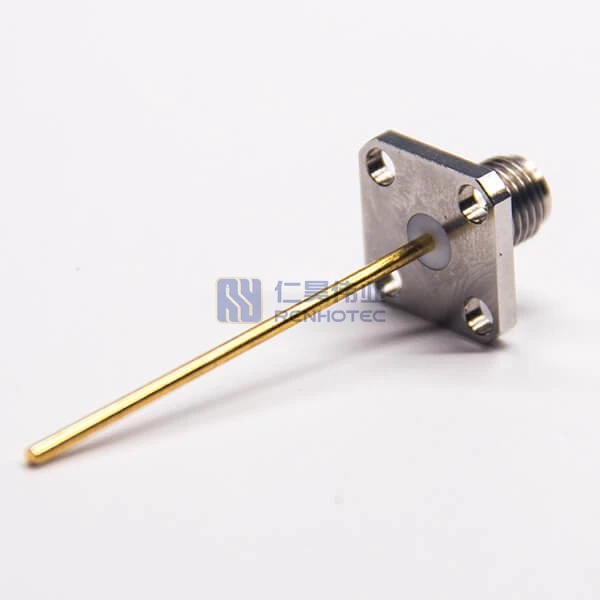

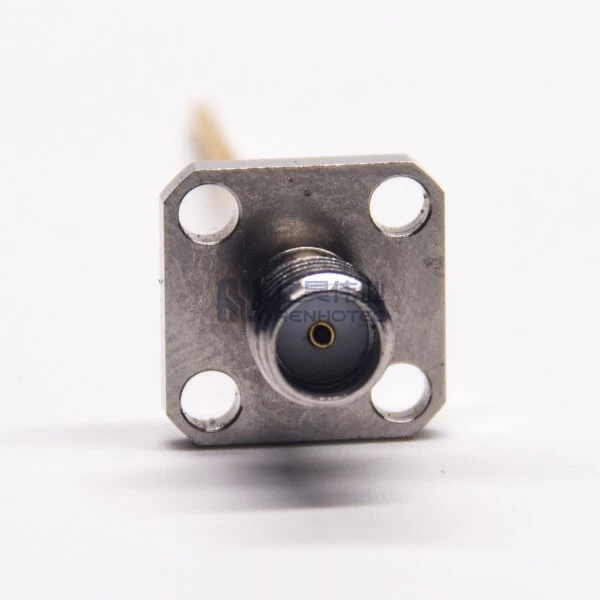

180 Degree Solder Female RF Coaxial Connector SMA 4 Hole Flange Mount
- Category: >>>
- Supplier: Renhao Weiye Technology (wuhan) Co. Ltd.
Share on (1600977431745):
Product Overview
Description
Welcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier……
Products Description
The SMA connector is a semi-precision sub-miniature RF and microwave connector that is extensively used, especially for RF connections within electronic systems for frequencies up to 18 GHz and sometimes more.
Although now well established, the SMA connector is likely to see its use extended as many new RF systems see their operating frequencies extending well into the microwave region.
Although now well established, the SMA connector is likely to see its use extended as many new RF systems see their operating frequencies extending well into the microwave region.

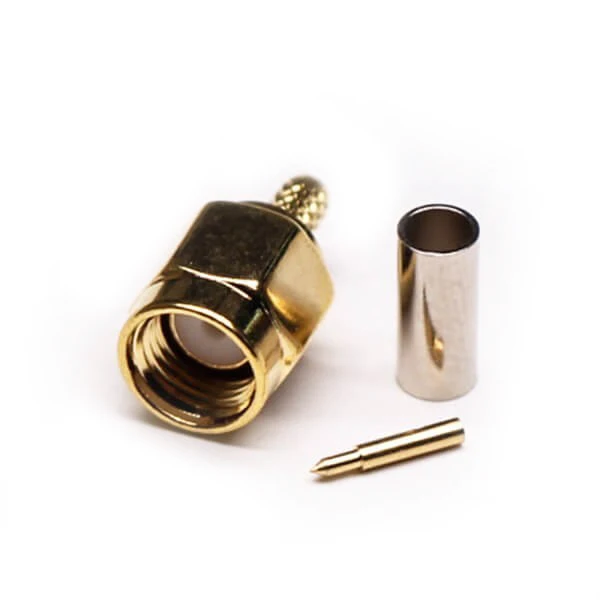

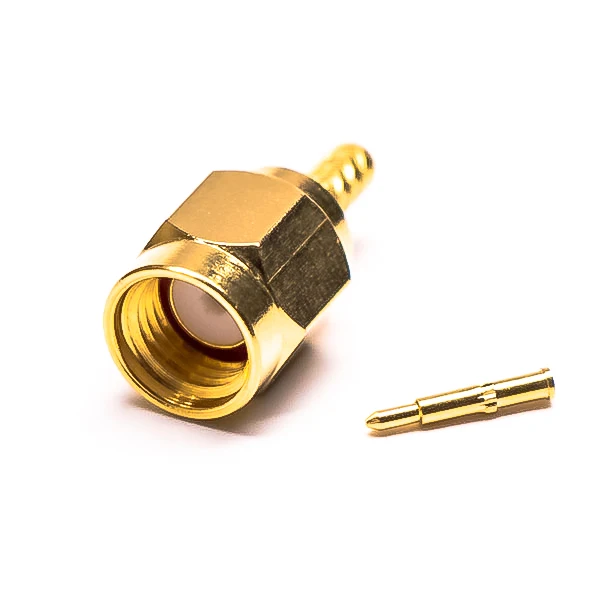

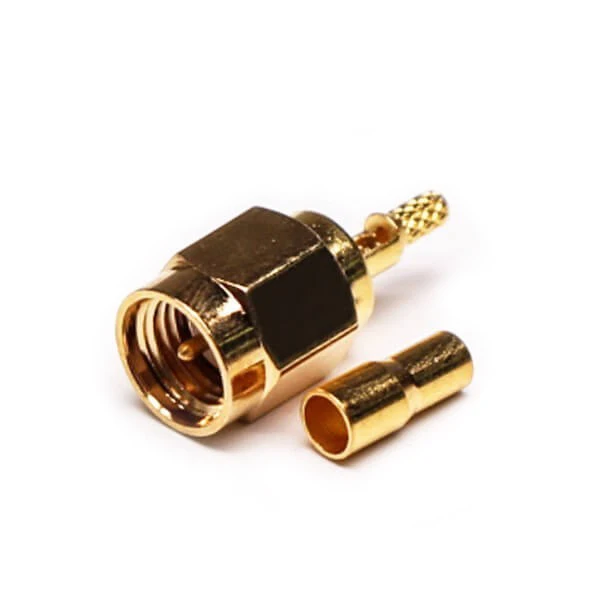

SMA Crimp Type | SMA Crimp With Solder |

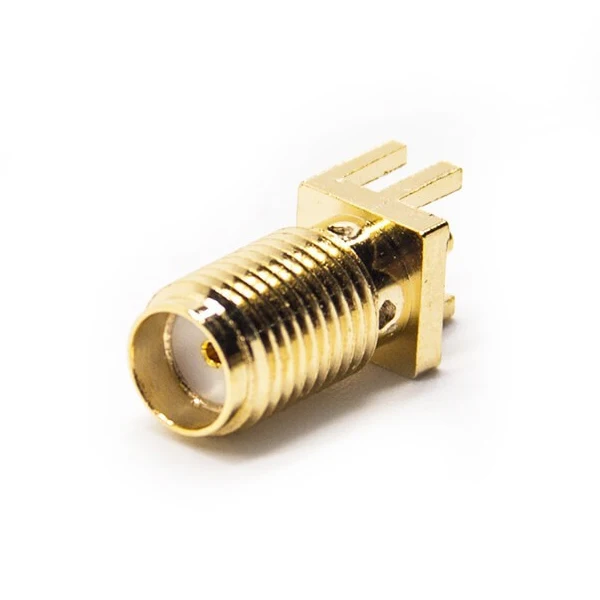

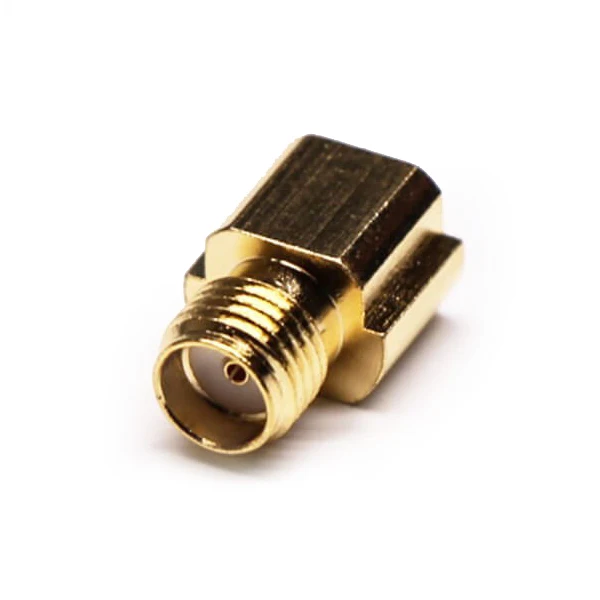

SMA Solder Type | SMA Solder Cup | SMA for Antenna | SMA Edge Mount |

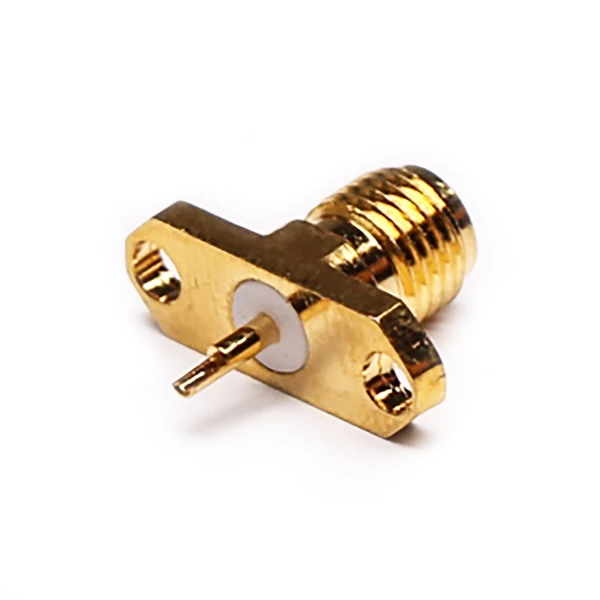

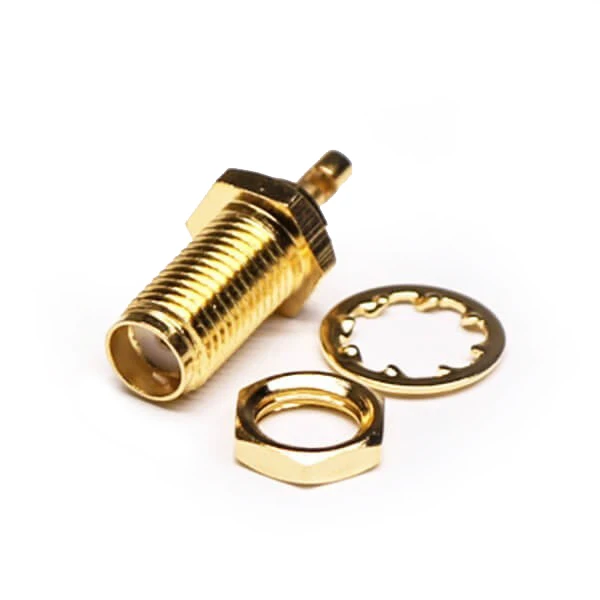

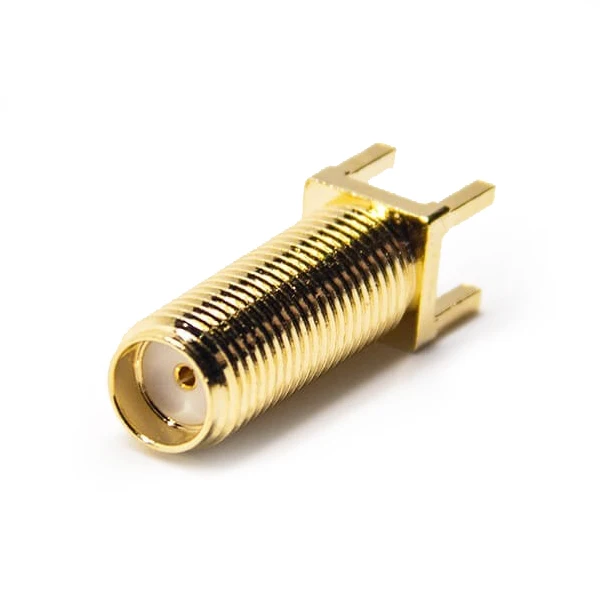

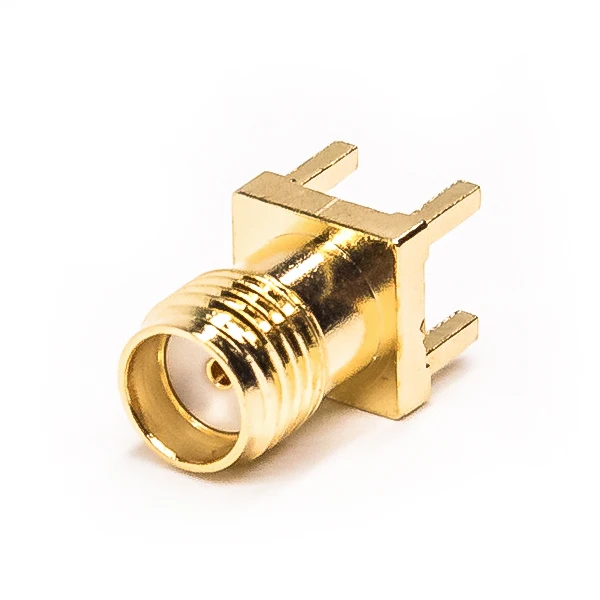

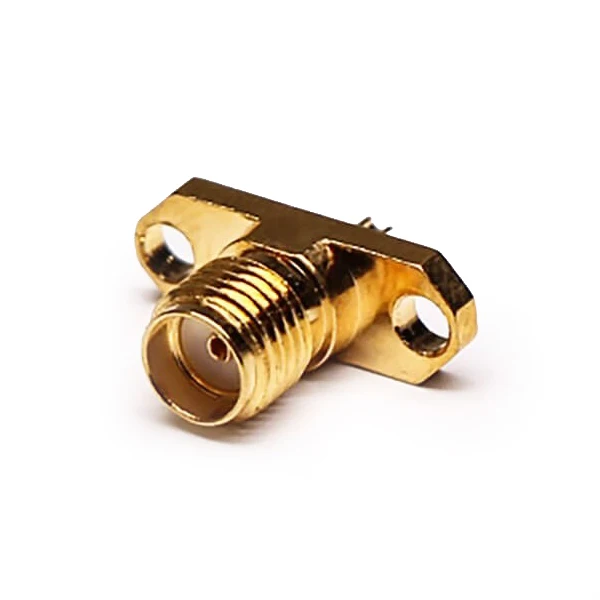

SMA Offest Type | SMA Through Hole | SMA Bulkhead Type | SMA Flange Type |
Features:
-Light weight, compact and anti-vibration design for harsh environments
-Available in brass and stainless steel with gold, nickel and passivated plating
-Terminates to all standard flexible coaxial cables, as semi-rigid and conformable cables
-Subminiature design: Space-saving vertical mating
-Available in brass and stainless steel with gold, nickel and passivated plating
-Terminates to all standard flexible coaxial cables, as semi-rigid and conformable cables
-Subminiature design: Space-saving vertical mating
Gender | Plug / Socket |
Orientation | Straight / Right Angle |
Polarity | Standard / Reverse Pole |
Impedence | 50Ω |
Frequency | 0-6GHZ, 0-12GHZ， 0-18GHZ |
Voltage Rating | 335 Volts RMS Continuous |
VSWR | 1000 VRMS Min |
Body Material | Brass/Gold Plated, Steel/ Passivated |
Insulators | PTFE |
Contact Pin | Brass/Gold Plated |
Nut | Brass/ Nickel plated |
Temperature Range | -65°C to +165°C |
Durability (matings) | ≥ 500 (cycles) |
Industry Application
Telecommunications
Base Stations
GPS
PC/LAN
Antennas
Instrumentation
-Aerospace and Defense: Hand-held field Device and Instrumentation
-Medical: Instrumentation
-Commercial Vehicle: GPS
-Telecommunications: Antenna,Wireless Base Stations, Cellular Mobile System
-Data/Communications: Wifi, WiMAX
-Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking -System
-Medical: Instrumentation
-Commercial Vehicle: GPS
-Telecommunications: Antenna,Wireless Base Stations, Cellular Mobile System
-Data/Communications: Wifi, WiMAX
-Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking -System
Company Profile
Renhao Weiye Technology (Wuhan) Co., Ltd.
RENHOTEC is a full-service leading global supplier of a wide variety of standard and custom RF coaxial connectors, cable assemblies and unique solutions for today’s cutting edge applications.
RENHOTEC is fully committed to meeting the needs of our customers, we offer a wide range of RF connector interface types and are able to produce custom products for specific applications.
Our team is always focused on designing, developing and taking pride in custom innovative solutions to meet our customers' needs.
- Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include military, automotive, medical, instrumentation, telecom and wireless etc.
Production Process
Mould Design
Precision Zinc Alloy, Aluminum Alloy and plastic mold design
Die Casting & Injection
Alloy die casting and plastic injection molding production
Metal lathe Processing
Metal parts drilling, tapping and lathe processing
Assembly Line
Automated, semi-automatic connector production line
Inspection Equipment
Test electrical, mechanical and environmental performance
Why Choose Us
Professional engineer team help you with drawing design and provide you suggestions based on your special electrical and environmental performance requirements.
Technology Improvement
Establish and optimize the process of the production line. Continuous improvement to make sure the targeted quality and yield achieved and maintain
.
With professional inspection center to test the electrical, mechanical and environmental performance and ensure the high quality.
FAQ
Q :How can I get a sample to check your quality?
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
