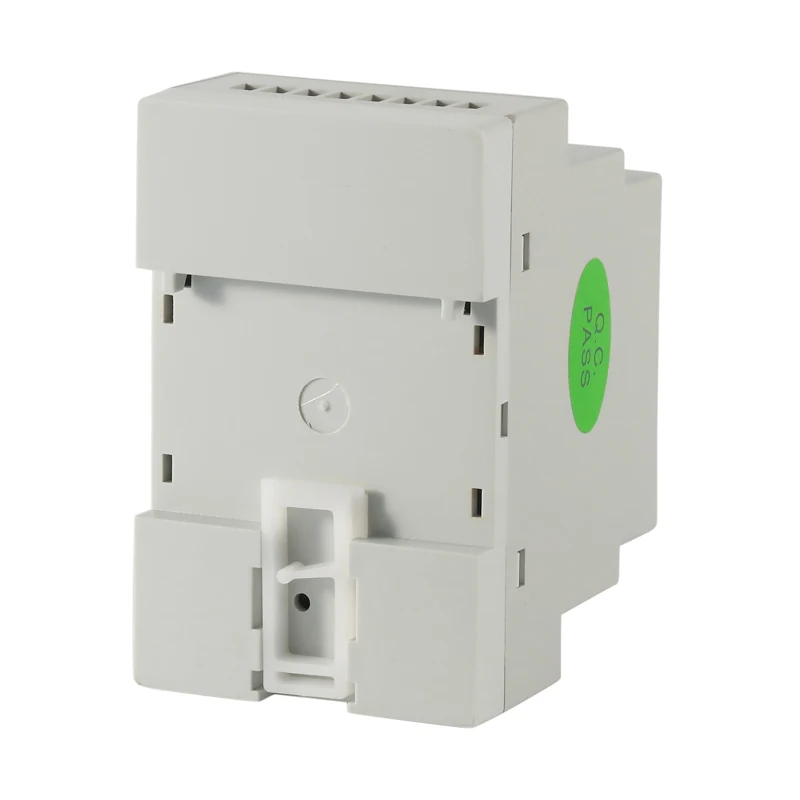

ASJ10 LD1A Earth Fault Leakage Current Residual Protection Relay
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600977435705):
Product Overview
Description

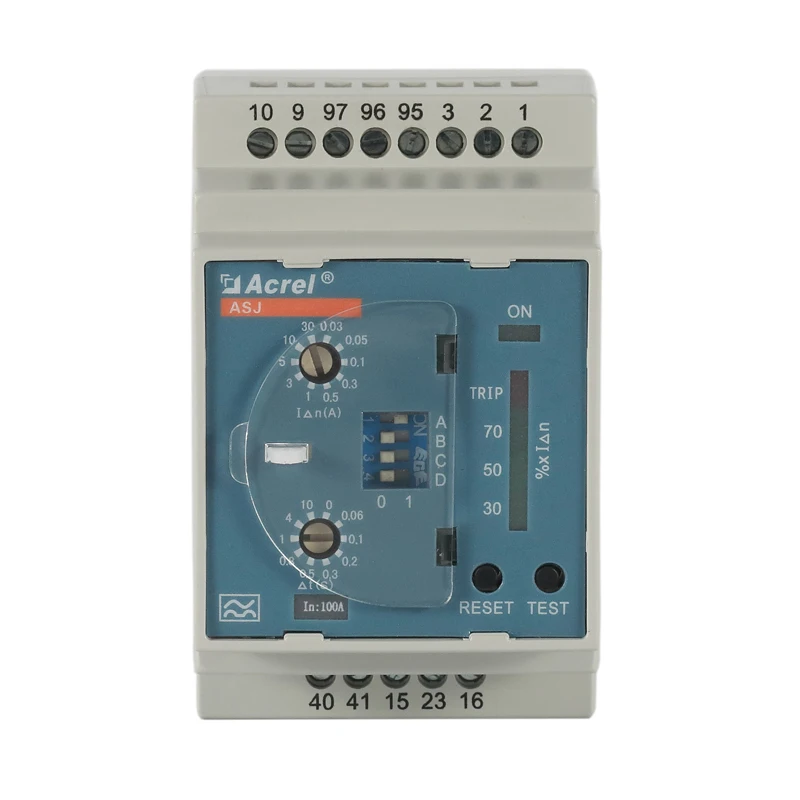

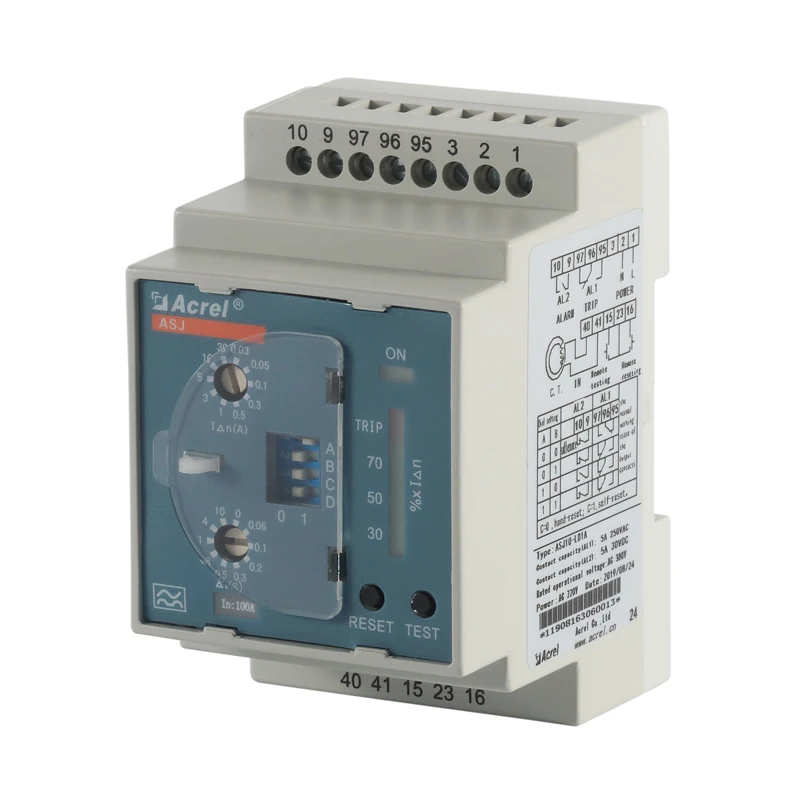

ASJ10-LD1A Earth Leakage Relay
ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined
after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating
current 50Hz, the rated voltage 400V or below. ASJ Series of action relay of after-current is applied in the earth fault
protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by
the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating
current 50Hz, the rated voltage 400V or below. ASJ Series of action relay of after-current is applied in the earth fault
protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by
the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
Product Description
50Hz±5Hz
Auxiliary power supply
AC110V, AC220V, DC85 ~270V
(permissible error ±10%)
Consumption
≤5W
DIN rail 35mm
Dimension(L*W*H)
85×54×64mm
Technical Parameter | Indicator | ||||
AC type | A type | ||||
Power supply | Voltage range | AC110V、AC220V（±10%） | AC/DC 85~265V | ||
Power dissipation | ≤5W | ||||
Rated residual operating current (In) | 0.03，0.1，0.3，0.5（A） | 0.03，0.05，0.1，0.3，0.5，1，3，5，10，30（A） | |||
Limit non-driving time | 0.1，0.5（s） | 0,0.06,0.1,0.2,0.3,0.5,0.8,1,4,10(s) | |||
Rated residual non-operating current | 50%In | 50%In | |||
Performance Charasteristics | Sinusoidal AC | Sinusoidal AC and pulsating DC | |||
Frequency | 50Hz±5Hz | 50Hz±5Hz | |||
Operating range | -20%In~-10%In | -20%In~-10%In | |||
Output mode | One is normally open and another is for transformation | One is normally closed or open，and another is for transformation | |||
Contact capacity | 5A 250VAC 3A 30VDC | AL1:8A 250VAC; 5A 30VDC AL2:6A 250VAC; 5A 30VDC | |||
Reset mode | Local reset or remote reset | Local reset，remote reset or automatic reset | |||
Temperature | Run temperature：-20~55℃，Storage temperature：-30~70℃ | ||||
Humidity | ≤95%RH，no condensation, and no corrosive gas places | ||||
Elevation | ≤2000m | ||||
Class of pollution | Grade three | ||||
Installation category | Type Ⅲ | ||||
Dimension
