EW 3010 S Automatic Wire Harness Cutting Stripping Machine Cable Stripper Cutter Automatic Wire Cutting and Stripping Machine
- Category: >>>
- Supplier: Wenzhou East World Automation Equipment Co. Ltd.
Share on (1600977448433):
Product Overview
Description
Products Description

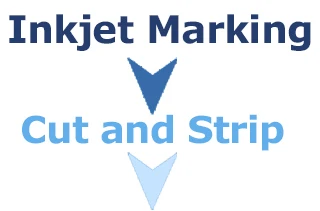

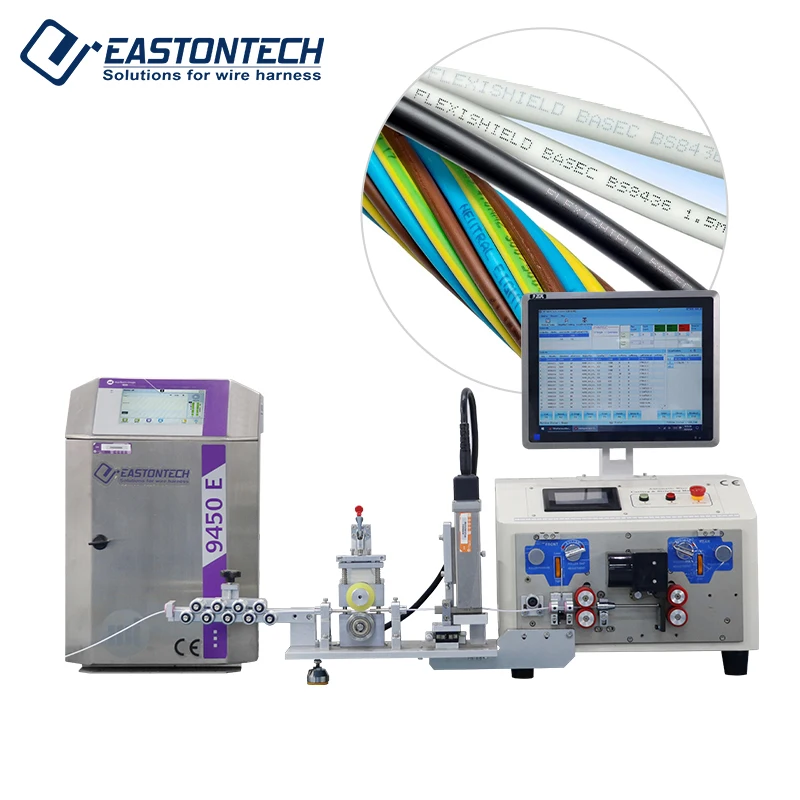

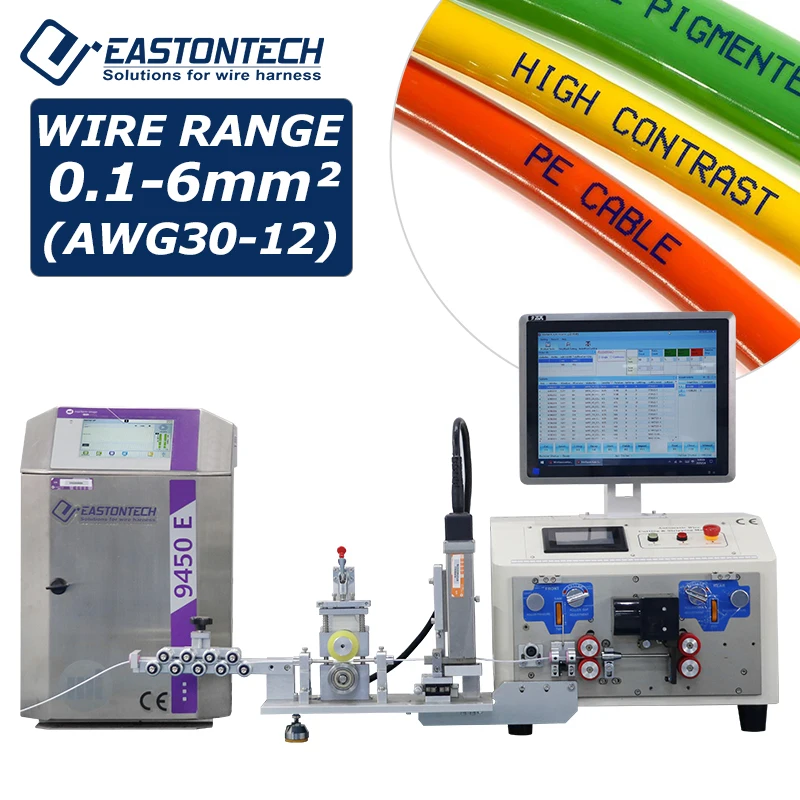

Wire Cut&Strip Machine With Ink-Jet Printer
Features:
√ Provide general and customized versions of Excel to realize batch and fast import of tasks.
√ Scan the material information to determine whether the material matches the current processing task.
√ To facilitate process management, process work orders are automatically printed during processing. The print template is optional and can be customized.
√ Production tasks can be traced back, providing daily, monthly, and annual reports.
Product Paramenters
Model | EW-3010+S |
Wire material | PVC, fiberglass wire etc. |
Conductor cross-section | 2 - 50 mm² |
Cutting length | 1 - 100,000 mm |
Cutting length tolerance | ± 0.0001 * L |
Stripping length | Side I: 0 - 150 mm Side II: 0 - 150 mm |
Maximum guide tube diameter | 18 mm |
Driving mode | By rollers |
Blade material | High speed steel |
Productivity | 5000 - 6000 pcs./h |
Power supply | 110, 220 V (50 - 60 Hz) |
Weight | 96 kg |
Dimension | 700 * 700 *480 mm |
Special requirement | Can be used with any stripping machine and terminal machine |
Details Images

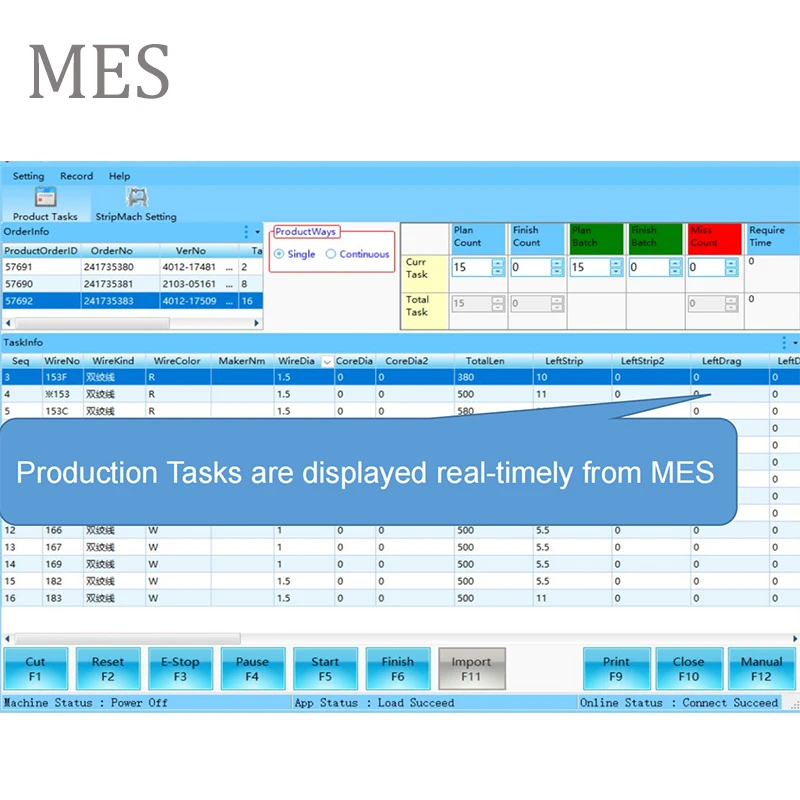

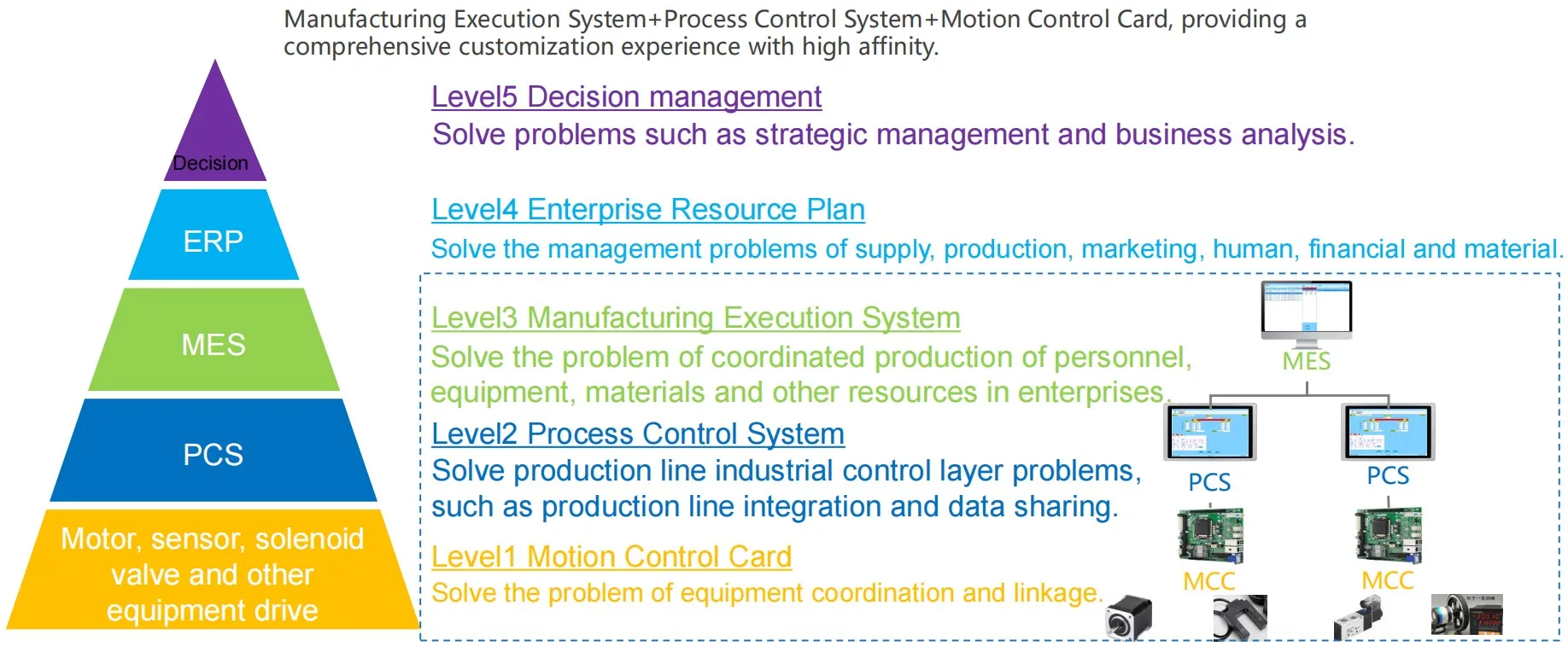

-MES Production-
Excel Tasks
Provide general and customized versions of Excel to realize batch and fast import of tasks
Material Error Correction
Scan the material information to determine whether the material matches the current processing task.
Process Ticket
To facilitate process management, process work orders are automatically printed during processing. The print template is optional and can be customized.
Production Report
Production tasks can be traced back, providing daily, monthly, and annual reports
-Product Details-

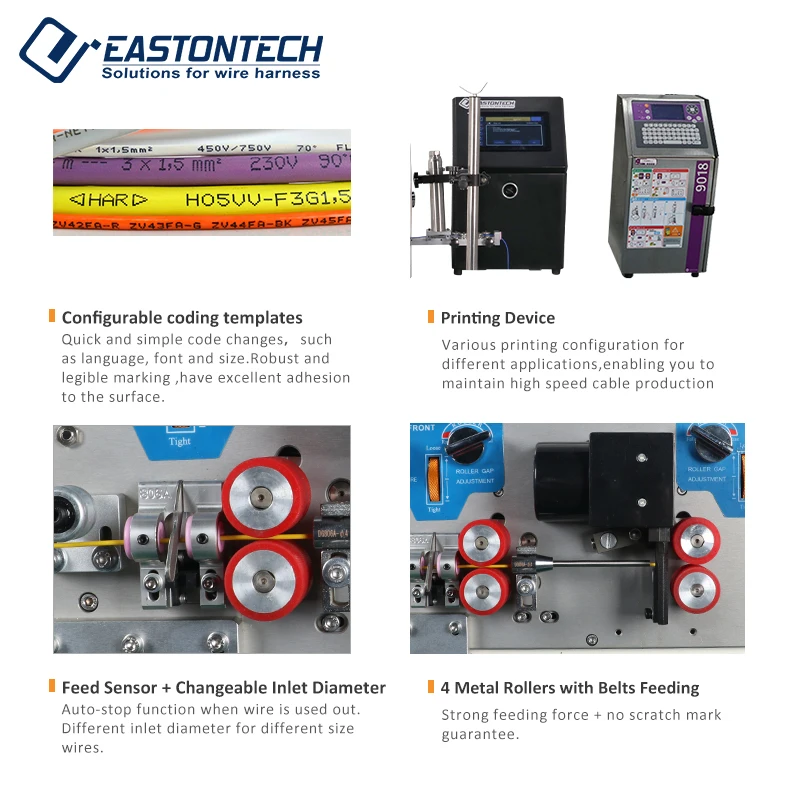

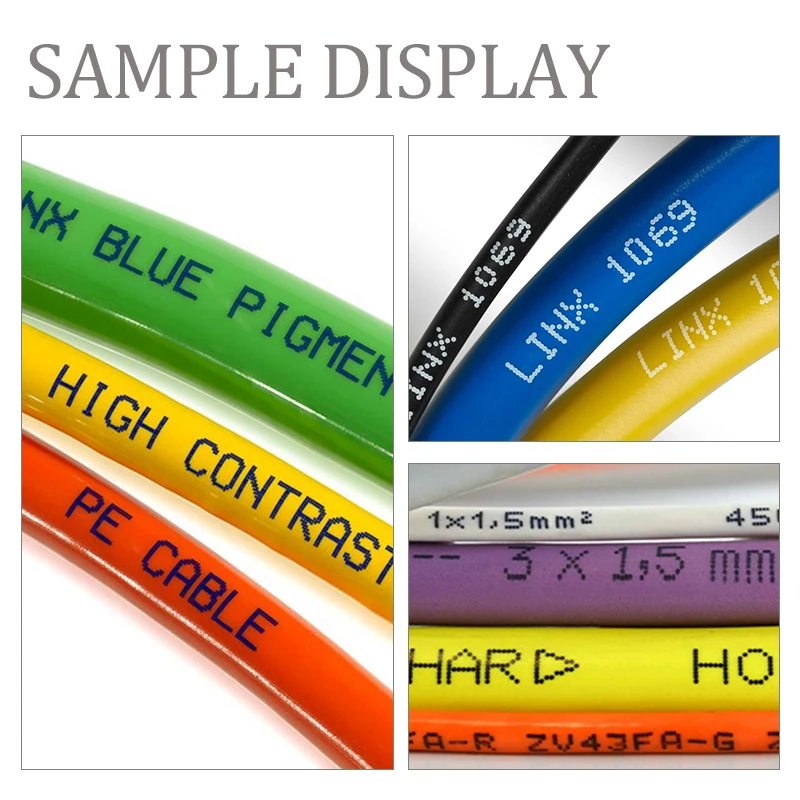

Configurable Coding Templates
Quick and simple code changes, such as language, font and size.Robust and legible marking ,have excellent adhesion to the surface.
Printing Device
Various printing configuration for different applications,enabling you to maintain high speed cable production
Configurable Coding Templates
Feed Sensor + Changeable Inlet Diameter Auto-stop function when wire is used out. Different inlet diameter for different size wires.

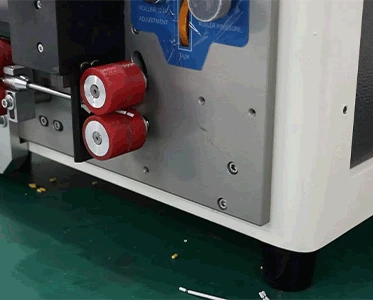

4 Metal Rollers
4 Metal Rollers with Belts Feeding, strong feeding force + no scratch mark guarantee.
Recommend Products
A. Small One Core Stripping Machine
EW-10MT
0.03-2.08mm2 (32-14AWG)
Semi-Automatic Pneumatic Stripping Machine
EW-02A
0.1-4.5 mm² (32-11AWG)
Automatic Wire Cutting Stripping Machine
EW-02C+
0.1-4.5mm²
Automatic Wire Cutting Stripping Machine
A. One Core Wire Stripping Samples
B. Large One Core Stripping Machine
EW-3120
10-240mm2
Automatic Wire Cutting and Stripping Machine
EW-3125
120mm²
Automatic Wire Cutting and Stripping Machine
EW-3145
4-18mm OD
Automatic BV Wire Cutting Stripping With Winding
B. Large One Core Stripping Samples
C. Multi-Core Wire Stripping Machine
EW-05F+
4 - 30 mm2
Mutil-Conductor Cable Cuting &
Strpping Machine Within 11Cores
Strpping Machine Within 11Cores
EW-3030
1-10mm
Automatic Wire Cutting and Stripping Machine
EW-05H-2
10- 150 mm2
Automatic BV Wire Cutting Stripping With Winding
C. Multi-Core Wire Stripping Samples

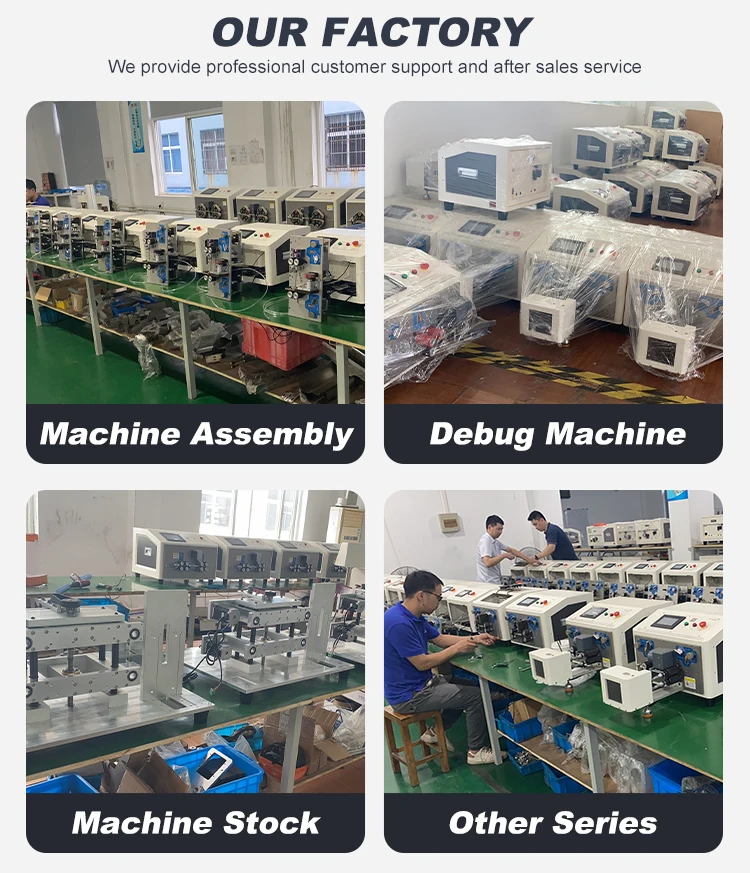

Company Profile
