ND6050 high precision metal milling cnc machine with granite structure for engraving brass hot stamping dies
- Category: >>>
- Supplier: ND (Shandong) Intelligent Equipment Co. Ltd.
Share on (1600977454080):
Product Overview
Description
ND6050 high precision metal milling cnc machine with granite structure for engraving brass hot stamping dies
Product Description

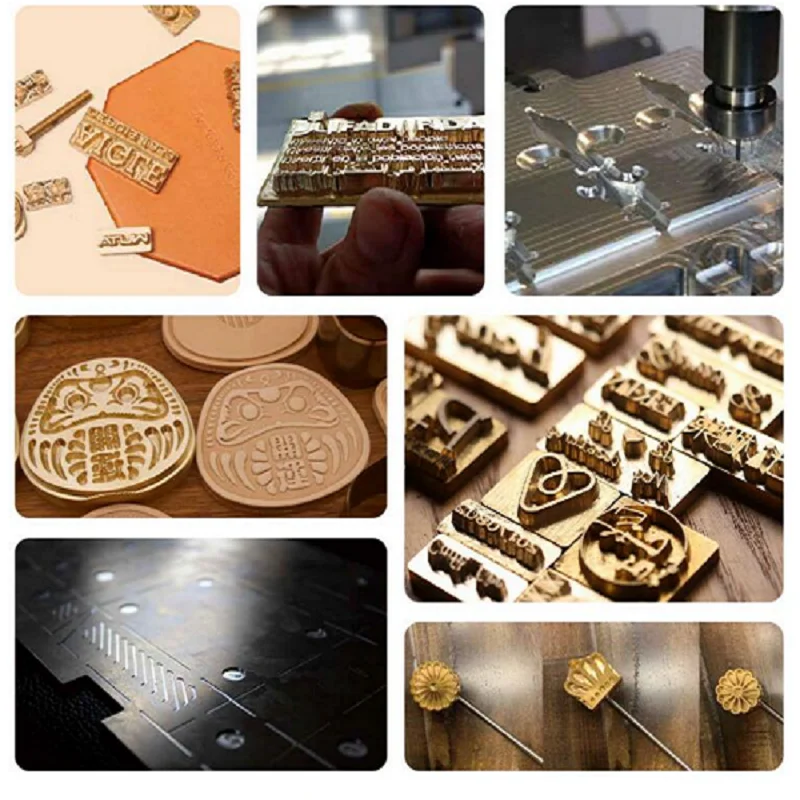

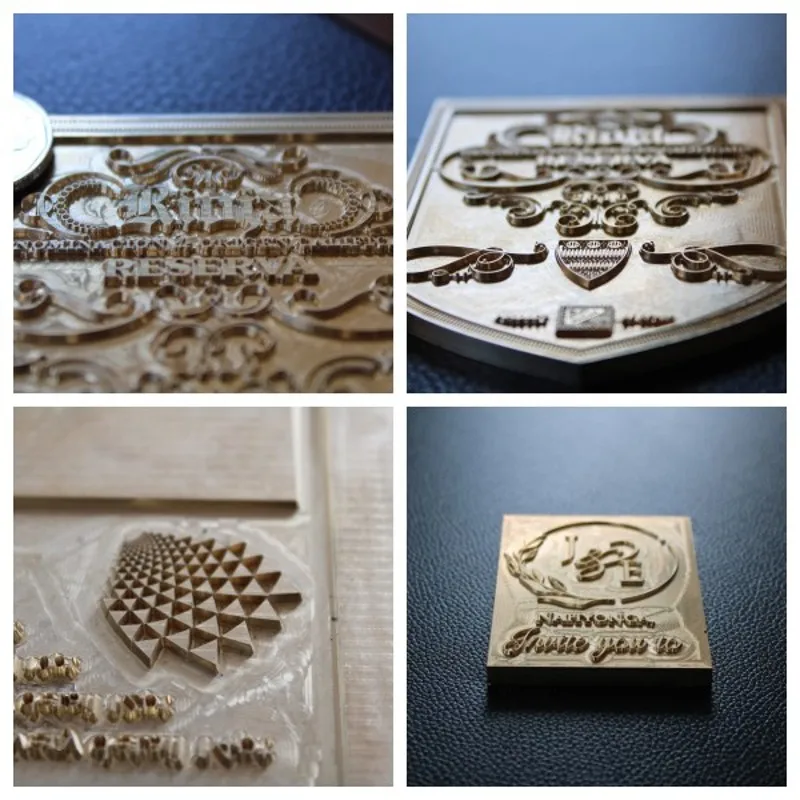

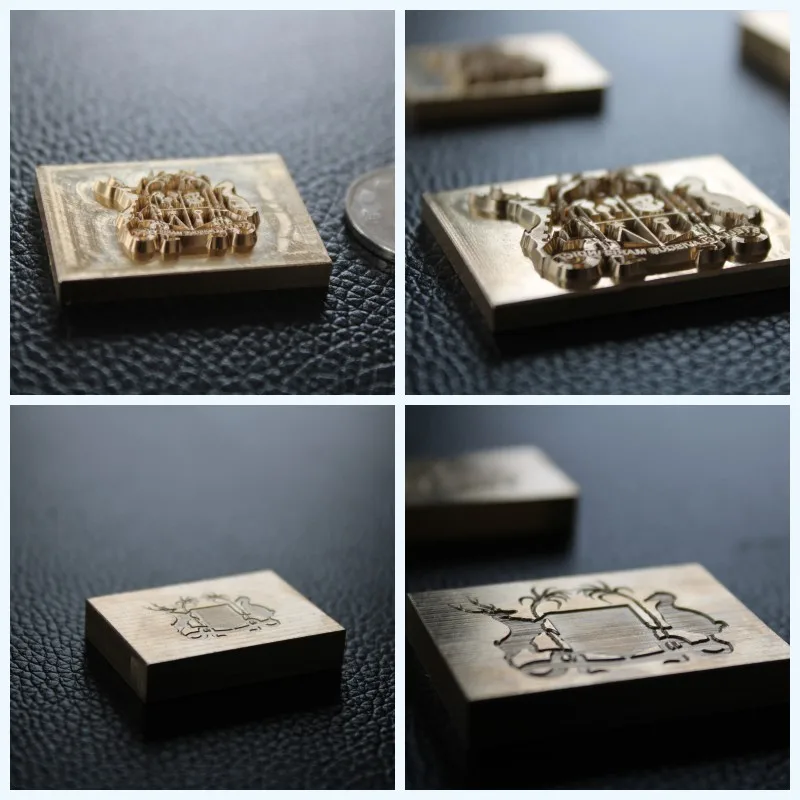

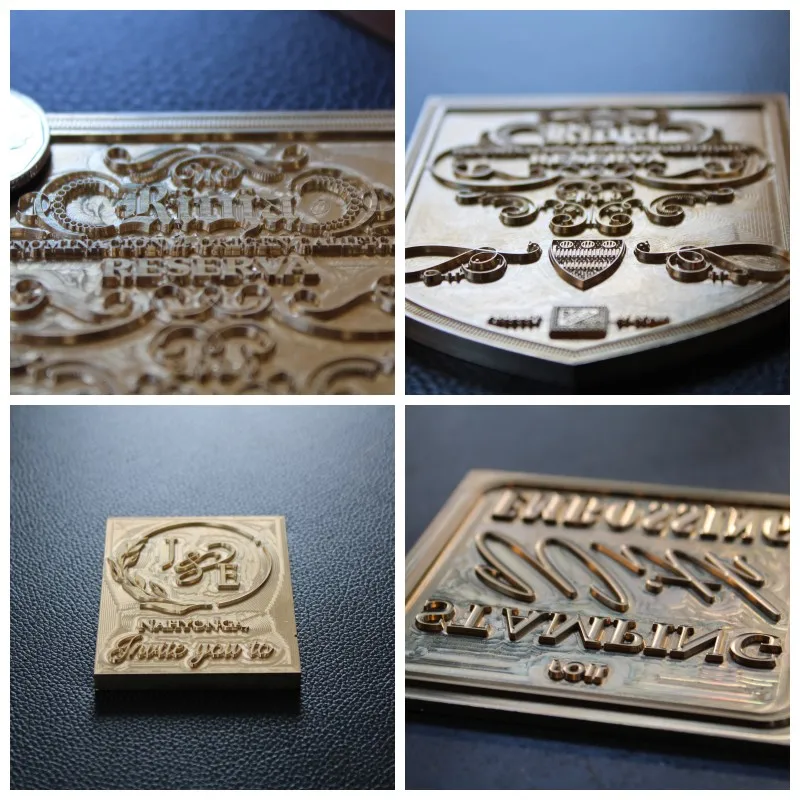

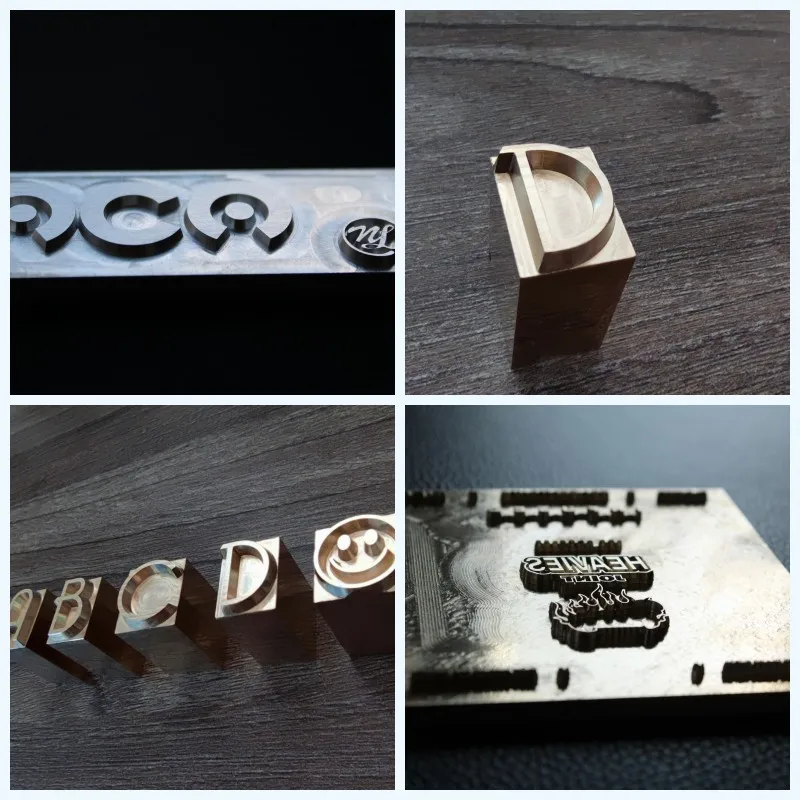

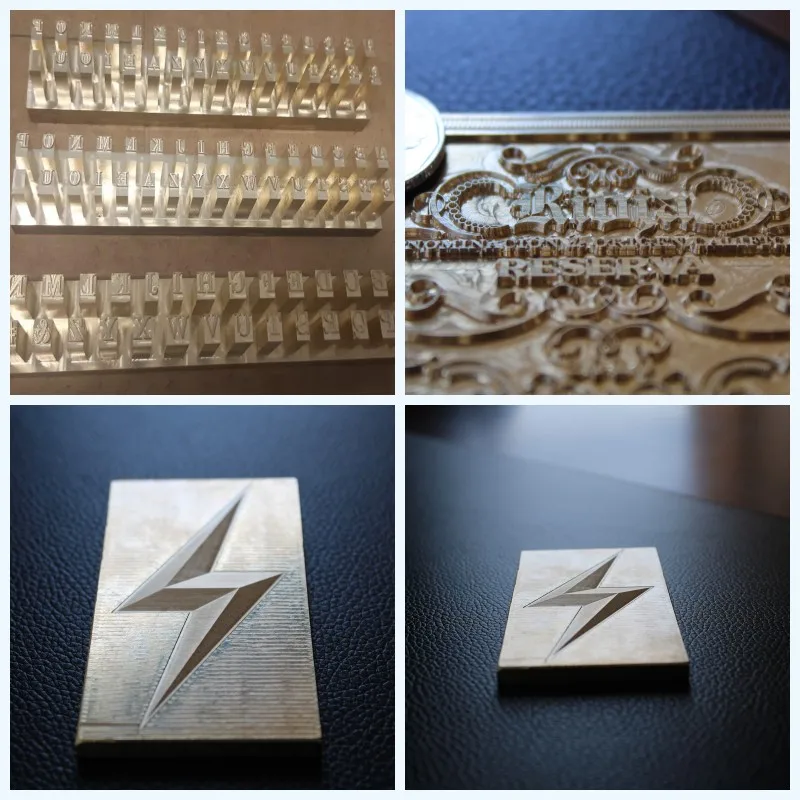

The typical applications of this machine include metal process, such as foil stamping dies embossing dies,hot foiling dies and so on.

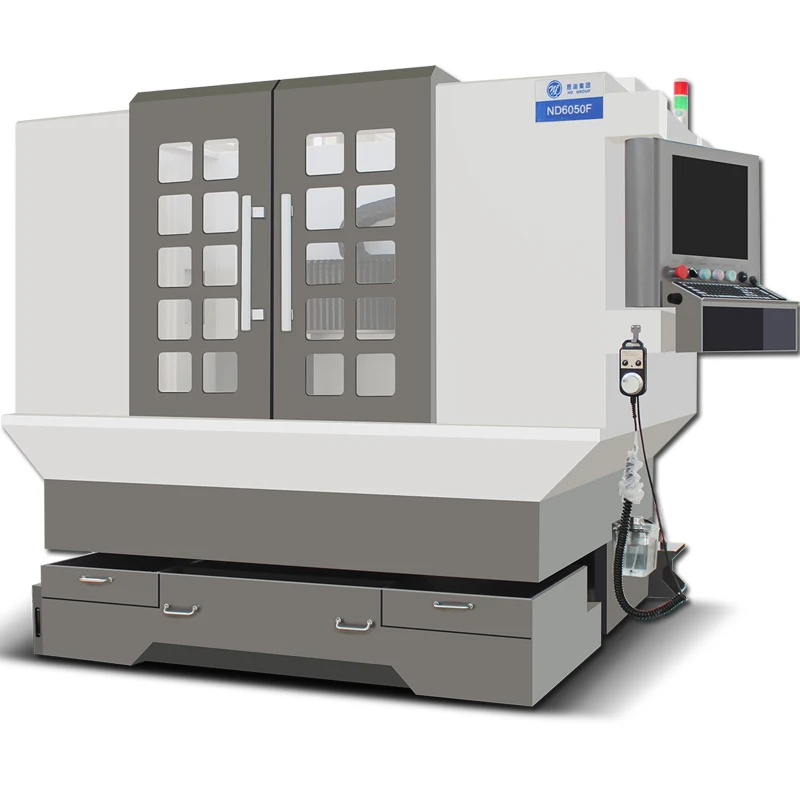

ND6050 Series metal CNC machine includes full cover, half cover, CCD camera, probe, linear gauge, vacuum table, multi tool changer magazine and so on. The design concept of ND6050 Series metal CNC machine is based on granite bed, beam and guide rail base. It is equipped with high-precision screw guide and high-power/RPM spindle. The whole system is controlled by servo and metal processing of multiple processes through programming completely.

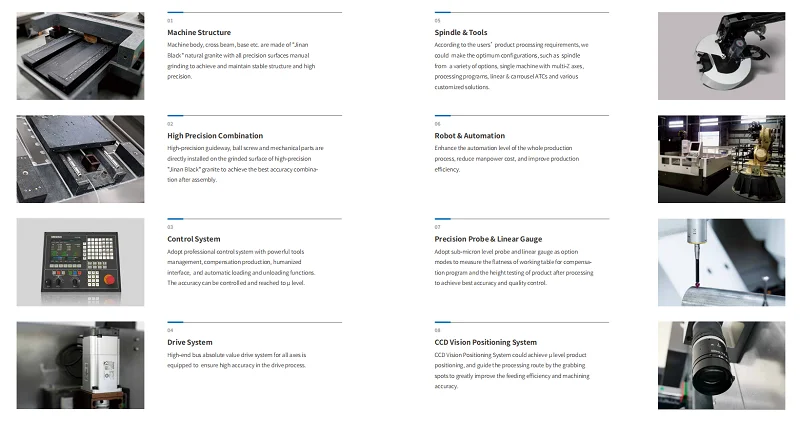

Main machine accessories
Technical Parameter
| Project | ND6050 series |
Positioning accuracy(X/Y/Z axis) | 0.008mm |
| Repeated positioning accuracy(X/Y/Z axis) | 0.005mm |
| Straightness accuracy(X/Y/Z axis) | 0.005mm |
| Working distance(X/Y/Z axis) | 600x500x165mm |
| Power | 4KW |
| Spindle diameter | 62mm |
Rapid moving speed(X/Y/Z axis) | 15.0m/min |
| Max grinding speed(X/Y/Z axis) | 6.0m/min |
| Square dimension accuracy | 0.01mm |
| XY plane roundness | 0.015mm |
| Refrigeration flow | ≥1.0mm |
| Refrigeration pressure | 2.0-4.0 kgf/cm2 |
| Working voltage | 220/50V/Hz |
Our Services
CNC Engineering Service
We can provide customers with one-to-one technical services from the aspects of engineering and technical support, personnel improvement training and equipment maintenance guarantee.
Guarantee
13 months guarantee of the whole machine. All parts shall be changed free of charge if there is any problem during the warranty period. We will provide consumable parts and raw material at an agency price.
After sales service
All of engineers can speak English,If you encounter any problems, you can contact us through social media,and will reply you within 2 hours.
Company Information

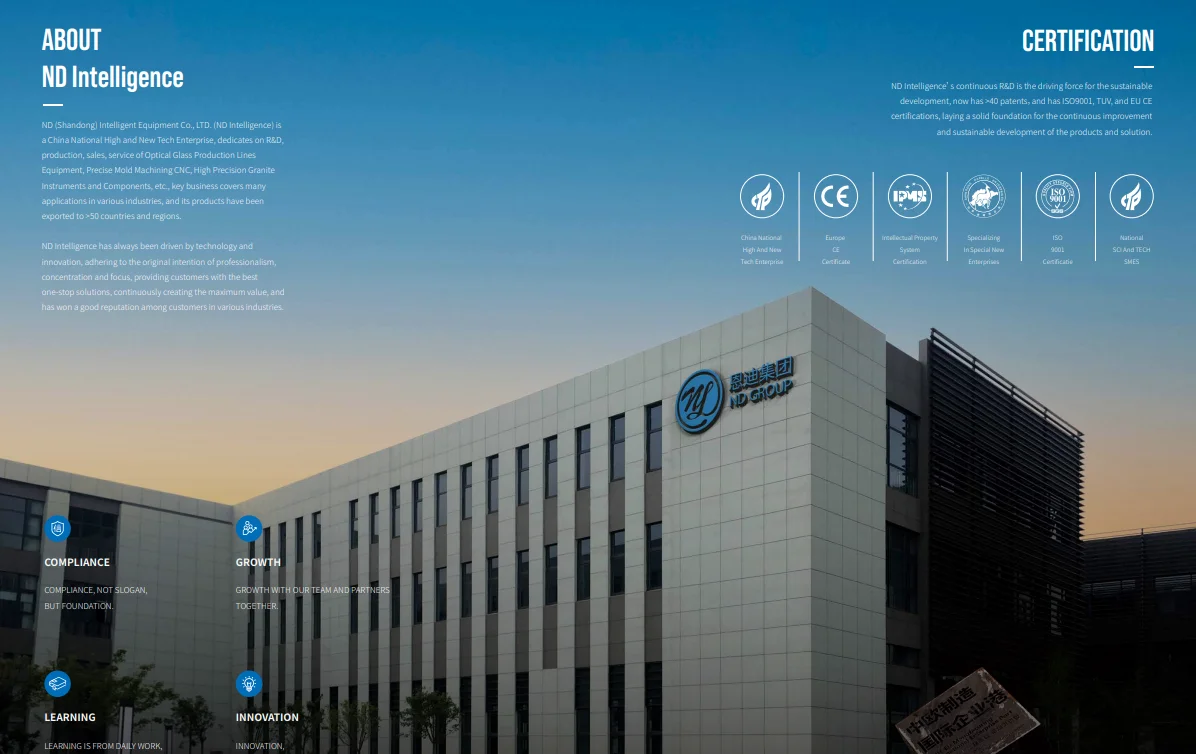

ND GROUP,Started from Feb. 2013, headquarter locates in Shanghai, China. Key business covers Non-destructive Testing (NDT), Numeric Control, Precision Machinery,Granite Machinery, Automation and Software Development etc. overall solution in industry. Subsidiaries include ND Inspection (Shanghai, Hongkong), ND Intelligence (Jinan), ND Precision(Jinan, Shenzhen), ND Seiko (Shizuoka, Japan).
we has obtained many technical certificates for the production of machines.

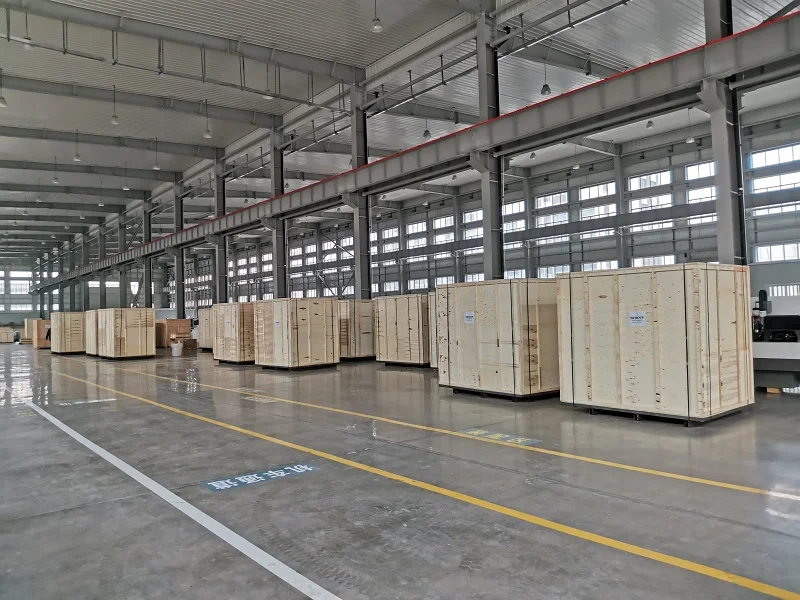

Packaging & Shipping
Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, the cnc machine is to be put in the plywood case for safety and clashing.
Thirdly, the plywood case is transported into the container.
Contact
If you are inteseted or have any questions,please feel free to contact me.
Email: Amelia[at]nd-cnc.com
WhatsApp/Wechat/Phone number: +86 198 6218 7357
