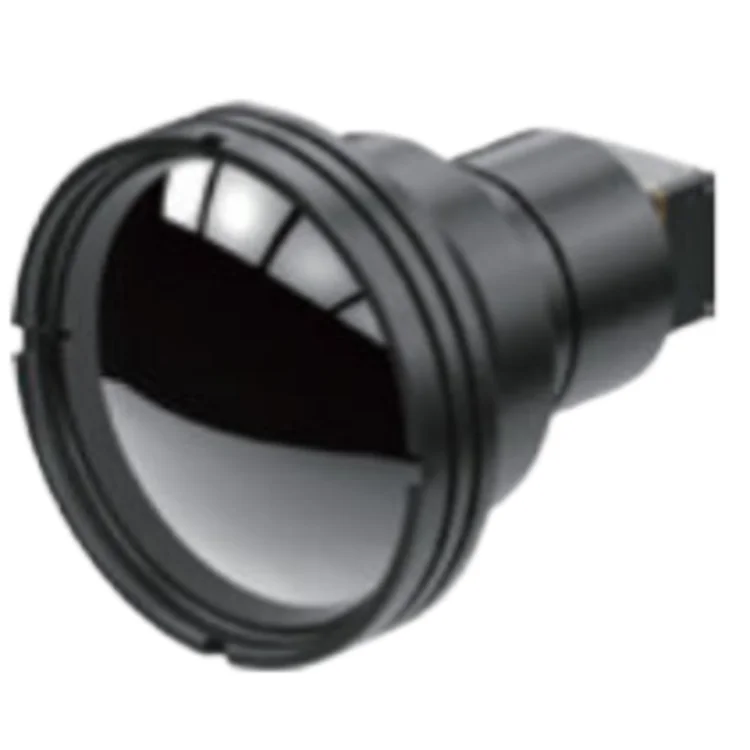

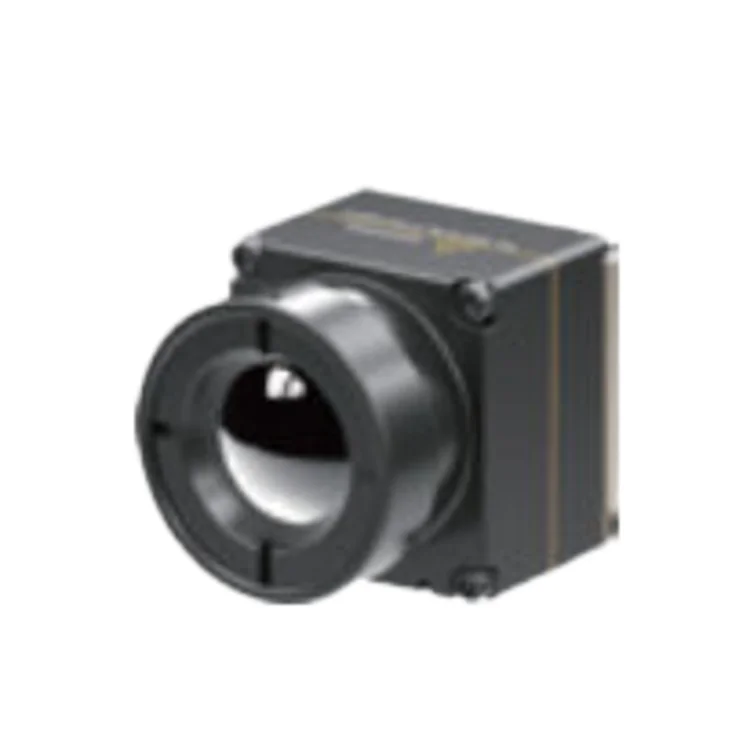

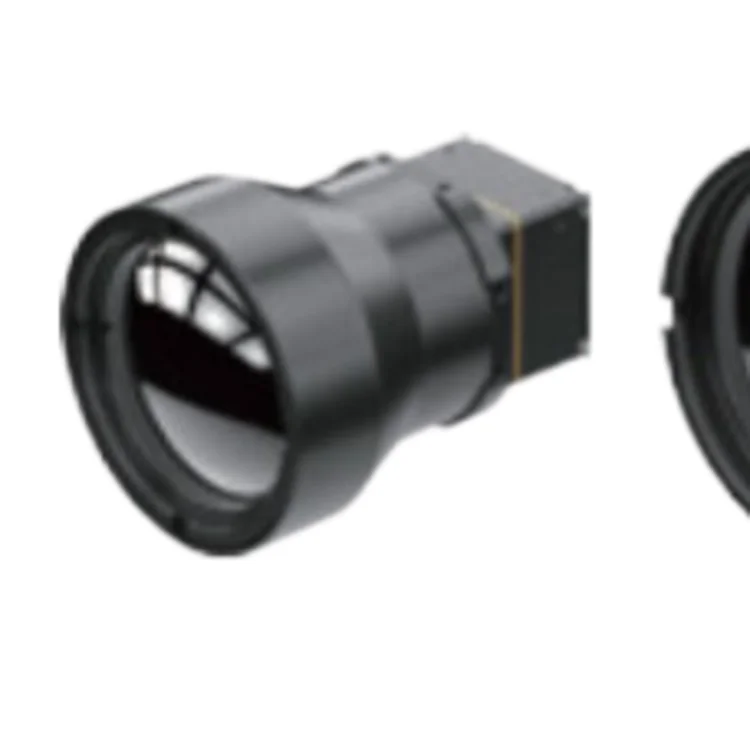

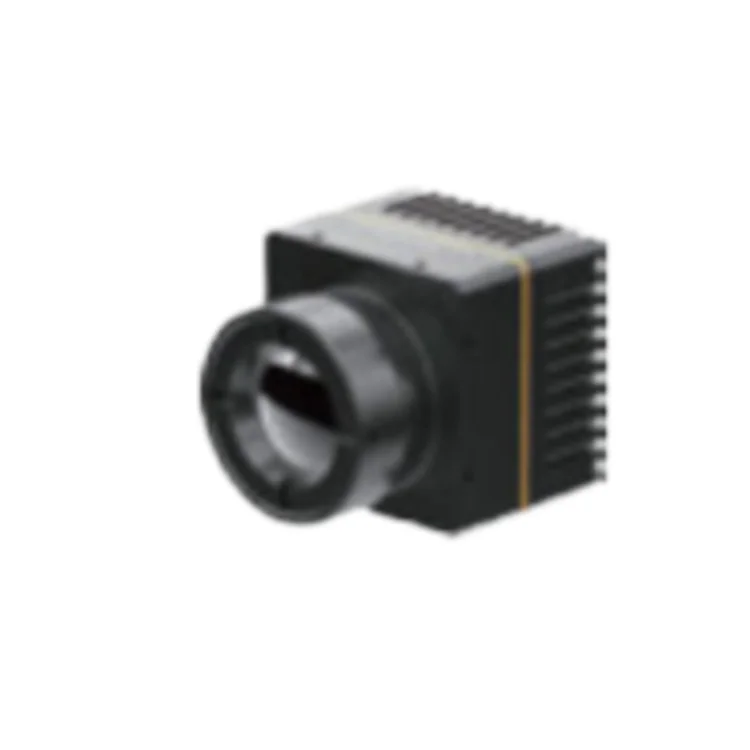

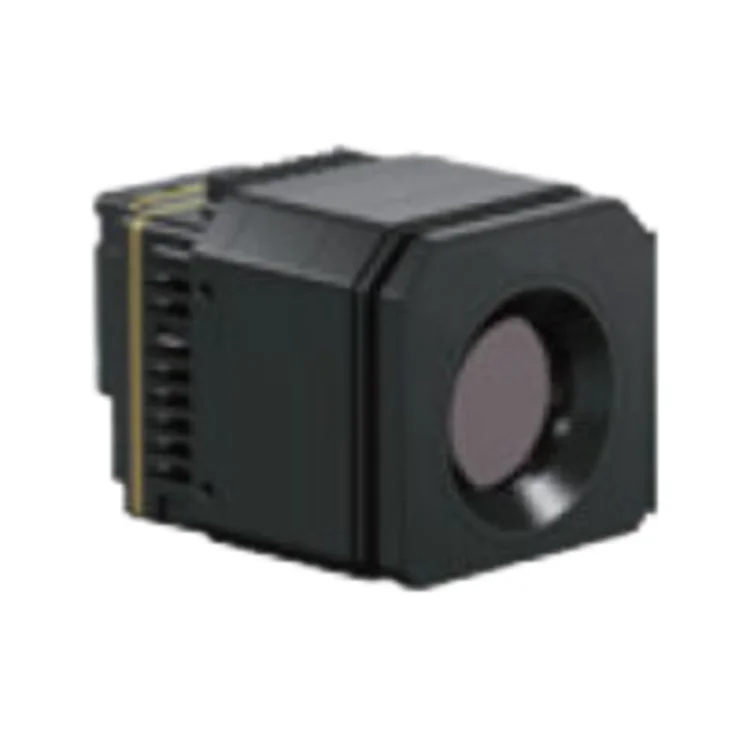

infrared Thermal module thermal camera core
- Category: >>>
- Supplier: Lano Photonics Co. Ltd.
Share on (1600977456024):
Product Overview
Description
Related Products
Product Description
Features
・With strong smoke penetration performance, it can be used in a wide range of ambient temperature;
・The SDK interface is rich, which is convenient for integrated development;
・Adopt self-developed temperature measurement correction algorithm to achieve accurate temperature measurement;
・Output full stream lossless 16 Bit temperature data, provide client software.
・The SDK interface is rich, which is convenient for integrated development;
・Adopt self-developed temperature measurement correction algorithm to achieve accurate temperature measurement;
・Output full stream lossless 16 Bit temperature data, provide client software.
infrared thermal imaging core adopts 17μm high-resolution uncooled infrared focal plane detector and imaging processing circuit, and embeds image processing algorithm. Low power consumption, fast startup, excellent imaging quality and so on.
Application Field
◊UAV ◊Military Integration ◊Security Monitoring ◊Scientific Research
Detector Type | Uncooled focal plane microbolometer | |||||
Pixels | 640X480 | |||||
pixel spacing wavelength range Thermal Sensitivity (NETD) frame rate | 17μm | |||||
wavelength range | 8 ~ 14 μm | |||||
Thermal Sensitivity (NETD) | ≤50 mk@30°C | |||||
ame rate | 25 Hz | |||||
Image Processing and Display | ||||||
imaging time | ≤7S | |||||
electronic zoom | X1/X2/X4 | |||||
palette | Multiple color palettes including white hot, black hot, iron red, rainbow and more | |||||
Analog video output Input supply voltage | CVBS(PAL) | |||||
digital video | BT656@TTL(1.8V) | |||||
contrast, brightness | automatic / manual HDR wide dynamic mode | |||||
Thermometry Analysis | ||||||
Temperature measurement accuracy | / | / | ±2°C or ±2% | |||
Analog electrical interface | BM06B-SRSS-TB | |||||
digital electrical interface | SFV20R-2STBE1HLF | 52745-2097 | ||||
Steady state power consumption | <1.2W | |||||
Communication Interface | UART@RS232 | |||||
supply voltage | 3V 〜5VDC | |||||
Environmental Parameters | ||||||
Operating temperature | -40°C ~ 60°C | |||||
storage temperature | -45°C ~ 70°C | |||||
Resistance to temperature shock | 5°C /min (-40°C - 60°C) | |||||
Vibration resistance | 4.3 g, x, y, z axis 2 hours per axis | |||||
impact resistance | Acceleration 30g, half sine wave, pulse width 6ms, shock 3 times in the direction of installation and use | |||||
humidity | ≤95% (non-condensing) | |||||
Lens frame rate | ||||||
Focal length | 19mm(F#1.0) | 25mm(F#1.0) | ||||
Physical Properties | ||||||
Dimensions | 28mmX28mmX57mm | 28mmX28mmX51mm | 28mmX28mmX56mm | |||
weight | <65g | <65g | <67g | |||
Mounting holes | Two M2X4 on each side | |||||
