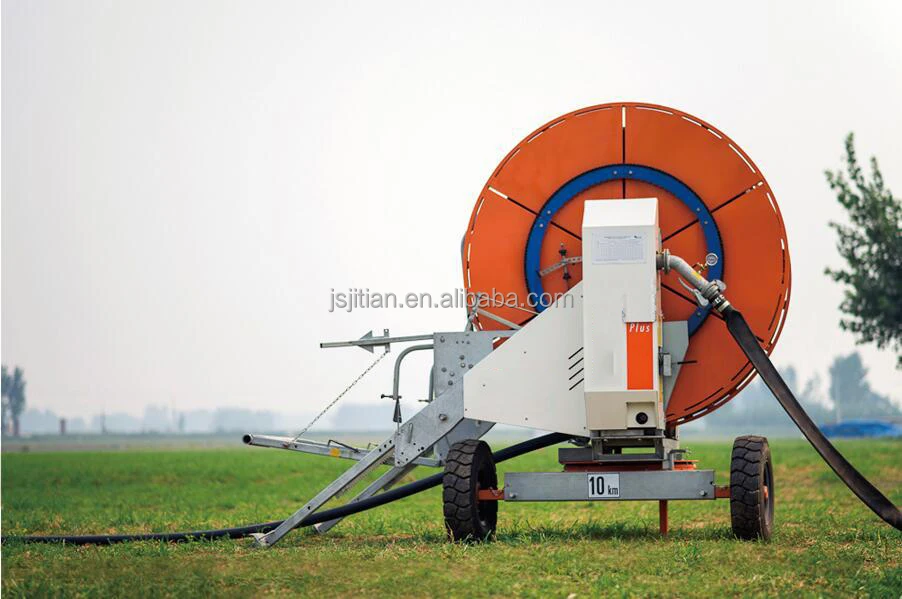

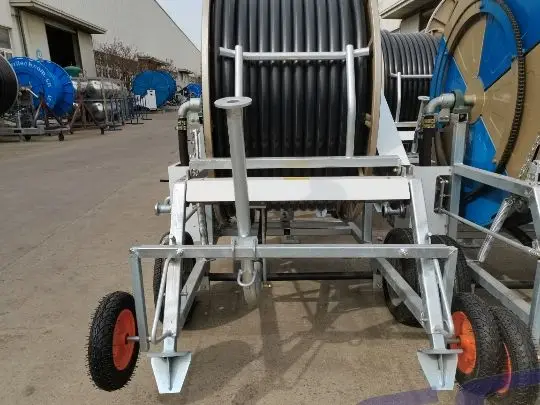

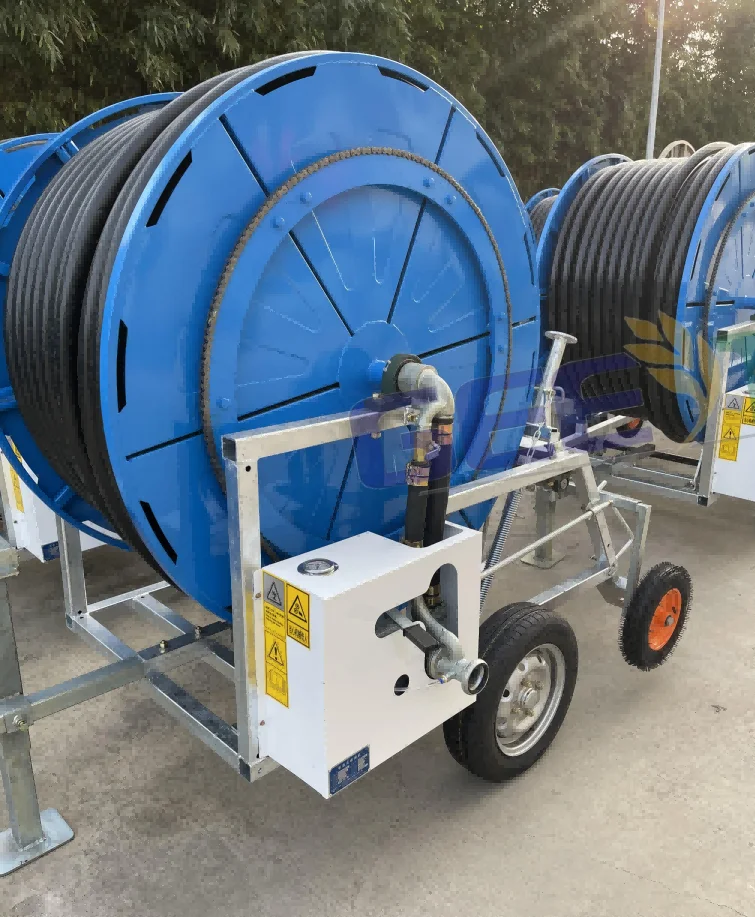

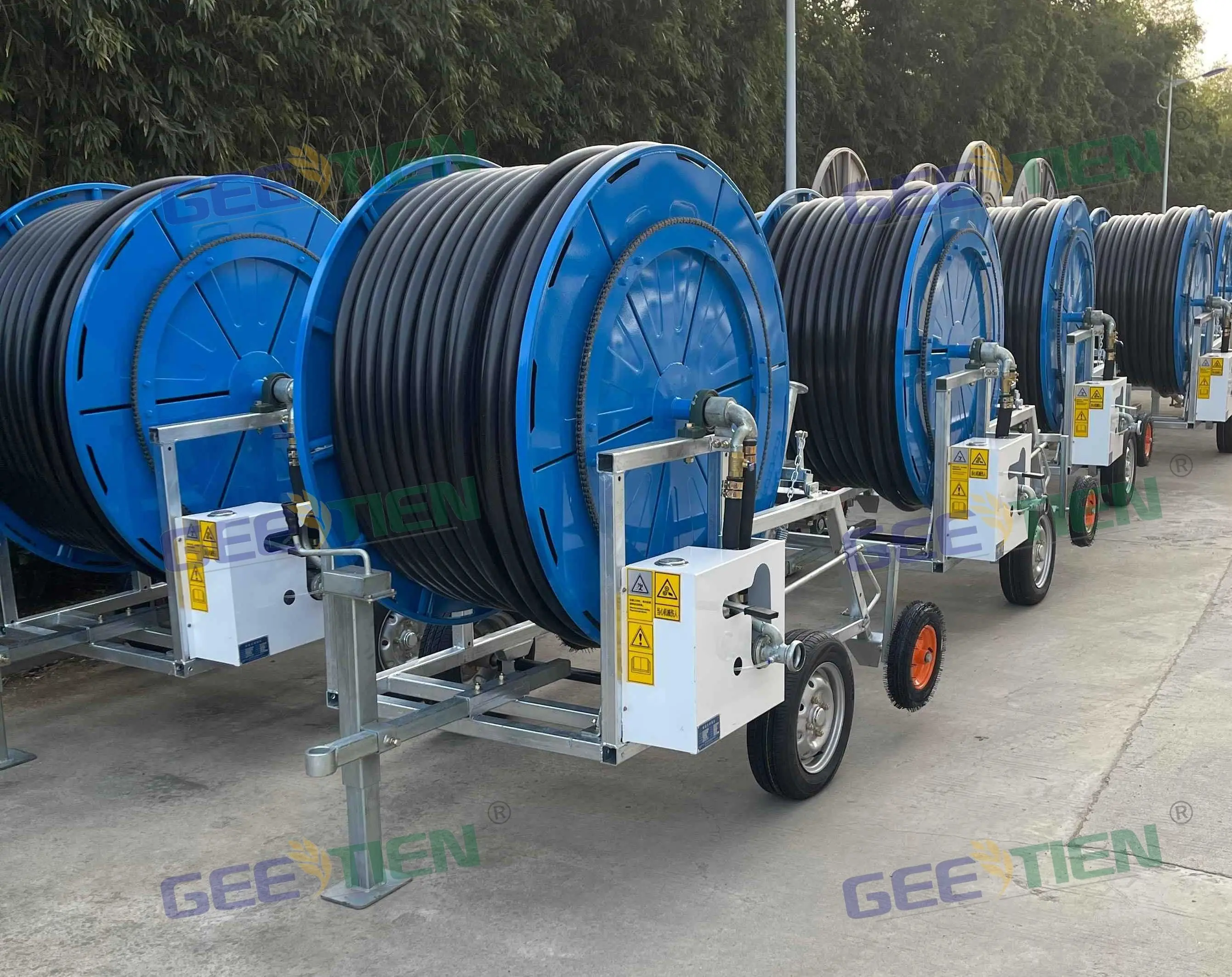

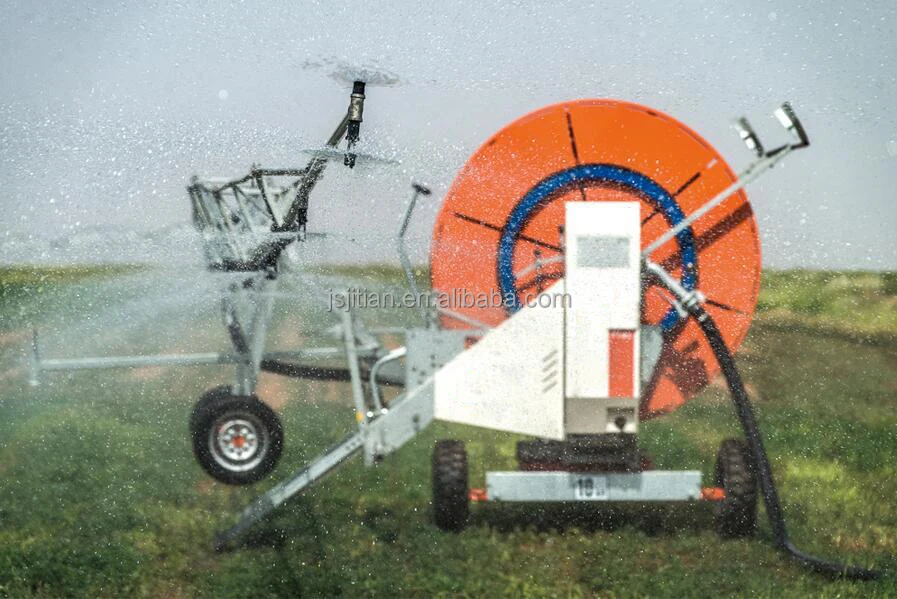

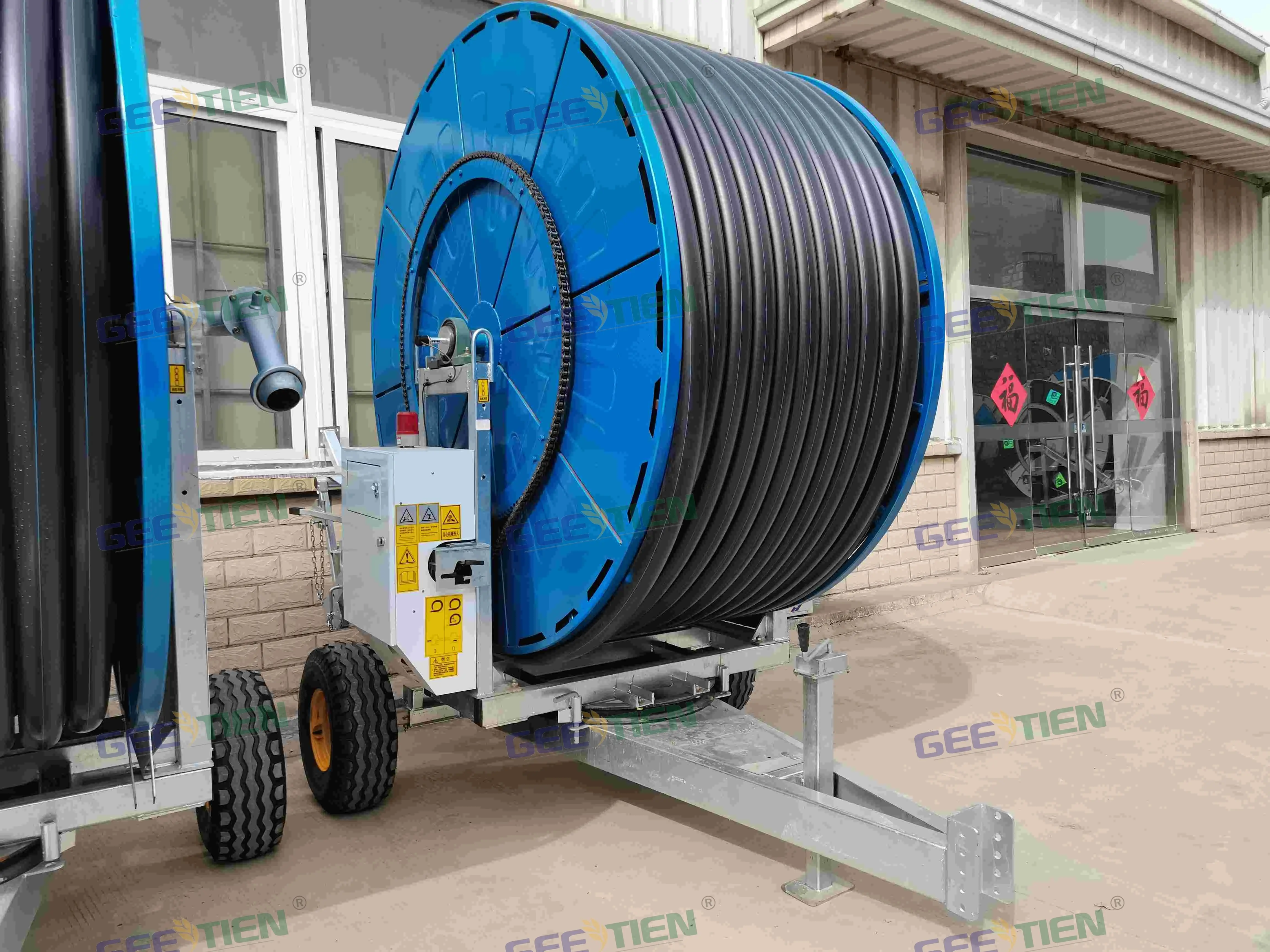

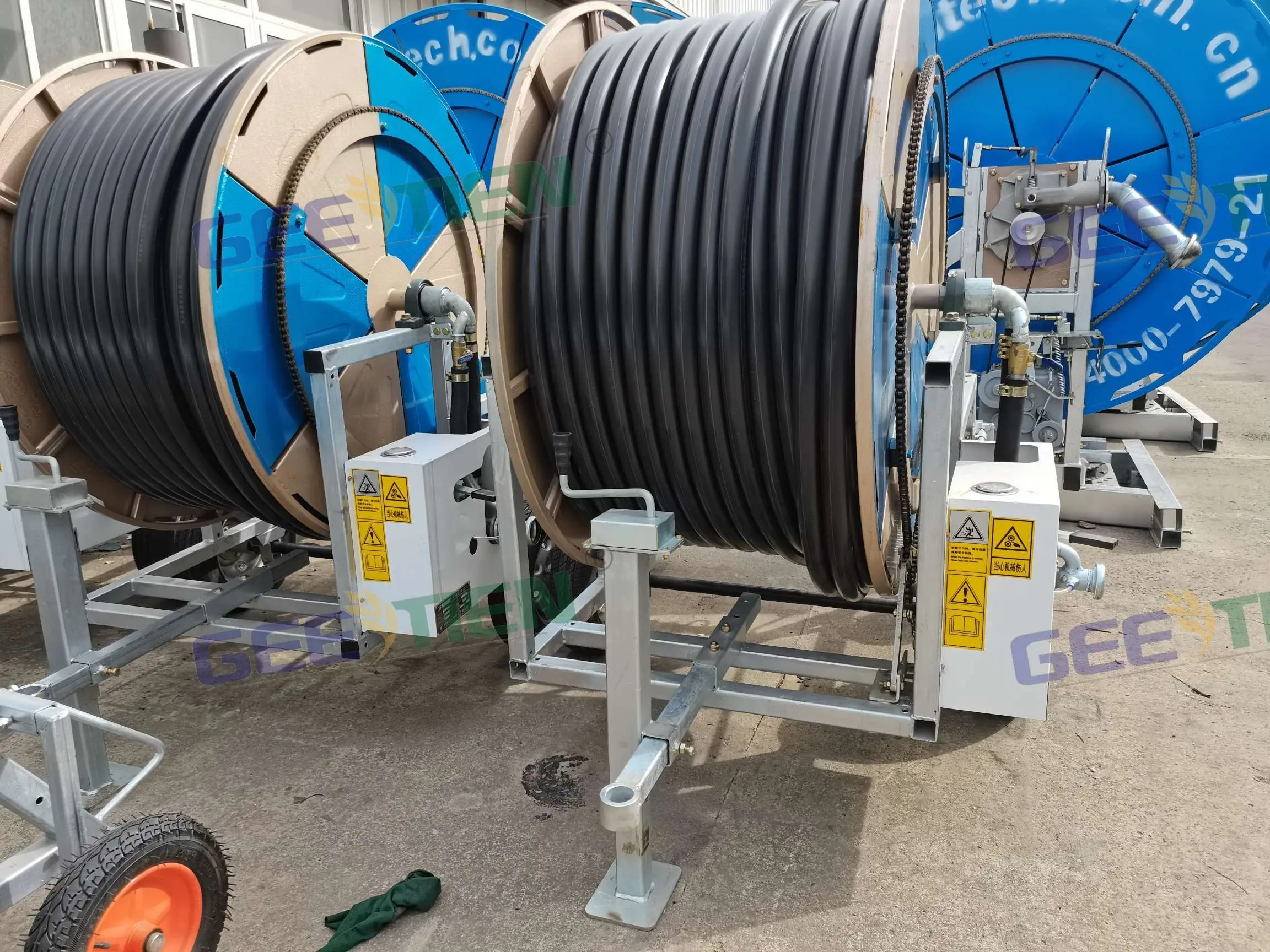

rain gun sprinkler irrigation system water reel drip irrigation machinery
- Category: >>>
- Supplier: Jiangsu Jitian International Trade Co. Ltd.
Share on (1600977461201):
Product Overview
Description
Product Description
JitianTrading is an integrated manufacturer of water-saving irrigation equipment integrating design, research and development, production, sales, engineering and service, and a comprehensive service provider of smart irrigation. It is widely used in various fields such as agriculture and forestry irrigation, urban gardens, industry, construction, water supply and drainage systems, fountains and the construction of large, medium and small pumping stations.
1. Save water, fertilize economically, adjust the ground climate and not be restricted by terrain
2. Compared with ground irrigation, sprinkler irrigation for field crops generally saves water and increases production
3. Sprinkler irrigation can be used in mountainous or hilly areas where the terrain is undulating, the ground slope is large, and other places where water-saving irrigation is difficult to use
4. Close to natural rainfall methods can reduce the problem of land salinization

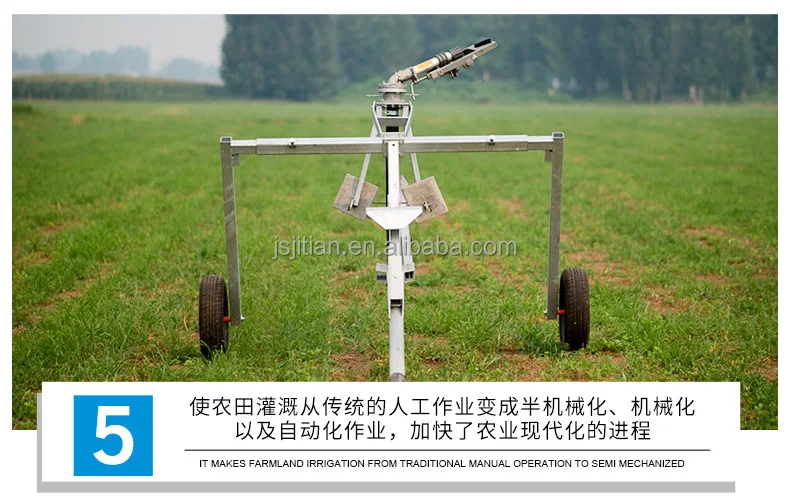

5. Farmland irrigation has changed from traditional manual operations to semi-mechanized and automated operations, accelerating the process of agricultural modernization
2. Compared with ground irrigation, sprinkler irrigation for field crops generally saves water and increases production
3. Sprinkler irrigation can be used in mountainous or hilly areas where the terrain is undulating, the ground slope is large, and other places where water-saving irrigation is difficult to use
4. Close to natural rainfall methods can reduce the problem of land salinization
5. Farmland irrigation has changed from traditional manual operations to semi-mechanized and automated operations, accelerating the process of agricultural modernization

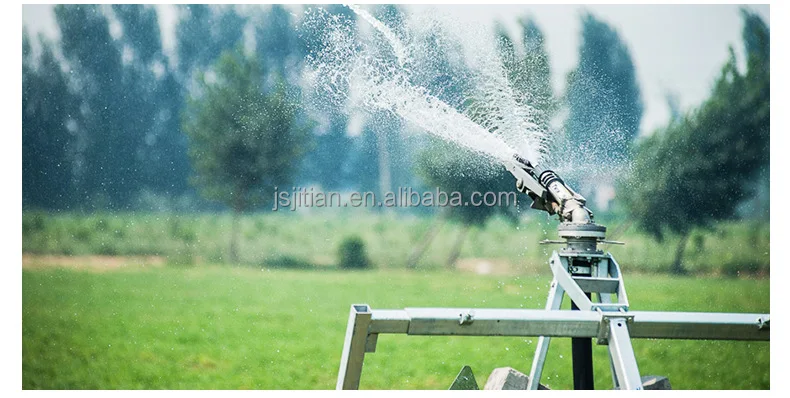

Vertical rocker nozzle
Rocker sprinkler
Impeller nozzle
project | unit | series model | ||||||
JP75 JP75/D | JP90 JP90/D | JP110 JP110/Y | JP125/Y | |||||
interlayer velocity difference | % | <20 D/<15 | <20 D/<15 | <20 Y/<15 N/<15 | <15 N/<15 | |||
precipitation | mm | 8-50 | 8-50 | 7.3-92 | 10-100 | |||
nozzle type | / | PYC50 | PYC50 | PYC75 | PYC75 | |||
nozzle height | mm | 1300- 2800 | 1300- 2800 | 2000- 3000 | 2000- 3000 | |||
nozzle car track | 1300 | 1300 | 1300-1500 | 1300-1500 | ||||
car climbing | % | 20 | 20 | 20 | 20 | |||
traction height | mm | 300- 500 | 300- 500 | 300- 500 | 300- 550 | |||
ground clearance | 300 | 300 | 300 | 300 | ||||
chassis | / | 185R 14c | 10.0/80 -12 | 10.0/75 -15.3 | 10.0/75 -15.3 | |||
wheel tire rim maximum width | mm | 2000 | 2310 | 2400 | 2510 | |||
project | unit | series model | ||||||
JP75 JP75/D | JP90 JP90/D | JP110 JP110/Y | JP125/Y | |||||

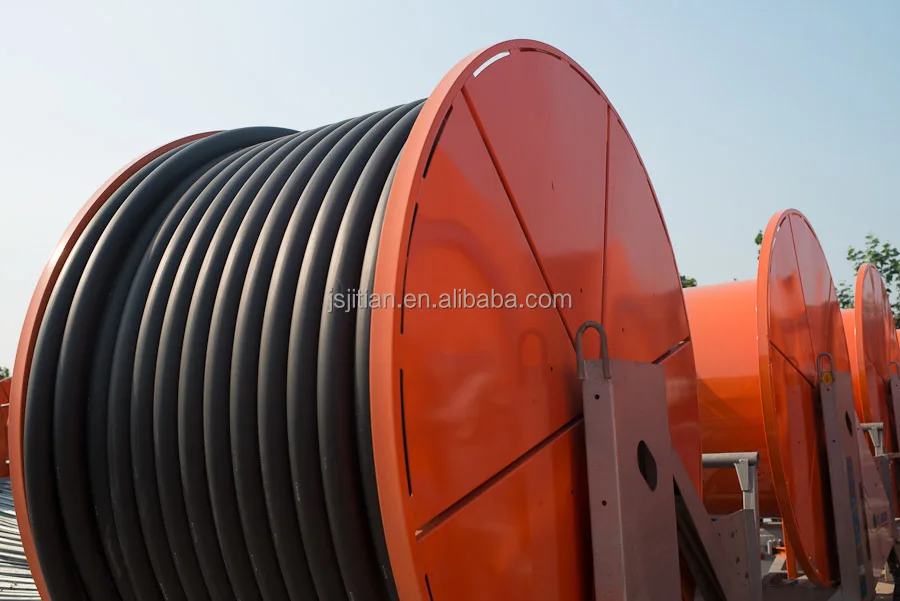

PE pipe diameter | mm | 75 | 90 | 110 | 125 | |||
PE pipe length | m | 250-450 | 300-450 | 300-500 | 200-330 | |||
into the machine working pressure | MPa | 0.5-1.0D/ 0.4-0.9/ | 0.5-1.0D/ 0.4-0.9/ | 0.55-1.25 Y/0.5-1.0 N /0.5-1.0 | 0.55-1.25 Y/0.5-1.0 N /0.5-1.0 | |||
nozzle pressure | MPa | 0.3-0.6 | 0.4-0.6 | 0.5-0.8 | 0.5-0.8 | |||
nozzle diameter | mm | 16-22 | 20-26 | 24-32 | 28-36 | |||
flow rate | m7h | 13-38 | 17-52 | 45-106 | 68-130 | |||
range | m | 28-43 | 35-52 | 45-68 | 55-72 | |||
spray width | m | 47-74 | 60-90 | 77-116 | 95-124 | |||
combination uniformity coefficient | % | ≥85 | ≥85 | ≥85 | ≥85 | |||
