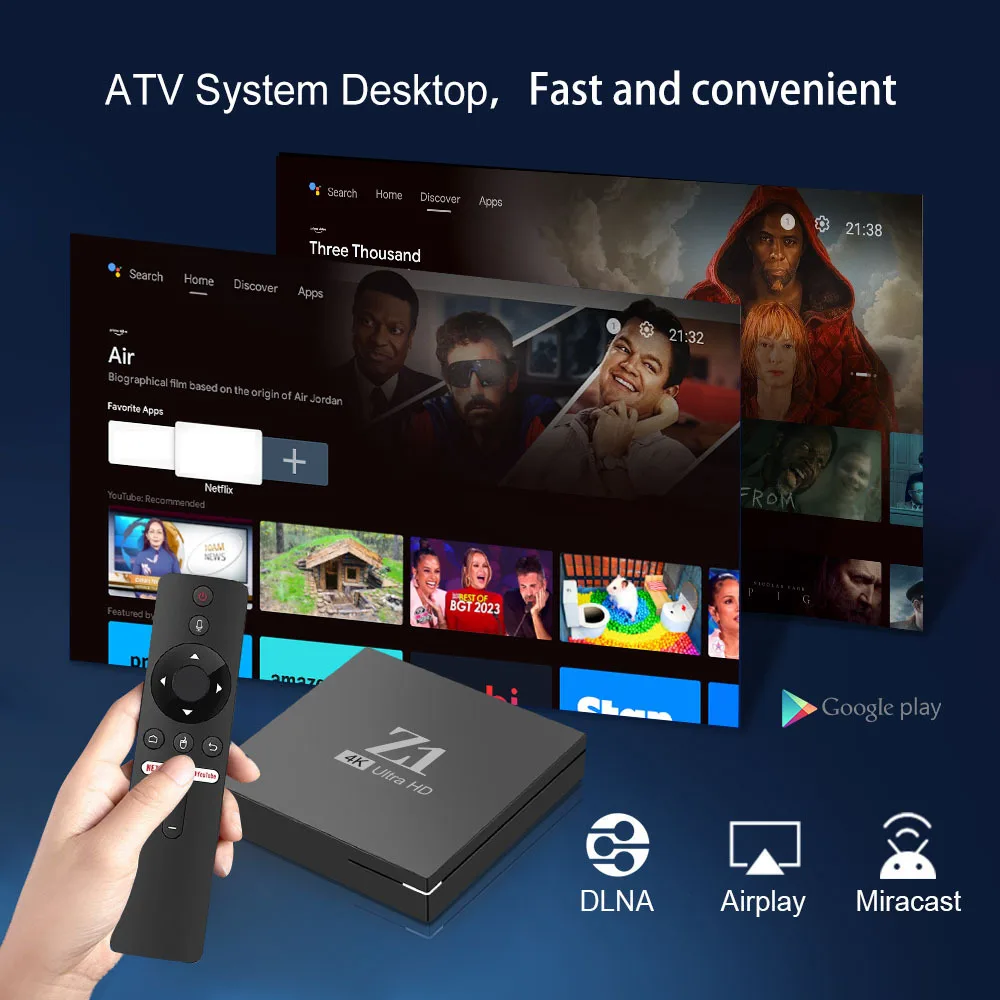

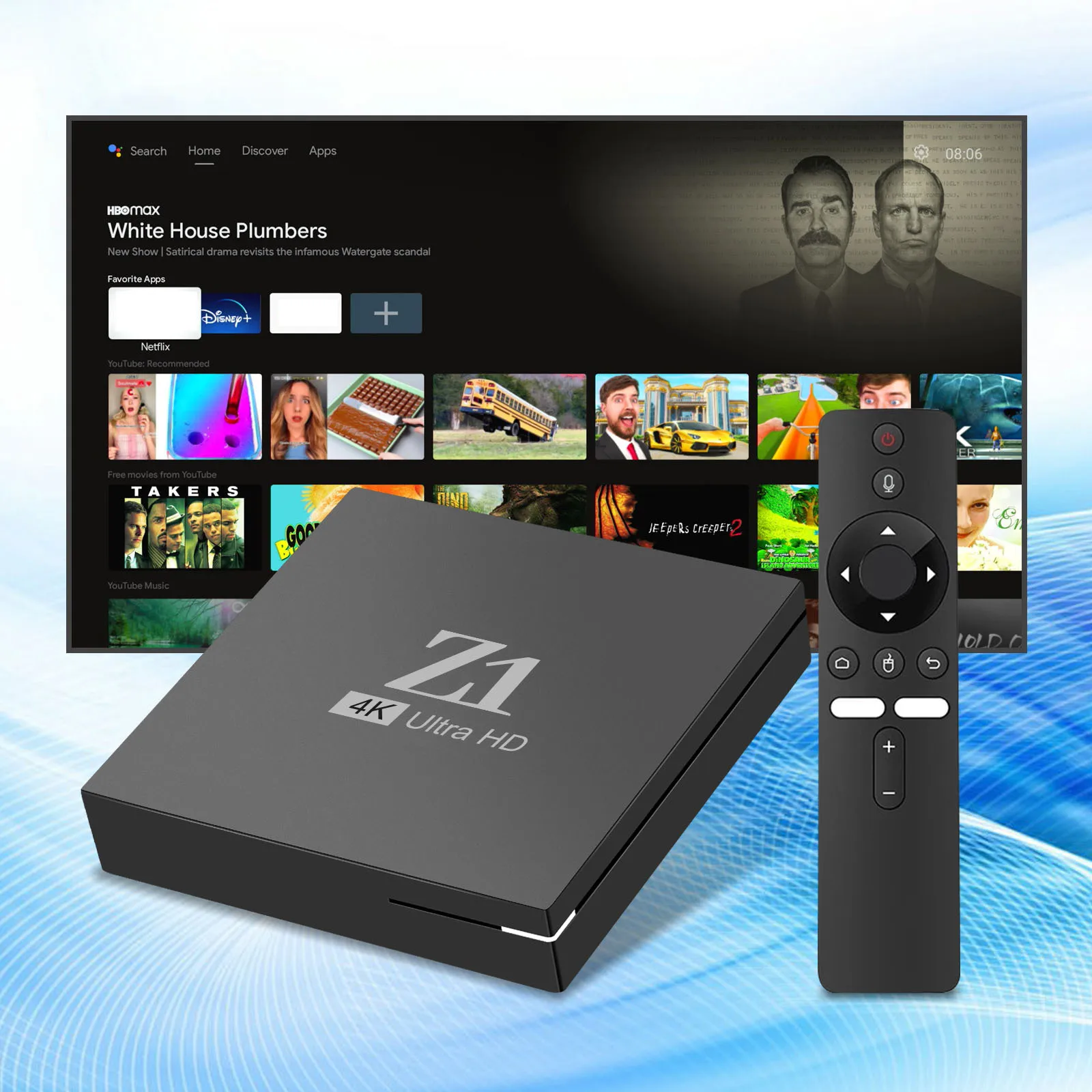

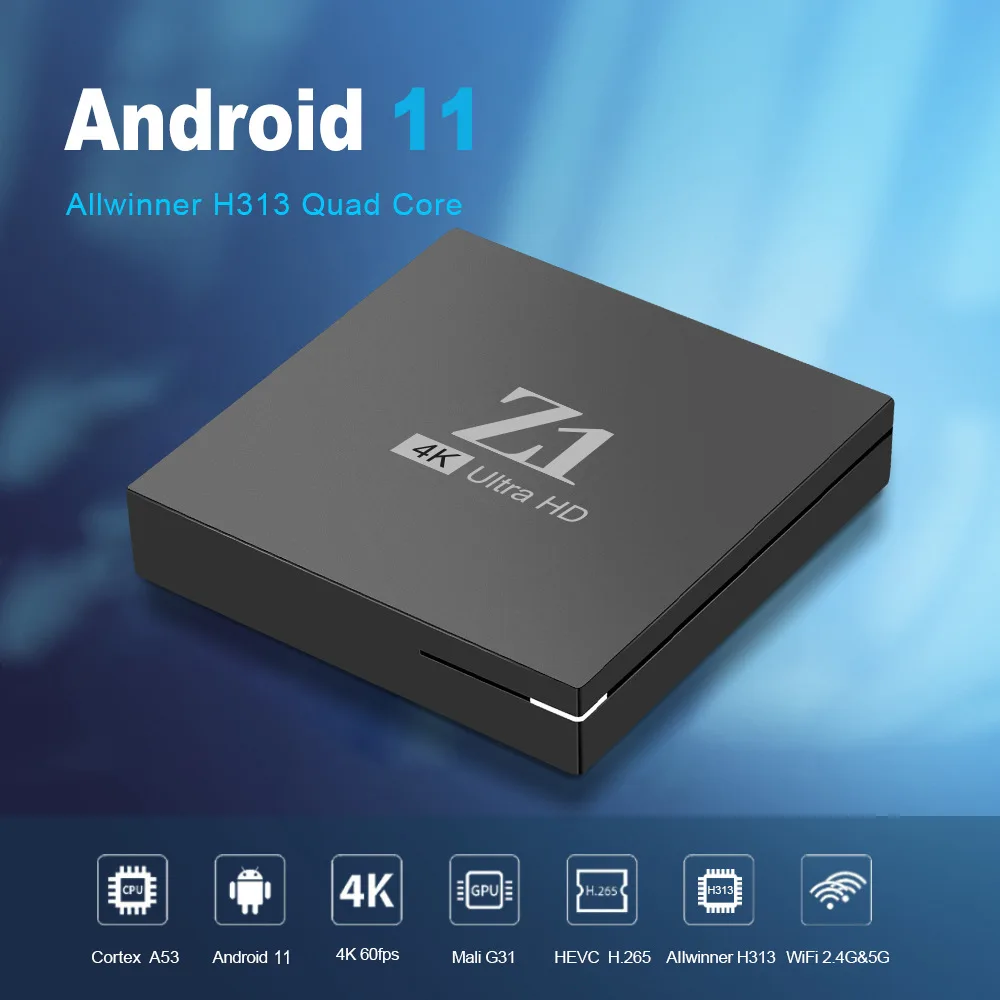

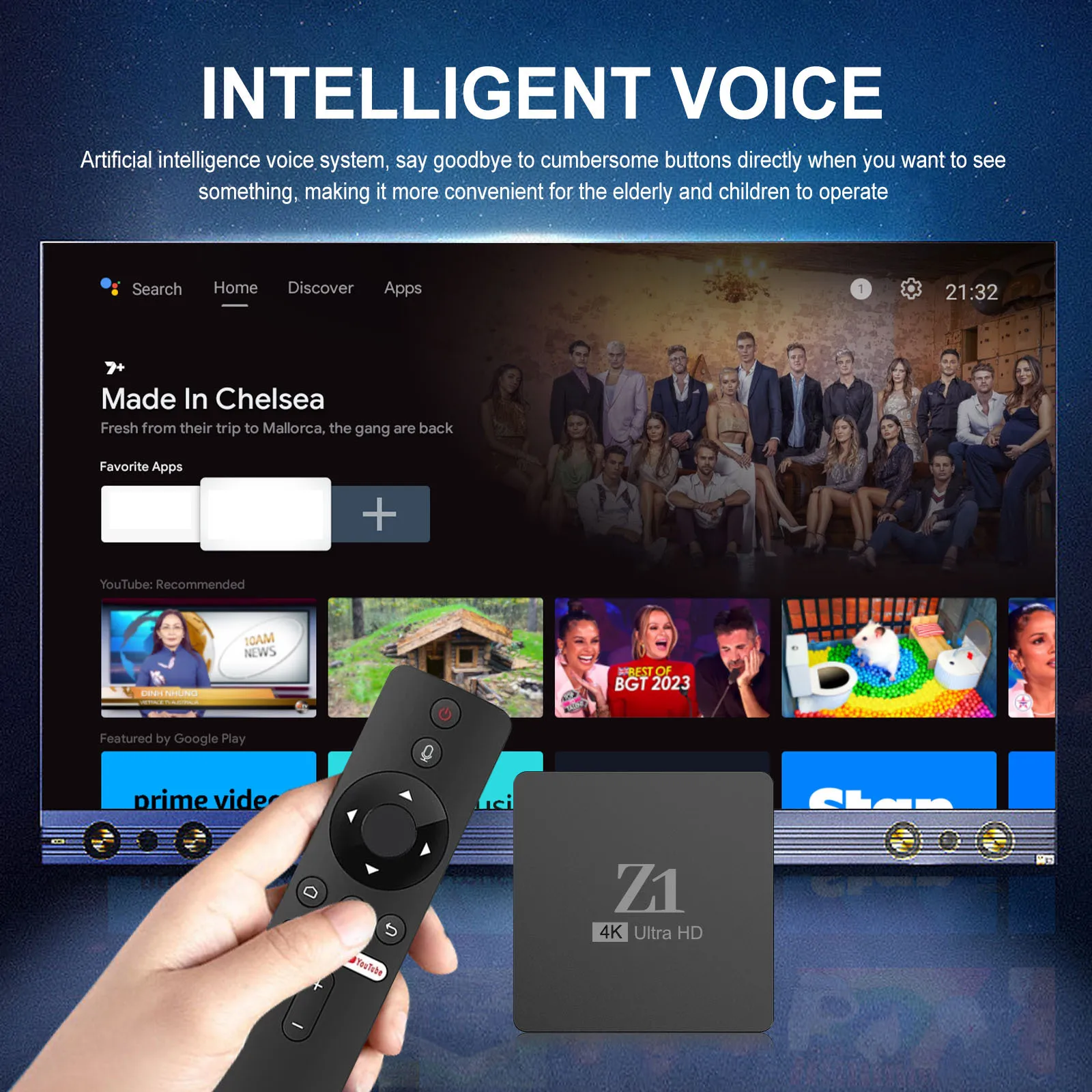

Original Factory Android Box 4K HDTV Allwinner H313 Q5 Tvbox Z1 Android IP TV Subscription Smart Box TV

CPU

Allwinner H313 Quad Core ARM Cortex A53

GPU

G31 OPenGL ES3.2

Memory

DDR3:1GB (Option: 2GB)

Flash

eMMC:8GB (Option:16GB )

WiFi

IEEE 802.11 b/g/n

Moudle

Plastic : Black Color

I/O

1*H D

4K*2K UHD Output, H D 2.0A

1*AV OUT

480i/576i standard definition output

2*USB

1* USB Host Port ,1*USB Device

1*IR Reciver

Remote Reciver Connect

1*RJ45

Ethernet Interface

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

Power

DC 5V/2A;LED indicator,Working :Blue; Standby:Red

Software

OS

Android 10.0

Video

• Supports video decoding up to 4K@ 60fps
• Supports multi-formats:
- H.265 Main10@ L5.1 up to 4K@ 60fps
- VP9 Profile 2 up to 4K@ 30fps
- AVS2 JiZhun 10bit Profile up to 4K@ 30fps
- H.264 BP/MP/HP@ L4.2 up to 4K@ 30fps
- H.263 BP up to 1080p@ 60fps
- MPEG-4 SP/ASP@ L5 up to 1080p@ 60fps
- MPEG-2 MP/HL up to 1080p@ 60fps
- MPEG-1 MP/HL up to 1080p@ 60fps
- Xvid up to 1080p@ 60fps
- Sorenson Spark up to 1080p@ 60fps
- VP8 up to 1080p@ 60fps
- AVS/AVS+ JiZhun Profile up to 1080p@ 60fps
- WMV9/VC1 SP/MP/AP up to 1080p@ 60fps
- JPEG HFIF file format up to 45MPPS
H.264 BP/MP/HP
• H.264 supports I/P frame, and only supports single reference frame
• MJPEG/JPEG baseline
• Maximum 16-megapixel(4096 x 4096) resolution for H.264 encoding
• H.264 encoding capability: 1080p@ 60fps
• JPEG snapshot performance of 1080p@ 60fps independently
• Supports the constant bit rate(CBR)ariable bit rate(VBR) bit rate control mode, ranging from 256kbit/s to
100Mbit/s
• Encoding of eight regions of interest(ROIs)

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
• Two DAC channels
• Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)
• One Audio HUB, supporting internal mixing function
• Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)
• Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode
• I2S mode supports 8 channels, and 32-bit/192kbit sample rate
• I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate
• One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs
• Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones


HD JPEG,BMP,GIF,PNG,TIF

Language

English French German Spanish Italian etc multilateral languages

Appliactions

Online

Browse all video websites,support Hulu,Flixster, Youtube, etc.

Apps

Apps download freely form android market,amazon app store etc.

Medium

Local Media playback,Support HDD, U Disck ,TF Card .

Others

Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard

Packing

Product dimension

88.4*88.4*18.6(mm)

Qty per unit packing

1pcs

Unit packing: (LxWxH)

170*115*55(mm)

Unit packing (G.W.)

0.35Kg

Qty per export carton

20PCS

Export carton (WxHxL)

370*290*240 (mm)

Export carton (G.W.)

7.5Kg

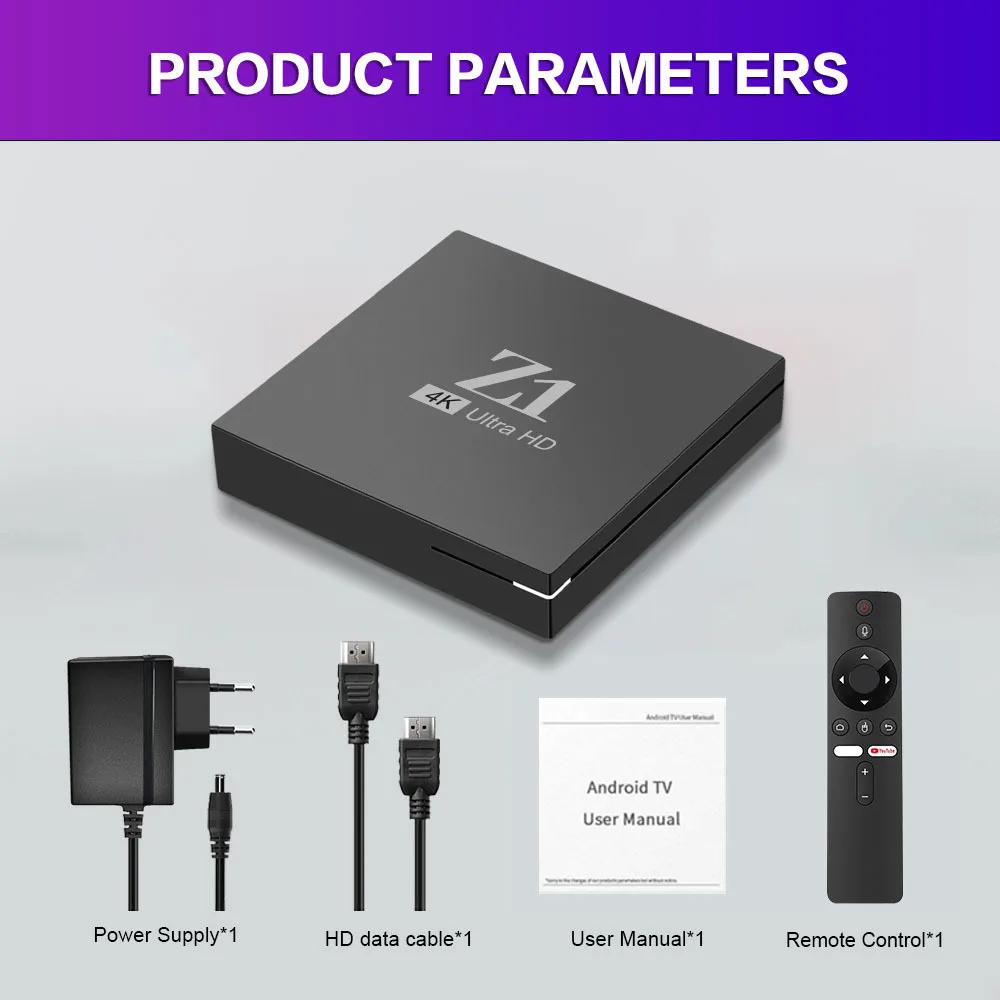

Accessories :

1,HDTV cable *1

2,IR Remote *1

3,User Manual *1

4,Package box *1

5,Power adapter *1
