Huastlink 900mbps Outdoor Wifi Access Point To Point Wireless Cpe 5.8ghz 5km Long Range Hotsport Outdoor Cpe Wifi Bridge
- Category: >>>
- Supplier: Shenzhen Huachuangyilian Electronics Co. Ltd.
Share on (1600977493008):
Product Overview
Description
Product Description
Waterproof Long Range 900mbps 5.8ghz Outdoor Wi-fi Cpe 5km Outdoor Point To Point Wifi Transmitter Wireless Bridge
The HC505 is a high performance enterprise outdoor bridge that works in the 5G band and supports 802.11ac technology. The unique digital tube pairing technology allows easy point-to-point and point-to-multipoint (up to 8 points) device pairing without the need for computer configuration. Gigabit + 100 Gigabit network interface, 5G 802.11ac MIMO technology wireless processing speed up to 900Mbps, flexible power supply, support 24V POE network cable power supply and 12V 1A DC local power supply, network cable power supply distance up to 50-70 meters (depending on network cable material). Designed with outdoor IP65 wind, rain, dust and sun protection grade housing, easily adapt to various harsh outdoor environments. Built-in 14dBi dual excitation plate antenna, easy and quick installation. With high performance, high gain, high reception sensitivity and high bandwidth, it greatly enhances the wireless transmission performance and stability, widely used in short and medium distance video transmission and data transmission.
The enterprise-grade main control chip with industrial-grade circuit design supports IEEE802.11a/n/ac protocol, which provides 900Mbps wireless access speed and 1000Mbps+100Mbps Ethernet switching processing speed. The excellent anti-high and low temperature design fully guarantees that user network data can be transmitted in real-time, long-term, stable and high performance in extreme environments to enhance user experience.
* Powerful Wireless Transmission
The use of high power and high reception sensitivity circuit design greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission.
* Simple and Efficient Pairing

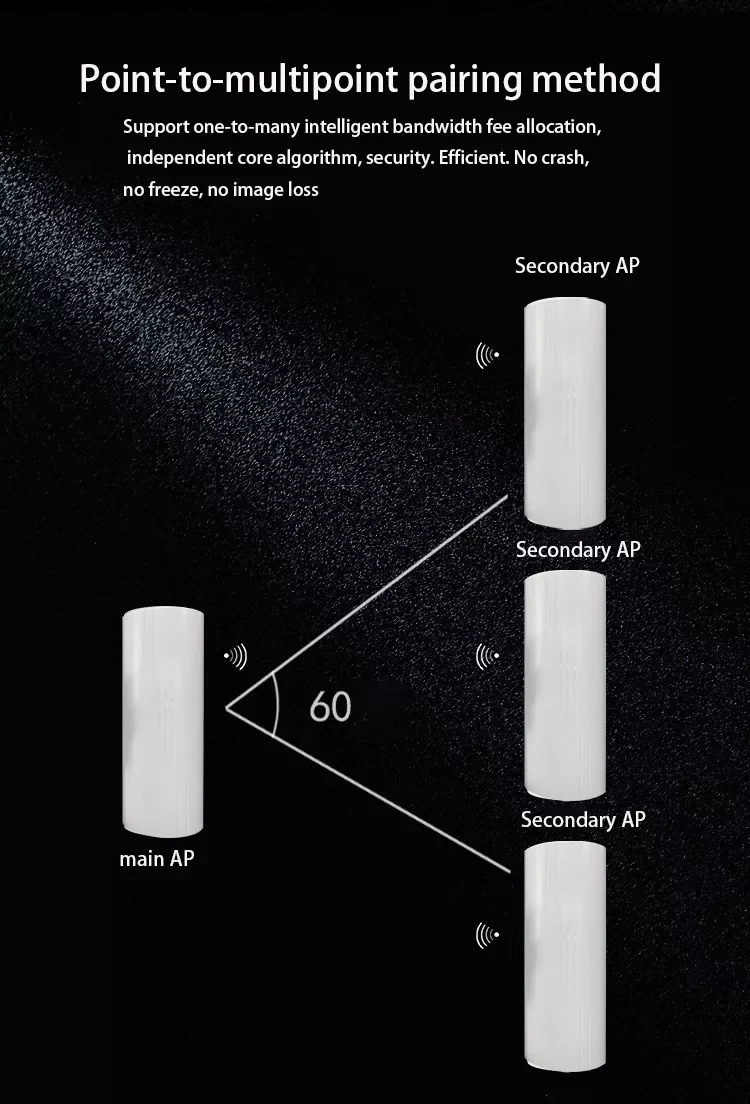

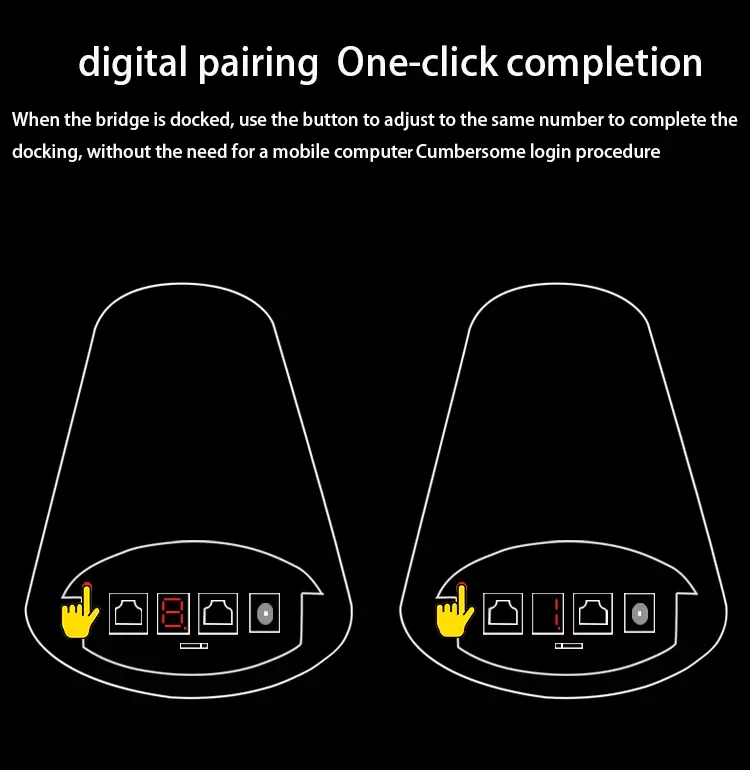

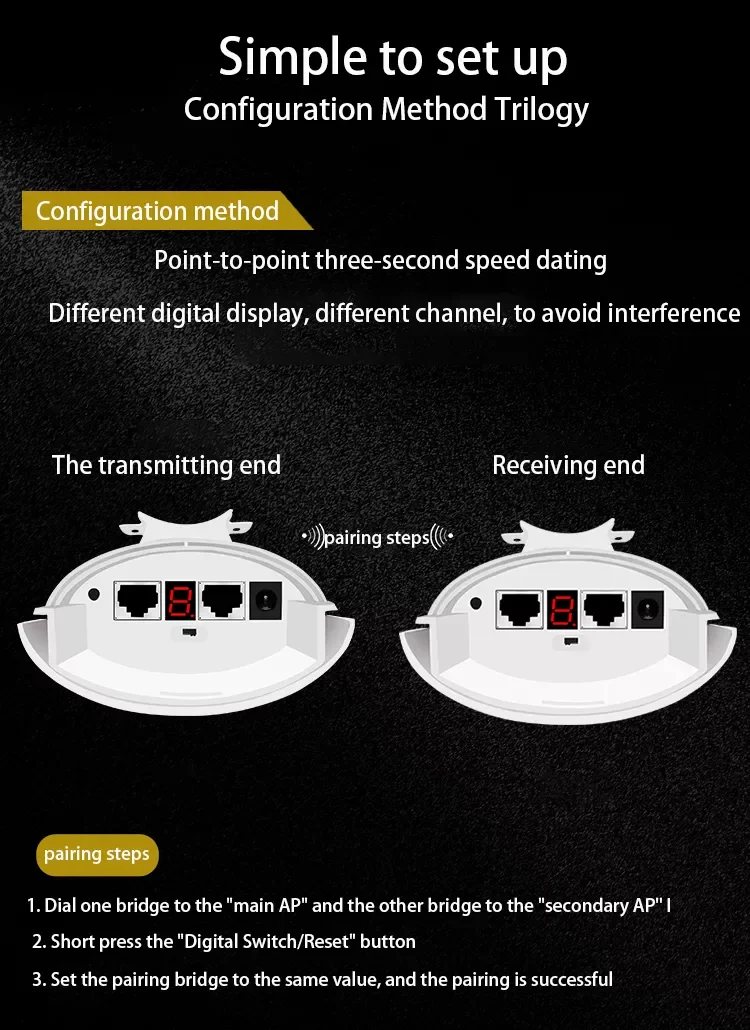

No need for network expertise, no computer operation, just dial the code and adjust the digital tubes of the master and slave devices to the same value to complete the point-to-point or point-to-multipoint (up to 8 points) pairing work.
* Flexible Power Supply Options
The equipment not only supports the power supply method of POE remote network cable power supply, but also supports the power supply method of 12V 1A DC local connection power supply to meet the needs of various scenarios, reduce the construction cost and choose the power supply method flexibly.
* ABS waterproof, dust proof and sunscreen shell, temperature adaptive and board protective
ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country, with flexible and simple installation method, with wall hanging, holding rod fixed installation method, on the basis of not affecting the original design, greatly reducing the construction difficulty of the construction personnel, improve the construction efficiency.
WEB browser to log into the device to view the connection system status, bridge status, interface status information in real time, a simple and clear interface, so that users know the device work status in real time.
* Simple quick setup & powerful wireless optimization
Users do not need to know too much about wireless, no need too much professional knowledge, a few simple steps to achieve point-to-point, point-to-multipoint (up to 8 points) device pairing. Wireless optimization can be completed with simple settings, easily improving link transmission quality and usage.
* Always protect the user's network security
The device bridging signals all adopt advanced WPA-PSK & WPA2-PSK encryption policy, which masks the bridging signals by default to protect users' network from hackers' attacks at all times and ensure users' data security.
* Simple and efficient system configuration functions
Access password change, restore factory configuration, local upgrade, simple and straightforward functions allow you to easily complete the system setup of your device and improve its robustness.
Hardware Feature
* Supper Cost-effective Hardware ConfigurationThe enterprise-grade main control chip with industrial-grade circuit design supports IEEE802.11a/n/ac protocol, which provides 900Mbps wireless access speed and 1000Mbps+100Mbps Ethernet switching processing speed. The excellent anti-high and low temperature design fully guarantees that user network data can be transmitted in real-time, long-term, stable and high performance in extreme environments to enhance user experience.
* Powerful Wireless Transmission
The use of high power and high reception sensitivity circuit design greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission.
* Simple and Efficient Pairing
No need for network expertise, no computer operation, just dial the code and adjust the digital tubes of the master and slave devices to the same value to complete the point-to-point or point-to-multipoint (up to 8 points) pairing work.
* Flexible Power Supply Options
The equipment not only supports the power supply method of POE remote network cable power supply, but also supports the power supply method of 12V 1A DC local connection power supply to meet the needs of various scenarios, reduce the construction cost and choose the power supply method flexibly.
* ABS waterproof, dust proof and sunscreen shell, temperature adaptive and board protective
ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country, with flexible and simple installation method, with wall hanging, holding rod fixed installation method, on the basis of not affecting the original design, greatly reducing the construction difficulty of the construction personnel, improve the construction efficiency.
Software Feature
* Simple overview of equipment
WEB browser to log into the device to view the connection system status, bridge status, interface status information in real time, a simple and clear interface, so that users know the device work status in real time.
* Simple quick setup & powerful wireless optimization
Users do not need to know too much about wireless, no need too much professional knowledge, a few simple steps to achieve point-to-point, point-to-multipoint (up to 8 points) device pairing. Wireless optimization can be completed with simple settings, easily improving link transmission quality and usage.
* Always protect the user's network security
The device bridging signals all adopt advanced WPA-PSK & WPA2-PSK encryption policy, which masks the bridging signals by default to protect users' network from hackers' attacks at all times and ensure users' data security.
* Simple and efficient system configuration functions
Access password change, restore factory configuration, local upgrade, simple and straightforward functions allow you to easily complete the system setup of your device and improve its robustness.
Specification
Hardware Feature | |
Model | HC505 |
Chipset | MTK7620A+7621E+IP1001M 900Mbps |
Main Frequency | 580MHz MIPS® 24KEc™ |
Wireless Technology | 5G:900M 802.11a/n/ac MIMO Technology |
Memory | 64MByte DDR2 |
Flash | 8MB |
Interface | WAN:1*10/100/1000Mbps Adaptive RJ45 port LAN:1*10/100Mbps Adaptive RJ45 port |

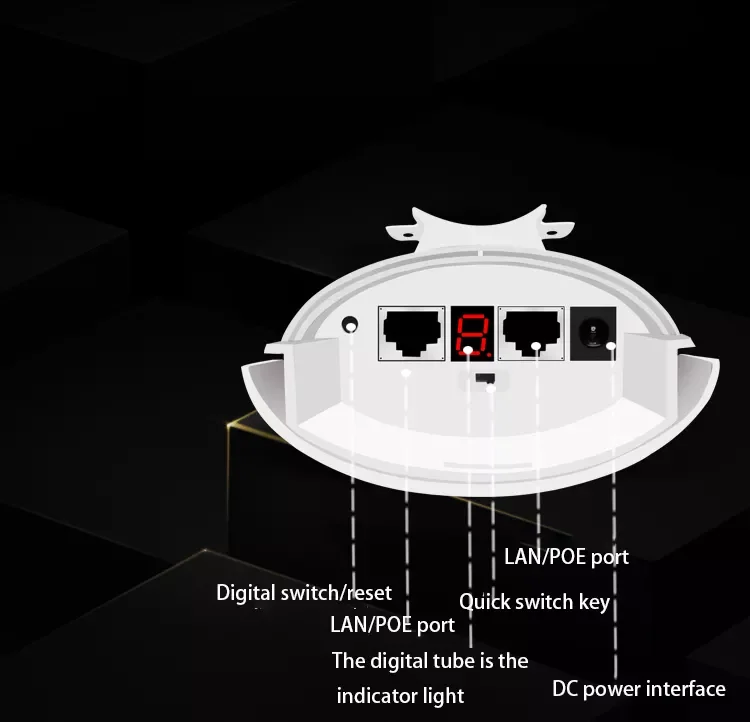

Button | 1*Digital switch/reset button, short press to add one to the digital display, long press for 15 seconds to restore factory settings |
Indicator | Signal, LAN1/LAN2, Power Digital Tube |
Power | 24V 1A Non-standard POE power supply DC 12V 1A，Power consumption﹤10W |
Working Environment | Temperature: -30°C to +55°C (working), -40°C to +70°C (storage) Humidity (non-condensing): 10% to 90% (working), 5% to 95% (storage) |
Antenna | Built-in dual polarised high gain 14dBi directional panel antenna (horizontal wave half-angle 60°, vertical wave half-angle 60°) |
Details Images
Company Profile
Shenzhen Huachuangyilian Electronics Co.,Ltd. is a professional wireless network and telecommunication equipment developer and manufacturer, we have a professional production factory around 20,000 square metes and a team of more than 100 R&D engineers.
HCYL provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
HCYL provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
All of products passed CE, FCC, ROHS certificate.
HCYL vision is providing best service to customers.
