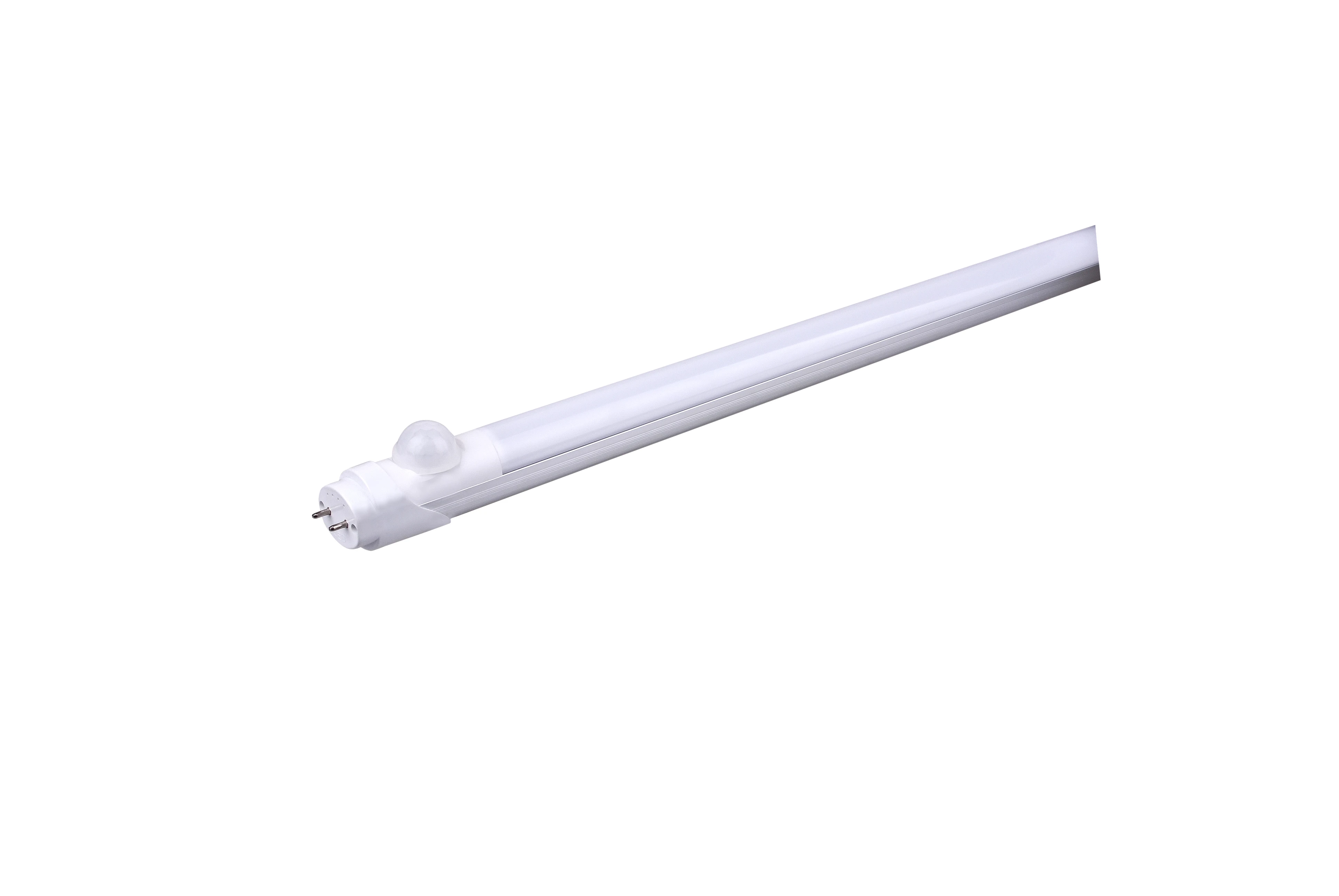

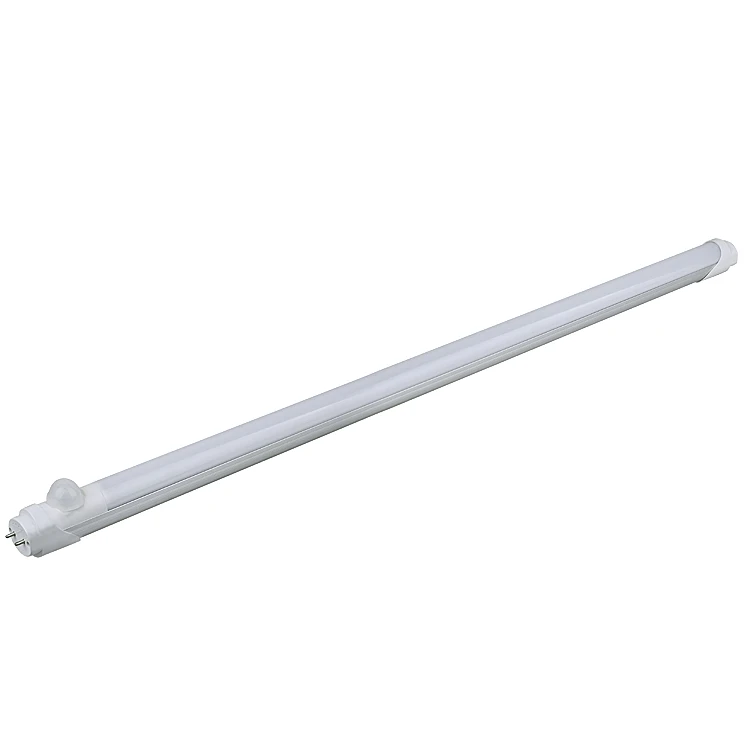

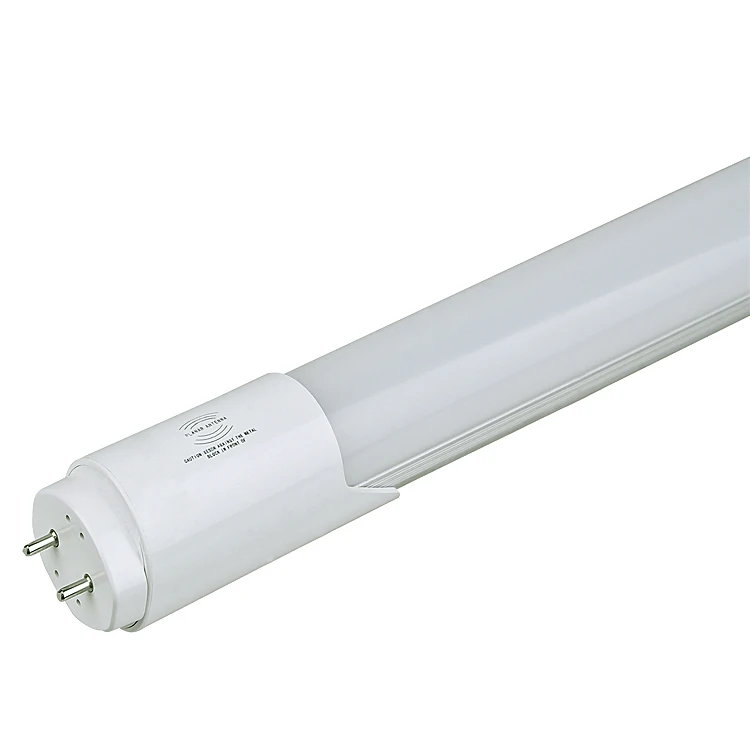

T5 T8 led tube with motion sensor 1.2m tube microwave sensor led tube light

Product Character

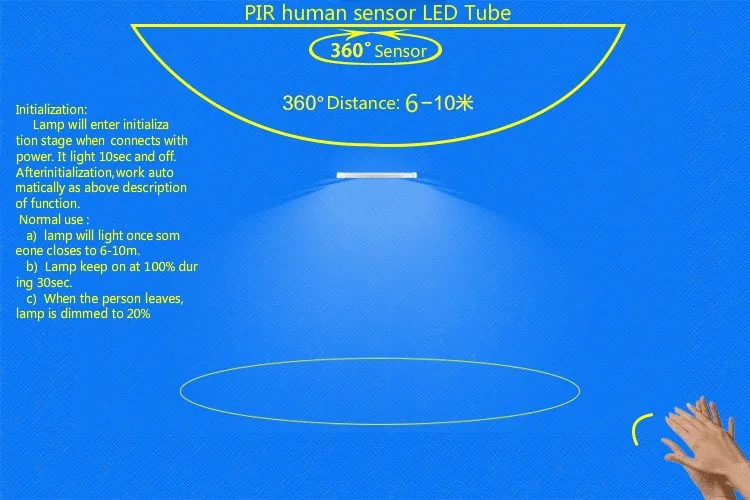

Initialization
Lamp will enter initialization stage when  connects with power. It light 10sec and off.
After initialization, work automatically as above description of function.
Normal use
a) lamp will light once someone closes to 5-8m.
b) Lamp keep on at 100% during 30sec.
c) When the person leaves, lamp is dimmed to 20%

Features

Auto switch on/off
With motion sensor technology, the lamp will auto switch on/off according to the movement in the detection area.
a)There has movement in detection area, the lamp is switch on.
b) There hasn't movement in detection area, the lamp is switch off.
Auto dimming
When lamp start to work and there has no movement in the detection area,
a) lamp will be kept 100% luminace within 30s,
b) Lamp will automatically fall 20% luminace

Parameters

Input voltage: 100-240VAC Input power: (10W±5%)
Input current: 0.2A - 0.087A Frequency: 50/60Hz
CCT/Lums: 3000K/ 820LM CCT/Lums: 4300K/830LM
CCT/Lums: 6000K/ 850LM CIR: ≥80
Power Factor: ≥0.9 Material: PC + Al
LED type: SMD2835 LED : SMD Epistar
Size: 26mm(Φ)*600mm(L) Storage Temp. : -20℃~60℃
Working Temp.: -10℃~40℃ Working Humidity: 20%~85%
Detection radii. : 8±1 M (Max: 10M) Dimming rating: 20% lm
Time Interval : 60S turn to 20% lm
HF system: 5.8GHz ISM wave band
Transmission power: < 1mW
Sensor angle: 360°
Standby power: < 2.5W
Installation height: 2.5-5M

Our Services

Your inquiry related to our products or price will be replied in 24hours
Well-trained and experienced staffs to answer all your enquiries in fluent English
Distributer rights are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information
OEM&ODM, any your customized lightings(warm to cool) we can help to design and put into product.

Step

1.Choose:Single-end AC input. 2: Remove old tube. 3:Install tube. 4: Install LED Starter.

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
