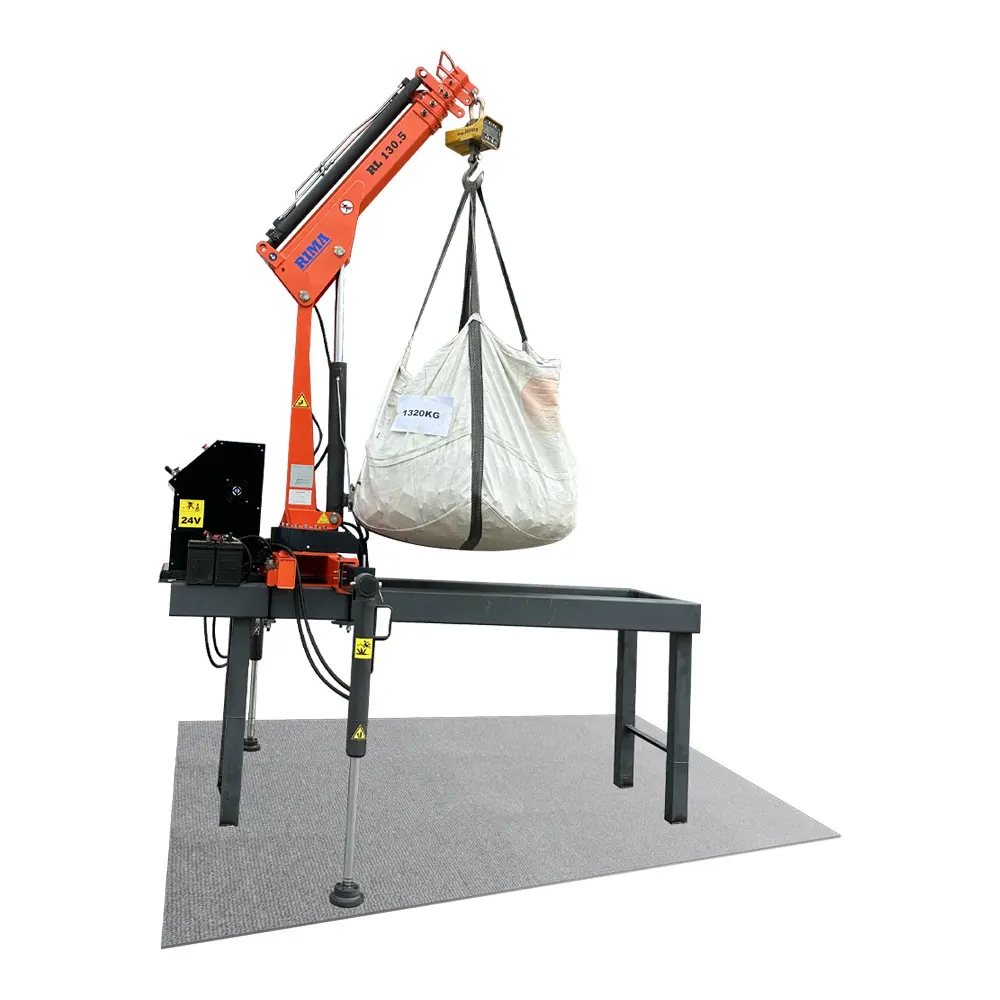

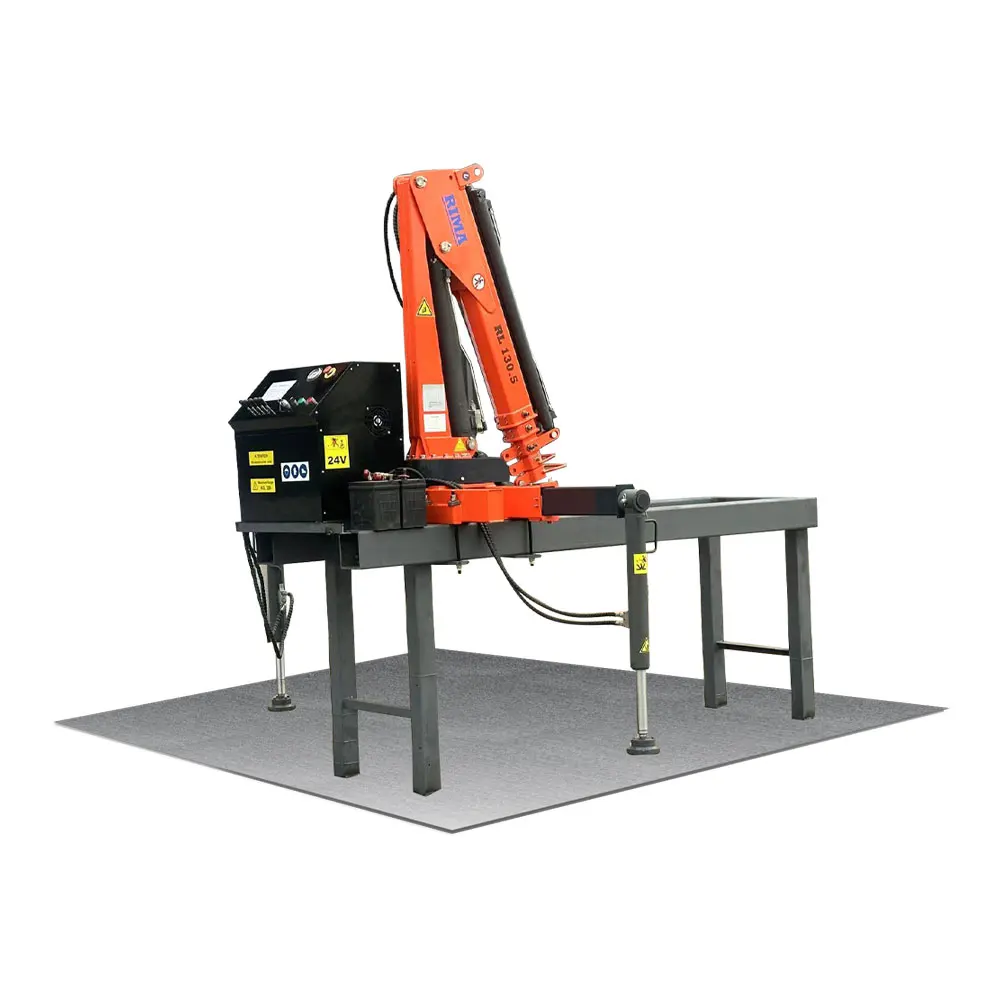

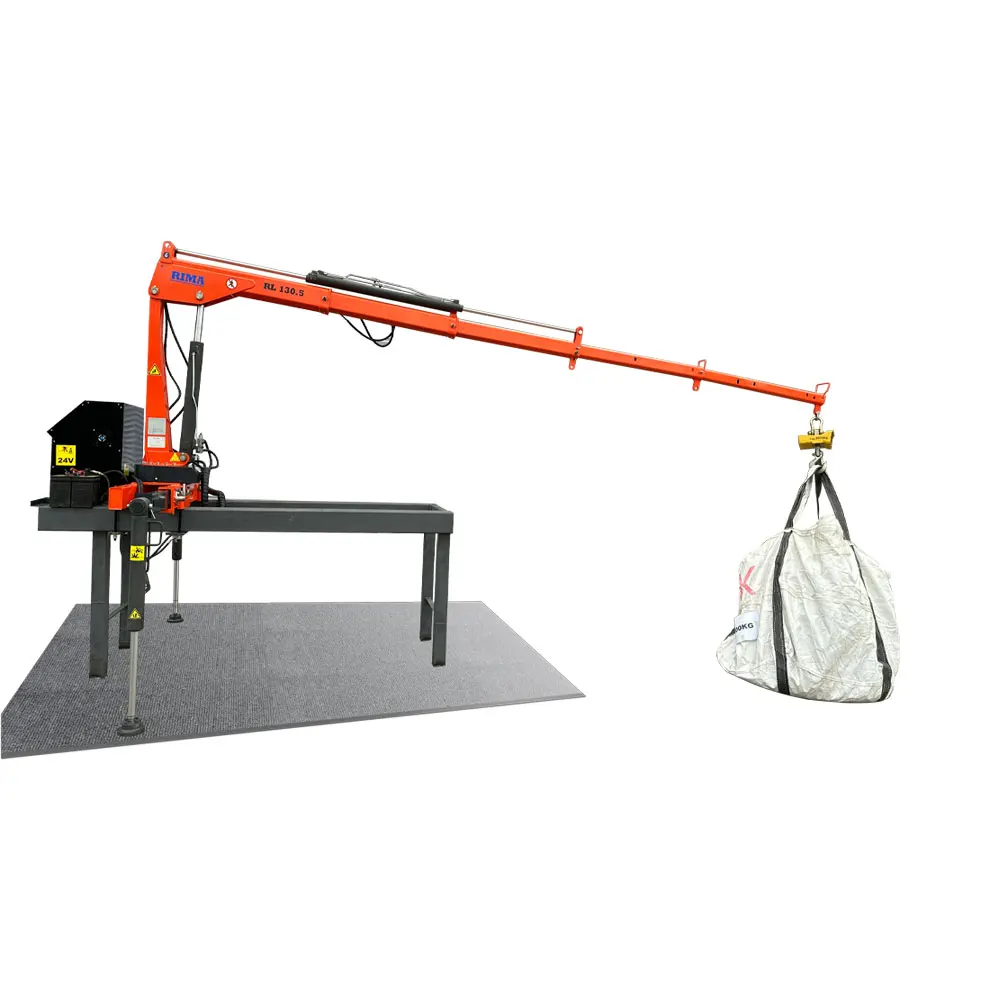

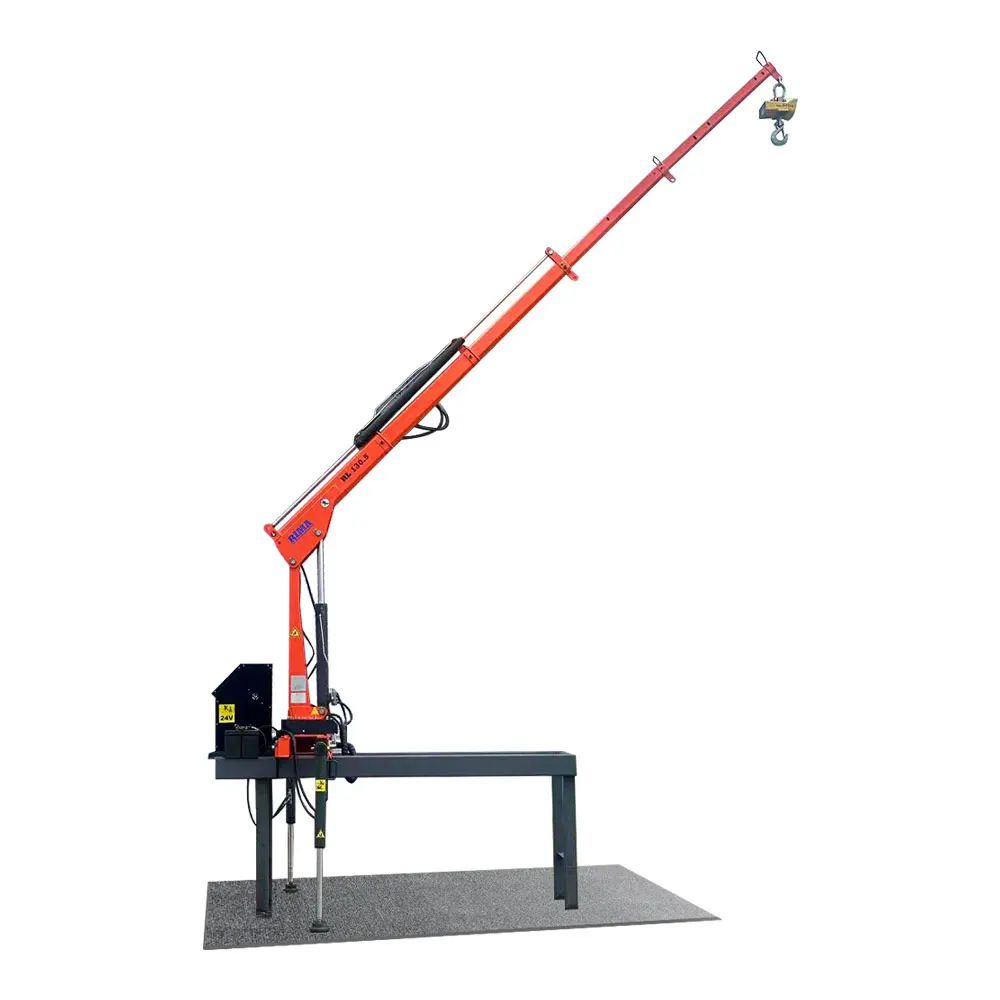

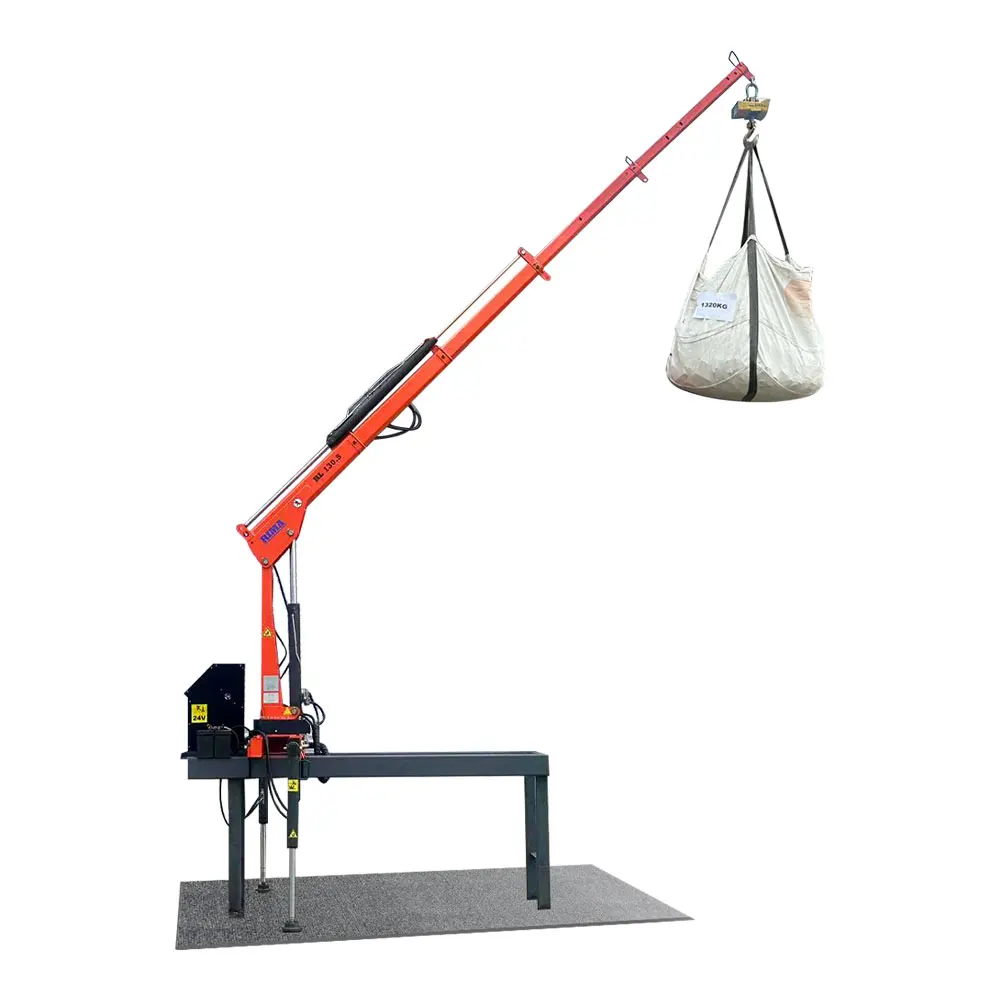

Remote control hydraulic small mini truck crane 1300KG lifting capacity mini crane
- Category: >>>
- Supplier: Yantai Wemax Machinery Co. Ltd.
Share on (1600977610025):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
Technical date | U.M. | Model | ||||||||
RL 130.1 | RL 130.2 | RL 130.3 | RL 130.4 | RL 130.5 | ||||||
Max. Lifting momtnet | T.m | 1.7 | ||||||||
Standard extension | No. | 1M | 1H | 2H | 2H+1M | 2H+2M | ||||
Standard outreach | m | 1.1 | 2.1 | 3.1 | 4.2 | 5.0 | ||||
Swing angle | 。 | 330 | ||||||||
Max. Angle slope | 。 | 5 | ||||||||
Swing torque | KNm | 6.5 | ||||||||
Max. lifting height from crane base | m | 3.2 | 4.2 | 5.2 | 6.2 | 6.9 | ||||
Motor | KW | 2.2 | ||||||||
Voltage | V | 12/24 | ||||||||
Suggested oil flow | L/min | 3.4 | ||||||||
Hydarulic tank | L | 12 | ||||||||
Max. working pressure | Mpa | 18 | ||||||||
Standard control type | Manual | |||||||||
Weight | KG | 247 | 256 | 274 | 288 | 300 | ||||
Optional | Hydraulic pack-remote&manual control | |||||||||
