Price:$12,143.00 - $12,857.00

Quantity:


Product Overview

Description










































Factory Advantage



1.Quality control:



Self R&D of PCBA;

Circuit board aging Whole charger aging;

Traceable production system: accurate to every part and every production step.



2.Self R&D:



R&D personnel > 25%;

ODM/OEM ability.



3.Professional after-sales:



Professional team Software Hardware Customer service;

Free training/guidance on product use;

Respond promptly;

Warranty:Free replacement&repair during 1-year quality assurance;Paid replacement&repair out of the warranty period; Free technical consulting services for life ; Free software maintenance&upgrade.



4.Market:



Subsidy policy research;

Product planning;

Visit clients locally.



5.Industry experience in EV charger manufacturing&large quantities of overseas trade since 2016 .




6.The head office (INJET Electric) Accumulates experience in strong electricity since 1996 and has rich experience in safety control of electrical products.




7.Annualproduction capacity: 20,000 DC charging stations.

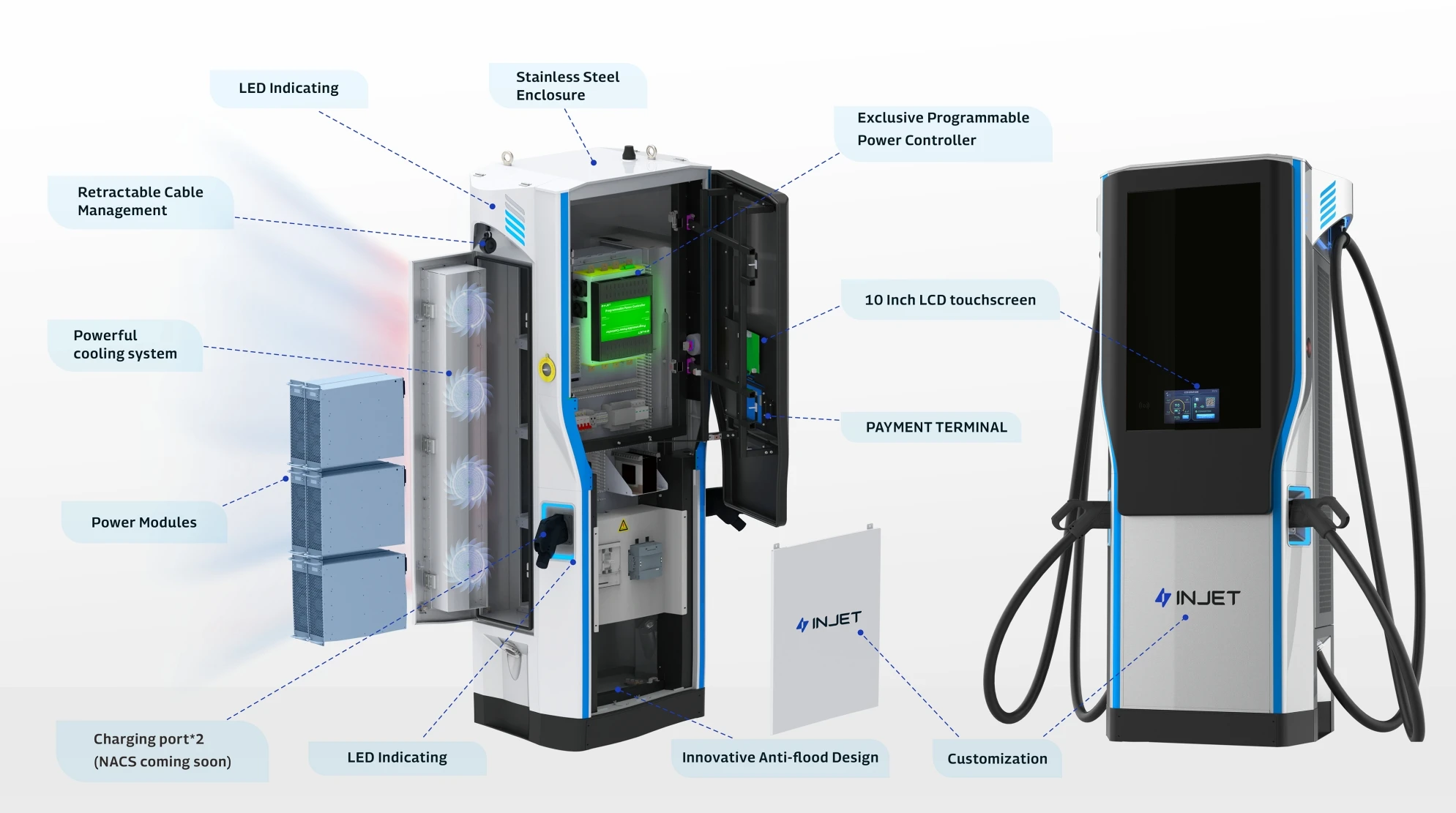

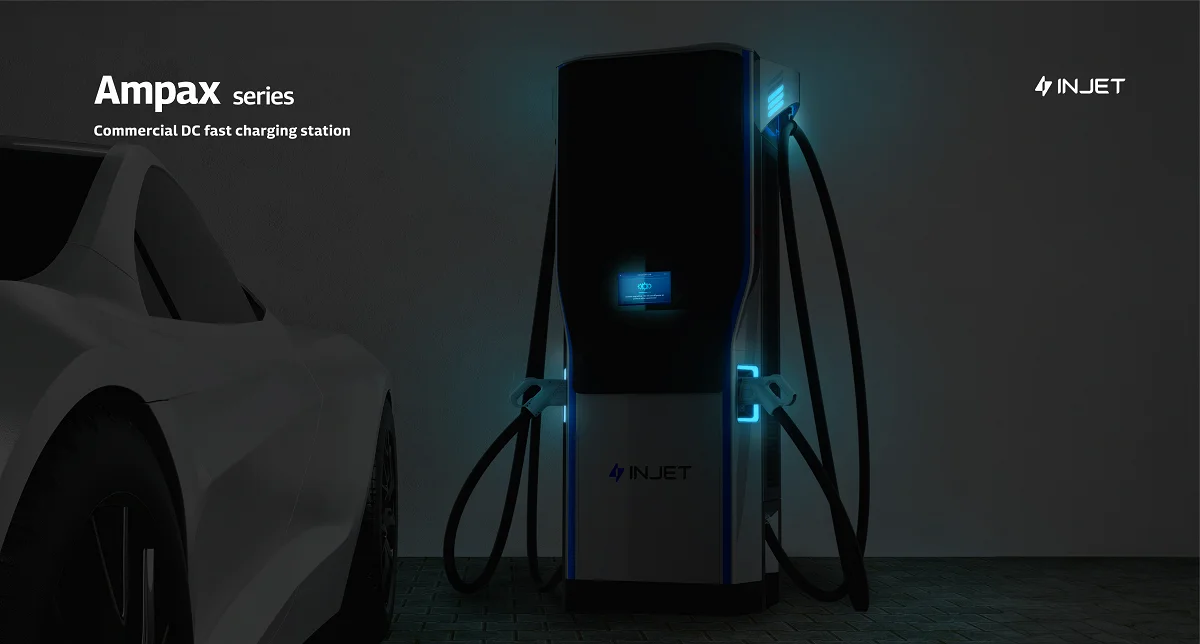

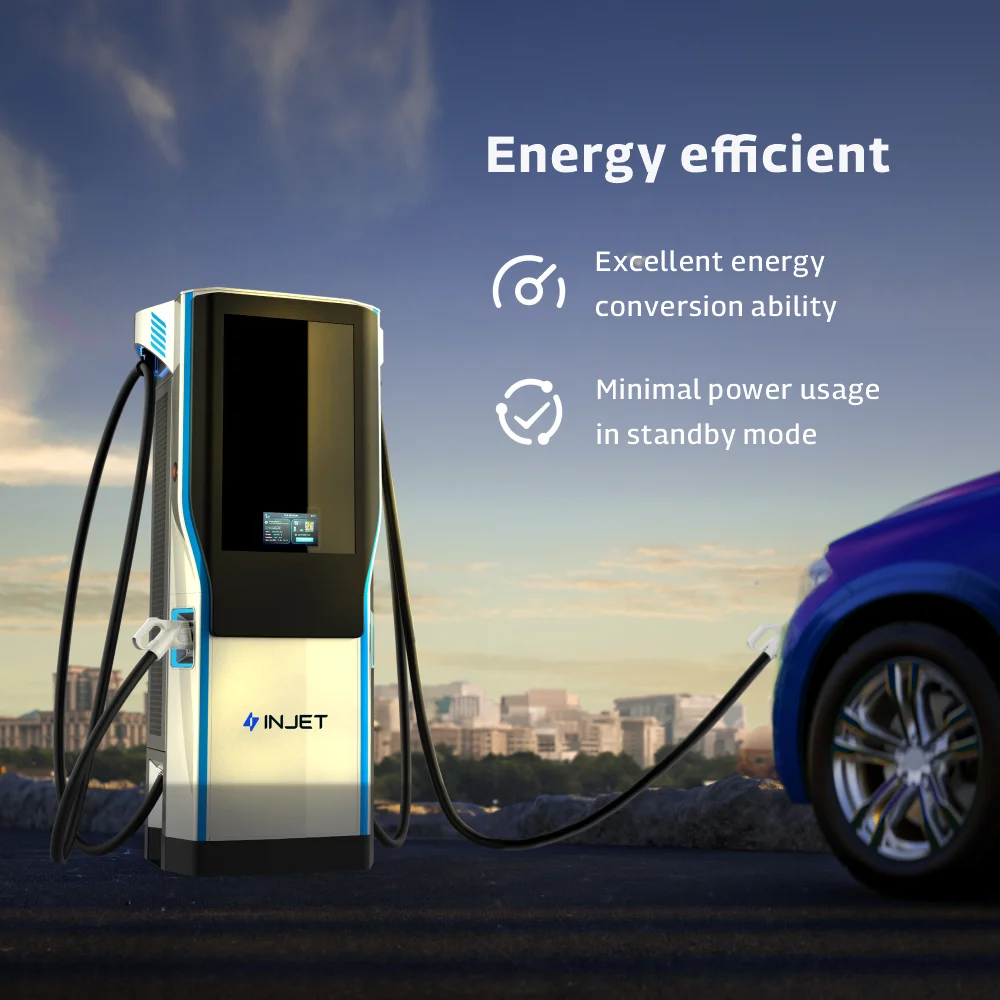

The Ampax Series DC Fast Charging StationFor Commercial Business Operation






  • The Ampax SeriesDC fast charging station is suitable commercial use.

  • The make maintainance more flexible.

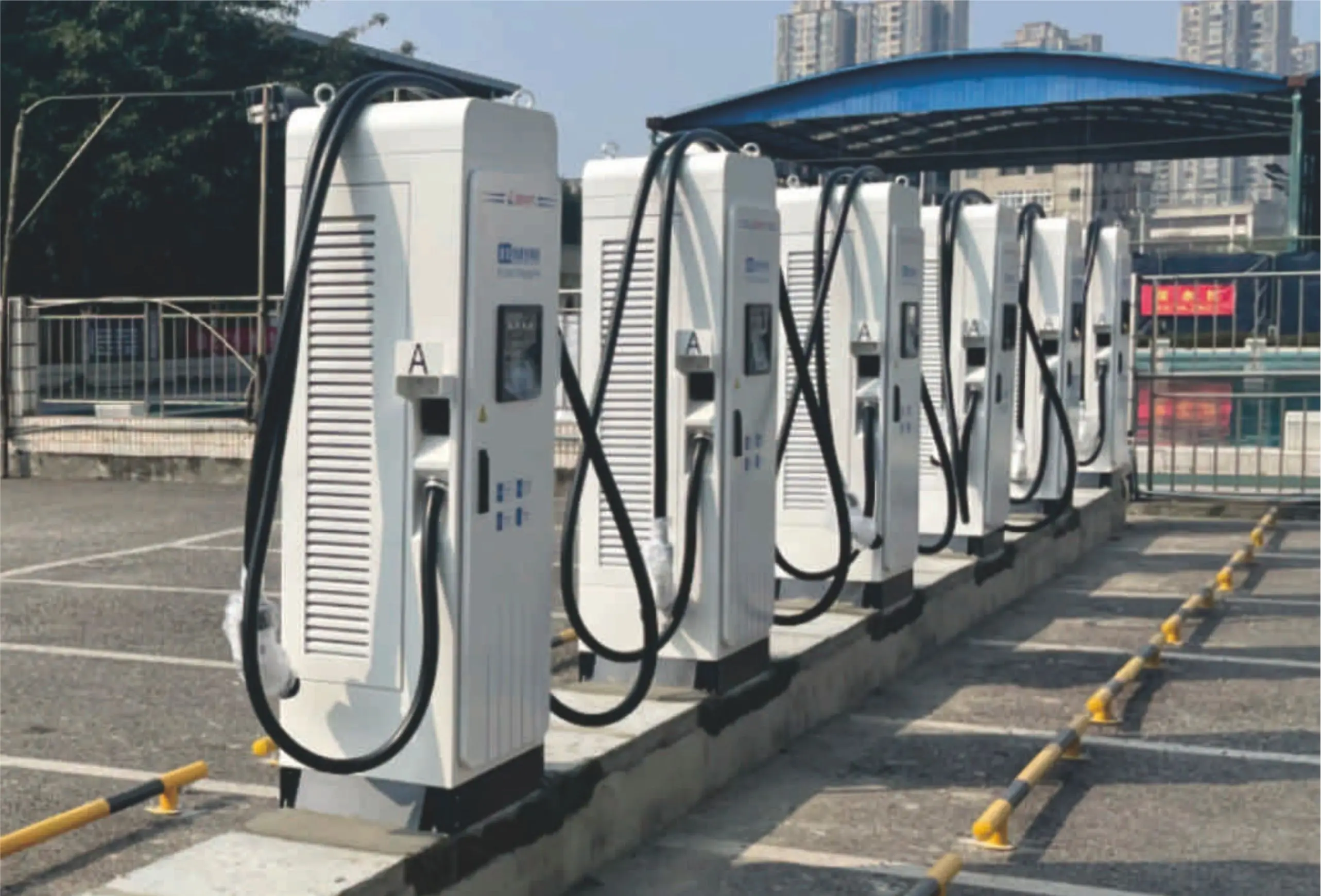

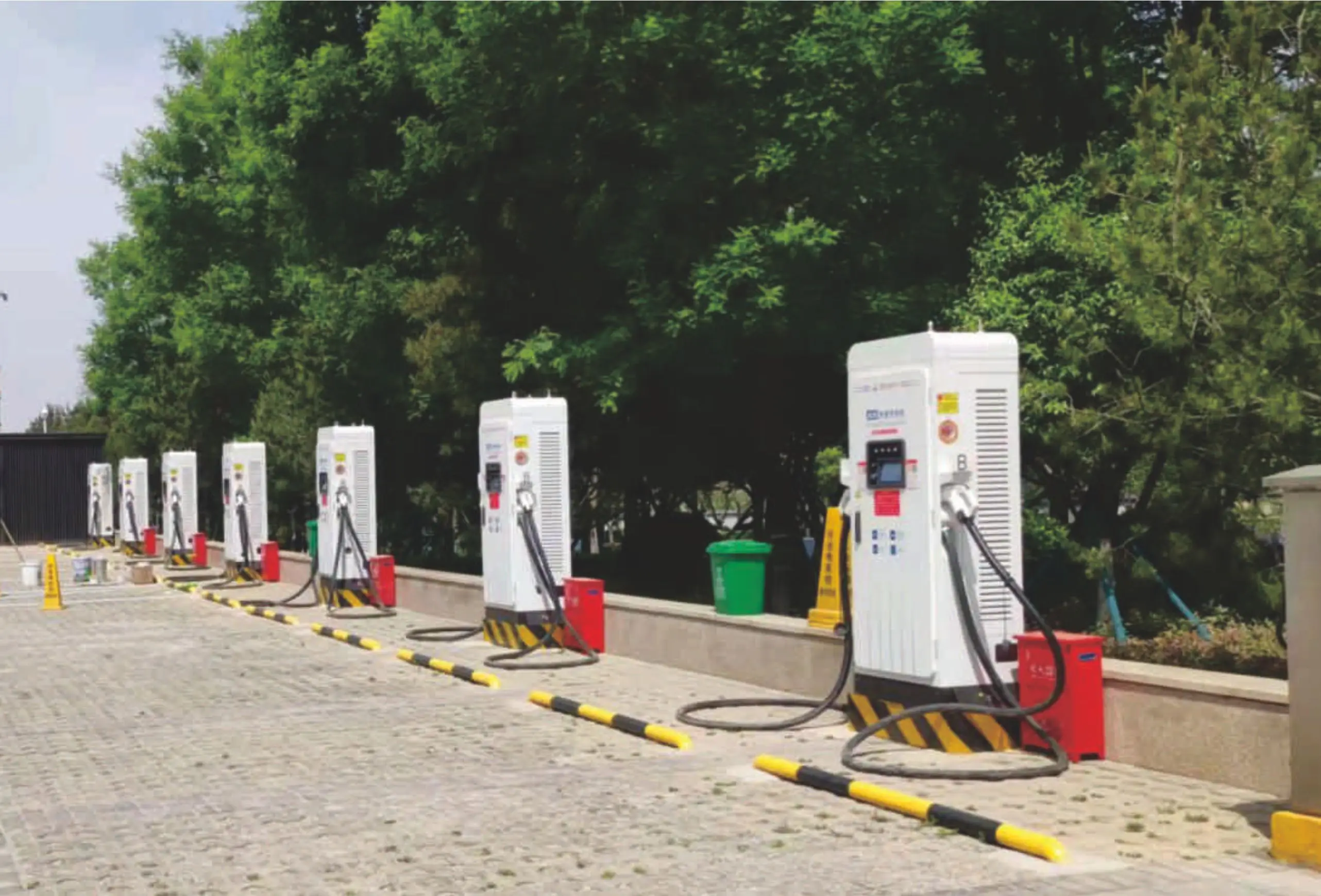

  • This floor-mounted DC EV Charging Station can be applicable for outdoor installation like parking lot of office building, hospital, supermarket, hotel etc.

  • With solar logic , OCPP, 4G and wifi, theThe Ampax Seriescharging station can be controlled remotely.






















The SmartAmpaxDC Charger for Commercial Charging Solution--Ampax DCFC






  • Self-developed control module & Expandable design of split cabinet & Diversified scenario operation & Perfect choice for commercial use;

  • Adapts to all electric vehicles, power supplies and mains;

  • Powerful commercial charging solution within maxoutput current per charging gun 250A;

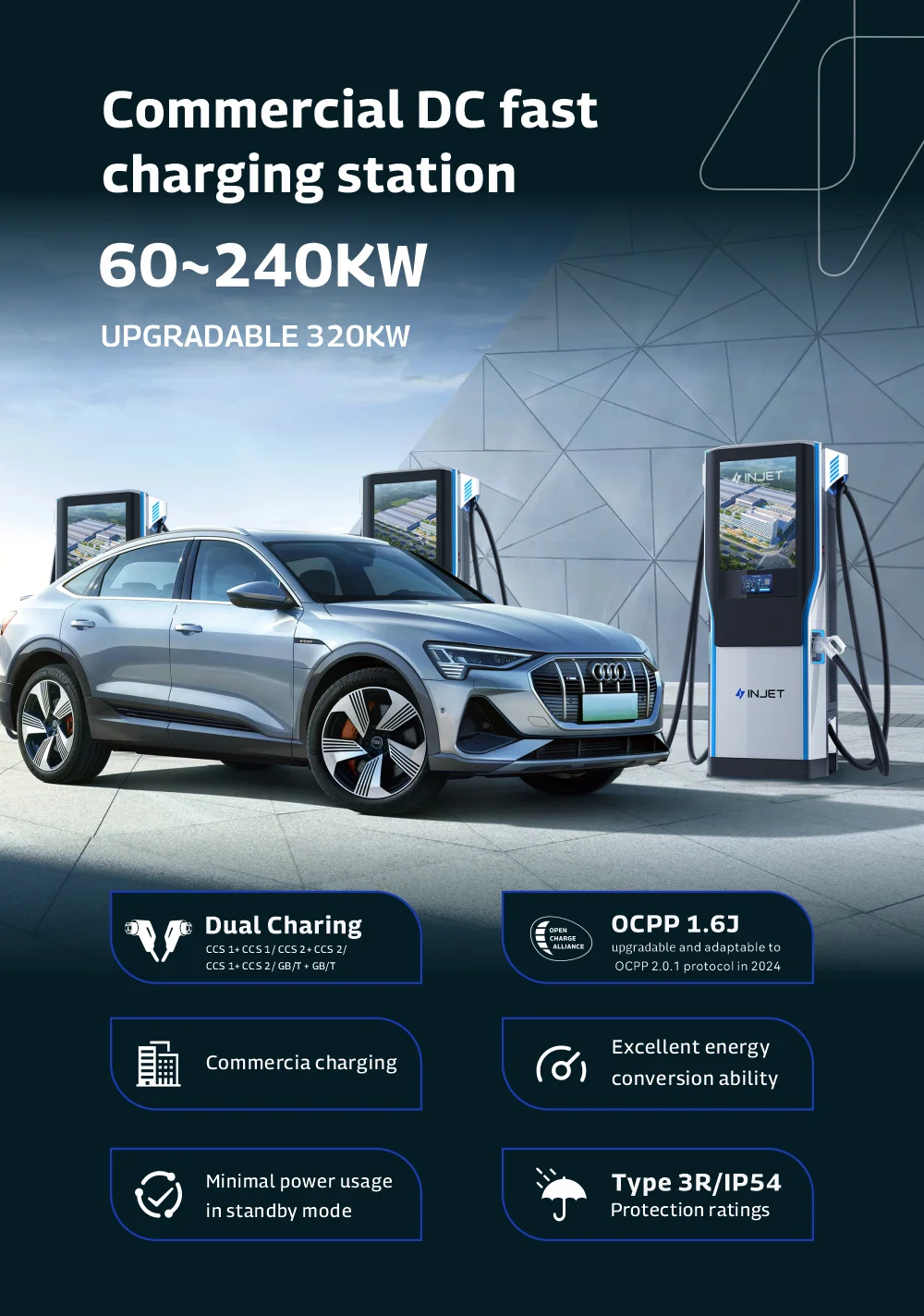

  • Power: 120/150/180/240kW,Meet most governments' project bidding requirements and subsidy policies;30kW module, less space with higher power;Upgradable to 320kW;

  • With the smart APP, you can easily schedule your quick charging and adjust the current and power to your need;

  • ISO 15118,cULus, FCC/IC, Energy Star, CE, ETL, OCA, CQC CCC approved,, strictly comply with the health and safety standards;

  • EU version & North American version are supplied;

  • Pluggable times of charging gun: >10,000;

  • With OCPP 1.6J(Upgrade to 2.0 in 2024) /WIFI/4G/Ethernet supported, Injet-Original is suitable for all parking lots in work places, super markets, apartments and communities;

  • 10 inches touchscreen;
    Emergency stop function;
    Safe and reliable, with multiple fault protection;Protection: NEMA 3R;

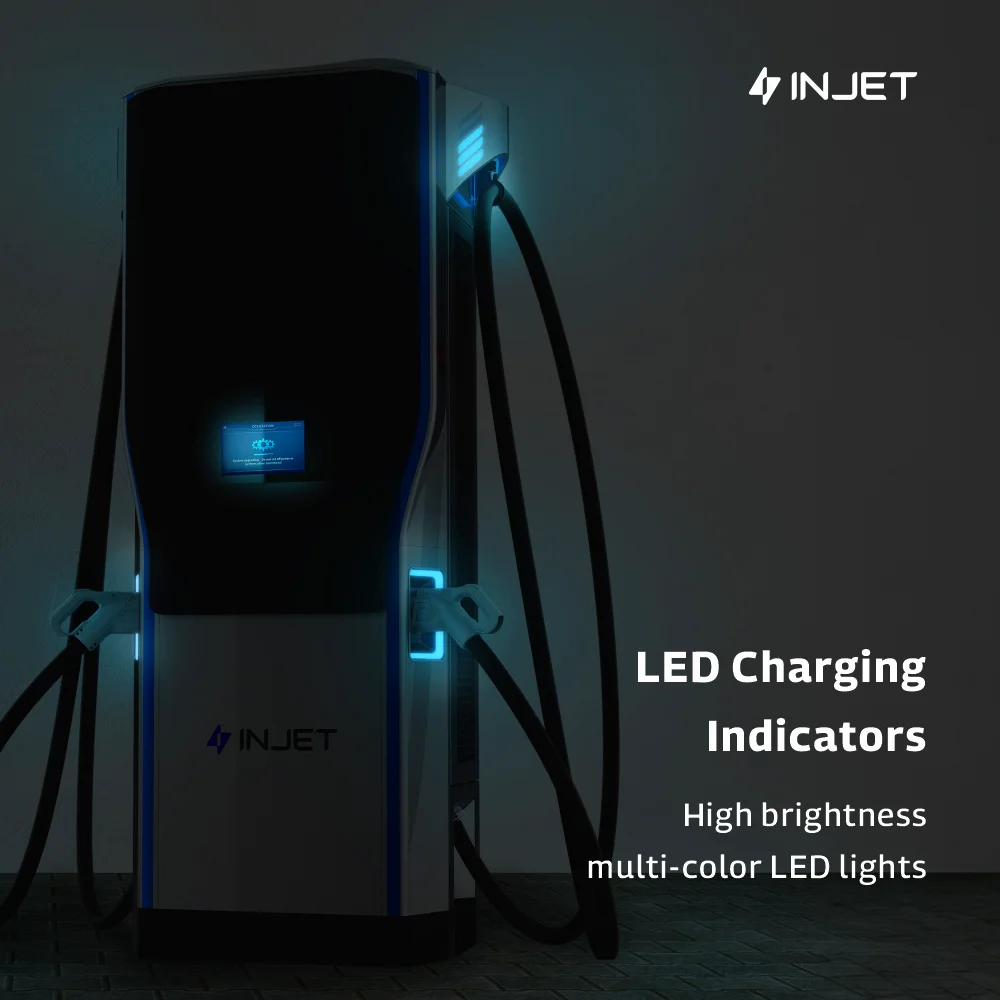

  • LED Notice Cable Management: Real-time car SOC notification;
    Charging module separated from control system, stable and safe performance;

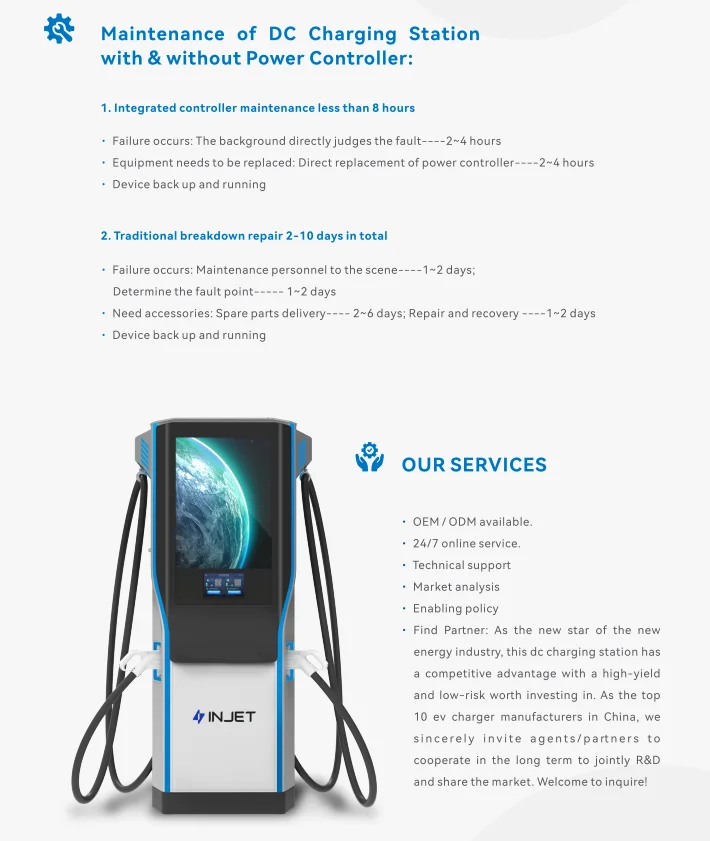

    Constant power module and smart power allocation,high charging efficiency;Power controller:Integrated structure with less components, convenient for local assembly and repair(NEVI);Much less wiring and terminals, failure rate reduced;Pluggable cable;Back-end promptly query for faulty issues;
    Charging gun disconnected detection ensures safe charging;
    All the control system can be remotely or locally upgraded;

  • Payment: App/POS machine;
    OEM ODM Customize service;

  • Upgradable to NACS soon;

  • Optional 39 inches advertising screen.

  • Back end:Directly connected to OCPP;Back-end/CMS.








































































































































































































































































































General Information




Input Voltage Rating


400 VAC ± 10%, 50/60Hz (EU Version/GBT Version)
480 VAC ± 10%, 50/60Hz (North American Version)




Power Wiring


3P N PE



DC Voltage Output


150 ~ 1000 VDC



Connector


CCS1 CCS1 / CCS2 CCS2 / CCS1 CCS2 / GB/T GB/T



DC Power Output Rating


60 ~ 240 kW, 320kW is upgradeable



The Maximum Output Current


250 A



PF(Power Factor)


> 0.98 (Load ≥ 50% )



THD-I


≤ 5% (Rating voltage input, Load ≥50%)



Peak Efficency


≥ 96%



Voltage Stabilized Accuracy


≤ ±0.5%



Current Stabilized Accuracy


≤ ±1%



Output Voltage Error


± 0.5%



Output Current Error


≤ ±1% (when output current ≥ 30A);
≤ ±0.3A (when output current< 30A)




Ripple Factor


≤ ±0.5%(RMS)



Electric Energy Measurement Method


Measuring DC output electric energy



Connector Mechanical Operating Life


≤ 10000 times



Certificate


cETLus, FCC/IC, Energy, CE




User Interface & Control




Charging Control


Plug and Play, RFID Card, App

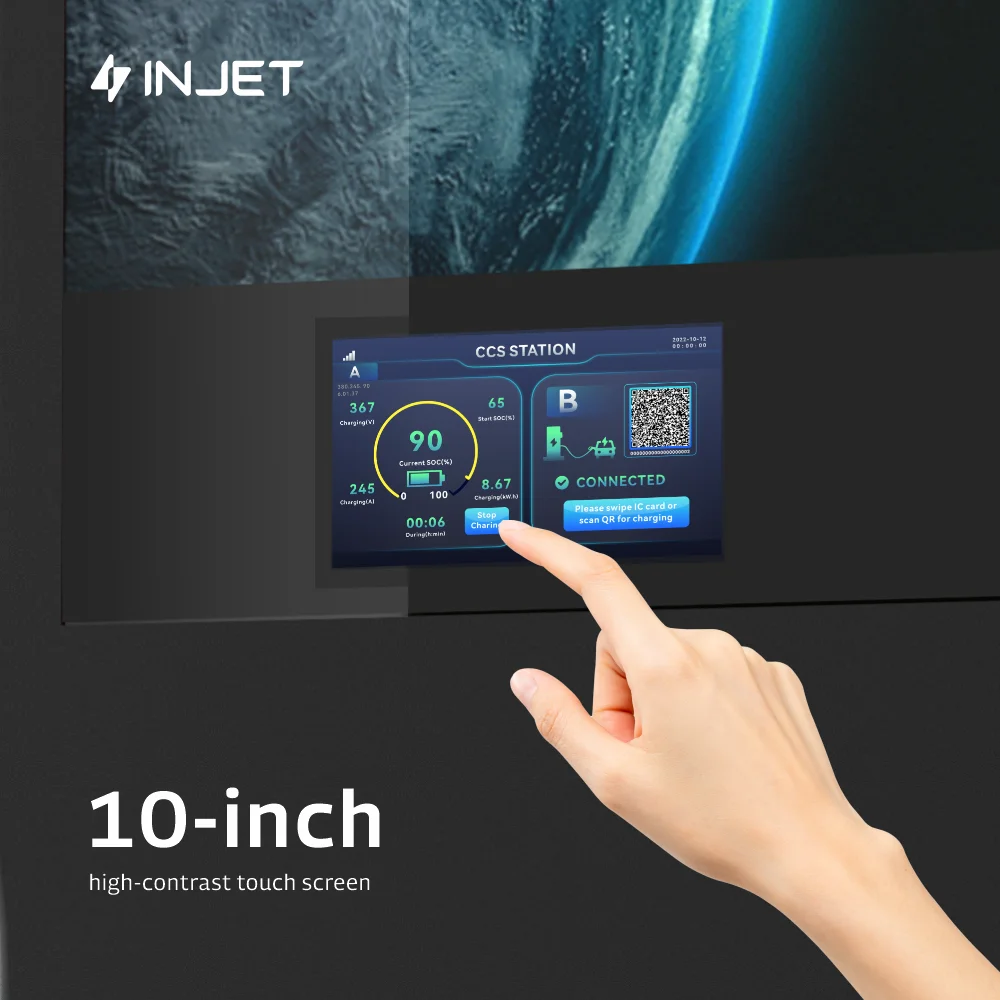

Human-Machine Interface


10-inch LCD High-contrast touchscreen



Indicators


Yes. 4 LED indicators-Power/ Fault / Charging A / Charging B



Network Interface


4G / Ethernet (RJ45)



Communication Protocol


OCPP 1.6J




Environmental




Storage Temperature


-40 to 75°C (-40 to 167°F) ambient



Operating Temperature


-20 to 50°C (-22 to 131°F) ambient(derating output in 55°C)



Operating Humidity


Up to 95% non-condensing



Altitude


≤ 2000m

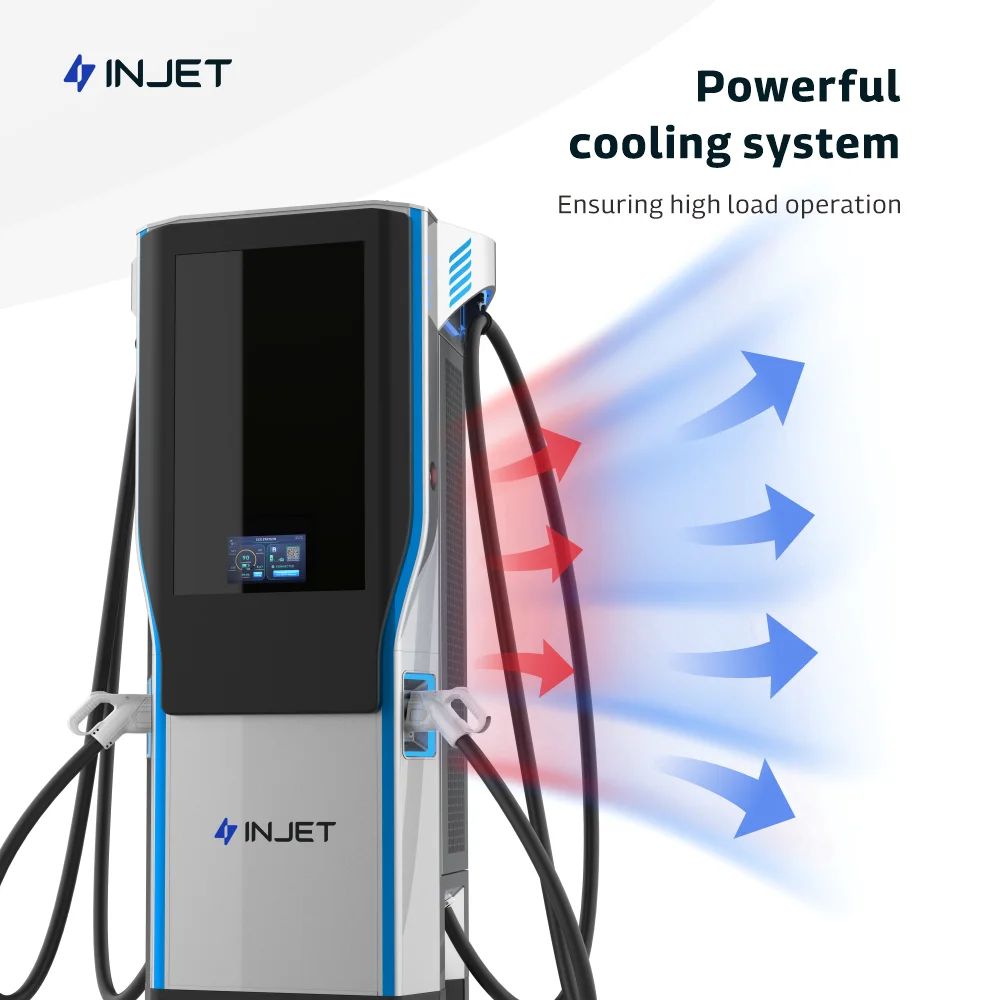

Cooling Method


Forced air cooling

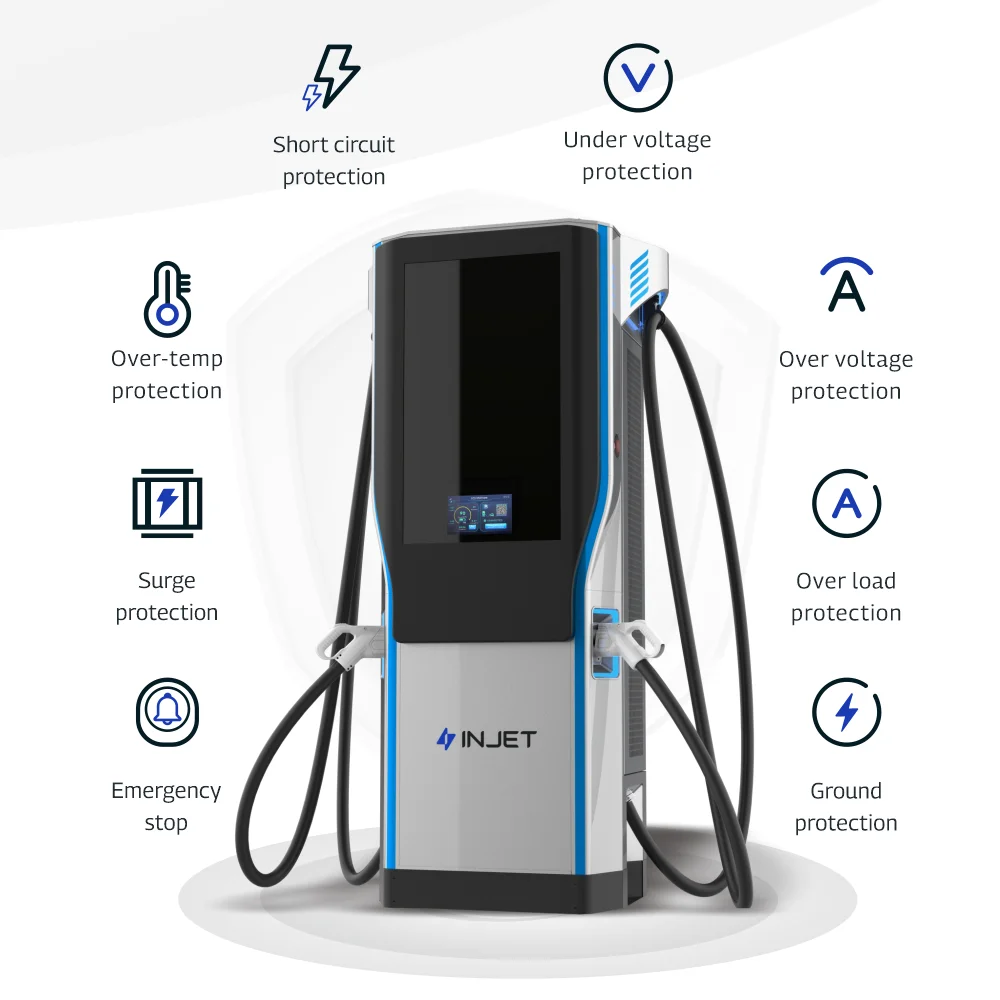

Protection


Over Voltage Protection
Over Load Protection

Over-temp Protection

Under Voltage Protection

Short Circuit Protection

Ground Protection

Surge Protection

Emergency Stop





Mechanical




Protection Ratings

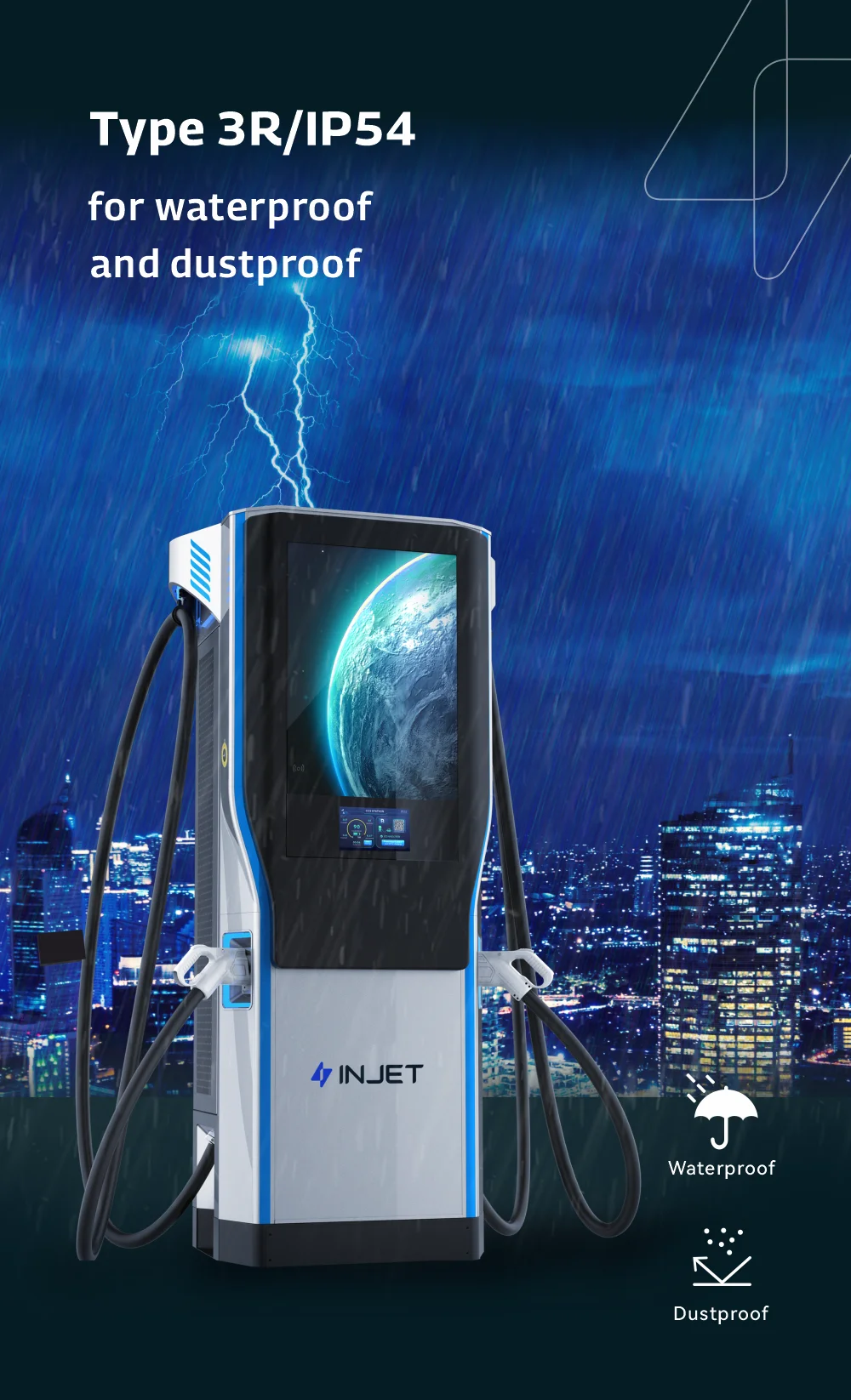

Type 3R/IP54

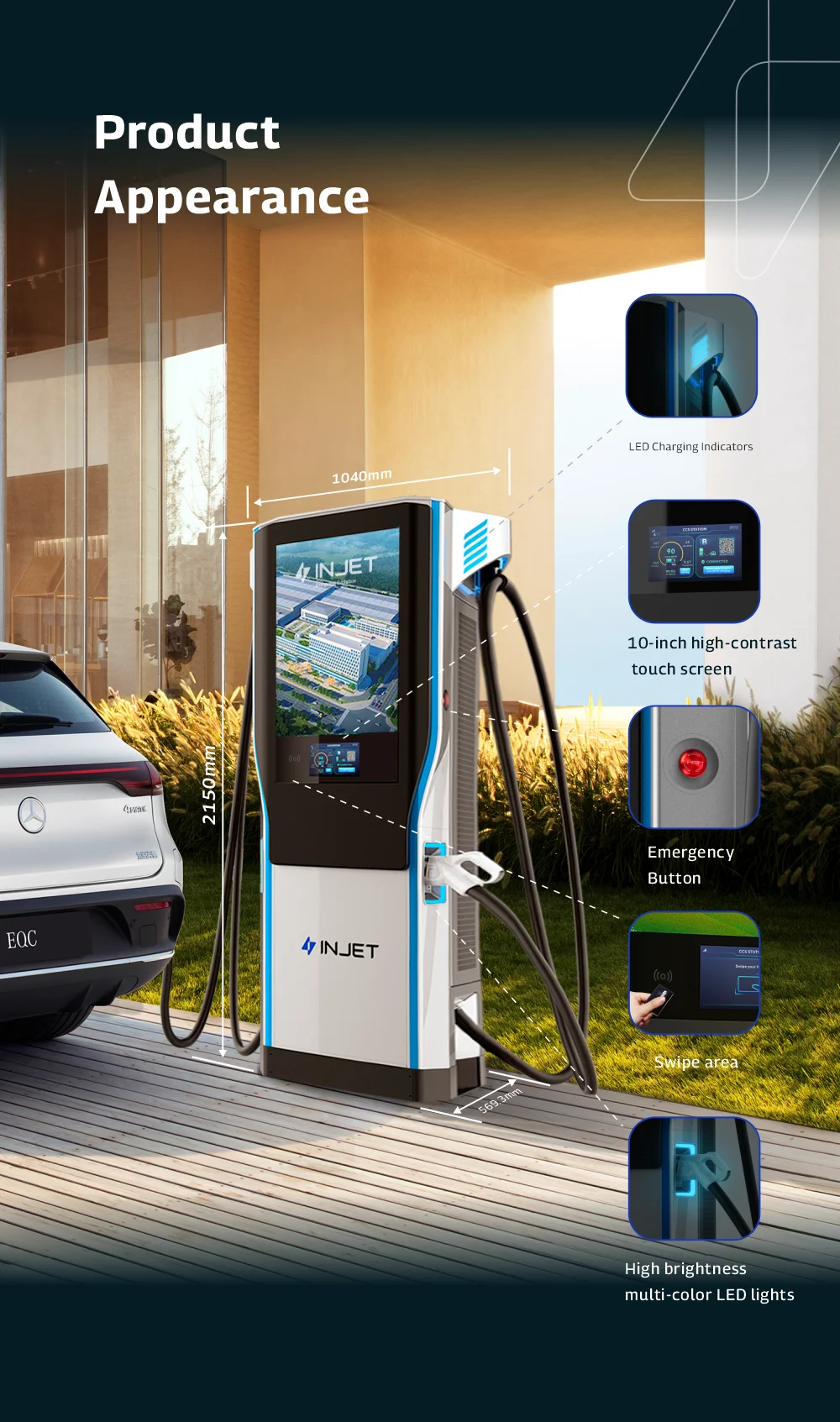

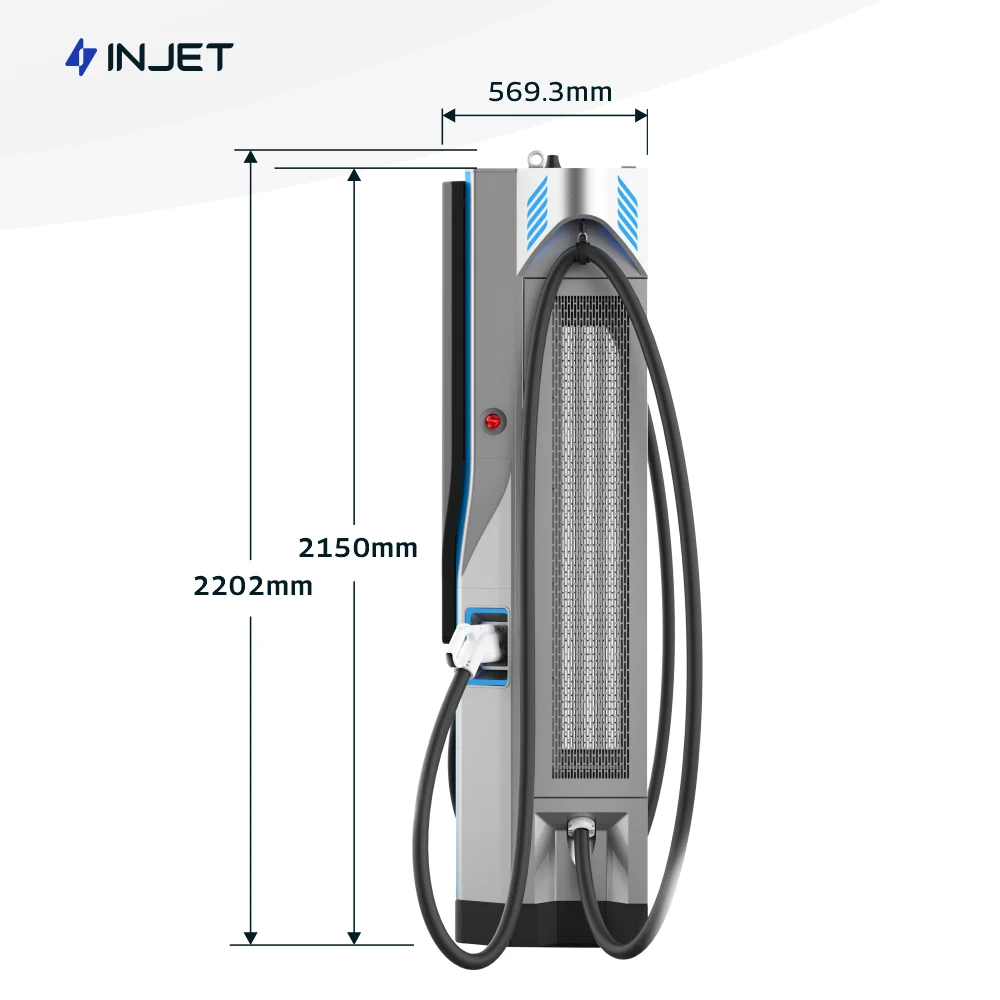

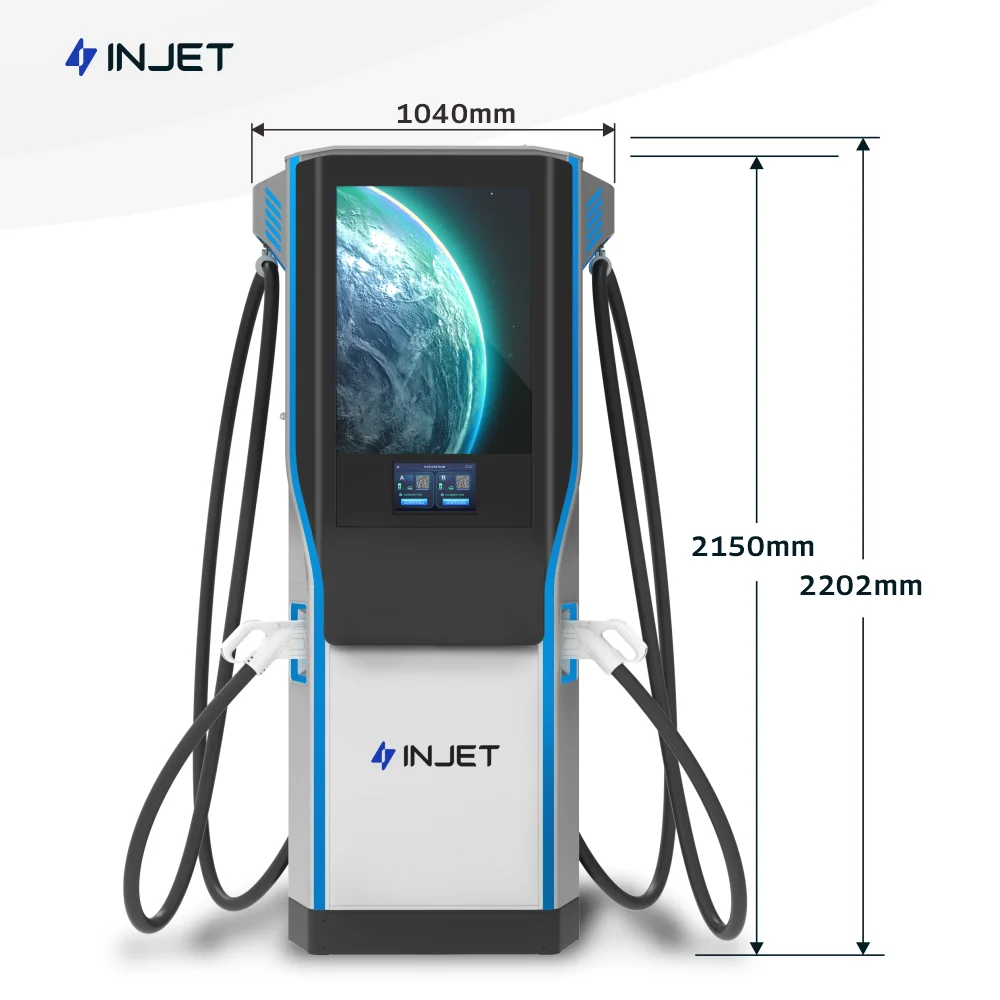

Reference Dimension (W x D x H, mm)


1040*580*2200



Equipment Weight


≤ 500 kg



Charging Cable Length


5m,7.5m, or Customize Length



Enclosure Material


Metal



Color


RAL 7032 (Gray)














  • Elegant and Modern design

  • Metal enclosure

  • Double plug(CCS1 CC2)

  • 7 inch touch screen








Easy to Operate




Plug and Charge

Swapping RFID card to charge

Controlled by App














Safety and Reliable



Full function- power sharing, DLB, Solar for optionCE,RoHS,Reach certification







Compatible with all



Indoor&Outdoor use
Residential&commercial use
Built to be compatible with all the EVs













Manufacturing Technique

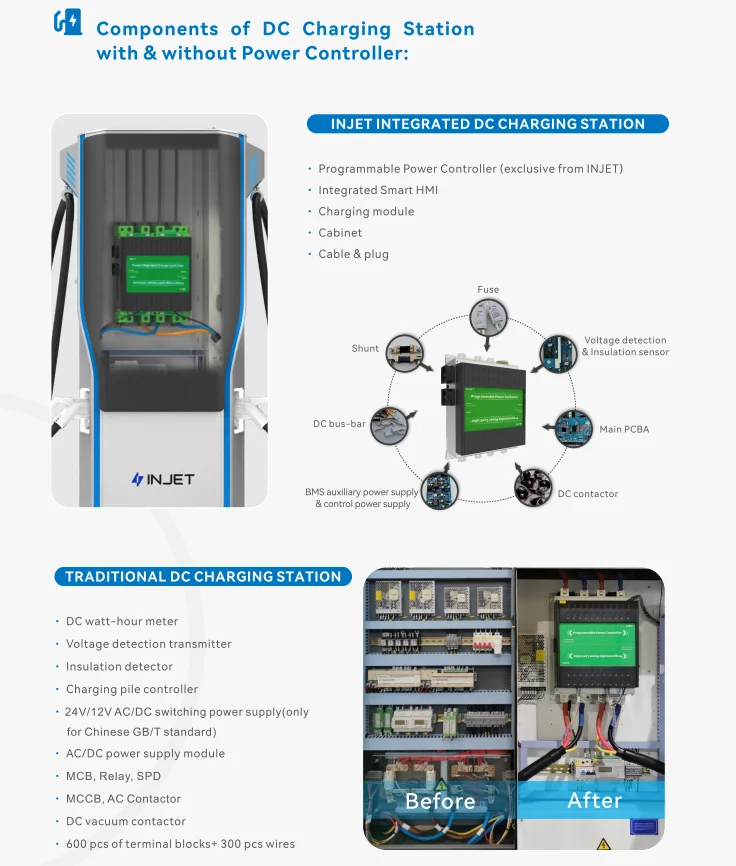

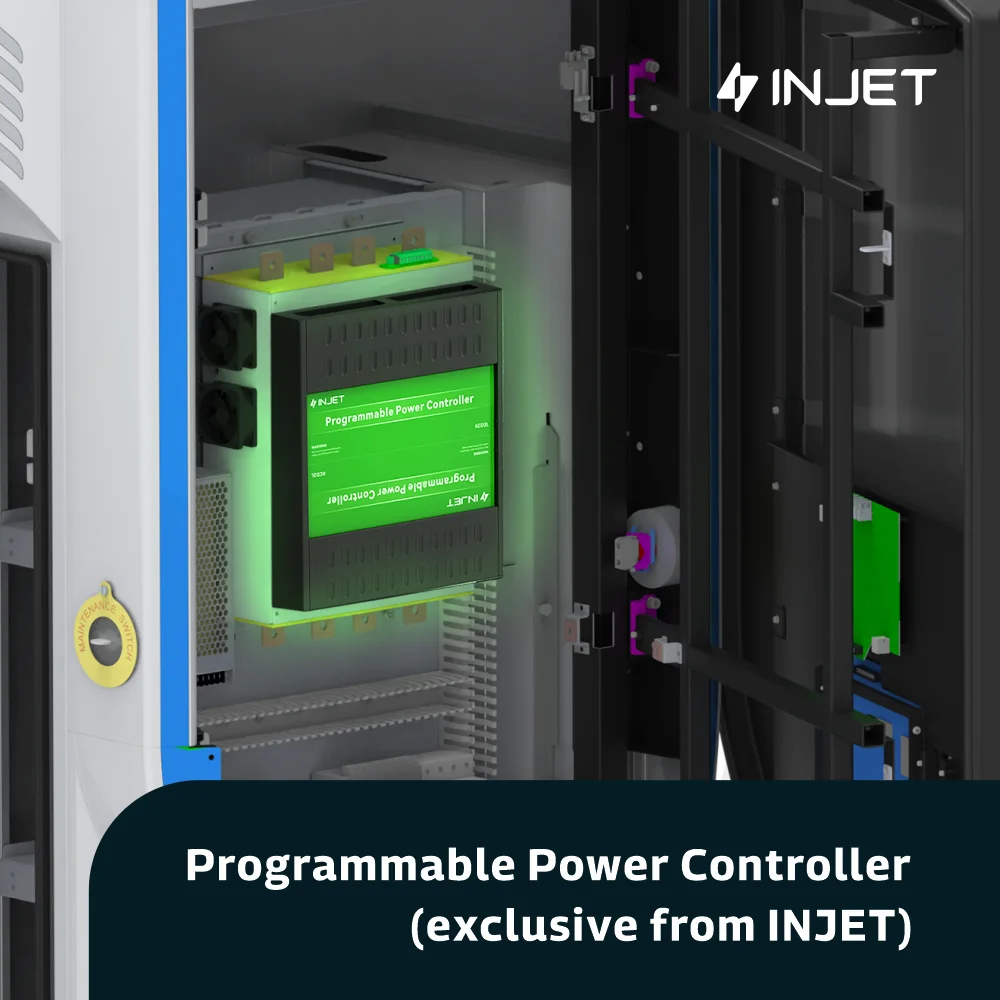

The general DC charging stations are composed of DC smart energy meter, voltage sensor transmitter, insulation detector, main controller, switching power supply, charging power supply module, relay, AC contactor, DC contactor and so on. The assembled charging stations not only has complex production and assembly process, but also has high equipment failure rate, complicated operation and maintenance and high cost. Relying on the technical R & D advantages of the parent company, after years of technical research, Injet took the lead in launching "integrated EV charging power controller" in the industry in 2019. And obtained a number of national patents, and applied for PCT international paten.


















Core Technology



It integrates BMS power supply, automobile communication, charging process control, insulation detection, voltage detection, electric energy DC metering, overcurrent protection, short circuit protection and other functions in one, highly integrated, ultra-small size. Greatly simplify the composition of the charging pile, the power controller charging gun charging module display and communication part can be charged, speeding up the production efficiency of the whole pile, saving human resources; sharing power scheduling, improving charging efficiency.



As the core control component of DC fast charging pile, flexible power dispatching unit is completely developed by the company, which is equipped with power dispatching unit, output over-current and over-voltage protection, data communication and other functional components.

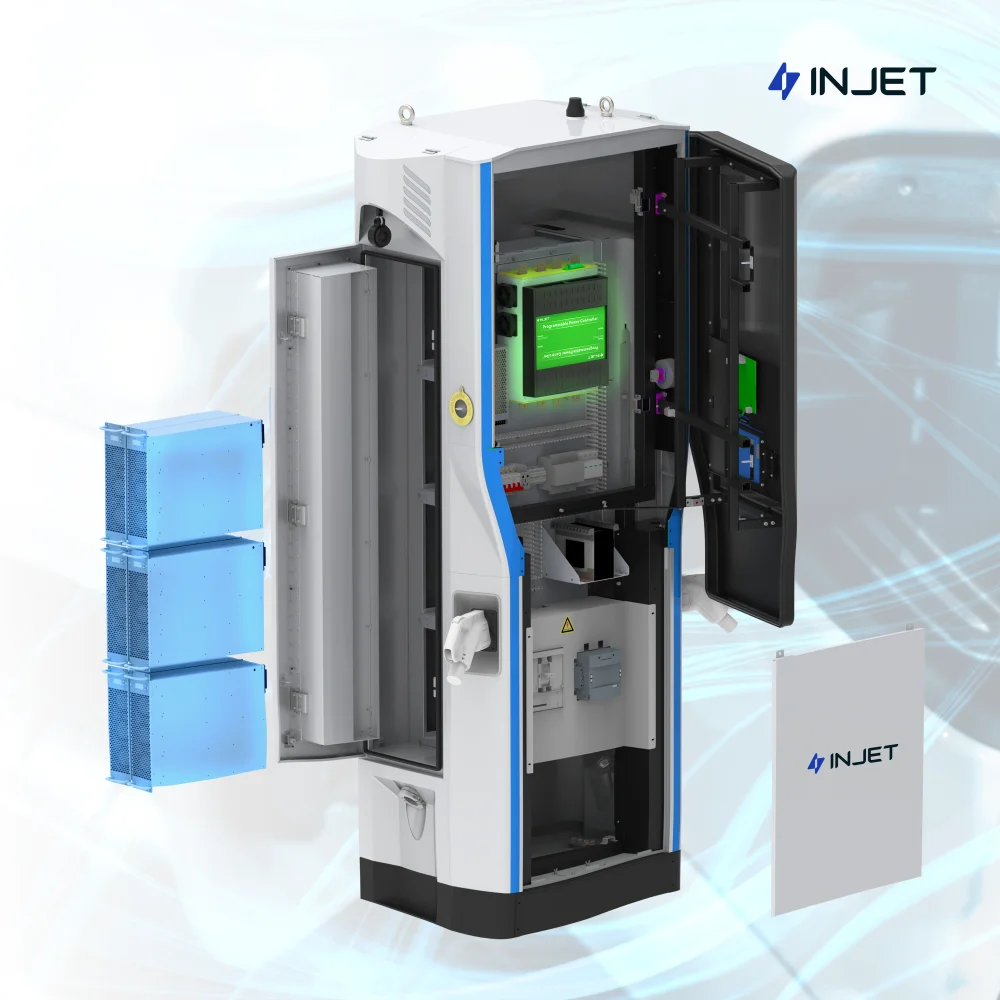

Integrated




Integrated power controller, integrated intelligent HMI, and built-in power module, requiring only 200 wiring boards and 100wires, reducing by two-thirds compared to traditional DC charging stations.

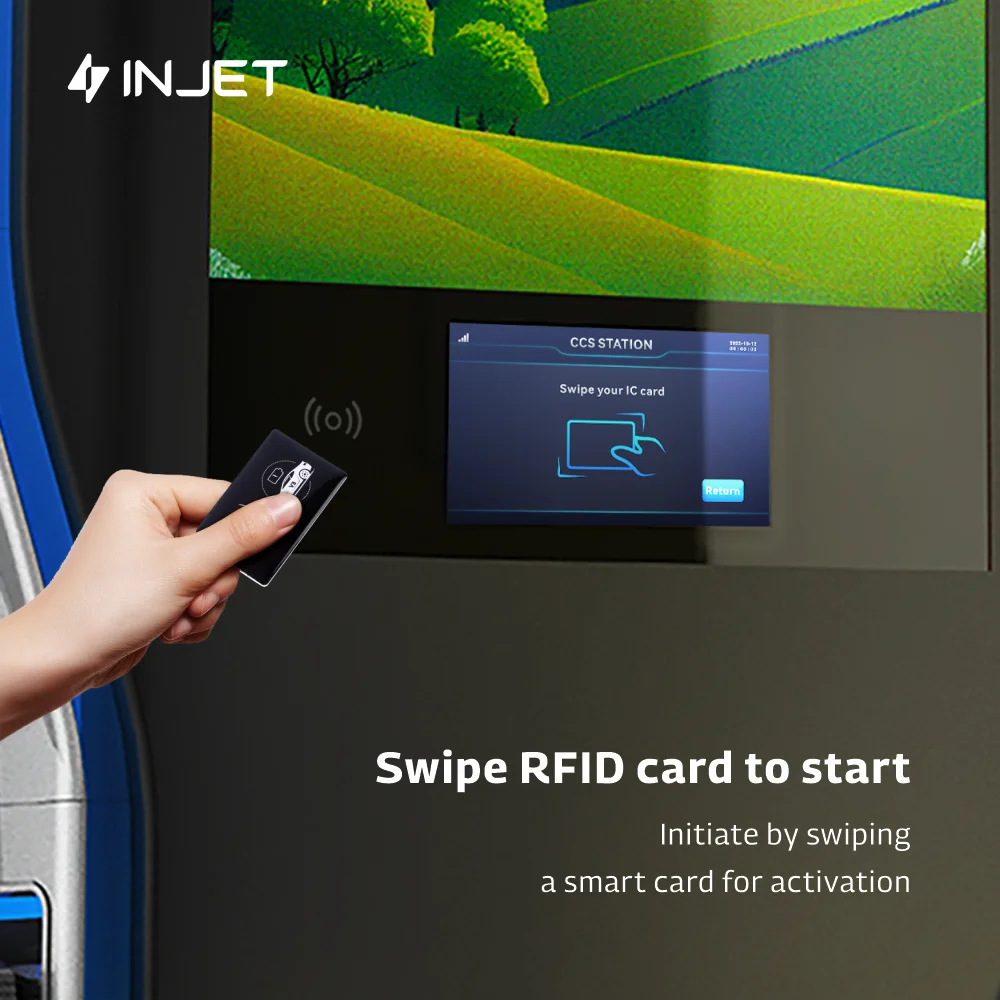

RFID Card




Swiping the RFID card, you can easily start and stop the charging. One charger can allowed multiple authorized RFID cards makingit safe to share with family members.

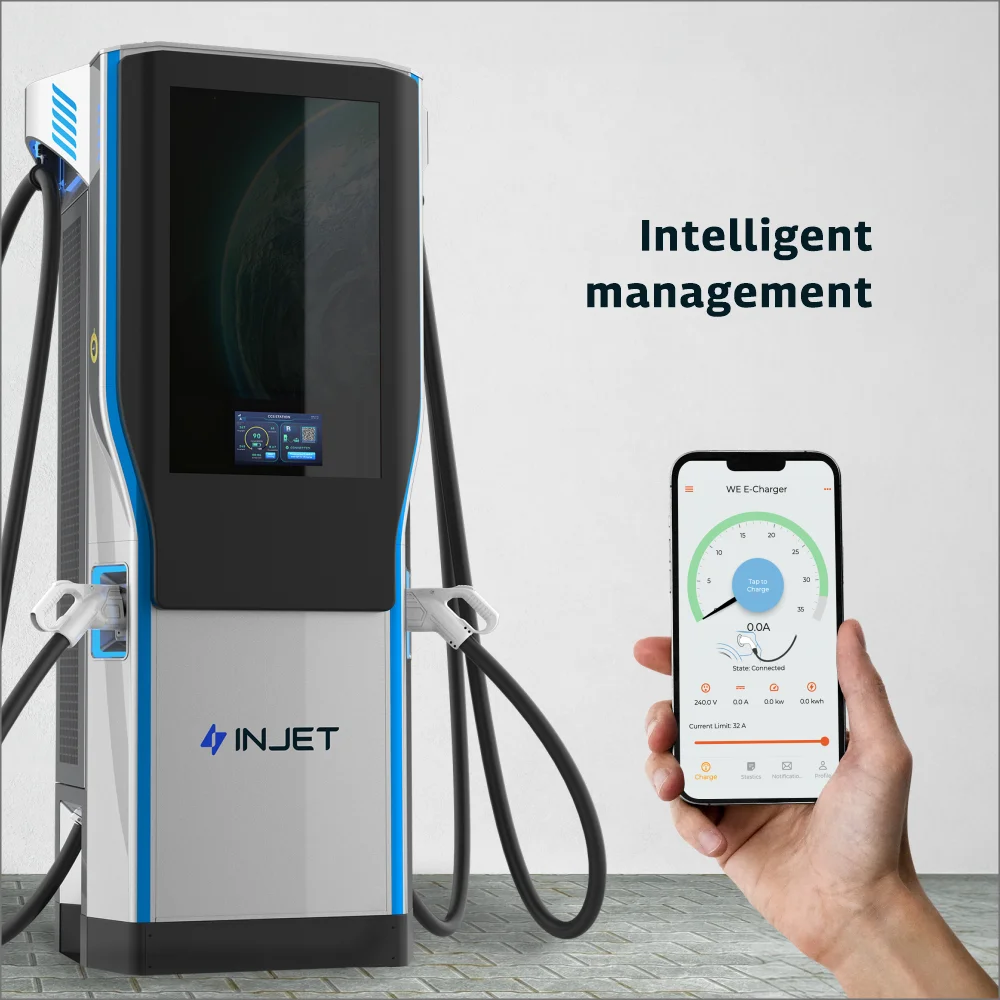

Injet APP




Injet charging app is user friendly with different languages and support Apple and Android system.You can adjust the current, reserve the charging time, and view the charging records on the APP.









































Business management system



Create an account for your customer to manager their chargers.Check and set all data of chargers.






























RS-485 interface



Used for load balancing, solar charging, and possible new features in the future.






















OCPP 1.6J



With OCPP-1.6 communication protocol, can be connected to the your background management platform.

You can also develop your own APP based on the OCPP protocol to achieve the required functions.
















Load Balancing Management












4G(Cellular network)
















Solar EV Charging










External MID


























At Injet energy we're dedicated to bring the best EV charging experiences and energy management to our customers around the world.

We are here with sincerely expectation to have the opportunity to work together with the EV charging point operators, renewable energy distributors, resellers, and installers and bringing the best-in-class technology and service to all of our customers around the world and to build a reliable and connected energy network for the world of tomorrow.






















Common Questions

Q1: How to pack Injet EV Charging station?
A: We pack our EV Charging Point in cartons.

Q2: What's the MOQ?
A: MOQ≥1pcs. If you have customized requirements, let's discuss.

Q3: Can you produce according to the samples?
A: Yes, we can do OEM/ODM. We can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4: What is your sample policy?
A: We can supply the sample for charge.

Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.


More questions, please feel free to contact us for discussion.
