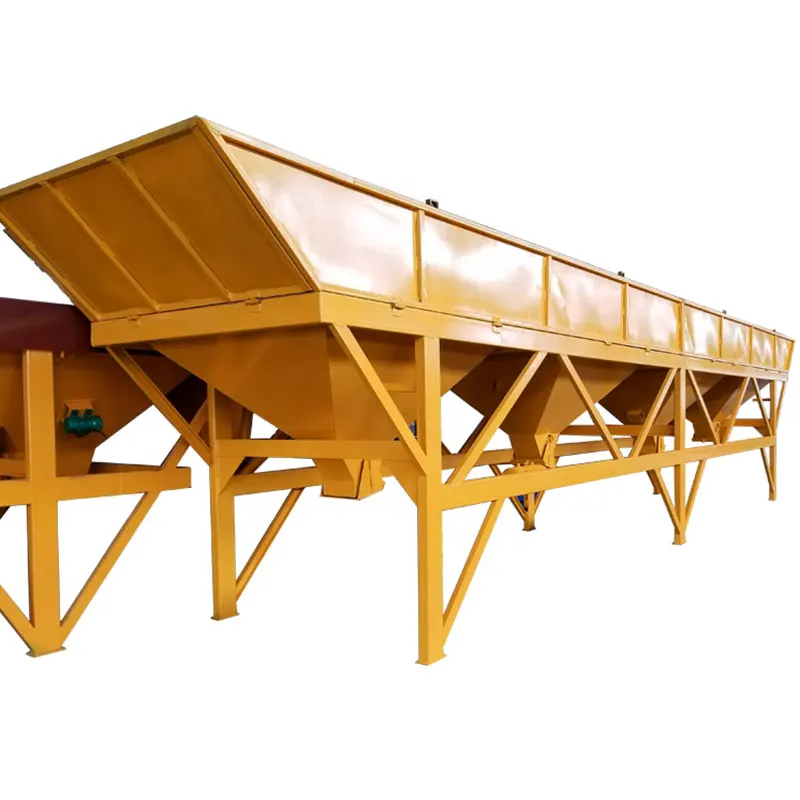

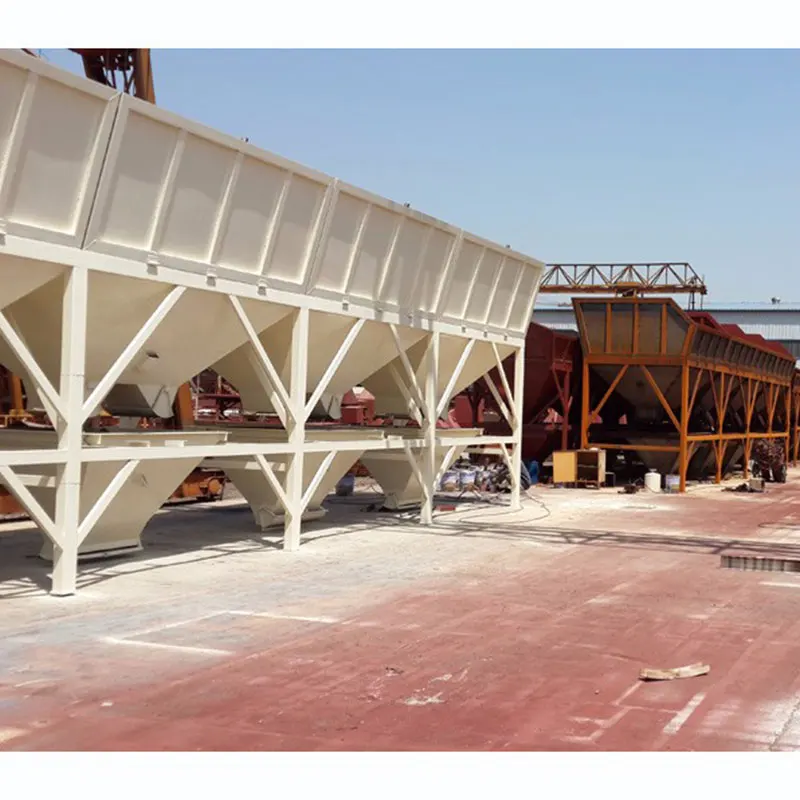

Factory Manufacture PL4800 Four Bins Warehouse Batching Machine 200M3/H High Efficiency Aggregate Concrete Batching Machine
- Category: >>>
- Supplier: Jinan Zeyu Machinery Equipment Co. Ltd.
Share on (1600977633756):
Product Overview
Description
Product Overview
Product Introduction
Single Aggregate Measurement Machine
There is a measuring hopper under each aggregate storage bin, and three tension sensors are suspended by hanging bolts for weighing respectively.
Cumulative Measurement Machine
There is only one measuring hopper under the aggregate storage bin, and four tension sensors are suspended by hanging bolts for weighing.
Sand Bin Vibrator
The sand bin is equipped with a vibrator to prevent clogging.
Heighten,Thicken Baffle
Increase storage capacity.Reduced volume,apt to container transportation.
Aggregate Discharge Door Discharge Gate Air Cylinder
The air cylinder controls the discharge gate to discharge.
Drop Compensation System
Using electronic weighing, it has the characteristics of high accuracy of batching, simple operation and reliable use.
Product Parameters
PL800 Two Bins | PL800 Three Bins | PL1200 Three Bins | PL1200 Four Bins | PL1600 Three Bins | PL1600 Four Bins | PL2400 Four Bins | PL3200 Four Bins | PL4800 Four Bins | |
Weighing hopper volume (m³) | 0.8 | 0.8 | 1.2 | 1.2 | 1.6 | 1.6 | 2.4 | 3.2 | 4.8 |
Storage bins volume (m3) | 3 | 3 | 4 | 4 | 6 | 6 | 8 | 16 | 20 |
Productivity (m3/h) | 48 | 48 | 60 | 60 | 80 | 80 | 120 | 160 | 200 |
Batching accuracy (%) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
Maximum weighi ng value (kg) | 1500 | 1500 | 2000 | 2000 | 3000 | 3000 | 4000 | 5000 | 6000 |
Aggregate species (kinds) | 2 | 3 | 3 | 4 | 3 | 4 | 4 | 4 | 4 |
Loading height(m) | 2300 | 2300 | 2400 | 2400 | 3100 | 3100 | 3600 | 3800 | 3800 |
Total power (kw) | 6.6 | 4 | 4 | 5.5 | 4 | 5.5 | 7.5 | 11 | 11 |
Total weight (kg) | 2350 | 3600 | 4200 | 5700 | 5500 | 6000 | 8100 | 10500 | 11000 |
Dimension (L"W'H) | 5600*1560*2760 | 8400*1560*2810 | 9270*2060*2900 | 11200*2000*2800 | 9700*2115*5360 | 12900*2115*3360 | 12900*2115*3360 | 14000*2325*3800 | 14000*2325*3800 |
Usage Scenario
Kazakhstan HlS180 Mixing Plant
Myanmar Liugong YHZSmobile 120 Concrete Mixinglant
Laos YHZS90 Mobile Concretemixing Plant
Thailand Concrete Mixing Plant
Russian Concrete Mixing Plant
Mongolian Concrete Mixing Plant
Company Profile
About us
GLOBAL ZEYU is a professional manufacturer engaged in the research development production sale and service of concrete machinery,machinery, includint quality concrete batching plant, JS concrete mixers, screw conveyor, bolted cement silo, sand stone separator, etc.
Adhering to the professional philosophy of quality-oriented, leading technology, rapid response, high-quality and advanced technology, GLOBAL ZEYU intsists creating value for customers continiously!
Adhering to the professional philosophy of quality-oriented, leading technology, rapid response, high-quality and advanced technology, GLOBAL ZEYU intsists creating value for customers continiously!
Our services
·Immediate response
·Be your businiss partner, technical assistant
·Feasibility analysis, engineering design
·Confirm proposal drawings and specifications
·Visit our factory for reference
·Be your businiss partner, technical assistant
·Feasibility analysis, engineering design
·Confirm proposal drawings and specifications
·Visit our factory for reference
After Sale Service
·Training how to install and use the machine
·Engineers aviable to serve overseas
·Track the use situation of the equipment regularly
·Sufficient spare parts in stock provide for equipment whole life
·The whole machine three guarantees 2 years
·7*24 hours uninterrupted service guidance
·Engineers aviable to serve overseas
·Track the use situation of the equipment regularly
·Sufficient spare parts in stock provide for equipment whole life
·The whole machine three guarantees 2 years
·7*24 hours uninterrupted service guidance
Logistics
FAQ
Jinan Zeyu Machinery Equipment Co., Ltd.
Q: Are you a trading company or a manufacturer?
A: We are munufacture. We can design and manufacturer according to actual requirements.
Welcome to visit our factory!
Q: What kind of products do you have?
1. Stationary concrete batching plant series from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor, bolted cement silo, etc.
Q: What are the terms of payment in your formal trade?
A: We accept T/T term, L/C term and Alibaba Trade Assurance Order Online.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What's your after-sale service?
A: 24 months warranty for main parts since departure. Able to provide On-site installation, debugging, workers training. Make sure that your workers can operate properly and know daily maintenance well.
Q:What's your delivery time?
A: Ready for delivering in 30-45 days after the 30% of the total amout is paid as deposit. (Concrete batching plant)
B: Ready for delivering in 7-10 days if the goods are in stock. Or in 15-20 days if the goods are not in stock. (Concrete mixer)
Q. How long do you warranty your concrete batching plant?
A: The product warranty period is 2 year, excluding the wearing parts, and we offer our customers wearing parts all the time at favorable price.
Q: What to do if the machine encounters a malfunction?
A: Email us or call us showing us photos about what happens, and our service is on line24/7, and then we will get back to you immediately. We provide on-site technical personnel services upon request.
Q.How can we install the plant?
A: We will make installation drawing before shipping, and our engineer will go oversea to provide guidance and training on installation after everything is ready set at customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
Q: Are you a trading company or a manufacturer?
A: We are munufacture. We can design and manufacturer according to actual requirements.
Welcome to visit our factory!
Q: What kind of products do you have?
1. Stationary concrete batching plant series from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor, bolted cement silo, etc.
Q: What are the terms of payment in your formal trade?
A: We accept T/T term, L/C term and Alibaba Trade Assurance Order Online.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What's your after-sale service?
A: 24 months warranty for main parts since departure. Able to provide On-site installation, debugging, workers training. Make sure that your workers can operate properly and know daily maintenance well.
Q:What's your delivery time?
A: Ready for delivering in 30-45 days after the 30% of the total amout is paid as deposit. (Concrete batching plant)
B: Ready for delivering in 7-10 days if the goods are in stock. Or in 15-20 days if the goods are not in stock. (Concrete mixer)
Q. How long do you warranty your concrete batching plant?
A: The product warranty period is 2 year, excluding the wearing parts, and we offer our customers wearing parts all the time at favorable price.
Q: What to do if the machine encounters a malfunction?
A: Email us or call us showing us photos about what happens, and our service is on line24/7, and then we will get back to you immediately. We provide on-site technical personnel services upon request.
Q.How can we install the plant?
A: We will make installation drawing before shipping, and our engineer will go oversea to provide guidance and training on installation after everything is ready set at customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
