Automatic door translation door microwave sensor electric Glass Gate Probe Radar Switch
- Category: >>>
- Supplier: Shenzhen Jutai Comm Co. Ltd.
Share on (1600977649074):
Product Overview
Description
Product description:
The RVP42-9M microwave sensors have been specially designed to increase the comfort of opening all types of automatic doors. The RVP42-9M microwaves provide fast detection for all automatic door installations and particularly for applications with high-speed entries. Due to the industrial design and easy installation, these sensors will fit on every header or ceiling in any application you can imagine.
It is a 24G millimeter-wave radar that can distinguish between pedestrians and vehicles by analyzing the characteristics of the human body and vehicle movement and electromagnetic reflection characteristics. It can accurately determine the vehicle's driving direction and filter pedestrians. Users can choose one-way (toward) detection or two-way detection according to actual needs.
It is a 24G millimeter-wave radar that can distinguish between pedestrians and vehicles by analyzing the characteristics of the human body and vehicle movement and electromagnetic reflection characteristics. It can accurately determine the vehicle's driving direction and filter pedestrians. Users can choose one-way (toward) detection or two-way detection according to actual needs.
Product features:

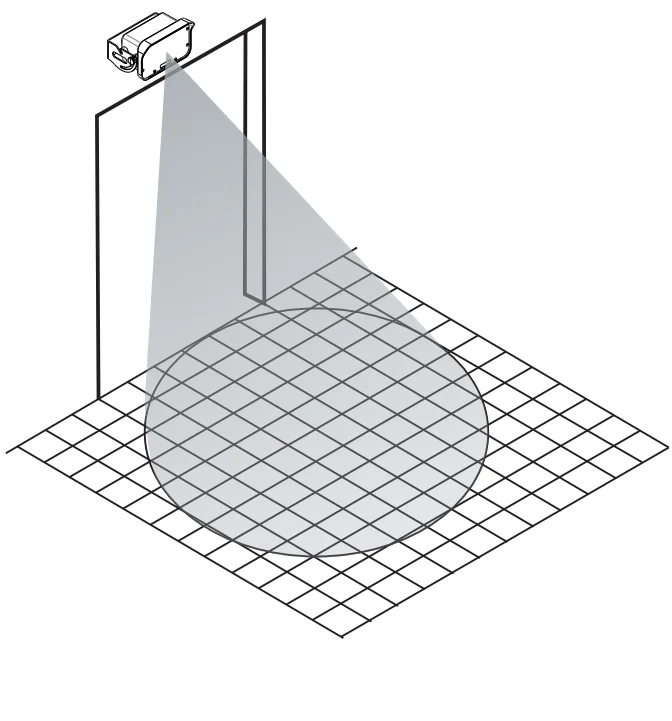

1.Detection Area:
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
2.Dual Relays Outputs:
It is a fully customizable, hands-free radar motion sensor equipped with dual relays:
a.Vehicle-detection relay active
b.Person-detection relay active
c.Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
It is a fully customizable, hands-free radar motion sensor equipped with dual relays:
a.Vehicle-detection relay active
b.Person-detection relay active
c.Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
3.Direction Recognition
It can be set the direction detection:
-Motion forward and close to the sensor
-Backward movement away from the sensor
-Backward movement away from the sensor
-Forward and backward.
4.Energy Savings
- It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
5.Speed up workflows
-Open doors without having to stop and push a button. Install or Retrofit For both dock and pedestrian doors with automated solutions.
-Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.
6.Remote Control Adjustments
-Remote control programming enables the user to quickly and safely make changes from the ground.
- It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
5.Speed up workflows
-Open doors without having to stop and push a button. Install or Retrofit For both dock and pedestrian doors with automated solutions.
-Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.
6.Remote Control Adjustments
-Remote control programming enables the user to quickly and safely make changes from the ground.

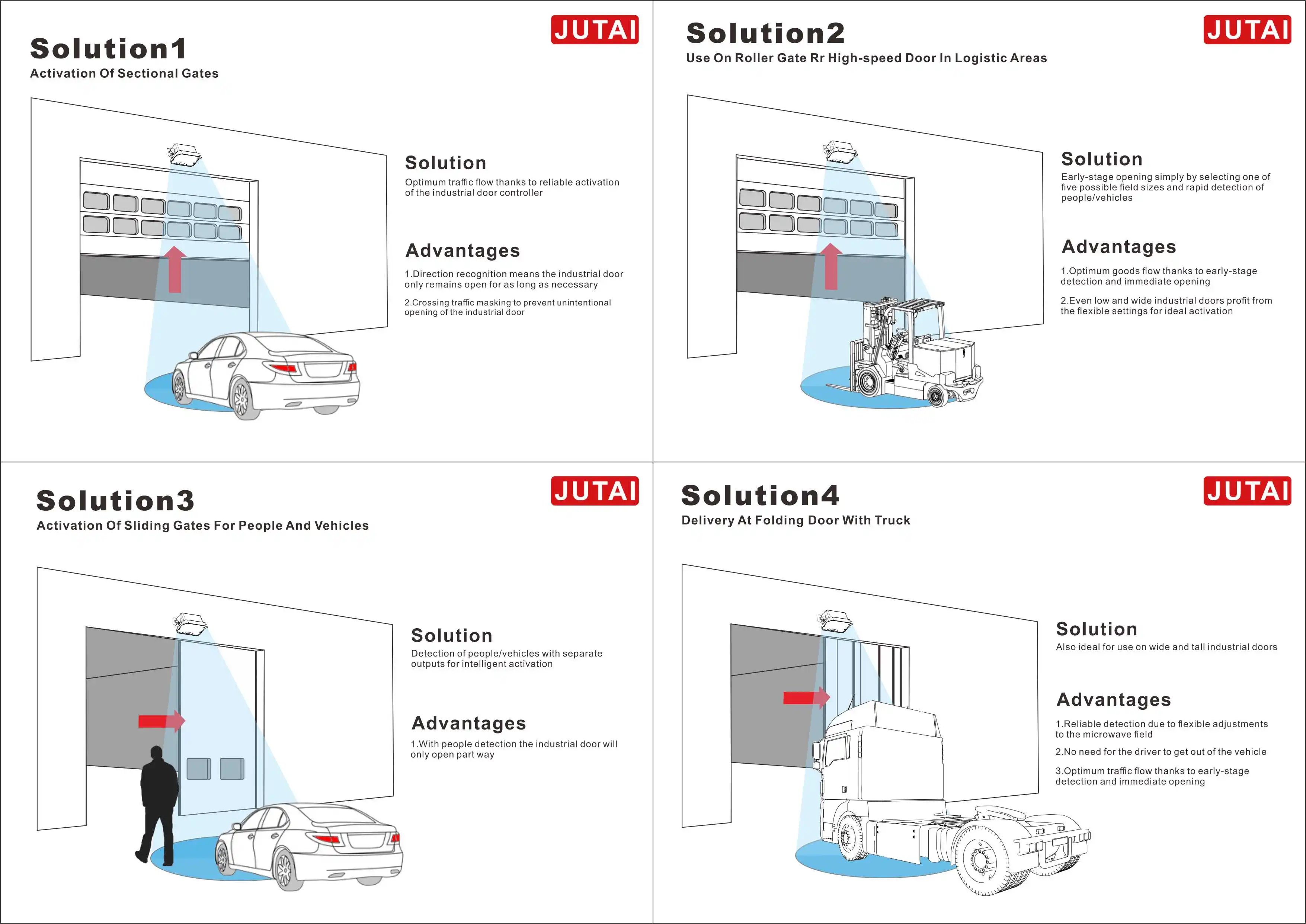

Solution:
Application:
- Factory entrances
- Pedestrian and parallel traffic rejection
- Parking garage detection
- Barrier arm activation
 |  |

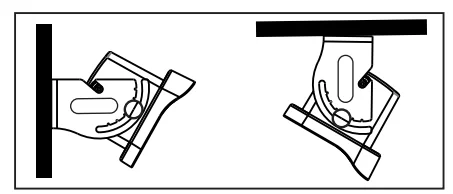

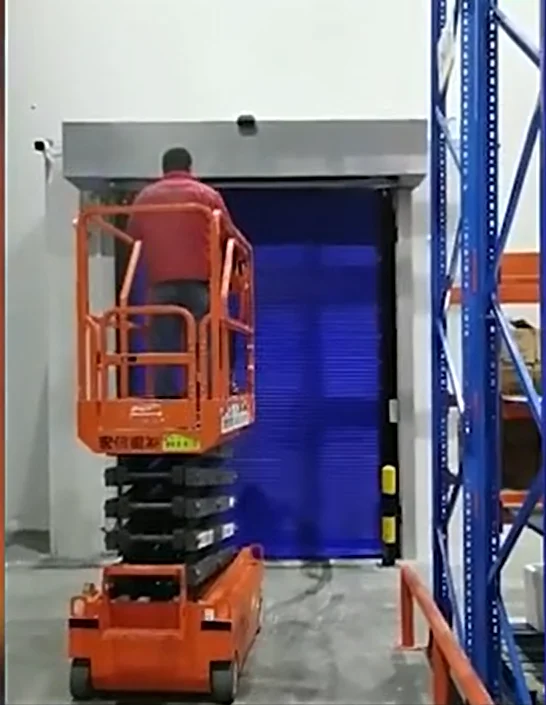

Product installation :
-The detector must be firmly mounted on a flat surface.(Avoid vibrations)
-Objects such as plants, signs, etc. must not protrude into the detection area.
-The detector must not be obscured by coversisigns.
-Fluorescent lamps should not be in the immediate vicinity of the detection area
Details of JUTAI Radar:

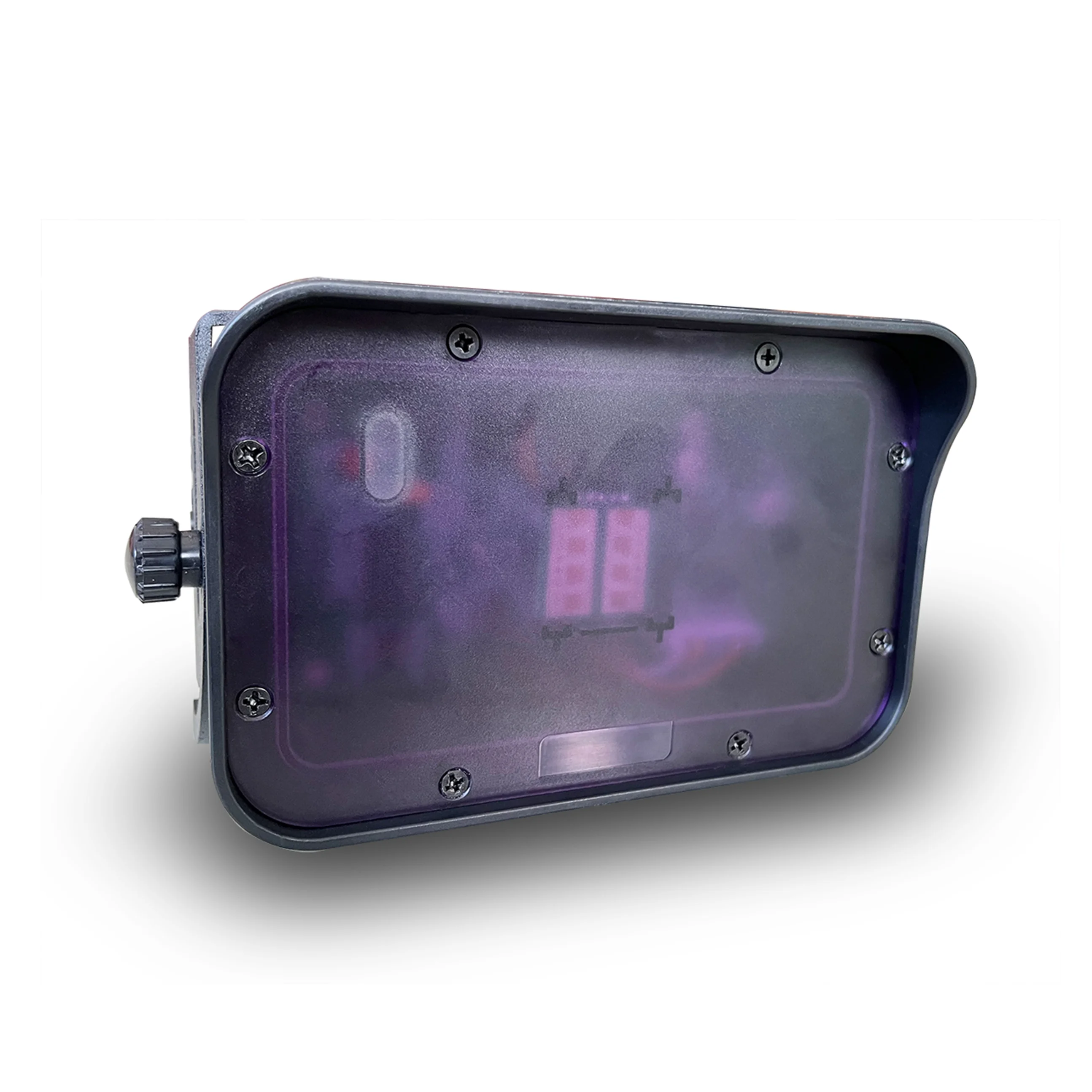

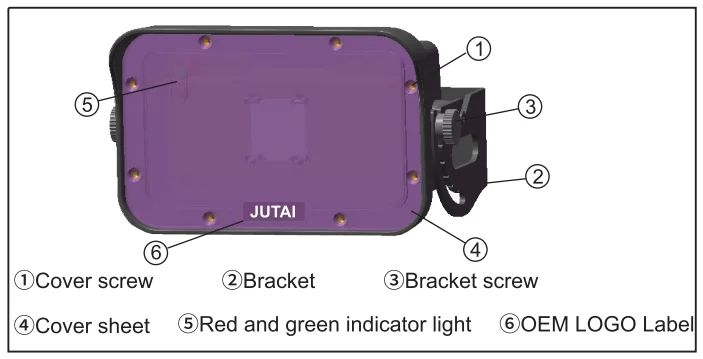

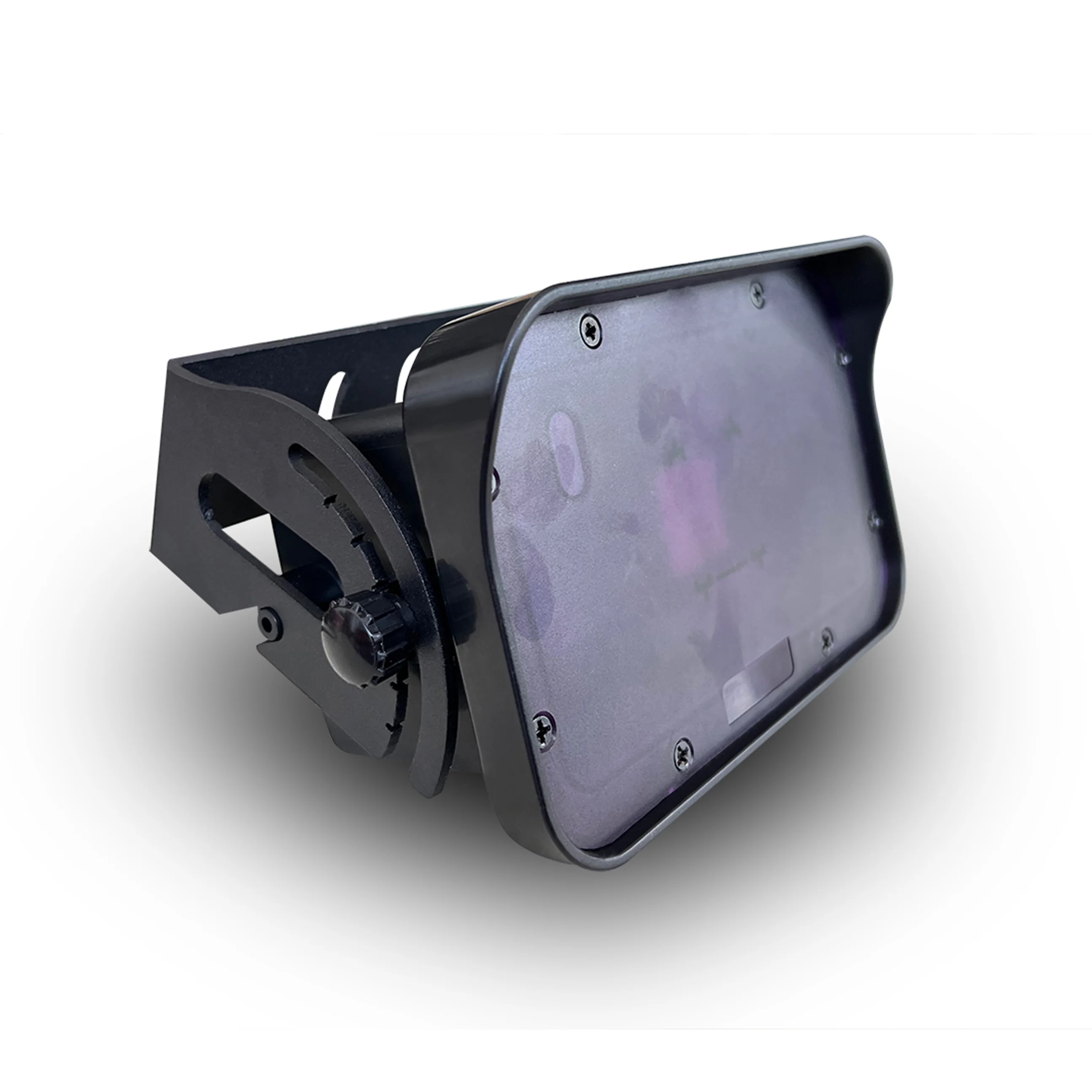

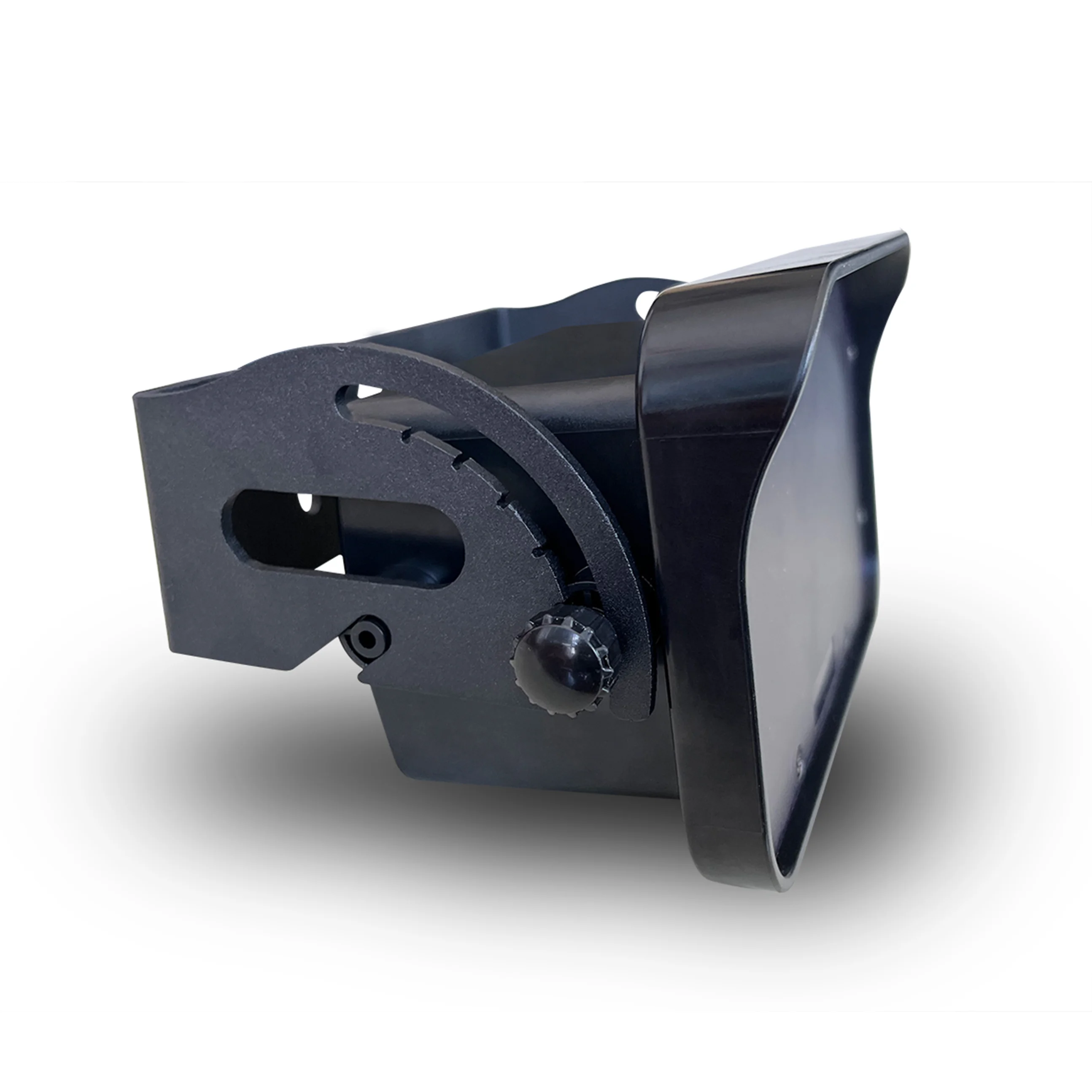

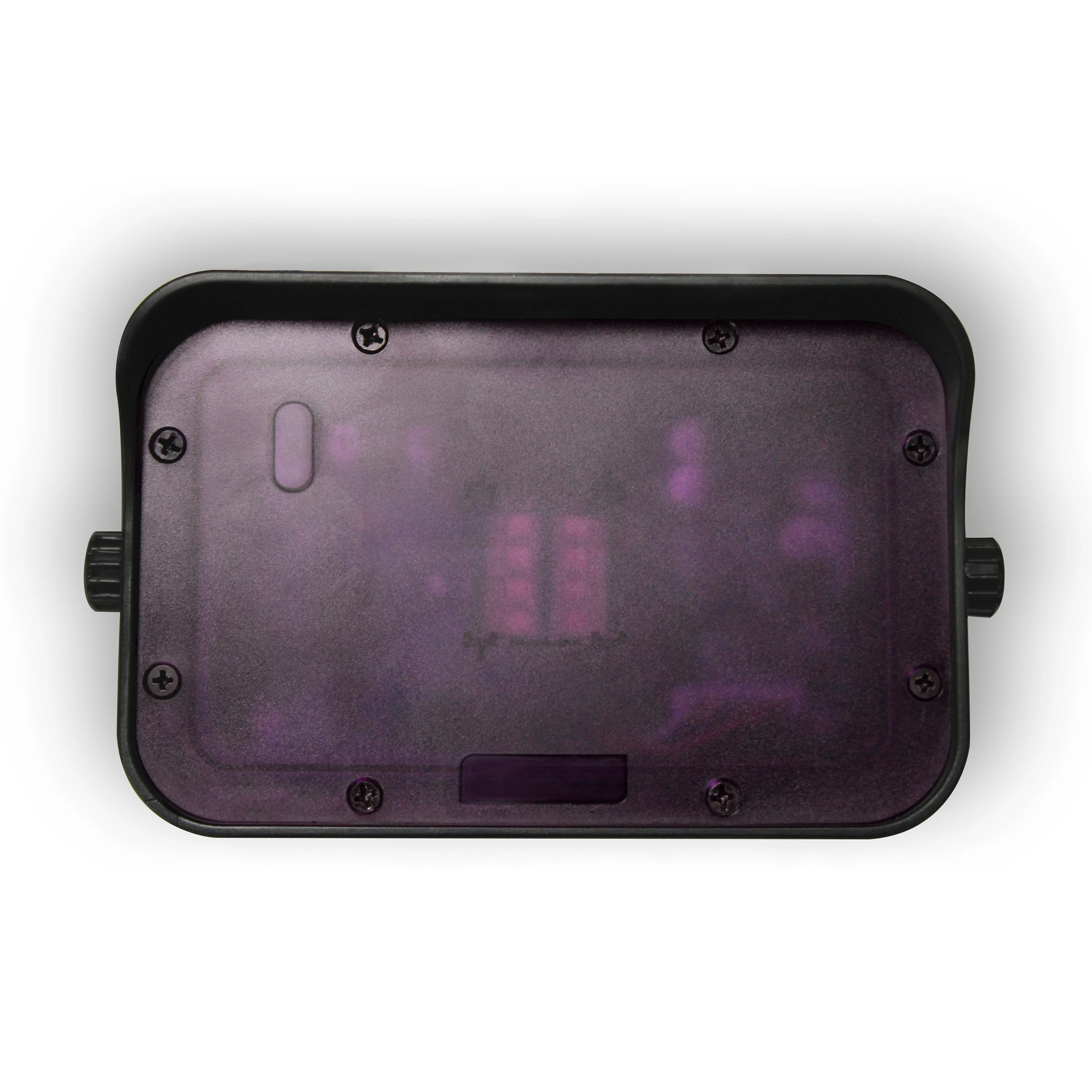

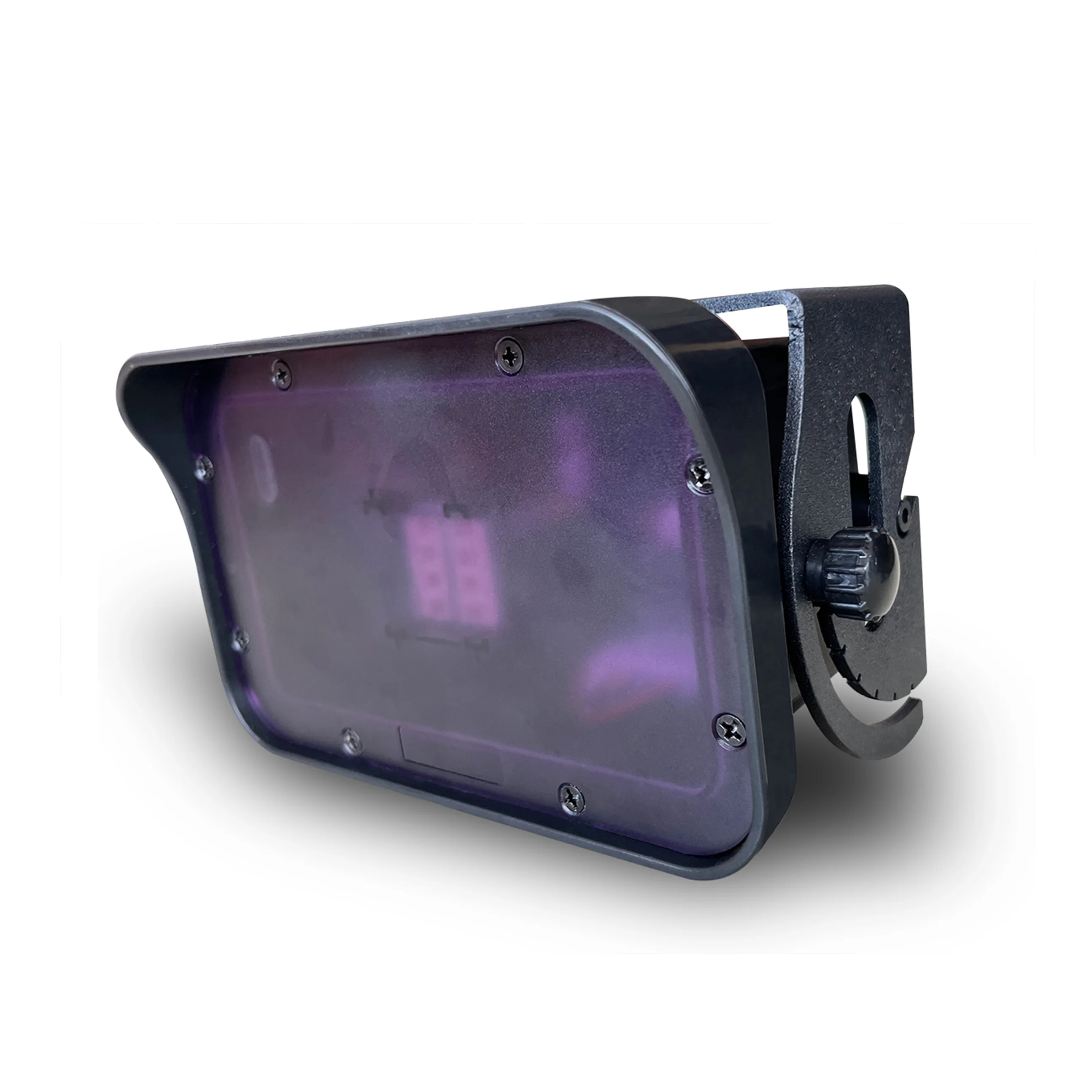

1.The appearance:

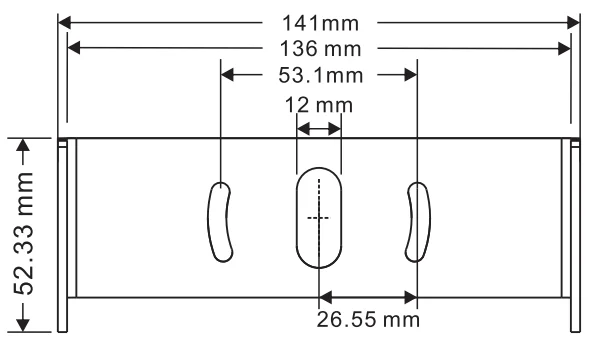

2.The dimension:

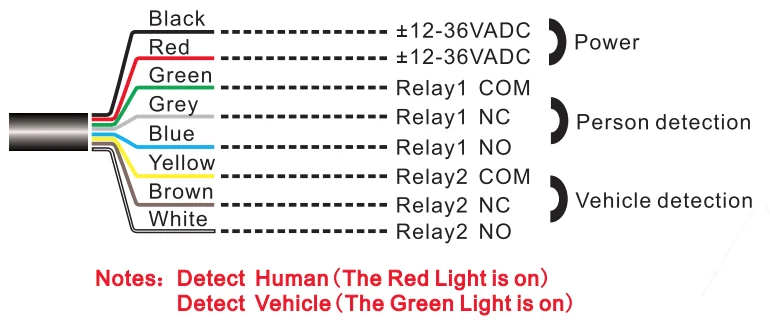

3.Wiring
4.Technical data:
| Application technology | Doppler radar | |
| Transmission frequency | 24.125 GHz | |
| Transmission power | <20dBm | |
| Detection height | 2.0m to 9.0m | |
| Angle adjustment | 0°-180° longitudinal | |
| Detection speed | 5cm/s~25km/s | |
| Detection area(30°Angle) | 3.0m*3.5m @ height: 2m 6.5m*8.5m @ height: 9m | |
| Operation voltage | 12~28 VAC, 12~36 VDC | |
| Operation current | Max. 75 mA | |
| Power frequency | 50 hz | |
| Temperature range | -30ºC to+60ºC | |
| Relative humidity | 0% to 95%, no condensation | |
| Protection grade | IP65 | |
| Relay output | Max.48 VAC/DC, Max. current 1A | |
| External dimensions | 162mm × 110mm × 65mm | |
| Cable length | 7 m | |
| Sensor weight | 400 g |

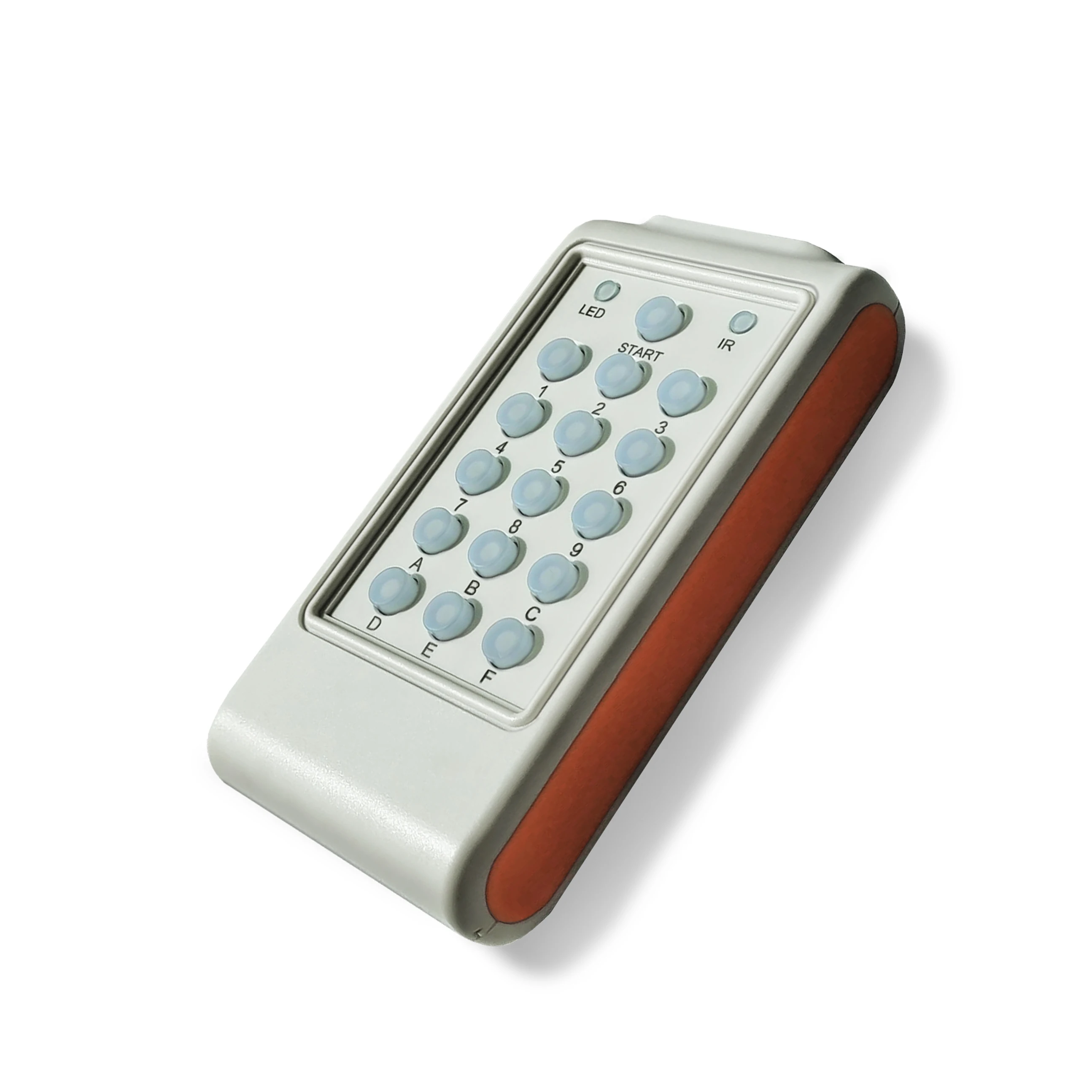

Remote Control Setting
 | Remote control programming enables the user to quickly and safely make changes from the ground. |
——————————————————————————————————————————————————
Company profile Our Service:
SHENZHEN JUTAI COMM Co., Ltd., founded in 2012, with a registered capital of 2 million, is a high-tech enterprise integrating production, research and development, manufacturing and sales. The founders of the company have more than 10 years of work experience in the research and development as well as sales of RF products. At the beginning, JUTAI mainly focus on the development of a series of card reader from low frequency to microwave, including 125KMHZ, 13.56KMHZ, 868915KMHZ, microwave 2.45 KMHZ and semiactive 125K&2.45G. As the development of the market, we expand a series of wireless infrared security detection equipment for access control, based on our self-developed hardware RF product technology. Photocell Family Group includes wired photocell with 20 meters sensing distance, wireless photocell sensor, wireless rotatable infrared sensor and reflective photoelectric beam sensor. In addition, to promote the in-depth application of the project, we have also expand a series of software and hardware solutions around industry applications. The project solutions we have developed mainly include parking management system, card reader access control system, visitor management system (Love Home Solution), automatic door access remote control system (GateLink Solution), and the development of the large-scale cloud software management platform (JUTAI Clouds Solution).
Our Service:
1. our products warranty is 2 years
2. we also can OEM logo for you
3. long-term technical support, online technical support.
2. we also can OEM logo for you
3. long-term technical support, online technical support.
4. other products available: photocells, safety light curtains, card readers. all is for gate automation applications. expand your business.
