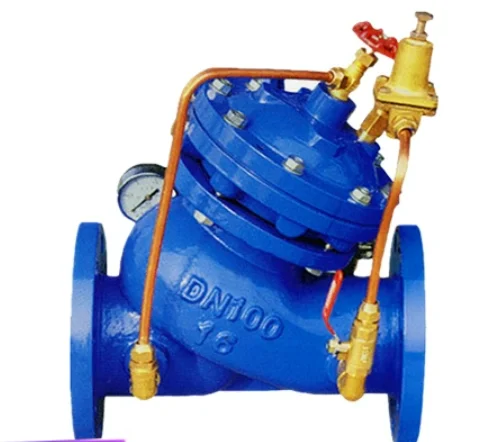

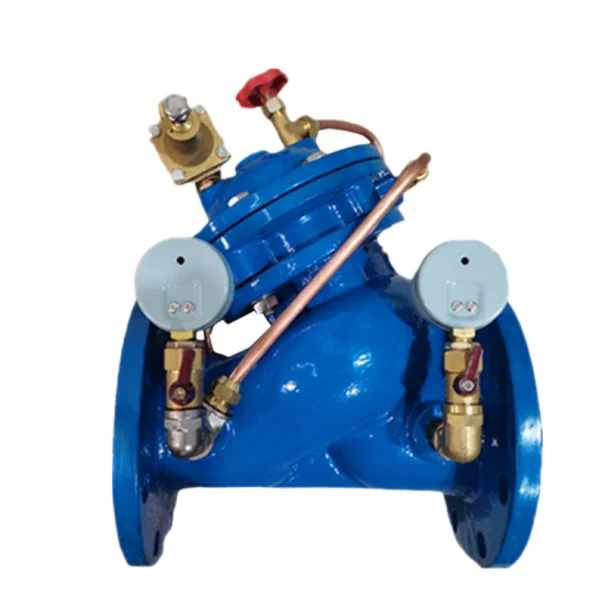

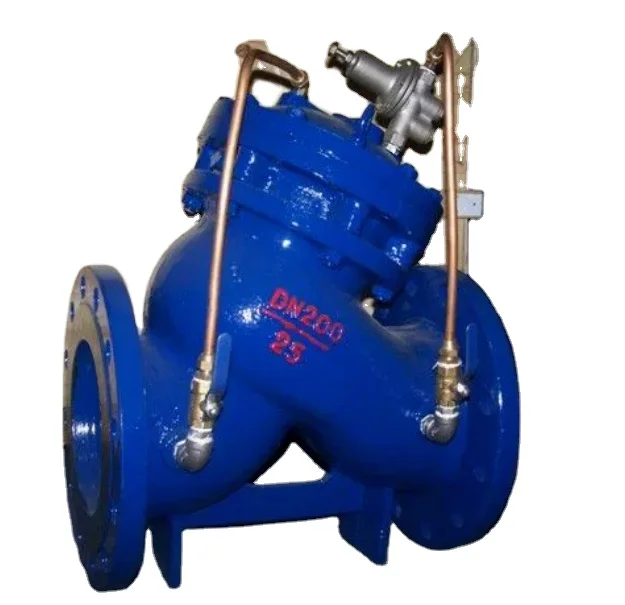

high quality factory manufacture Regulator garden water hose valve Pressure Reducing Valve
- Category: >>>
- Supplier: Sichuan Jinhongshun Fluid Technology Co. Ltd.
Share on (1600977656169):
Product Overview
Description
Why Choose Us
Accept customization
1, material customization
2, size customization
3, color customization
4. Pressure customization
5, logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
2, size customization
3, color customization
4. Pressure customization
5, logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
Our company participates in large-scale urban construction projects in China.
1、Project of China Railway
2、Project of GREENTOWN CHINA HOLDINGS LTD.
3、Project of Hangzhou asian games village
4、Project of Shenzhen Fangda Plaza
Products Description

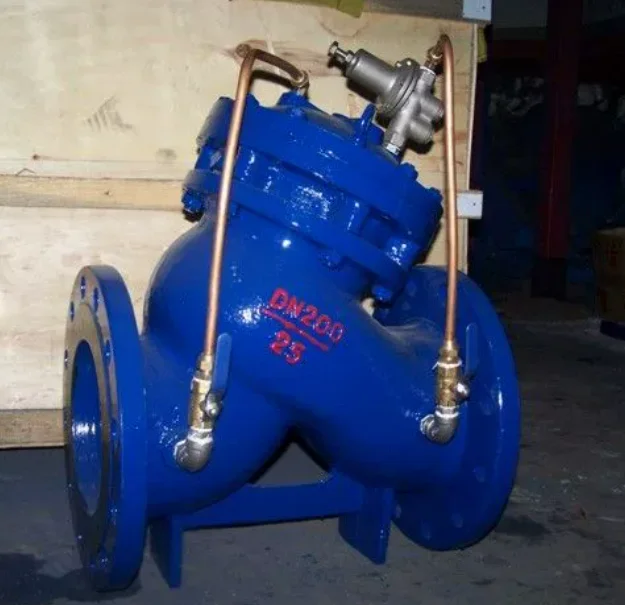

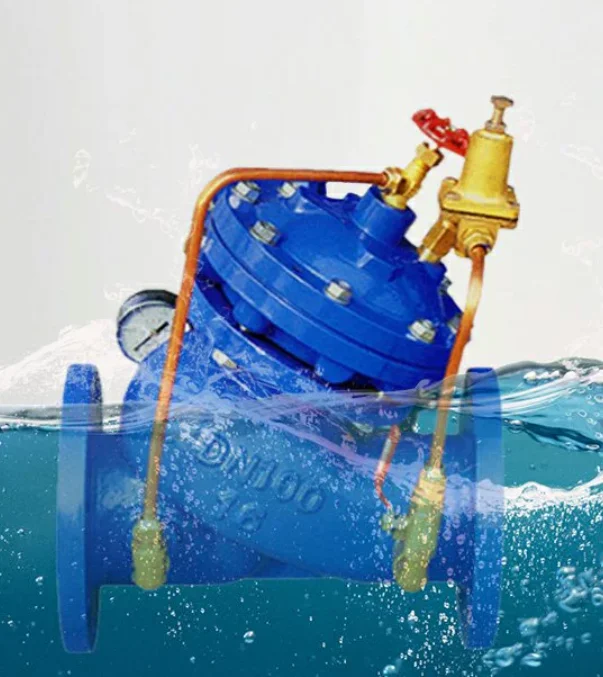

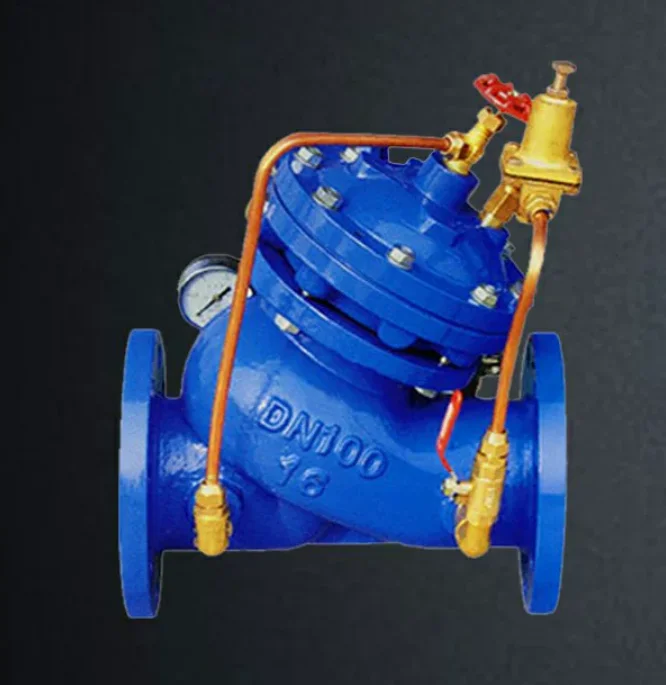

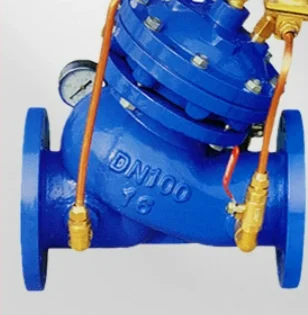

Adjustable pressure reducing and stabilizing valve is composed of main valve and needle type regulating valve, pilot valve, ball valve and pipe system, and the main valve body adopts full-channel, direct-flow, streamlined design, and adopts diaphragm or piston type two types of structure.
Therefore, the valve relies on its own energy to keep the outlet pressure stable in the setting plant, that is, the outlet pressure does not change due to the change of inlet pressure and flow, and the inlet of the valve control system is equipped with a self-cleaning filter, using the characteristics of the utilization body, so that the suspended particles with larger specific gravity and larger diameter will not enter the control system, ensuring that the system circulation is unimpeded, so that the valve can operate safely.
The system has smooth action, high strength and long service life.
Main features
1. The decompression effect is reliable. The outlet pressure is not affected by the inlet pressure and flow rate changes, and can reduce the dynamic pressure to reduce the static pressure.
2. Easy to debug and operate, only need to adjust the adjusting screw of the pilot valve, you can obtain accurate and stable outlet pressure.
3. Good energy-saving effect. The valve body adopts full-channel streamlined DC design, which has small pressure loss, large flow, small size and light weight.
4. The valve body adopts full-channel, direct-flow and streamlined design, and the hydraulic loss is small.
2. Easy to debug and operate, only need to adjust the adjusting screw of the pilot valve, you can obtain accurate and stable outlet pressure.
3. Good energy-saving effect. The valve body adopts full-channel streamlined DC design, which has small pressure loss, large flow, small size and light weight.
4. The valve body adopts full-channel, direct-flow and streamlined design, and the hydraulic loss is small.
Relevant implementation standards
Nominal pressure: 1.0MPa, 1.6MPa, 2.5MPa
Voltage regulation range: 0.05~0.9MPa, 0.12~1.4MPa, 0.12~2.4MPa
Applicable medium: water
Medium temperature: O~80 °C
Voltage regulation range: 0.05~0.9MPa, 0.12~1.4MPa, 0.12~2.4MPa
Applicable medium: water
Medium temperature: O~80 °C
Main parts and materials:
Part name | Part material |
Body / Bonnet | WCB |
Seat/Disc | Copper alloys |
Seals/O-rings | Nitrile rubber |
Stem | 2Cr13 |
Spring | 50CrVA |
Needle valve | Copper alloys |
Ball valve | Copper alloys |
Float valve | Copper alloys |
Miniature filters | Stainless steel |

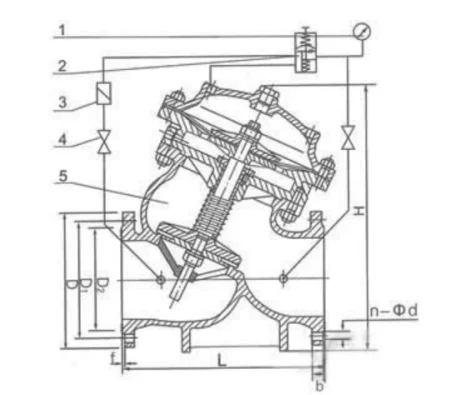

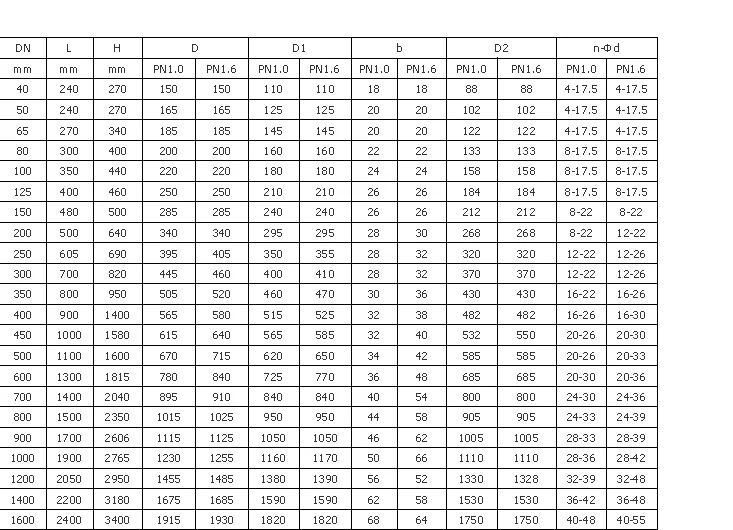

Main structure and connection dimensions
