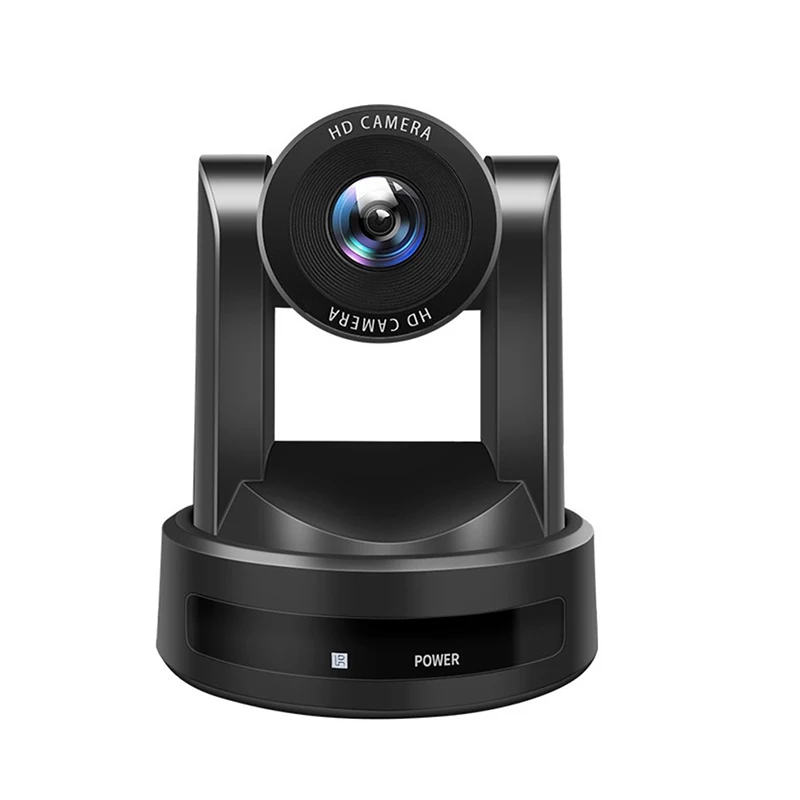

Factory Price 20x zoom 1080P RS485 ptz education camera 20x USB2.0 broadcast cameras for live streaming
- Category: >>>
- Supplier: Kensence (shenzhen) Technology Development Co. Ltd.
Share on (1600977657914):
Product Overview
Description

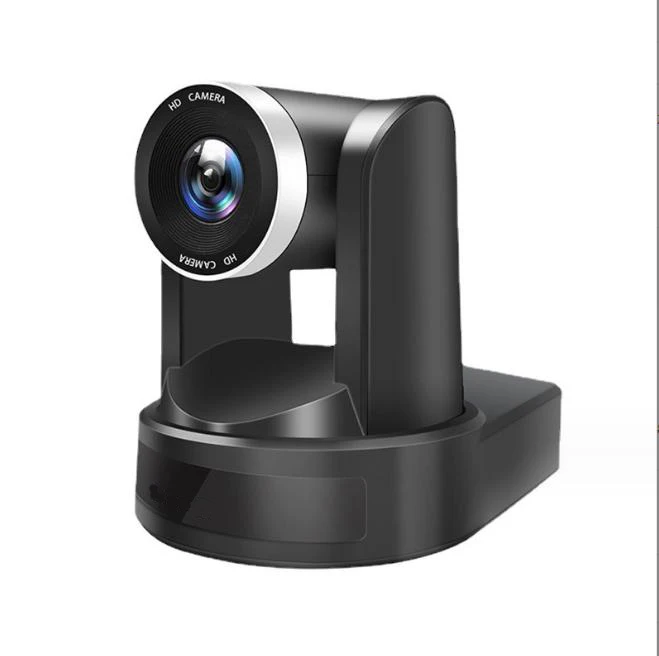

Factory Price Video Conference camera HDMI SDI USB PTZ RS232 1080P HD PTZ Video Streaming Camera
Product introductions

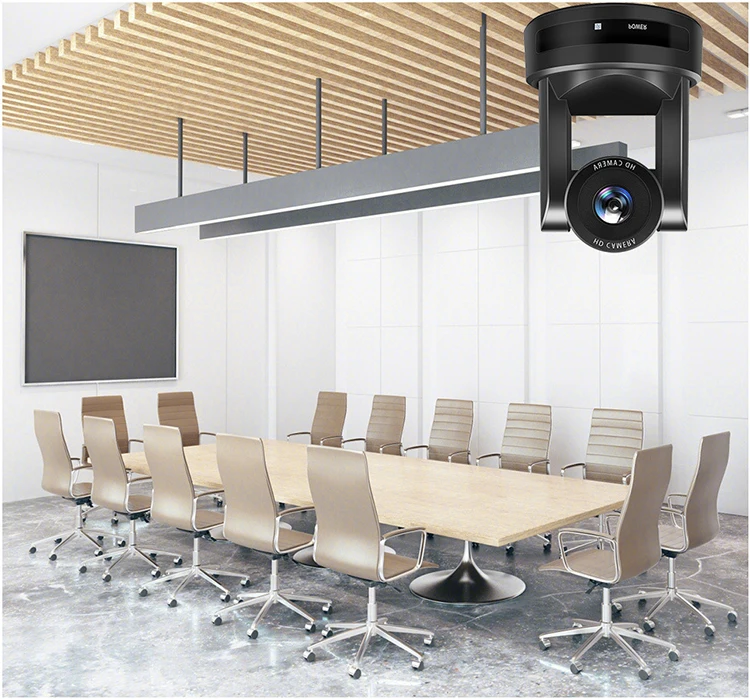

PTZ high-definition color camera for enterprise, education and remote applications, high frame rate of 30FPS. High-quality color video images can be captured in corporate conference rooms, classrooms, and training centers. Users can connect to a high-definition display device to watch through a USB2.0 cable.
The camera's precise, smooth and quiet PTZ control makes it easy and fast to reproduce a clear picture without any disturbance to the speaker or audience.
The adoption of an EXMOR CMOS image sensor ensures detailed Full HD images and a high level of resolution. The high frame rate operation of up to 30FPS can ensure the natural and clear picture quality of the moving target being shot. Can automatically receive VISCA commands and PELCO-P/D protocol-commands, and can choose to use RS232 or RS485 interface for connection.
Product features
1. Real FULL HD HD images.
Using a 1/2.8-inch high-quality HDCMOS sensor with 2.1 million effective pixels, it can achieve high-quality images with ultra-high resolution of 1920x1080. The output frame rate can reach up to 30 frames per second. While ensuring high-definition, it focuses on meeting the needs for smoothness of the picture.
2. Low noise and high signal-to-noise ratio.
2D and 3D noise reduction algorithms based on motion estimation are applied, and a new generation of low-noise sensors are used to effectively reduce noise.
3. High-definition, multi-format video output.
Standard USB2.0 interface, can output continuous images all the time, support formats: 1080P30, 720P30, 640X480P30, 320X240P30 and other video formats.

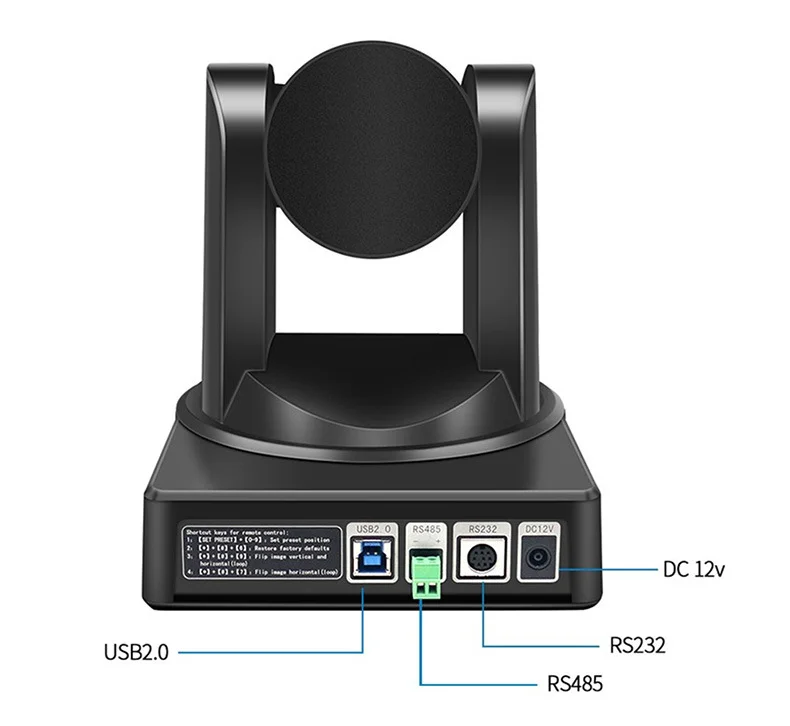

4. RS-232C/RS485 remote control (VISCA protocol/Pelco-D/Pelco-P).
Using the RS-232C/RS485 interface, it is possible to perform remote high-speed communication control of all camera settings and pan/tilt/zoom operations.
5. Multiple address settings.
Set the machine address by dialing
6.255 position presets.
255 positions can be preset through the serial port or remote control, including pan, tilt, and zoom presets, and the preset data can be saved even when the camera is powered off.
7. Multifunctional remote control.
Equipped with an easy-to-operate remote control, it can perform basic settings and control the level and pitch.
For more detailed product information and catalogues, please contact us
Technical Parameter
Model | USB2.0 HD conference camera |
| |
Image sensor
| 1/2.8 inch high quality HD CMOS sensor
|
Active pixel
| 16:9 2.1 million effective pixels
|
Video signal | 1080p30,720p30, |
Viewing angle | 105 degrees |
Angle of view | 2.9°(narrow angle )--55.4°(wide angle ) |
Minimum illumination | 0.1Lux |
White balance | automatic |
Focus | manual |
shutter | automatic |
SNR | >52dB |
Sample Request | |
Other HD conference cameras:
| Type | Name | Model | Picture | Feature | Description |
| USB Series | Colors: White, Black | ||||

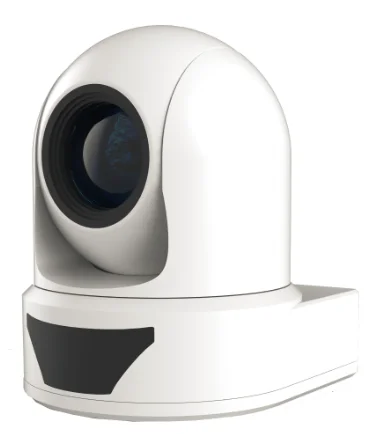

| USB3.0 | USB conference camera | VC-20U3 |  | USB3.0 | 20 x Optical Zoom, 1 / 2.8" CMOS 2.1Mega Pixel, c/w USB3.0 video interface, RS-232C control interface, HDMI video interface, compatible with 1080p60 and below (Unique feature for spec: Uses advanced servo-motor without belt mechanism , vertical angle reaches -30 to 220 degrees) |
| Network conference series | |||||

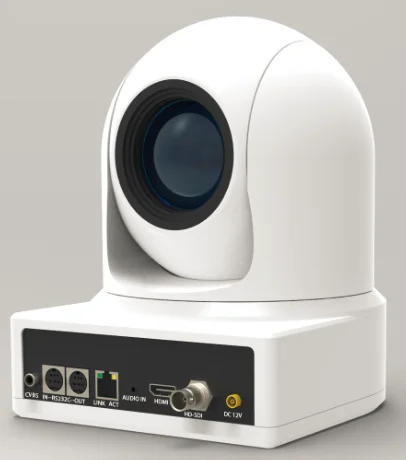

| Network Streaming | IP conference camera | VC-20IP |  | 1080P60network | 20 x Optical Zoom, 1 / 2.8" CMOS 2.1Mega Pixel, H.265 encoding format, transmits 1080P60 images, c/w RS485/232, HDMI, HD-SDI interface, network upgradeable, supports audio input and the CVBS standard output (Unique feature for spec: Uses advanced servo-motor without belt mechanism , reaches -30 to 220 degrees) |
| HD Conference Series | |||||

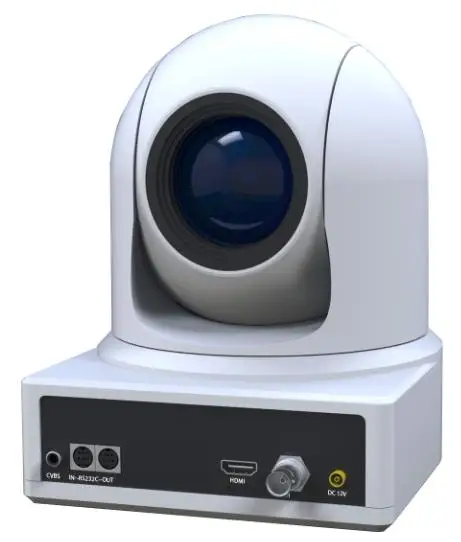

| HD 20 x Zoom | conference camera | VC-20SH |  | 1080P60 | 20 x Optical Zoom, 1 / 2.8" CMOS 2.1Mega Pixel, c/w HDMI video interface, broadcast quality 3G SDI video interface, supports 1080p60 Full HD images and RS-232C remote control (VISCA protocol /Pelco-D/Pelco-P) 128 positions preset; multi functional remote control; can be inverted installation; support English menu.(Unique feature for spec: Uses advanced servo-motor without belt mechanism , vertical angle reaches -30 to 220 degrees) |
| HD wireless 20 x Zoom | wireless conference camera | VC-20WF | 1080P60 | 20 x Optical Zoom, 1 / 2.8" CMOS 2.1Mega Pixel, supports 1080P60 Full HD image transmission through 5G wireless , transmission range up to 50 meters, 128 positions preset; multi functional remote control; can be inverted installation; supports English menu and external power supply. | |
Note: The price of different models and different interfaces is different, if you need to contact us for the specific price
