uhp 700 graphite electrodes
- Category: >>>
- Supplier: Gongyi Rongxin Carbon Products Co. Ltd.
Share on (1600977674811):
Product Overview
Description
UHP700 Graphite Electrode with Nipples
Technical Data
| UHP 700 | |||||||
| Item | Unit | Item | Unit | ||||
| Resistivity | Electrode | μΩm | 4.6-5.8 | Bulk Density | Electrode | g/cm3 | 1.68-1.74 |
| Nipple | 3.5-4.0 | Nipple | 1.78-1.84 | ||||
| Modulus of Rupture | Electrode | Mpa | 10.0-14.0 | CTE (100-600℃) | Electrode | 10-6/℃ | 1.1-1.4 |
| Nipple | 22.0-26.0 | Nipple | 0.9-1.2 | ||||
| Young's Modulus | Electrode | Gpa | 10.0-14.0 | Moment | N.m | 6000 | |
| Nipple | 16.0-19.0 | Normal Dia | Max. Dia | Min. Dia | Length | ||
| Ash | % | 0.3 | 700mm | 714mm | 708mm | 2100-2700mm | |
| More Size | RP 100-600mm HP 100-750mm UHP 200-750mm | ||||||

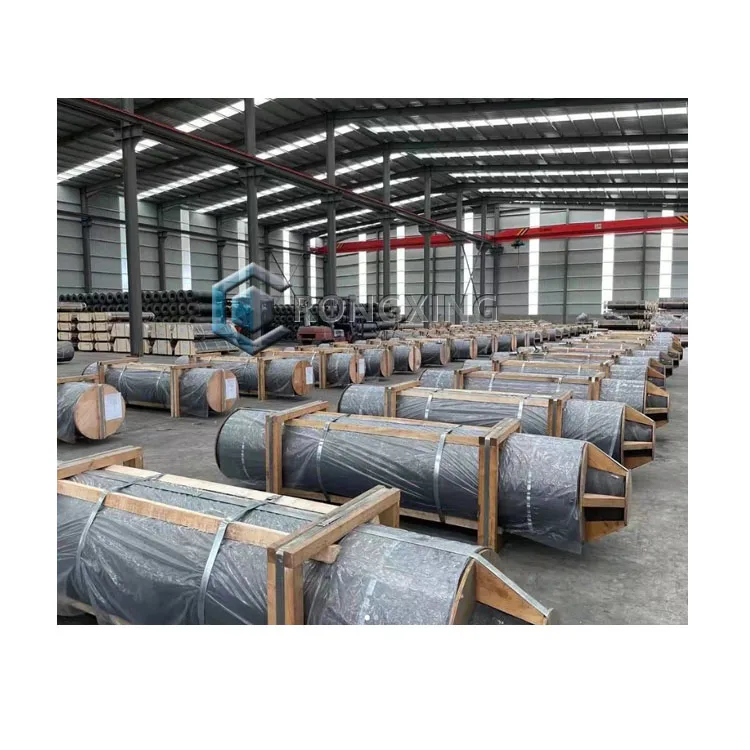

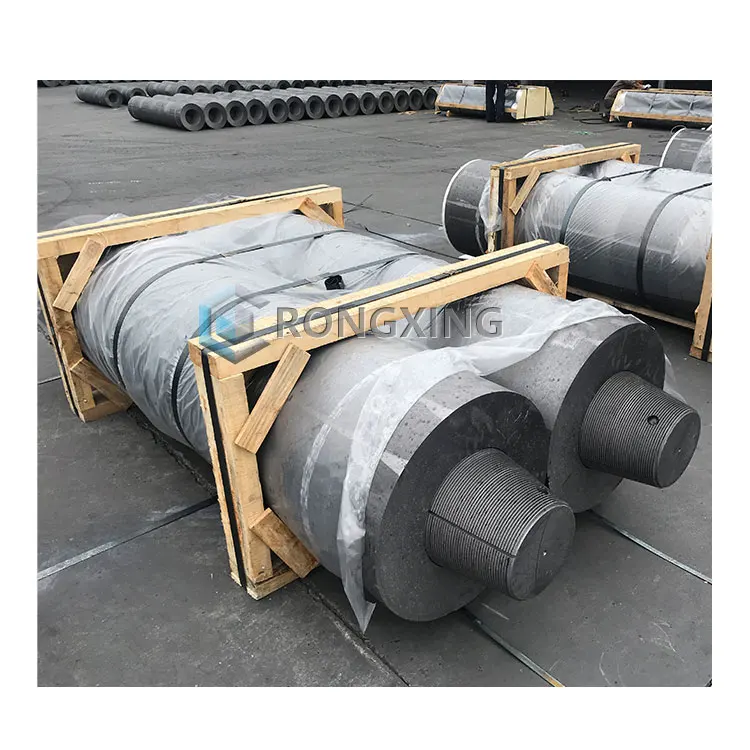

Real Packing List of Rongxing UHP700 Graphite Electrode
Product Description
Graphite electrode, mainly petroleum coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading,molding, baking and graphitization, machining and made, which is released in electric arc furnace in the form of arc conductor of electricity to heat melting furnace charge.
Surface Quality of UHP Graphite Electrode
1. There should be less than two defects or holes on the electrode surface, the max size of which is mentioned in the below chart.
2. There should be no transverse crack on the electrode surface. For the longitudinal crack, the length should be less than 5% of the electrode circumference and the width between 0.3-1.0mm.
Surface Quality of UHP Graphite Electrode
1. There should be less than two defects or holes on the electrode surface, the max size of which is mentioned in the below chart.
2. There should be no transverse crack on the electrode surface. For the longitudinal crack, the length should be less than 5% of the electrode circumference and the width between 0.3-1.0mm.
Product Advantage
* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity,large bulk density, low internal defects
* Good thermal conductivity and electrical conductivity
* Low resistivity,large bulk density, low internal defects
* Good thermal conductivity and electrical conductivity
* High mechanical strength, not easy to be broken;
* Low ash
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
Packaging & Shipping
Related Product
For fast quotation, Please send inquiry now.
Customers
Company Information
Rongxing is a well-known enterprise which produces various kinds of carbon products and refractories. The production equipment is excellent, the detection equipment is complete, the technical force is strong, has high reputation in the domestic and foreign large and medium-sized enterprises.
The company has a production capacity of 150,000 tons of refined petroleum coke, 100,000 tons of pre-baked anode, 50,000 tons of carbon brick, 200,000 tons of electrode paste, special sealing paste, 50,000 tons of refractory material.
My company has domestic advanced quality inspection system and perfect after-sales service team, to the masses of customers to provide quality products and good technical services, and is willing to cooperate sincerely with new and old friends.
The company has a production capacity of 150,000 tons of refined petroleum coke, 100,000 tons of pre-baked anode, 50,000 tons of carbon brick, 200,000 tons of electrode paste, special sealing paste, 50,000 tons of refractory material.
My company has domestic advanced quality inspection system and perfect after-sales service team, to the masses of customers to provide quality products and good technical services, and is willing to cooperate sincerely with new and old friends.
FAQ
1. Are you Factory or Trading?
We are factory with ISO 9001:2015 certified
5. What is your payment service?
Accepted Delivery Terms: FOB, CFR, CIF, EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C,CAD;
We are factory with ISO 9001:2015 certified
2. How about the Capacity?
High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date.
High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date.
3. What can we buy from you?
Graphite electrode,electrode paste,carbon raiser,carbon product, and other graphite products.
4. How to confirm the grade of graphite electrode?
Please send inquiry to us, our sales manager will confirm the details and price for you.
4. How to confirm the grade of graphite electrode?
Please send inquiry to us, our sales manager will confirm the details and price for you.
Customers will be asked to provide electric arc furnace parameters and specifications and sizes of electrode.
5. What is your payment service?
Accepted Delivery Terms: FOB, CFR, CIF, EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C,CAD;
