B4850 dyness lithium battery 12v 24v 36v 50ah 100ah 150ah 200ah solar battery lithium
- Category: >>>
- Supplier: DAH Solar Co. Ltd.
Share on (1600977675325):
Product Overview
Description

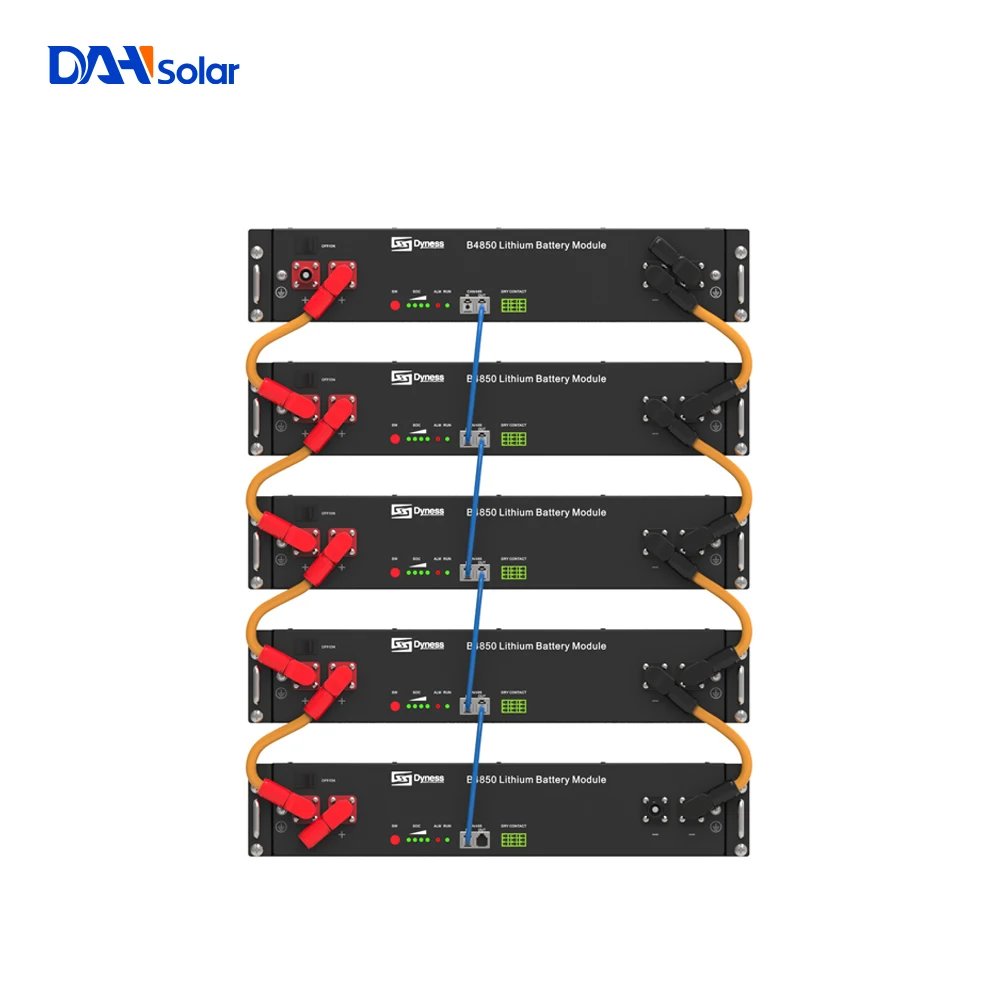

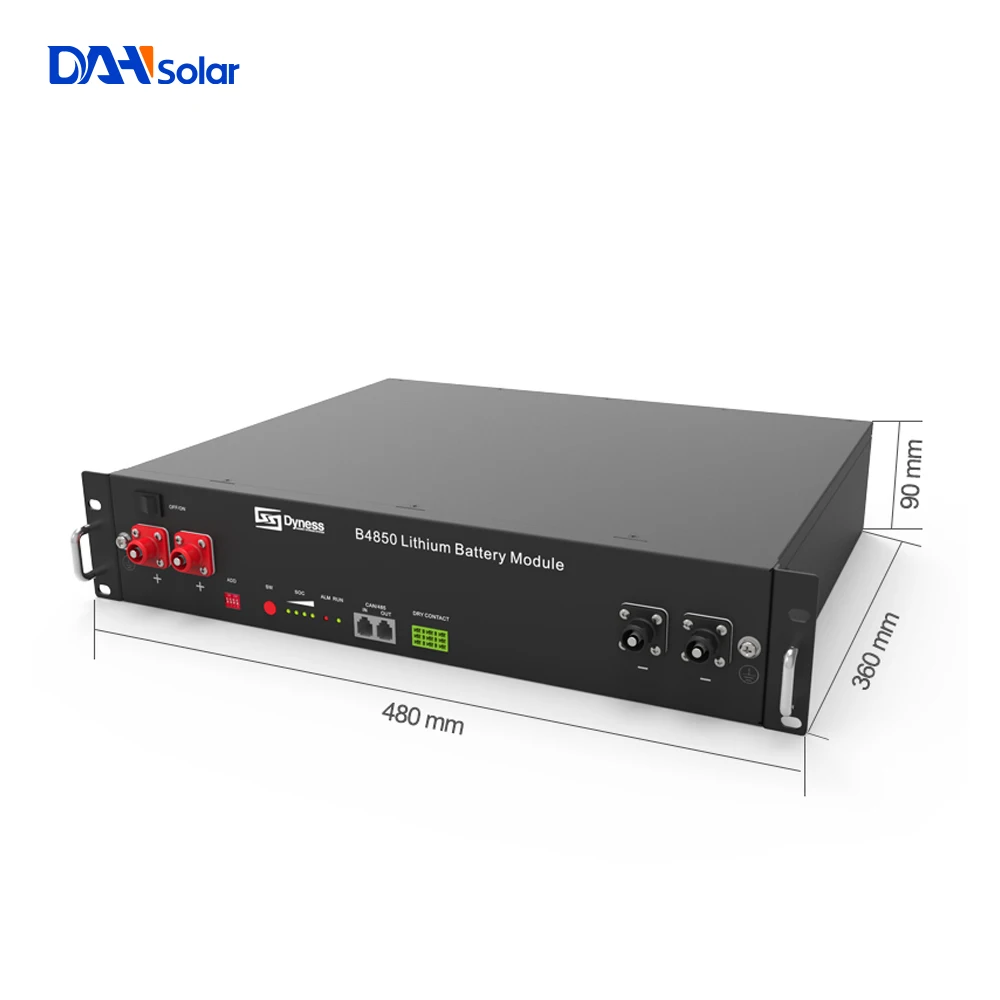

Model | B4850 |
Battery Type | LiFePO4 |
Nominal Battery Energy | 2.4kWh |
Nominal Capacity | 50AH |
Nominal Voltage | 48V |
Net Weight | 22kg |
Dimension(W*D*H) | 480*360*90mm |
Charging Temp. Range | 0-50°C |
Discharging Temp. Range | -10-50°C |
Communication | CAN/ RS485 |
Design Life | 10+ Years |
Calendar Life | >6000 Cycles |
Protection Level | IP20 |

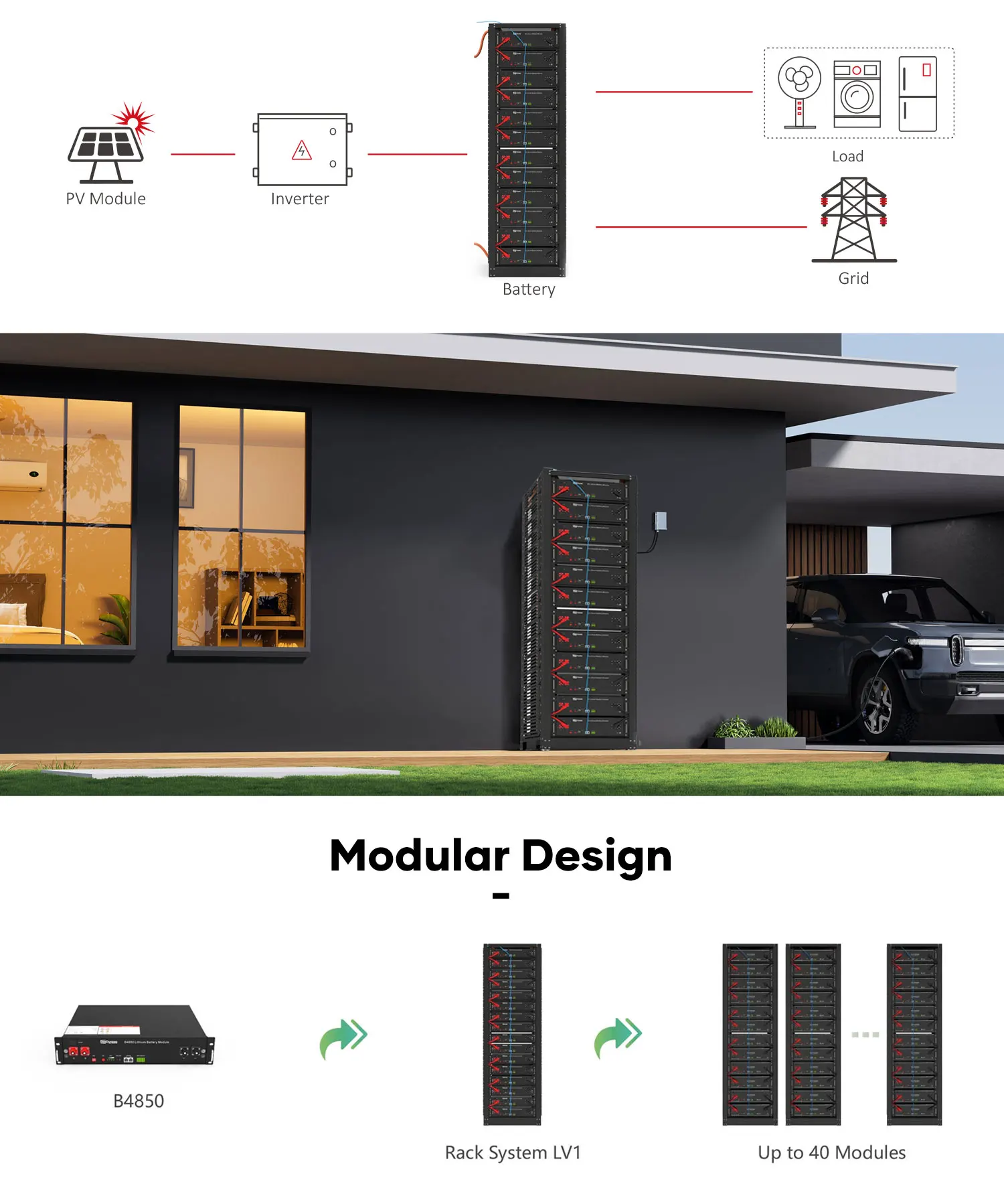

Expansion | Up to 40 units in parallel |
Compatible Inverters | Victron/SMA/Goodwe/lmeon/Solis/SAJ/Growatt/Luxpower NVoltronic/Deye etc. |
Certifcation & Safety Standard | TUVICE/EN62619/1EC62040/UN38.3/CEC Accredited/UL1973/CEI-021 |

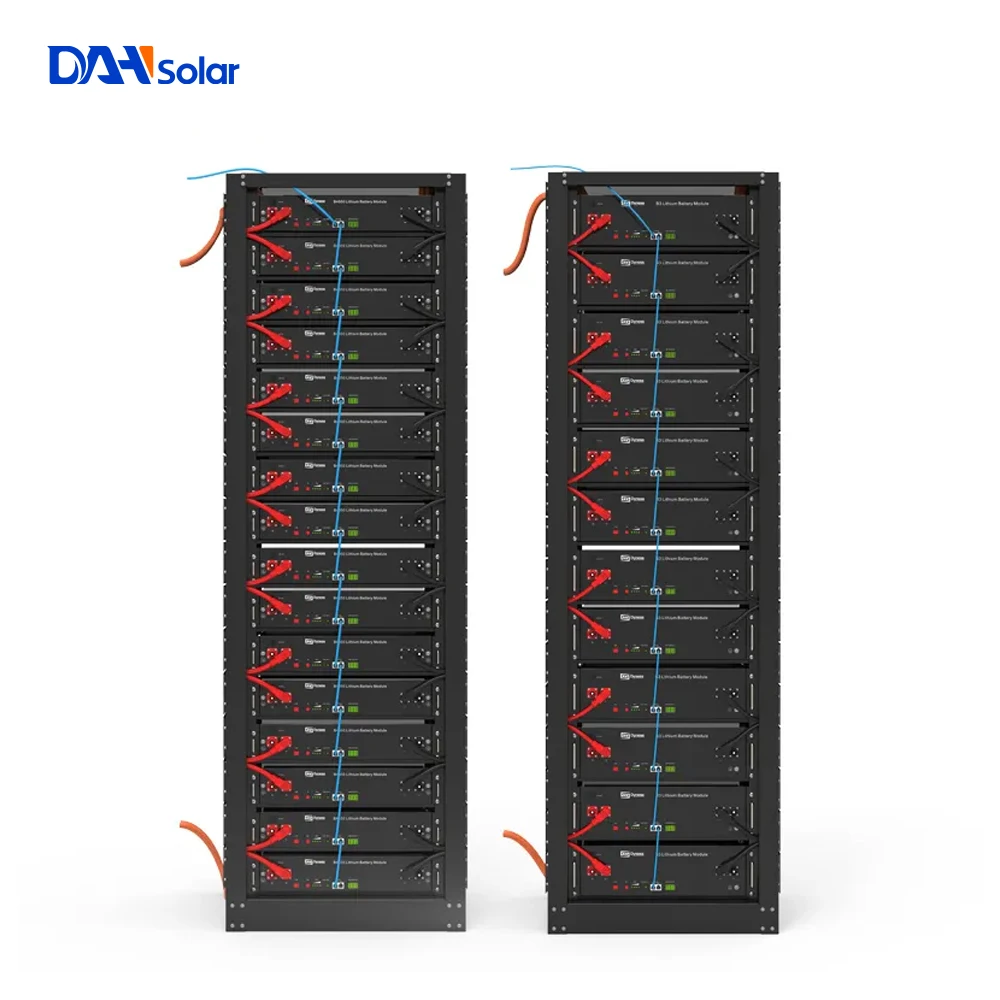

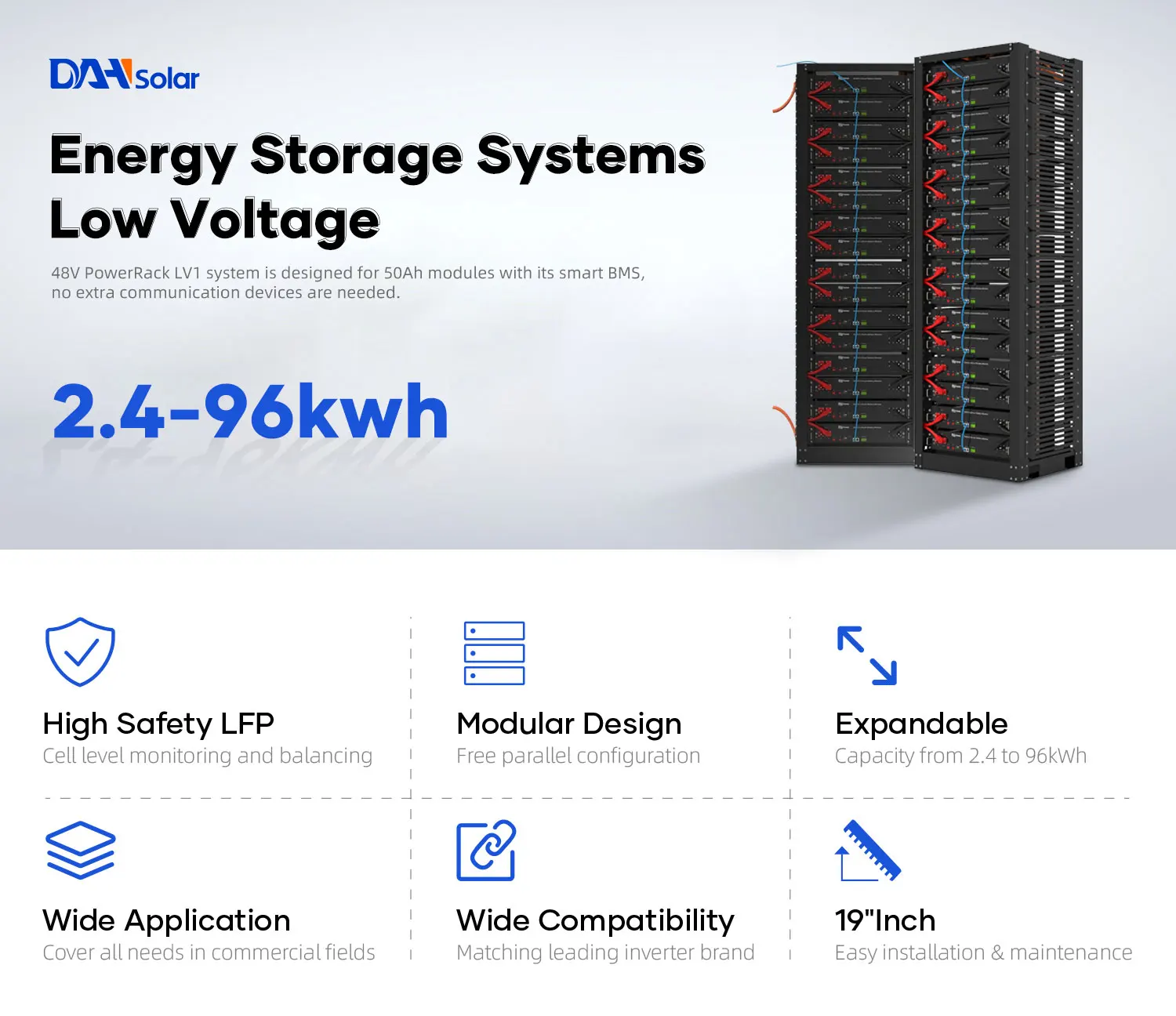

Model | Rack System LV1 | ||
Rack Type | PowerRack LV1-10P | PowerRack LV1-16P | |
Battery Module Type | B4850 | B4850 | |
Battery Module Quantity | 10 units | 16 units | |
Battery Type | LFP | LFP | |
Nominal Battery Energy | 24kWh | 38.4kWh | |
Nominal Capacity | 500Ah | 900Ah | |
Nominal Voltage | 48V | 48V | |
Operating Vol. Range | 42-54V | 42- -54V | |
Nominal Power Output | 12kW | 19.2kW | |
Max. Power Output | 24kW | 38.4kW | |
Recommend Charging Current | 250A | 400A | |
Recommend Discharging Current | 250A | 400A | |
Net Weight | 310kg | 480kg | |
Dimension(W*D*H) | 601 *510*1290mm | 601 *510*1957mm | |
Module Quantity and Configuration | 10 Units in parallel | 16 Units in parallel | |

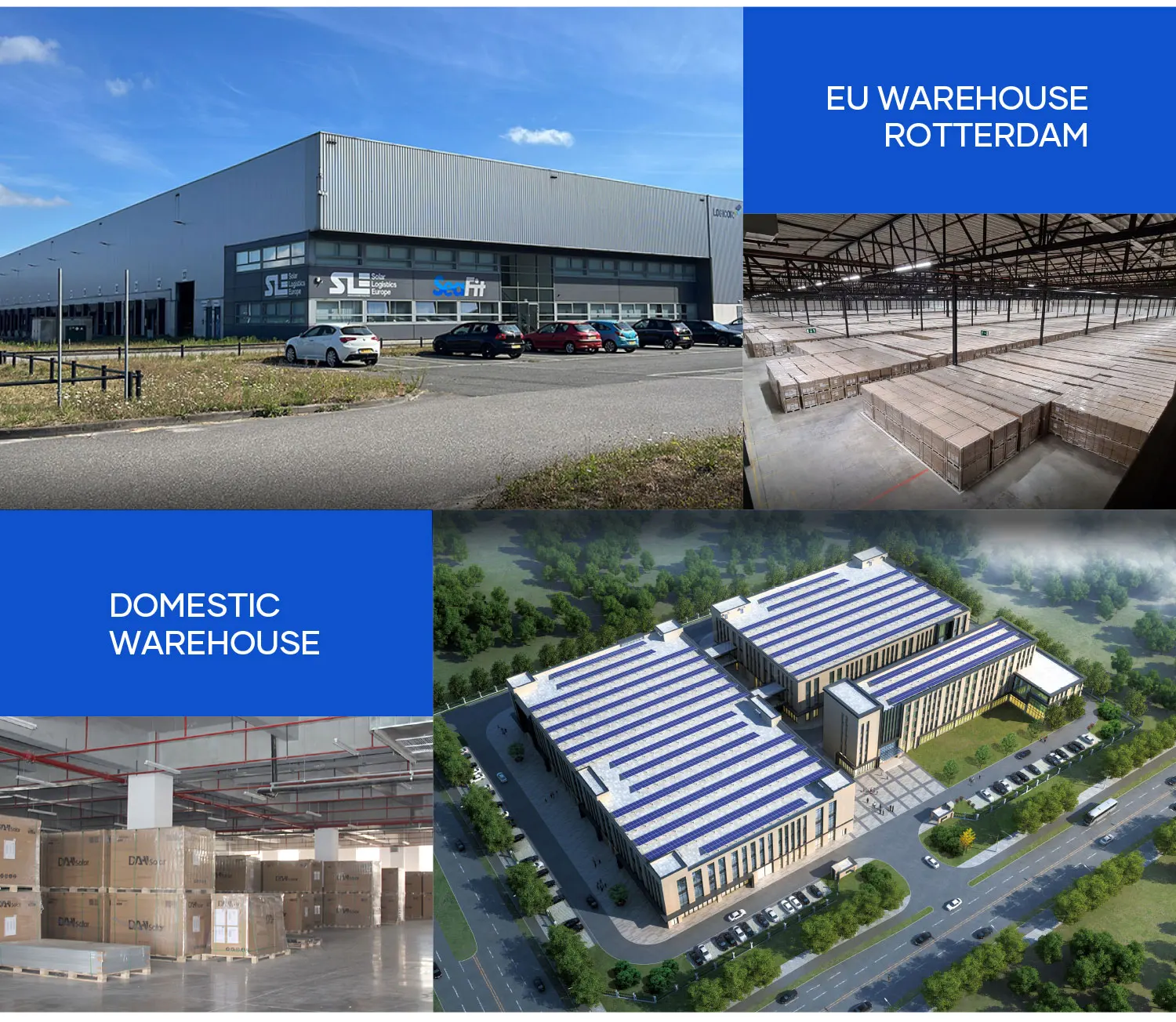

DAH Warehouse

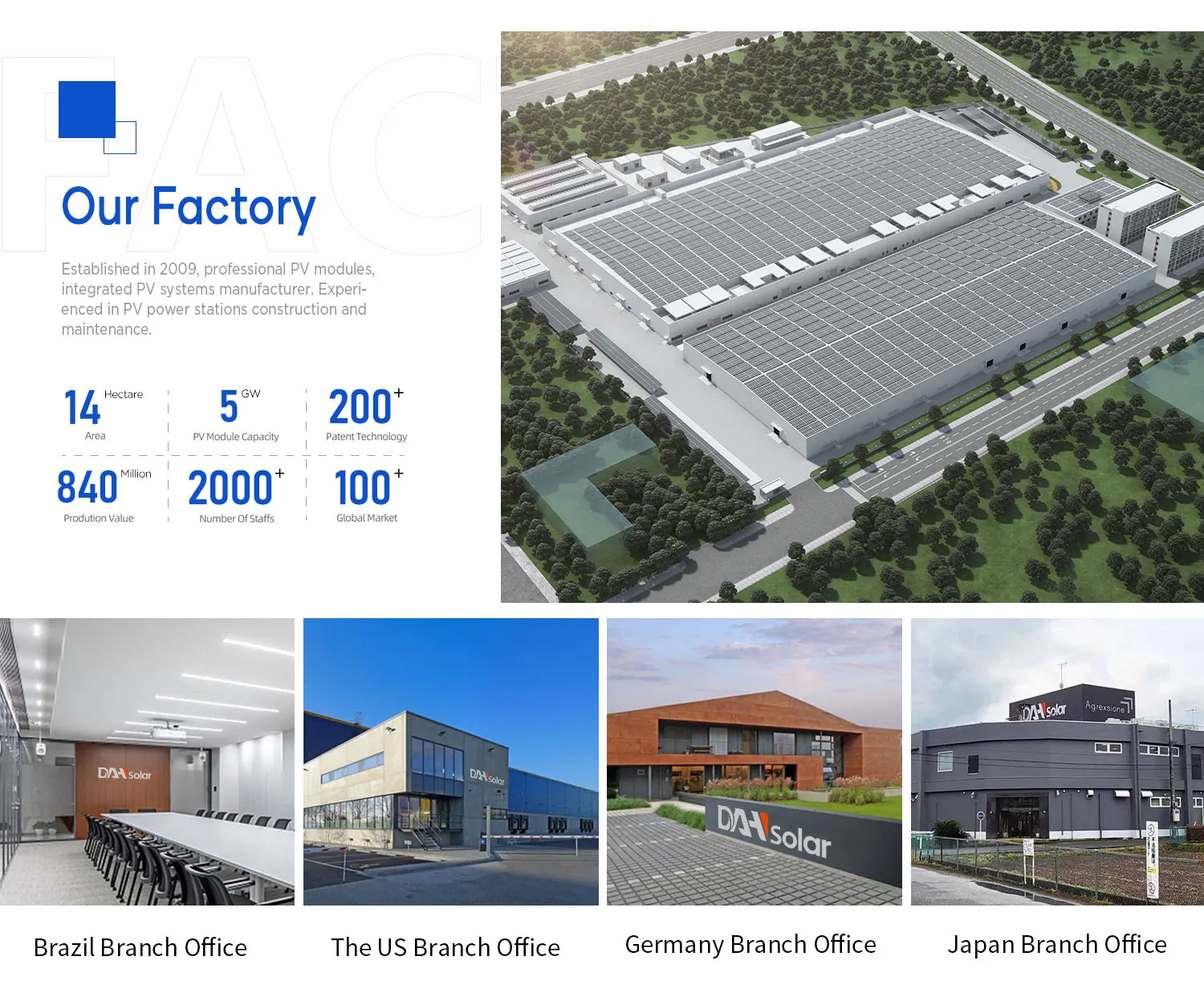

Our Factory

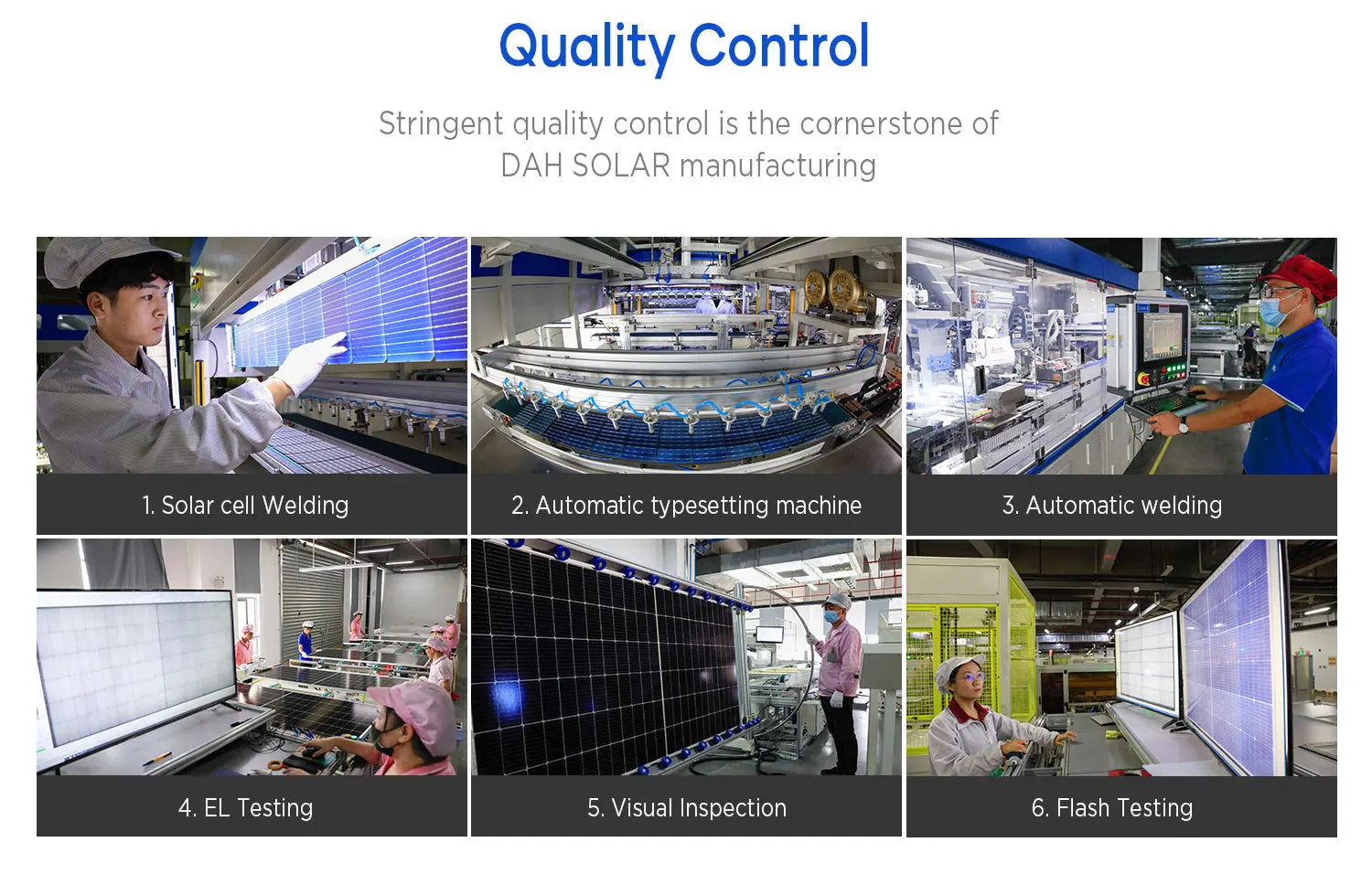

Quality Control
Certificate

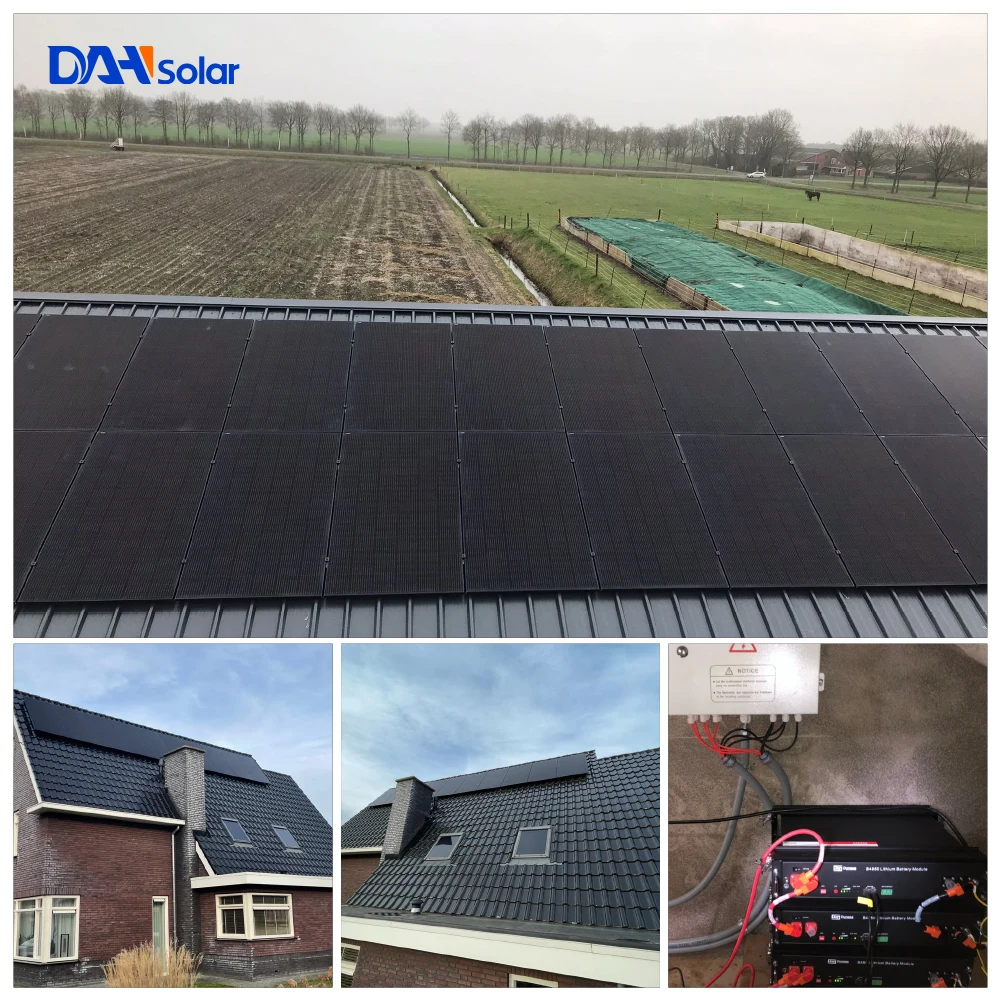

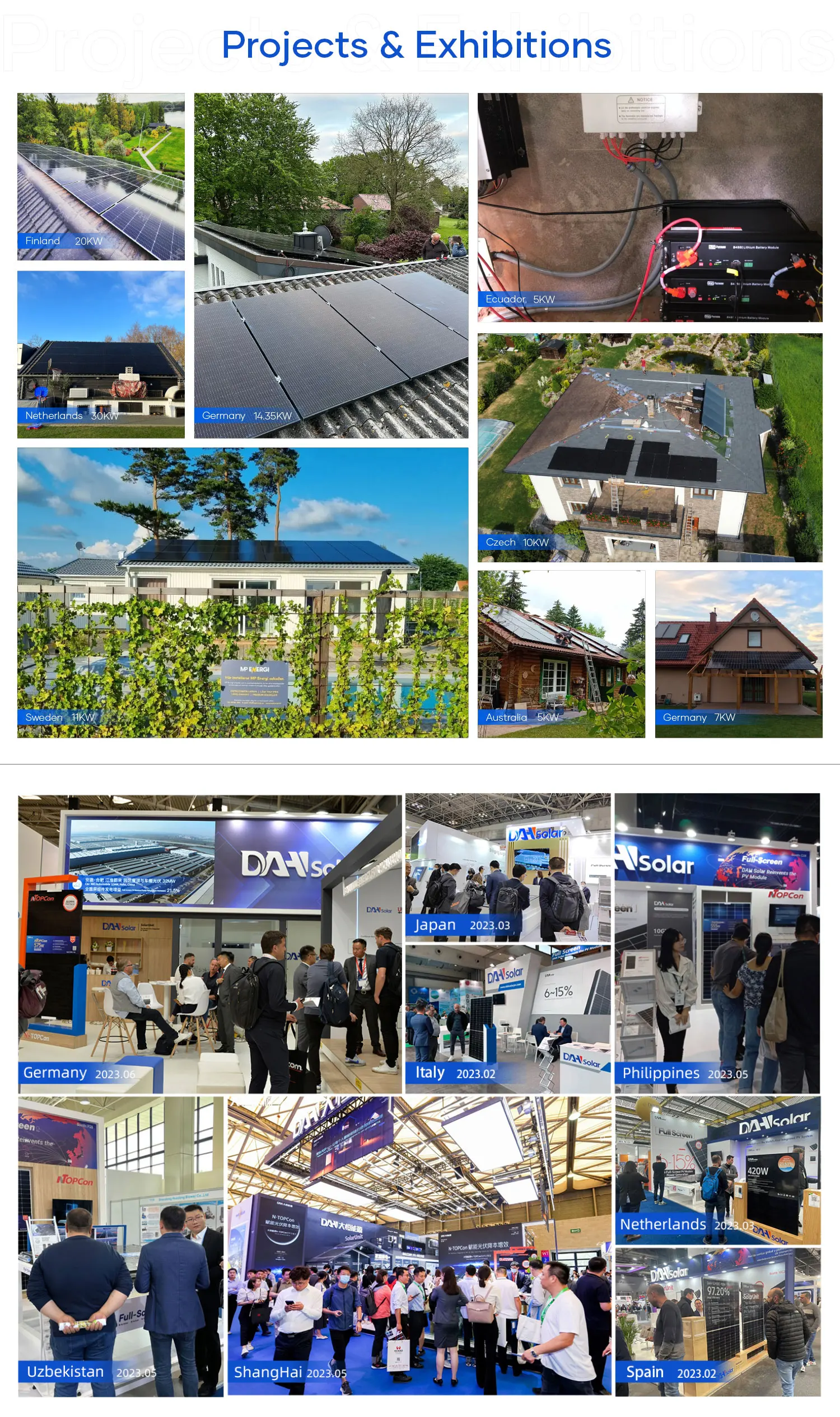

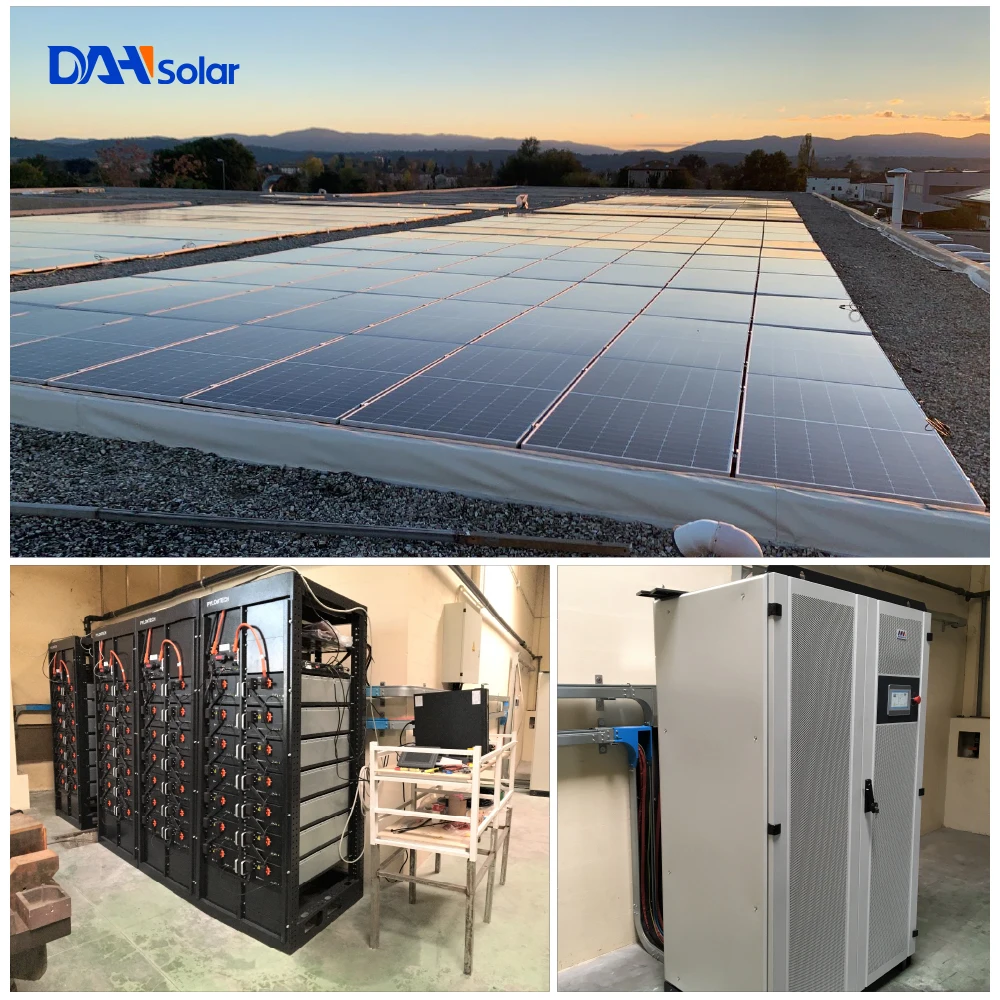

Solar Projects
