Product Overview
Description

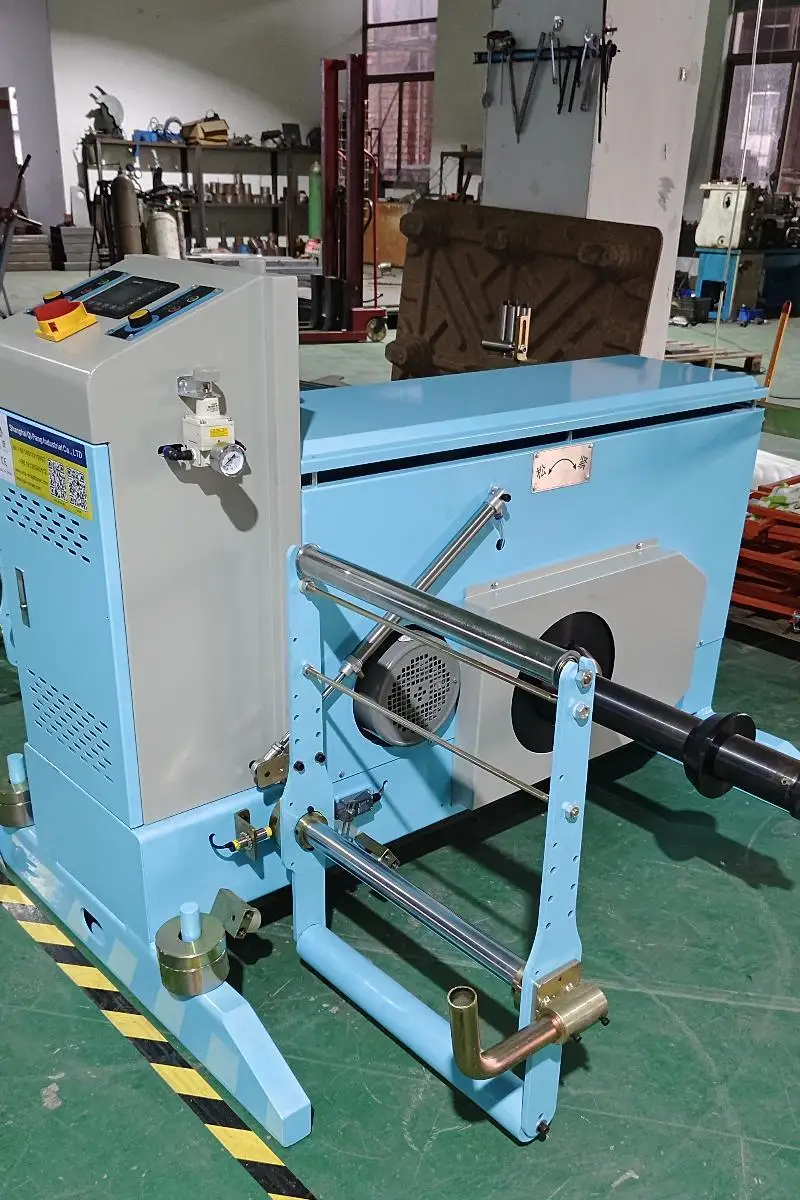

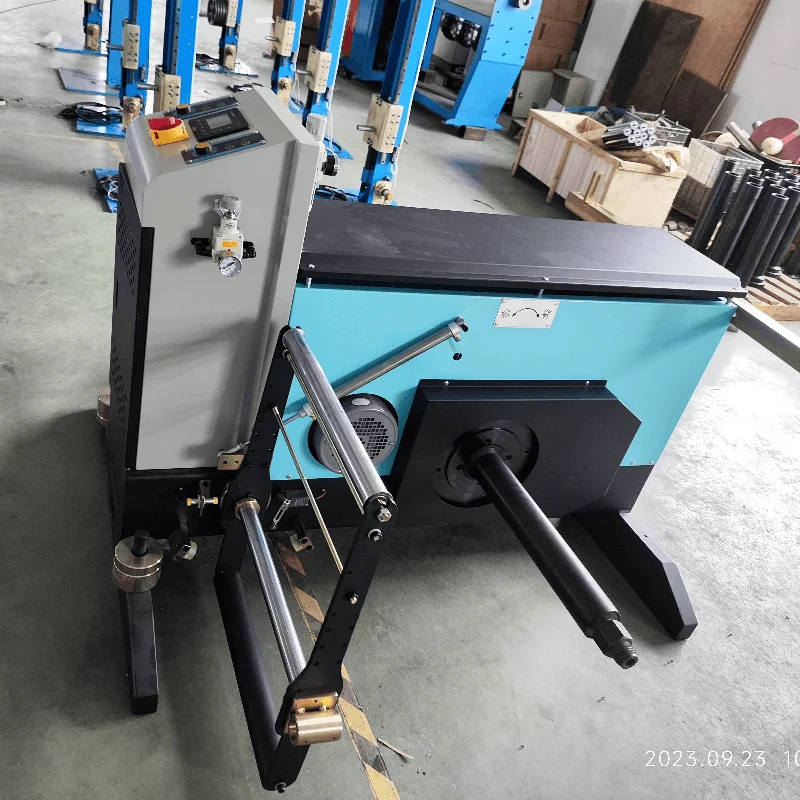

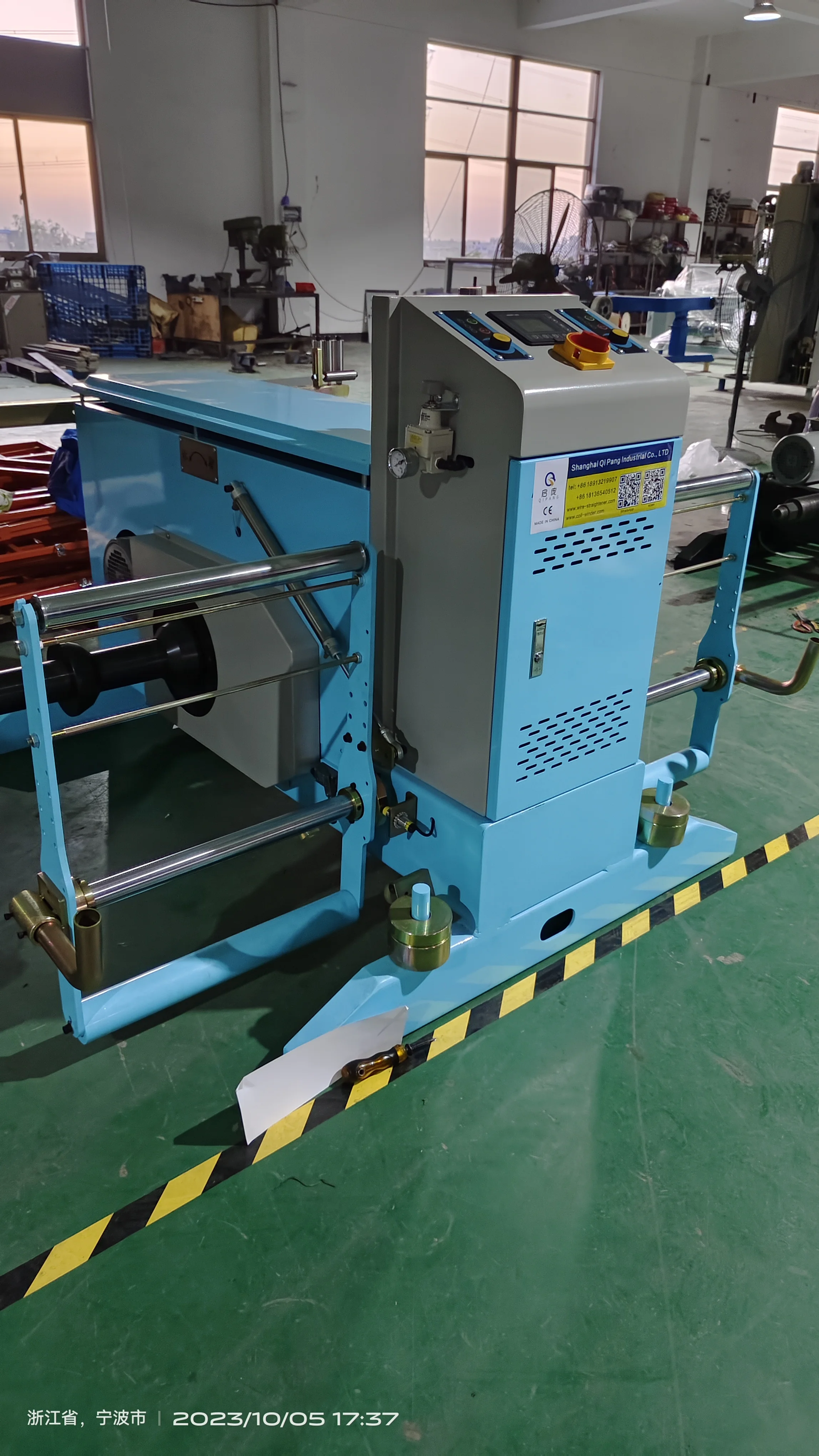

Chinese Factory Tension Control Multi-head Pay-off Rack Pay-off speed Max 250m/min Strander Pay-off Stand
Products Description

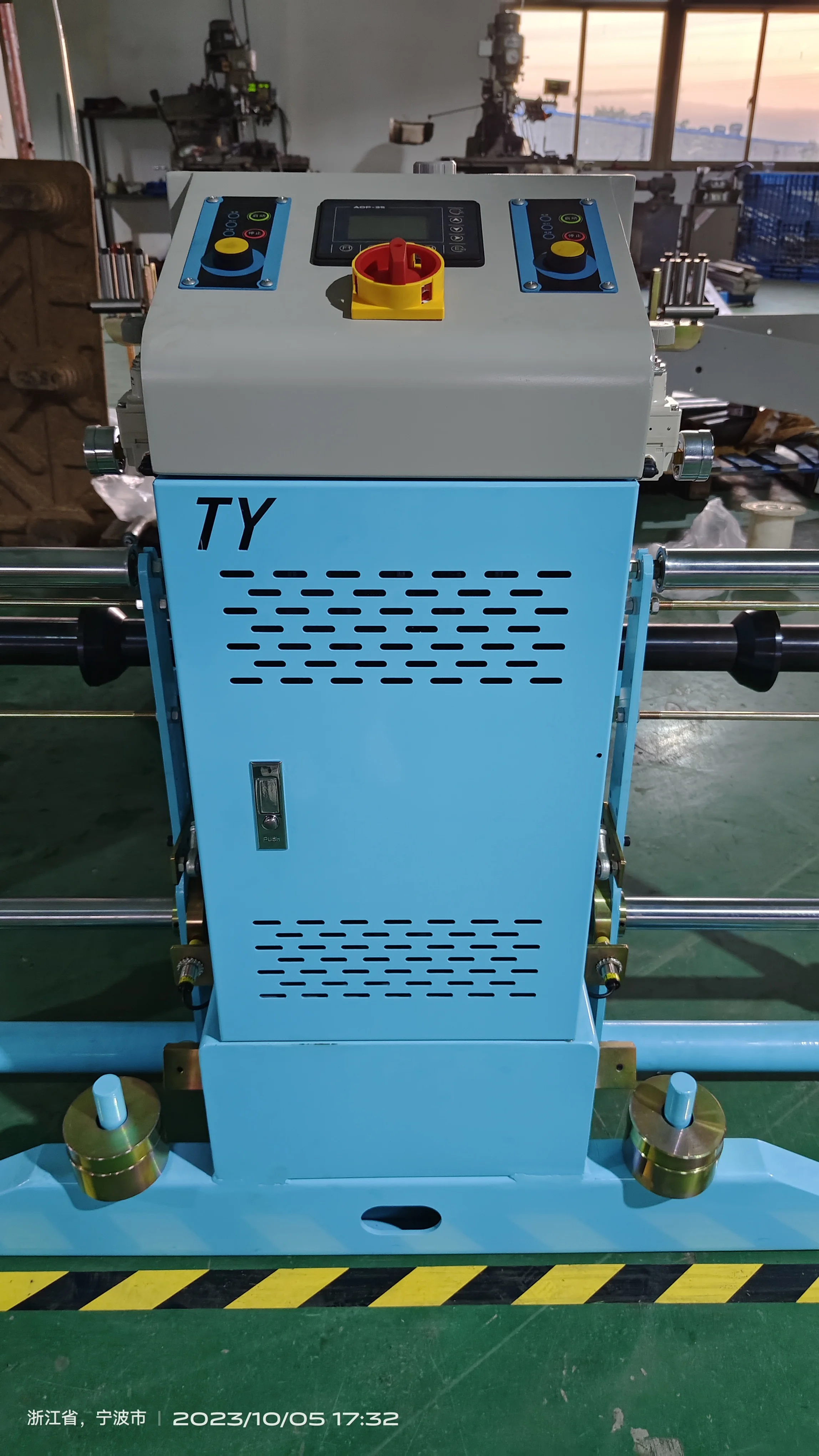

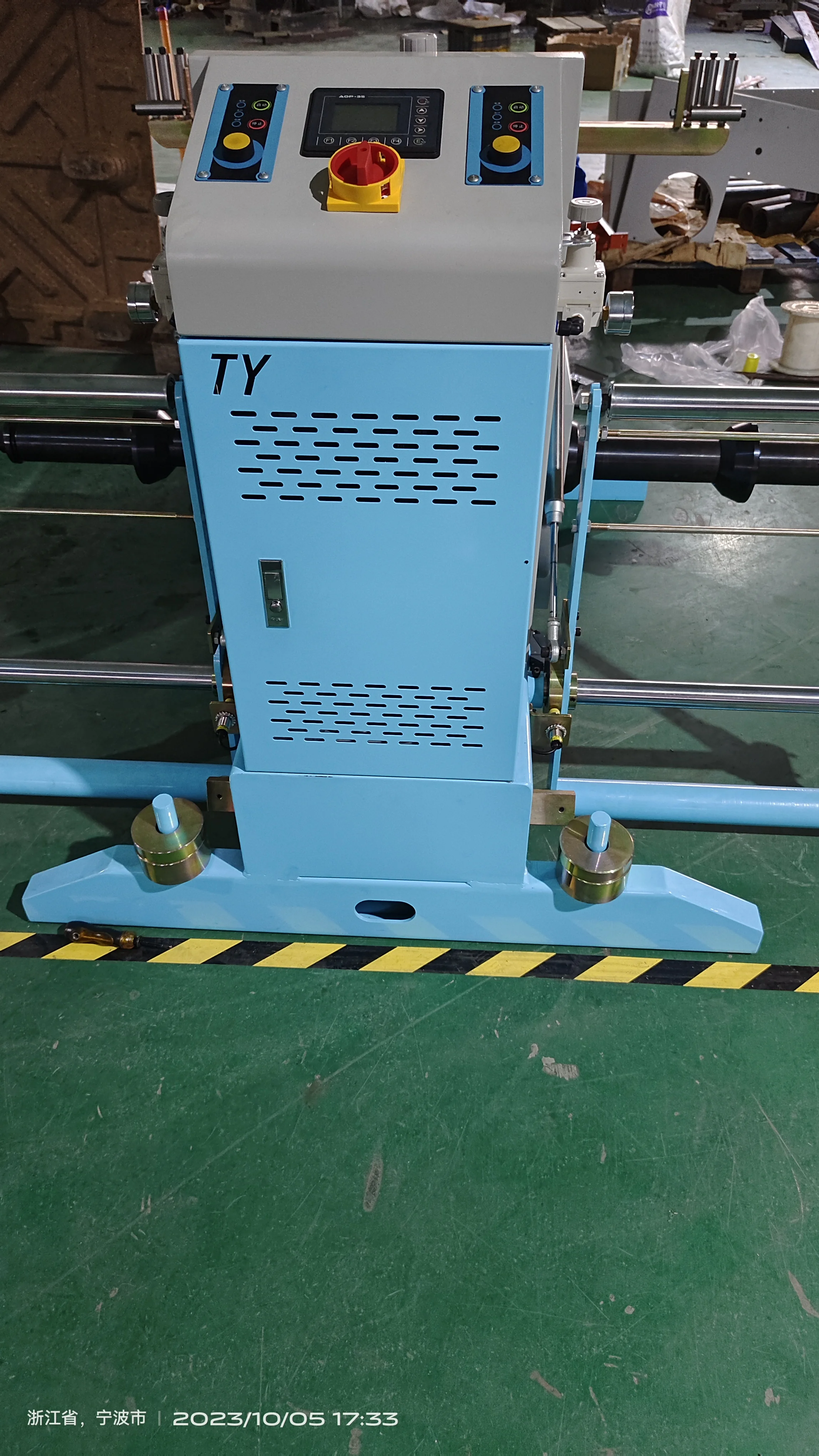

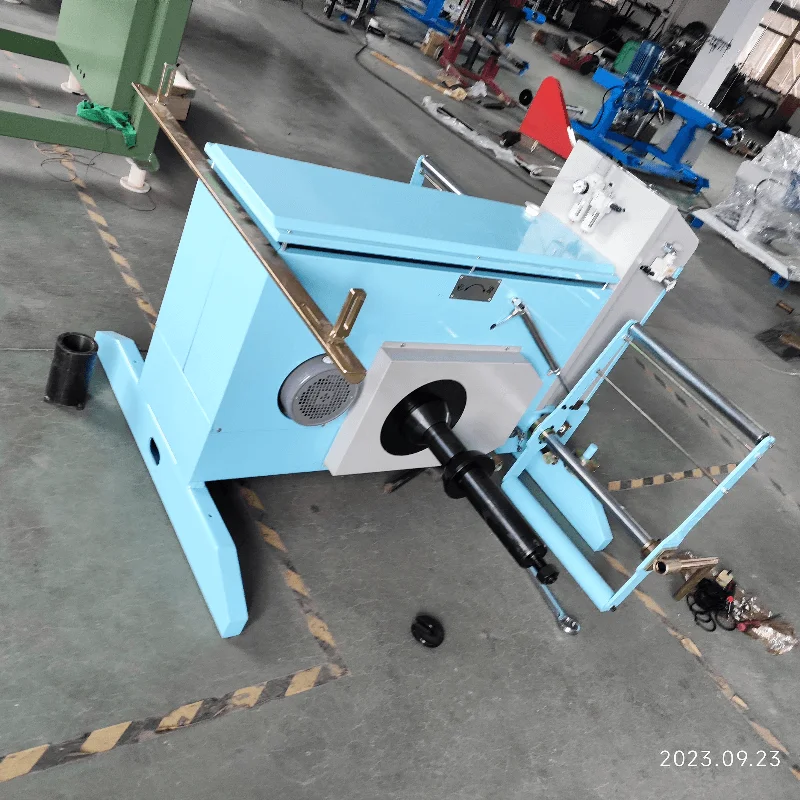

φ630MM multi-head draw and wire - dual axis active pay-off stand, with stranding machine, power pay-off stand.
Strander multi-strand and wire pay-off operation, or used for single wire pay-off.
Performance characteristics:
1.Strander pay-off stand is a device supporting multi-head wire drawing machine. The utility model solves the problems of pay-off failure and stoppage of the busbar of multi-head wire drawing machine. The production efficiency and qualified rate of finished products are improved, and the labor intensity is reduced.
2. Strander pay-off stand is a double-disc pay-off equipment with constant tension and no torsion. It works together with the high-speed strander. And the left and right two lines do not interfere with each other, independent payout, easy to operate, effectively save space.
2. Strander pay-off stand is a double-disc pay-off equipment with constant tension and no torsion. It works together with the high-speed strander. And the left and right two lines do not interfere with each other, independent payout, easy to operate, effectively save space.
Model name | 630 Multi-heads drawing two-axis active Pay-off frame(integrated control system) |
Single diameter | Line diameter area:0.05-2.00㎡ dual axis active pay-off stand |
Pay-off speed | 250m/min Max 250m/min dual axis active pay-off stand |
Bobbin size | 0D 630* 0uter Width 475*ID 127*Inner Width 400mm |
Pay-off method | Two-axis constant tension single-layer active pay-off (1.5KW-6P/AC brake motor + frequency conversion system + synchronous belt) |
Speed adjusted | The sensor transmits the pendulum signal to the frequency converter to control the speed of pay-off and keep pace with the main machine. |
Brakemode | The dish-spring brake pads inside the motor brake the motor |

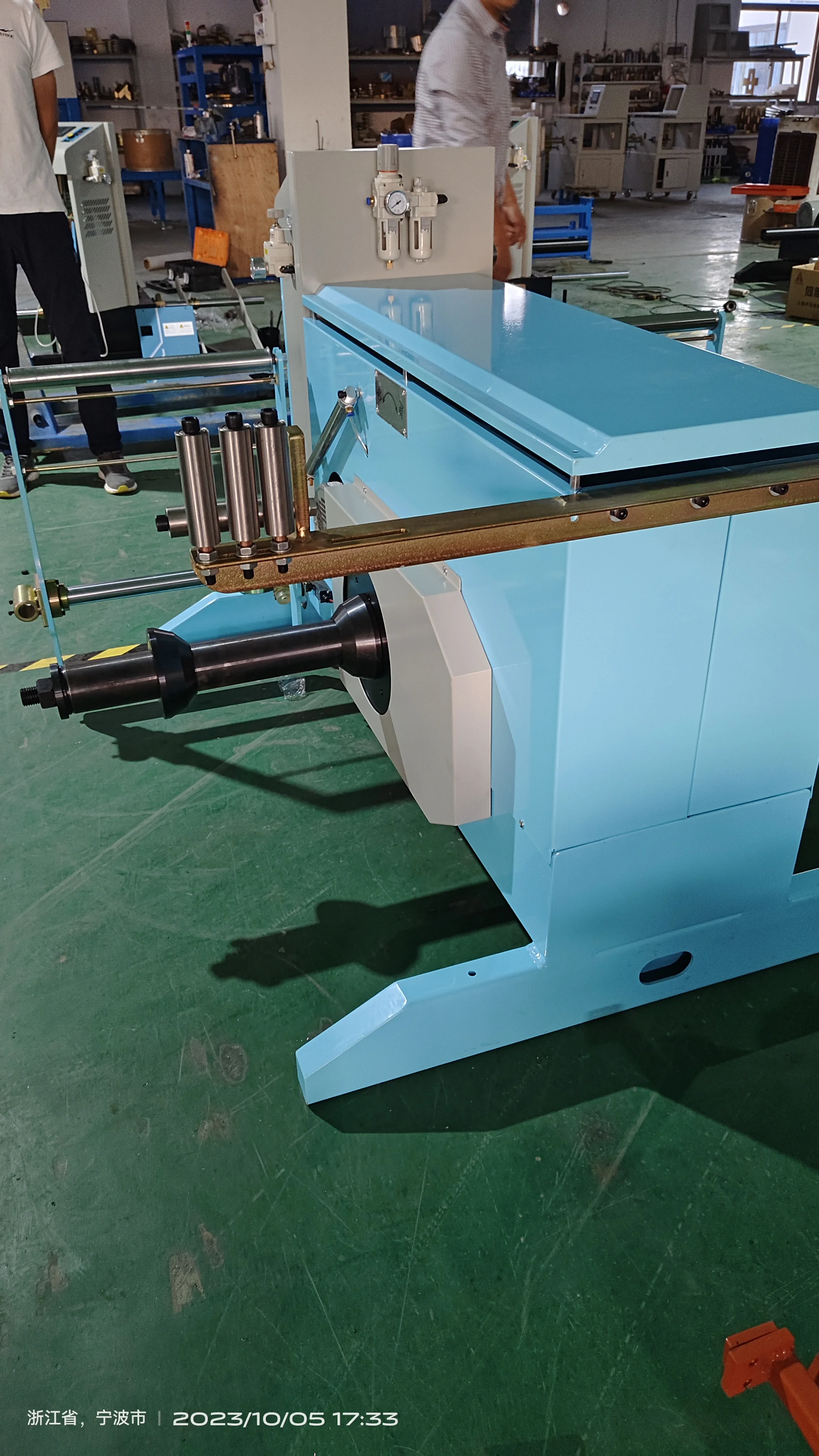

Tension control | Cylinder type pneumatic pendulum tension + precision pressure regulator |

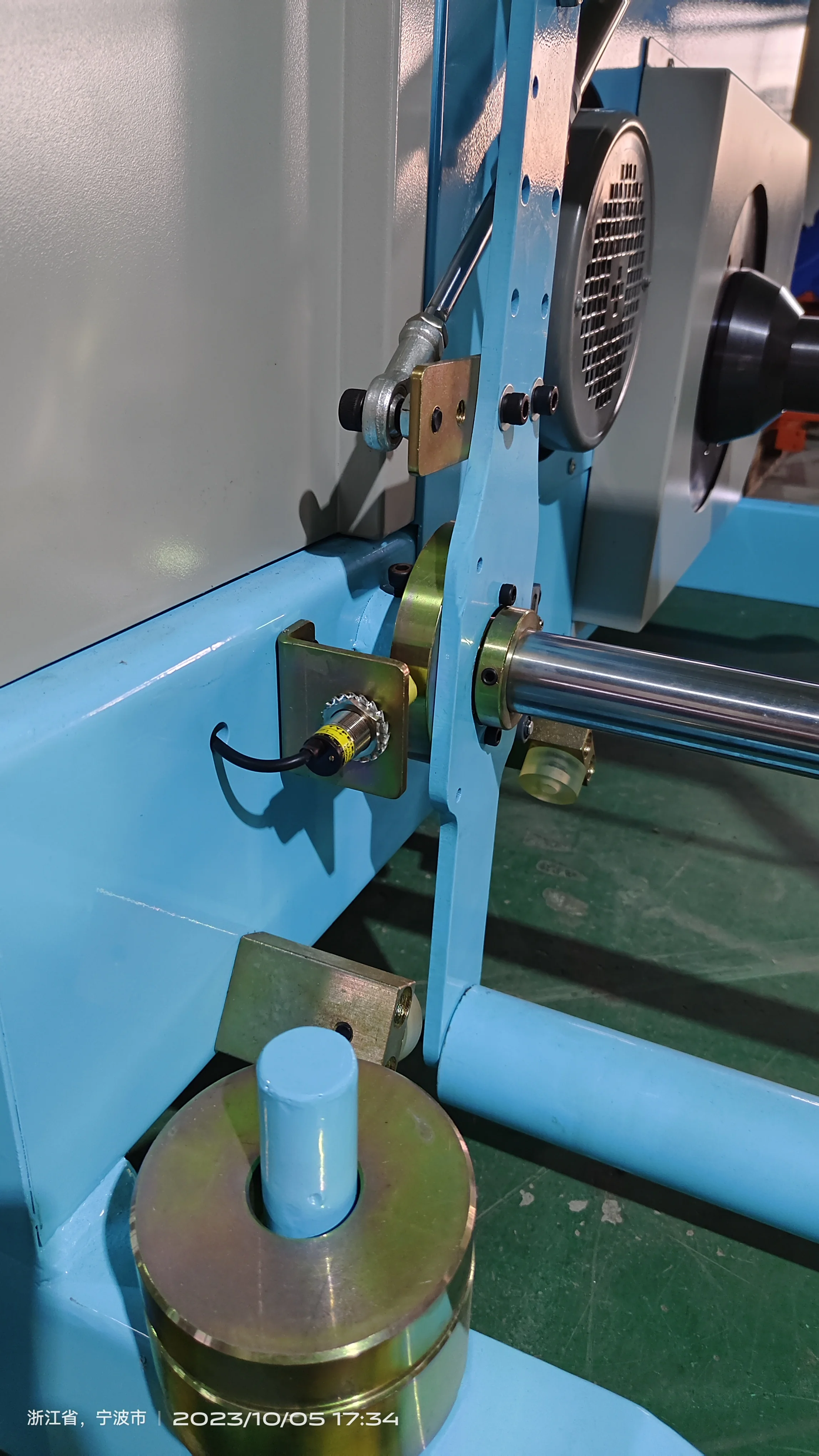

Payoffspeed | The motor speed is controlled by the feedback signal from the displacement sensor to the inverter |
Numberof pay-off | 7-13 lines dual axis active pay-off stand |

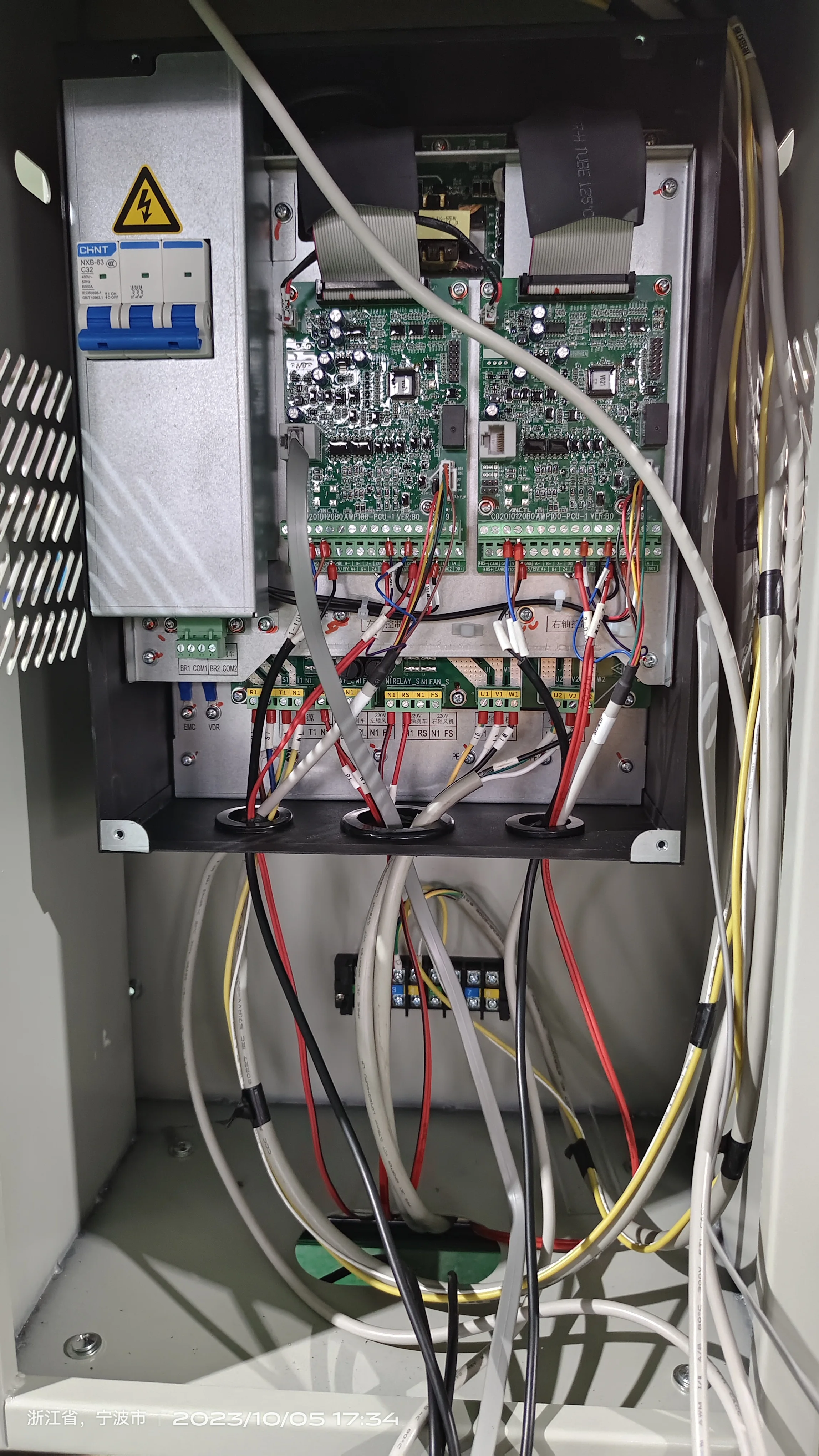

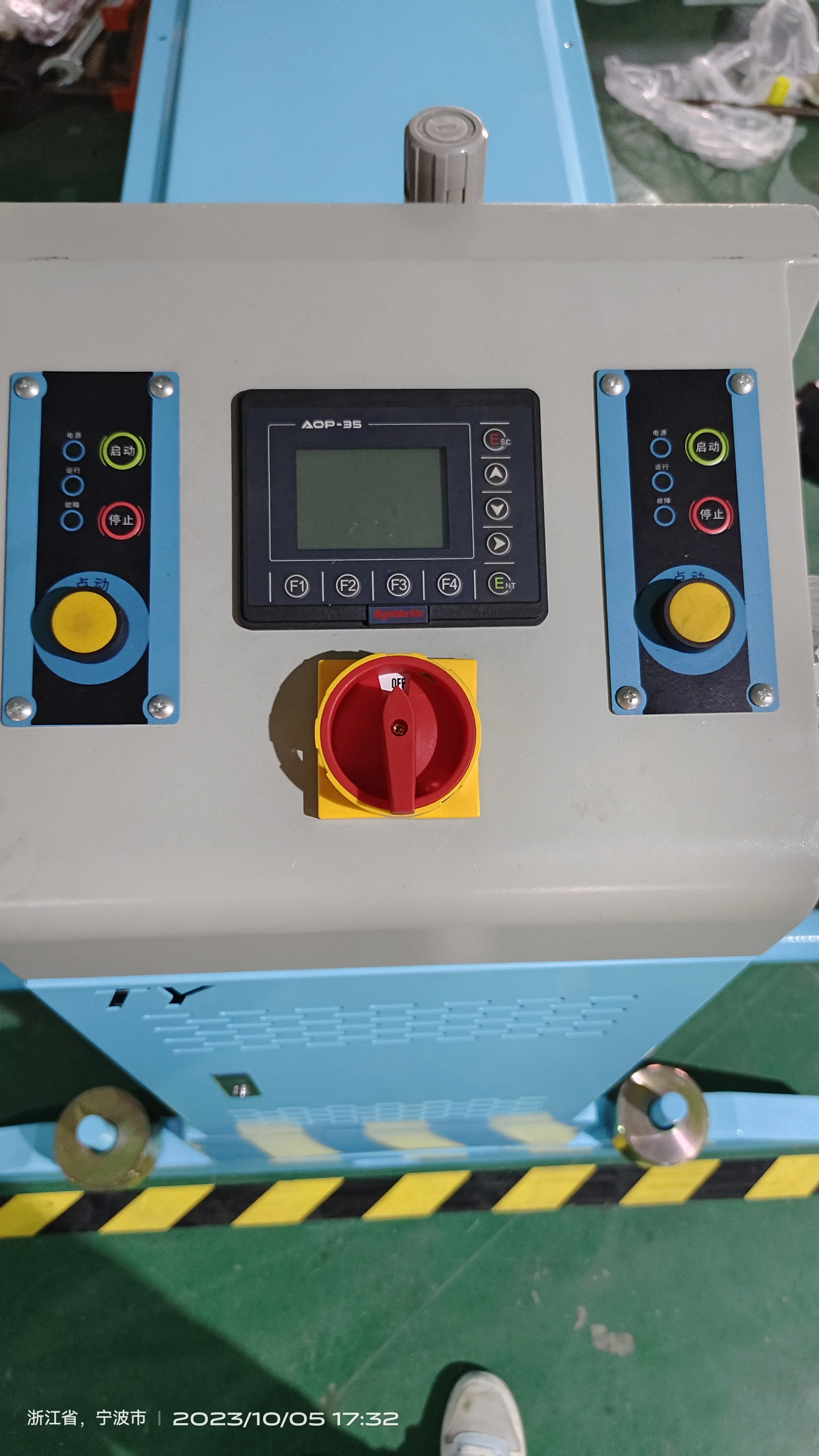

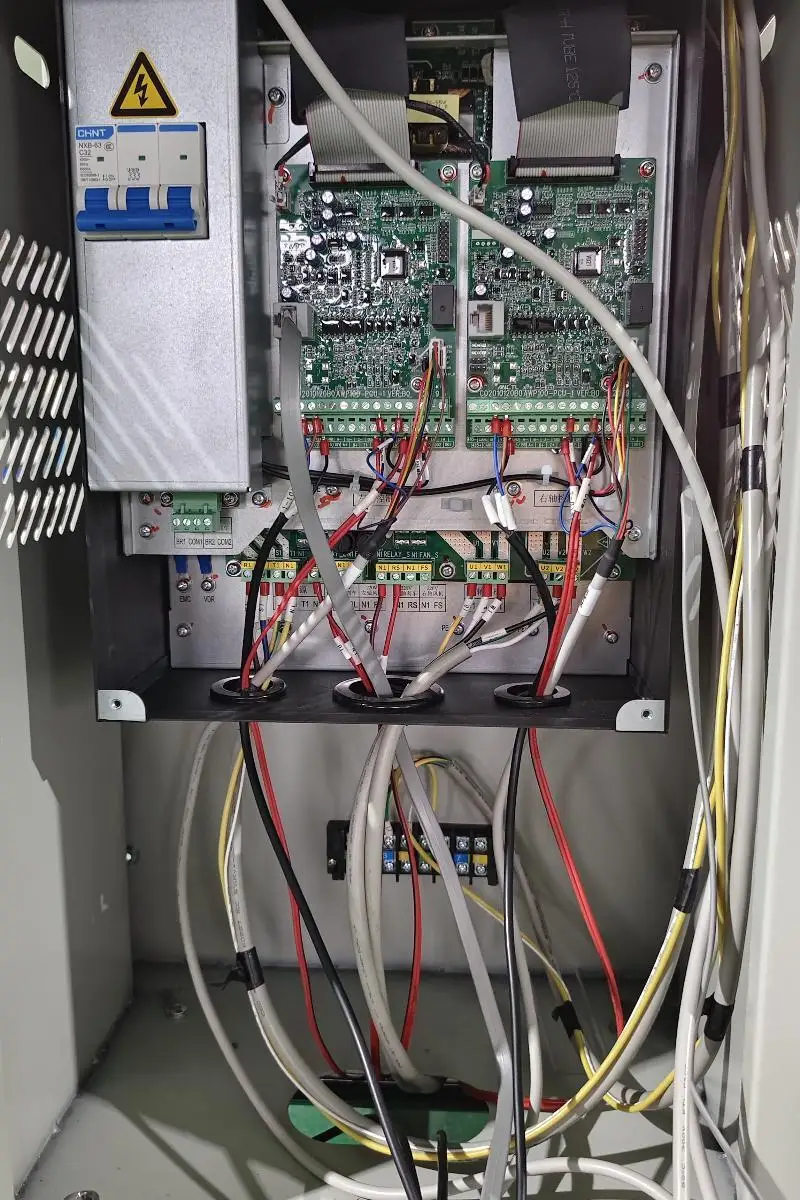

Electronic controlsystem | Integrated dual axis active pay-off stand |
Protection mode | Automatic shutdown after disconnection |

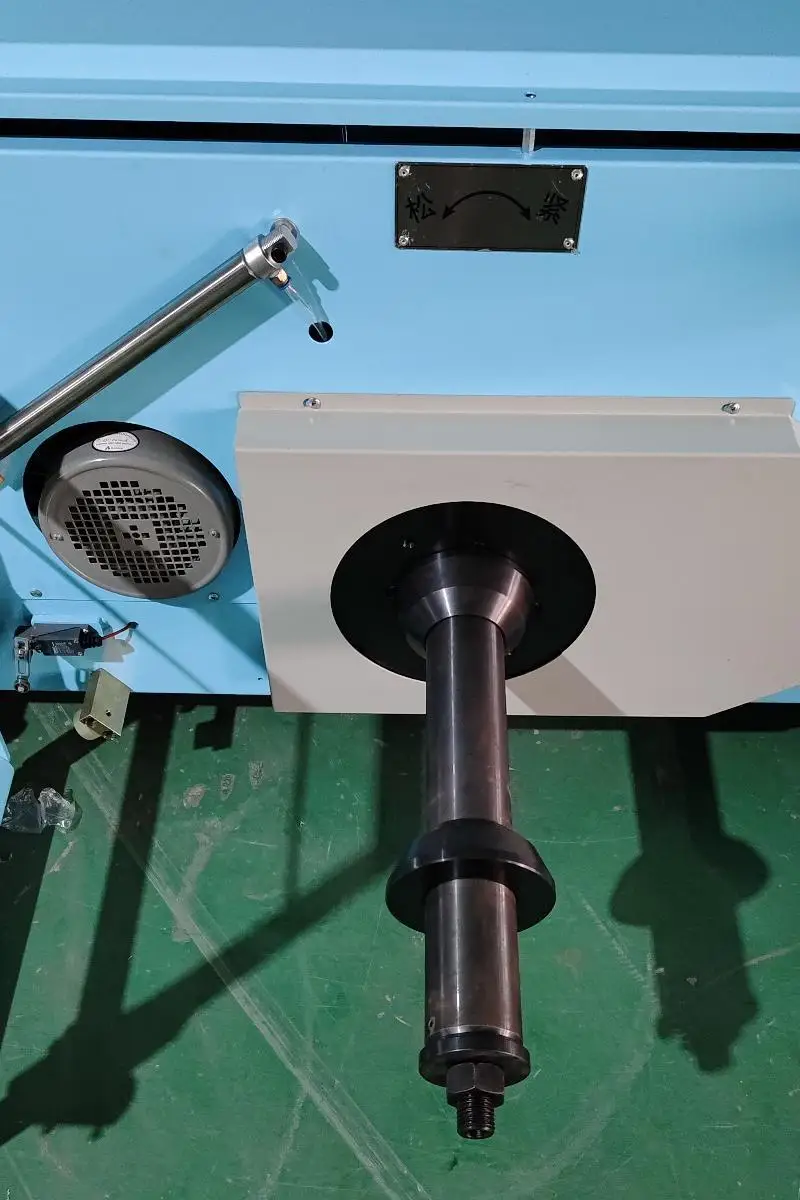

Bobbin locking | Thread coil locking threaded thread locking |
Bobbin loading and unloading | Manually by hydraulic forklift (provided by the customer) |
Strander pay-off stand with precise tension control and high linear speed this pay off systems is specifically suited to support the production of a variety of fiber optic cable configurations at the highest quality standards.
Chinese Factory Tension Control Multi-head Pay-off Rack Pay-off speed Max 250m/min Strander Pay-off Stand
