Acoustic Mass Loaded Vinyl Pipe Insulation Foam Lagging
- Category: >>>
- Supplier: Suzhou Dezhibang Building Material Co. Ltd.
Share on (1600977683141):
Product Overview
Description

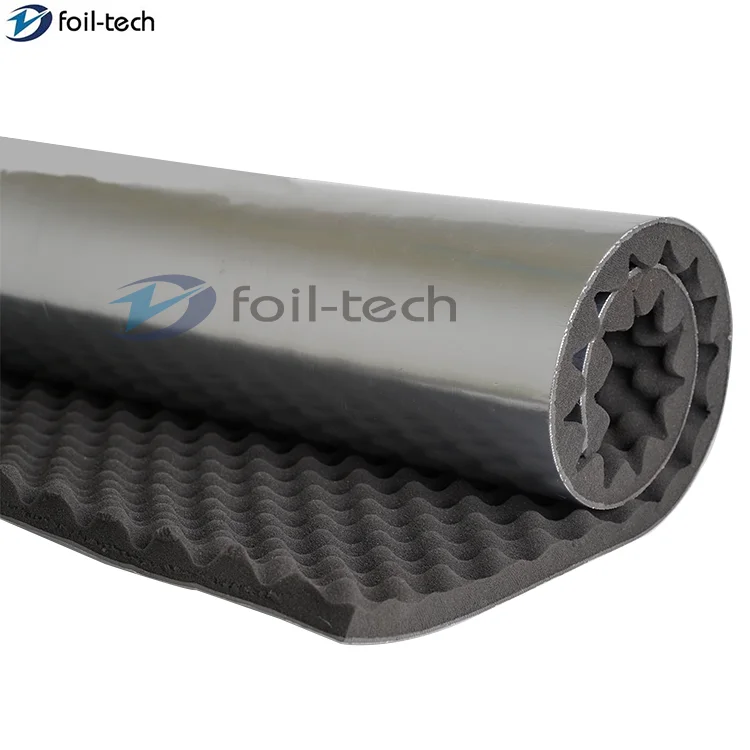

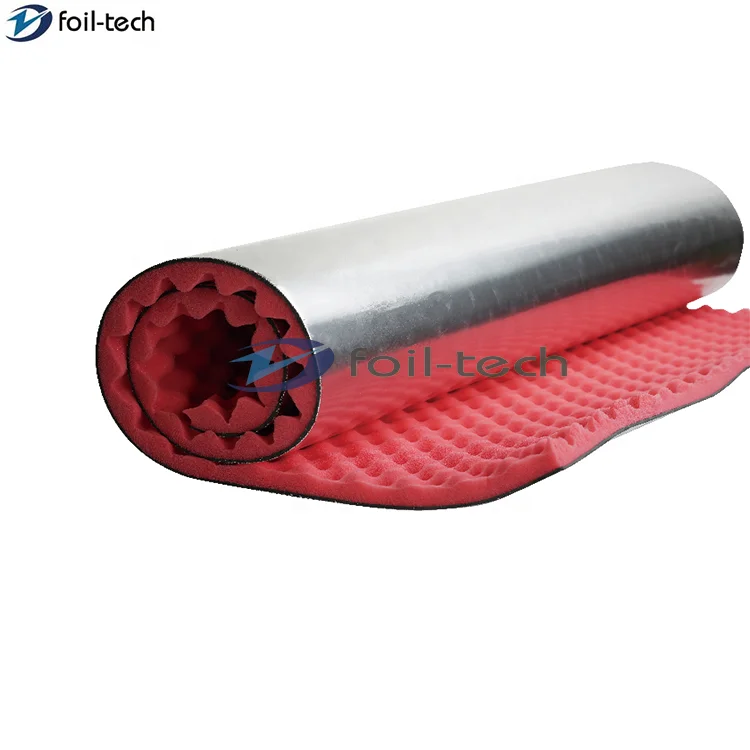

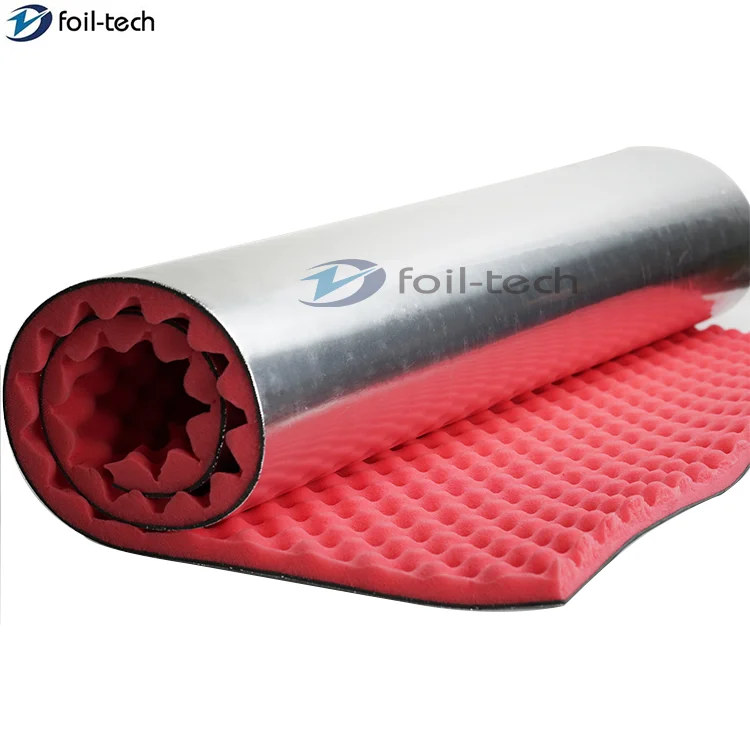

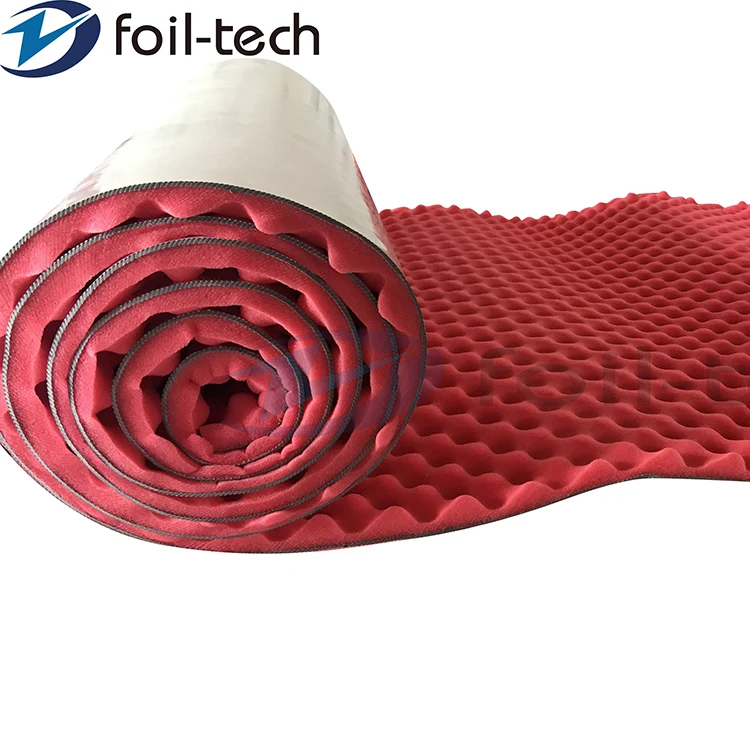

DZ-FOIL Acoustic Pipe Lagging:

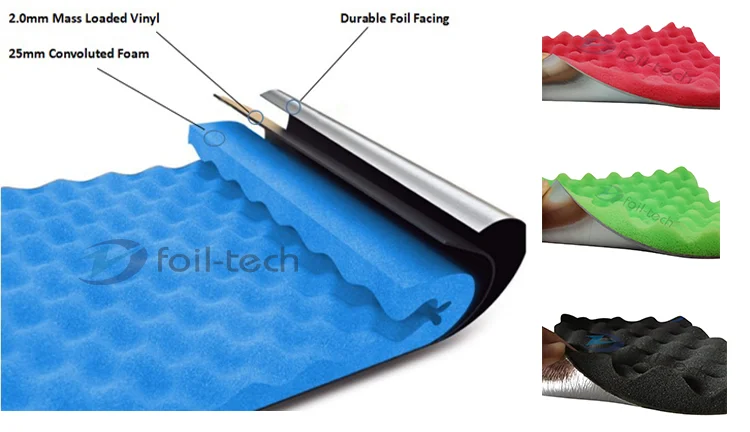

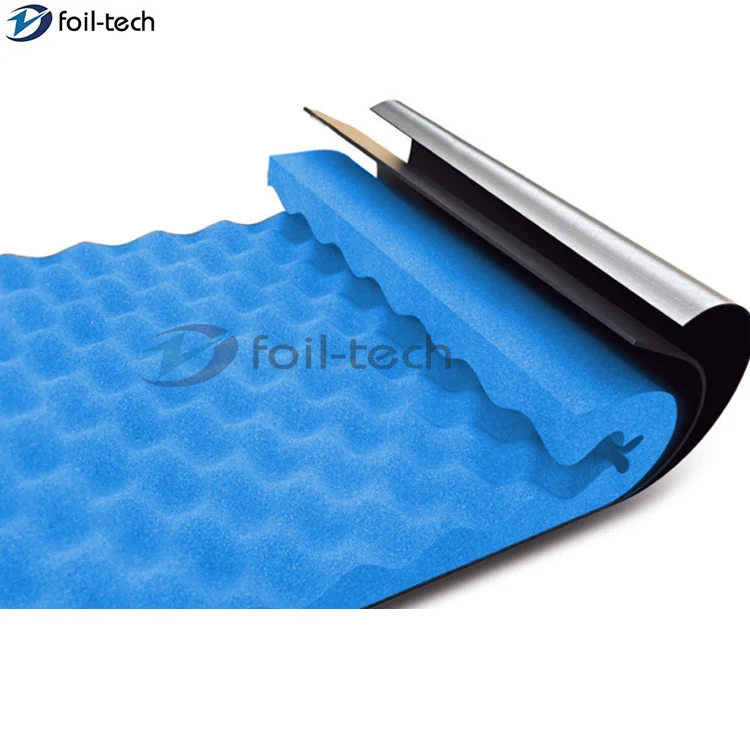

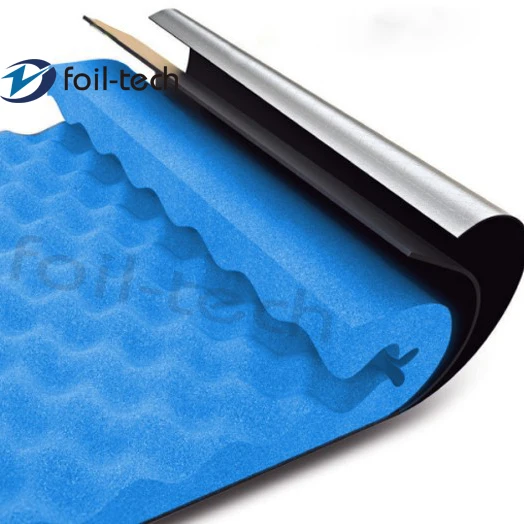

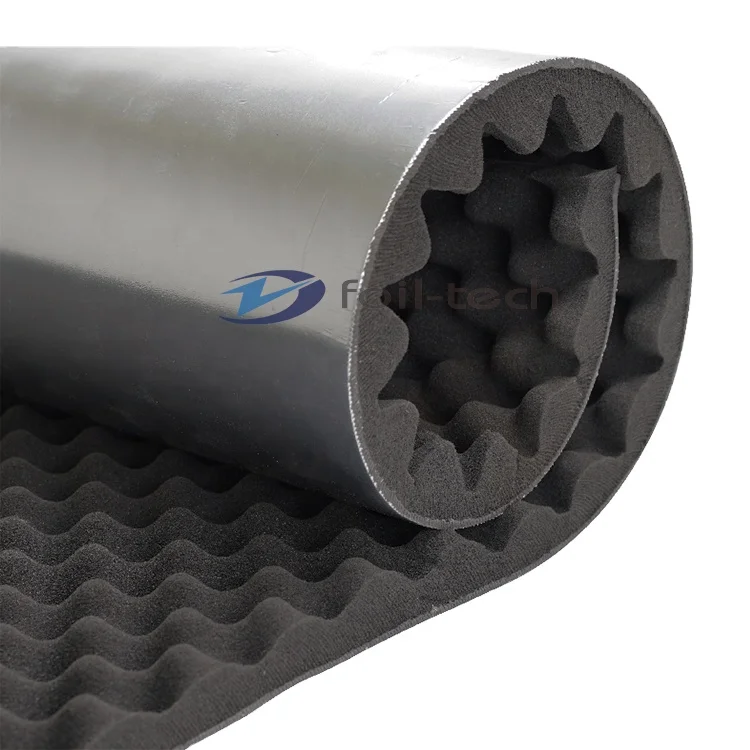

It is a composite material consisting of three layers: an aluminum foil that provides mechanical strength and corrosion resistance; a high density flexible limp available in different weights to increases the mass and to improve the sound insulation; a convoluted polyurethane foam especially formulated to be moisture resistant to decouple the heavy barrier from the noise source.
DZ-FOIL Acoustic Pipe Lagging is the ideal product for acoustic insulation of pipelines, HVAC ducts, outlet columns, heat exchangers, compressors and engines.
Product Name | DZFOIL Acoustic Pipe Lagging |
Material | 25mm wave foam+2mm mass loaded vinyl+aluminum foil |
Roll Size | 1m*4m, 1.2m*3m, 1.35m*3m, etc |
Pre-cut Size | 1200mm*300mm, 675mm*500mm, 1000mm*600mm, etc |
Weight | 3kg/m2, 5kg/m2, 8kg/m2 |
Thickness | 25-30mm or customized |
Foam Density | 21kg/m3 |
OperatingTemperature | -20 - 100 ℃ |
Flammability | AS1530.3, 1999 |
Colour | Red, Blue, Black, OR Customized |
Packing | PE bag and Pallet |
Application | Industries Sound Insulation, Pipe Lagging |
Delivery Time | 7-10 Days |

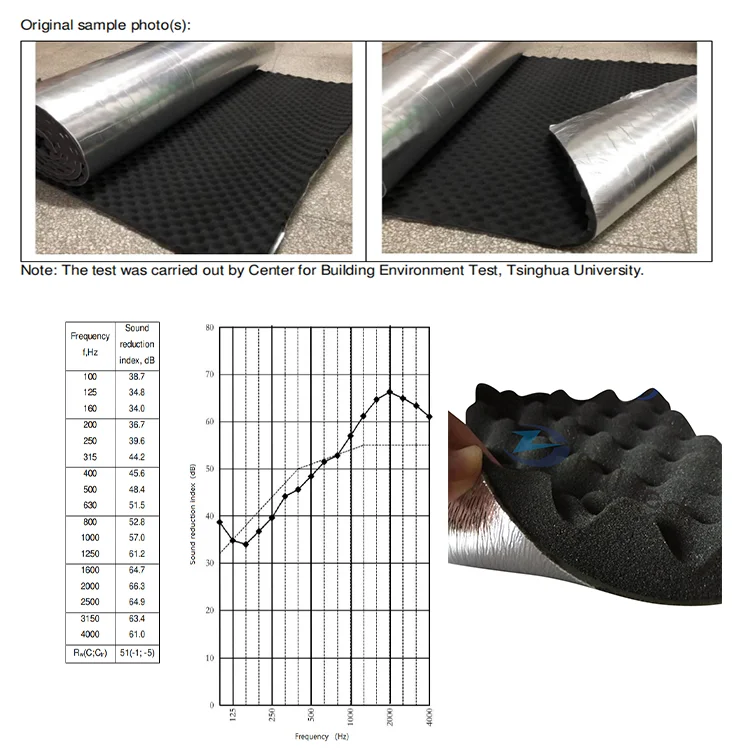

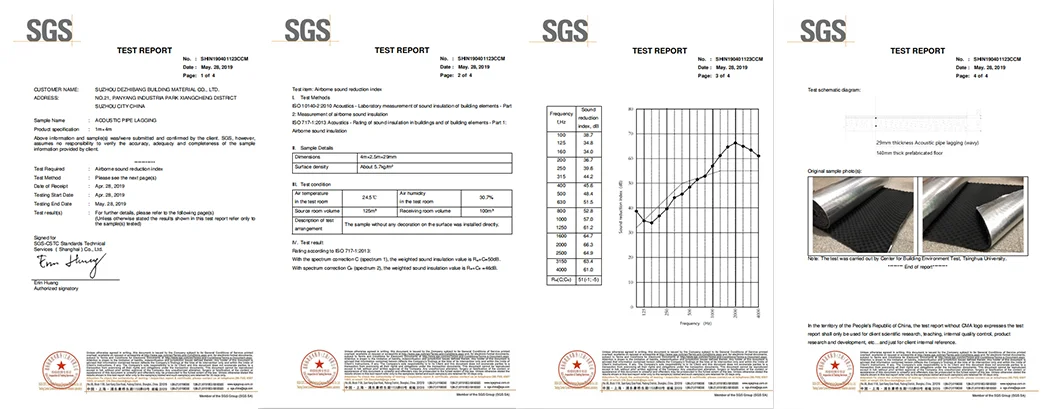

Sample Name: ACOUSTIC PIPE LAGGING
Dimensions: 4m*2.5m*29mm
Surface density: About 5.7kg/m2
Surface density: About 5.7kg/m2
Test Methods: ISO 10140-2: 2010 Acoustics - Laboratory measurement of sound insulation of building elements - Part 2: Measurement of airborne sound insulation.
ISO 717-1: 2013 Acoustics - Rating of sound insulation in buildings and of building elements - Part 1: Airborne sound insulation
ISO 717-1: 2013 Acoustics - Rating of sound insulation in buildings and of building elements - Part 1: Airborne sound insulation
Test result:
Rating according to ISO 717-1:2013:
With the spectrum correction C (spectrum 1), the weighted sound insulation value is Rw+C=50dB.
With spectrum correction Ctr (spectrum 2), the weighted sound insulation value is Rw+Ctr =46dB.
Suzhou Dezhibang Building Material CO.,LTD DZFOIL® is a Global Supplier of High Quality Aluminum Foil Thermal Insulation & Acoustic Lagging .We Offer a Complete Line of General Insulation and Building Materials for Industrial, Commercial and Residential Applications. Acoustic Pipe Lagging---It Can be Used in Commercial Buildings-Offices, Hospital, Accommodation Buildings etc.
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
