Hot Sell 1/2in 1in 2 inch Brass Valve 2 Way Steam High Temperature Pneumatic Valve 24V Dc 2 Way Solenoid Valve
- Category: >>>
- Supplier: Ningbo Mingyuanhongda Automation Co. Ltd.
Share on (1600977686311):
Product Overview
Description
Products Description
Product Parameter
Product name | Solenoid Valve |
Material | Brass |
Seal Material | PTFE |
Medium | Steam,hot water,oil,air |
Working Pressure | 0.4~16bar |
Voltage | AC110V/AC220V |
Working Temperature | 0~180℃ |
Working Tpye | Pilot Operate |
Duty Cycle | ED 100% |
Degree of pretection | IP65 |
Product Features
MYPS-series 2-way piston steam solenoid valve 1/4"~ 2”
working medium: steam, high temperature liquid
Medium temperature: 0 ~180℃
Working pressure: 0.1 ~16bar (details see specification table)
Working type: pilot operated ( NC/NO )
Valve body material: brass/SS304
Sealing material: PTFE
Interface: G thread, NPT thread
Working voltage: plastic seal IP65 H degree
NC: AC220-240V、AC110V 50/60Hz 20VA DC24V 20W
NO: AC220-240V、AC110V 50/60Hz 23VA DC24V 28W
Medium temperature: 0 ~180℃
Working pressure: 0.1 ~16bar (details see specification table)
Working type: pilot operated ( NC/NO )
Valve body material: brass/SS304
Sealing material: PTFE
Interface: G thread, NPT thread
Working voltage: plastic seal IP65 H degree
NC: AC220-240V、AC110V 50/60Hz 20VA DC24V 20W
NO: AC220-240V、AC110V 50/60Hz 23VA DC24V 28W

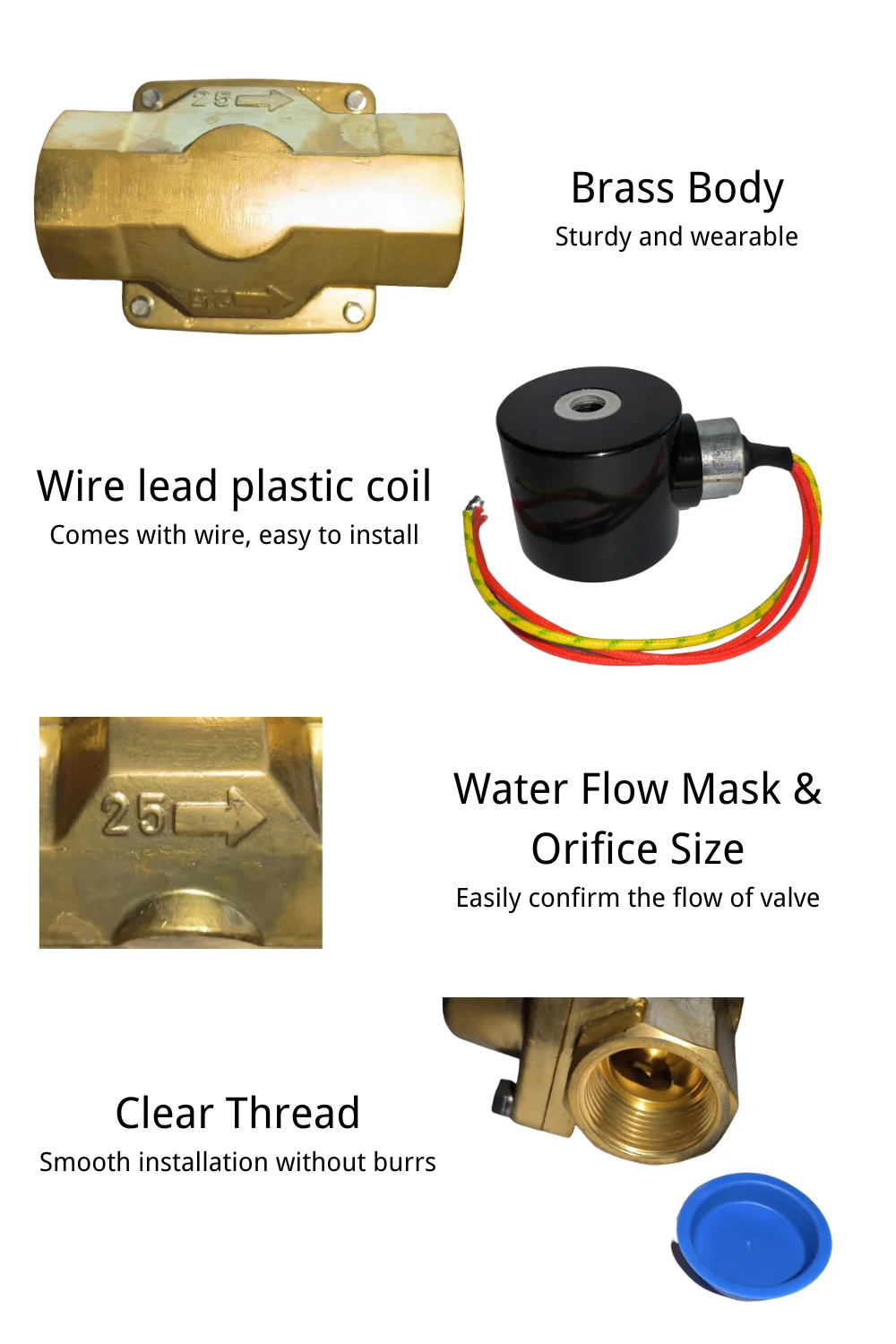

Product Deatils

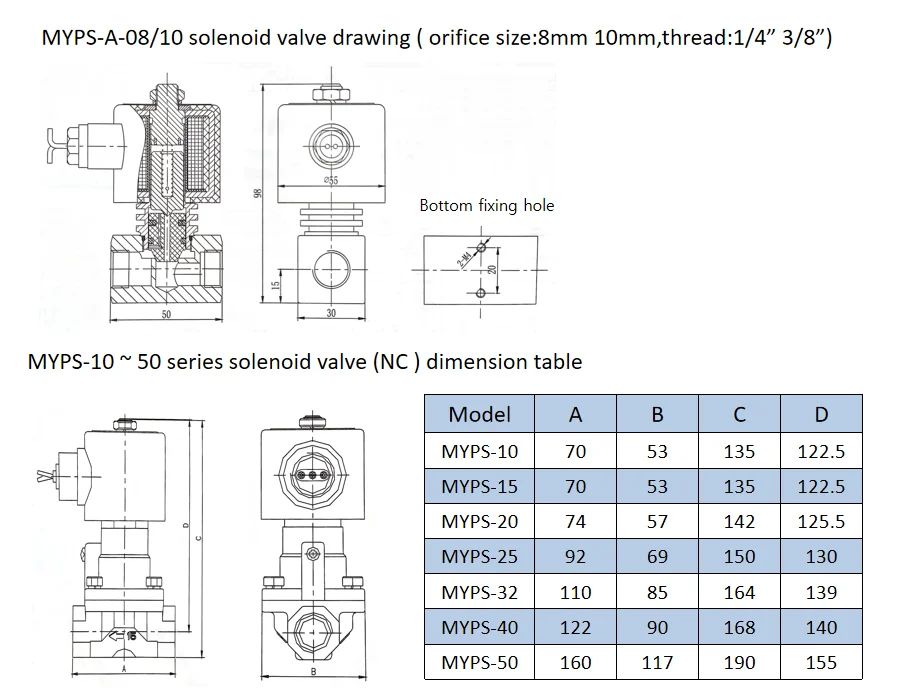

Solenoid Valve Drawing
Specification Table
More Options
Company Profile
Certificates Honors
FAQ
Q1: Would you send me samples to check the quality before we conclude the business?
Q3: When will you make the delivery?
Q4: What's your price?
Q5: How about the product quality?
Q6: Can I print own logo on package?
Q7: What's your products' advantage?
Q8: What is your payment term?
A1: Of course, we'd be happy to send that for you. We can also customize your own logo if you provide the artwork.
Q2: How about your warranty policy and after service?
A2: A year free warranty. And we would responsible for all.
Q3: When will you make the delivery?
A3: We will make the delivery within 30 days according to the quantity of the order.
Q4: What's your price?
A4: We are committed to providing you with high quality products and service at reasonable prices.
Q5: How about the product quality?
A5: Our products have been checked in the whole process of production and passed 100% quality inspection.
Q6: Can I print own logo on package?
A6: Sure! Customized package and OEM printing are available.
Q7: What's your products' advantage?
A7: ①Good quality and competitive prices.
②Strictly quality control when producing.
③ Professional team work , for design ,development, producing, assemble, packing and shipping.
Q8: What is your payment term?
A8: T/T,Western Union, MoneyGram, and Paypal. This is negotiable.
