Wistek best price 12v lifepo4 battery 12v 6ah 7ah 12ah 18ah 20ah 50ah 60ah 100ah 120ah 200ah lifepo4 battery supplier
- Category: >>>
- Supplier: Shenzhen Wisdom Science And Technology Co. Ltd.
Share on (1600977699667):
Product Overview
Description

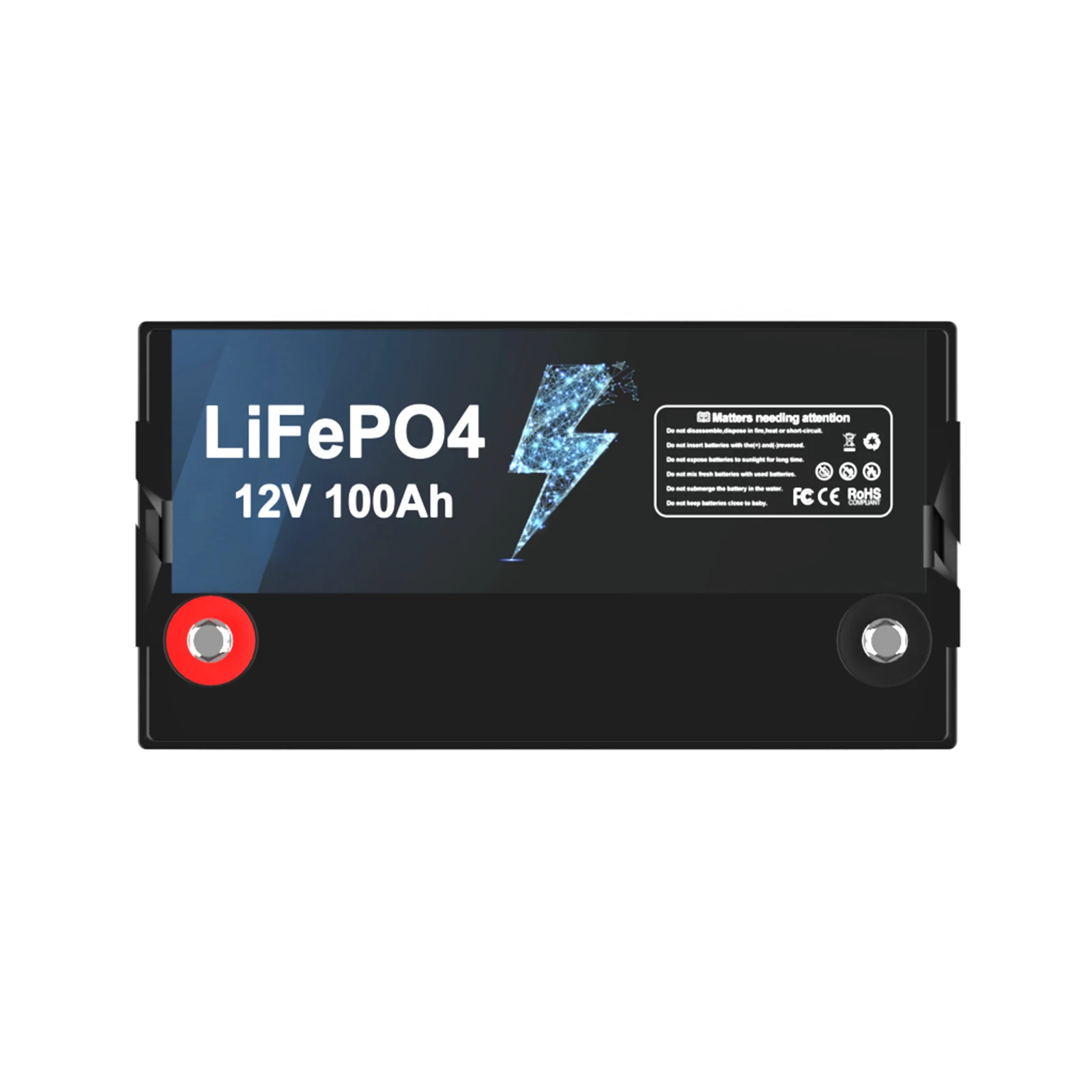

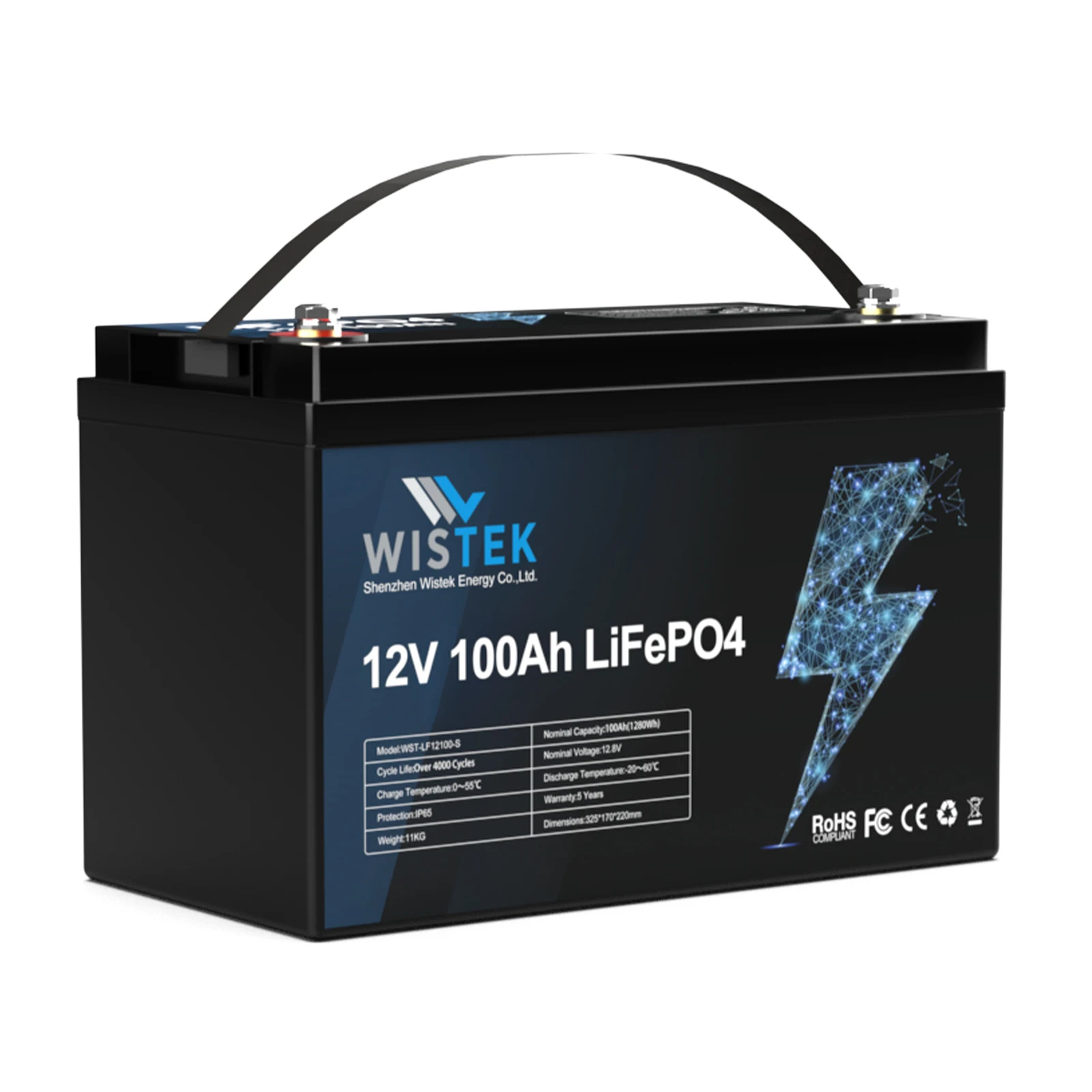

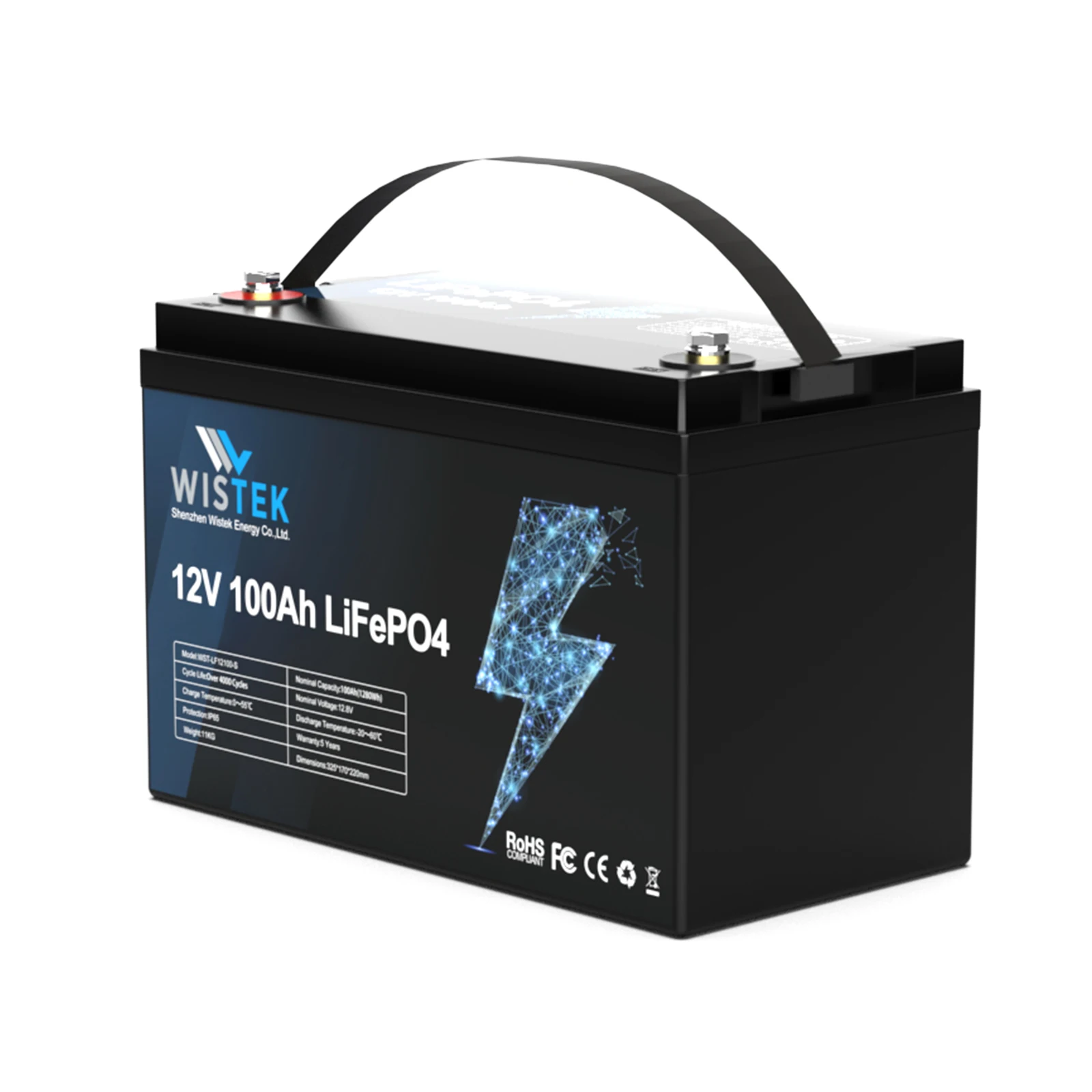

Wistek best price 12v lifepo4 battery 12v 6ah 7ah 12ah 18ah 20ah 50ah 60ah 100ah 120ah 200ah lifepo4 battery supplier
Product Description
Product Parameters
Model | WST-LF12100-S |
Nominal Capacity | 100Ah(1280Wh) |
Operating Voltage Range | 10V-14.6V |
Nominal Voltage | 12.8V |
Configuration | 4S1P |
Battery Cell | EVE 3.2V 100Ah Prismatic Cell |
Number of Cycles | 4000 Times @0.2C |
Charging Characteristics | CCCV/IU |
Charging Voltage | 14.6V |
Recommended Charge Current | 20A |
Maximum Charge Current | 100A |
Maximum Discharge Current | 100A |
Peak Discharge Cut-Off Current (5 ~15 ms) | 300A |

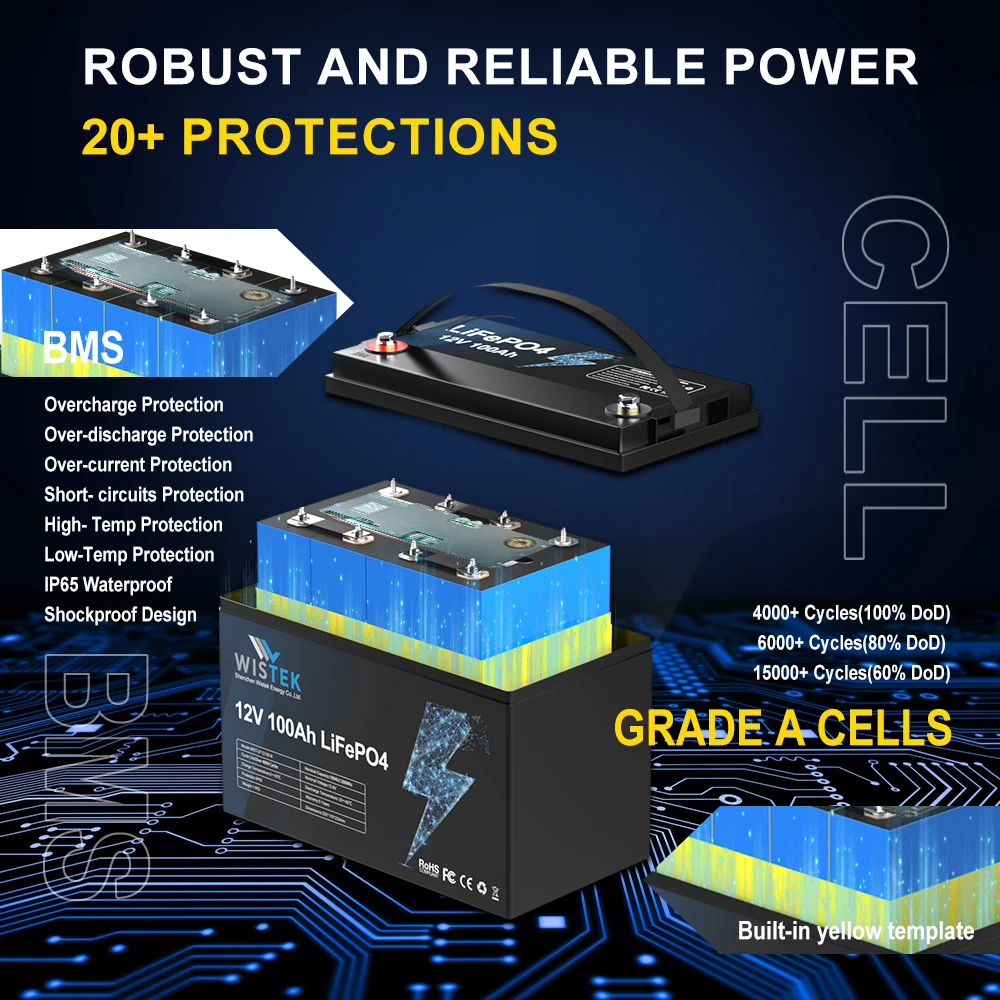

BMS Battery Management System | Integrated |

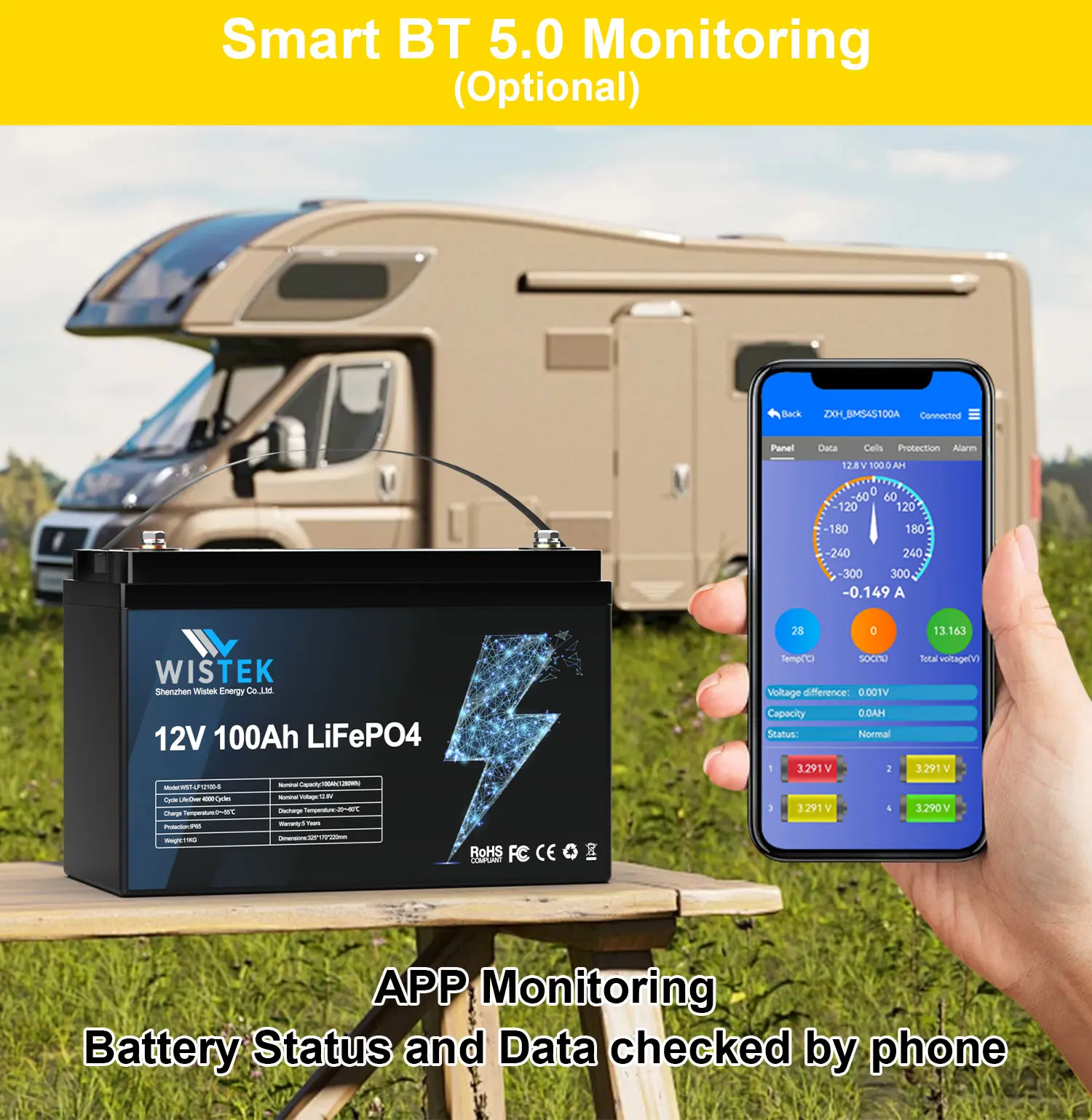

Monitoring | Default |
Application/Interconnection | Series and parallel connection for 12V,24V,48V applications |

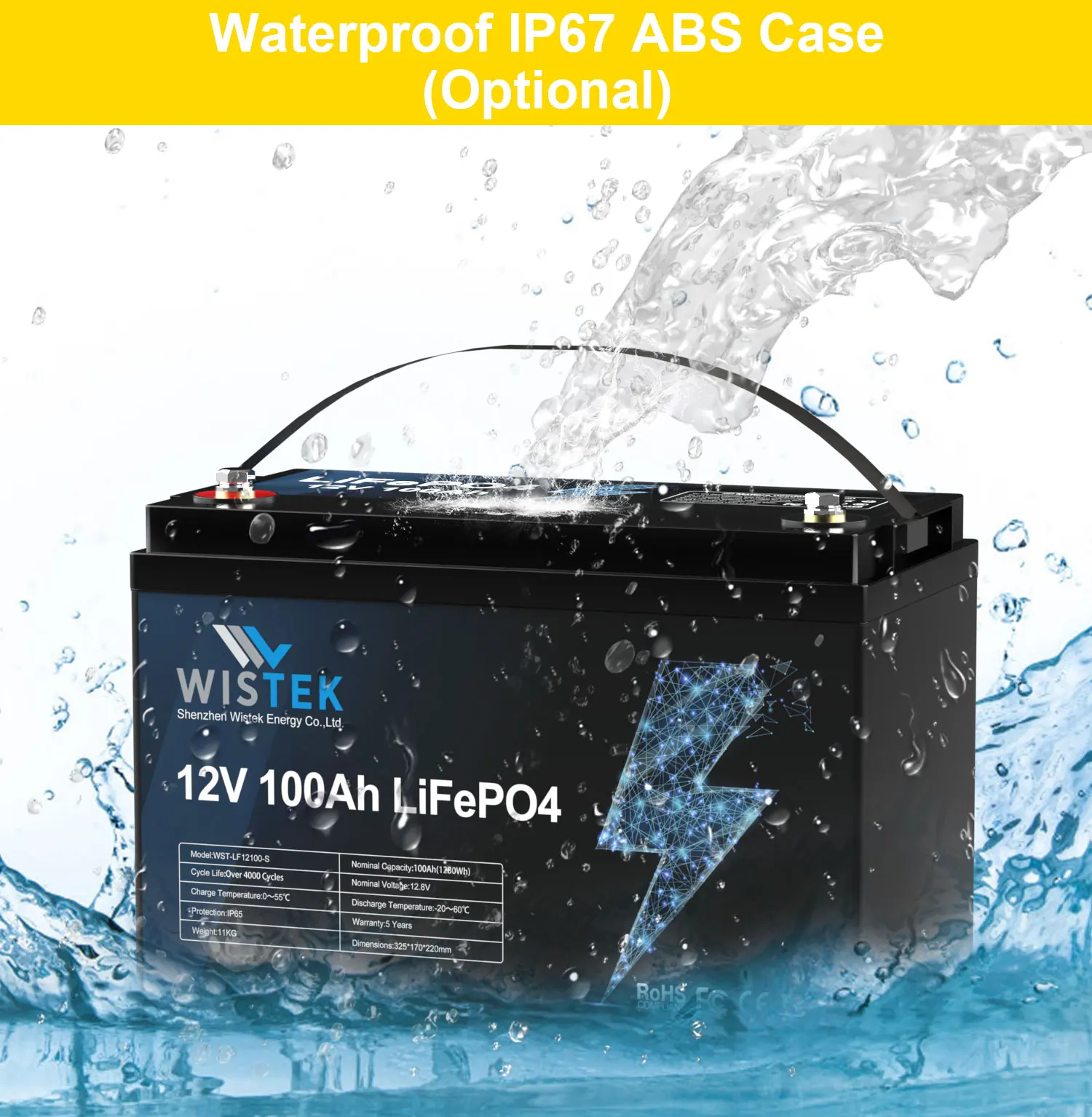

Protection | IP65 |
Temperature Range (discharge) | －20℃-65℃ |
Temperature Range (charge) | 0℃-45℃ |
Temperature Range (storage) | 0℃-35℃ |
Connection Screw | M8 |
Warranty | 5 Years |
Weight | 11KG |

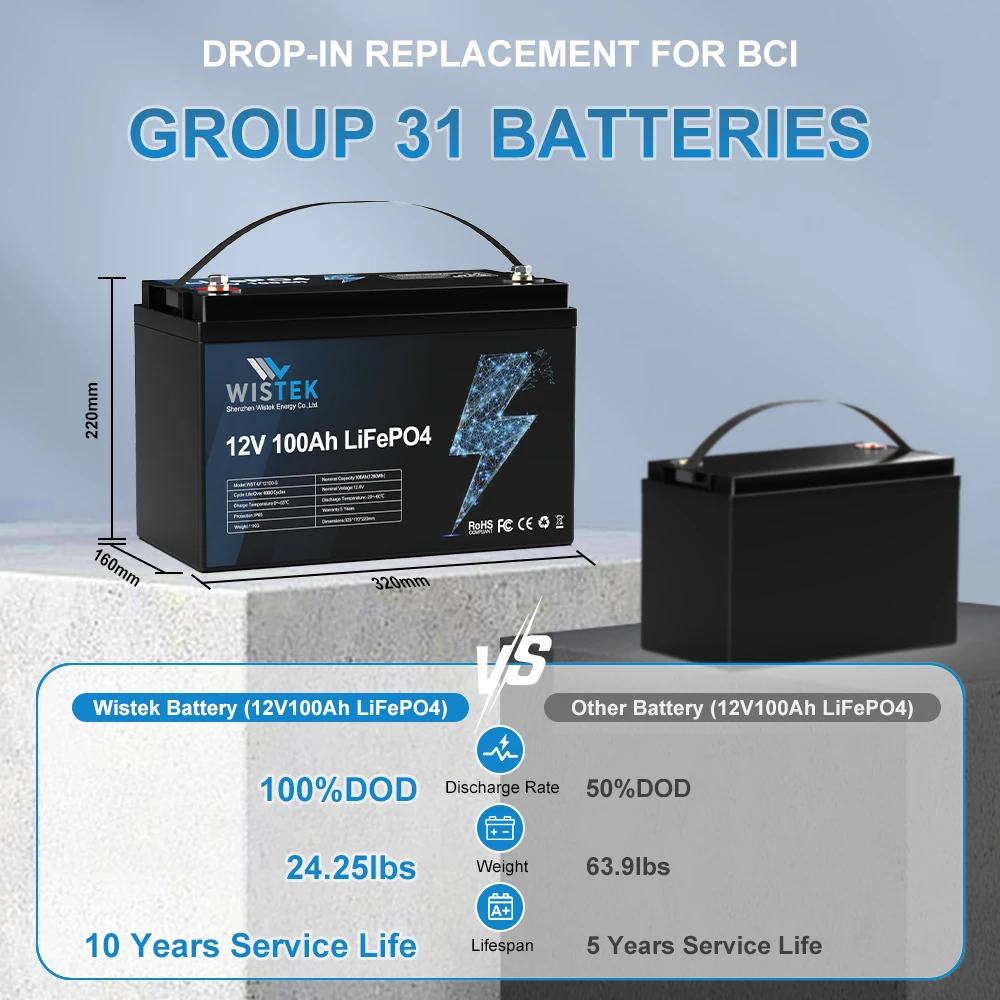

Dimensions(L x W x H) in mm | 320*160*220mm |
Certificate | Cell:UL1642,CB,IEC62133,BIS,CE,UN38.3,MSDS Battery Pack:UN38.3,FCC,CE |
Application

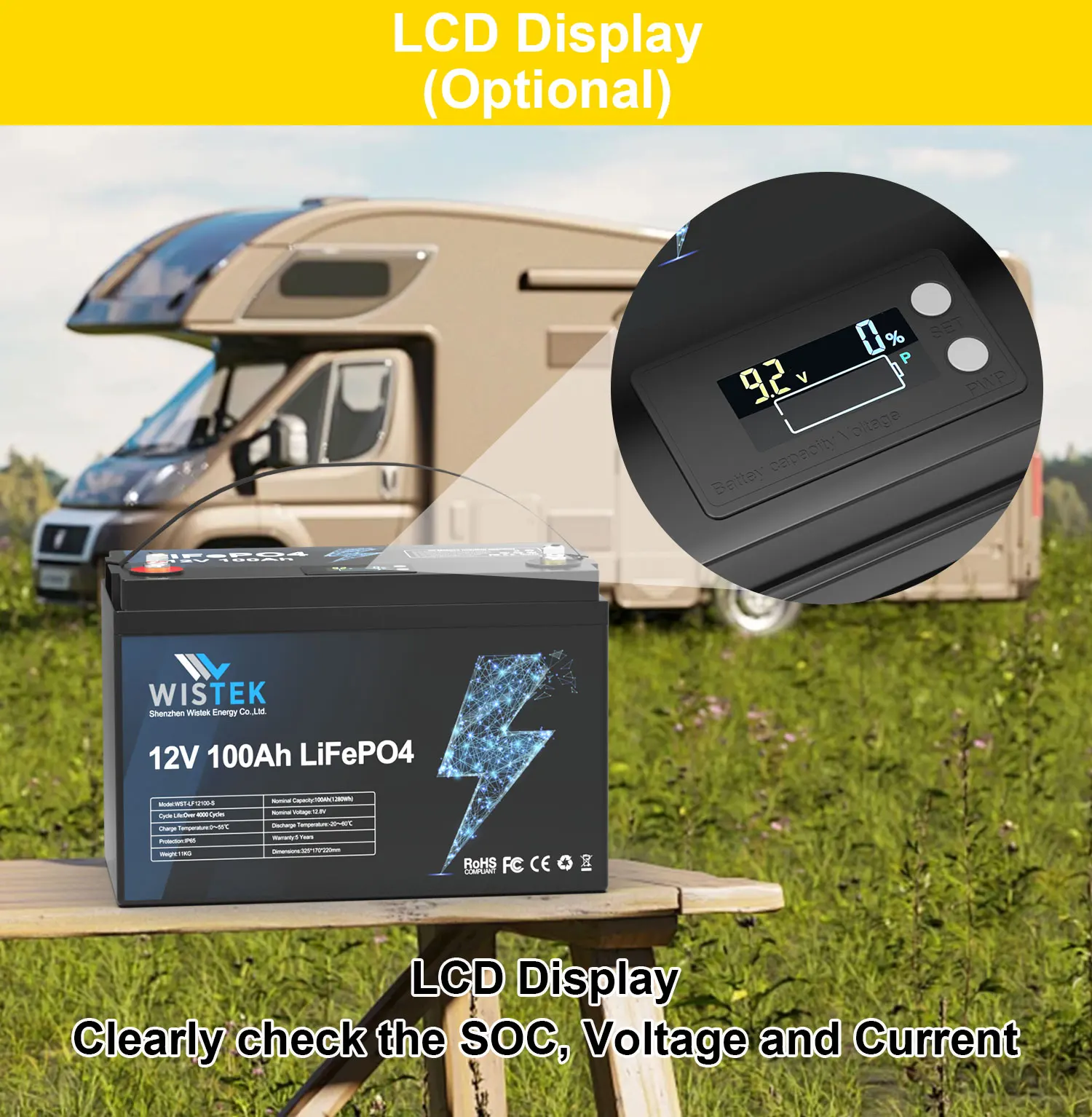

Optional Features
Similar Items
Recommeded Items
About US
FAQ
1.Can you provide a charger?
Yes, we will configure the appropriate charger according to the battery you purchase and your country. The charger will incur additional costs.
2.What is your warranty time?
5 Years
3.Do you have warehouses in Europe and the United States?
Yes.

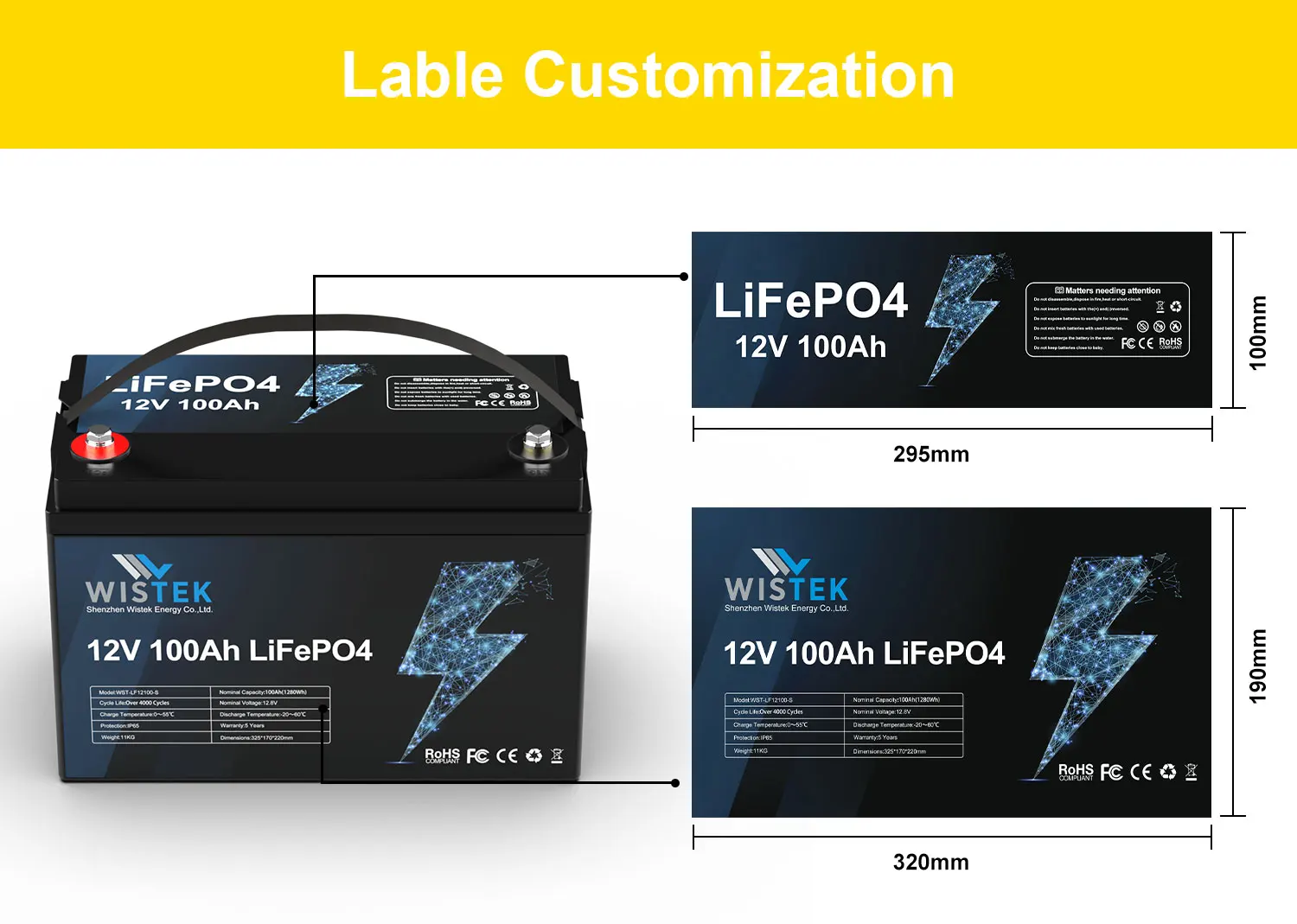

4.Can I put our company's logo on it?
Yes, we support OEM and ODM services.
5.How will I store my battery if I don't use it for a long time?
It is recommended that the battery be placed in a dry and ventilated indoor environment with a temperature of 0-35 degrees Celsius and charged every three months.
6.Can I connect 12V 100Ah batteries in series to 48V? Parallel to a 400Ah system?
Yes, the battery pack supports 4S4P
Yes, we will configure the appropriate charger according to the battery you purchase and your country. The charger will incur additional costs.
2.What is your warranty time?
5 Years
3.Do you have warehouses in Europe and the United States?
Yes.
4.Can I put our company's logo on it?
Yes, we support OEM and ODM services.
5.How will I store my battery if I don't use it for a long time?
It is recommended that the battery be placed in a dry and ventilated indoor environment with a temperature of 0-35 degrees Celsius and charged every three months.
6.Can I connect 12V 100Ah batteries in series to 48V? Parallel to a 400Ah system?
Yes, the battery pack supports 4S4P
