99.99% purity 0.1mm/0.3mm/0.5mm pure platinum wire Pt Ir wire, platinum iridium Wire( platinum90% iridium10%)
- Category: >>>
- Supplier: Anping Joinwe Wire Mesh Co. Limited
Share on (1600977779022):
Product Overview
Description
Platinum Iridium Wire

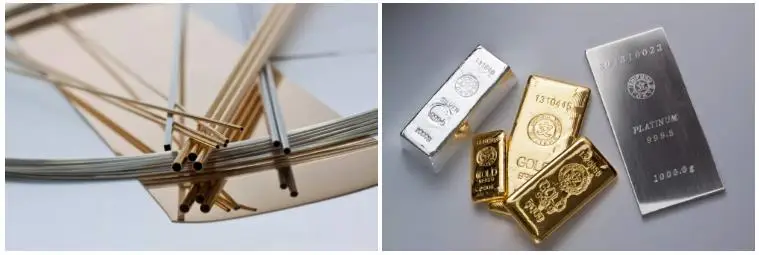

Precious metals are materials that are scarce in the environment, have low chemical reactivity, and high value. This group
includes gold, silver, and platinum group metals (Pt, Ir, Os, Pd, Rh, Ru).
The combination of good electrical properties with low reactivity makes precious metals excellent choices for demanding
applications such as semiconductor bonding, accurate temperature measurement at elevated temperatures, and stability in harsh environments. Precious metals can be found in aerospace instruments, Cochlear Implants, catheters,pacemakers, and monitoring equipment.
includes gold, silver, and platinum group metals (Pt, Ir, Os, Pd, Rh, Ru).
The combination of good electrical properties with low reactivity makes precious metals excellent choices for demanding
applications such as semiconductor bonding, accurate temperature measurement at elevated temperatures, and stability in harsh environments. Precious metals can be found in aerospace instruments, Cochlear Implants, catheters,pacemakers, and monitoring equipment.
Platinum wire is sometimes specified for high temperature semiconductors. Many catheters contain platinum marker bands and guide wires, which are used to help surgeons, guide the device to the treatment site, and are easily seen on Xrays and Fluoroscopes.
Platinum-iridium
Material Percentages
Pt-Ir wire(0.2-3mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Rod(3-10mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Foil(0.1-0.2mm) 90/10, 85/15, 80/20,75/25
Pt-Ir sheet(0.25-2mm) 90/10, 85/15, 80/20,75/25
Other alloy percentages are available on request. Wire is spooled and sold by the foot or meter; rod is sold by the inch or foot;
foil and sheet are sold by square inch or foot. Additional diameters, forms can be customed.
Platinum-iridium
Material Percentages
Pt-Ir wire(0.2-3mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Rod(3-10mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Foil(0.1-0.2mm) 90/10, 85/15, 80/20,75/25
Pt-Ir sheet(0.25-2mm) 90/10, 85/15, 80/20,75/25
Other alloy percentages are available on request. Wire is spooled and sold by the foot or meter; rod is sold by the inch or foot;
foil and sheet are sold by square inch or foot. Additional diameters, forms can be customed.
Content | Melting(℃) | Density(g/cm) | Vickers hardness (Soft) | Vickers hardness (Hard) | Tension (MPa) | Resistivity (uΩ.cm)20℃ |
Pt95IR5 | 1790 | 21.49 | 90 | 140 | 274 | 19.0 |
Pt90Ir10 | 1800 | 21.53 | 130 | 230 | 382 | 24.5 |
Pt80Ir20 | 1840 | 21.81 | 200 | 200 | 300 | 32 |
Pt75Ir25 | 1840 | 21.7 | 200 | 300 | 238 | 33 |
Pt70Ir30 | 1860 | 22.15 | 210 | 320 | 242 | 32.5 |
Product Description
Item | Platinum/Iridium - Wire(Pt90/Ir10) | Function | Medical research and lab. |
Melting point | 1800 | Hardness - Brinell | 130-190 |
Tensile strength | 380-620 | Density | 21.56 |
Thermal Conductivity | 0.716 W/cm/K 298.2 K | Electrical Resistivity | 10.6 microhm-cm 20°C |
Application
High quality raw material
ANPING JOINWE WIRE MESH CO., LTD is a professional wire mesh manufacturer and exporter. Our factory is located in Anping, Hebei Province, known as the "hometown of wire mesh". It was established in 1993 and covers an area of 110000 square meters, with more than 20 years of manufacturing and exporting experience. Our factory has unique geographical advantages and advanced equipment. As a professional wire mesh manufacturer, we have obvious advantages: rich production experience, strict quality control, controllable production date, timely delivery and reasonable price. In addition, OEM and ODM services can be provided. So far, we have established good cooperative relations with more than 50 countries in the Middle East, Europe, North America and Southeast Asia. Adhering to the principle of mutual benefit and aiming at long-term cooperation, we are always ready to establish friendly cooperation with you.
FAQ
1. who are we?
We are based in Hebei, China, start from 2013,sell to Mid East(55.00%),Africa(10.00%),South Asia(10.00%),Western Europe(5.00%),North America(5.00%),Domestic Market(4.00%),Oceania(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),South America(2.00%),Southeast Asia(1.00%),Eastern Asia(1.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
galvanized wire,black annealed wire,welded wire mesh,gabion mesh,chain link mesh
4. why should you buy from us not from other suppliers?
Anping County Joinwe Wire Mesh Co.,Ltd has rich experience for processing of wire mesh,many technicians,well equipments and productive facilities so that we can ensure high quality,timely shipment and competitive price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2013,sell to Mid East(55.00%),Africa(10.00%),South Asia(10.00%),Western Europe(5.00%),North America(5.00%),Domestic Market(4.00%),Oceania(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),South America(2.00%),Southeast Asia(1.00%),Eastern Asia(1.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
galvanized wire,black annealed wire,welded wire mesh,gabion mesh,chain link mesh
4. why should you buy from us not from other suppliers?
Anping County Joinwe Wire Mesh Co.,Ltd has rich experience for processing of wire mesh,many technicians,well equipments and productive facilities so that we can ensure high quality,timely shipment and competitive price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese
Contact us Now to get more details!!
