Product Overview

Description



Product Description


HIR100 Cheap price 4G LTE Sim card Cellular Routers Gsm Gprs Sim CPE Lte Cat4 Modem Wireless 4G Wifi 6 Router

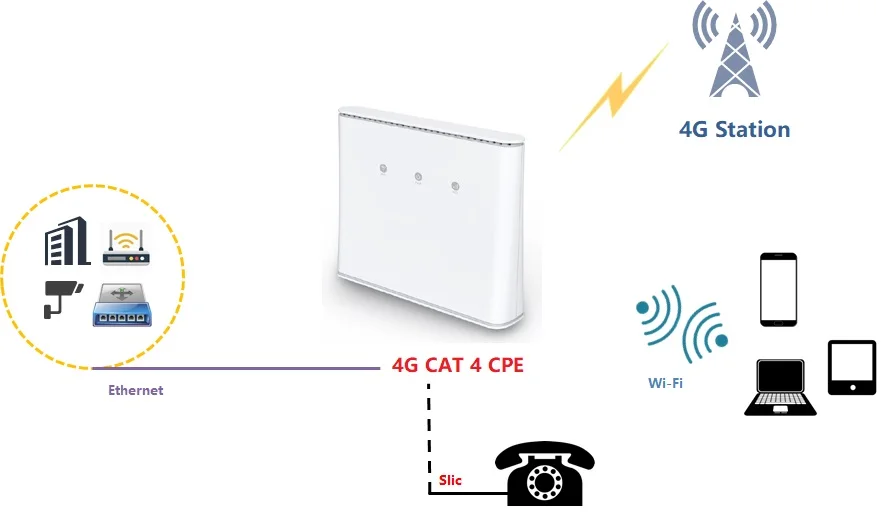

HiR100 4G CAT 4 CPE cellular indoor router is a wireless communication product developed based on 3G/4G LTE network requirements. Support 3G/4G LTE global network standard and frequency band. Meet 4G LTE CAT 4 high-speed wireless network access. The theoretical maximum downlink bandwidth of 4G LTE is 150Mbps, and the theoretical maximum uplink bandwidth is 50Mbps. Supports 802.11AX,WIFI 6, 2.4GHz function, to meet the access and shared Internet access of more than 10 users' WIFI hotspot. Provide stable, high-speed wireless broadband access for home and business
users.
Product features
1. Wireless Mobile Broadband 3G / 4G LTE Connection. Supports 3G/4G LTE global frequency bands.
2.Supports 802.11AX, WIFI 6, 2.4GHz frequency band.
3.Supports 1*LAN fast Ethernet port to internet access.
4.Support 1*RJ11 VOLTE voice port. (Optional)
5.Supports Multiple VPN tunnels for data encryption .
Designed for industrial usage
6.Power Input Range. DC +12V/1A
7.Industrial design for harsh environment.
8.ABS fireproof plastic material shell.
Easy to use and easy maintenance
9. User friendly web interface for user interaction.
10. Supports Central Management Platform.
11. Supports local web UI and remote FOTA update firmware.
Operating system
12. Built-in Linux 3.4 operating system. Supports user secondary application development.


Cellular feature
3G/4G LTE
data connectivity
It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.

3G/4G LTE Frequency bands

Version E.
FDD-LTE B1/B3/B7/B8/B20/B28
TD-LTE B38/B40/B41
WCDMA B1/B8
Version A.
FDD-LTE B2/B4/B5/B7/B28/B66
TD-LTE B38/B40/B41
WCDMA B2/B5
Remarks. More 4G LTE frequency bands,Please feel free to contact us.

3G/4G LTE Data rates
LTE.
LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL)
LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL)
UMTS.
DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)

3G/4G LTE Sensitivity

LTE B1: -101.5dBm (10M)
LTE B2: -101dBm (10M)
LTE B3: -101.5dBm (10M)
LTE B4: -101dBm (10M)
LTE B5: -101dBm (10M)
LTE B7: -99.5dBm (10M)
LTE B8: -101dBm (10M)
LTE B20: -102.5dB (10M)
LTE B28: -102dBm (10M)
LTE B38: -100dBm (10M)
LTE B40: -100dBm (10M)
LTE B41: -99dBm (10M)
LTE B66: -99dBm (10M)
LTE B71: -100dBm (10M)
WCDMA B1: -110dBm
WCDMA B2: -110dBm
WCDMA B5: -110.5dBm
WCDMA B8: -110.5dBm
Smart connect solutions
3G/4G LTE
Transmitting Power 4+1/-3dB) for WCDMA bands
Fbands Class 3 (23dBm±2dB) for LTE-TDD bands

LTE features up non-CA CAT 4.
1.4 to 20MHz RF bandwidth.
Support MIMO in DL direction
F50bps L), 15bps L)
TDD. Max 35Mbps (UL), 130Mbps (DL)
UMTS features
3GPP R8 DC-HSPA+
Supports 16-QAM, 64-QAM and QPSK modulation
6 6 HSUPA: Max 5.76Mbps (UL)
3GPP R8 Cat 24 DC-HSPA+: Max 42Mbps (DL)
Antennas 2* 2 MIMO 4G LTE internal directional antennas, with 50 Ω impedance.
SIM card feature
SIM card
Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )
Hardware feature
CPU ARM Cortex A7,1G, SANECHIPS ZX297520 V3
MEMORY FLASH 16MByte, DDR2 128MByte

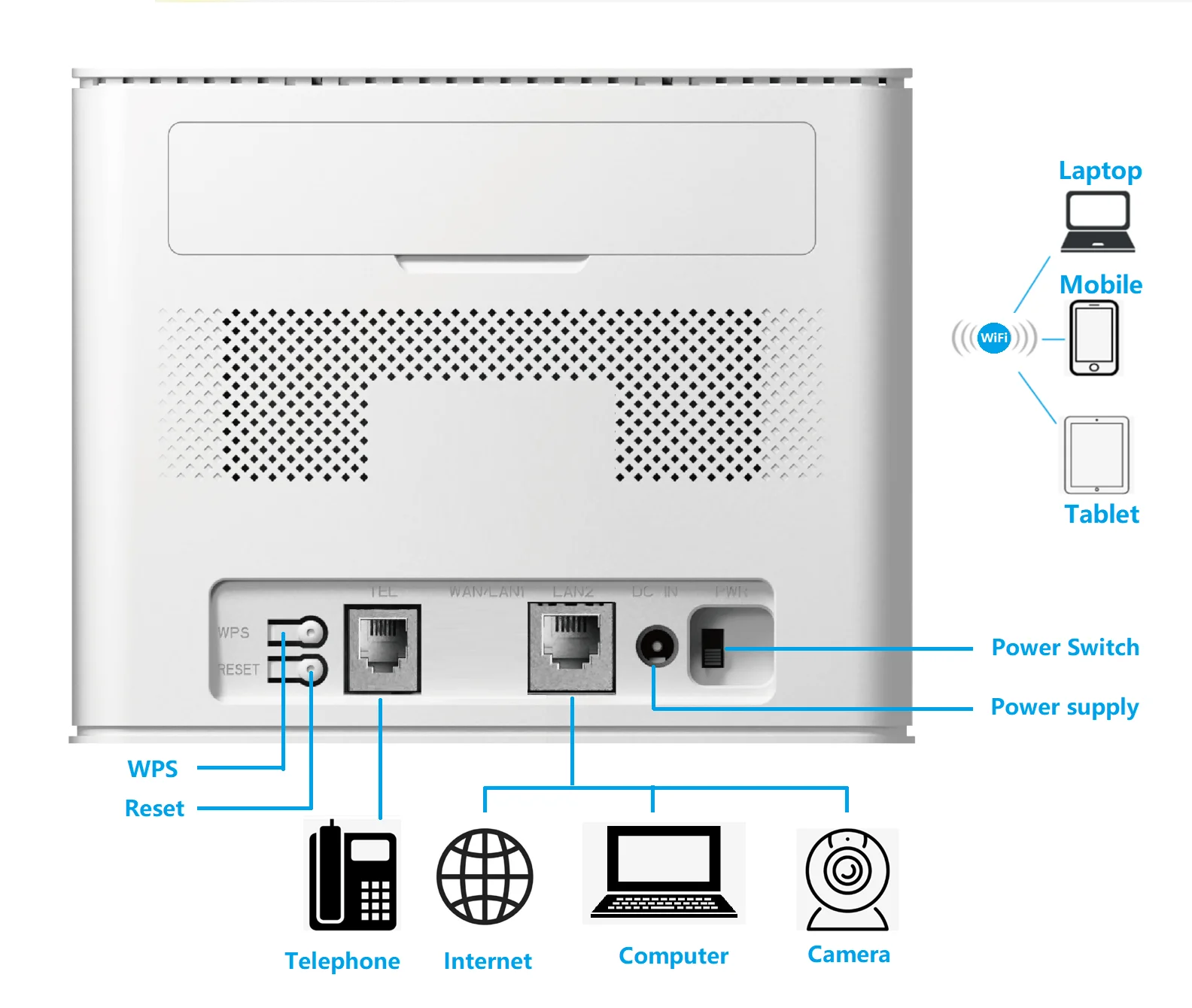

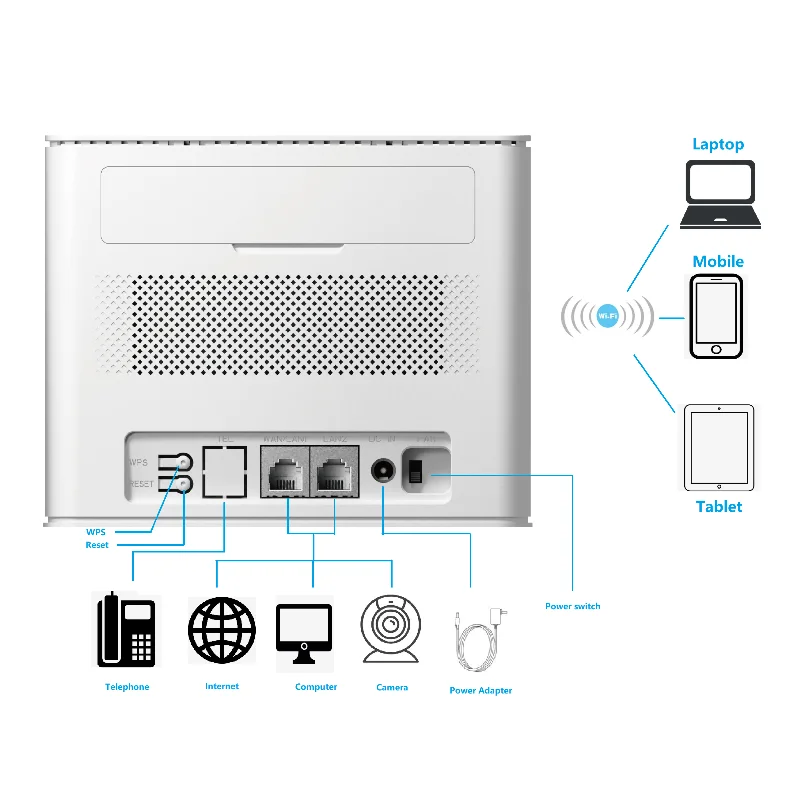

Hardware interface 1* LAN 10/100Mbps fast Ethernet port. 1*USB2.0 port.1*RJ11,VOLTE voice(Optional)
Watchdog Built-in watchdog feature.
Key button Reset, WPS
Protection level Ethernet port , Contact electric shock, +/-4KV, air discharge: +/-8KV.
LED status indicator PWR ,WIFI, Net, LAN
Standard Power DC input. DC 12V/1A,
Peak current Max current. 0.4A @12V
Working current Max 1.9W @12 V
Power Consumption
Idle. Max 0.43W @12 V
Data link. Max 1.9W @12 V
Peak. Max 3.2W @12V
Battery supply 2000mAh Lithium battery backup power supply. (Optional)
Temperature Operating Temperature. 0 ºC ~+50ºC,
Storage Temperature. -10 ºC ~+55ºC
Environment humidty 5%~95% ,no condensation.
Ingress Protection IP30
Housing ABS plastic material, white shell.
Dimensions 155mm * 125mm * 36mm
Installations Desktop mounted.
Weight 219g
Wi-Fi
WLAN
IEEE 802.11AX, WIFI 6.
Supports 20MHz,40MHz channel bandwidth in 2.4GHz band.
Max bandwidth 300Mbps in 2T/2R 2.4GHz band.
Wireless Mode Access Point (AP), Client

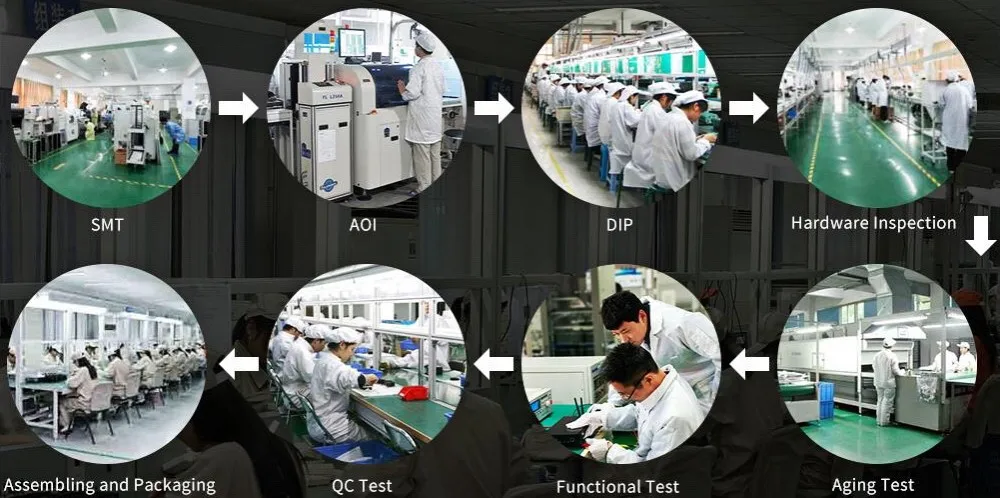

Company Profile






FAQ


1.Do you provide customer's Logo and package design?

Yes, we can provide customized logo and design if order quantity reach 1000pcs.

2.Do you accept PCBA orders only?

Of course, we can provide PCBA in a short time with good quality.

3.Do you provide firmware support?

Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to
support you in 100%.

4.How does your factory do regarding quality control?

We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.
