Product Overview
Description
Products Description
SOWAKAM D11 Series Frequency Inverter | ||||||||
MODEL No. | Input Voltage | Output Voltage | Rated Power (KW) | Rated Output Current (A) | ||||
D11-0.75KW | 1PH AC220V 50/60Hz | 3PH AC190-250V 0-3000Hz | 0.75KW | 4A | ||||
D11-1.5KW | 1.5KW | 7A | ||||||
D11-2.2KW | 2.2KW | 9.6A | ||||||
D11-0.75KW | AC360-450V 50/60Hz | AC0-460V 0-3000Hz | 0.75KW | 3.0A | ||||
D11-1.5KW | 1.5KW | 4.0A | ||||||
D11-2.2KW | 2.2KW | 5.1A | ||||||
D11-4KW | 4.0KW | 8.5A | ||||||
D11-5.5KW | 5.5KW | 13A | ||||||
D11-7.5KW | 7.5KW | 17A | ||||||
D11-11KW | 11KW | 25A | ||||||
D11-15KW | 15KW | 32A | ||||||
D11-18.5KW | 18.5KW | 38A | ||||||
D11-22KW | 22KW | 45A | ||||||
D11-30KW | 30KW | 60A | ||||||
D11-37KW | 37KW | 75A | ||||||
D11-45KW | 45KW | 90A | ||||||
... | ... | ... | ||||||
D11-355KW | 355KW | 640A | ||||||
D11-400KW | 400KW | 750A | ||||||
D11-500KW | 500KW | 820 | ||||||
If you have more request for inverter , pls contact me online service . | ||||||||
Technical Index and Specification:
1>. Input Voltage : 1PH/3PH190-250V -20%~+10%； 3PH360-450V -20%~+10%；
2>. Output Voltage : 0-460V ; 0-260V;
3>. Output Frequency : 0-300Hz ; 0-3000Hz
4>. Control Mode : V/F,Vector control;
5>. Overload Capacity : 150% Rated output current(60s) , 200% Rated output current(4s);
6>. Basic Function : Torque open loop control、Motor self-learn、Motor Pre-excitation、Motor Rotation Compensa
-tion、Automatic Load Compensation、Automatic Voltage Stabilizing Function、 Multi-Point V/F
curve、Acceleration and Deceleration Curve、DC Braking、AC Braking、Rotation Speed Limited、
Current Limited、Torque Limited、 Frequency Tracking Start、Auto Reset Restart、JOG Control、External Control of Multistage Speed、Mechanical Braking、UP/DOWN Functiond、High speed pulse input function、Built in PID Controller；
-tion、Automatic Load Compensation、Automatic Voltage Stabilizing Function、 Multi-Point V/F
curve、Acceleration and Deceleration Curve、DC Braking、AC Braking、Rotation Speed Limited、
Current Limited、Torque Limited、 Frequency Tracking Start、Auto Reset Restart、JOG Control、External Control of Multistage Speed、Mechanical Braking、UP/DOWN Functiond、High speed pulse input function、Built in PID Controller；
7>.Protect Function : Phase Loss Protection of Power Supply、Short-voltage Protection、Over-voltage Protection、Ov
-ercurrent Protection、Over-load Protection、Phase Loss Protection of Output、Output short cir -cuit Protection、Output Grounded Protection、Signal Disconnection、AMA Fail、CPU Fault、Button Inhibit、Copy Failure、 LCP Communication Error、Parameter Read Only、Value Out of Range、Not ecutable in Running；
-ercurrent Protection、Over-load Protection、Phase Loss Protection of Output、Output short cir -cuit Protection、Output Grounded Protection、Signal Disconnection、AMA Fail、CPU Fault、Button Inhibit、Copy Failure、 LCP Communication Error、Parameter Read Only、Value Out of Range、Not ecutable in Running；

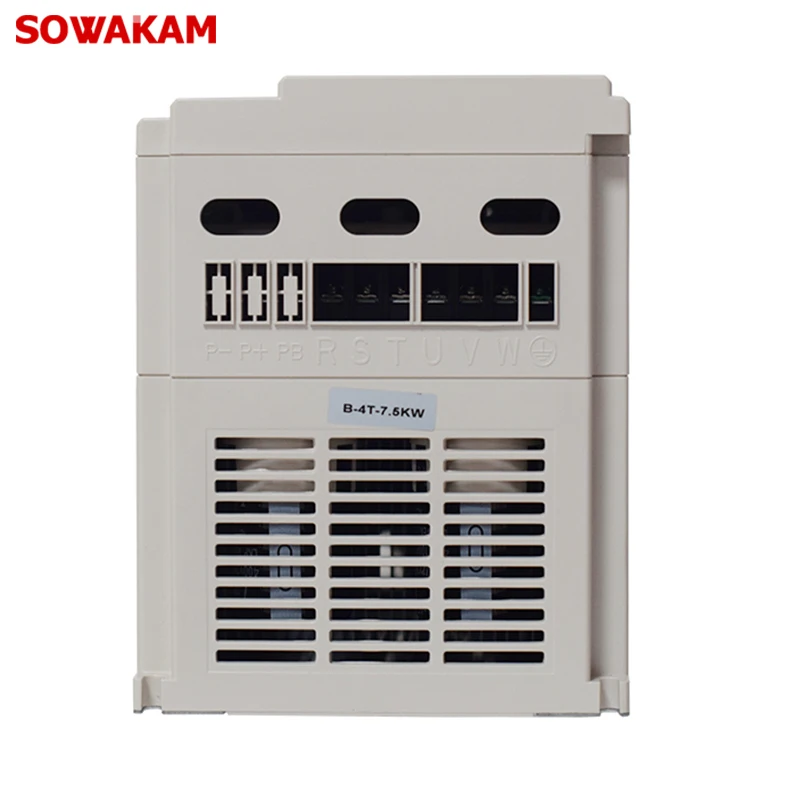

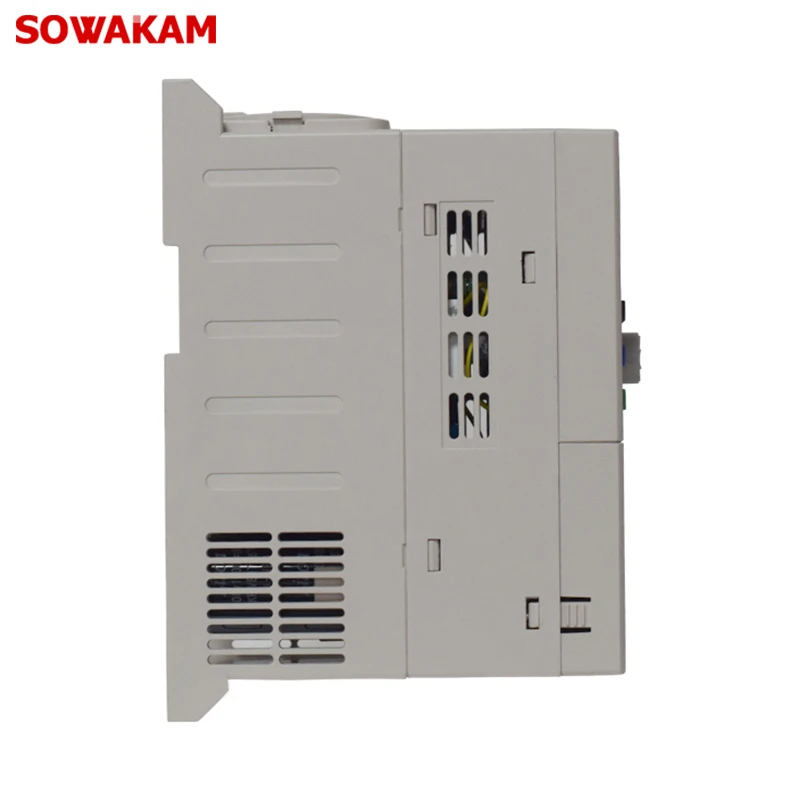

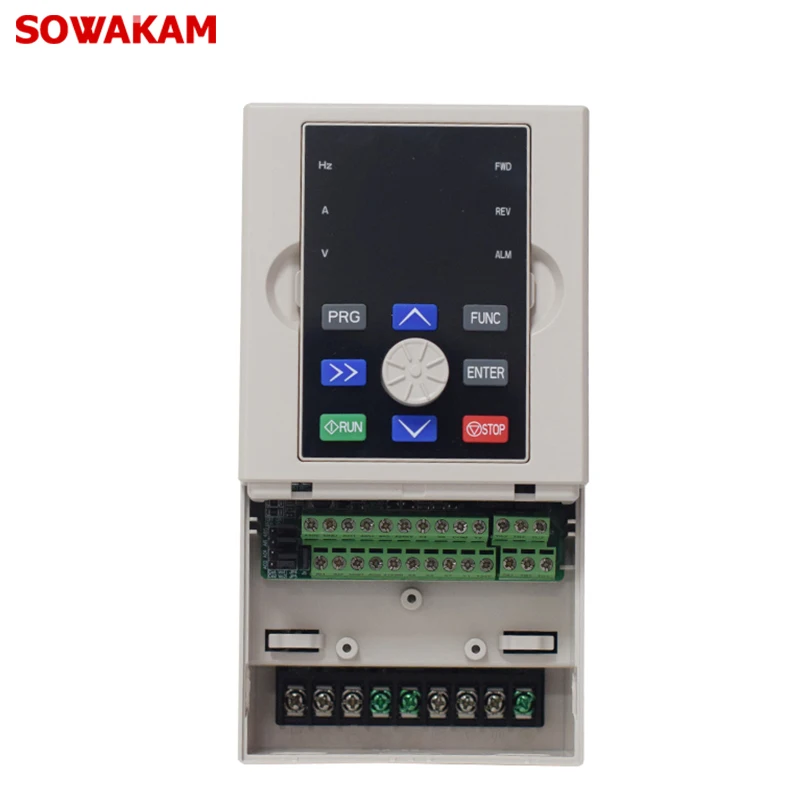

Product Details

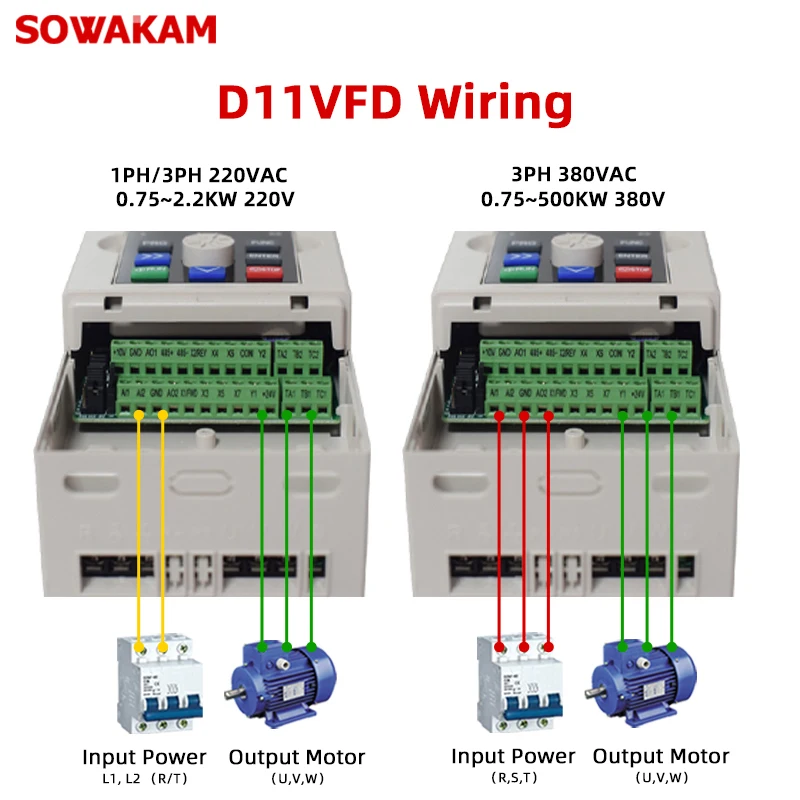

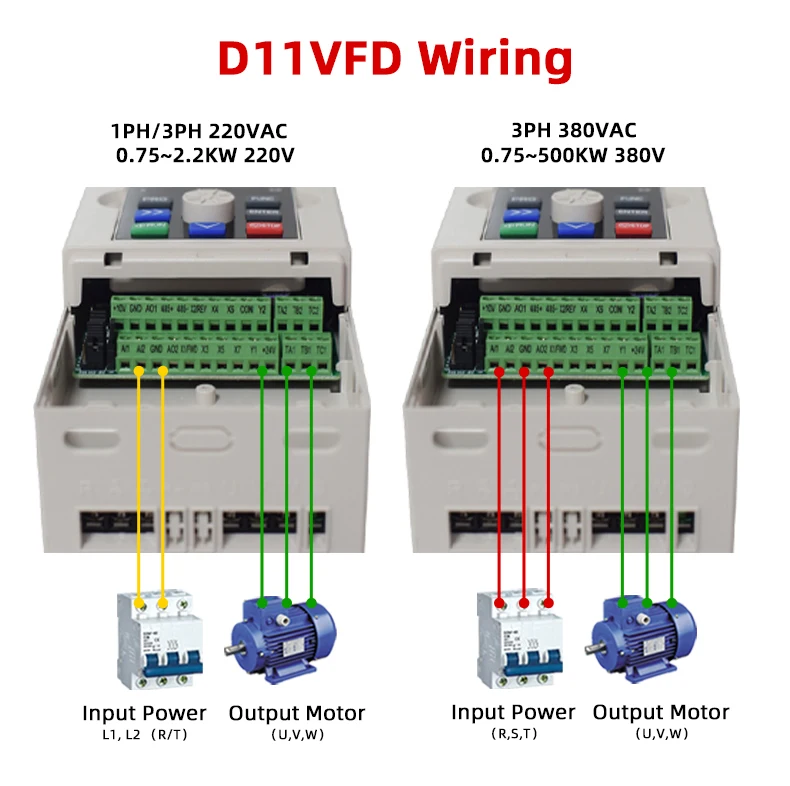

Product Wiring
Customer Feedback
About Sowakam Company
FAQ
Q1 : Where is your factory and Company ?
A : Huaibei City , Anhui ,China
Q2 : Do you accept OEM logo and OEM User's Manual ?
A : Yes, we accept OEM and ODM with your autherization , it needs 50pcs or above.
Q3 : What is your MOQ ?
A : 1pc for test order is also accepted .
Q4: What's the function of SOWAKAM VFD?
A: Sowakam VFD control the speed and frequency of motors, which is widely used in industrial control, automation system and pump system.
Q5: How to choose suitable VFD for my machine?
A: Please send us your machine details, we will provide you most suitable model type.
Q6: What's the payment term?
A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH, etc.
Q7: What's the delivery time?
A: For 2000pcs inverter, it usually needs one week to finish.
Q8: What's the standard of package?
A: Below 75KW, it's carton package; 75kW and above, it's wooden package.
Q9: How you control quality?
A: Our inverters strictly follow ISO9001 quality control system. After four times quality inspect and high temperature testing we will print "QA" pass.
Q10: What kind of certificate you have?
A: We have ISO, CE, CB, TUV, etc.
Q2 : Do you accept OEM logo and OEM User's Manual ?
A : Yes, we accept OEM and ODM with your autherization , it needs 50pcs or above.
Q3 : What is your MOQ ?
A : 1pc for test order is also accepted .
Q4: What's the function of SOWAKAM VFD?
A: Sowakam VFD control the speed and frequency of motors, which is widely used in industrial control, automation system and pump system.
Q5: How to choose suitable VFD for my machine?
A: Please send us your machine details, we will provide you most suitable model type.
Q6: What's the payment term?
A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH, etc.
Q7: What's the delivery time?
A: For 2000pcs inverter, it usually needs one week to finish.
Q8: What's the standard of package?
A: Below 75KW, it's carton package; 75kW and above, it's wooden package.
Q9: How you control quality?
A: Our inverters strictly follow ISO9001 quality control system. After four times quality inspect and high temperature testing we will print "QA" pass.
Q10: What kind of certificate you have?
A: We have ISO, CE, CB, TUV, etc.
