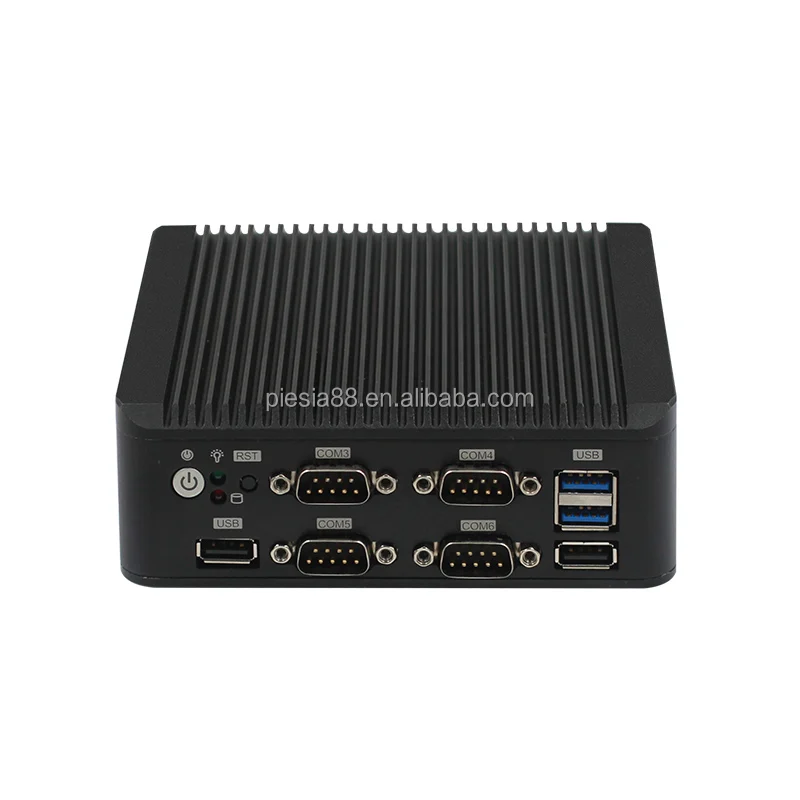

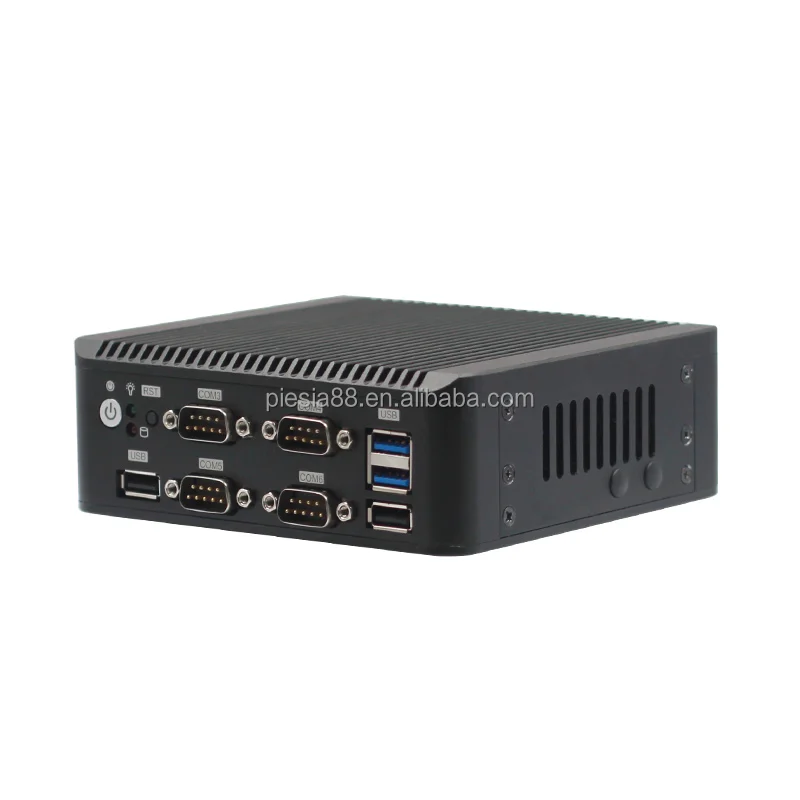

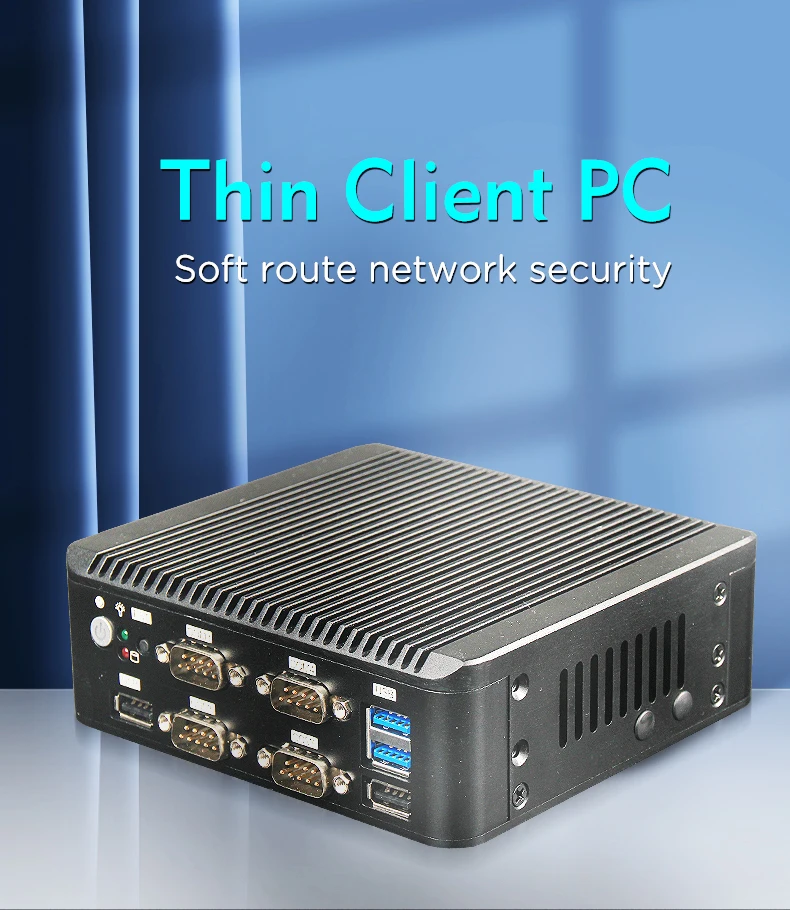

Cheap Factory Direct Nano Box J4125 Processor 4*RS2322/485 & SIM Slot Thin Client Mini PC for Monitor
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1600977810741):
Product Overview
Description
Products Description
Main features:
◆ Embedded Design Intel Baytrail-D/I/M series processor;
◆ Embedded Design Intel Baytrail-D/I/M series processor;
◆ DDR3 SODIMM 204 Socket RAM socket Max support8G;
◆ Onboard 32/64/128G EMMC chip(Optional);
◆ Mini-PCIE socket,Support wifi module,and SIM card socket,support 3G Module;
◆ Rich I/O Interface,include 2*USB ports,4*Intel I211 Lan card,1*HD-MI,1*RJ45 RS232 Interface;
◆ Fanless Design,Noiseless design,Stable and efficient;
◆ 12V DC power supply,Power supply is simple and convenient
◆ Onboard 32/64/128G EMMC chip(Optional);
◆ Mini-PCIE socket,Support wifi module,and SIM card socket,support 3G Module;
◆ Rich I/O Interface,include 2*USB ports,4*Intel I211 Lan card,1*HD-MI,1*RJ45 RS232 Interface;
◆ Fanless Design,Noiseless design,Stable and efficient;
◆ 12V DC power supply,Power supply is simple and convenient
Processor System | CPU | Integrated Intel Gemini Lake single CPU |
CPU package | BGA | |
Chipset | Intel Gemini Lake serial SOC | |
BIOS | EFI BIOS | |
Memory | Technology framework | Single channel DDR4 2133Mhz |
Memory | MAX Support DDR4 8G | |
Socket | DDR4 SODIMM 60 Socket | |
Video | Graphic controller | Intel UHD 600 Graphics |
HD-MI | HD-MI（2.0）MAX resolution 4K@60Hz | |
VGA | VGA MAX resolution 1920x1200 | |

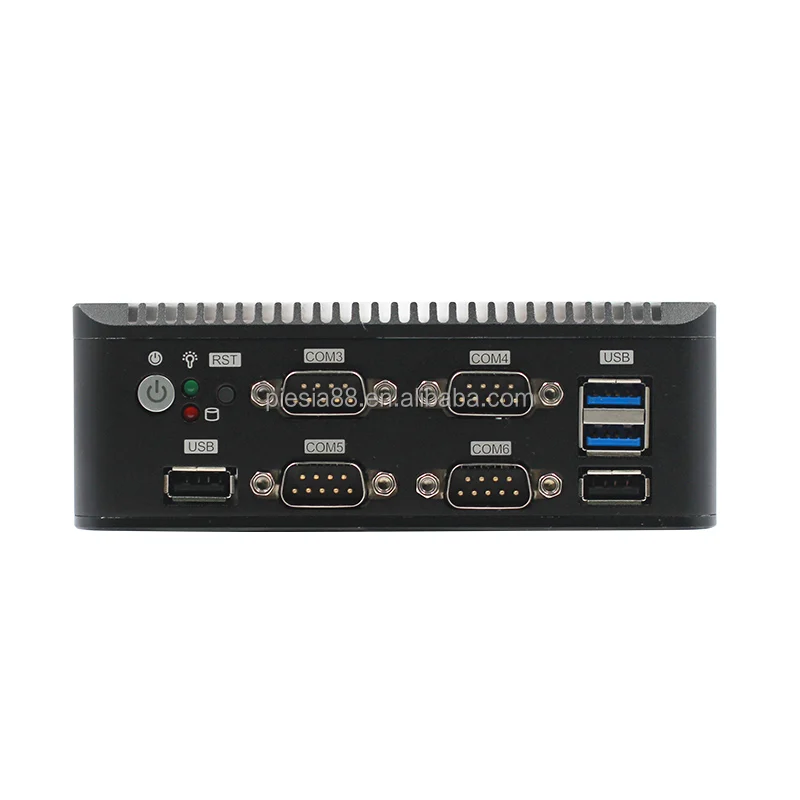

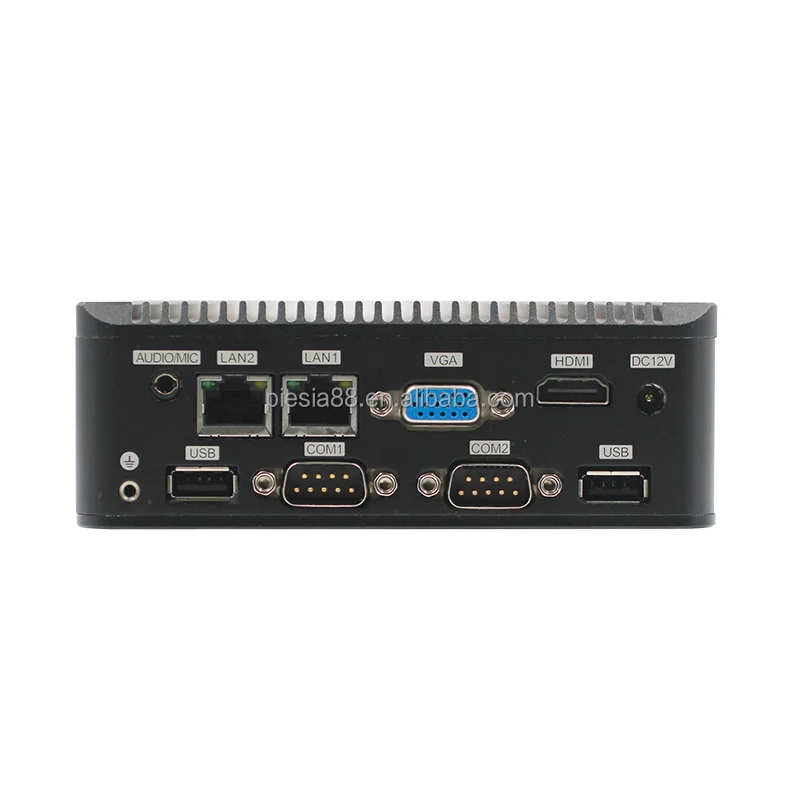

I/O Rear Panel | ports | 1*HD-MI 2*USB3.0 4*USB2.0 2*LAN 6*COM(COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings，RS485 supports automatic flow control，COM3,COM4,COM5,COM6 are RS232) 1*Quick boot button with indicator light 1*Reset button 1*DC 1*Power indicator light 1*Hard disk indicator light |
Network | Controller | 2*Intel I211AT or Intel I210High-performance gigabit network card(Optional) |
Input/Output Interface | USB | 4*USB2.0 2*USB3.0 Max support +5V/1A |
Com port | COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings，RS485 supports automatic flow control，COM3,COM4,COM5,COM6 are RS232 | |
Expansion Bus | Mini-PCle | 1 Mini-PCIe socket,support PCIe and USB device（5G module or 4G module optional） |
Storge | SATA | 1 standard SATAIII interface with a maximum transfer rate of 6Gb/s |
M-SATA | 1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate of 6gb/s | |
EMMC | Support 32/64/128G(optional） | |
Power Supply | Power Type | Single input dc power supply,DC12-19V |
Working Environment | Operating temperature | -20℃ ~ +60℃ |
Storage temperature | -40℃ ~ +85℃ | |
Working humidity | 0% ~ 90% relative humidity, no condensation | |
Storage humidity | 0% ~ 90% relative humidity, no condensation | |
System Support | Windows10 Linux | |
Physical Dimension | Size | 134*126*46.8 mm |
Weight | 0.5KG | |
Certification | CE,ROHS,FCC |
Details Images
Services
1.Quality: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
About Piesia
Package&Delivery
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
