New Design Automatic Cosmetics Essential Oil Perfume Liquid Spray Bottles Filling Machine
- Category: >>>
- Supplier: Shanghai Paixie Packing Machinery Co. Ltd.
Share on (1600978110752):
Product Overview
Description
Product Description

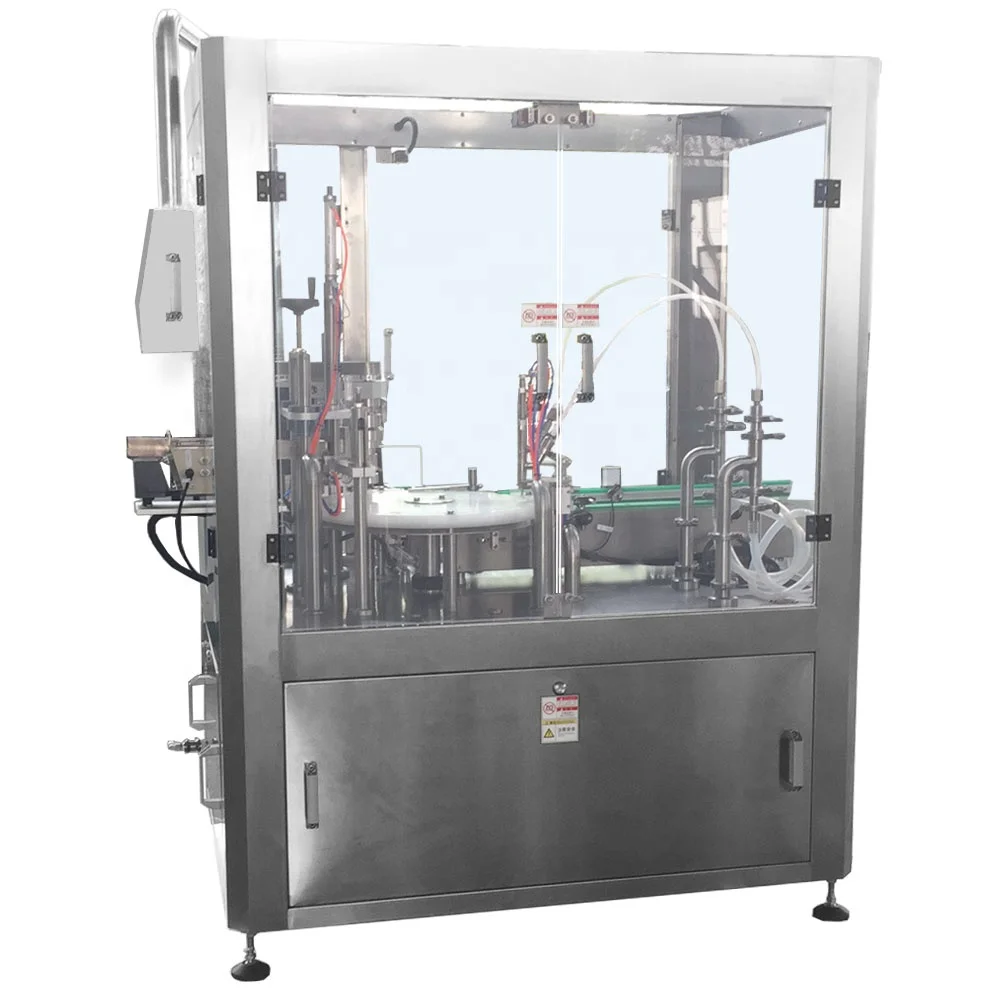

New Design Automatic Cosmetics Essential Oil Perfume Liquid Spray Bottles Filling Machine
1, The machine adopts the disc type unscrambling bottles, automatic feeding bottles
1, The machine adopts the disc type unscrambling bottles, automatic feeding bottles
2, SIEMENS PLC control system, colored touch-screen display.
3, The pressure plug is automatic sorting this stoppers by the vibrating disk, automatic drop plug and plugging, Equipped with device of automatic induction pressure plug, so reliability is higher
4, The lock cover machine is also similar, it is automatic sorting by vibration plate, hanging cover and adopted the special lock head, three knife capping, lock port appearance is beautiful .
Application
Technical Parameters
Output | 1000-6000BPH, or customized |
Filling Volume | 10-100ml, or customized |
Filling Material | Liquid, Gel or etc |
Control | PLC and Touch Screen |
Driving Motor | Servo Motor |
Filling Type | Piston Pump, Peristaltic Pump |
2.5Power | 1.5KW |
Machine Frame Material | SS304 |
Capping Head | Screwing, Pressing, Crimping Head ( According to the cap type) |
Suitable Industry | Cosmetic, food, detergent, etc |

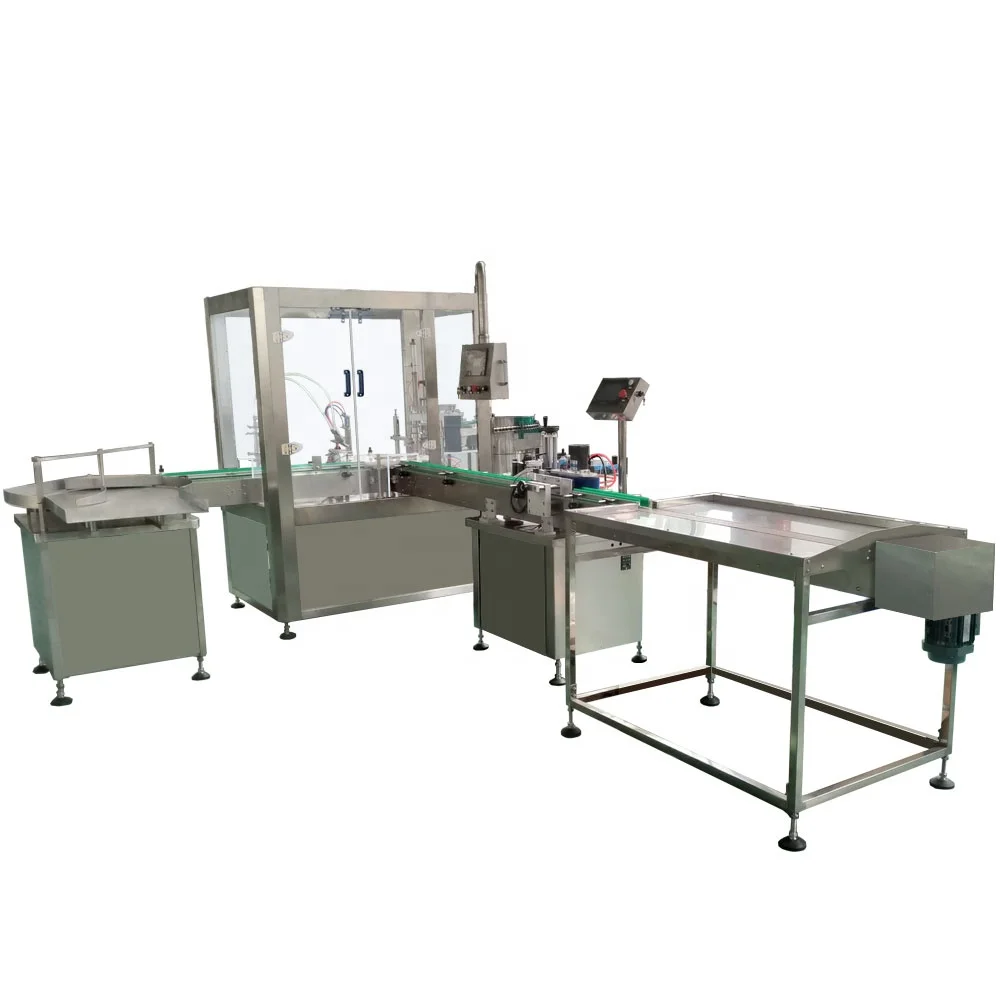

Product Show
Details Images

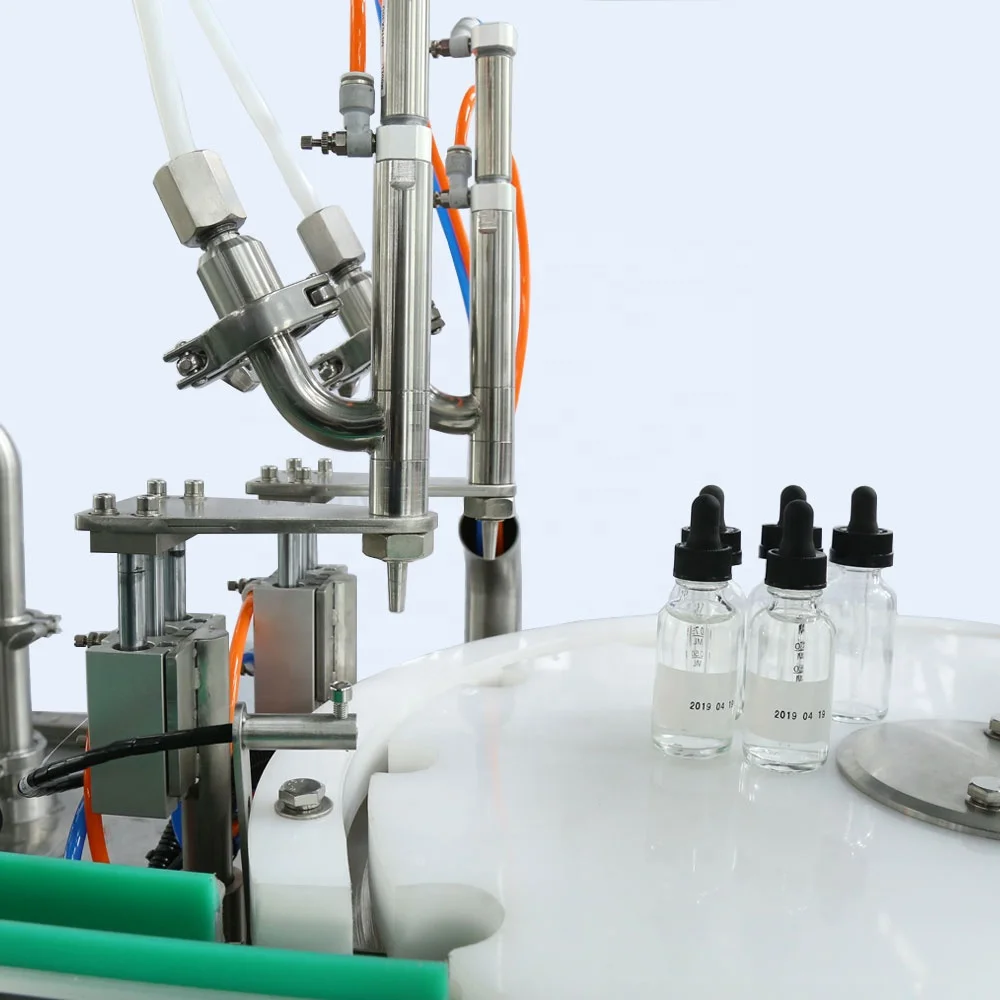

This is linear type peristaltic pump ( can be piston pump) filling machine which is designed for high capacity filling task, driven by servo motor with high precision. The filling nozzles are made of SS316, resist high temperature filling. drip-proof, via photoelectric detection to ensure no bottle no filling.
Operator through touch screen control the machine each part running, as well adjust the running parameters.
*Include adjust the production speed.
*With Alarming + Auto Stop System
Upgrade use Diving Filling System for meeting high accurate filling volume. Especially speed up the filling speed and make the filling process more steady. *With Bottle Detect System
*No Bottle No Filling

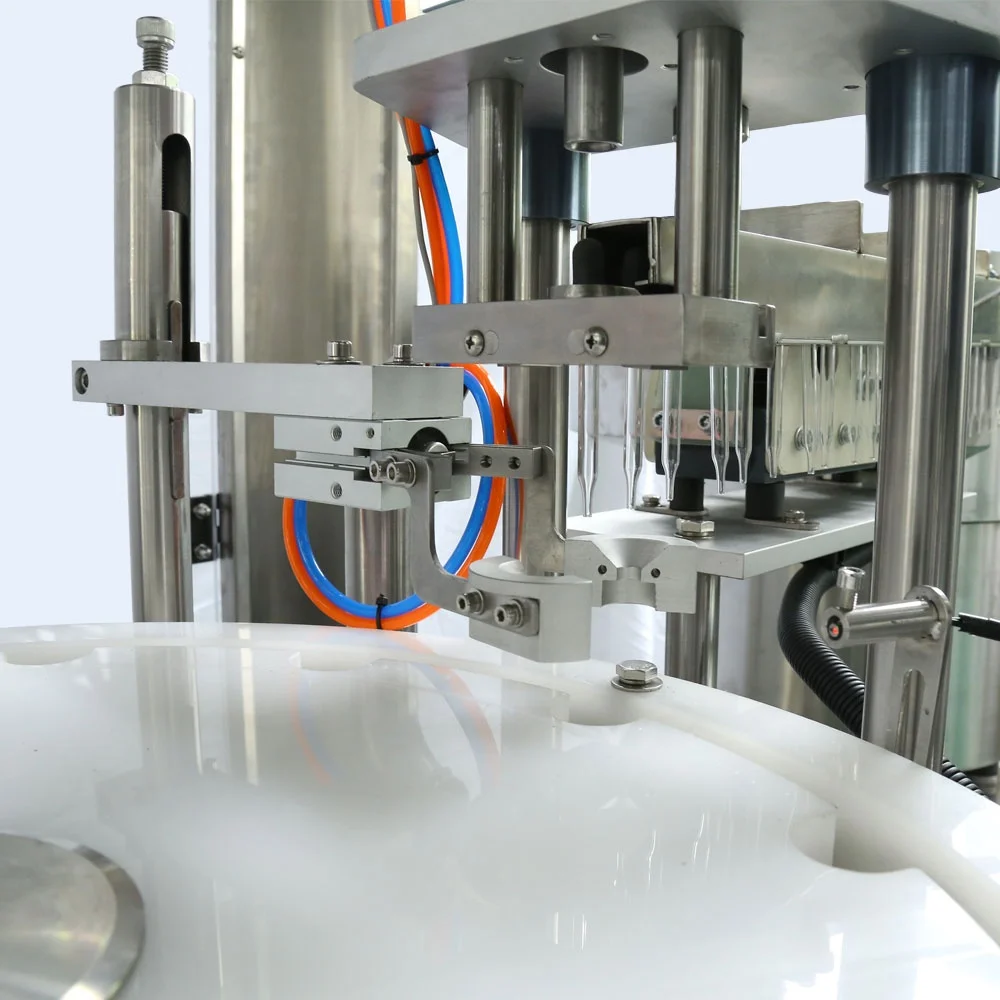

Cap transporting & pressing mechanism
Adjust the mechanical pressure regulator on the side plate of the machine so that caps can be transported to the fixed position of
cap pressing.

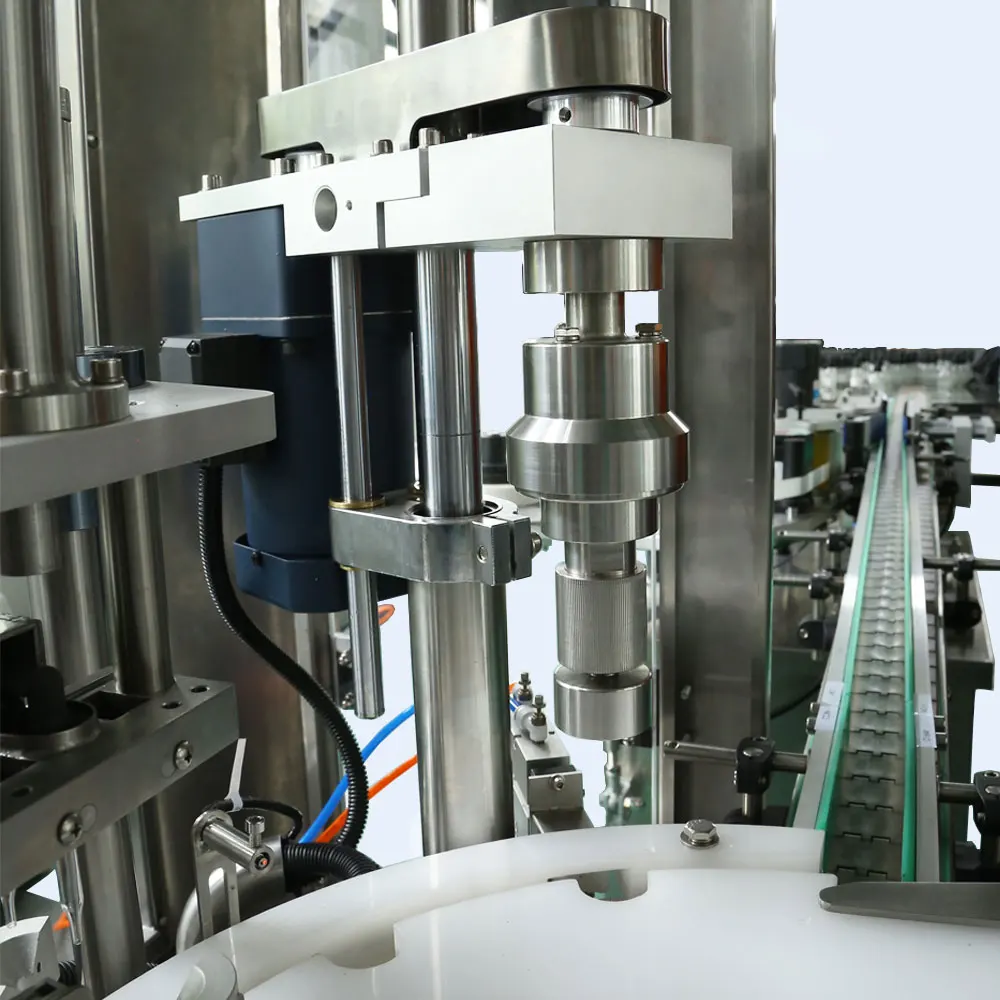

When a bottle with a cap is transported to be under the pre-screwing head by the main turntable,the pre-screwing head moves downward together with the lifting shaft of cap screwing head,pressing the cap down and rotating it for one circle to prepare for later cap screwing

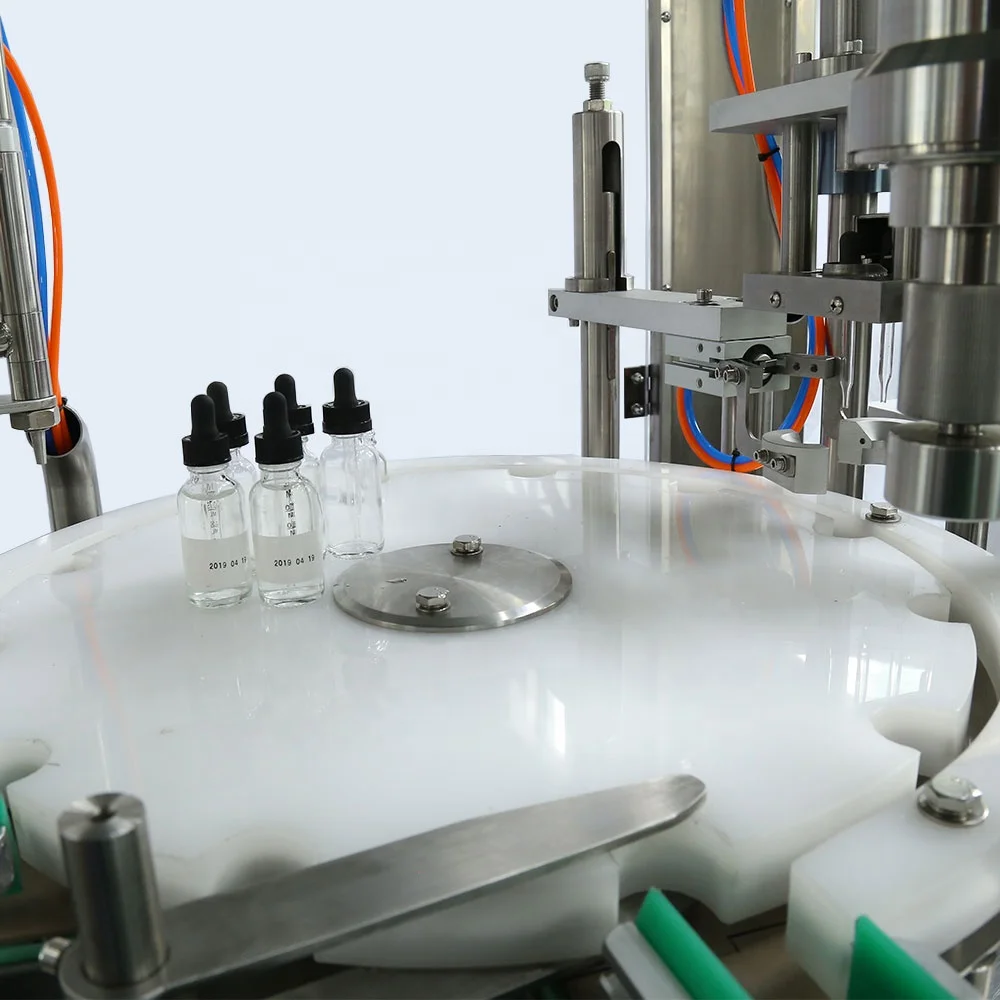

The turntable helps secure and transport bottles while working. This carousel should be customized according to bottle size. Change different turntables for different types of bottles.
Equipped with high-quality electric eyes, which can be used to detect bottles and start or stop the machine. The sensitivity of the electric eye can be adjusted through the adjustment part. Improve work accuracy.
