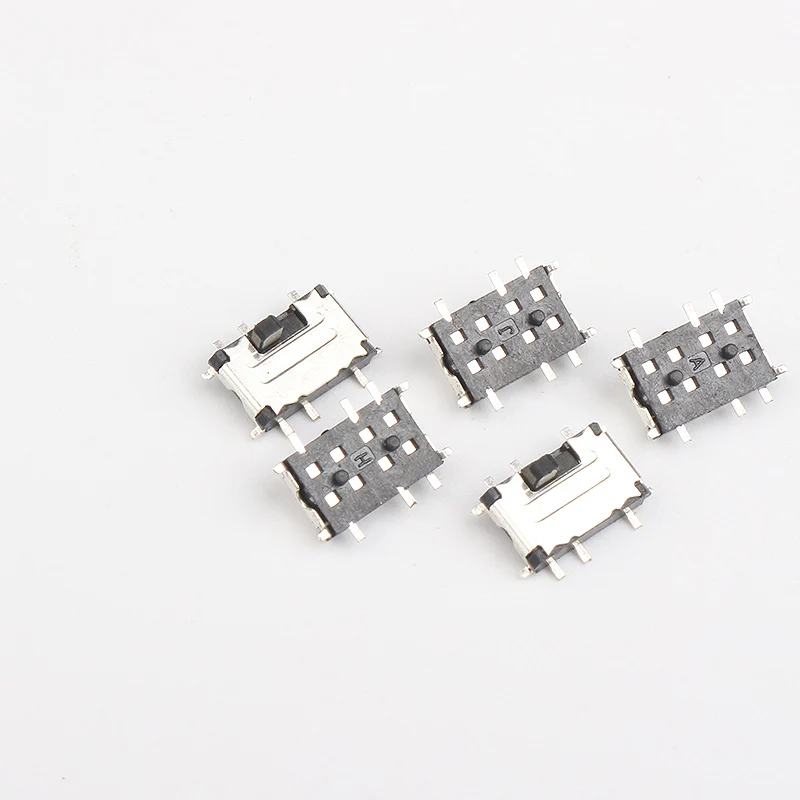

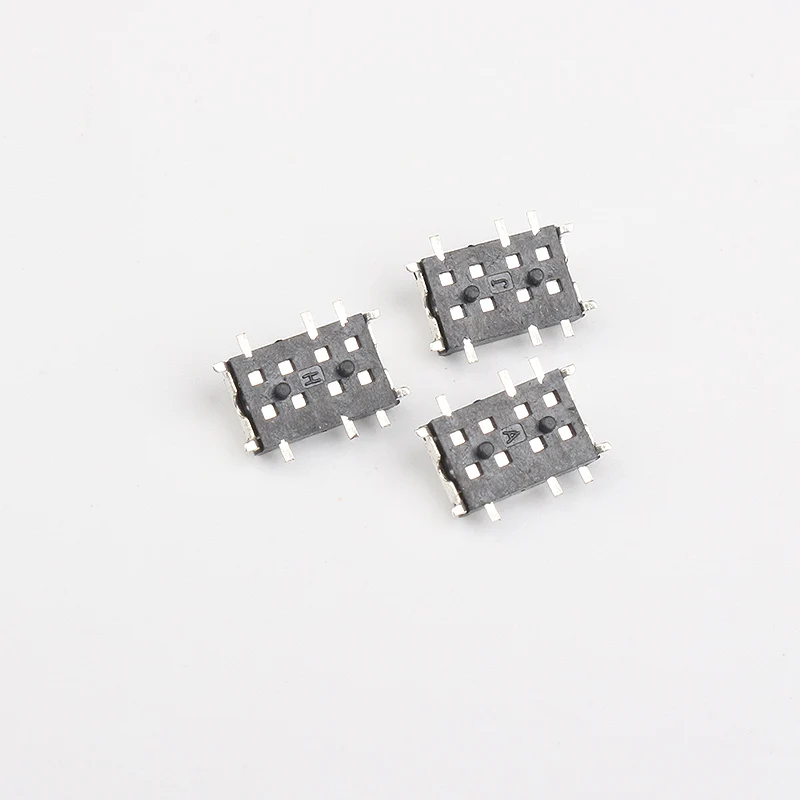

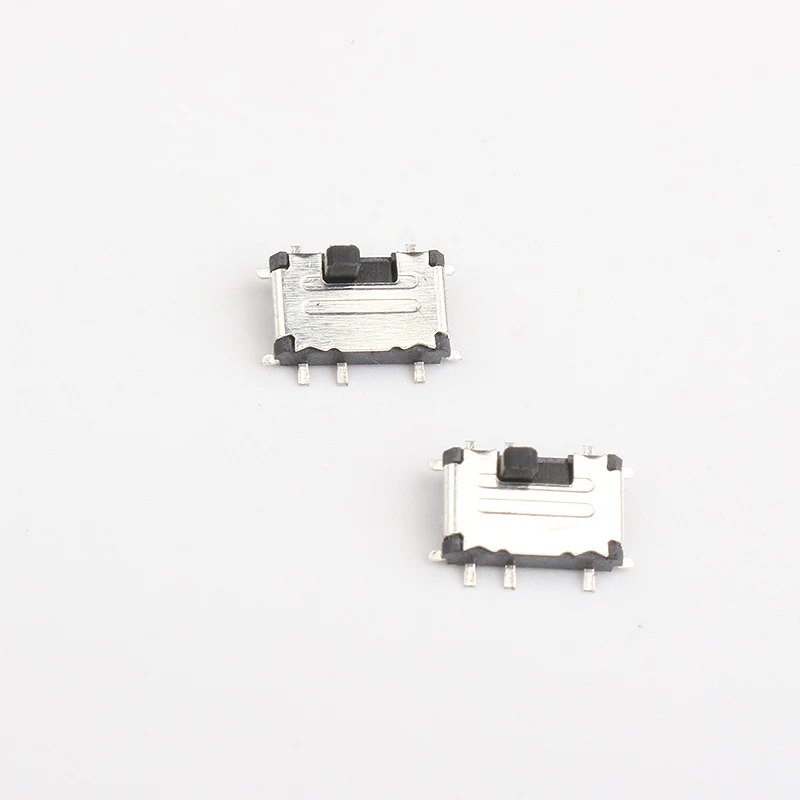

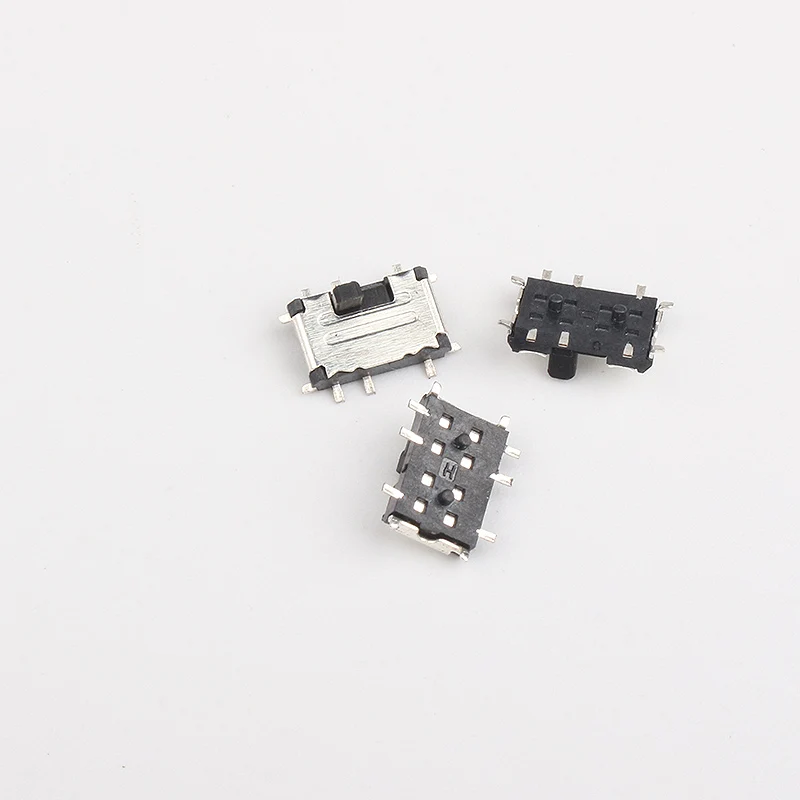

pcb miniature smt slide switch mini toggle switch knobs for slider switch LY SS07
- Category: >>>
- Supplier: Yueqing Leye Electronic Technology Co. Ltd.
Share on (1600978113940):
Product Overview
Description
Specification | |
Items | Standard |
Rating | 300mA 4V DC |
Insulation resistance | 100 MΩ max. 100V DC |
Dielectric strength | 250V AC for 1 min. |
Contact resistance | 70mΩ max. |
Operating temperature range | -10°c to + 70°C |
Lifetime | 10,000 Cycles min. |
Operating force | 120 ± 50gf 2C-2P: 180 ± 50gf |
Travel | 1.50 ± 0.2mm |
Product Description
