Model
|

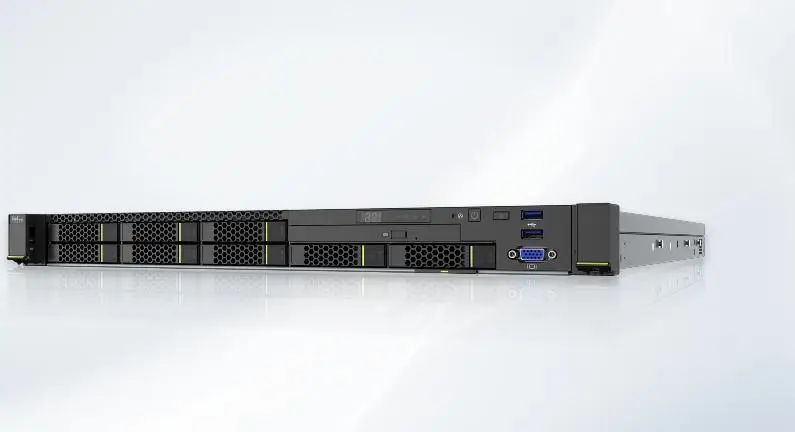

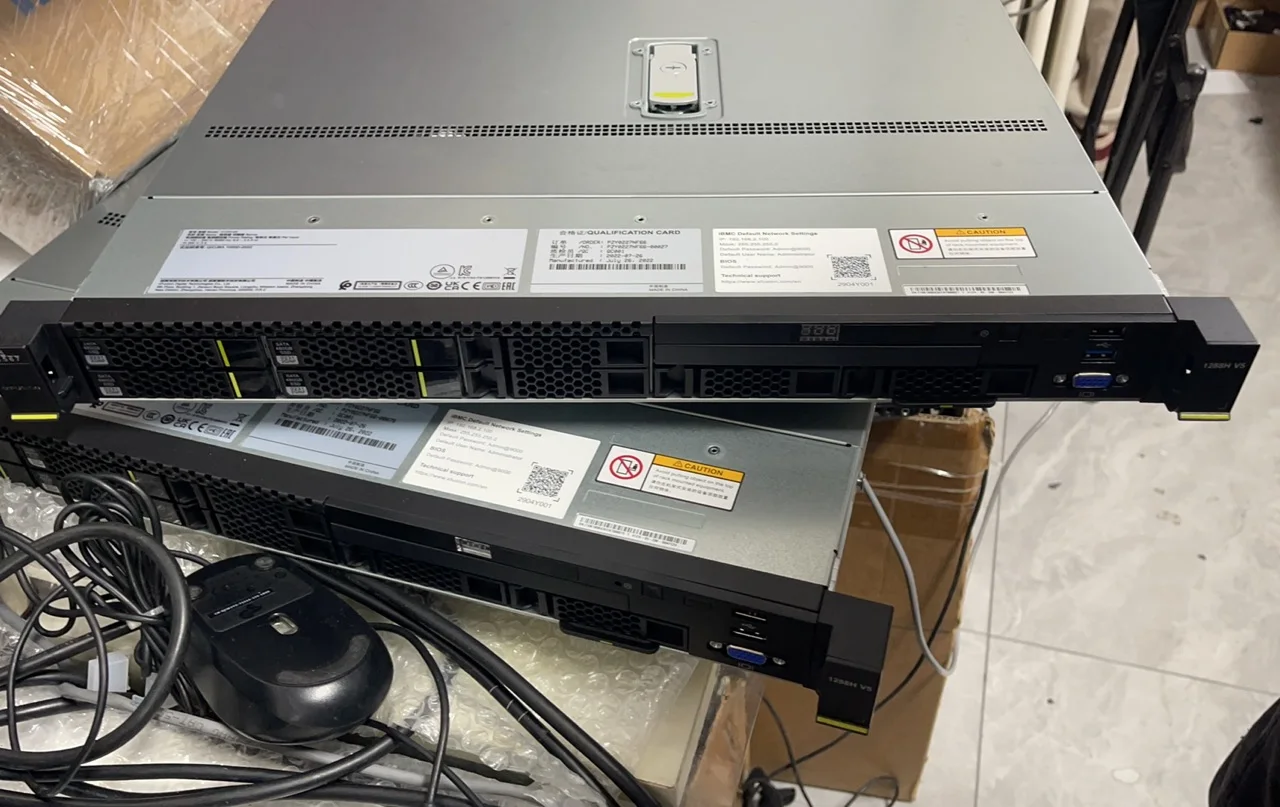

HUAWEI FUSIONSERVER 1288H V5 1U RACK SERVER
|
Form factor
|
1U rack server
|
CPU
|
One or two In tel® Xeon® Scalable 3100, 4100, 5100, 6100, and 8100 series processors * A maximum of 28 cores (2.5 GHz)
* Maximum frequency: 3.6 GHz (four cores)
* Two UPI links: 10.4 GT/s
* Maximum L3 cache capacity per core: 1.375
MB
* Maximum thermal design power (TDP): 205 W
|
Chipset
|
In tel C622
|
Memory
|
* A maximum of 24 DDR4 RDIMMs or LRDIMMs
* RDIMM: twenty-four 32 GB RDIMMs for two CPUs, with a maximum memory capacity of 768 GB
* LRDIMM: twenty-four 64 GB LRDIMMs for two CPUs, with a maximum memory capacity of 1536 GB
* Maximum memory speed: 2666 MT/s
* Memory protection: Error Checking and Correcting (ECC), Mirrored Channel Mode, Single Device Data Correction (SDDC), Rank
Sparing Mode, and Lockstep
|
Storage
|
* Supports various hard disk configurations. For details, see Table 2-7.
* Supports hard disk hot swap.
* Supports RAID 0, 1, 10, 1E, 5, 50, 6, and 60, provides a supercapacitor to protect cache data from power failures, and supports
RAID state migration, RAID configuration memory, self-diagnosis, and web-based configuration.
|
Network port
|
* Two 10GE electrical or optical LOM ports (provided by the PCH), supporting NC-SI, WOL, and PXE
* Two GE electrical LOM ports (provided by the PCH), supporting NC-SI, WOL, and PXE
* The flexible NICs provide the following network ports: * Two GE electrical ports, supporting NC-SI, WOL, and PXE
* Four GE optical ports, supporting NC-SI, WOL, and PXE
* Two 10GE electrical ports, supporting NC-SI, WOL, and PXE
|
RAID controller card
|
The 1288H V5 supports the following RAID controller cards:
* LSI SAS3008 (SR130): supports RAID 0, 1, 10, and 1E, and does not support out-of-band iBMC management.
* LSI SAS3008 (SR130-M): supports the IT mode and out-of-band iBMC management, and does not support RAID arrays.
* LSI SAS3108 (SR430C-M): supports RAID 0, 1, 10, 5, 50, 6, and 60, a supercapacitor for power-off protection, and out-of-band
iBMC management.
* Broadcom SAS3508 (SR450C-M 2G/4G): supports RAID 0, 1, 10, 5, 50, 6, and 60, a supercapacitor for power-off protection, and
out-of-band iBMC management.
* Broadcom SAS3408 (SR150-M): supports RAID 0, 1, and 10, and out-of-band iBMC management, but does not support power-off
protection.
|
PCIe slot
|
* Five PCIe 3.0 slots, among which one is a dedicated PCIe slot for a RAID controller card, one is a dedicated PCIe slot for a
flexible NIC, and the other three are standard PCIe slots. The specifications of the standard PCIe slots are as follows: * PCIe
riser module (PRM) 1: one standard half-height half-length PCIe 3.0 x16 slot (bandwidth: PCIe 3.0 x16)
* PRM
2: one standard half-height half-length PCIe 3.0 x16 slot (bandwidth: PCIe 3.0 x16) and one standard full-height half-length
PCIe 3.0 x16 slot (bandwidth: PCIe 3.0 x8)
* One Hua-wei SSD card, which greatly improves I/O performance for search, cache, and download services
* One P4 GPU
|
Port
|

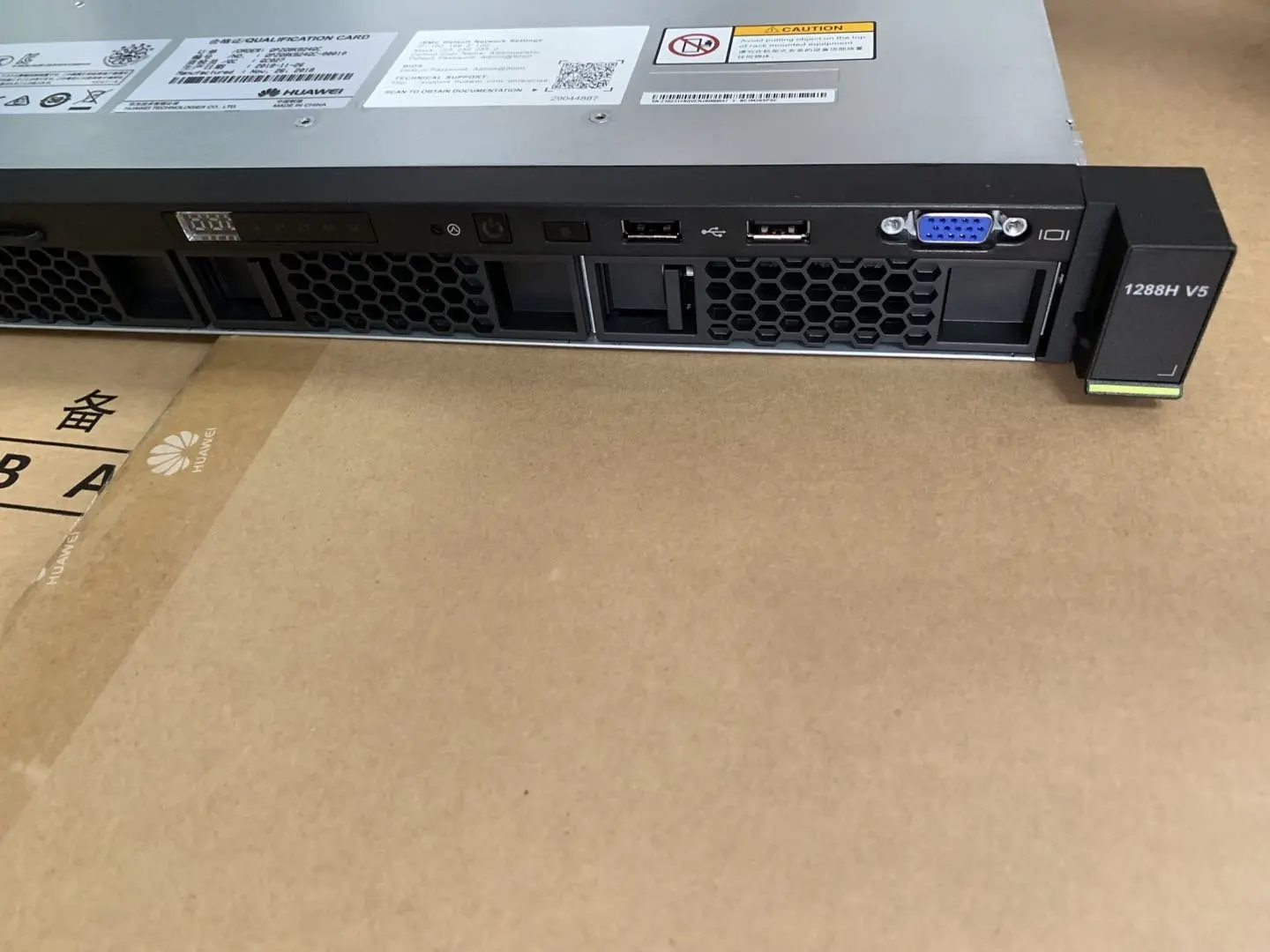

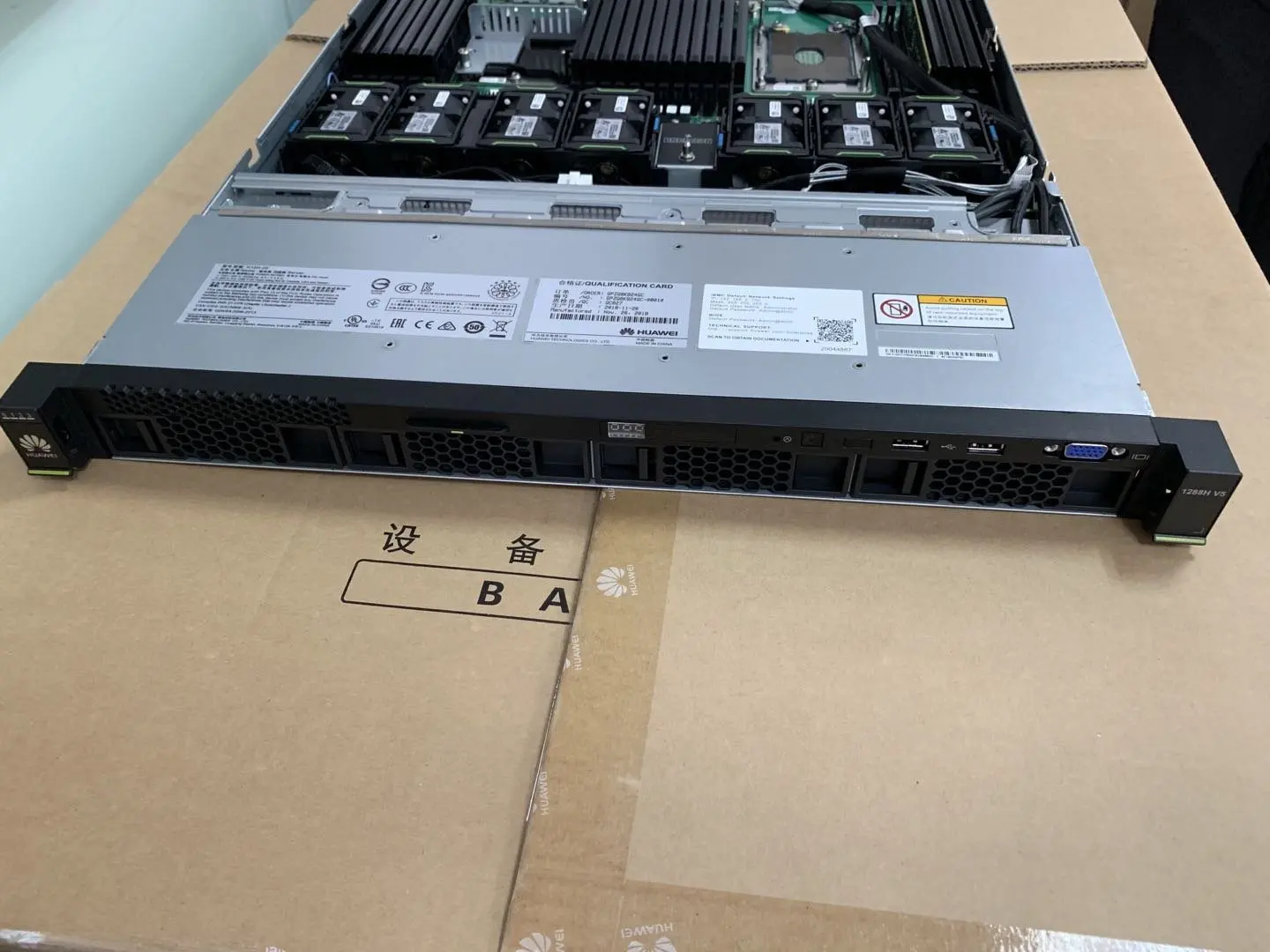

* One USB 2.0 port, one USB 3.0 port, and one DB15 VGA port on the front panel

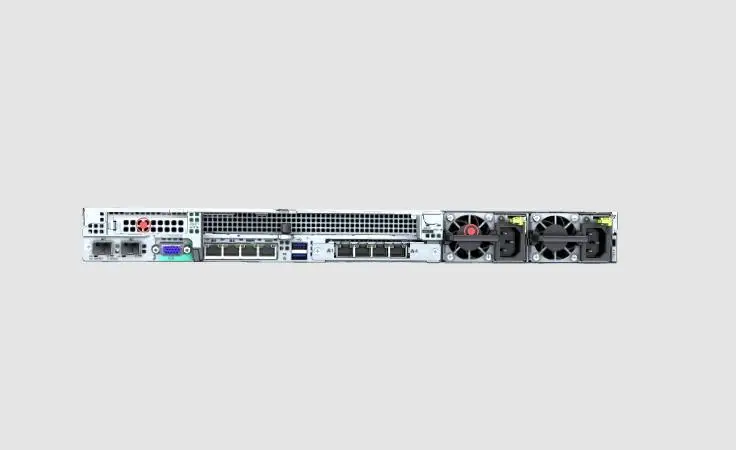

* Two USB 3.0 ports, one DB15 VGA port, one RJ45 serial port, one RJ45 system management port, two GE electrical ports, and two
10GE electrical ports or two 10GE optical ports on the rear panel
* One built-in USB 3.0 port and two built-in SATA ports
|
