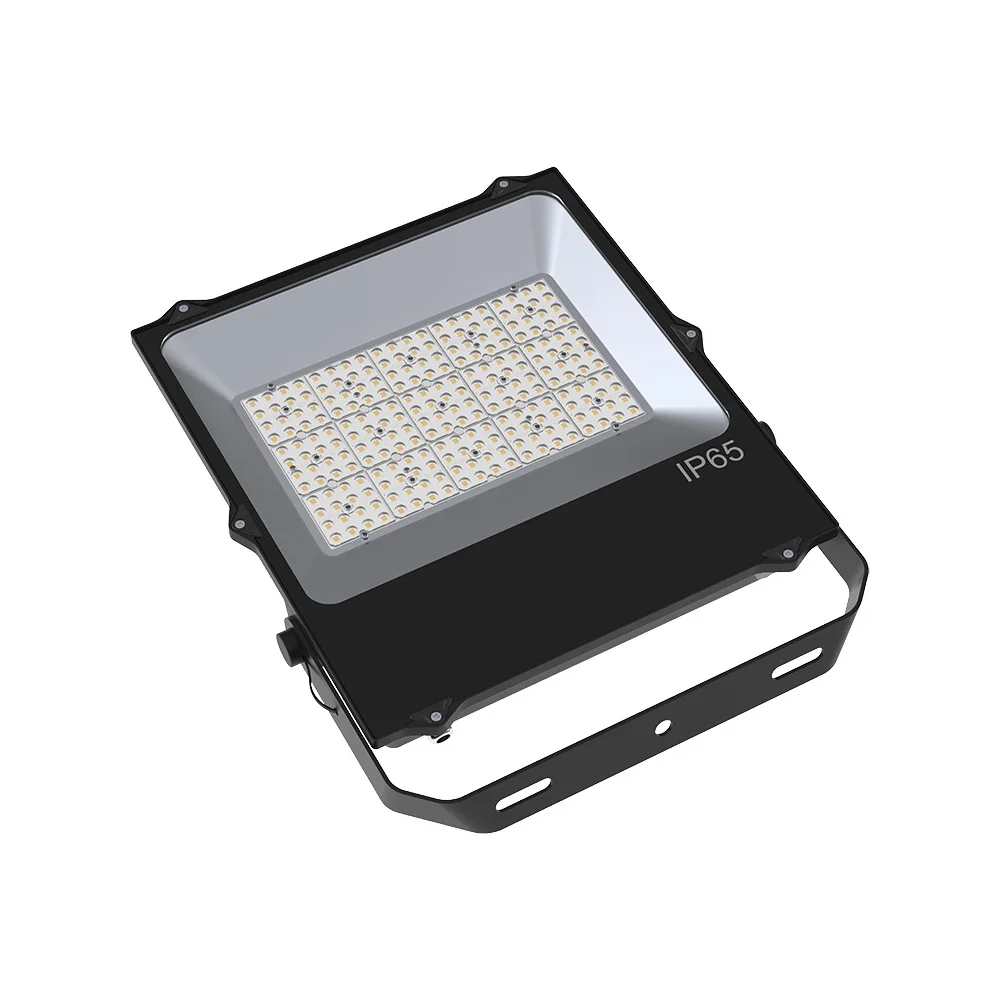

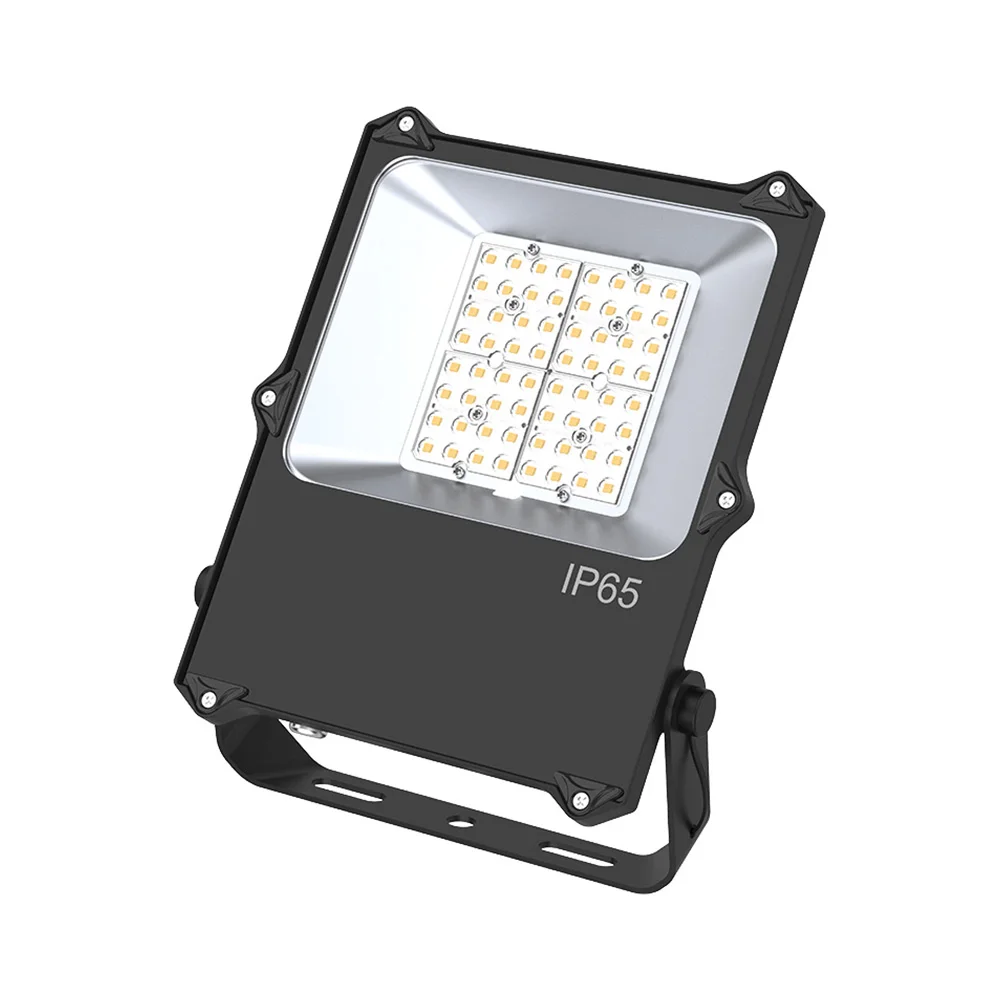

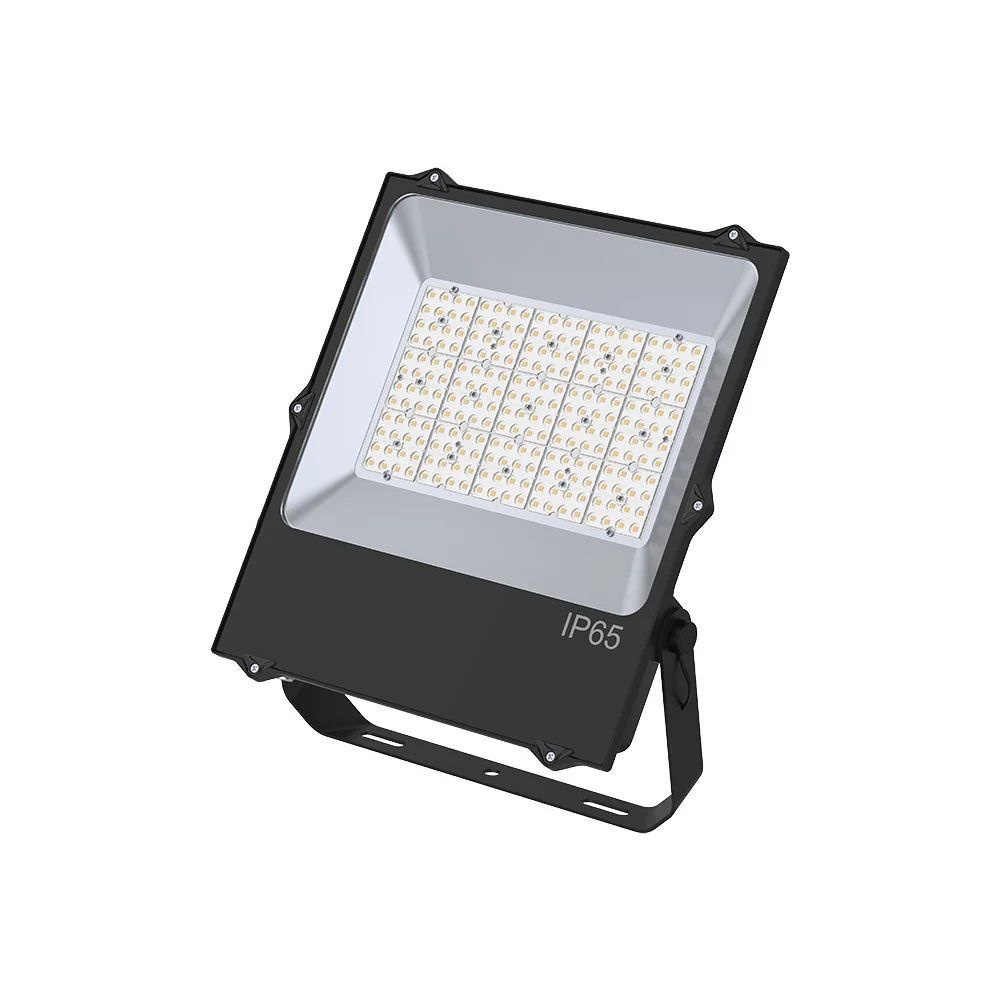

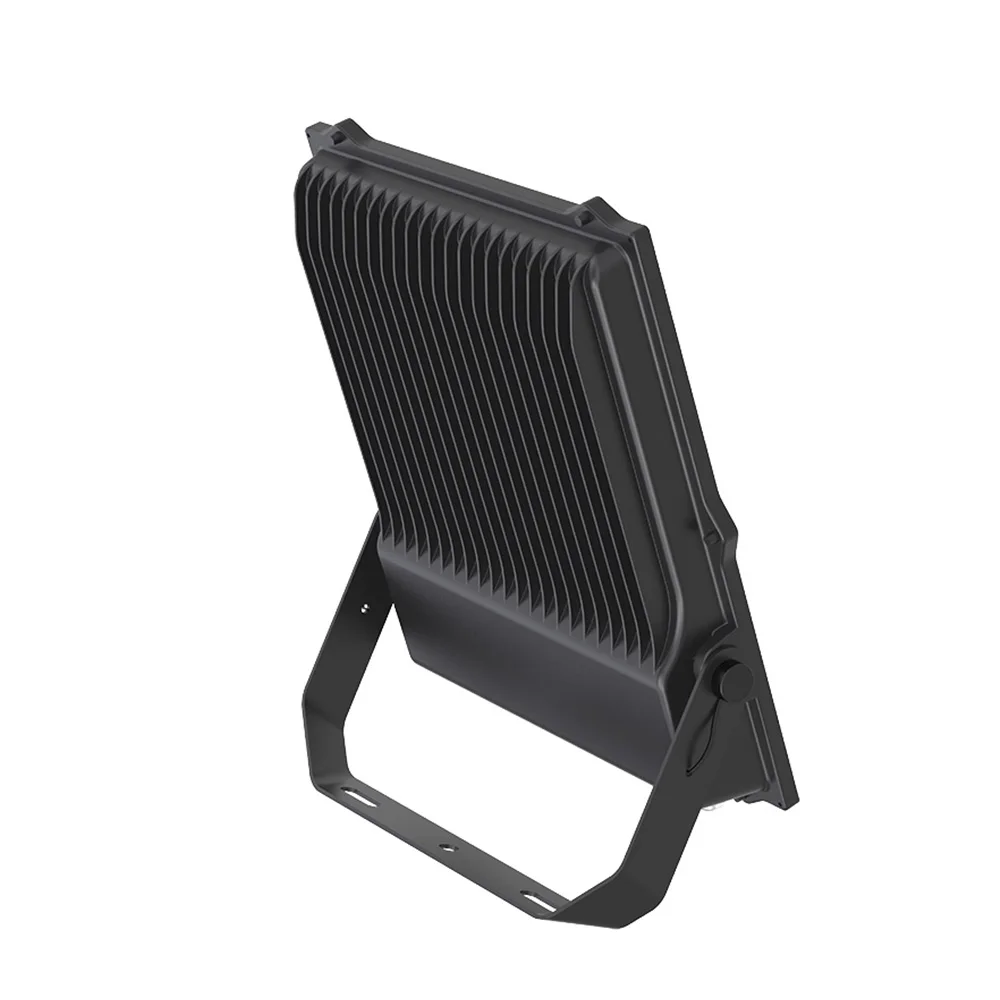

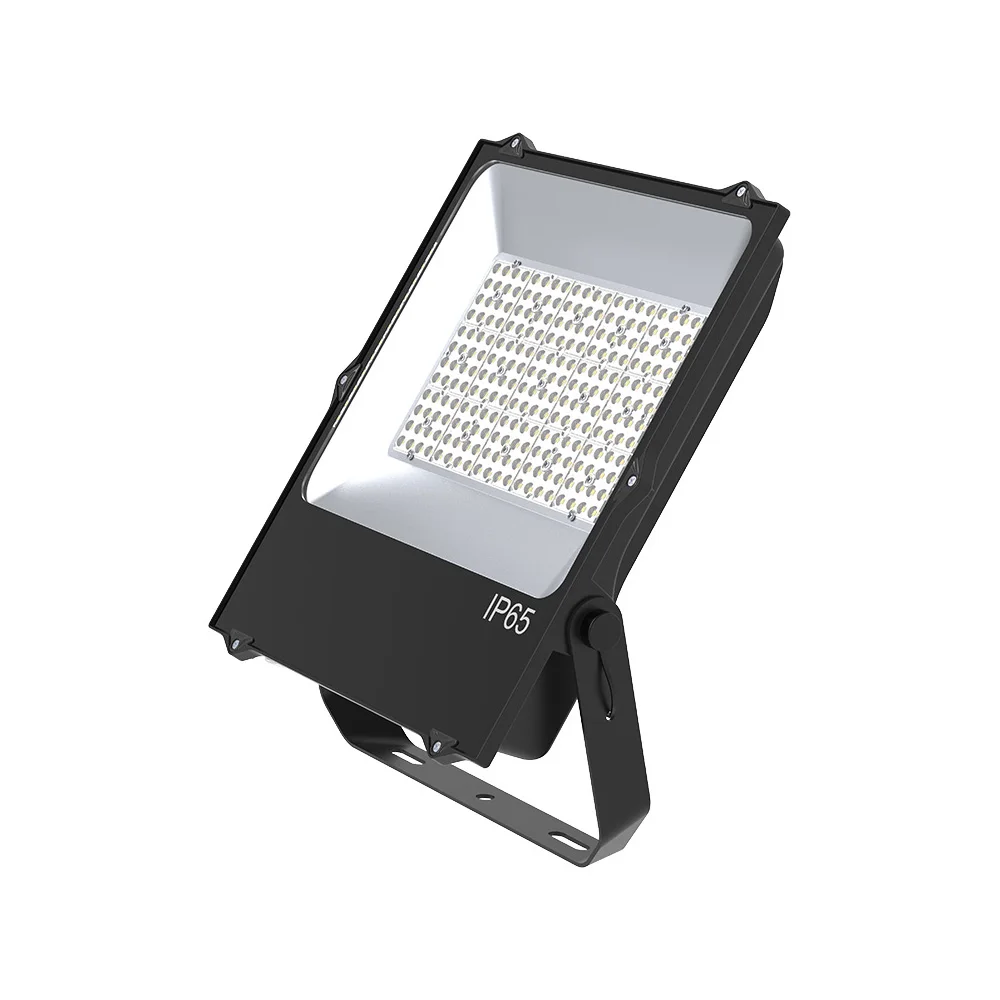

Toplight front door corner bright security light with lens waterproof outdoor flood lights led reflector for Garden
- Category: >>>
- Supplier: Shenzhen Toplight Lighting Technology Co. Ltd.
Share on (1600978131986):
Product Overview
Description
Product Description
Specification
item | value |
Color Temperature(CCT) | 2700-6500k |
Lamp Luminous Efficiency(lm/w) | 100 |
Color Rendering Index(Ra) | 80 |
Support Dimmer | NO |
Lighting solutions service | Lighting and circuitry design, Project Installation |
Lifespan (hours) | 50000 |
Working Time (hours) | 50000 |
Product Weight（kg） | 4.3 |
Input Voltage(V) | AC85-277v |
CRI (Ra>) | 80 |

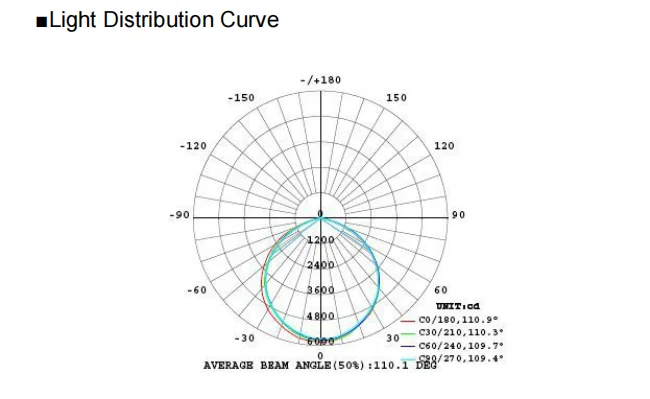

Beam Angle(°) | 180 |
Working Lifetime(Hour) | 50000 |
Lamp Body Material | Die casting aluminum |
IP Rating | IP66 |
Certification | BV, ce, RoHS |
Place of Origin | China |
Guangdong | |
Model Number | TG3B-100W |
Application | Garden |
Light Source | LED |
Lamp Luminous Flux(lm) | 10000-11500 |
Working Temperature(℃) | -20-55 |
Warranty(Year) | 3-Year |
Product Name | Led Floodlight |
Power | 10W/20W/30W/50W/100W/150W/200W |
Keyword | LED Floodlight Waterproof IP66 Outdoor |
Material | Aluminum+Tempered Glass |
Type | Energy Saving Outdoor Led Flood Light |
IP Grade | IP 66 |
LED Chip | High Power Led Chip |
Item | Smd LED Outdoor Flood Light |
Waterproof | IP66 Grade |
Usage | Indoor/Outdoor LED IP65 Floodlight |
■Features
* Wide voltage input.
* High luminous efficiency,energy saving and environmental protection.
* The light evenly distributed,large bean angle.
* Good heat dissipation,performance stability.
* The overall appearance of cordination and beautiful.
* Rotatable install bracket,easy to adjust the light angle.
* With safe brand driver
* Wide voltage input.
* High luminous efficiency,energy saving and environmental protection.
* The light evenly distributed,large bean angle.
* Good heat dissipation,performance stability.
* The overall appearance of cordination and beautiful.
* Rotatable install bracket,easy to adjust the light angle.
* With safe brand driver
■Installation instruction:
★Please confirm the input voltage before installation
★Please turn off the power before installation
★The bracket is securely fixed to the wall, make sure not to fall.
★Turn on power after installation,power test
★Please confirm the input voltage before installation
★Please turn off the power before installation
★The bracket is securely fixed to the wall, make sure not to fall.
★Turn on power after installation,power test

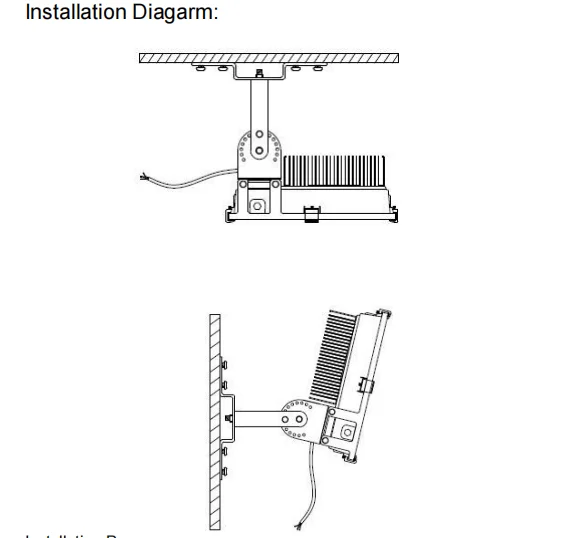

Installation: Installation of such wide scope, such as walls, floors, poles, and
other kinds of support. Here is the installation of wall and ceiling.
other kinds of support. Here is the installation of wall and ceiling.
Installation Process：
1.Firstly, install the fixed support on wall or ceiling
2.Adjust the angle of support to suitable position, and use screws to fix
3.Install the lamp on wall support
4.Connect the power wire and go on testing
5.If adjust the viewing angle, must cut off the power, and then adjust the support angle.
1.Firstly, install the fixed support on wall or ceiling
2.Adjust the angle of support to suitable position, and use screws to fix
3.Install the lamp on wall support
4.Connect the power wire and go on testing
5.If adjust the viewing angle, must cut off the power, and then adjust the support angle.
■Precautions:
★Wall should have sufficient strength to support lamps.
★Must confirm two input lines,one is L and another is N.
★When installing must cut the power.
★Finish lamps install then open power test,,prevent electric shock.
★Don’t open the lamp and changing electrical structure,prevent damage to
the lamp.If lamp broken in this way,seller won’t be responsible.
★Wall should have sufficient strength to support lamps.
★Must confirm two input lines,one is L and another is N.
★When installing must cut the power.
★Finish lamps install then open power test,,prevent electric shock.
★Don’t open the lamp and changing electrical structure,prevent damage to
the lamp.If lamp broken in this way,seller won’t be responsible.
■Lamps can not be normal light emitting troubleshooting:
★Lamp is not bright,check if mains wiring is connected after turn off power.
★If wiring connection is correct,contact the dealer or service center with no
Appearance damage.
★Lamp is not bright,check if mains wiring is connected after turn off power.
★If wiring connection is correct,contact the dealer or service center with no
Appearance damage.
■After-sales service and maintenance:
★If any problem,please contact the dealer or service center in any case.
★The product free repair within the warranty period,suitable materials fee
Charged after the warranty expires.
★If you have any questions please contact our company by the following way:
Hotline:+(86)-0755-28151799 E-mail:Sales-a@toplightled.com
Supervise Hotline:+86 15917937689
★If any problem,please contact the dealer or service center in any case.
★The product free repair within the warranty period,suitable materials fee
Charged after the warranty expires.
★If you have any questions please contact our company by the following way:
Hotline:+(86)-0755-28151799 E-mail:Sales-a@toplightled.com
Supervise Hotline:+86 15917937689

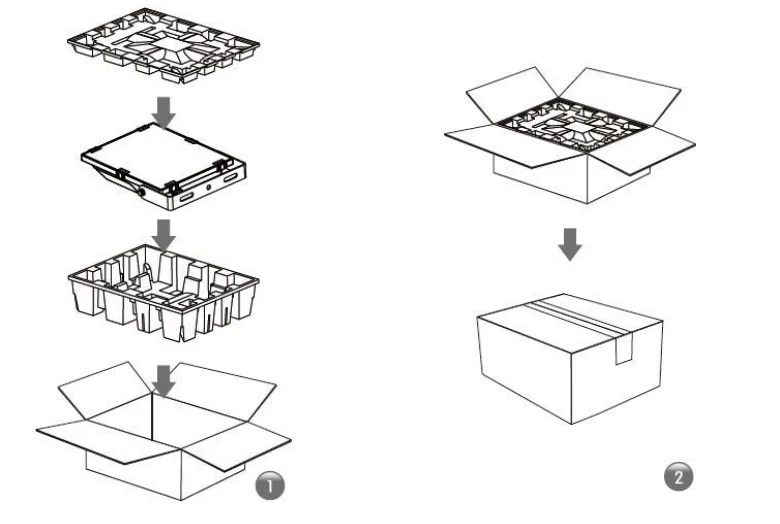

Packing & Delivery
,1pcs/carton, 7.2KG

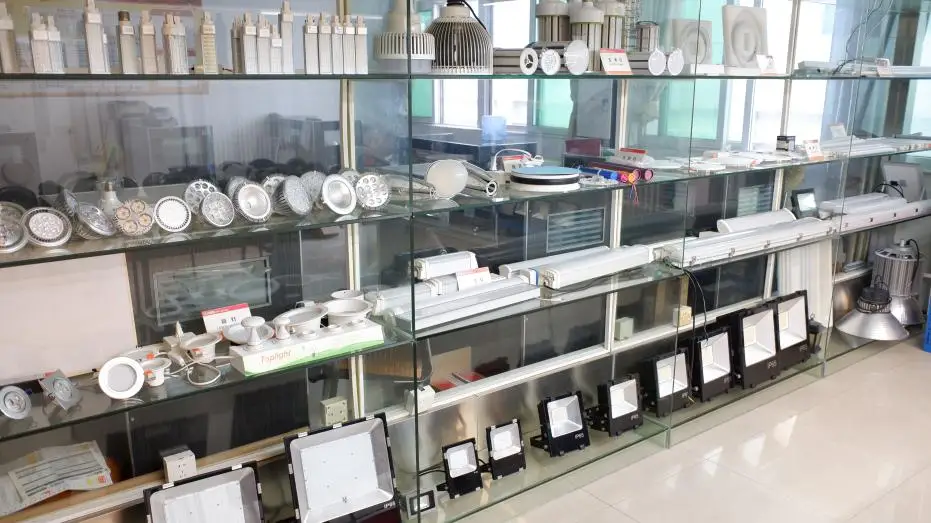

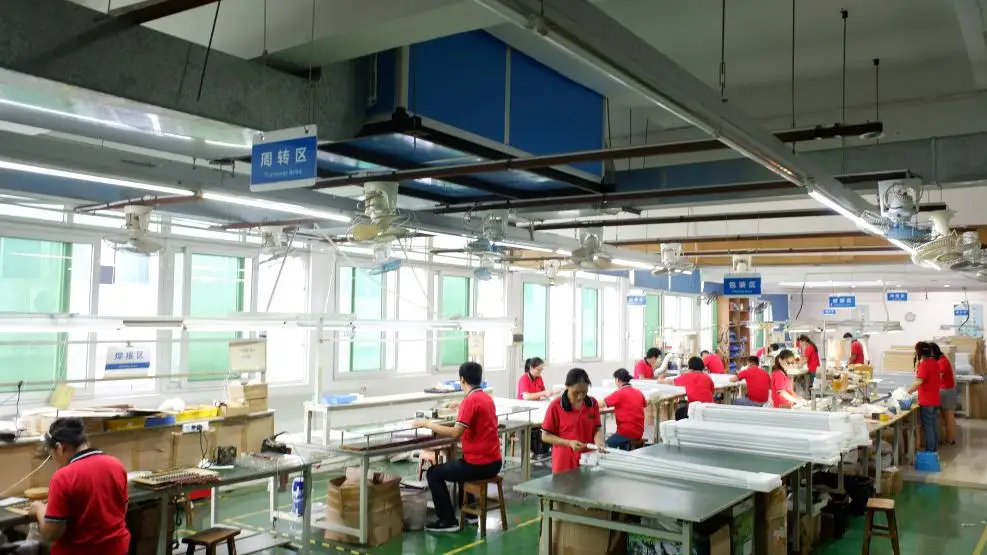

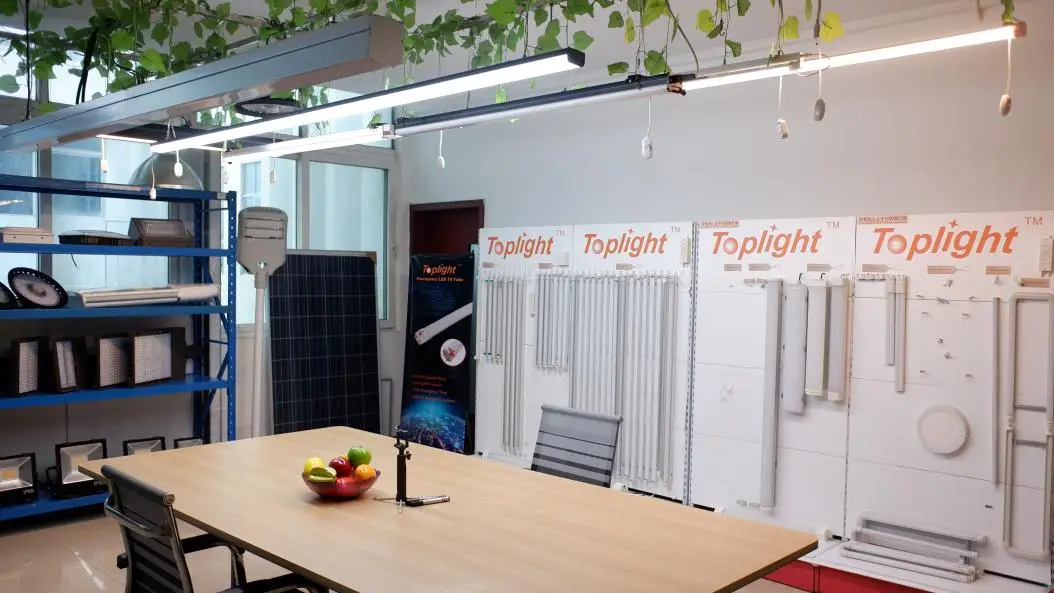

Company Profile
