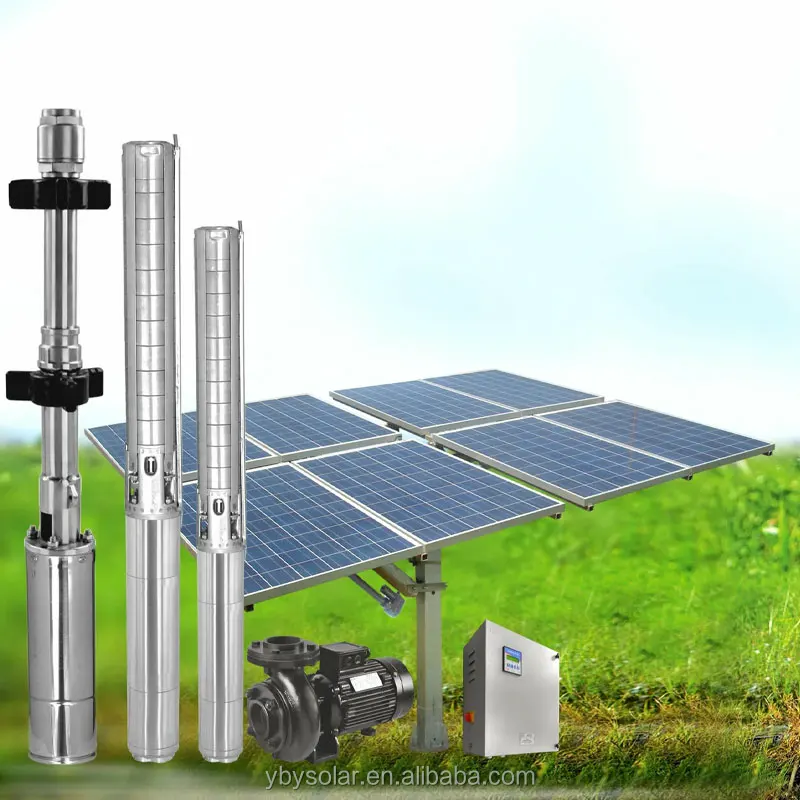

12V water pump solar brushless dc motor solar pump system agriculture system solar borehole pumps
- Category: >>>
- Supplier: Juancheng County Yibiyuan Water-Saving Equipment Technology Co. Ltd.
Share on (1600978145709):
Product Overview
Description
Specification
Brand Name | YIBIYUAN |
Model Number | yby-01 |
Application | solar water pump for agriculture irrigation |
Material | Stainless Steel |
Voltage | 72V |
Pressure | High Pressure |
Product name | Solar Submersible Water Pump |
Structure | Single-stage Pump |
Usage | Water Solar Water Pump System |
Motor | 100% Copper Wire |
Pressure | 12/24v/48v/60v/72v |
Theory | Centrifugal Solar Water Pump |
Power | Solar Powered Submersible Deep |
MOQ | 1 Set |
Solar panel | 4PCS Surface Solar Water Pumps |
Fuel | Solar Panel Power |
Product Description
DC Pump Data 3 Inches | ||||||||||||||||
Solar array voltage | Solar array power | Max.flow | Max.head | OUTLET | G.W | Size | ||||||||||
V | W | m3/h | m | IN | kg | mm | ||||||||||
3JTS(T)1.0/30-D24/80 | Screw | 36 | 110 | 1.0 | 30 | 0.75" | 7 | 76x460 | ||||||||
3JTS(T)1.3/50-D24/140 | 36 | 180 | 1.3 | 50 | 0.75" | 7.2 | 76x460 | |||||||||
3JTS(T)1.5/80-D24/210 | 36 | 280 | 1.5 | 80 | 0.75" | 7.5 | 76x460 | |||||||||
3JTS(T)1.5/95-D24/270 | 36 | 360 | 1.5 | 95 | 0.75" | 8 | 76x460 | |||||||||
3JTS(T)2.1/100-D48/500 | 72 | 660 | 2.1 | 100 | 0.75" | 8.5 | 76x460 | |||||||||
3JTS(T)2.3/80-D48/750 | 72 | 960 | 2.3 | 80 | 0.75" | 9 | 76x460 | |||||||||
3JTS(T)2.3/120-D72/1000 | 108 | 1320 | 2.3 | 20 | 0.75" | 9.5 | 76x460 | |||||||||
3JTS(T)2.3/140-D72/1300 | 108 | 1680 | 2.3 | 140 | 0.75" | 10 | 76x460 | |||||||||
3JTSI1.0/30-D24/80 | Screw | 36 | 110 | 1 | 30 | 0.75" | 7 | 76x460 | ||||||||
3JTSI1.3/50-D24/140 | 36 | 180 | 1.3 | 50 | 0.75" | 7.2 | 76x460 | |||||||||
3JTSI1.5/80-D24/210 | 36 | 280 | 1.5 | 80 | 0.75" | 7.5 | 76x460 | |||||||||
3JTSI1.5/95-D24/210 | 36 | 360 | 1.5 | 95 | 0.75" | 8 | 76x460 | |||||||||
3JTSI1.5/115-D36/500 | 72 | 660 | 2.1 | 100 | 0.75" | 8.5 | 76x460 | |||||||||
3JTSI2.3/80-D48/750 | 72 | 960 | 2.3 | 80 | 0.75" | 9 | 76x460 | |||||||||
3JTSI2.3/120-D72/1000 | 108 | 1320 | 2.3 | 120 | 0.75" | 9.5 | 76x460 | |||||||||
3JTSI2.3/140-D72/1300 | 108 | 1680 | 2.3 | 140 | 0.75" | 10 | 76x460 | |||||||||
3JTSC5.0/30-D24/270 | 36 | 480 | 5.0 | 30 | 1.25" | 13 | 76x500 | |||||||||
3JTSC5.0/50-D48/500 | 72 | 600 | 5.0 | 50 | 1.25" | 13.5 | 76x500 | |||||||||
3JTSC5.0/65-D48/750 | 72 | 600 | 5.0 | 65 | 1.25" | 14.0 | 76x500 | |||||||||
3JTSC6.5/80-D72/1000 | 108 | 1320 | 6.5 | 80 | 1.25" | 14.5 | 76x560 | |||||||||
3JTSC6.5/120-D72/1300 | 108 | 1680 | 6.5 | 120 | 1.25" | 15.5 | 76x600 | |||||||||
3JTSC7.0/140-D192/1800 | 288 | 2400 | 7.0 | 140 | 1.25" | 17.5 | 76x650 | |||||||||
3JTSC7.0/180-D216/2200 | 288 | 2880 | 7.0 | 180 | 1.25" | 18.5 | 76x720 | |||||||||
Recommend Products

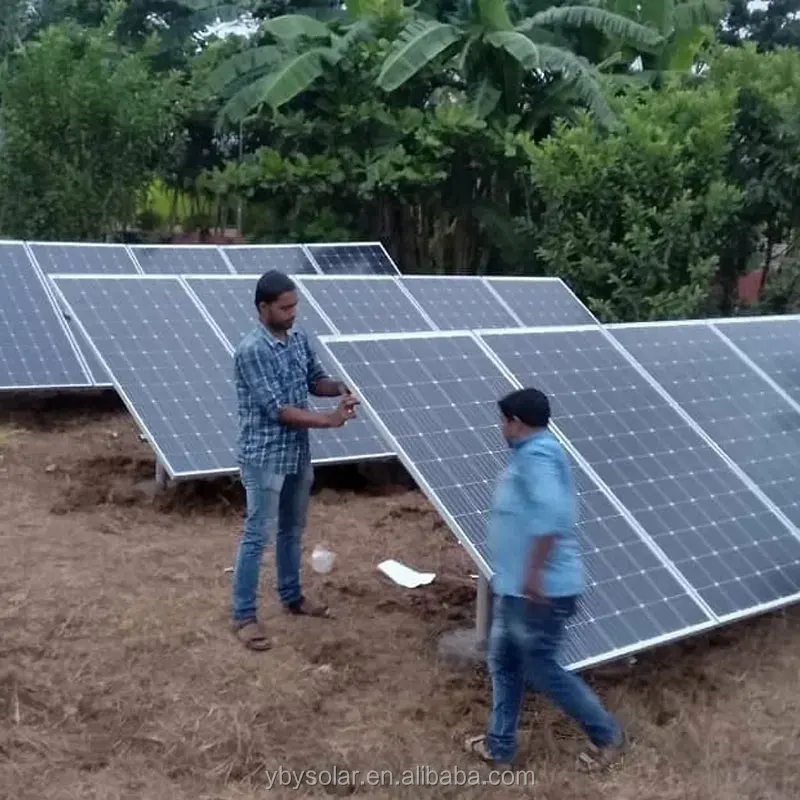

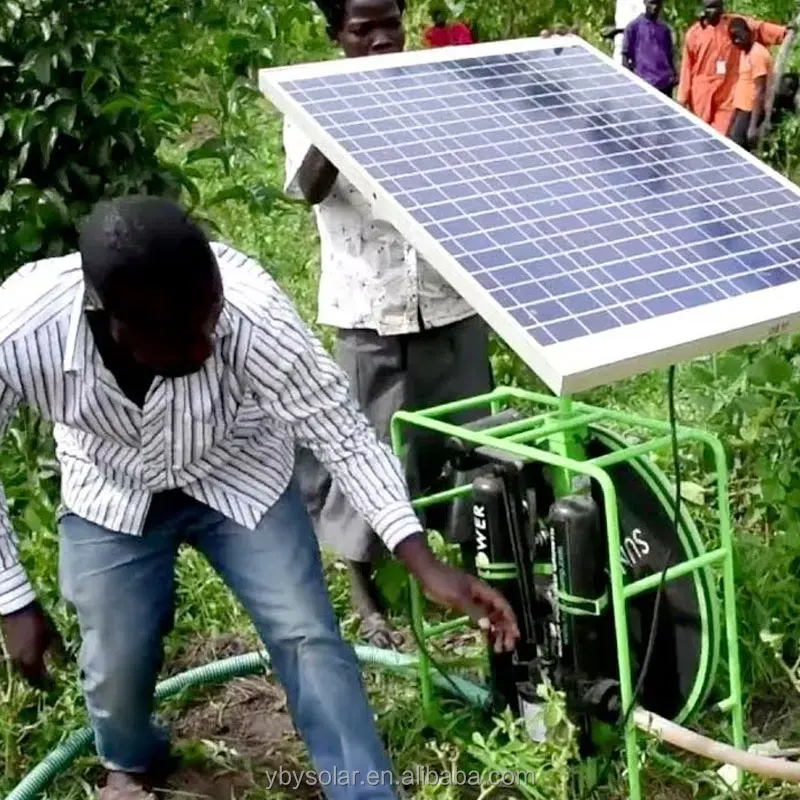

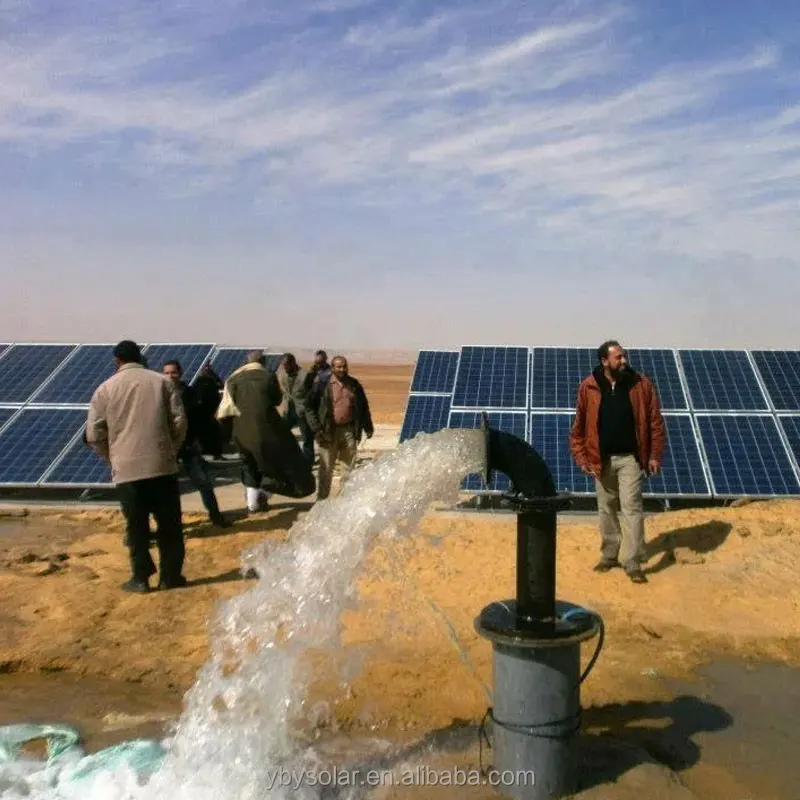

Solar water pump Application
①Application of deep well solar pump to irrigation
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Environment friendly
⑥Pumping and drip irrigation
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Environment friendly
⑥Pumping and drip irrigation
Application
Production Show

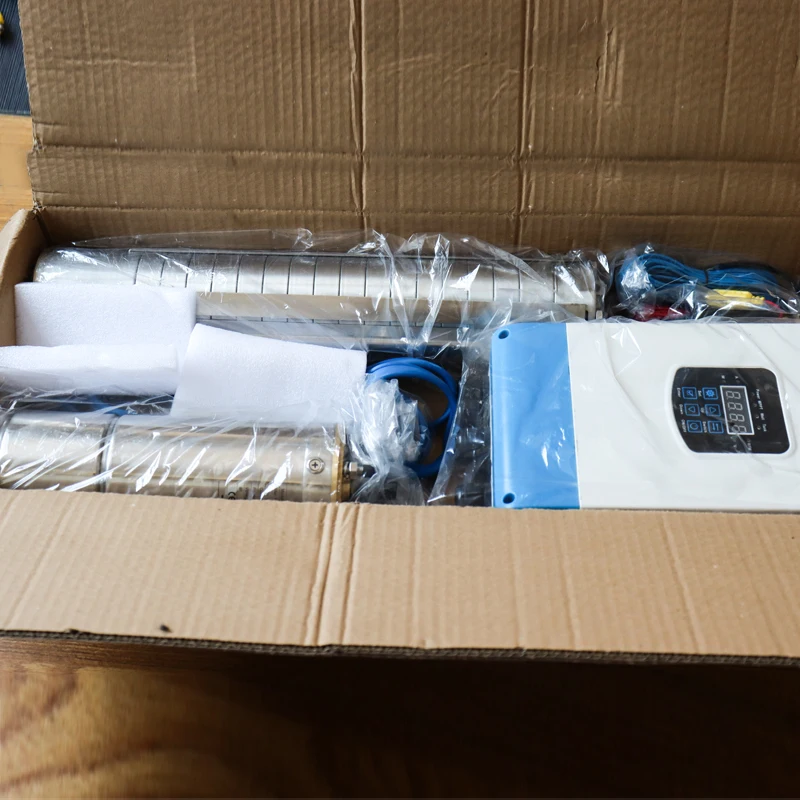

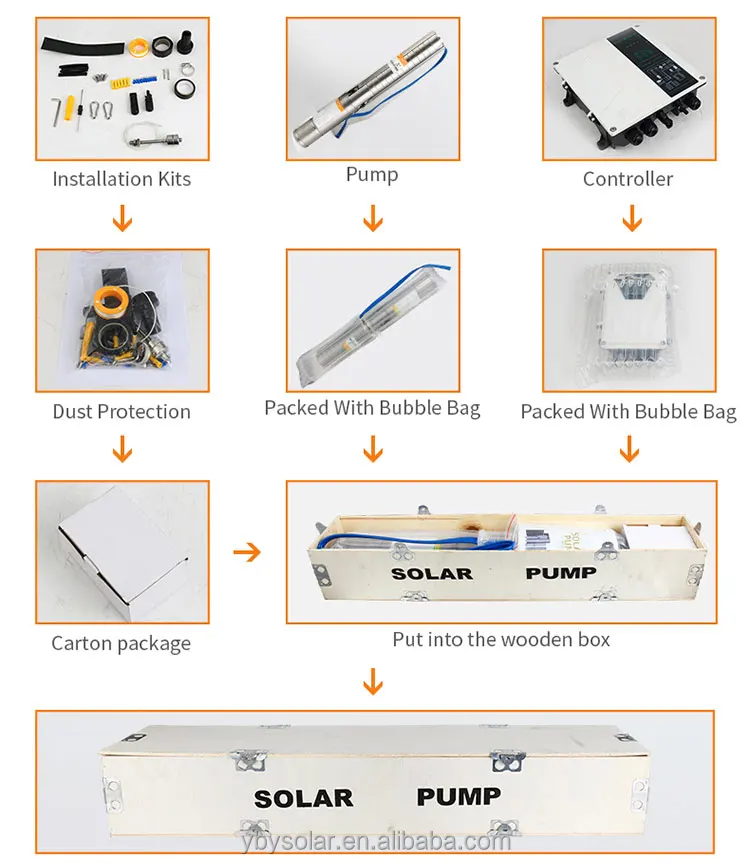

Packing & Delivery
Carton box+tape wrapped
Company Profile
Yibiyuan Water-saving Irrigation Technology Co., Ltd. We are a pioneering manufacturer of renewable energy in China.Our 10 years of experience in design and development, we have a strong technical team and a customer-focused work ethic.
Certifications
FAQ
Q1: What are your main products?
A1: We're leading manufacture of solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories.
Q2: Can you print our company logo on the nameplate and packaging?
A2: Yes, we can do it according to your design.
Q3: Can you support OEM and field installation?
A3: Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and assistance services.
Q4: How does your factory conduct quality control?
A4: Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, it will be packaged out of the factory.
Q5: What are your strengths in solar systems?
A5: Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with well-known brands such as Jinko, JA, TRW, etc., and can provide large-brand solar energy series products.
Q6: Can I get one for sample?
A6: Yes,we accept sample order or trail order for testing.
