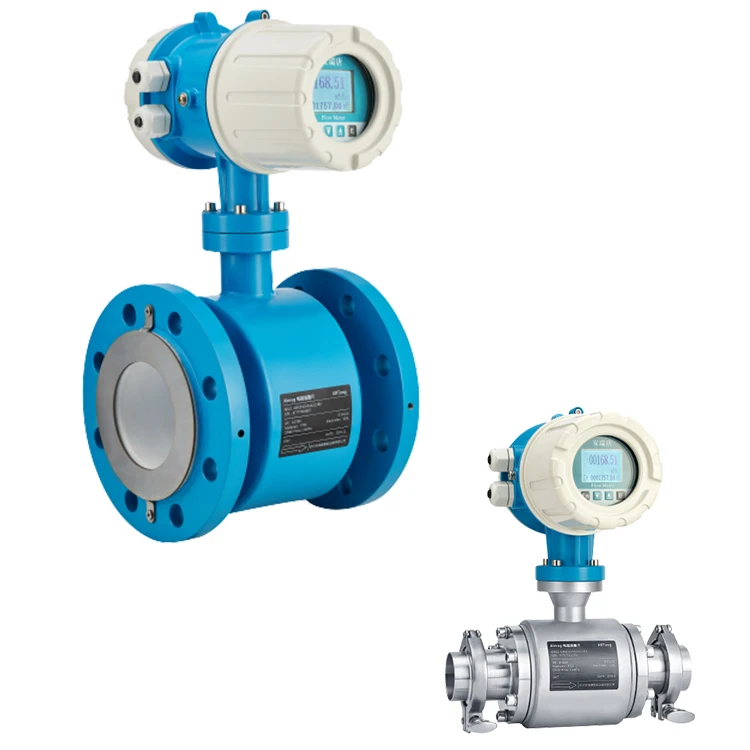

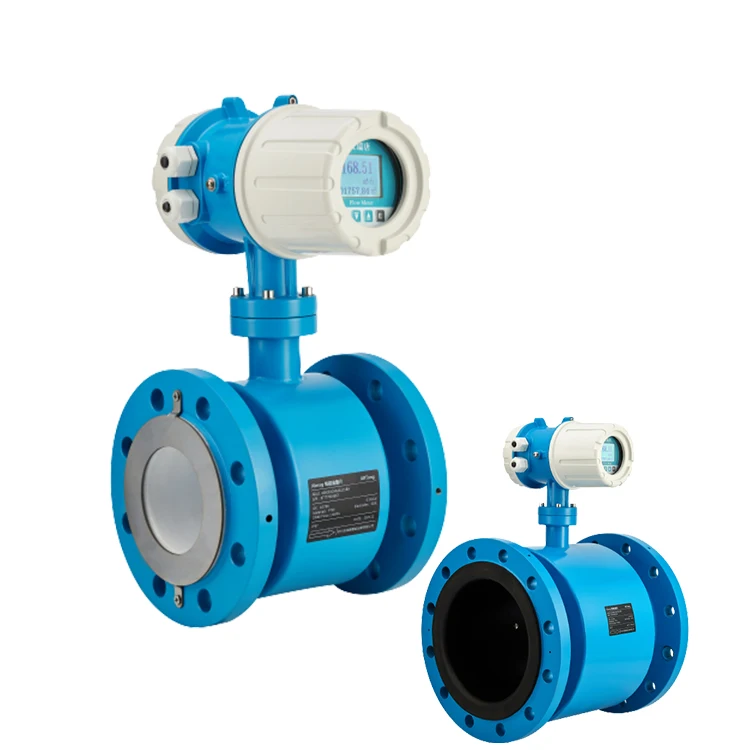

Insert Type Electromagnetic Wastewater Flowmeter DN50 Water Flow Magnetic Flow Meter
- Category: >>>
- Supplier: Hangzhou Jingtu Technology Co. Ltd.
Share on (1600978212876):
Product Overview
Description
Products Description
Name | Intelligent electromagnetic flowmeter |
Accuracy | ±0.5%RS, ±1%RS ( < DN20) |

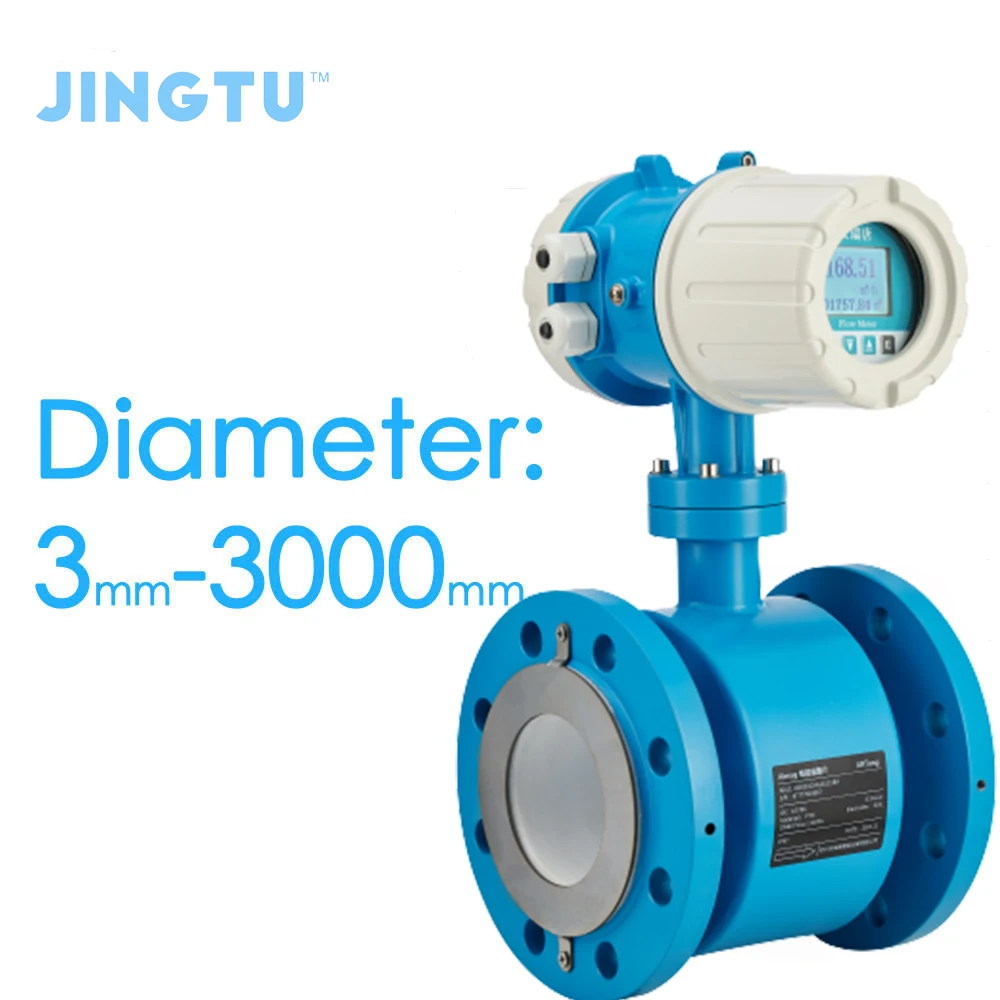

Nominal diameter | 3-3000mm |
Medium conductivity | ≥5µS/cm |
Nominal Diameter | DN6-DN3000 |
Highest medium temperature | -20℃～80℃, Neoprene lining; |
-20℃～65℃, Polyurethane rubber lining | |
-40℃～135℃, PTFE lining (integrated) | |
-40℃～180℃, PTFE lining (separate type) | |
Electrode Material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
Flange standard | Conform to the international GB9119(customize according to customer’s demand) |
Pressure rating (High pressure can be customized) | DN15 - DN80, PN<4.0MPa |
DN100 - DN150, PN<4.0MPa | |
DN200 – DN1000, PN<4.0MPa | |
DN1200 – DN2000, PN<4.0MPa | |
Explode-proof Class | Exdb eb ia IIC T3…T6 Gb |
Protection Class | Incorporate type-----IP67 |
Separate body-type----IP67/IP68 | |
Supply Power | 85～265VAC，45～63Hz； 18～28VDC。 |
Number of electrodes | Standard configuration 4 electrodes(two measuring electrodes plus two grounding electrode) |
Straight pipe length | Pipeline type: upstream ≥ 5DN, downstream ≥ 2DN |

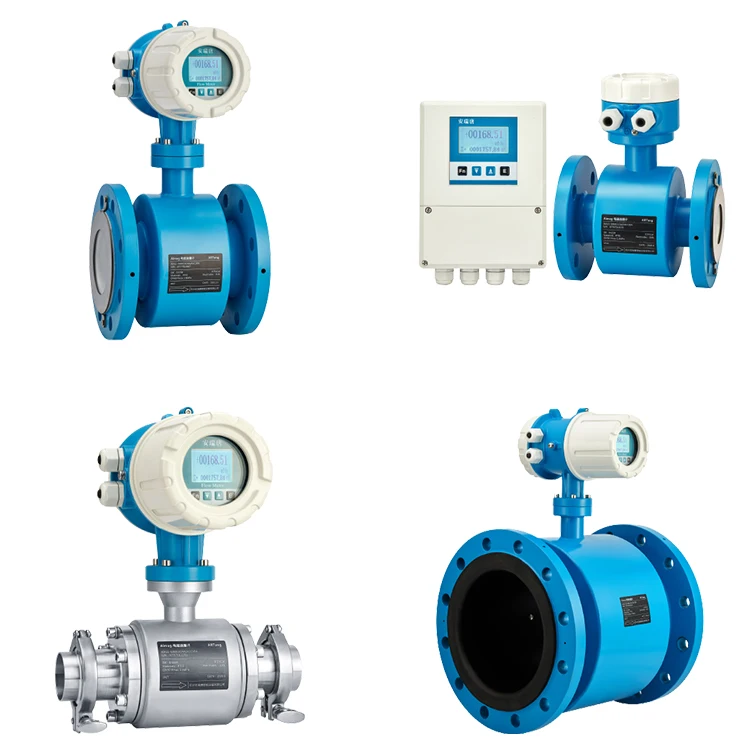

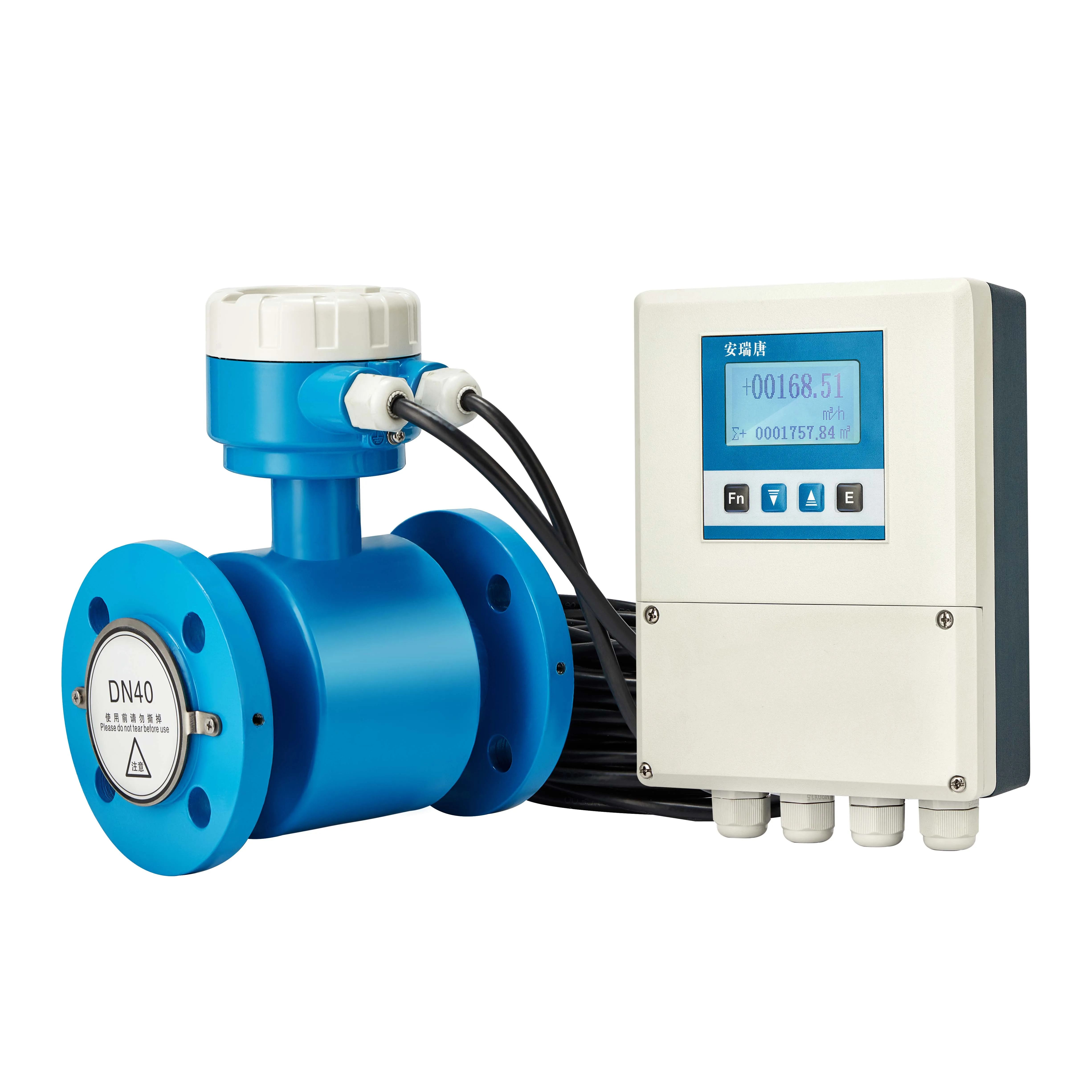

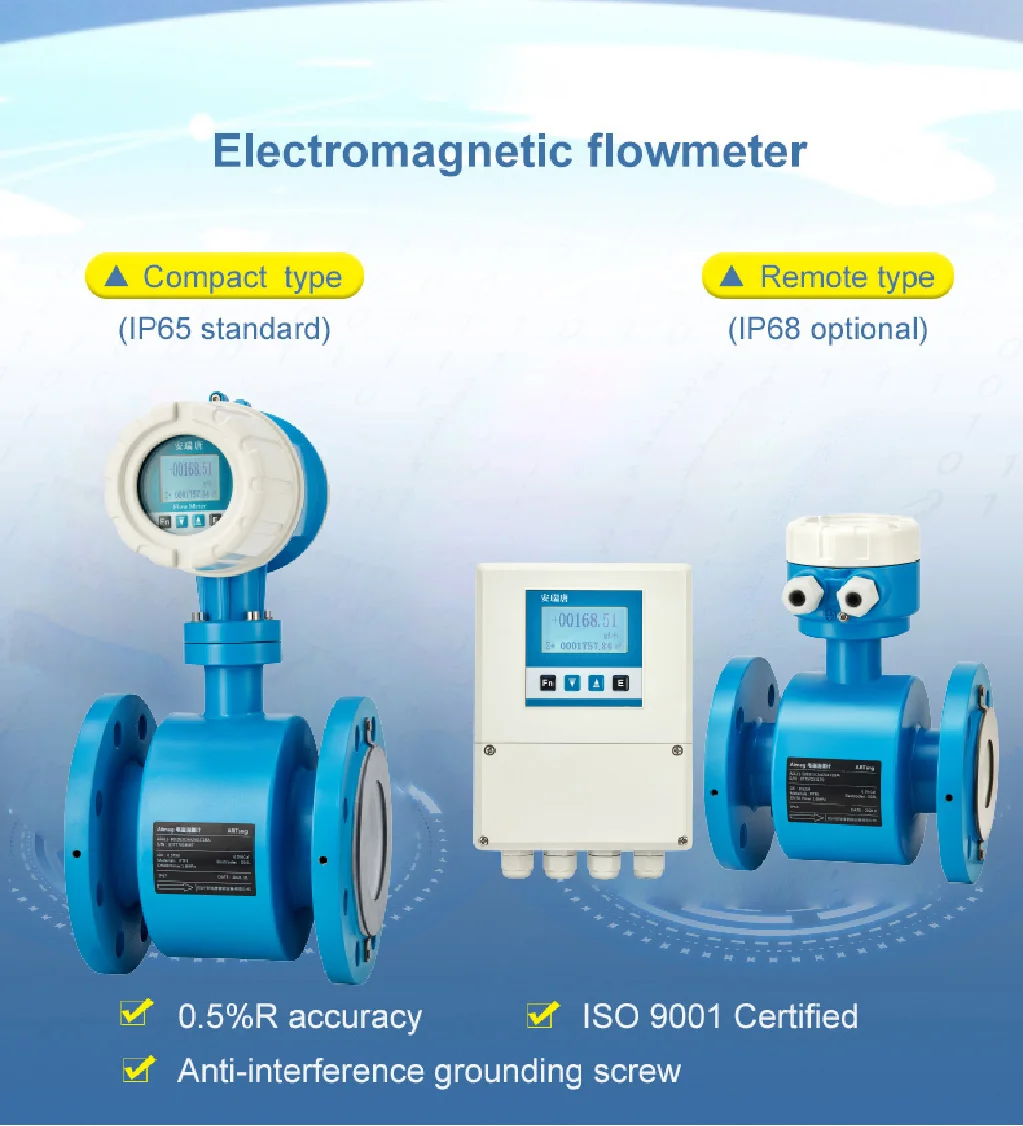

Details Images
Application

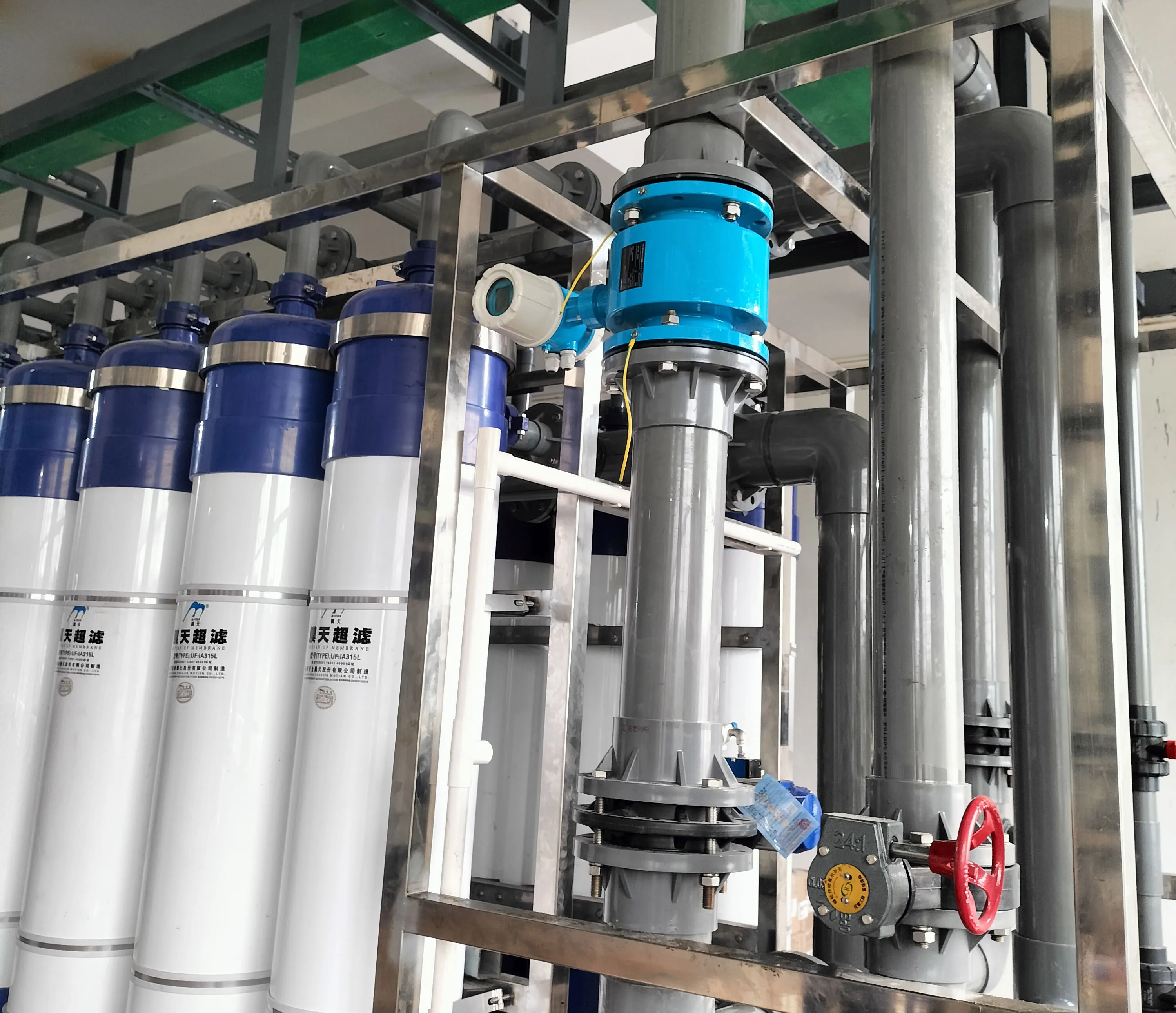

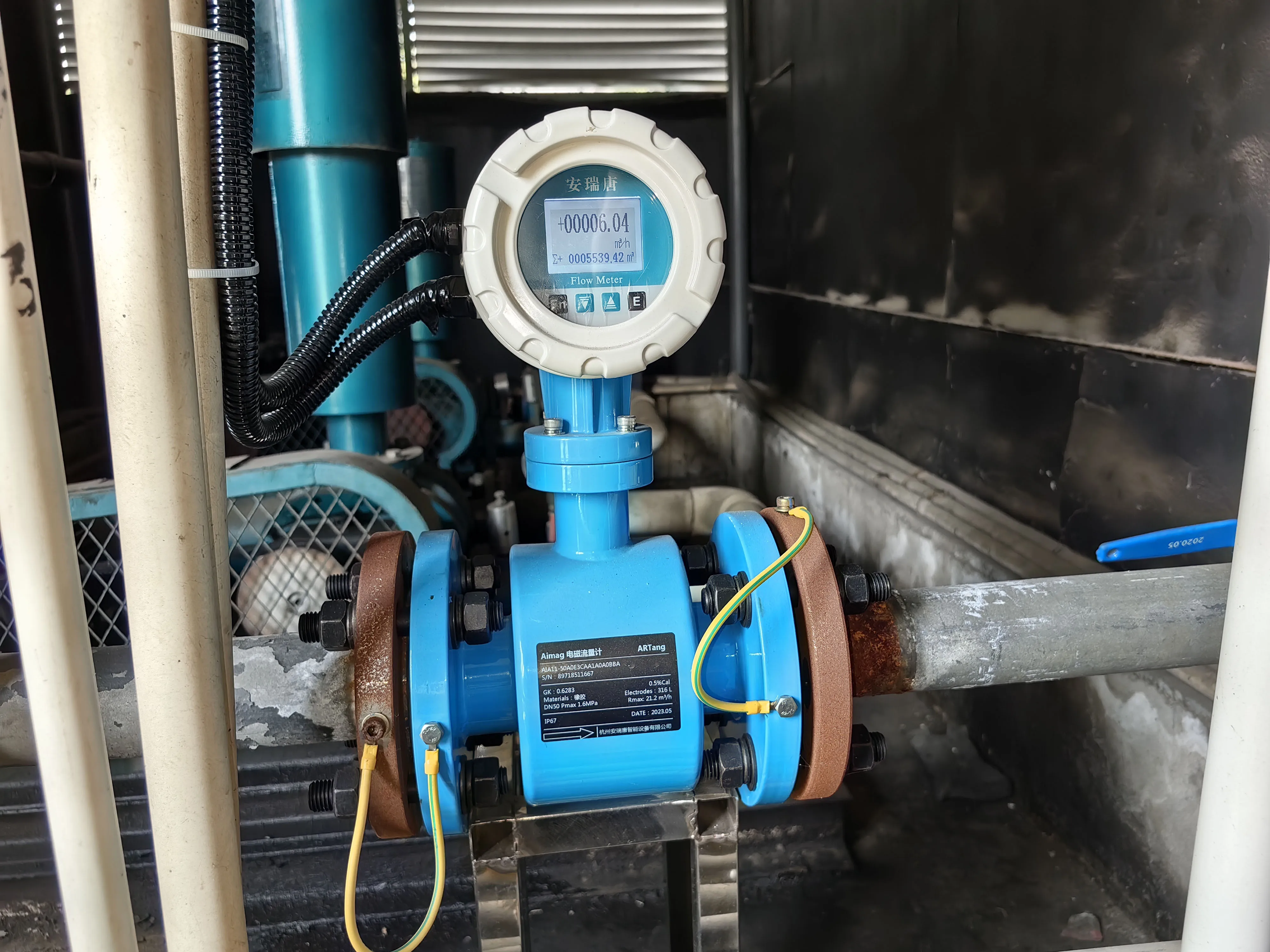

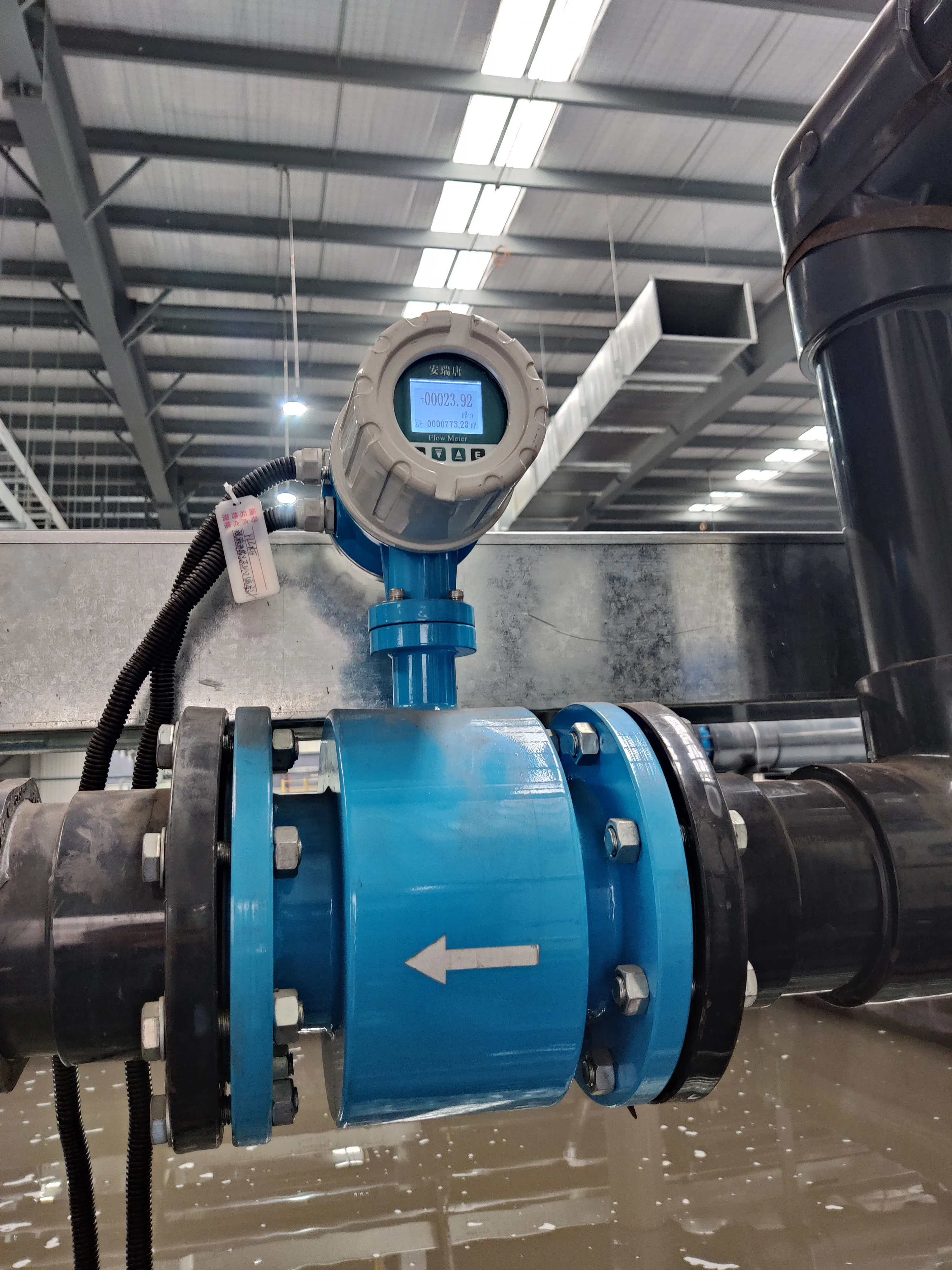

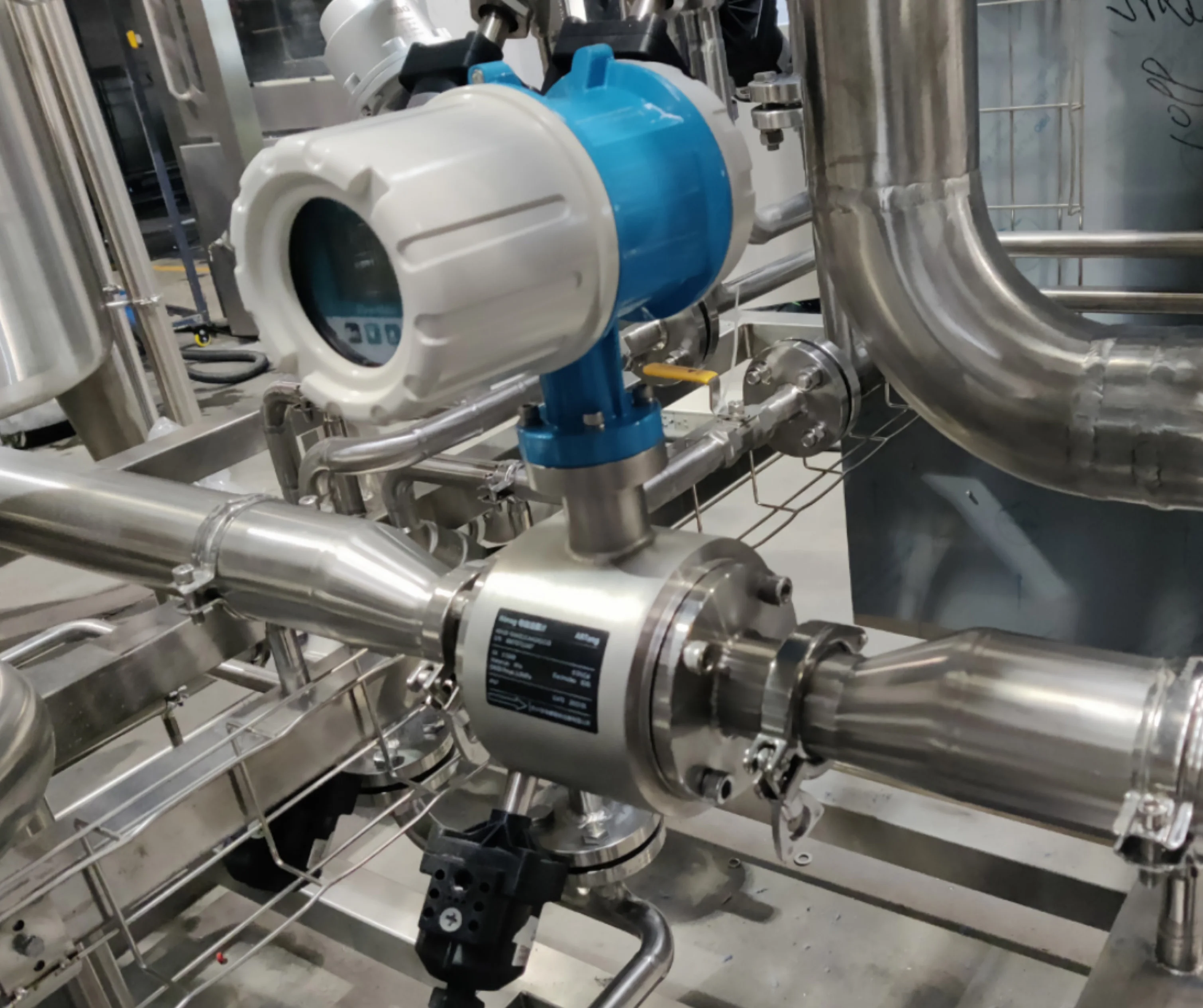

Project Cases
