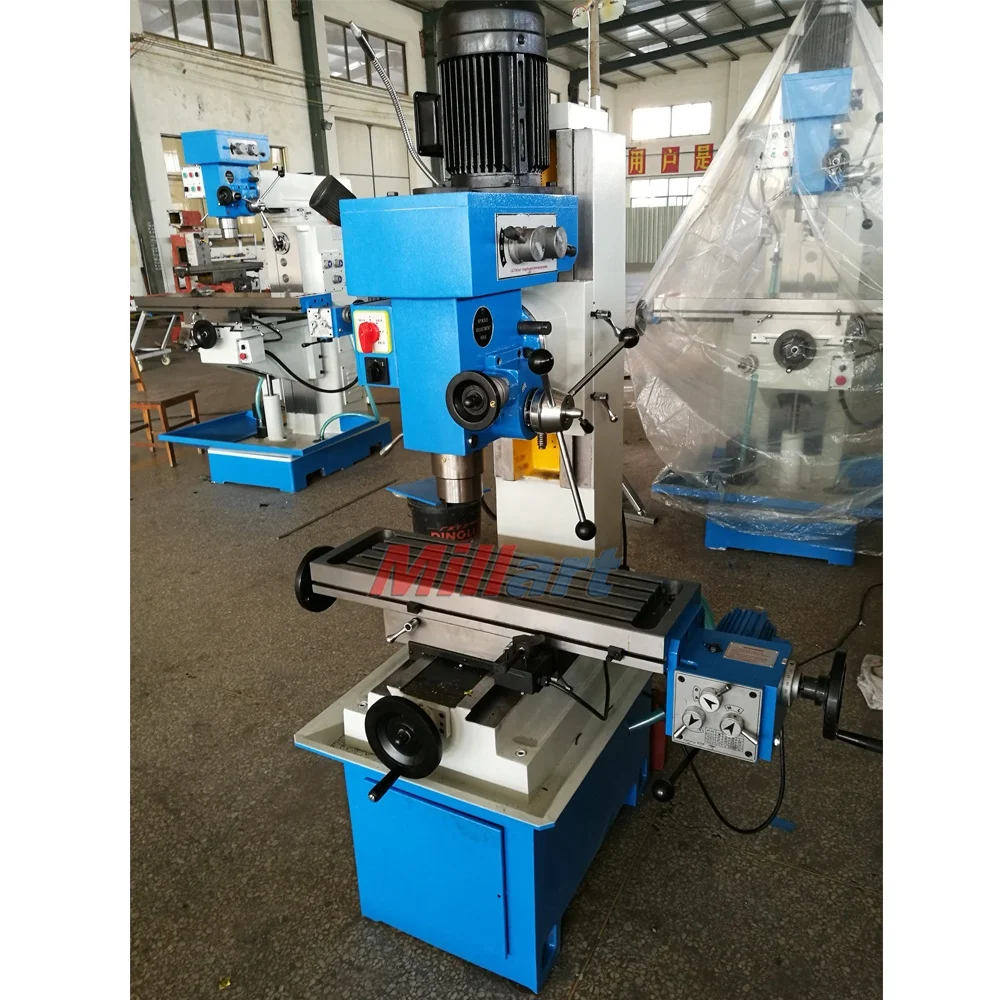

Mini Milling and Drilling Machine ZX50C/bench milling drilling machine with low price
- Category: >>>
- Supplier: Tengzhou Millart Machine Tool Co. Ltd.
Share on (1600978214880):
Product Overview
Description
Product Description
1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive

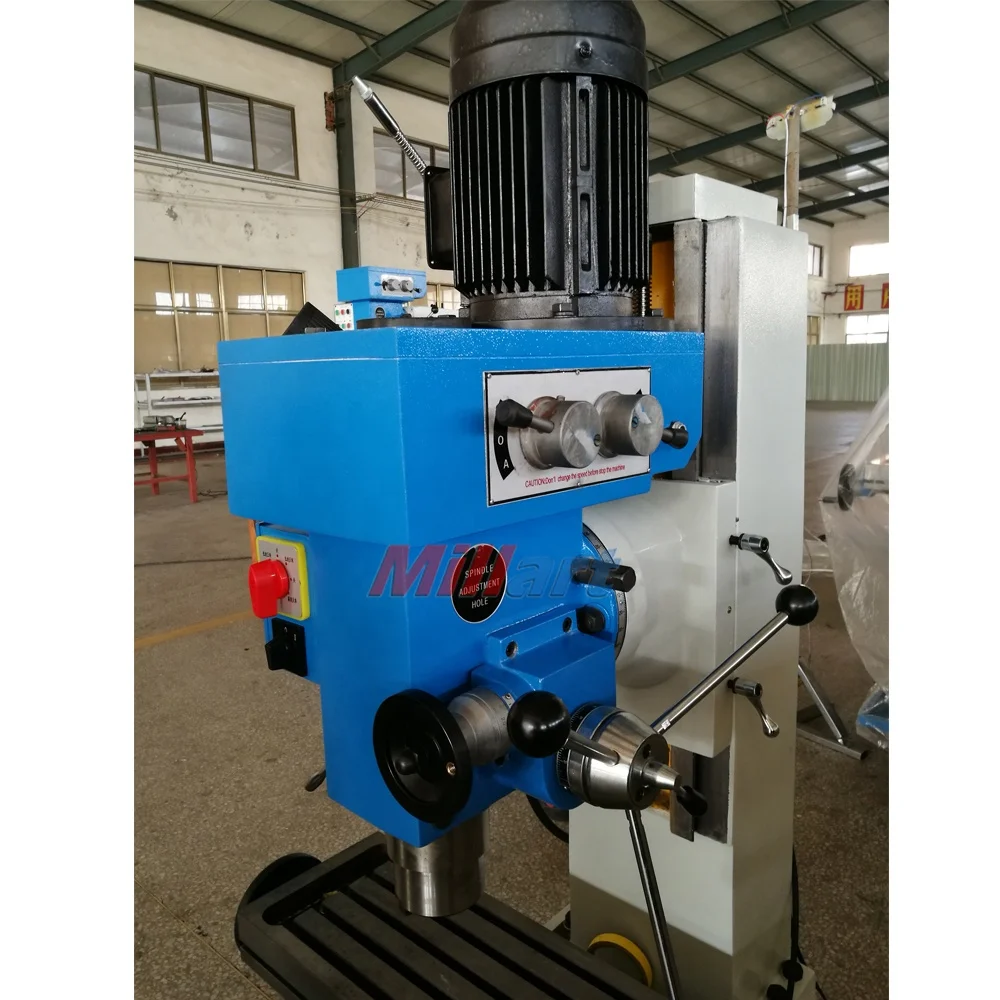

4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Specifications | ZX50C |
50 | |
Max.end milling width(mm) | 100 |
Max.vertical milling dia.(mm) | 25 |
Max.taopping dia. | M16 |
Distance between spindle nose and table surface(mm) | 50-410 |
Spindle speed range (r.p.m) | 110-1760 |
Spindle travel(mm) | 120 |
Table size(mm) | 800×240 |
Table travel(mm) | 400×215 |
Overall dimensions(mm) | |
Motor(kw) | 0.85/1.5 |
N.W/G.W(kg) | 500/600 |
Standard accessories:
Collet chuck kits, Drill chuck, Reduction Sleeve, Draw bar, Work lamp,
Coolant system, operate tools.
Optional accessories:
2 Axis DRO
Machine vice

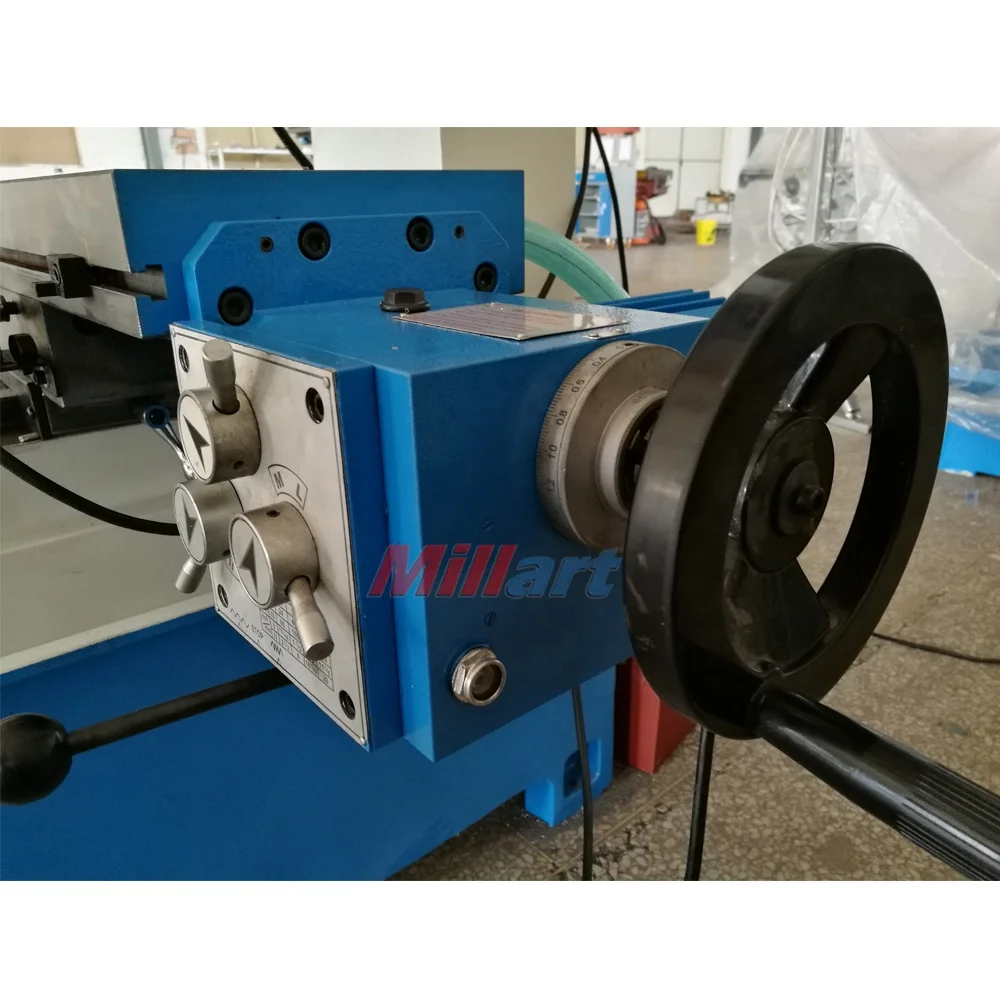

X axis power feed
Work table swivel
