Tobee Effluent Handling
$12,600

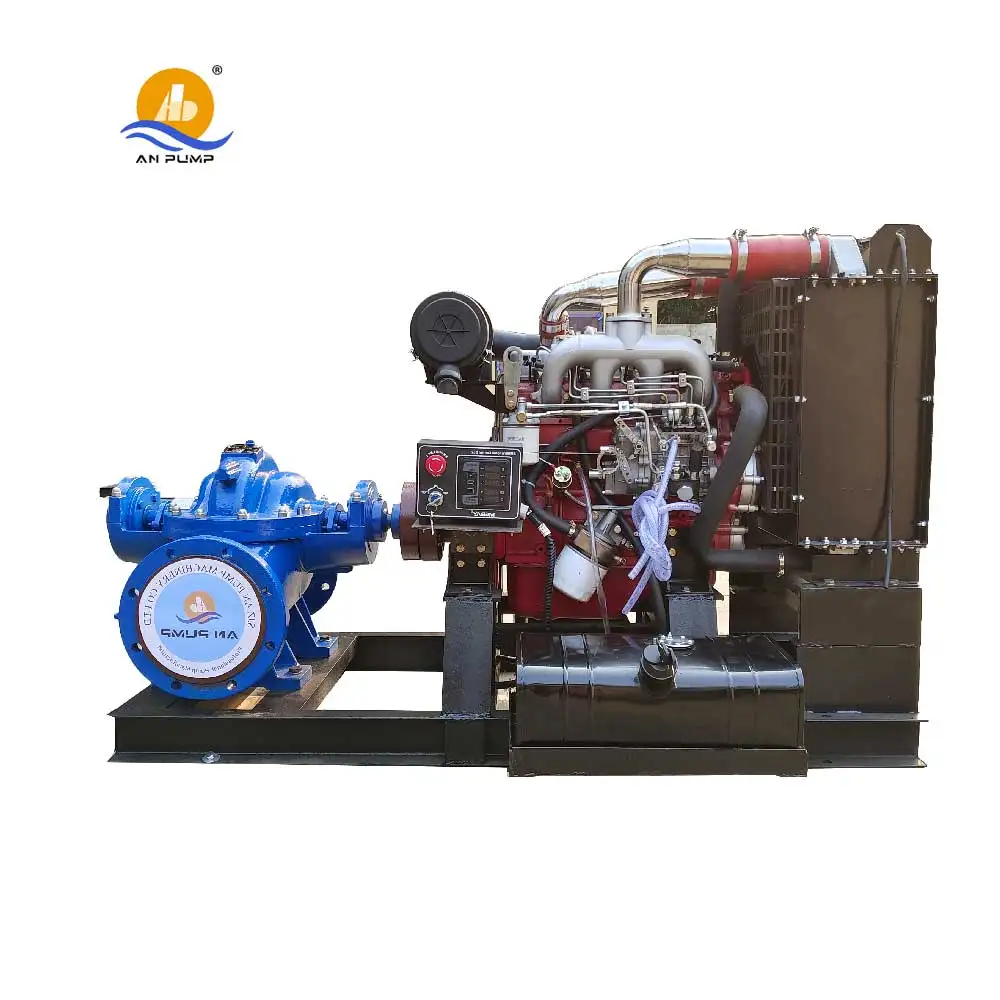

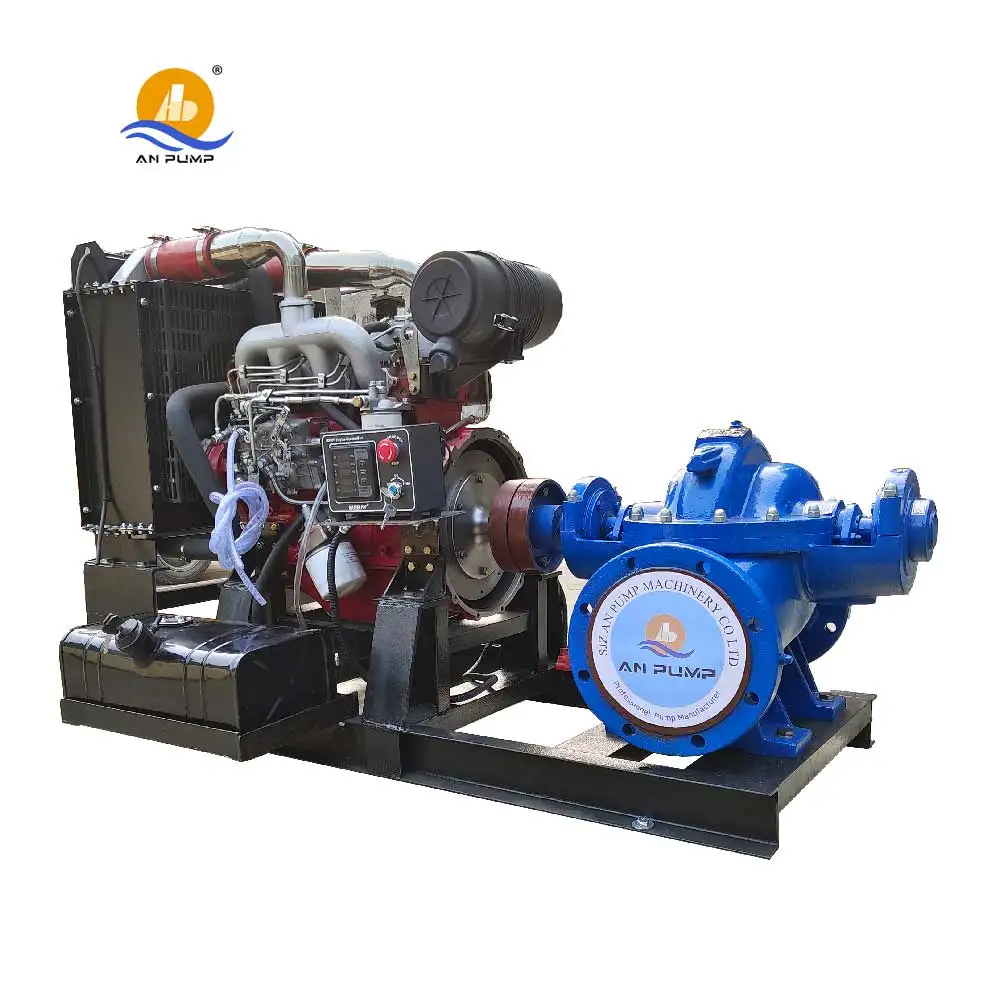

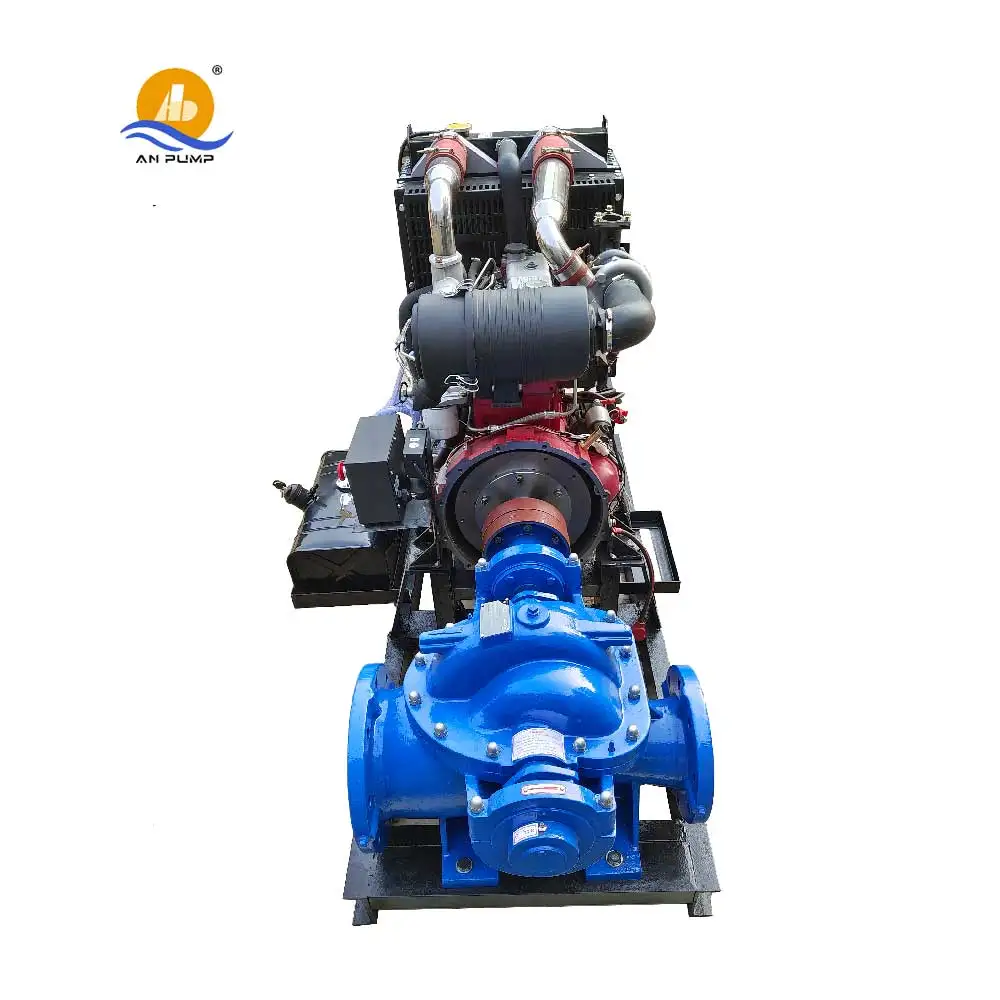

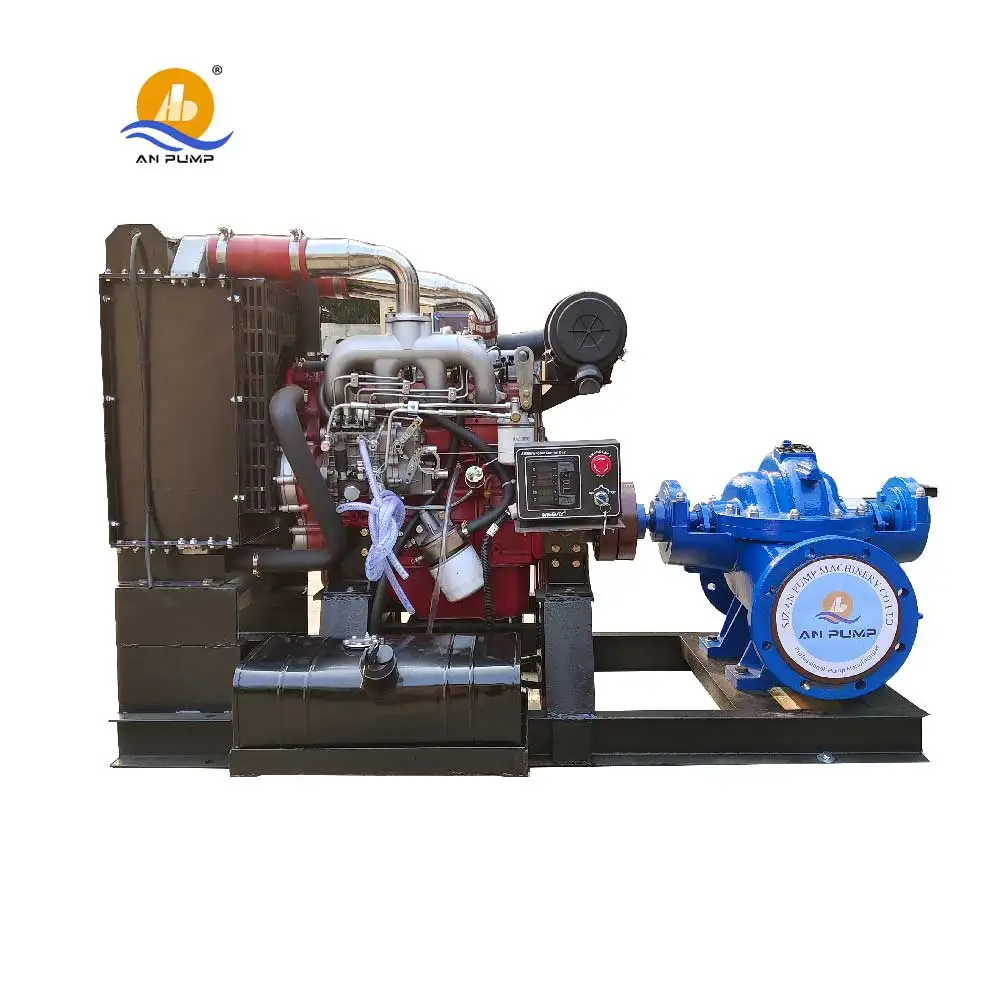

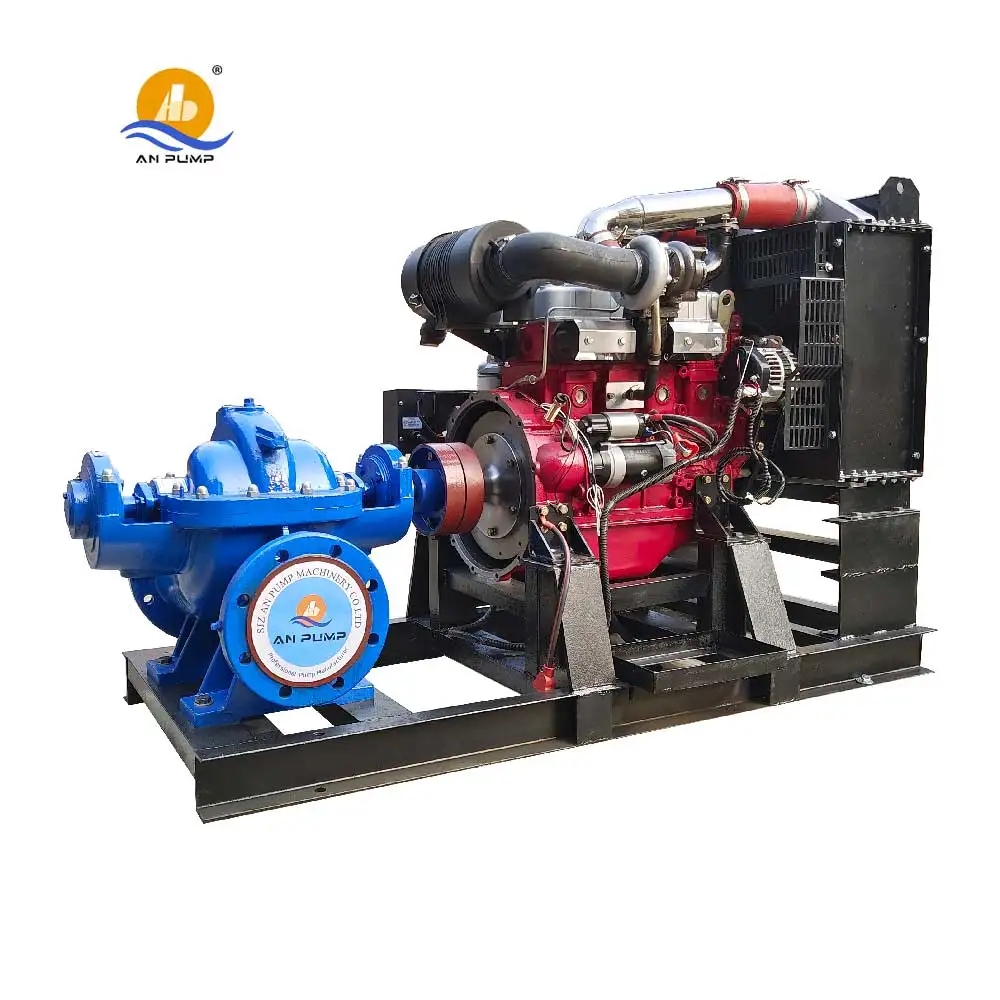

140kw radial type centrifugal water horizontal centrifugal diesel trash pump
- Category: >>>
- Supplier: Shijiazhuang An Pump Machinery Co. Ltd.Shijiazhuang Ltd.
Share on (1600978239060):
Product Overview
Description
140kw radial type centrifugal water horizontal centrifugal diesel trash pump
P
Product Description

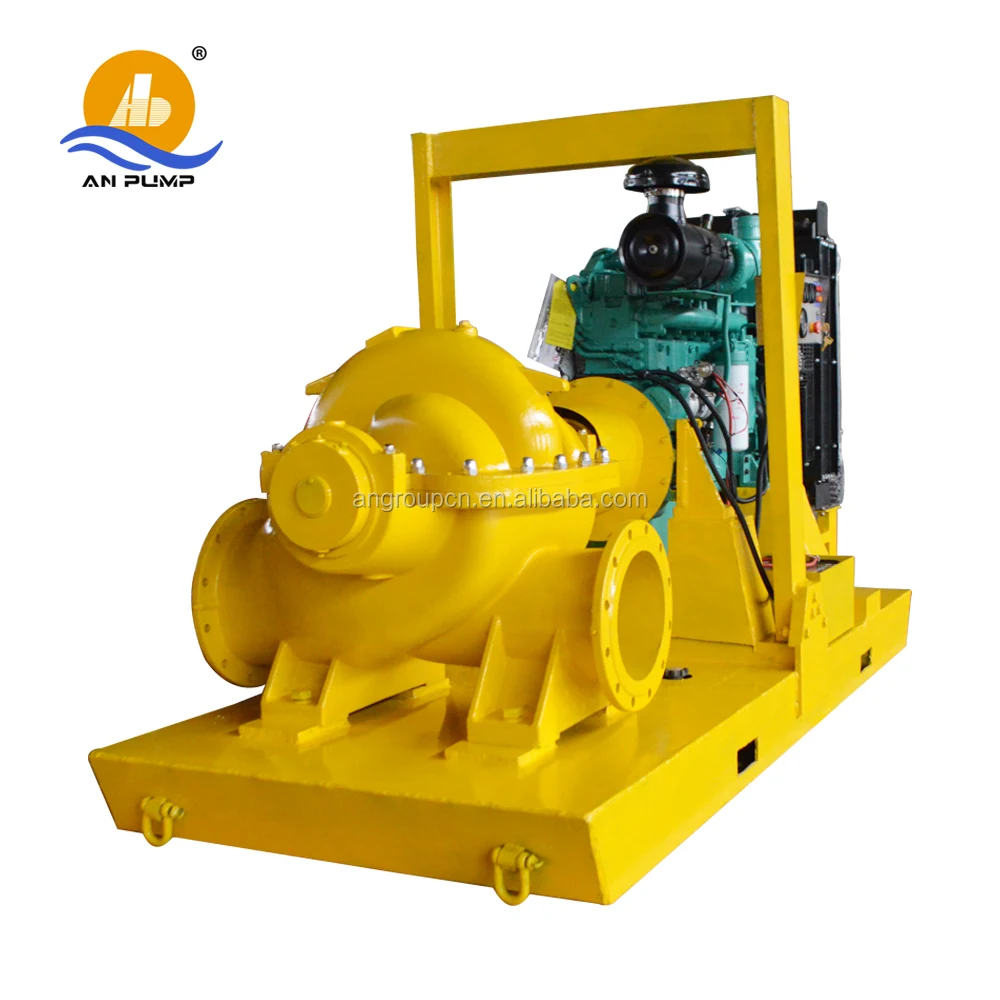

QS Double Suction Diesel Water Pump Introduction
QS diesel engine split case pump is single stage double suction centrifugal split case pump
it is mainly applied to irrigation, fire fighting system
QS Double Suction Water Pump Feature
(1) Have QS and QSH two types.
(2) Supply full set split-casing centrifugal pump, motor, coupling, the inlet diameter less than 200mm match the common base.
(3) The pump is axial split casing construction.
(4) Large capacity.
QS Double Suction Water Pump Application
Irrigation system: Agriculture irrigation,farm irrigation and spray irrigation
General water supply: Circulation of HVAC building systems,water booster service, boiler feed,general circulation service and more.
Agriculture/food/beverage: Irrigation,water supply,food processing,beverage processing ,fertilizers.
Manufacturing: Pulp and paper fans,plastic&rubber,metal&steel, pharmaceutical,paper mills,air wash,marine ballast service.
Fire/disaster relief: Fire pumps,fire protection,flood control,disaster relief.
Utilities Water/waste water: Power generation stations,desalination, energy recovery turbines
Chemical/mining: Chemical plants,refineries,petroleum distribution,coal sites, pumping.
Construction
1.Bearing 2. Framework oil seal 3.Bearing gland 4.Pump casing 5.Packing gland 6.Packings 7.Packing ring 8.Packing sleeve 9.Shaft sleeve 10.Pump cover 11.Impeller 12.Washing pipe 13. ring 14.Seal ring for pump casing 15.Mechanical seal liner 16. ring 17.Mechanical seal 18.Mechanical seal gland 19.Water retaining ring 20.O ring 21.Bearing housing at driven end 22.Shaft 23.Couplings 24.C type key 25.Framework oil seal 26.Ring for shaft
Specification
| Model | Capacity | Head | Speed(rpm) | Power | Efficiency(%) | NPSH(m) | Weight(kg) | ||
| (m3/h) | (L/s) | Shaft | Motor | ||||||
| 15QS-78 | 112-200 | 31-55 | 55-84 | 2900 | 30-51 | 45-55 | 68-75 | 5 | 150 |
| 150QS-50 | 120-220 | 31-61.2 | 35-52 | 2900 | 18.5-31.3 | 30-37 | 70-80 | 5 | 145 |
| 200QS-95 | 160-288 | 44.5-80 | 70.2-100 | 2900 | 60.8-88.6 | 90-110 | 62 | 5.5 | 245 |
| 200QS-63 | 180-351 | 50-97.5 | 37.5-69 | 2900 | 41-67.8 | 55-75 | 65-80 | 4.7-6.2 | 265 |
| 200QS-42 | 198-342 | 55-95 | 31-48 | 2900 | 30.5-40.2 | 37-45 | 76-82 | 4.8-8.2 | 219 |
| 250QS-65 | 342-612 | 95-170 | 50-71 | 1450 | 76.7-129.6 | 110-132 | 72-79 | 4 | 565 |
| 250QS-39 | 324-612 | 90-170 | 25-42.5 | 1450 | 40.2-67.7 | 55-75 | 75-86 | 4 | 428 |
| 250QS-24 | 342-576 | 95-160 | 17.4-27 | 1450 | 25.8-36.4 | 37-45 | 80-86 | 4 | 420 |
| 250QS-14 | 320-576 | 89-160 | 8.6-17.5 | 1450 | 15.4-22.1 | 22-30 | 75-85 | 4 | 405 |
| 300QS-90 | 540-936 | 150-260 | 57-98 | 1450 | 151-279 | 220-260 | 71-80 | 4.5-6.5 | 847 |
| 300QS-58 | 504-972 | 140-255 | 37-65 | 1450 | 99.2-168 | 180 | 78-84 | 5.5 | 572 |
| 300QS-19 | 504-935 | 140-260 | 11-23 | 1450 | 34.8-49.8 | 45-55 | 75-84 | 5.5 | 660 |
| 300QS-12 | 522-900 | 145-250 | 8-14.5 | 1450 | 22.4-33.1 | 30 | 75-80 | 5.5 | 660 |
| 350QS-125 | 740-1663 | 207-461 | 77-140 | 1470 | 313-620 | 500-680 | 70-81 | 6.5 | 1580 |
| 350QS-75 | 900-1440 | 250-400 | 54-80 | 1450 | 175-319 | 250-400 | 78-84 | 6.5 | 1200 |
| 350QS-44 | 864-1480 | 240-410 | 30-50 | 1470 | 121-188 | 160-220 | 79-84 | 6.5 | 1105 |
| 350QS-26 | 864-1440 | 240-400 | 16.5-32 | 1450 | 76.5-102 | 110-132 | 73-88 | 6.5 | 880 |
| 350QS-16 | 864-1440 | 240-400 | 10-20 | 1450 | 47.6-70 | 55-75 | 71-85 | 6.5 | 760 |
| 500QS-59 | 1150-2450 | 430-680 | 42-66 | 970 | 273-433 | 315-500 | 72-82 | 6 | 2750 |
| 500QS-35 | 1550-2410 | 430-670 | 31-40 | 970 | 137-247 | 240-280 | 80-88 | 6 | 2340 |
| 500QS-22 | 1296-2340 | 360-650 | 14-27 | 970 | 101-148 | 130-180 | 70-82 | 6 | 2010 |
| 500QS-20 | 2500-3800 | 694.4-1055 | 16-22 | 745 | 215-238.3 | 280-340 | 70-83 | 4.5-5.6 | 3030 |
| 500QS-13 | 1620-2325 | 450-646 | 10.6-15.2 | 970 | 70-79 | 110 | 85-89 | 6 | 2000 |
| 600QS-75 | 2300-3930 | 630-1092 | 49-80 | 960 | 442-730 | 550-900 | 85-90 | 7.5-8.7 | 4300 |
| 600QS-47 | 2502-3600 | 695-1000 | 32-56 | 970 | 392-460 | 450-550 | 80-88 | 7.5 | 3200 |
| 600QS-32 | 2304-3960 | 640-1100 | 20-37 | 970 | 228-310 | 280-380 | 84-89 | 7.5 | 2550 |
| 600QS-22 | 2340-3420 | 650-950 | 13-23.5 | 970 | 145-207 | 185-250 | 77-84 | 7.5 | 2500 |
| 800QS-76 | 4160-6600 | 1156-1722 | 63-82 | 740 | 976-1384 | 1400-1500 | 86-91 | 7.5-8 | 8000 |
| 800QS-32 | 4170-6460 | 1050-1795 | 23-33 | 730 | 391-580 | 450-630 | 78-84 | 6.5 | 5100 |
Performance Chart
P

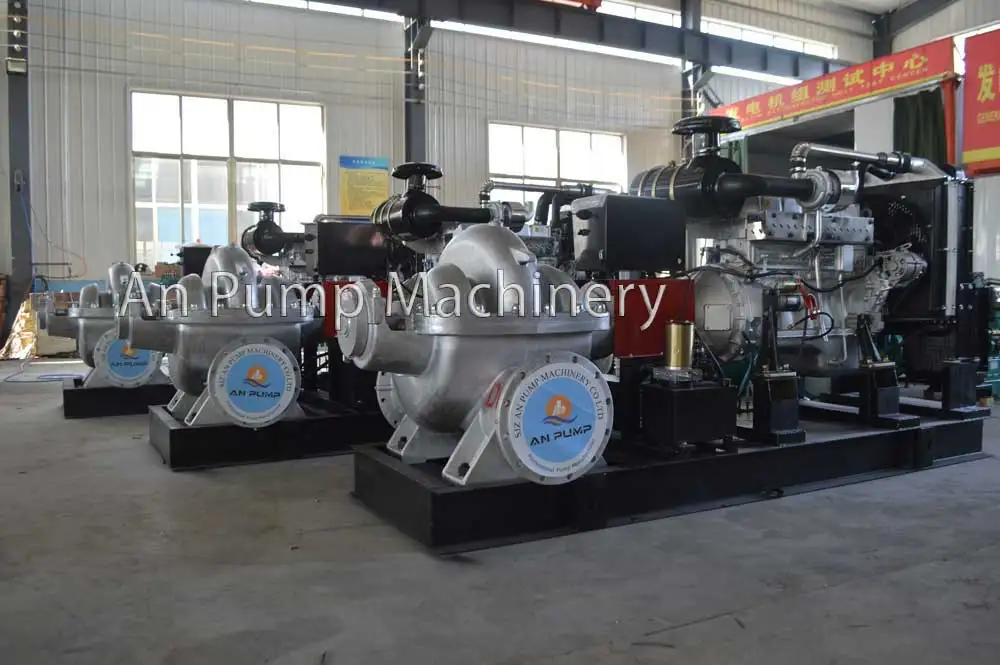

Product Show
