500mm 600mm saw blade heavy duty cnc automatic double head miter saw for aluminum profile cutting machine
- Category: >>>
- Supplier: Shandong Mingmei Cnc Machinery Co. Ltd.
Share on (1600978287813):
Product Overview
Description
CNC Double-head Cutting Saw
LJZ2S-500X4200
1. Feature
1.1 Imported carbides blade is of accurate processing and high endurance
1.2 Saw blade rotates smoothly due to high accurate main spindle
1.3 Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder
1.4 The feeding system adopts the imported linear guide pair,with high accuracy and stability
1.5 Two saw heads are adjustable and cut the profiles in 45° and 90°freely.
1.6 Auto-opening shield maked the operation safety.
1.7 Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving,locating and smooth working.

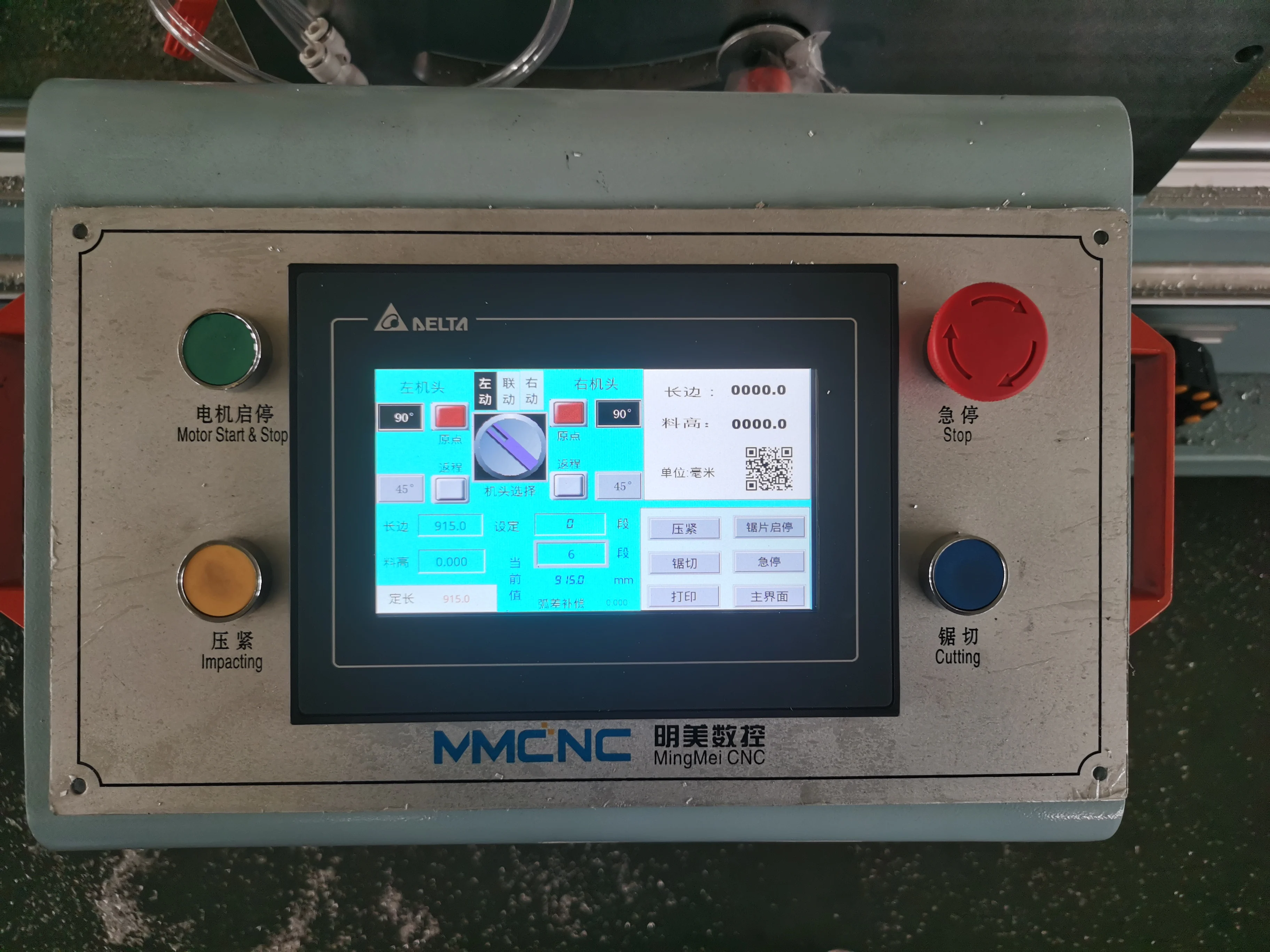

1.8 This machine uses the numerical control technology,profiles pf different of different specifications can be completed automatically under the expected size.
2.Techical Parameter
CNC double head cutting saw Product Parameter | |
Input power | 5.9kw |
Power supply | 380V/50Hz (Can make according your voltage) |
Air pressure | 0.5~0.8MPa |
Motor rotary speed | 2800r/min |
Saw blade specification | φ500 |
Cutting angle | 90°45° |
Cutting length | 400~4200mm |
Cutting width*height | 135*200mm |
Overall dimension | 5700*1650*1520mm |
Weight about | 1613kg |

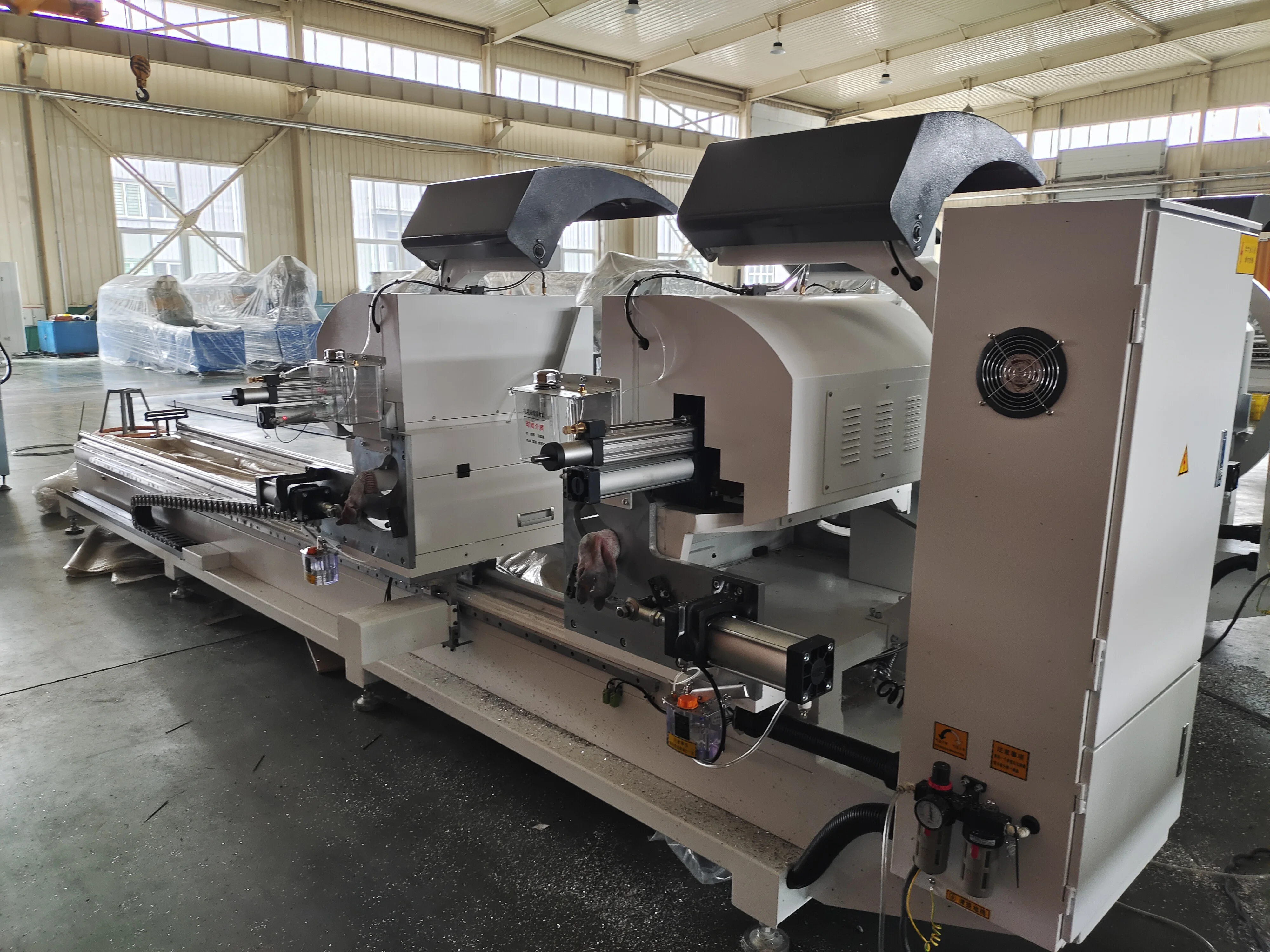

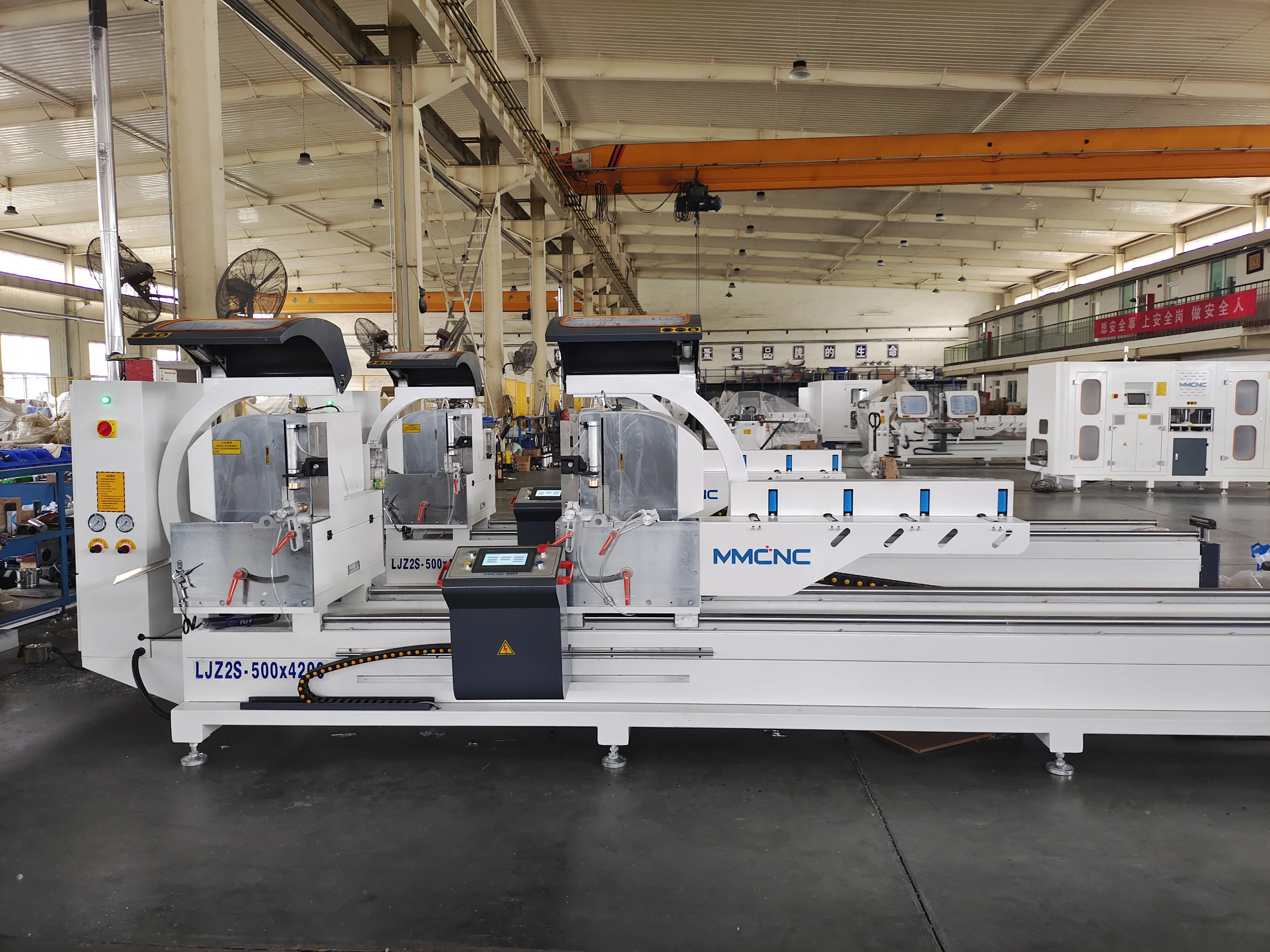

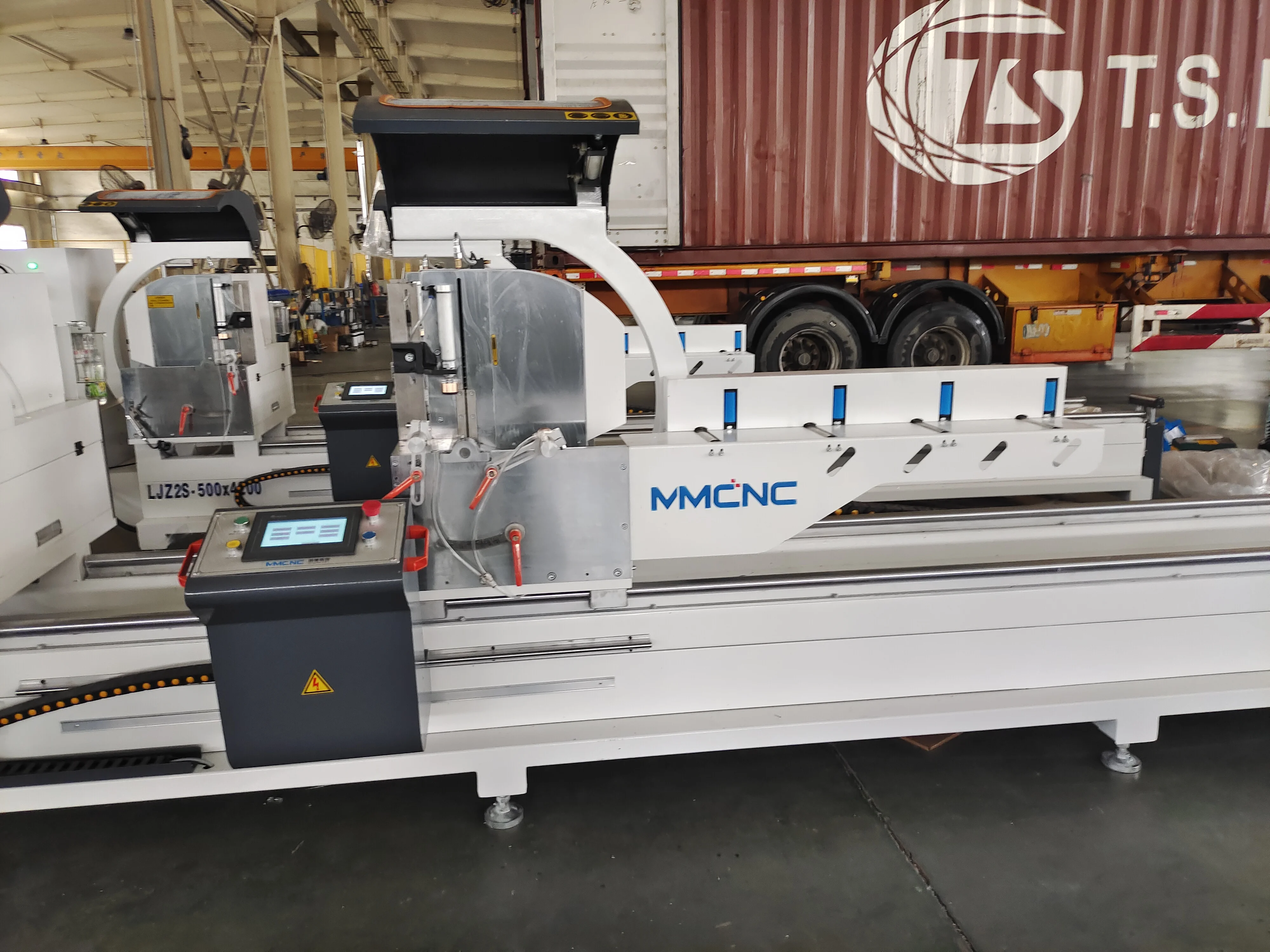

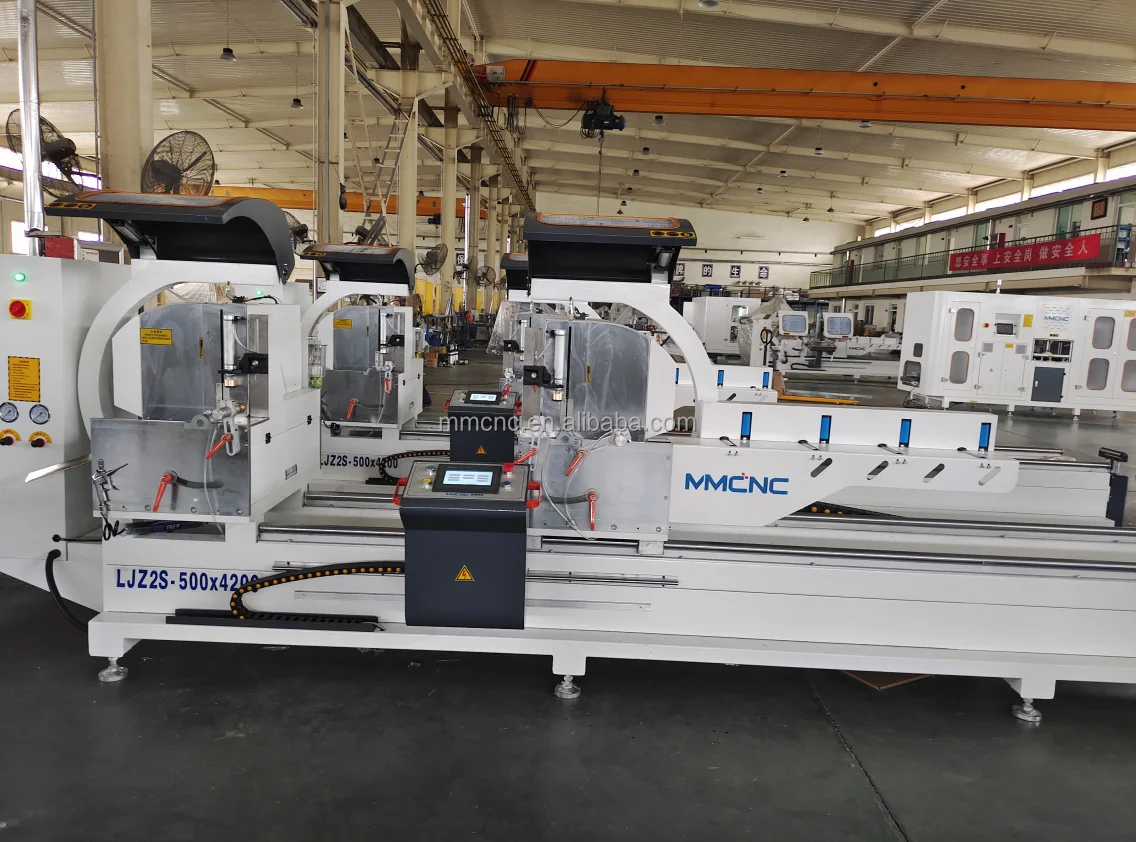

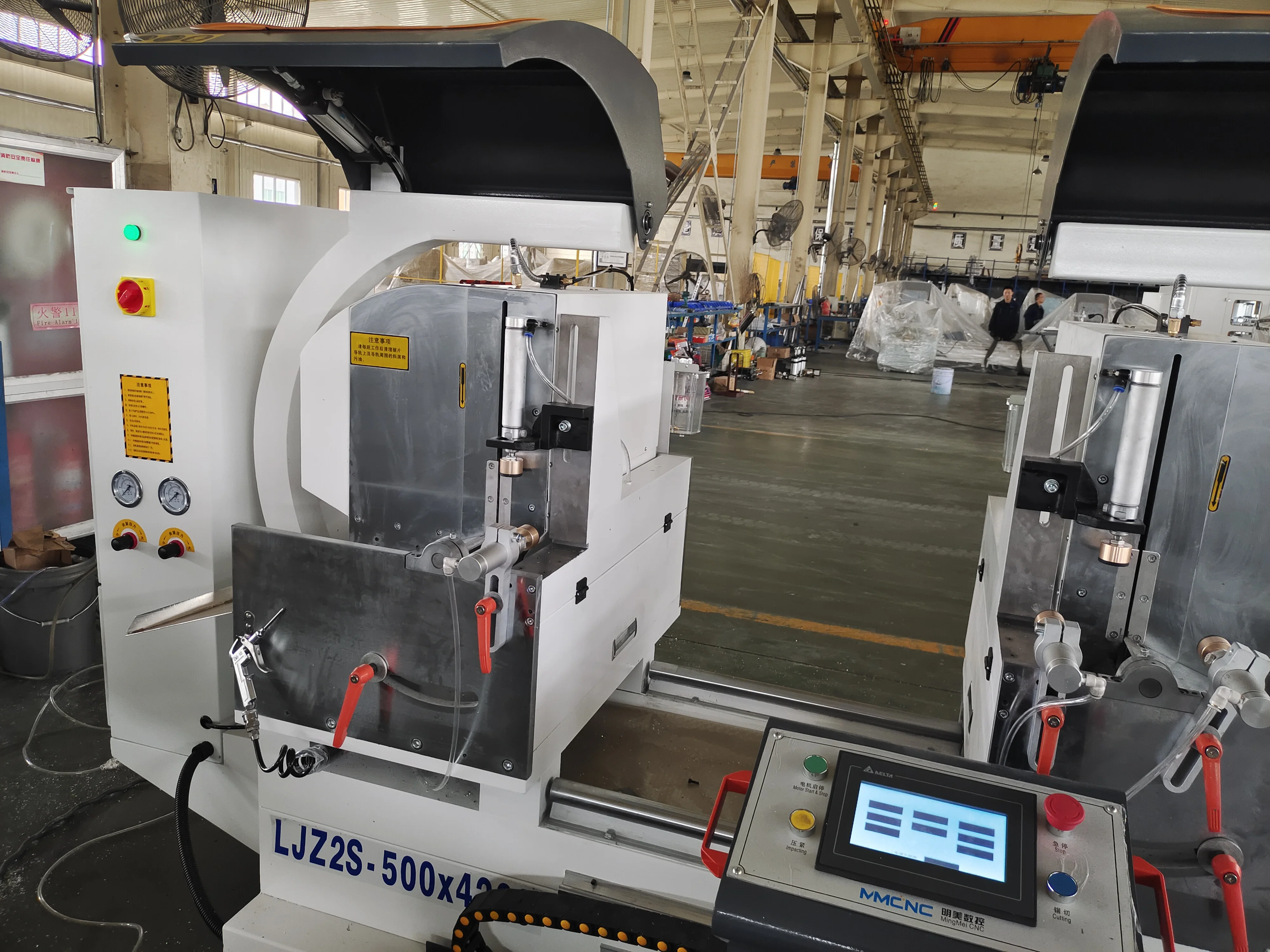

3. Detailed Photos

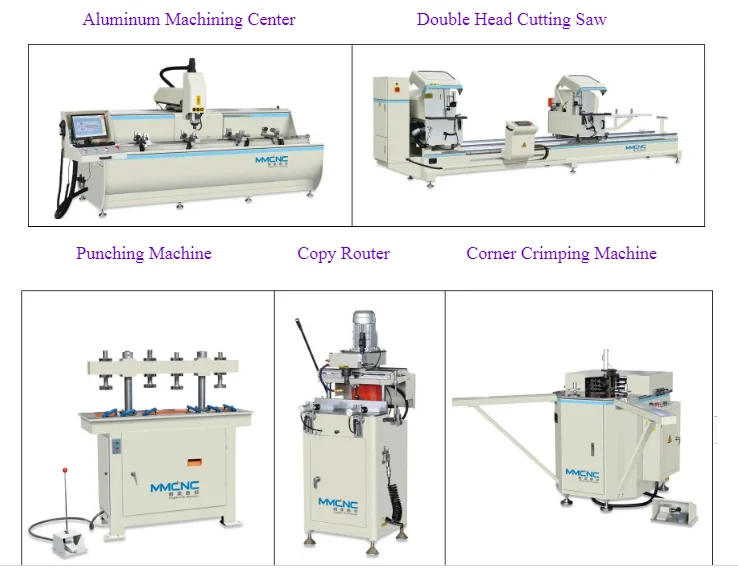

4.Other machinery
Company Certificates

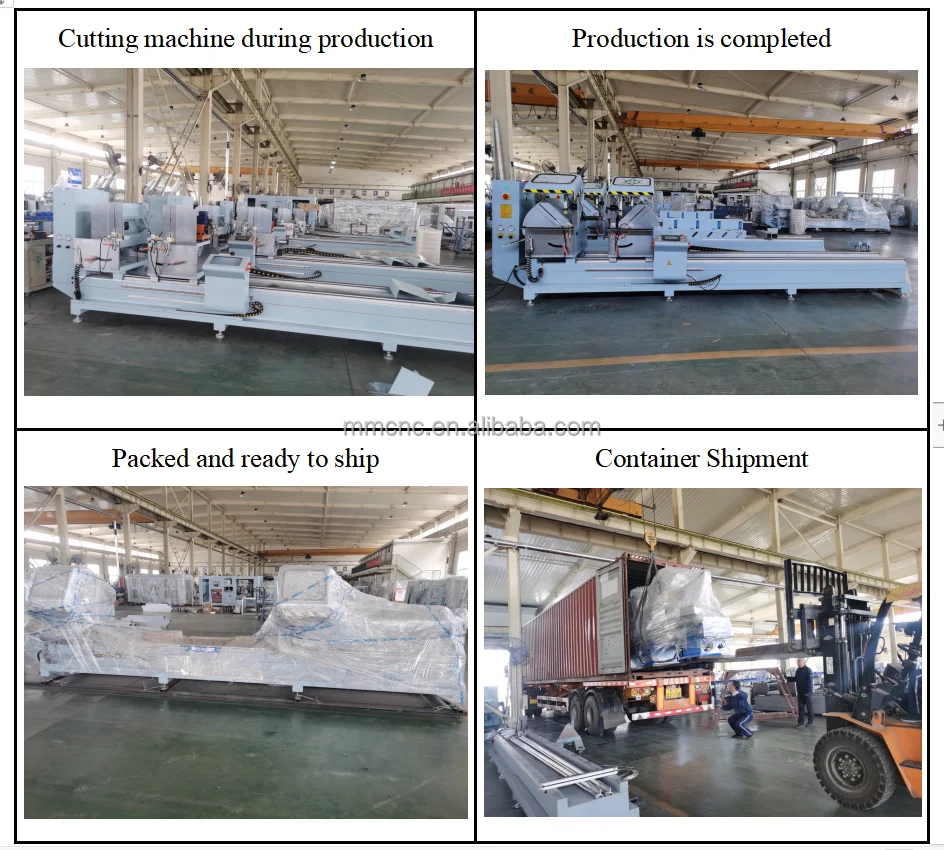

Packing
According to Customers’ location and the machine size , we will provide professional packing can save sea freight for customers.
Our Services
Professional Production Team:
We Have Experienced Workers,Provide Clients High Assembling for Fast Quality Delivery Customize:
Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Machine
7*24H Service:
7*24H Service Provide Professional Fast Response
Parts Support:
Abundant Parts Supply Provide Lasting Support for Worldwide Clients.
Company Information
MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.Company cover an area of 70000
square meters and 200 staffs.
MMCNC machine include Processing machine for making aluminum PVC window and door a
s well as curtain wall, such as-
Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine
have got CE,ECM,EEC authorization .and it has won good market reputation.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
Exhibition
Customer visit
Contact us
If you are interested in our products, please send me inquiry ,I am 24hours on line.
Sophia Zhang Foreign sales
Whatsapp / Wechat :+86-13064011280
