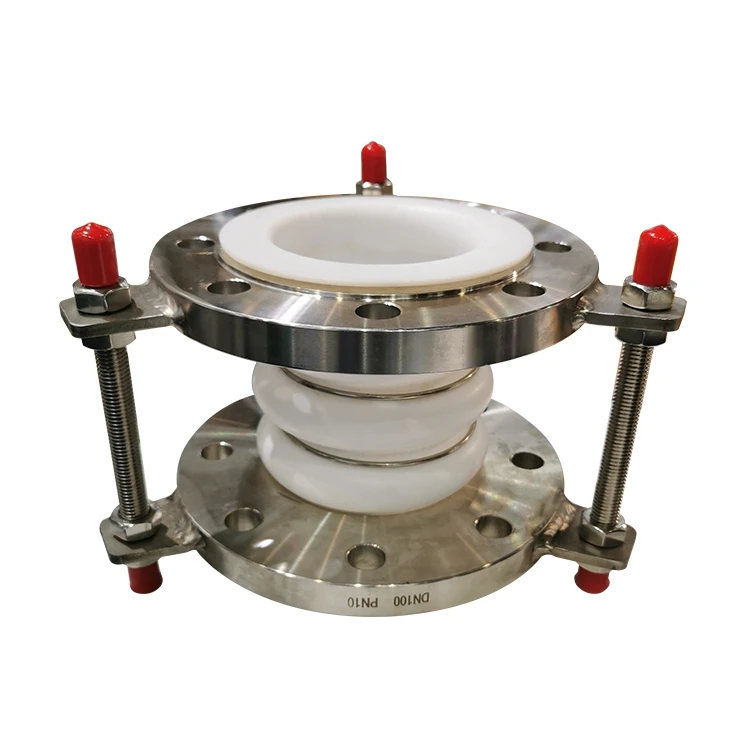

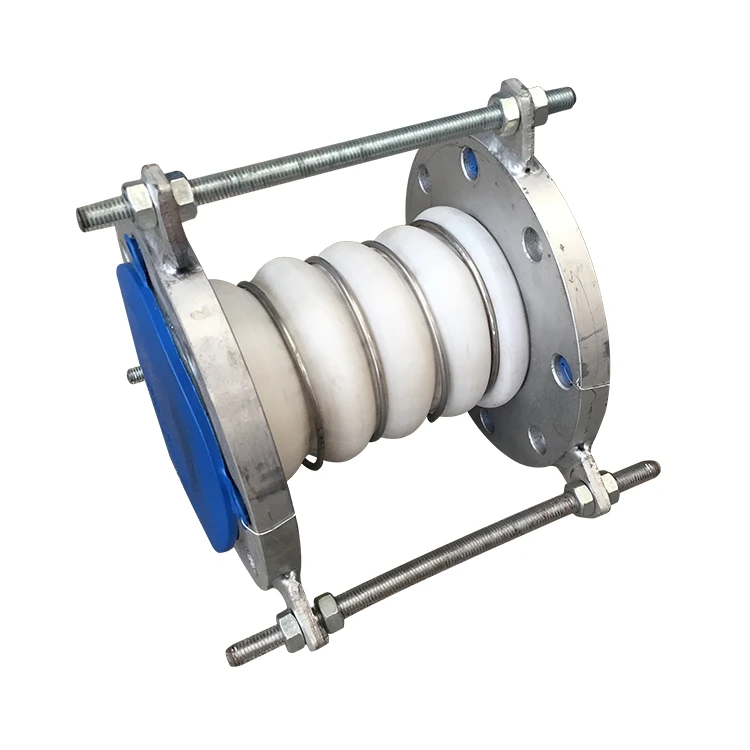

Compensator Resistance Corrosion Limit Full PTFE Lined Flexible Expansion Joint Bellows
Bellows expansion joints is a compensation element, effective use of bellows telescopic body deformation, dimensional change in absorption pipeline,thermal expansion and contraction caused by the container, or compensation pipeline, conduit, vessel axial, transverse and angular displacement.
The ptfe lined bellows expansion joints produced by our company can withstand various concentrations of acid and alkali, and solve the problem of poor corrosion resistance of metal corrugated compensator.It also has the pressure of stainless steel bellow compensator.




In particular, the properties of PTFE are as follows
Corrosion resistance: it can withstand the action of all strong acids (including aquaregia), strong oxidant, reducing agent and various organic solvents except molten alkali metal, fluorinated medium and sodium hydroxide higher than 300 ℃.

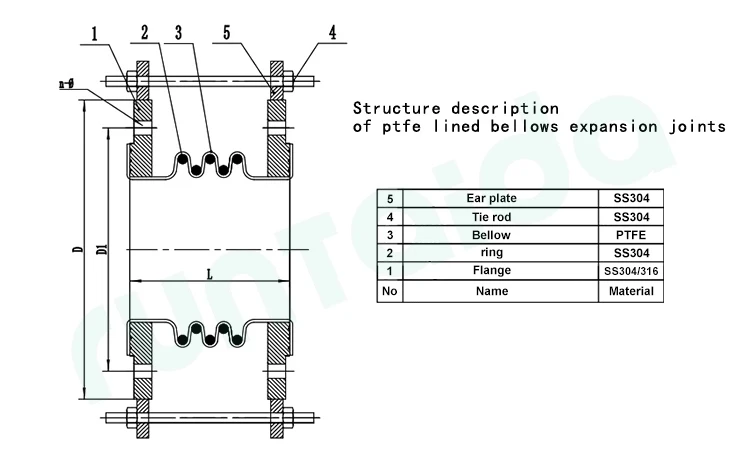

Product Structure




Connection datas of expansion joints piping
Nominal diameter (mm)
Quantity of ripple
Pressure level
Effective area of corrugated tube(cm2)
Maximum
external
diameter
(mm)
0.25
0.6
1.0
1.6
2.5
Axial compensation
(mm)
Stiffness
(N/mm)
Axial compensation
(mm)
Length(mm)
Toughness
(N/mm)
32
8
25/21
22/26
20/26
18/63
16
225
32
16
50/11
46/14
41/14
36/32
16
225
40
8
25/28
22/44
20/44
18/89
15/98
23
244
40
16
50/14
46/22
41/22
36/45
31/47
23
244
50
8
25/30
22/51
20/70
18/70
15/106
37
259
50
16
50/16
46/26
41/35
36/35
31/55
37
259
65
8
33/28
30/35
26/44
22/55
15/138
55
270
65
12
42/16
38/22
38/32
34/40
31/70
55
270
80
8
40/20
36/26
34/33
28/41
19/68
81
284
80
10
53/14
49/17
49/21
43/26
29/50
81
284
100
6
45/47
45/60
40/75
35/93
25/54
121
304
100
10
76/26
74/32
64/40
57/50
38/33
121
304
125
5
48/38
42/47
38/59
34/74
29/117
180
334
125
9
85/23
77/29
66/36
58/45
49/63
180
334
150
5
49/42
44/50
40/62
34/78
29/92
257
364
150
8
79/34
71/43
64/51
54/59
50/56
257
364
200
4
52/49
46/55
42/68
38/78
29/97
479
442
200
6
73/31
65/44
59/52
53/58
46/65
479
442
250
4
72/30
65/34
59/42
52/45
34/111
769
507
250
6
108/16
97/21
87/35
79/39
48/78
769
507
300
4
72/51
65/55
59/59
52/65
47/55
1105
562
300
6
108/32
97/35
87/37
79/41
71/47
1105
562
350
4
72/58
65/62
59/67
52/74
47/71
1307
622
350
6
108/38
87/41
87/44
79/48
71/45
1307
622
400
4
72/54
65/68
59/62
52/68
47/81
1611
700
400
6
108/36
97/39
87/43
79/47
71/47
1611
700
450
4
108/32
97/35
87/37
79/41
47/75
1972
760
450
6
162/20
145/22
131/23
118/25
71/52
1972
760
500
4
108/59
97/64
87/68
79/75
71/45
2445
835
500
6
162/34
145/37
131/39
118/43
106/28
2445
835
600
4
108/74
97/80
87/85
79/94
71/82
3534
980
600
6
162/42
145/45
131/49
118/53
106/48
3534
980
700
4
108/67
97/72
87/77
79/85
71/103
4717
1110
700
6
162/42
145/45
131/49
118/53
106/60
4717
1110
800
4
120/88
108/95
102/102
94/112
71/95
5822
1265
800
6
183/67
164/72
156/77
144/85
106/60
5822
1265
900
4
120/84
108/90
102/97
94/107
82/123
7620
1186
900
6
183/60
164/65
156/69
144/76
125/93
7620
1186
1000
4
120/91
108/98
102/105
94/116
82/117
9043
1286
1000
6
183/59
164/65
156/71
144/81
125/84
9043
1286


The above data is for reference only, we can also customize according to your needs.

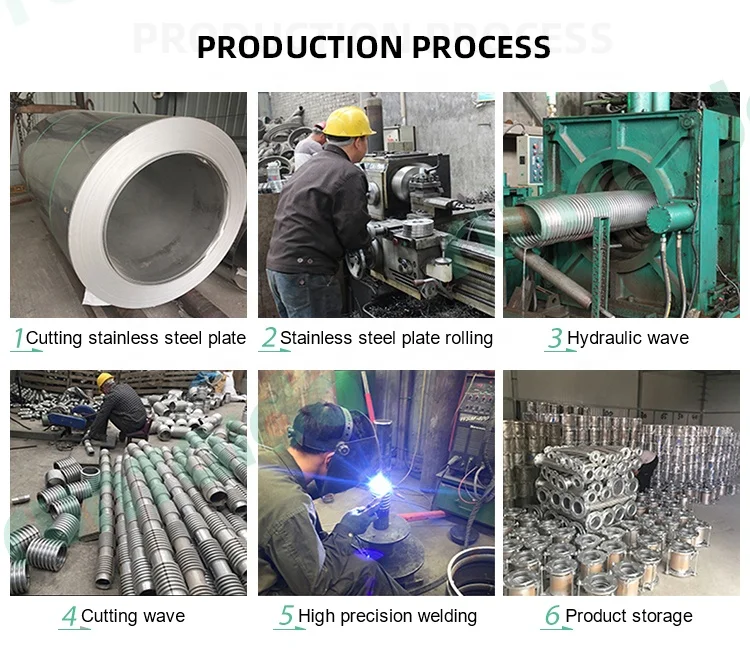

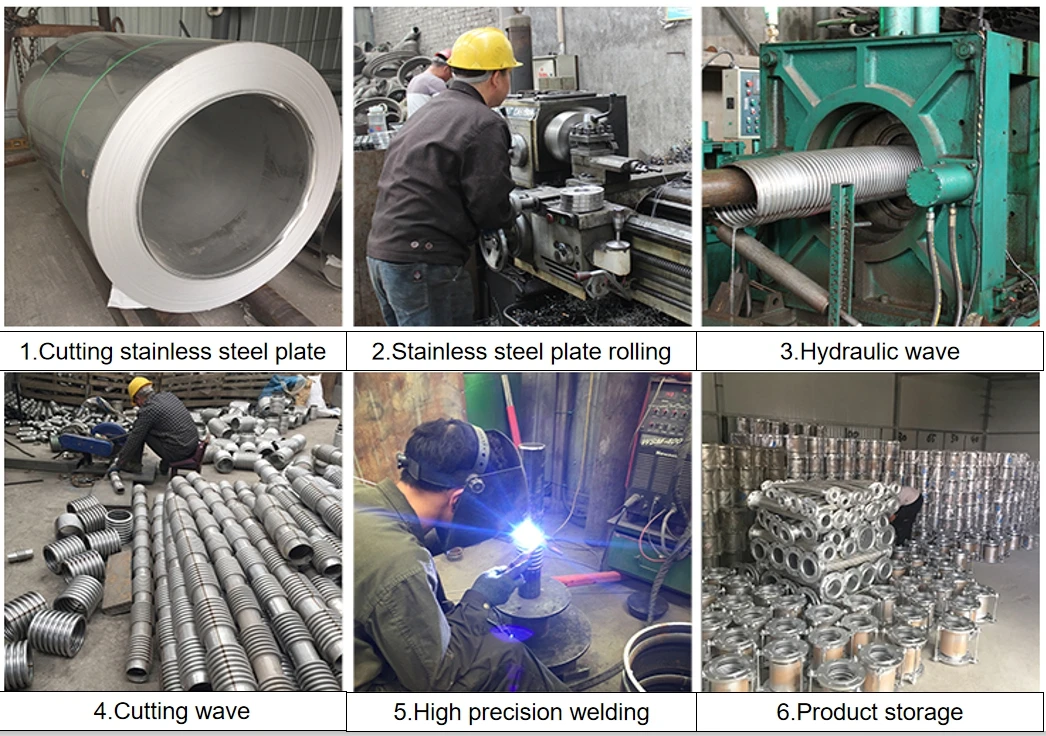

Production process

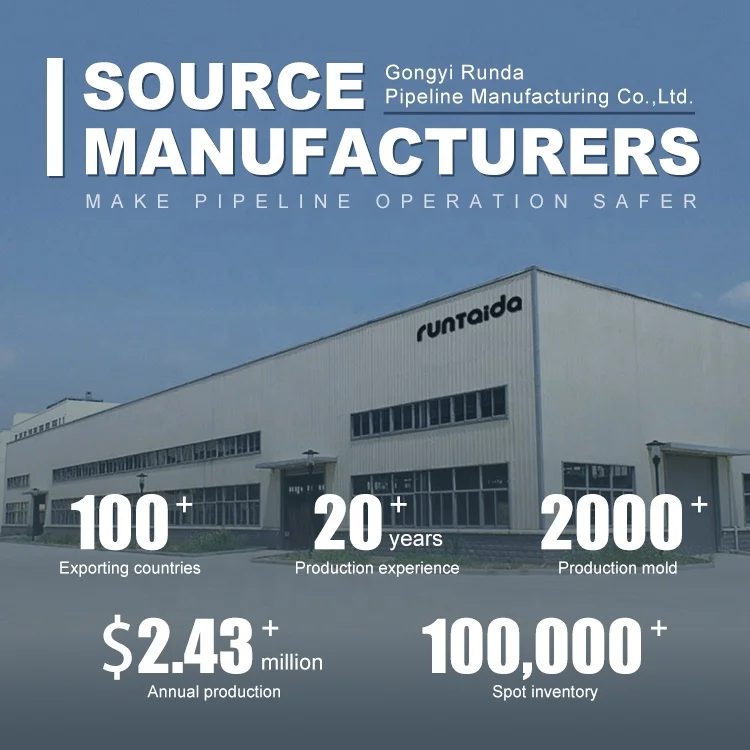

Factory introduction


Gongyi Runda Pipeline Manufacturing Co.,Ltd.
Gongyi Runtaida Pipeline manufacturing co.LTD located in Xicun town of GongYi in the mainland of China .It covers an area of 20000 square meters,we are a professional manufacturer in the field of pipeline equipment for more than 15 years and has a lot of sales experience.






Exhibitions
Our company participates in exhibitions in Shanghai and Guangzhou every year. At the exhibition, customers from all over the world actively asked for product details, and the products were favored by customers.




Packaging & Shipping

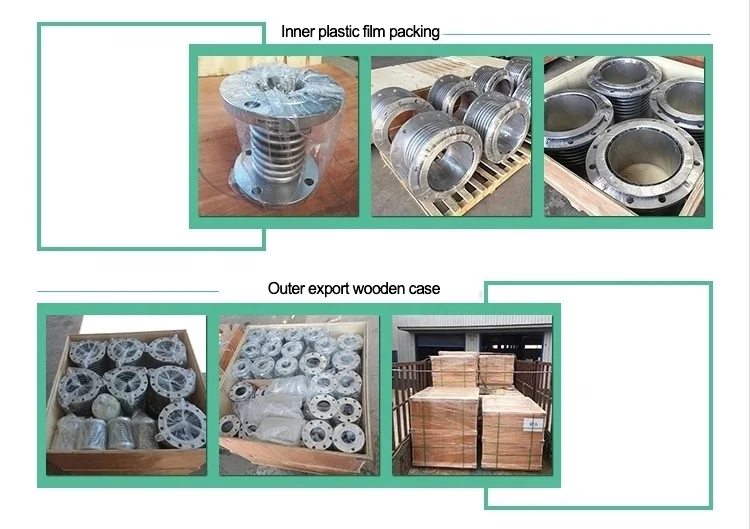

Packaging
