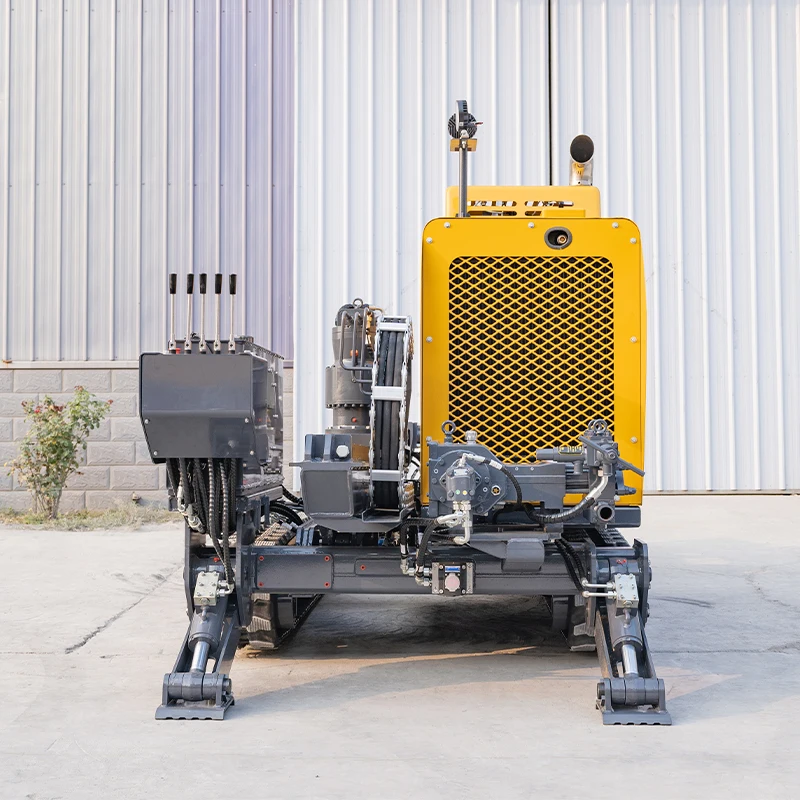

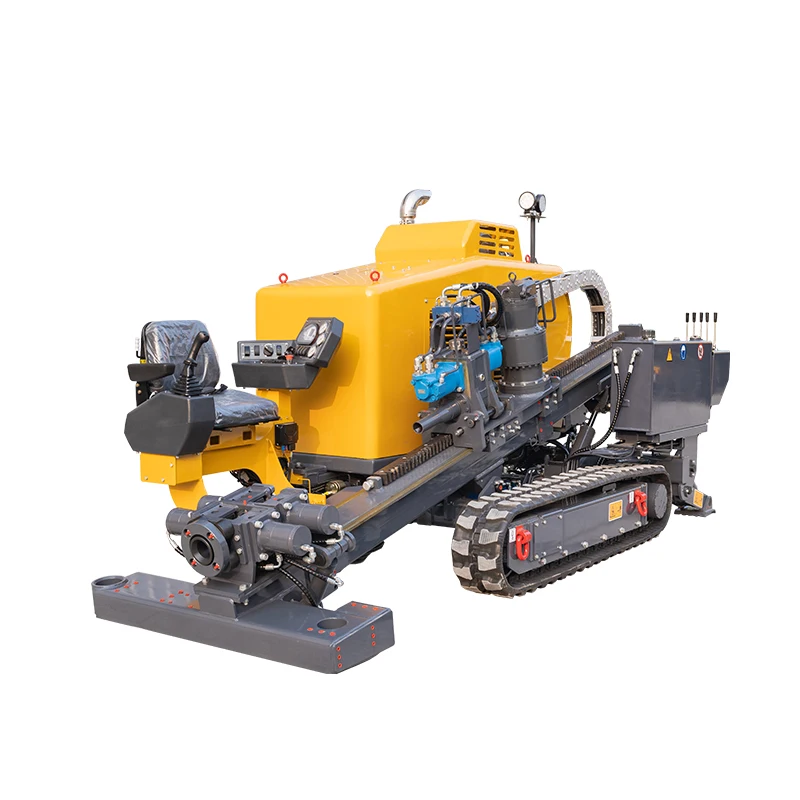

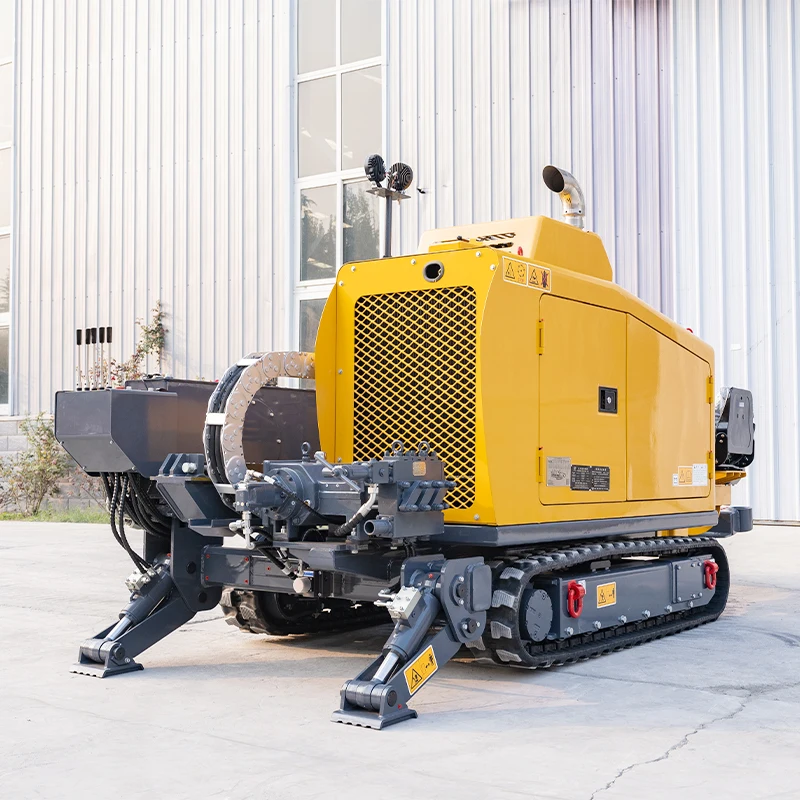

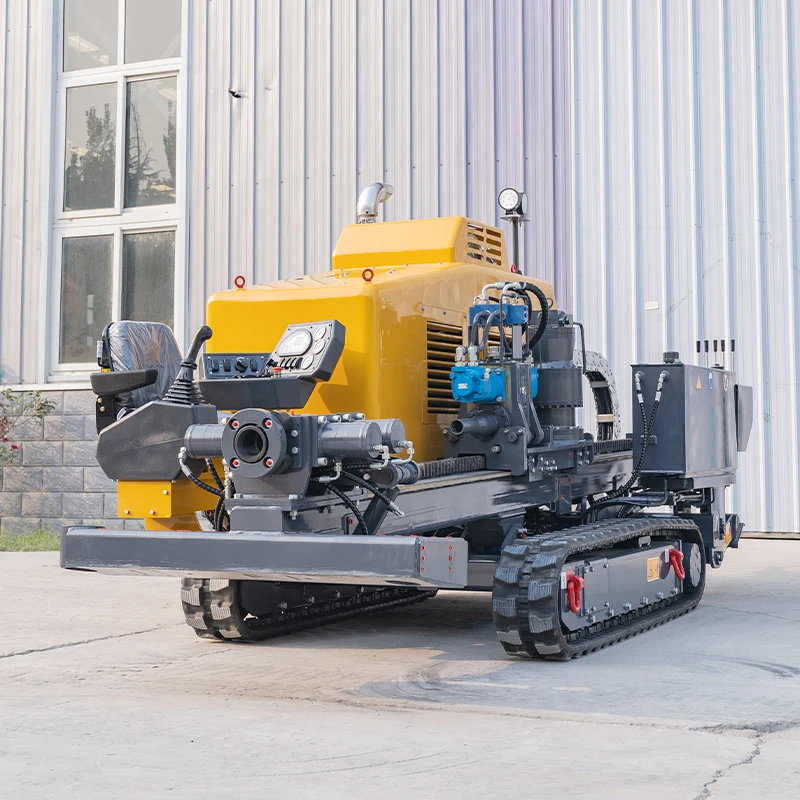

China Huge Famous Brand Hengwang HDD Horizontal Directional Drilling Rigs Drilling Machine With All Accessories

Share on (1600978418522):


Price:$8,800.00 - $10,000.00

Quantity:


Product Overview

Description



Hengwang HDD 5ton Horizontal Directional Drilling Rigs Drilling Machine


Product Description




The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks!

1, Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2, Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3, High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4, Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes, ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
5, Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices, can also be optioned more eco saving Dongfeng Cummins.





Please refer to the structure diagram of our pneumatic water well drilling rig as follows :






The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks!




Product Paramenters

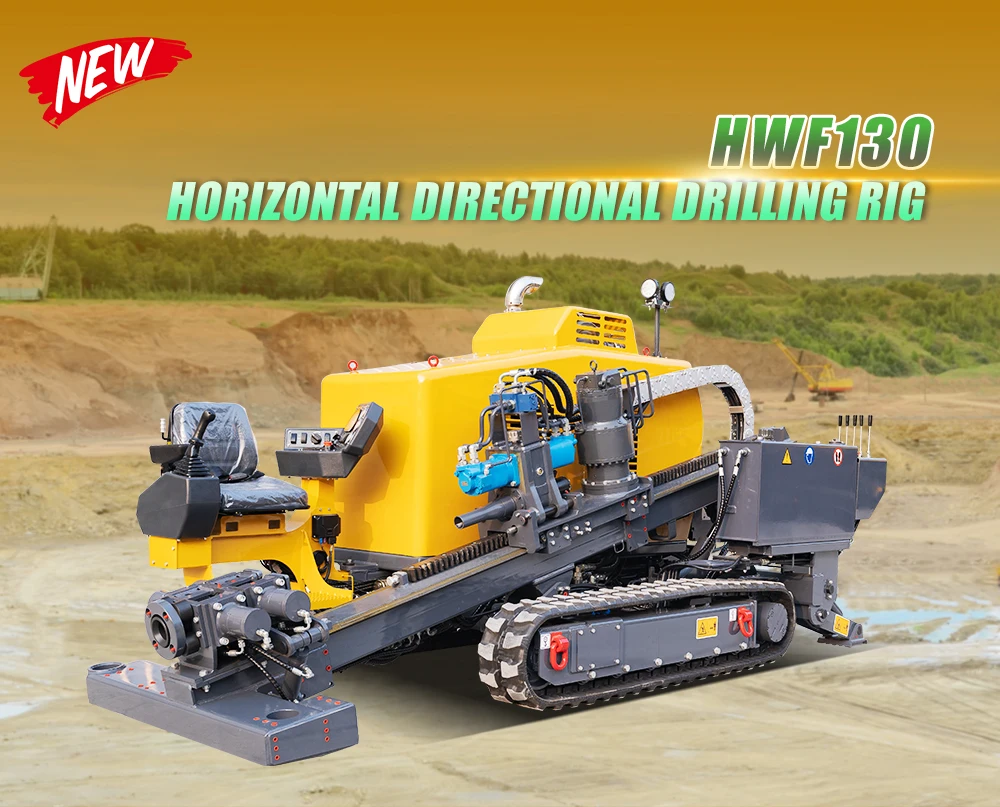

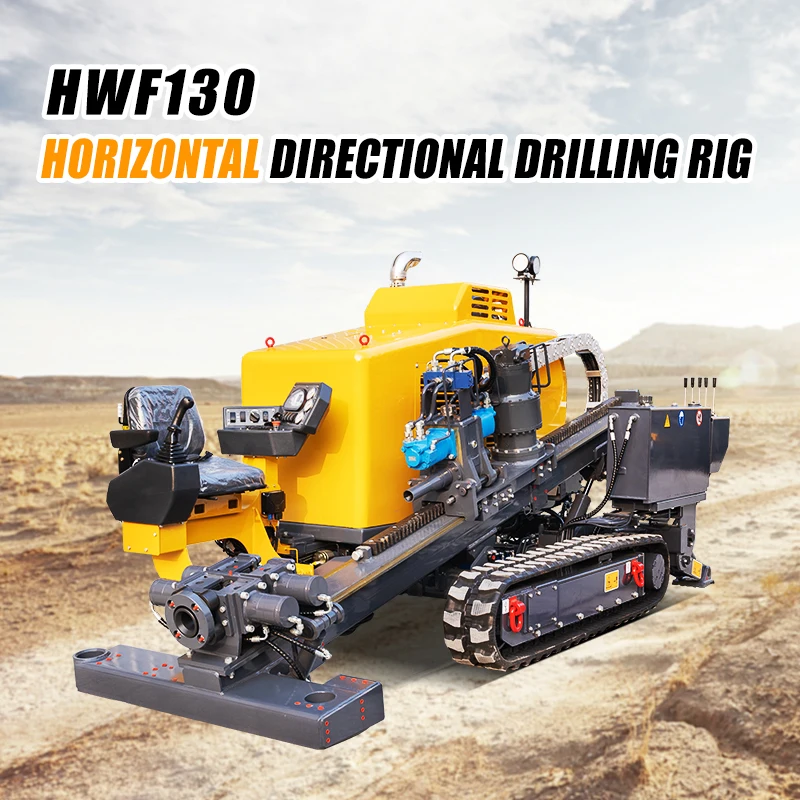

Specification for HWF130 Horizontal Directional Drilling Rig
Model
HWF130
Engine
Cummins
Dimensions(mm )
4200*1680*2170
Rated power(KW)
81
Rotary Speed(rpm)
2200
Pushing Force(KN)
135
Pulling Force(KN)
135
Torque(N·m )
3200
Maximum speed(r/min )
230
Maximum flow rate of mud pump(L/min )
100
Maximum entry angle(° )
18
Overall weight(kg)
5000
Drill pipe diameter(mm)
52/60
Drill pipe length(m )
1.8

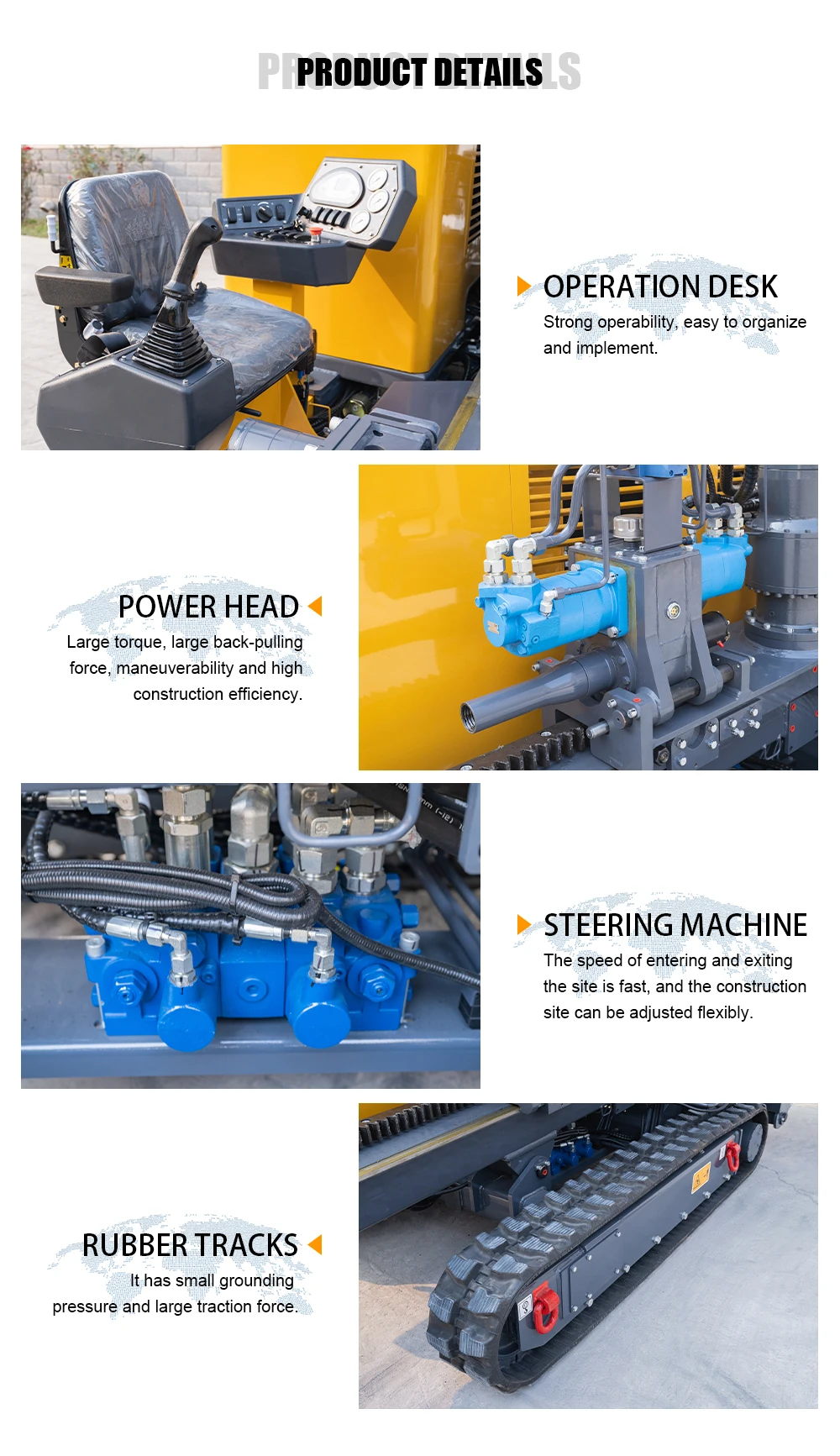

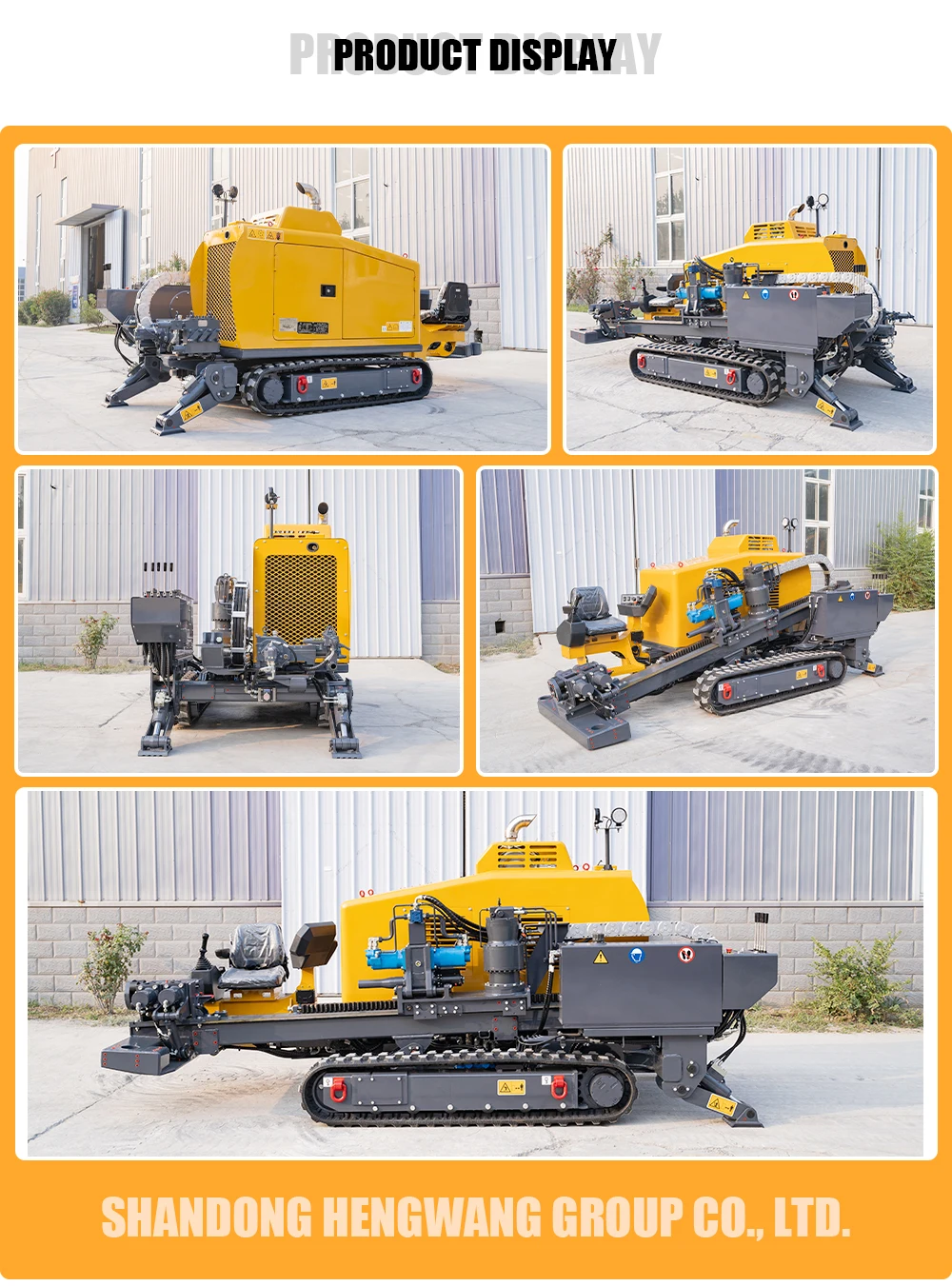

Detailed Images






Application




Hengwang Trenchless 81KW small horizontal directional drilling Rig Machine Utility Installation with Cummins Engine
